Sinotruk HOWO Hanjiang 143 hp 4X2(6 wheels) 3.4 m truck-mounted crane (Shangjun brand)

Export reference
From $30,278
MSRP ¥21.8M CNY
Emission: China V
Fuel: Diesel
Wheelbase:: 3280mm
Cab dimensions:: 5.998×2.4×3.05m
Type:: Truck with crane
GVWR:: 4.495ton
Lifting capacity: 1.8ton
Drive 4X2 (6 wheels)
Horsepower 143
Rated mass: 1.355ton

Overview

The Sinotruk HOWO Hanjiang 143 hp 4X2(6 wheels) 3.4 m truck-mounted crane (Shangjun brand) is a truck-mounted crane featuring 1.8ton tank capacity, 4.495t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 143 hp, China V emissions and Diesel fuel.

China V 143 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 5.998×2.4×3.05m
Type: Truck with crane
Drive type: 4X2
Wheelbase: 3280mm
Rated mass: 1.355ton
GVWR: 4.495ton
Front/rear suspension: 1.16/1.56m
Energy Type: Diesel
Body Parameters
Crane model: SQ1.8
Lifting capacity: 1.8ton
crane self-weight: 0.72ton
Vehicle certification code: CSJ5048JSQZZ5
Body Brand: Shangjun brand
Engine parameters
Engine Brand: Chaochai
Engine Model: ChaochaiCY4BK151
fuel type: Diesel
Displacement: 3.856L
Emission standard: China V
Max output power: 105kW
Max hp: 143Horsepower
Max torque: 500N·m
Max torque speed: 1400-1800rpm
Rated speed: 2800rpm
Chassis Specs
Chassis Brand: Sinotruk
Chassis Series: Hohan
Chassis Model: ZZ1047F3315E145
rear axle description: 2442
Axle ratio: 4.875
Leaf spring count: 3/5+3,8/9+6,11/9+7,9/12+9,11/11+7,3/3+2
Transmission Parameters
Number of gears: 6Gear
Transmission Model: WLYWLY6TS55
Tire
Tire Size: 7.00R16LT 8PR,7.50R16LT 6PR,8.25R16LT 6PR
Number of tires: 6pcs

Photos

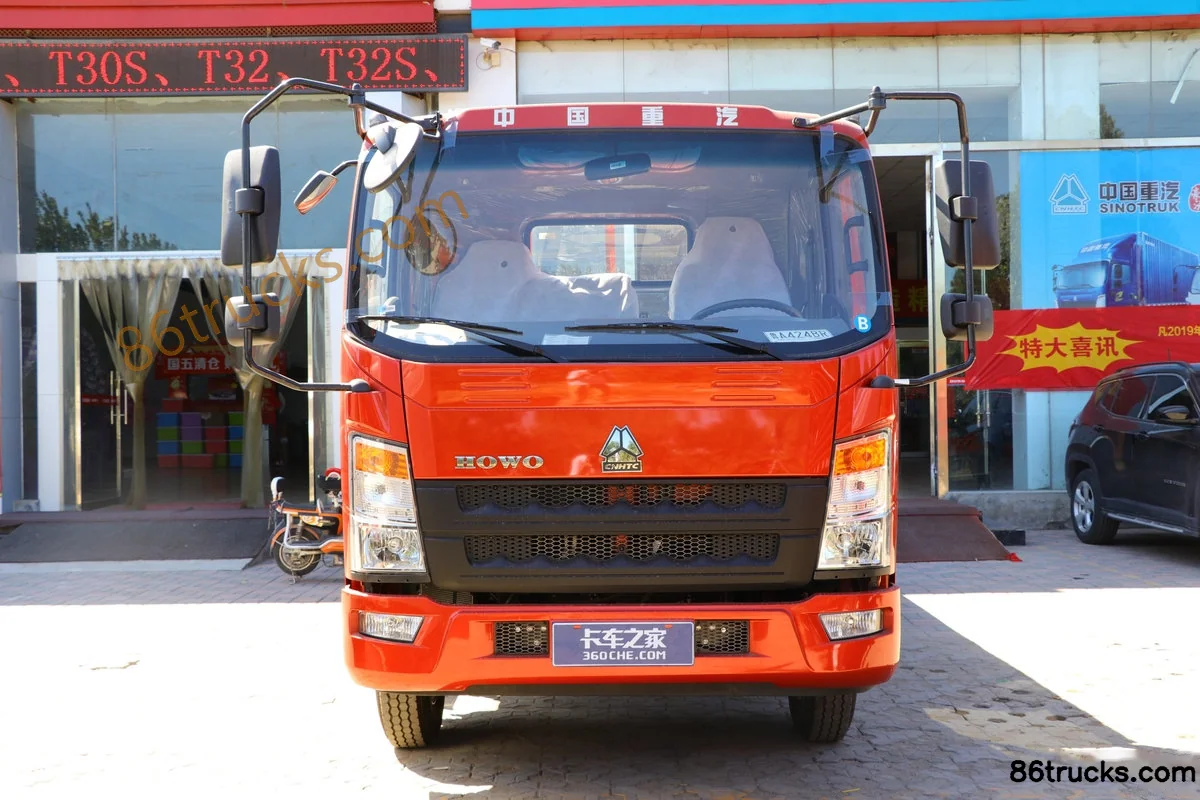

Exterior1

1 photos

FAQ

What is the export price of Sinotruk HOWO Hanjiang 143 hp 4X2(6 wheels) 3.4 m truck-mounted crane (Shangjun brand), and what does it include?

Sinotruk HOWO Hanjiang 143 hp 4X2(6 wheels) 3.4 m truck-mounted crane (Shangjun brand) export reference is about From $30,278; MSRP is ¥21.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO Hanjiang 143 hp 4X2(6 wheels) 3.4 m truck-mounted crane (Shangjun brand) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO Hanjiang 143 hp 4X2(6 wheels) 3.4 m truck-mounted crane (Shangjun brand)?

Key specs of Sinotruk HOWO Hanjiang 143 hp 4X2(6 wheels) 3.4 m truck-mounted crane (Shangjun brand): Drive: 4x2; Horsepower: 143 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO Hanjiang 143 hp 4X2(6 wheels) 3.4 m truck-mounted crane (Shangjun brand) suited for?

Sinotruk HOWO Hanjiang 143 hp 4X2(6 wheels) 3.4 m truck-mounted crane (Shangjun brand) is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Sinotruk HOWO Hanjiang 143 hp 4X2(6 wheels) 3.4 m truck-mounted crane (Shangjun brand) differ from other variants in the same series?

Sinotruk HOWO Hanjiang 143 hp 4X2(6 wheels) 3.4 m truck-mounted crane (Shangjun brand) belongs to Shangjun Sinotruk Chassis (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO Hanjiang 143 hp 4X2(6 wheels) 3.4 m truck-mounted crane (Shangjun brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO Hanjiang 143 hp 4X2(6 wheels) 3.4 m truck-mounted crane (Shangjun brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
