Foton Auman 1 Series 118hp 4X2(6 wheels) 3.2m Double Row Van Light Truck

Export reference
MSRP N/A
Horsepower: 117
Emission: China IV
Fuel: Diesel
Engine: Fukang 2.8
Transmission: JMC
Curb Weight:: 2.805ton
seating capacity: 5Personnel
Rated payload: 1.36ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Foton Auman 1 Series 118hp 4X2(6 wheels) 3.2m Double Row Van Light Truck is a Light Truck featuring 3.155m cargo length, Van body cargo body, 5Personnel volume and 1.36t payload. On the powertrain side, it comes with a Fukang 2.8 engine, 117 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 117 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5049XXY-DW
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.2m
engine: FotonISF2.8s4117V
transmission: JMCJC528
Cab length: 5.995m
Cab width: 2.2m
Cab height: 2.95m
Front track width: 1730mm
rear track: 1590mm
Curb Weight: 2.805ton
Rated payload: 1.36ton
GVWR: 4.49ton
Max. speed: 90km/h
Origin: Beijing
tonnage class: Light Truck
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF2.8s4117V
Engine info: Fukang 2.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.78L
Emission standard: China IV
Max output power: 87kW
Max hp: 117Horsepower
Max torque: 260N·m
Max torque speed: 1600-2700rpm
Rated speed: 3200rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR
Transmission Parameters
Transmission Model: JMCJC528
Transmission Brand: JMC
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.155m
Cargo box width: 1.81m
Cargo box height: 2.1m
*Cargo box interior width: 1.8099999427795
Cab parameters
seating capacity: 5Personnel
Seat rows: Double cab
fuel tank
Fuel tank capacity: 80L
Chassis Specs
rear axle description: 2690
Leaf spring count: 3+1/6+7
Tire
Tire Size: 7.00R16
Number of tires: 6pcs

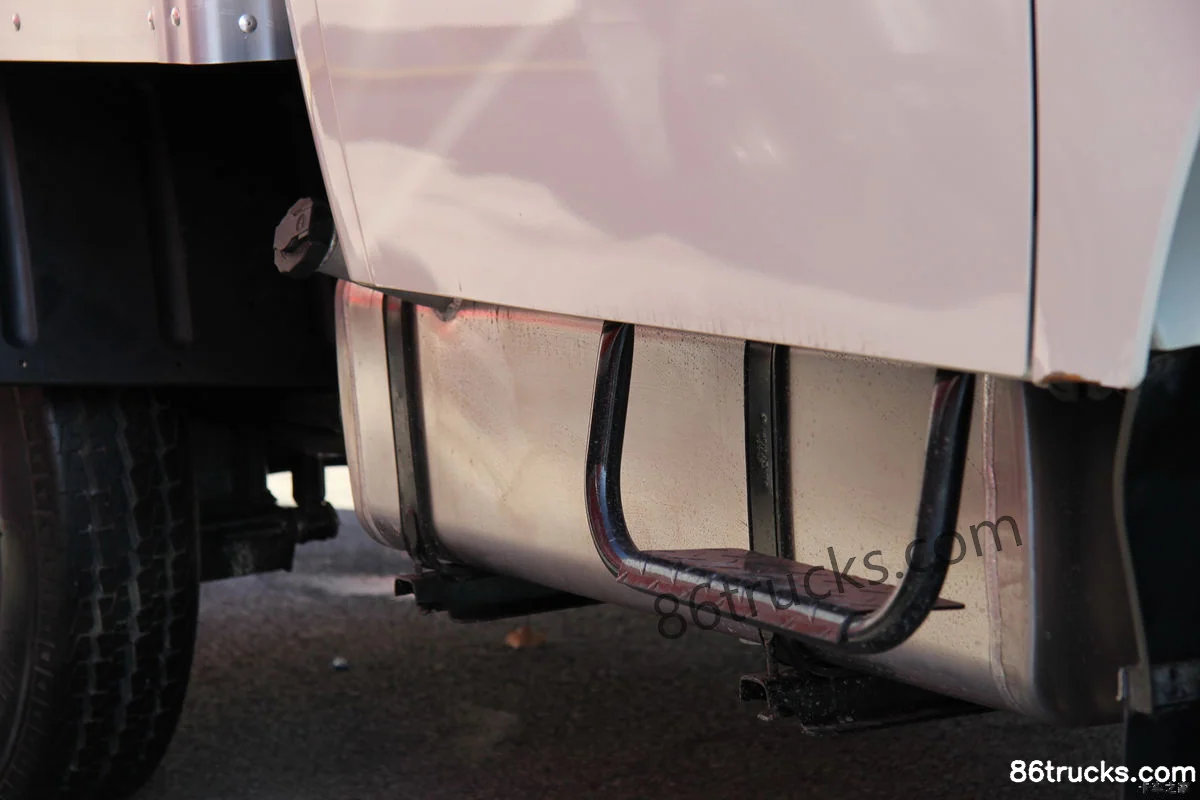

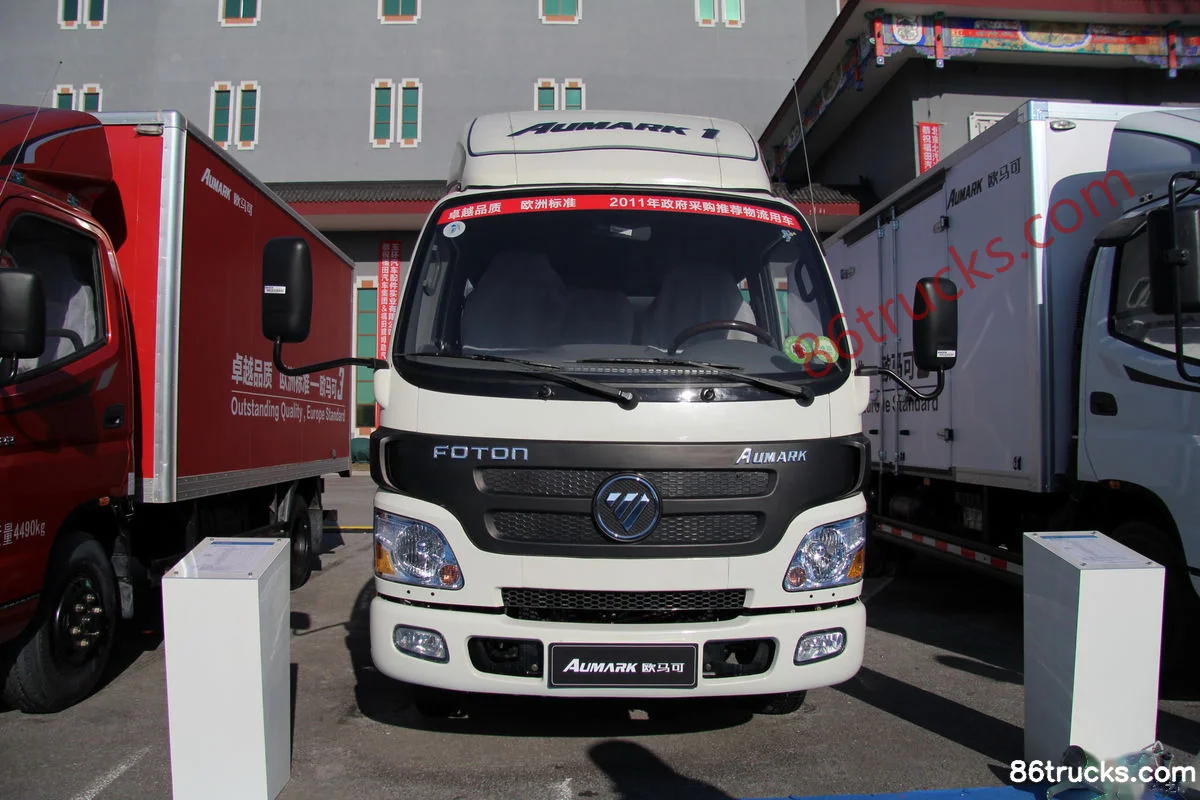

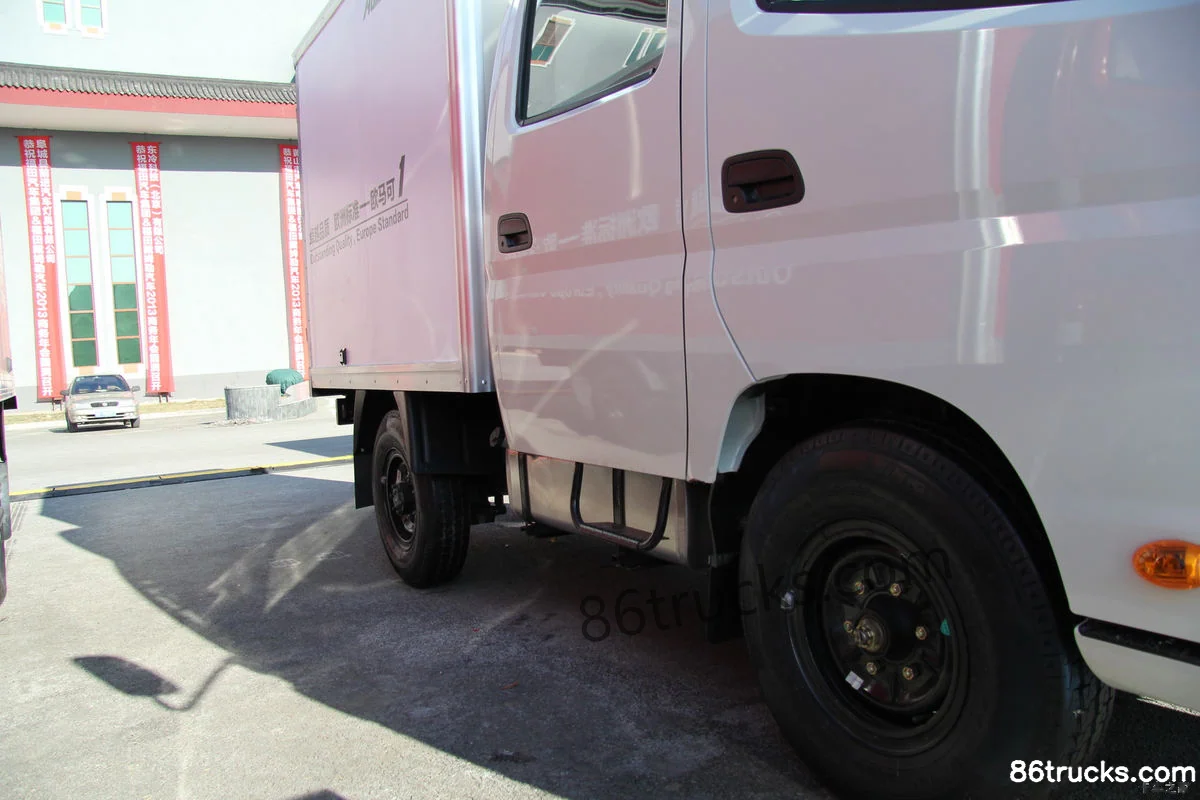

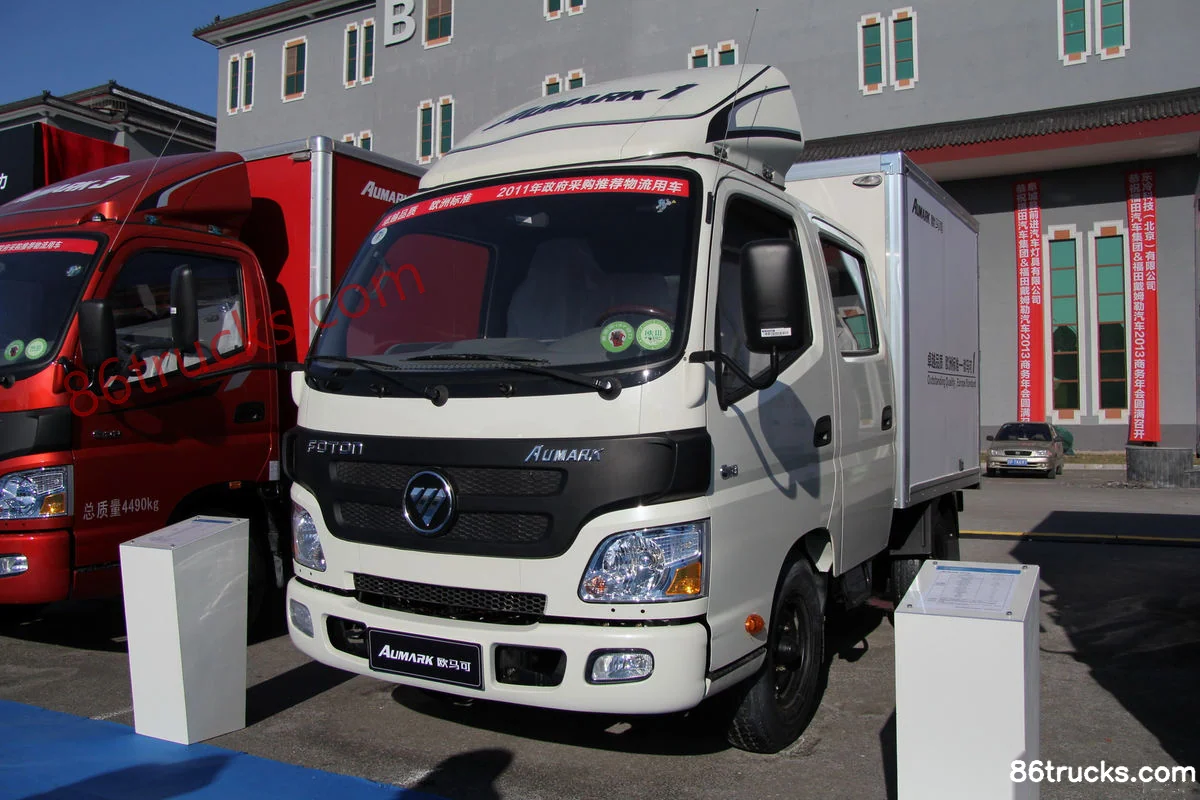

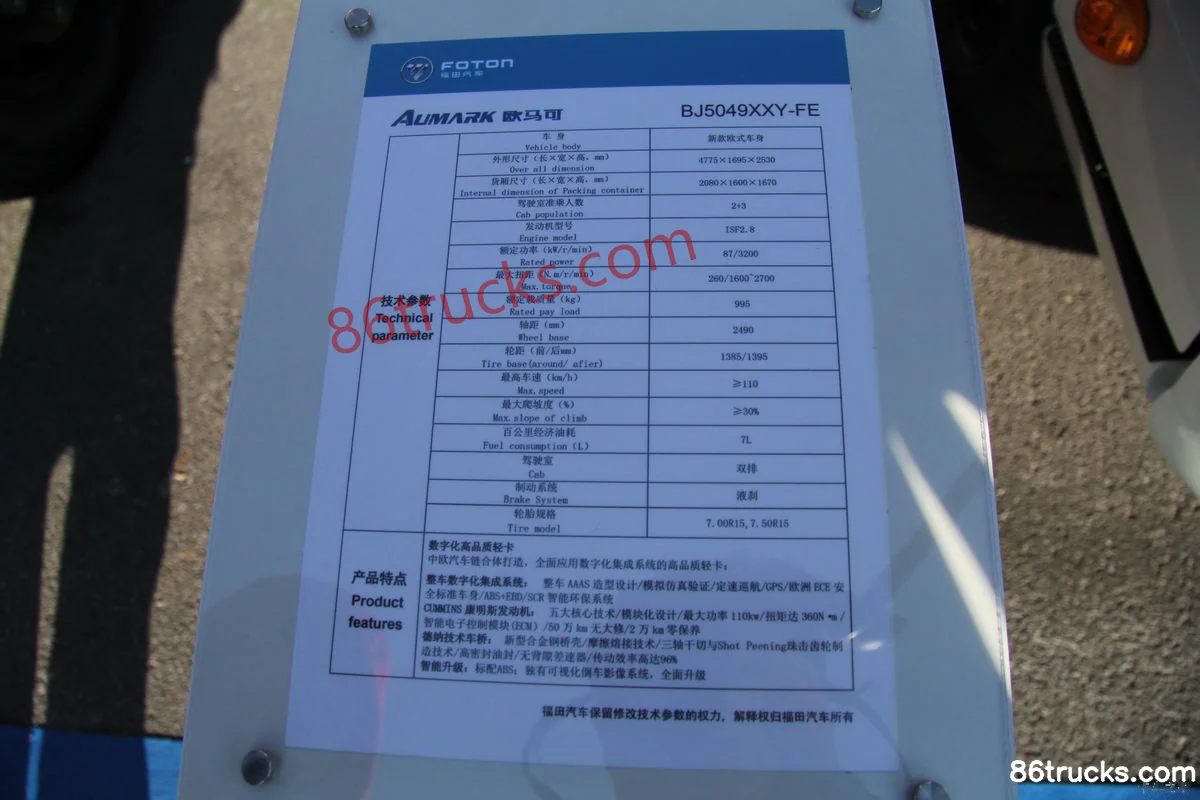

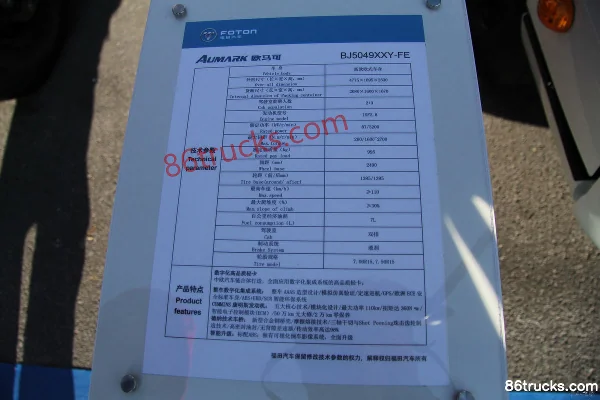

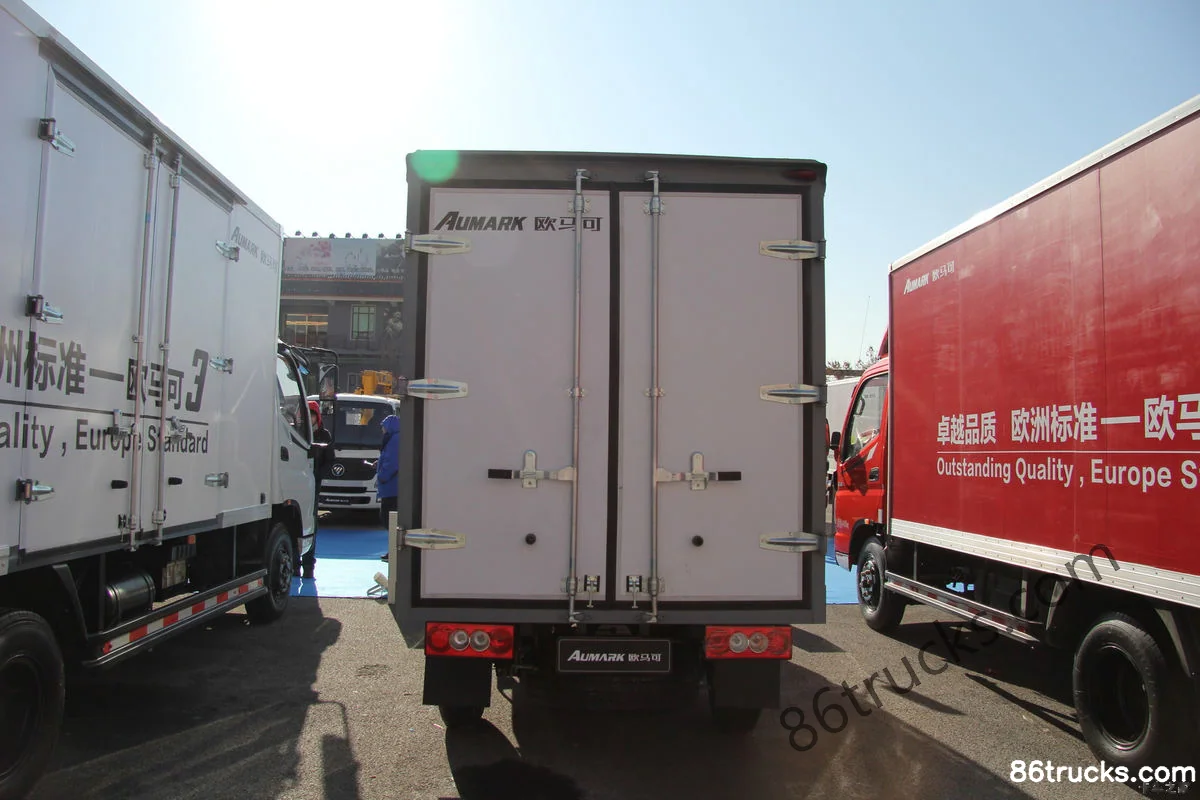

Photos

Exterior3

Cab3

6 photos

FAQ

What emission standard does Foton Auman 1 Series 118hp 4X2(6 wheels) 3.2m Double Row Van Light Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Auman 1 Series 118hp 4X2(6 wheels) 3.2m Double Row Van Light Truck?

Key specs of Foton Auman 1 Series 118hp 4X2(6 wheels) 3.2m Double Row Van Light Truck: Drive: 4x2; Horsepower: 117 hp; Emission: China IV; Fuel: Diesel; Engine: Fukang 2.8; Transmission: JMC. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Auman 1 Series 118hp 4X2(6 wheels) 3.2m Double Row Van Light Truck suited for?

Foton Auman 1 Series 118hp 4X2(6 wheels) 3.2m Double Row Van Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Auman 1 Series 118hp 4X2(6 wheels) 3.2m Double Row Van Light Truck differ from other variants in the same series?

Foton Auman 1 Series 118hp 4X2(6 wheels) 3.2m Double Row Van Light Truck belongs to Foton 1 Series Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Auman 1 Series 118hp 4X2(6 wheels) 3.2m Double Row Van Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Auman 1 Series 118hp 4X2(6 wheels) 3.2m Double Row Van Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
