SHACMAN Commercial Vehicle Deyu Q300 300hp 4X2(6 wheels) 6.8m AMT Automatic Gearbox Stake Truck

Export reference
MSRP N/A
Horsepower: 300
Emission: China VI
Fuel: Diesel
Engine: Yuchai 6-cylinder
Transmission: Fast Gear
Curb Weight:: 7.88ton
SHACMAN Commercial Vehicle Deyu Q300 300hp 4X2(6 wheels) 6.8m AMT Automatic Gearbox Stake Truck exterior
View more photos (12)
seating capacity: 3Personnel
Rated payload: 9.925ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The SHACMAN Commercial Vehicle Deyu Q300 300hp 4X2(6 wheels) 6.8m AMT Automatic Gearbox Stake Truck is a Medium-duty truck featuring 6.8m cargo length, Stake type cargo body, 3Personnel volume and 9.925t payload. On the powertrain side, it comes with a Yuchai 6-cylinder engine, 300 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 300 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): SX5186CCYMP6501
Type: stake truck
Drive type: 4X2
Wheelbase: 5000mm
Box length class: 6.8m
engine: YuchaiYCS06300-61
transmission: Fast GearF8JZ130AM
Rear Axle Ratio: 3.7
Cab length: 9m
Cab width: 2.55m
Cab height: 4m
Front track width: 1936mm
rear track: 1860mm
Curb Weight: 7.88ton
Rated payload: 9.925ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Baoji, Shaanxi
tonnage class: Medium-duty truck
Approach angle: 16°
departure angle: 12°
Front/rear suspension: 1.34/2.46m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCS06300-61
Engine info: Yuchai 6-cylinder
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.442L
Emission standard: China VI
Max output power: 221kW
Max hp: 300Horsepower
Max torque: 1200N·m
Transmission Parameters
Transmission Model: Fast GearF8JZ130AM
Transmission Brand: Fast Gear
shift method: AMT manual/auto
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 6.8m
Cargo box width: 2.45m
*Cargo box interior width: 2.45
Cab parameters
Cab width: 2240mm
Cab tilting: Electric
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 600L
Chassis Specs
Front axle description: HDZ3.6t maintenance-free
Front axle allowable load: 6500kg
Frame Dimensions: 230/7/single-layermm
rear axle description: HDZ9t single-speed/maintenance-free
rear axle allowable load: 11500kg
Axle ratio: 3.7
Leaf spring count: 7/7+3
Aluminum wheels:
Tire
Tire Size: 275/80R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Camera:
Remote key:
Electronic Central Lock:
Independent AC:
Exterior features
Air deflector:
Aluminum air tank:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Bluetooth / hands-free calling:
LCD instrument cluster:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

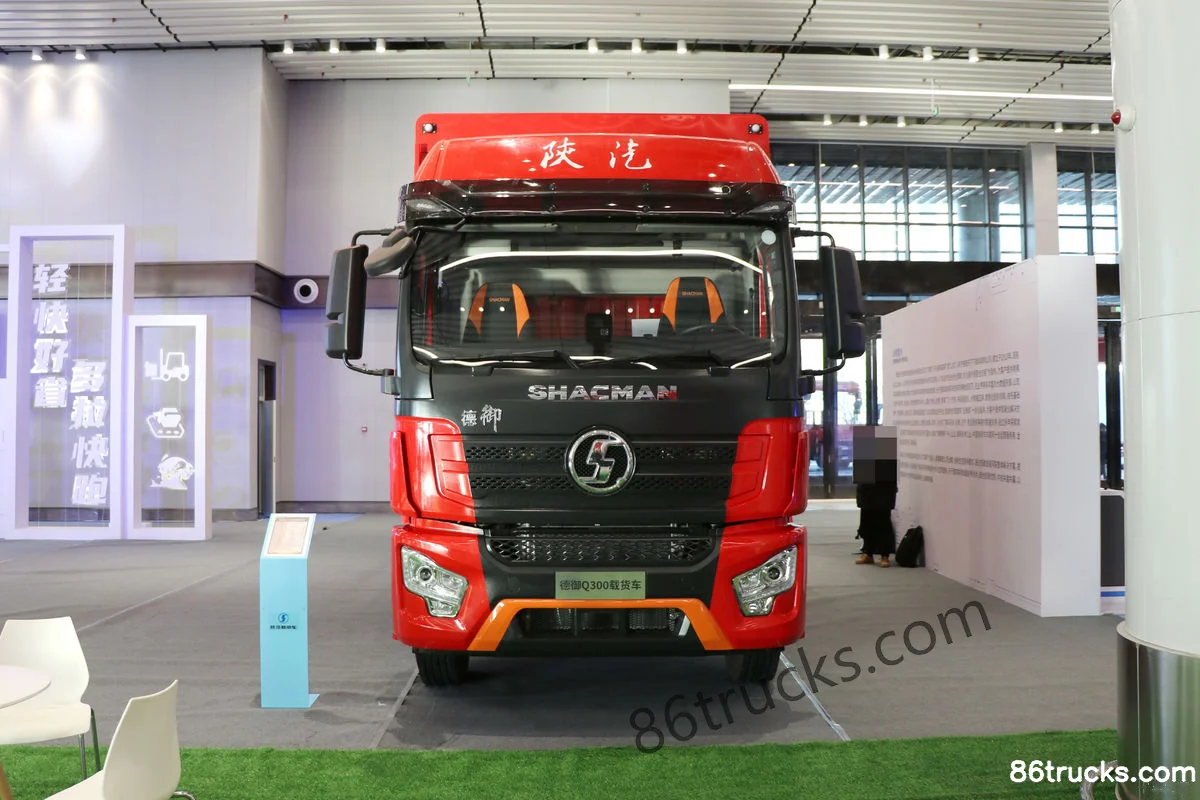

Exterior3

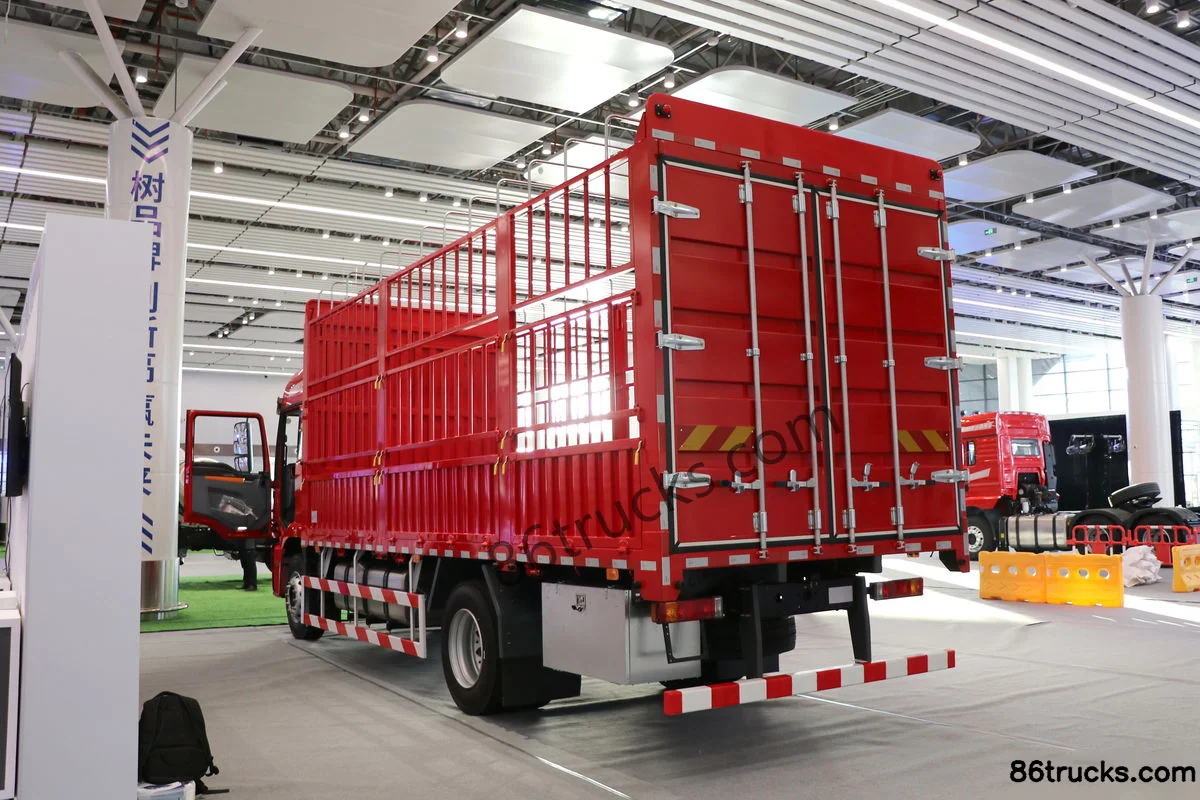

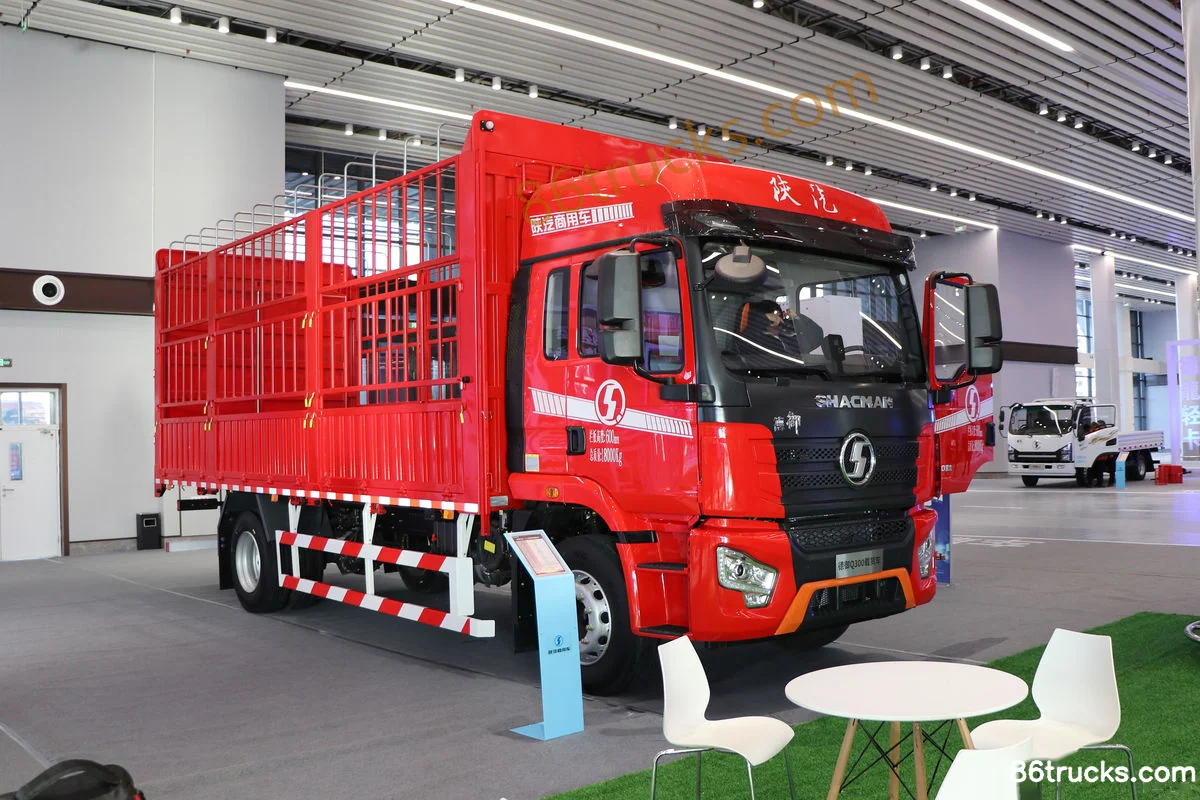

SHACMAN Commercial Vehicle Deyu Q300 300hp 4X2(6 wheels) 6.8m AMT Automatic Gearbox Stake Truck Exterior (1) | 86Trucks SHACMAN Commercial Vehicle Deyu Q300 300hp 4X2(6 wheels) 6.8m AMT Automatic Gearbox Stake Truck Exterior (2) | 86Trucks SHACMAN Commercial Vehicle Deyu Q300 300hp 4X2(6 wheels) 6.8m AMT Automatic Gearbox Stake Truck Exterior (3) | 86Trucks

Cab3

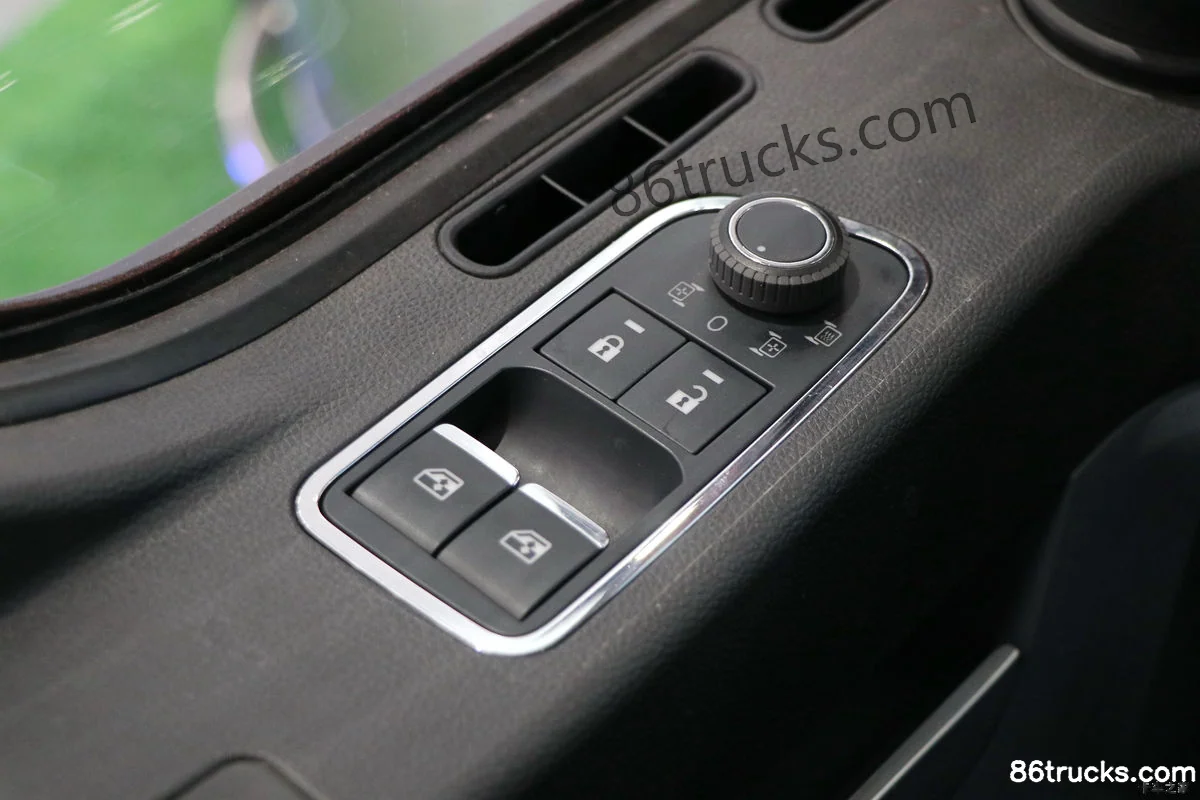

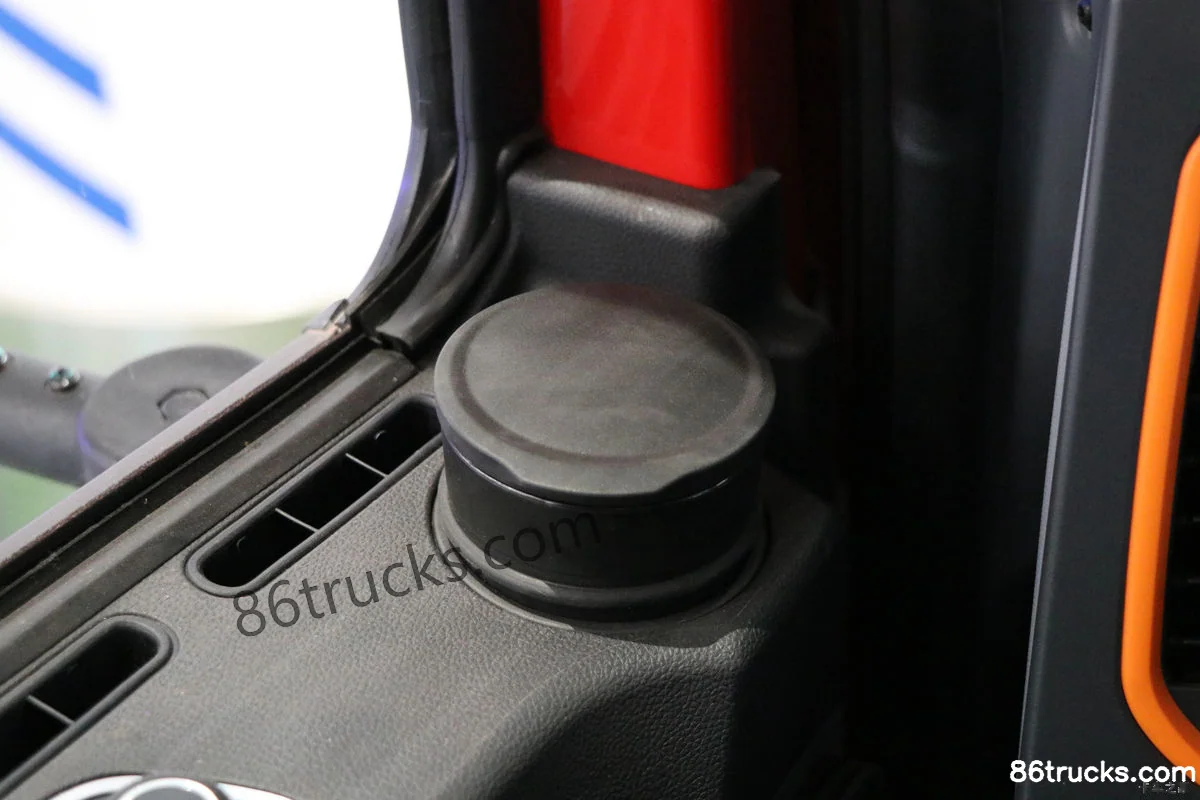

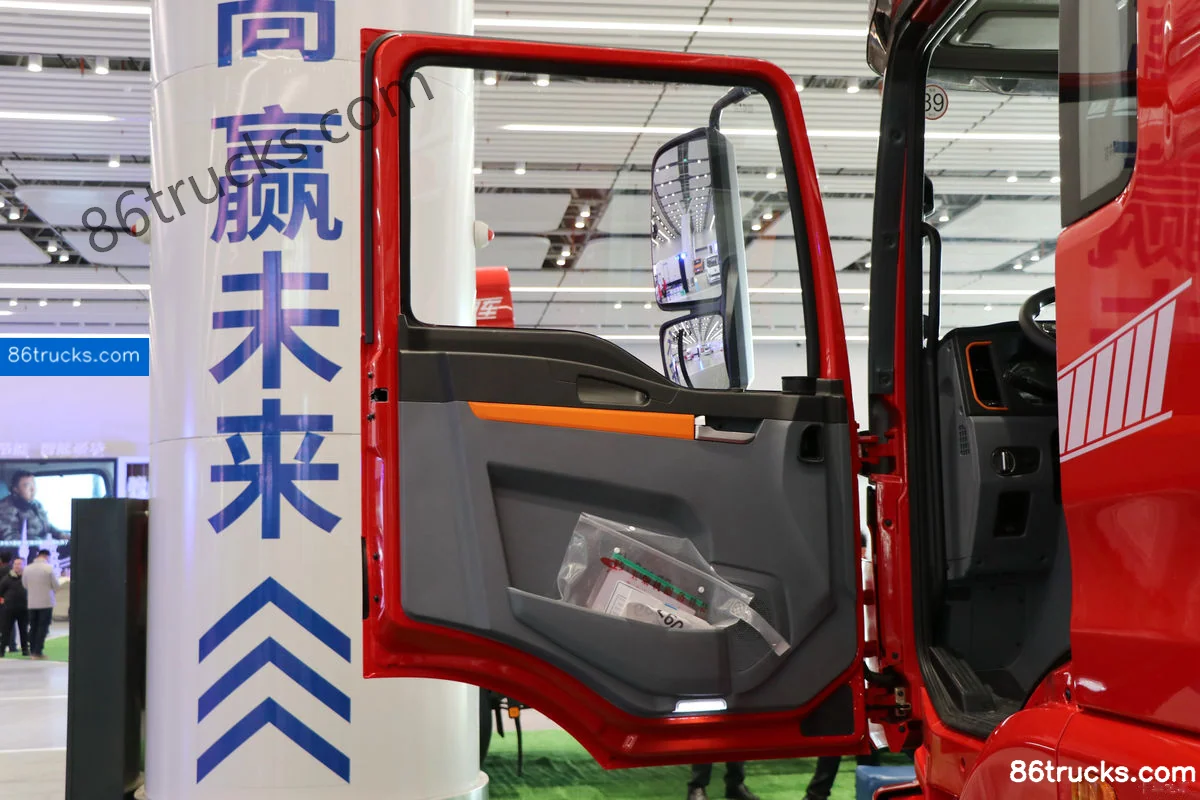

SHACMAN Commercial Vehicle Deyu Q300 300hp 4X2(6 wheels) 6.8m AMT Automatic Gearbox Stake Truck Cab (1) | 86Trucks SHACMAN Commercial Vehicle Deyu Q300 300hp 4X2(6 wheels) 6.8m AMT Automatic Gearbox Stake Truck Cab (2) | 86Trucks SHACMAN Commercial Vehicle Deyu Q300 300hp 4X2(6 wheels) 6.8m AMT Automatic Gearbox Stake Truck Cab (3) | 86Trucks

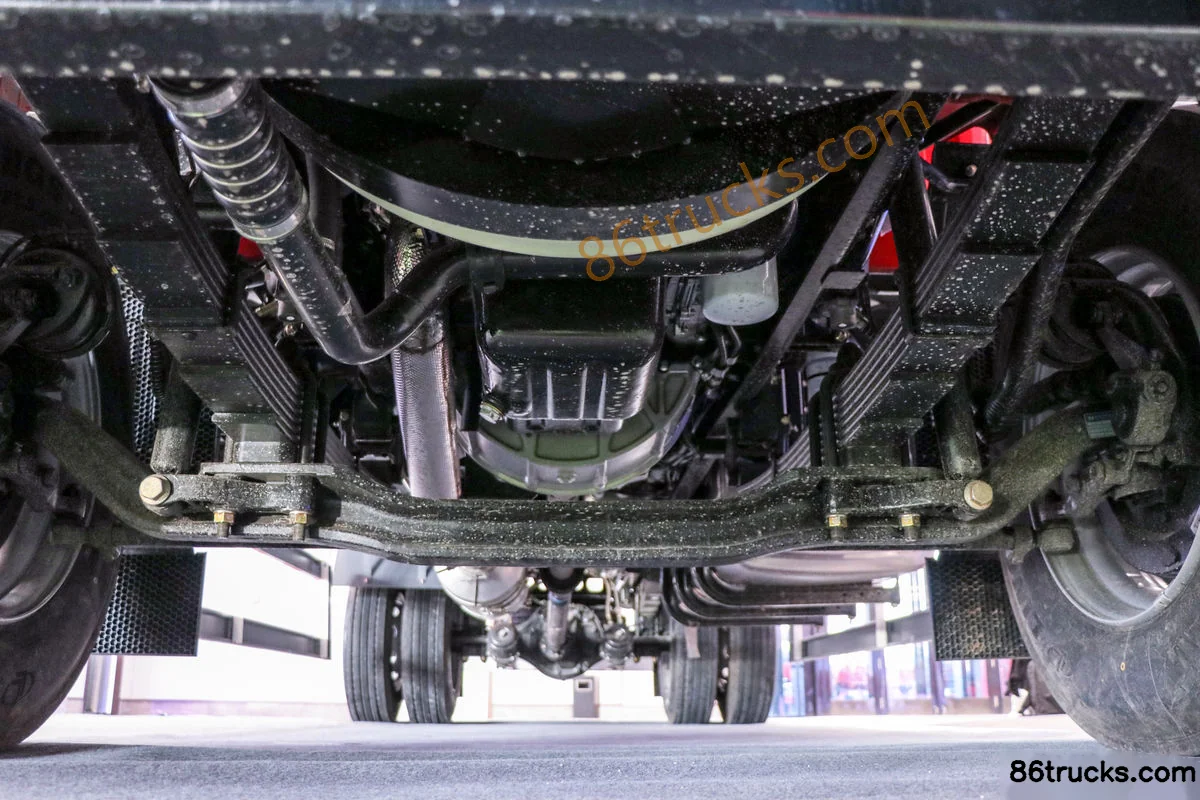

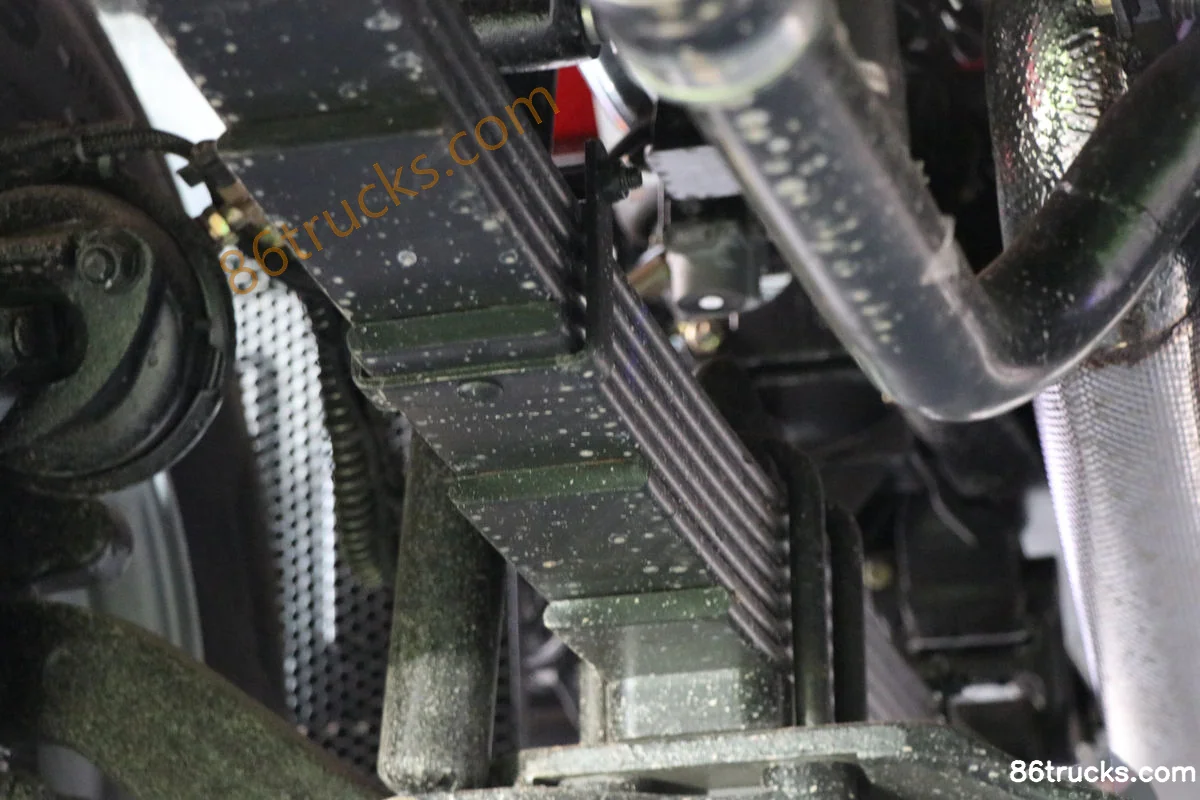

Chassis3

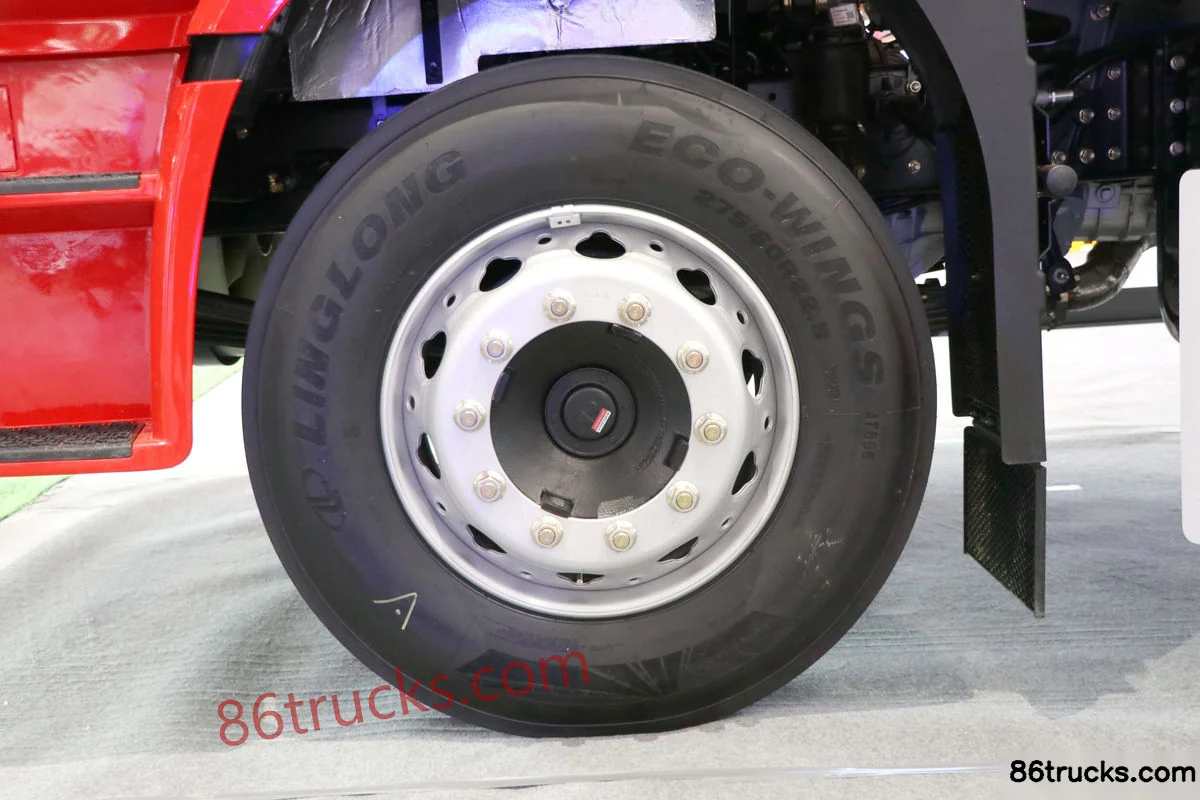

SHACMAN Commercial Vehicle Deyu Q300 300hp 4X2(6 wheels) 6.8m AMT Automatic Gearbox Stake Truck Chassis (1) | 86Trucks SHACMAN Commercial Vehicle Deyu Q300 300hp 4X2(6 wheels) 6.8m AMT Automatic Gearbox Stake Truck Chassis (2) | 86Trucks SHACMAN Commercial Vehicle Deyu Q300 300hp 4X2(6 wheels) 6.8m AMT Automatic Gearbox Stake Truck Chassis (3) | 86Trucks

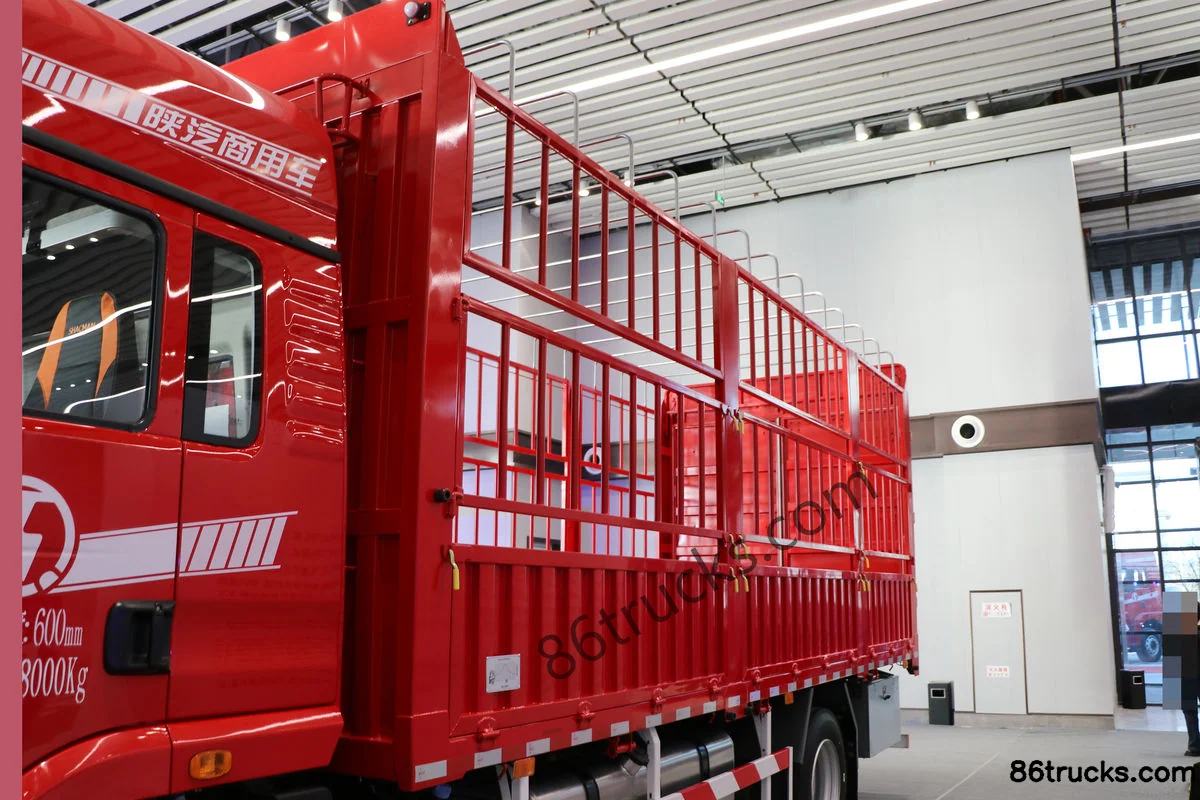

Body3

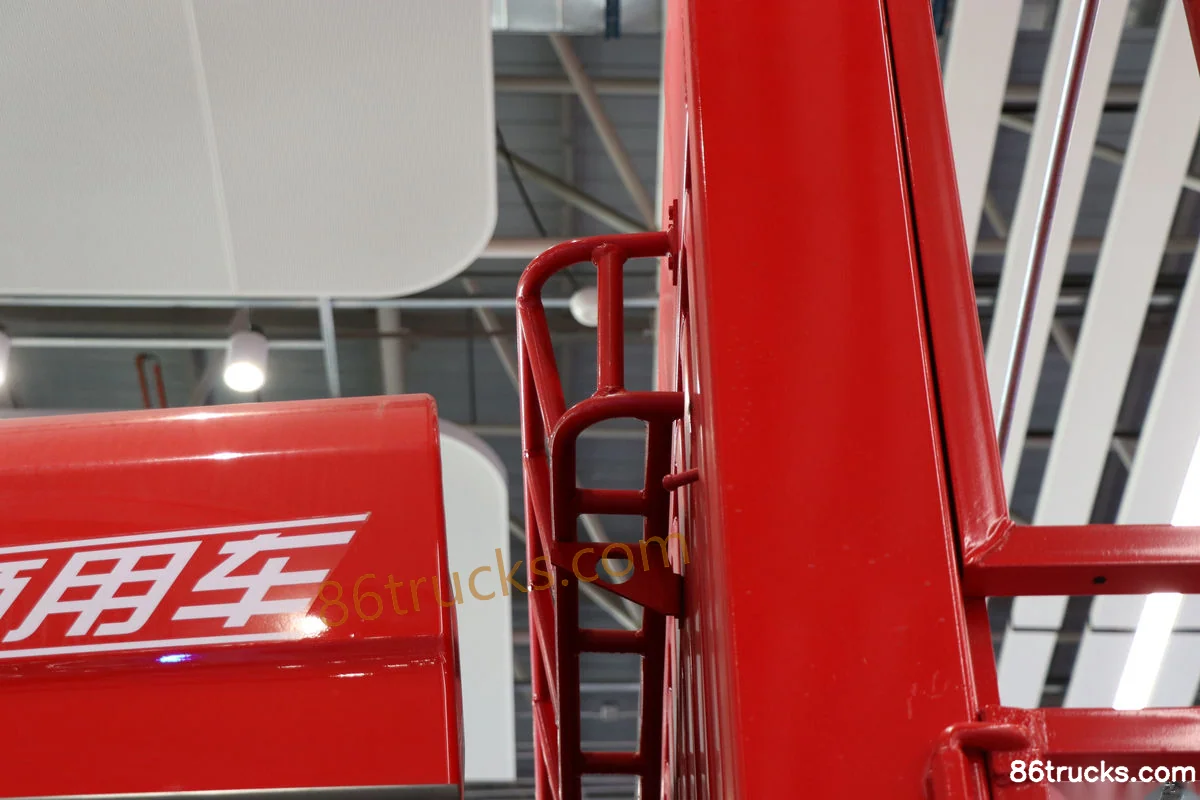

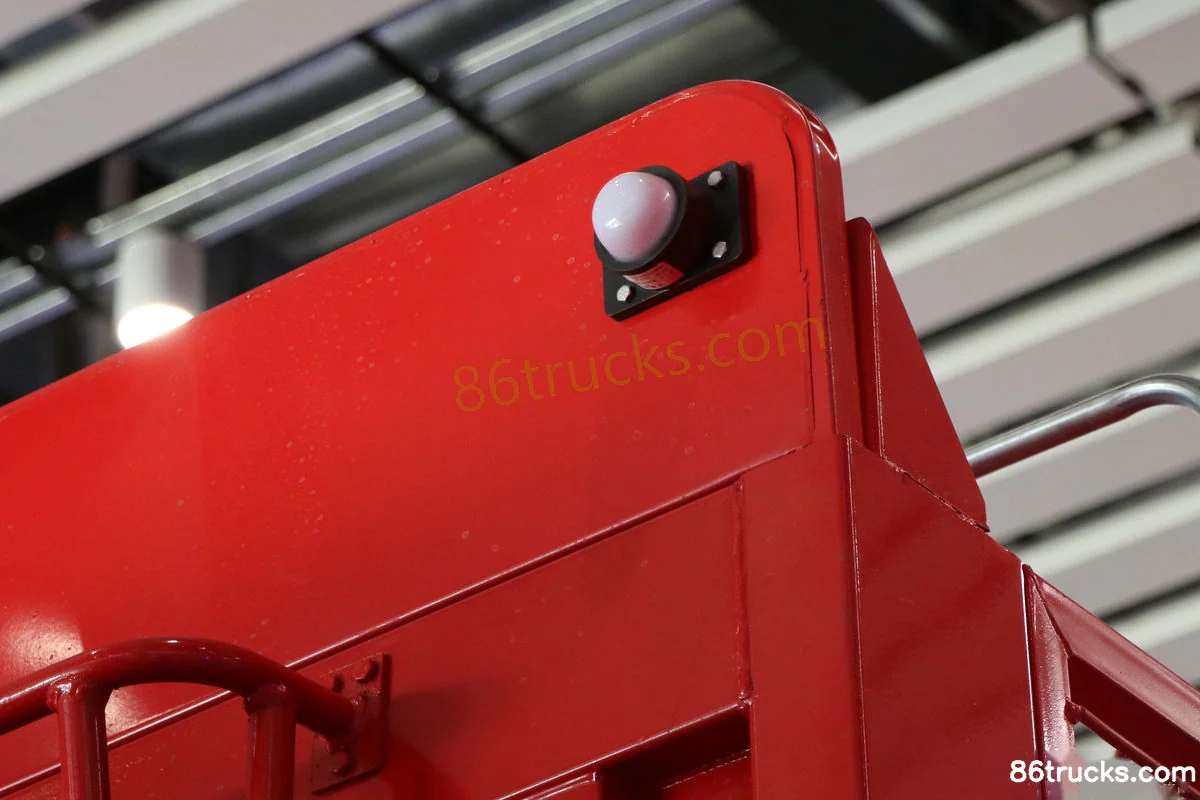

SHACMAN Commercial Vehicle Deyu Q300 300hp 4X2(6 wheels) 6.8m AMT Automatic Gearbox Stake Truck Body (1) | 86Trucks SHACMAN Commercial Vehicle Deyu Q300 300hp 4X2(6 wheels) 6.8m AMT Automatic Gearbox Stake Truck Body (2) | 86Trucks SHACMAN Commercial Vehicle Deyu Q300 300hp 4X2(6 wheels) 6.8m AMT Automatic Gearbox Stake Truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does SHACMAN Commercial Vehicle Deyu Q300 300hp 4X2(6 wheels) 6.8m AMT Automatic Gearbox Stake Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Commercial Vehicle Deyu Q300 300hp 4X2(6 wheels) 6.8m AMT Automatic Gearbox Stake Truck?

Key specs of SHACMAN Commercial Vehicle Deyu Q300 300hp 4X2(6 wheels) 6.8m AMT Automatic Gearbox Stake Truck: Drive: 4x2; Horsepower: 300 hp; Emission: China VI; Fuel: Diesel; Engine: Yuchai 6-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Commercial Vehicle Deyu Q300 300hp 4X2(6 wheels) 6.8m AMT Automatic Gearbox Stake Truck suited for?

SHACMAN Commercial Vehicle Deyu Q300 300hp 4X2(6 wheels) 6.8m AMT Automatic Gearbox Stake Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does SHACMAN Commercial Vehicle Deyu Q300 300hp 4X2(6 wheels) 6.8m AMT Automatic Gearbox Stake Truck differ from other variants in the same series?

SHACMAN Commercial Vehicle Deyu Q300 300hp 4X2(6 wheels) 6.8m AMT Automatic Gearbox Stake Truck belongs to SHACMAN Commercial Vehicle Deyu Q300 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Commercial Vehicle Deyu Q300 300hp 4X2(6 wheels) 6.8m AMT Automatic Gearbox Stake Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Commercial Vehicle Deyu Q300 300hp 4X2(6 wheels) 6.8m AMT Automatic Gearbox Stake Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
