JAC S3 All-Power Edition 2.2L Diesel 129 hp 4X2(6 wheels) Xingrui 5-speed 3.52m Half-Row Stake Micro Truck
EXW
From $12,500
Export quote
JACS3 Cargo Trucks
Main model photos
175 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC S3 All-Power Edition 2.2L Diesel 129 hp 4X2(6 wheels) Xingrui 5-speed 3.52m Half-Row Stake Micro Truck | 4x2 / 129hp / China VI | From $12,500 | |
| JAC S3 2.7L CNG 130 hp 4X2(6 wheels) JAC 5-speed 3.145m double-row stake truck | 4x2 / 130hp / China VI | From $15,389 | |
| JAC S3 2.7L CNG 130 hp 4X2(6 wheels) JAC 5-speed 3.145m double-row van light truck | 4x2 / 130hp / China VI | From $15,389 | |
| JAC S3 2.7L CNG 130 hp 4X2(6 wheels) JAC 5-speed 3.145m double-row flatbed light truck | 4x2 / 130hp / China VI | From $14,556 | |
| JAC S3 2.7L CNG 130hp 4X2(6 wheels) JAC 5-speed 3.9m semi-sleeper van truck | 4x2 / 130hp / China VI | From $13,792 |
JAC S3 2.7L CNG 130 hp 4X2(6 wheels) JAC 5-speed 3.145m double-row stake truck
EXW
From $15,389
Export quote
JAC S3 2.7L CNG 130 hp 4X2(6 wheels) JAC 5-speed 3.145m double-row van light truck
EXW
From $15,389
Export quote

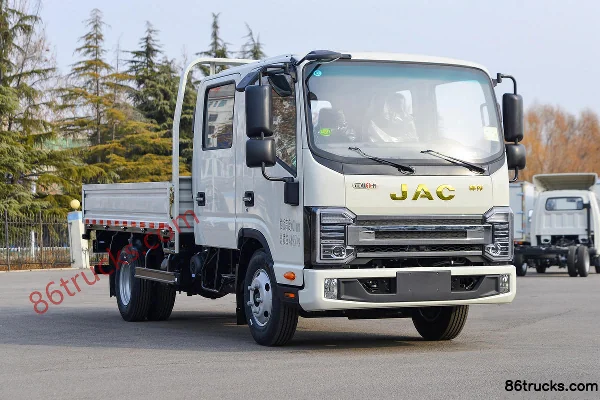

JAC S3 2.7L CNG 130 hp 4X2(6 wheels) JAC 5-speed 3.145m double-row flatbed light truck
EXW
From $14,556
Export quote
JAC S3 2.7L CNG 130hp 4X2(6 wheels) JAC 5-speed 3.9m semi-sleeper van truck
EXW
From $13,792
Export quote
Series Specs
Basic Info
Model code (announced): HFC5041CCYP73K1C7S / HFC5041CCYR53N1C7NS / HFC5041XXYR53N1C7NS / HFC1041R53N1C7NS / HFC5041XXYP33N1C7NS / HFC5041CCYP33N1C7NS / HFC1041P33N1C7NS / HFC5041XXYR73K1C7S / HFC1041R73K1C7S / HFC1041P73K1C7S / HFC5041XYKP23K1C7QS / HFC5041CCYP23K1C7QS / HFC1041P23K1C7QS / HFC1041P23K1C7QS-1 / HFC5041CCYP23K1C7QS-1 / HFC5041XXYP23K1C7QS-1 / HFC5041XXYP23K1C7QS / HFC1041P73K2C7S-1 / HFC5041CCYP73K1B4S / HFC5041CCYR73K1C7S / HFC1041R73K1C7S-1 / HFC5041XXYP73K1B4S-2 / HFC1041P73K1B4S / HFC5041XXYP73K1B4S / HFC5041XXYP73K1C7S / HFC5041XXYP73K1B4S-1 / HFC1041P73K1B4S-1
Type: stake truck / enclosed cargo truck / Cargo Trucks
Drive type: 4X2
Wheelbase: 2950 / 3600 / 3365 / 2850mm
Box length class: 3.5 / 3.2 / 3.9 / 4.2 / 3.1 / 3.8 / 3.7 / 3.4m
Engine Model: JACHFC4DB3-2E5 / QuanchaiF28N-130E63 / JACHFC4DB3-2E / Jiangxi IsuzuJE493ZLQ6M / Anhui CumminsHFC4DE3-2E5 / F28N-130E63 / HFC4DB3-2E5
Transmission Model: Xingrui ML540A / JACML525A1 / JACML532A / 5-speed gearbox / JACML540A / Xingrui LC6T450B / Xingrui ML645B / Xingrui ML532A / ML525A1 / ML540A
Rear Axle Ratio: 4.875 / 5.375 / 4.33
Cab length: 5.66 / 5.995 / 5.6 / 5.48m
Cab width: 2 / 2.11 / 2.1 / 2.015 / 2.15 / 2.2 / 2.05 / 1.925 / 1.965 / 1725 / 1900 / 1730m
Cab height: 2.885 / 3.1 / 2.35 / 2.9 / 2.26 / 3.035 / 2.33/2.28 / 2.28 / 3 / 2.22 / 2.85 / 2.33 / 2.8 / 3.135 / 2.36 / 3.05m
Front track width: 1440 / 1475 / 1450mm
rear track: 1425 / 1405 / 1475 / 1560mm
Curb Weight: 2.72 / 2.805 / 2.565 / 2.165 / 2.7 / 2.62 / 2.37 / 2.5 / 2.425 / 2.79 / 2.29ton
Rated payload: 1.645 / 1.45 / 1.365 / 1.605 / 1.495 / 1.58 / 1.735 / 1.665 / 1.745 / 1.995 / 1.56 / 1.8 / 1.245ton
GVWR: 4.495 / 3.79 / 4.125 / 4.325 / 4.245 / 4.48 / 3.665ton
Max. speed: 110km/h
Origin: Hefei, Anhui / Suining, Sichuan
tonnage class: mini truck / Light Truck
Approach angle: 21 / 22 / 20 / 15°
departure angle: 15 / 18 / 19 / 14°
market segment: Urban Distribution / General dry cargo, urban distribution
Remarks: Optional ratio 5.375 / Optional: 100L aluminum fuel tank, LED headlights, 7.00R16 8PR tubeless tires, 195/65R16LT 10PR tubeless tires, no spare tire, wide-angle mirrors, leather seat, tire pressure monitoring, / Optional 5.375 ratio. / Standard: Single battery, MP3, silicone oil clutch fan. / Optional ratio 5.375. / Optional 4.33 ratio. / Standard: new-styled cab, LED headlights, 100L aluminum fuel tank, air brake, A/C, power steering, clutch booster, MP3 silicone oil clutch fan, drum brake, ABS, self-adjusting arm, multifunction steering wheel (with entertainment control, cruise control), LED daytime running lights, aluminum air tank, power windows, central door lock, heated mirrors, 6.50R16 tubeless tires, dual battery, emission monitor + Beidou + telematics device; / Standard: LED headlights, MP3, silicone oil clutch fan, dual batteries; Optional: 5.375 ratio, 7.00R16 Double Coin tubeless tires. / Standard: MP3, viscous clutch fan, dual batteries; Optional: 5.375 ratio, deflector (low), wide-angle rearview mirror. / Standard: MP3, viscous clutch fan, dual batteries; Optional: 5.375 ratio, deflector (low). / New-styled cab, LED headlights, MP3, silicone oil fan clutch, drum brakes, dual batteries, emission monitoring; optional disc front brakes.
Front/rear suspension: 1.11/1.6 / 1.11/1.285 / 1.075/1.555 / 1.11/1.52 / 1.11/1.54m
Version: All-round version
Energy Type: Diesel / Compressed Natural Gas (CNG)
Engine parameters
Engine Brand: JAC / Quanchai / Jiangxi Isuzu / Anhui Cummins
Engine info: JAC2.2L / Quanchai2.7L / Jiangxi Isuzu2.5L / Ankang 2.5L / RuiJete 2.2L
Number of cylinders: 4cylinder
Cylinder arrangement: Inline
Displacement: 2.183 / 2.723 / 2.499L
Emission standard: China VI
Max output power: 95 / 111kW
Max hp: 129 / 130 / 150Horsepower
Max torque: 320 / 235 / 370N·m
Max torque speed: 1400-2400rpm
Rated speed: 3200rpm
Transmission Parameters
Transmission Brand: Xingrui / JAC
shift method: Manual
Forward gears: 5 / 6Gear
FAQ
What kind of truck is JAC JACS3 Cargo Trucks?
JAC JACS3 is an export-oriented Cargo Trucks lineup with about 49 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for JACS3 Cargo Trucks?
JACS3 Cargo Trucks export reference is about $11,111 – $18,861. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does JACS3 Cargo Trucks cover?
JACS3 Cargo Trucks mainly covers: Drive: 4x2; Horsepower: 129 hp / 130 hp; Emission: China VI; Fuel: Compressed Natural Gas (CNG) / Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JACS3 Cargo Trucks?
For JACS3 Cargo Trucks: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Cargo Trucks typically used for?
Cargo Trucks covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does JACS3 Cargo Trucks include?
JACS3 Cargo Trucks currently lists about 49 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JACS3 Cargo Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
