JAC S3 All-Power Edition 2.2L Diesel 129 hp 4X2(6 wheels) Xingrui 5-speed 3.52m Half-Row Stake Micro Truck

Export reference
From $12,500
MSRP ¥9M CNY
Horsepower: 129
Emission: China VI
Fuel: Diesel
Engine: JAC2.2L
Transmission: Xingrui
Curb Weight:: 2.72ton
seating capacity: 2Personnel
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The JAC S3 All-Power Edition 2.2L Diesel 129 hp 4X2(6 wheels) Xingrui 5-speed 3.52m Half-Row Stake Micro Truck is a mini truck featuring 3.52m cargo length, Stake type cargo body, 2Personnel volume and 1.645t payload. On the powertrain side, it comes with a JAC2.2L engine, 129 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 129 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5041CCYP73K1C7S
Type: stake truck
Drive type: 4X2
Wheelbase: 2950mm
Box length class: 3.5m
engine: JACHFC4DB3-2E5
transmission: Xingrui ML540A
Rear Axle Ratio: 4.875
Cab length: 5.66m
Cab width: 2m
Cab height: 2.885m
Front track width: 1440mm
rear track: 1425mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Max. speed: 110km/h
Origin: Hefei, Anhui
tonnage class: mini truck
Approach angle: 21°
departure angle: 15°
Front/rear suspension: 1.11/1.6m
Version: All-round version
Energy Type: Diesel
Engine parameters
Engine Brand: JAC
Engine Model: JACHFC4DB3-2E5
Engine info: JAC2.2L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.183L
Emission standard: China VI
Max output power: 95kW
Max hp: 129Horsepower
Max torque: 320N·m
Max torque speed: 1400-2400rpm
Rated speed: 3200rpm
Transmission Parameters
Transmission Model: Xingrui ML540A
Transmission Brand: Xingrui
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 3.52m
Cargo box width: 1.9m
Cab parameters
Cab width: 1725mm
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 80L
Chassis Specs
Front axle allowable load: 1700kg
rear axle allowable load: 2795kg
Axle ratio: 4.875
Leaf spring count: 5/4+3
Tire
Tire Size: 6.50R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Seat material: Fabric
Reverse Camera:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
LCD instrument cluster:
lighting configuration
daytime running lights:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

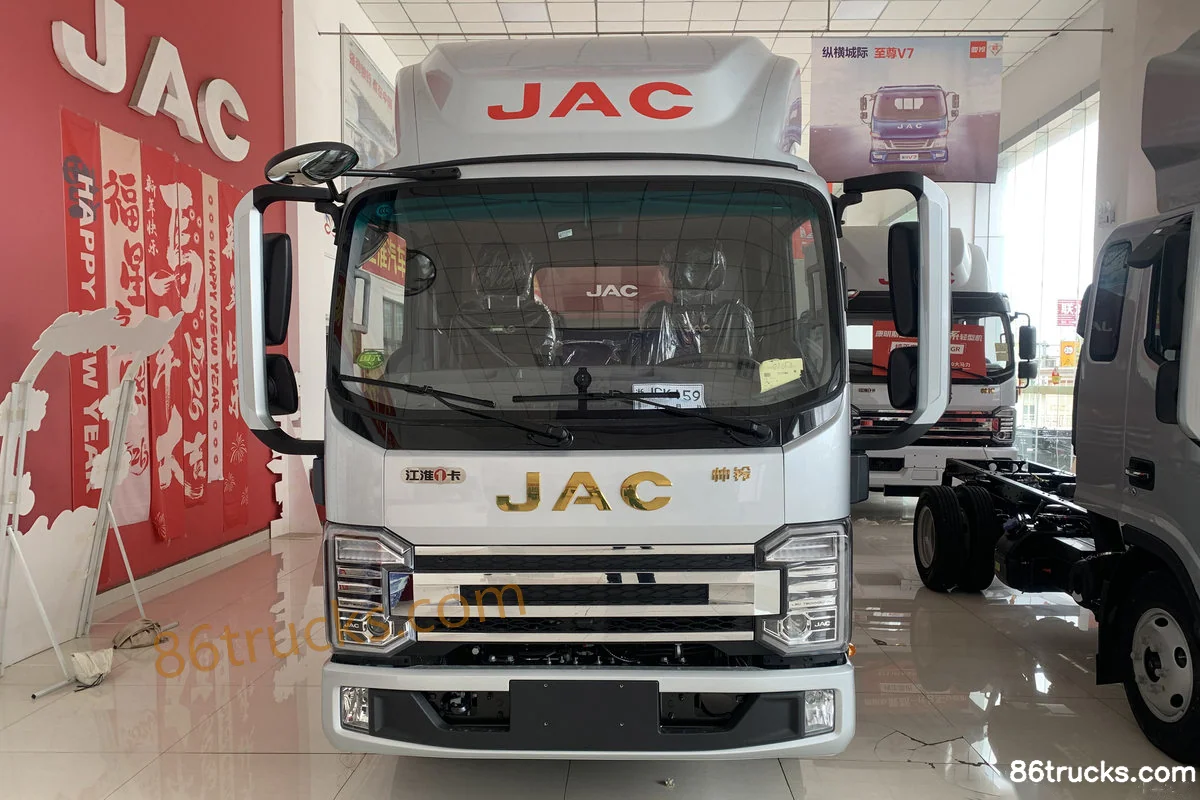

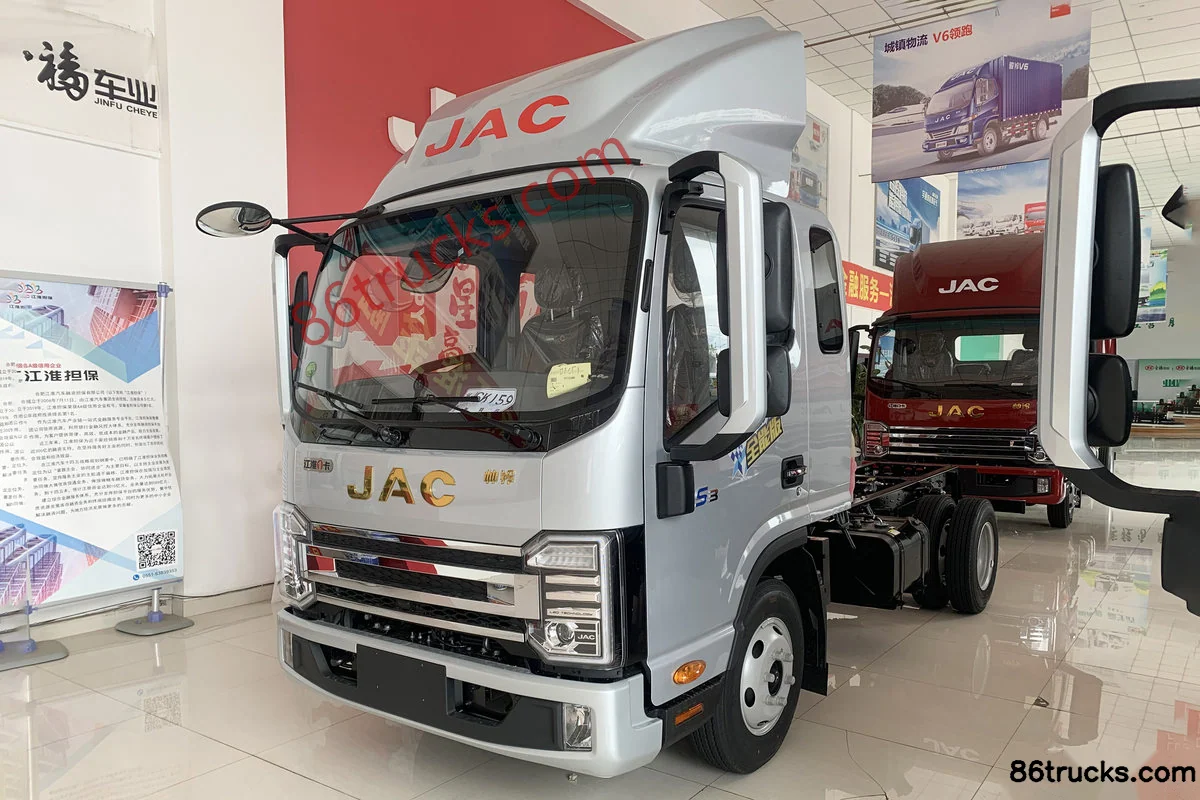

Exterior3

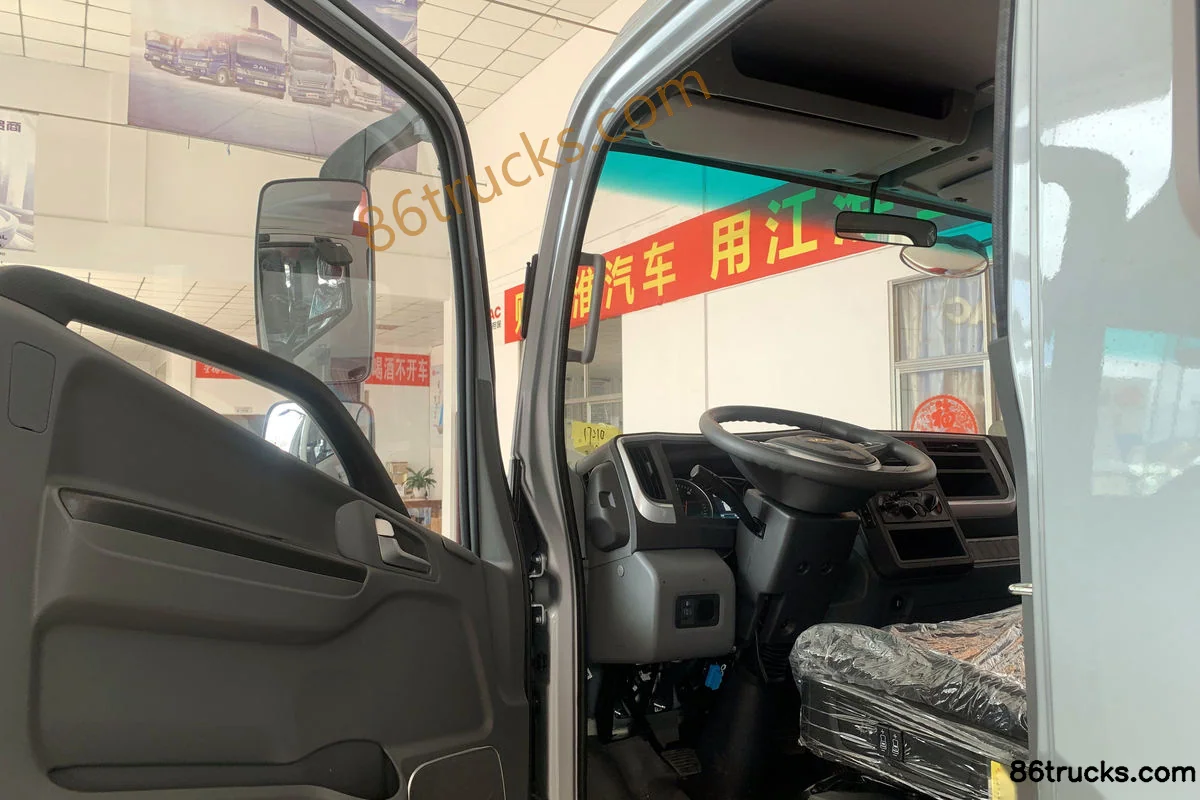

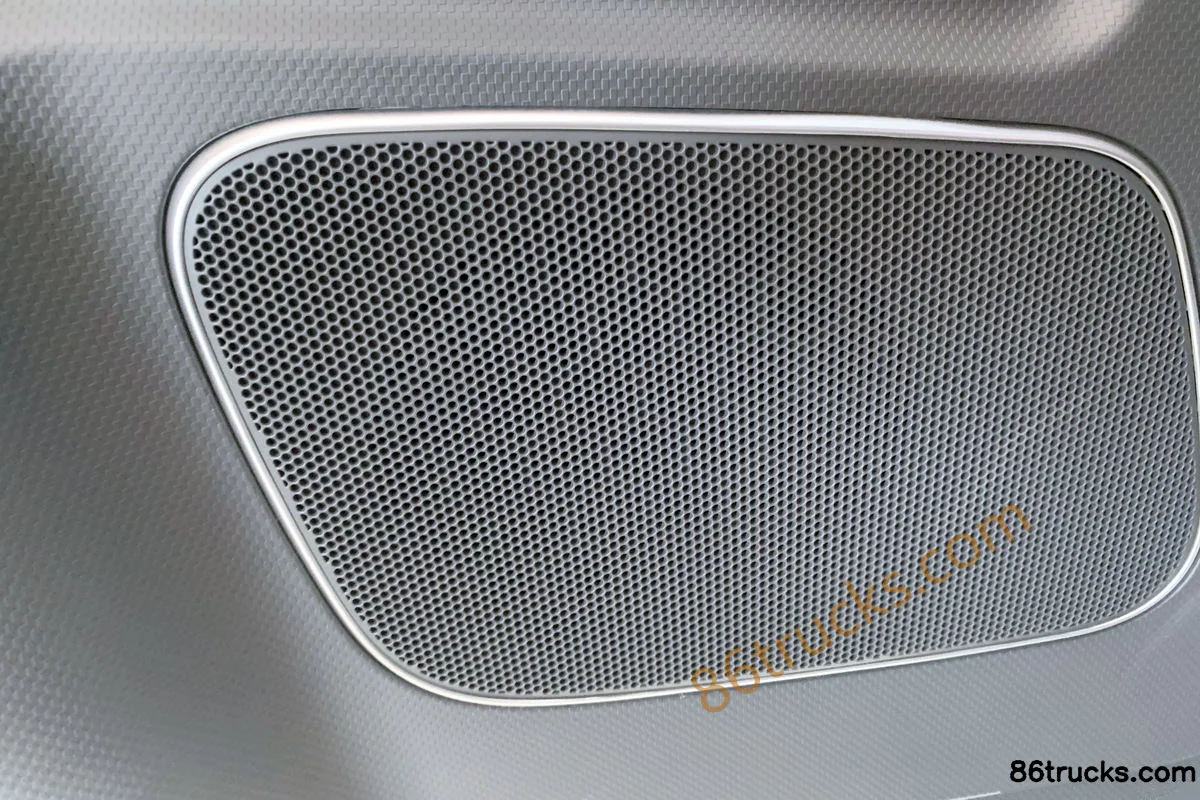

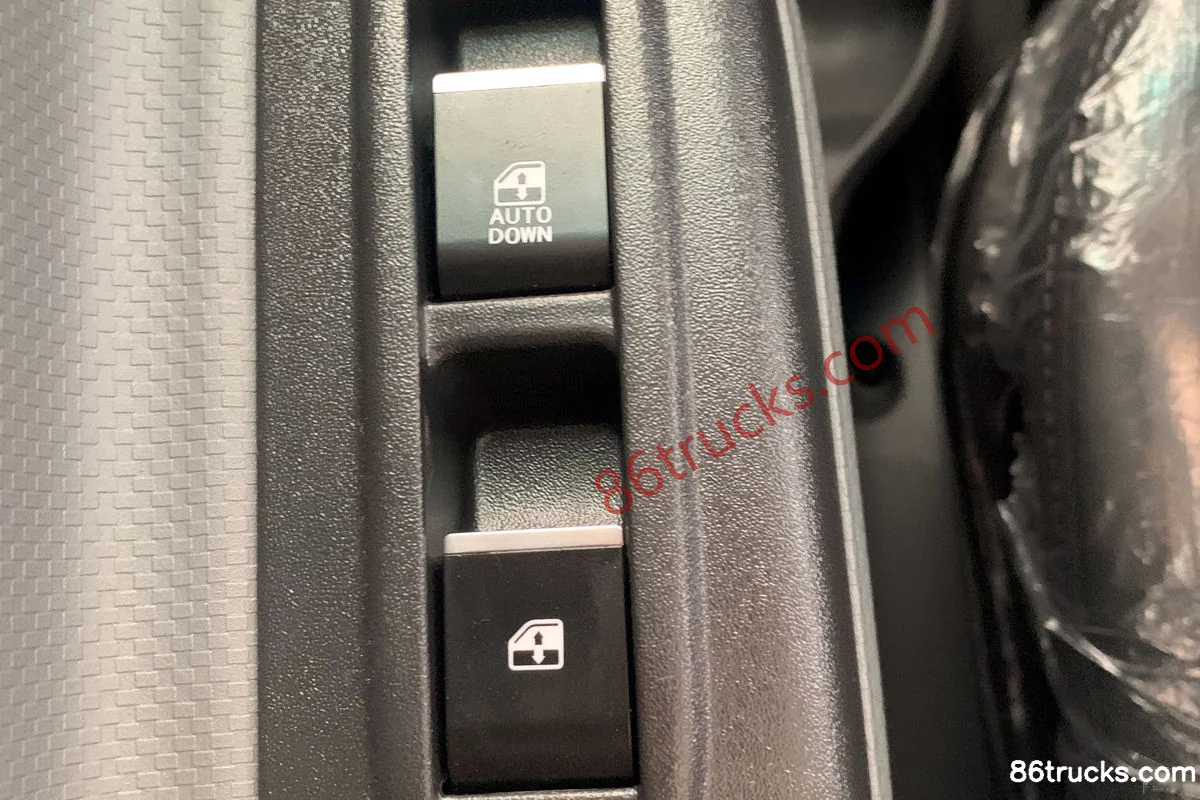

Cab3

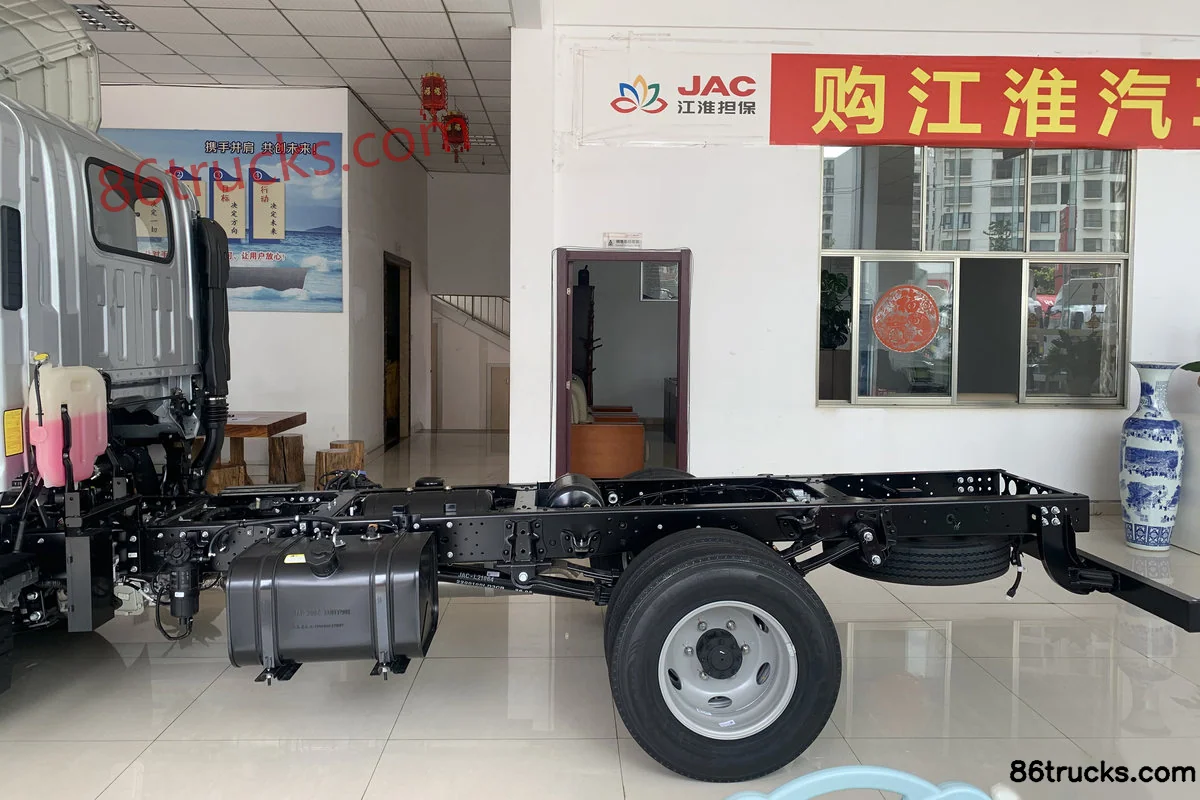

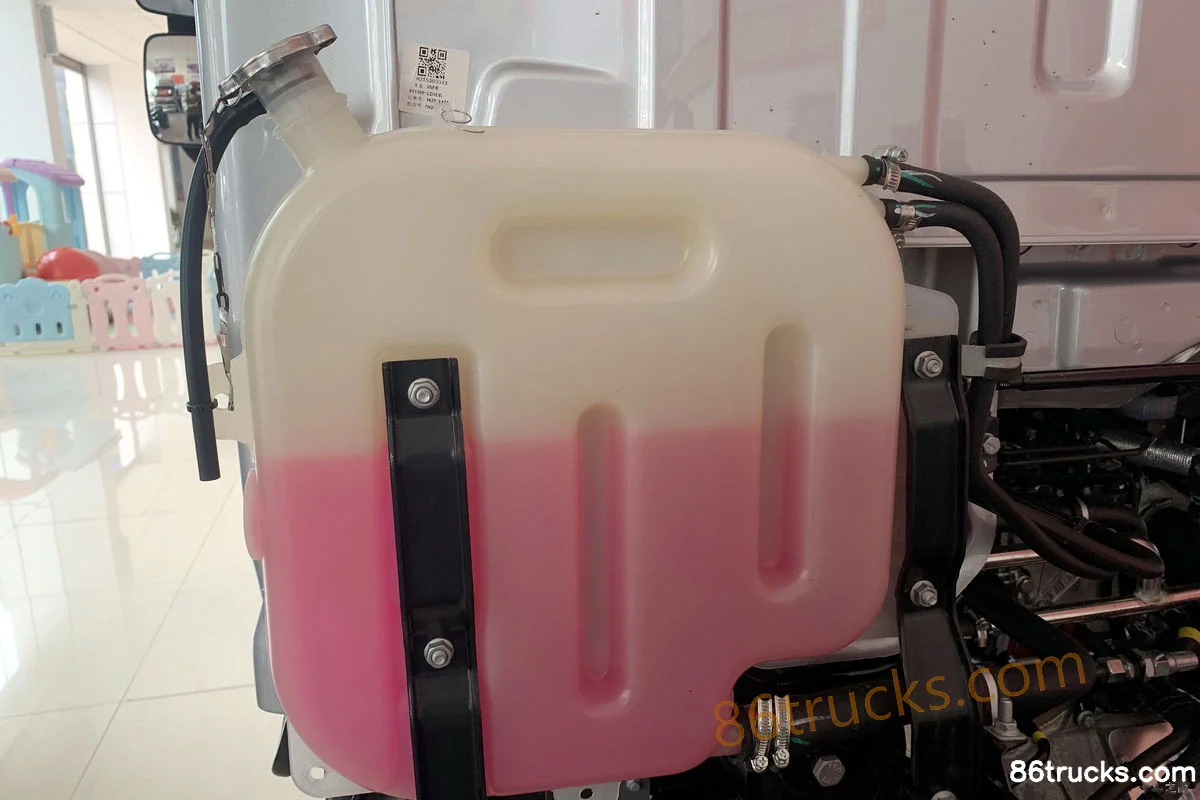

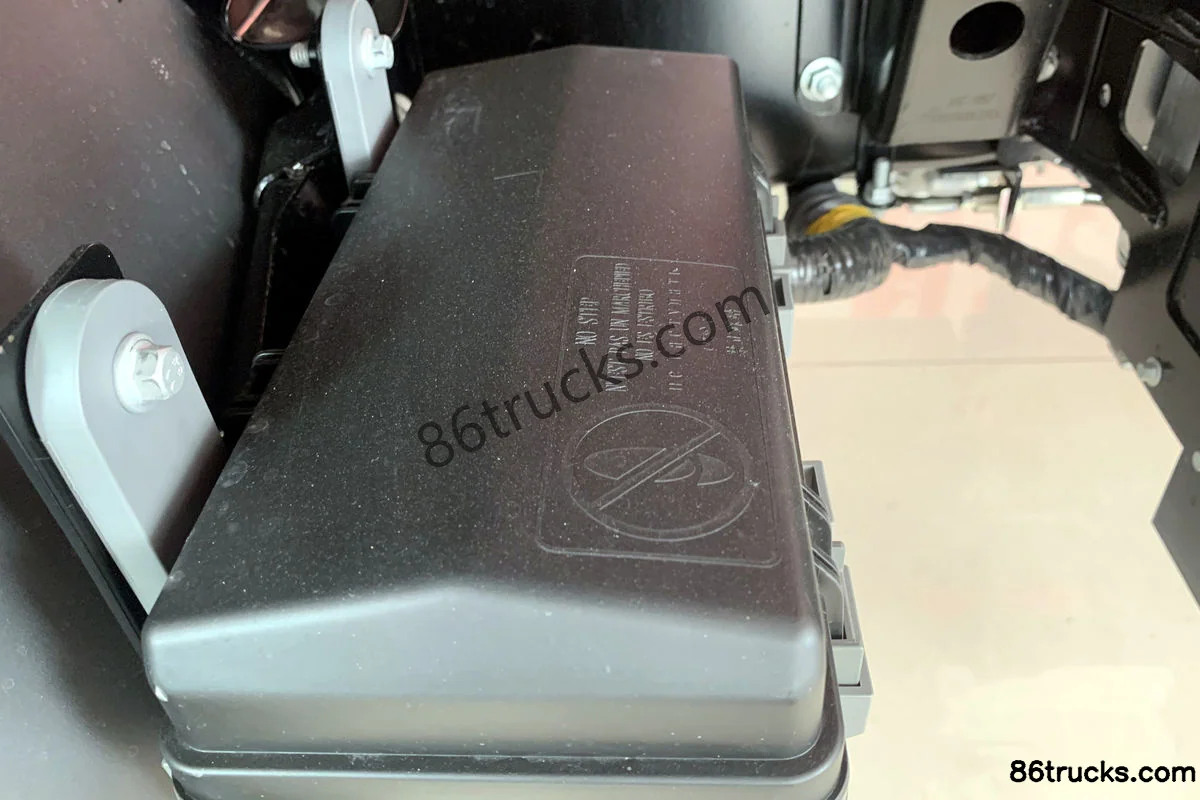

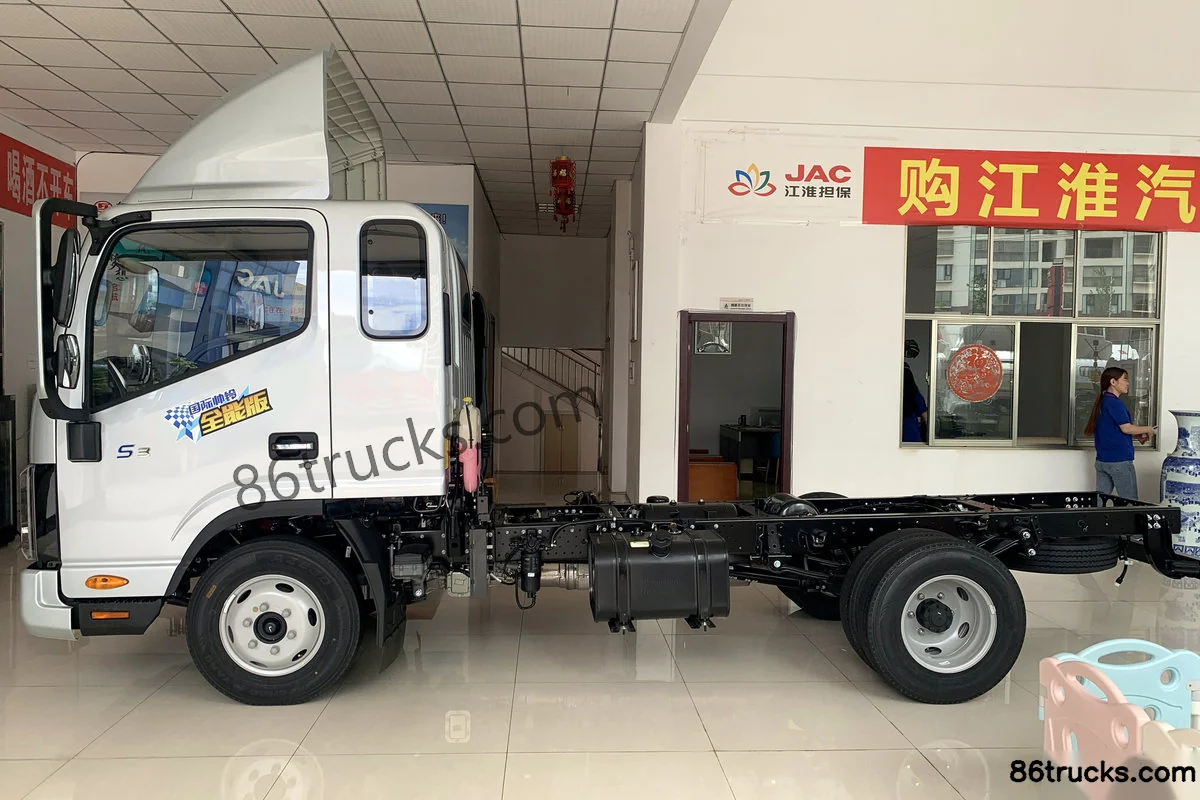

Chassis3

9 photos

FAQ

What is the export price of JAC S3 All-Power Edition 2.2L Diesel 129 hp 4X2(6 wheels) Xingrui 5-speed 3.52m Half-Row Stake Micro Truck, and what does it include?

JAC S3 All-Power Edition 2.2L Diesel 129 hp 4X2(6 wheels) Xingrui 5-speed 3.52m Half-Row Stake Micro Truck export reference is about From $12,500; MSRP is ¥9M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC S3 All-Power Edition 2.2L Diesel 129 hp 4X2(6 wheels) Xingrui 5-speed 3.52m Half-Row Stake Micro Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC S3 All-Power Edition 2.2L Diesel 129 hp 4X2(6 wheels) Xingrui 5-speed 3.52m Half-Row Stake Micro Truck?

Key specs of JAC S3 All-Power Edition 2.2L Diesel 129 hp 4X2(6 wheels) Xingrui 5-speed 3.52m Half-Row Stake Micro Truck: Drive: 4x2; Horsepower: 129 hp; Emission: China VI; Fuel: Diesel; Engine: JAC2.2L; Transmission: Xingrui. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC S3 All-Power Edition 2.2L Diesel 129 hp 4X2(6 wheels) Xingrui 5-speed 3.52m Half-Row Stake Micro Truck suited for?

JAC S3 All-Power Edition 2.2L Diesel 129 hp 4X2(6 wheels) Xingrui 5-speed 3.52m Half-Row Stake Micro Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC S3 All-Power Edition 2.2L Diesel 129 hp 4X2(6 wheels) Xingrui 5-speed 3.52m Half-Row Stake Micro Truck differ from other variants in the same series?

JAC S3 All-Power Edition 2.2L Diesel 129 hp 4X2(6 wheels) Xingrui 5-speed 3.52m Half-Row Stake Micro Truck belongs to JACS3 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC S3 All-Power Edition 2.2L Diesel 129 hp 4X2(6 wheels) Xingrui 5-speed 3.52m Half-Row Stake Micro Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC S3 All-Power Edition 2.2L Diesel 129 hp 4X2(6 wheels) Xingrui 5-speed 3.52m Half-Row Stake Micro Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
