JAC Kangling H6 170 hp 4X2(6 wheels) 4.15m single-row van light truck (Chaochai)

Export reference
From $15,347
MSRP ¥11.05M CNY
Horsepower: 170
Emission: China V
Fuel: Diesel
Engine: Chaochai4SK
Transmission: Fast Gear
Curb Weight:: 2.805ton
seating capacity: 3Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JAC Kangling H6 170 hp 4X2(6 wheels) 4.15m single-row van light truck (Chaochai) is a Light Truck featuring 4.15m cargo length, Van body cargo body, 3Personnel volume and 1.495t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a Chaochai4SK engine, 170 hp, 4X2 (6 wheels) drive and China V emissions.

China V 170 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5043XXYP91K9C2V
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 4.2m
engine: ChaochaiCY4SK151
transmission: Fast Gear8JS75TC
Cab length: 5.995m
Cab width: 2.45m
Cab height: 3.3m
Front track width: 1685mm
rear track: 1785mm
Curb Weight: 2.805ton
Rated payload: 1.495ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 22°
departure angle: 18°
market segment: Urban Distribution
Front/rear suspension: 1.1/1.587m
Energy Type: Diesel
Engine parameters
Engine Brand: Chaochai
Engine Model: ChaochaiCY4SK151
Engine info: Chaochai4SK
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.856L
Emission standard: China V
Max output power: 125kW
Max hp: 170Horsepower
Max torque: 600N·m
Max torque speed: 1300-1800rpm
Rated speed: 2600rpm
Engine Type: Inline 4-cylinder, water-cooled, turbocharged & intercooled, electronic high-pressure common rail, SCR
Transmission Parameters
Transmission Model: Fast Gear8JS75TC
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.15m
Cargo box width: 2.3m
Cargo box height: 2.2m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab: Kangling H6
Cab width: 1995mm
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1620kg
rear axle allowable load: 2875kg
Leaf spring count: 9/9+7
Tire
Tire Size: 8.25R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
AC control type: Optional manual.
Power Windows:
Electronic Central Lock:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Exhaust brake:

Photos

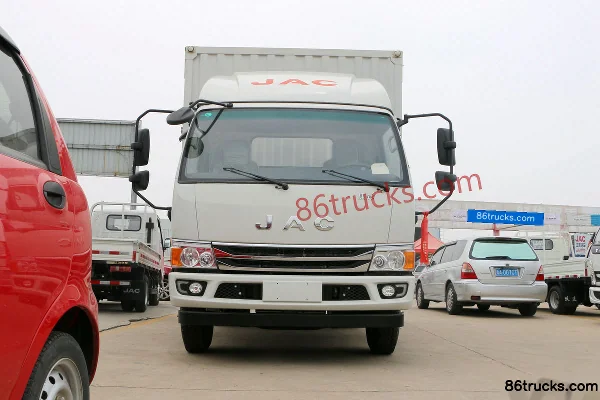

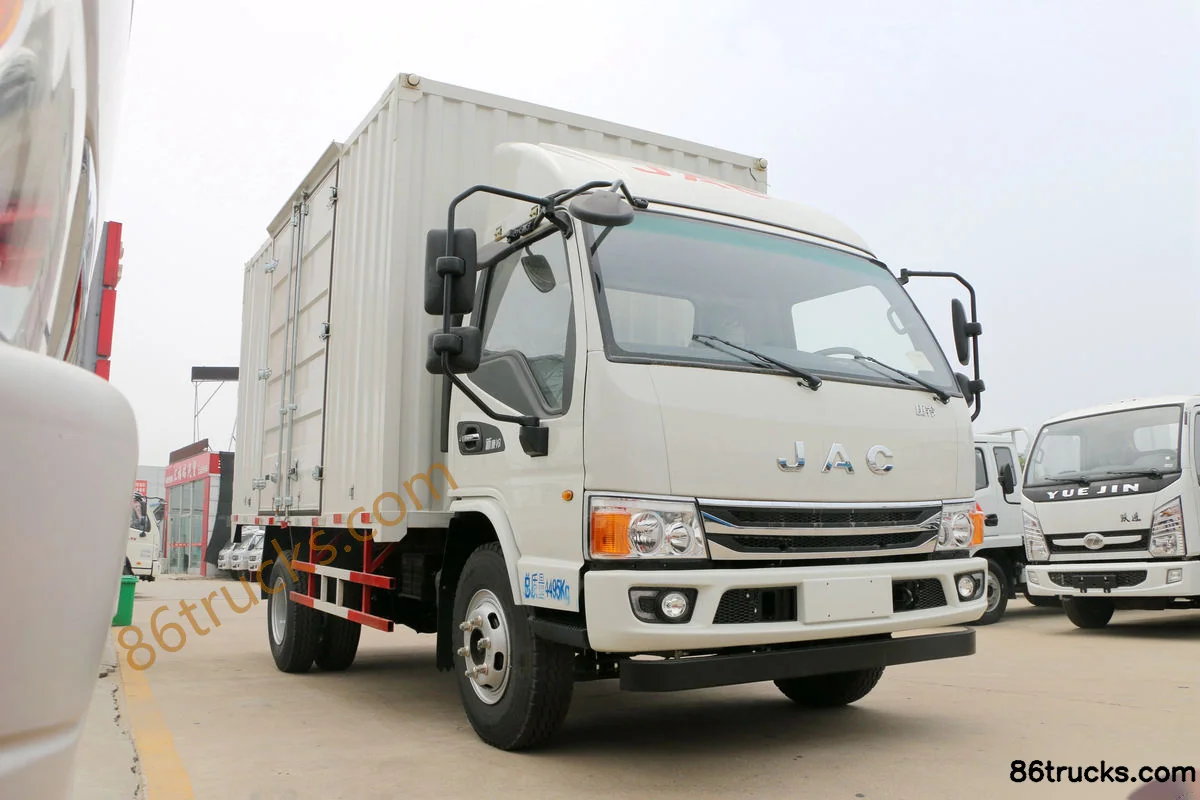

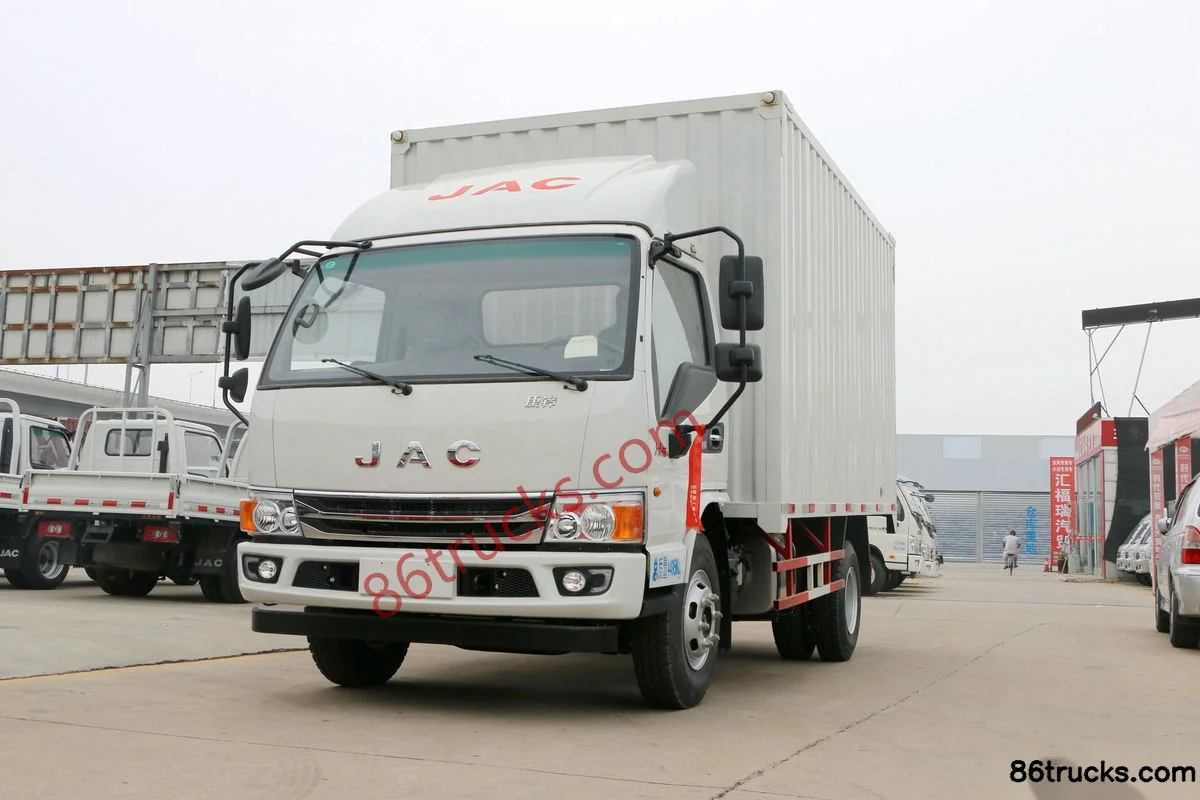

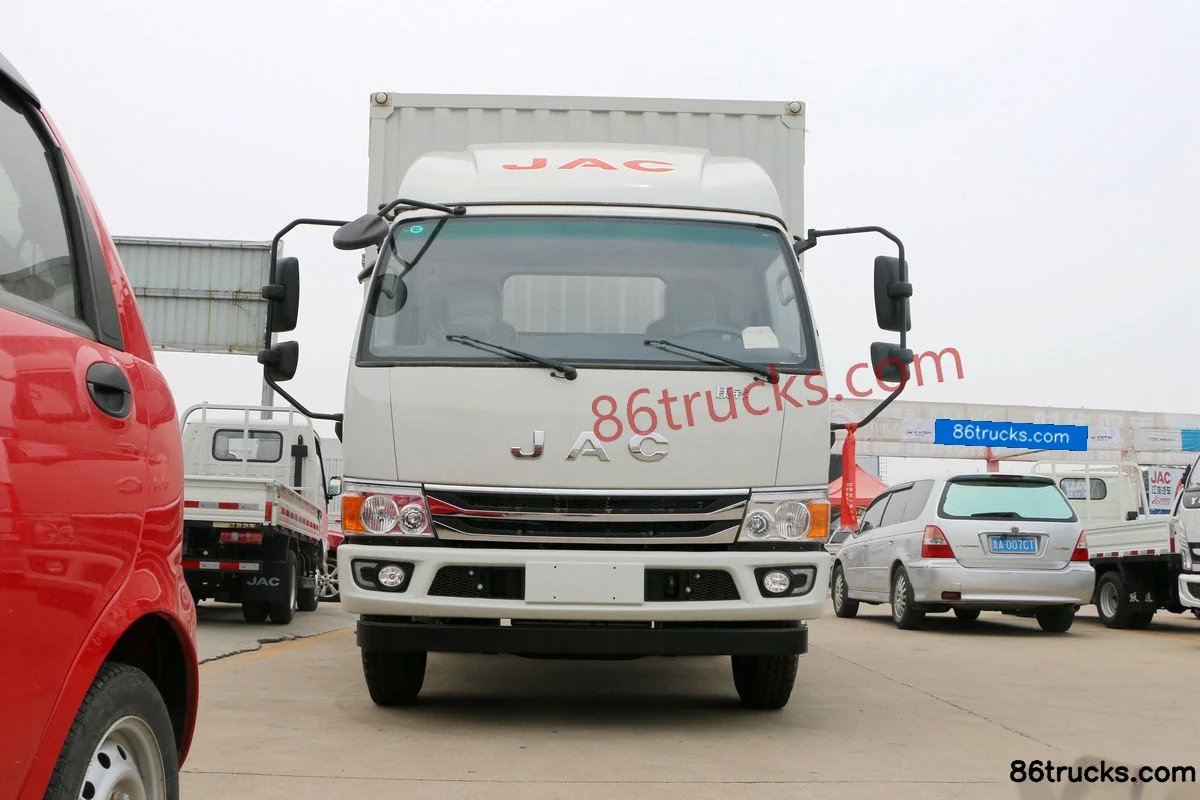

Exterior3

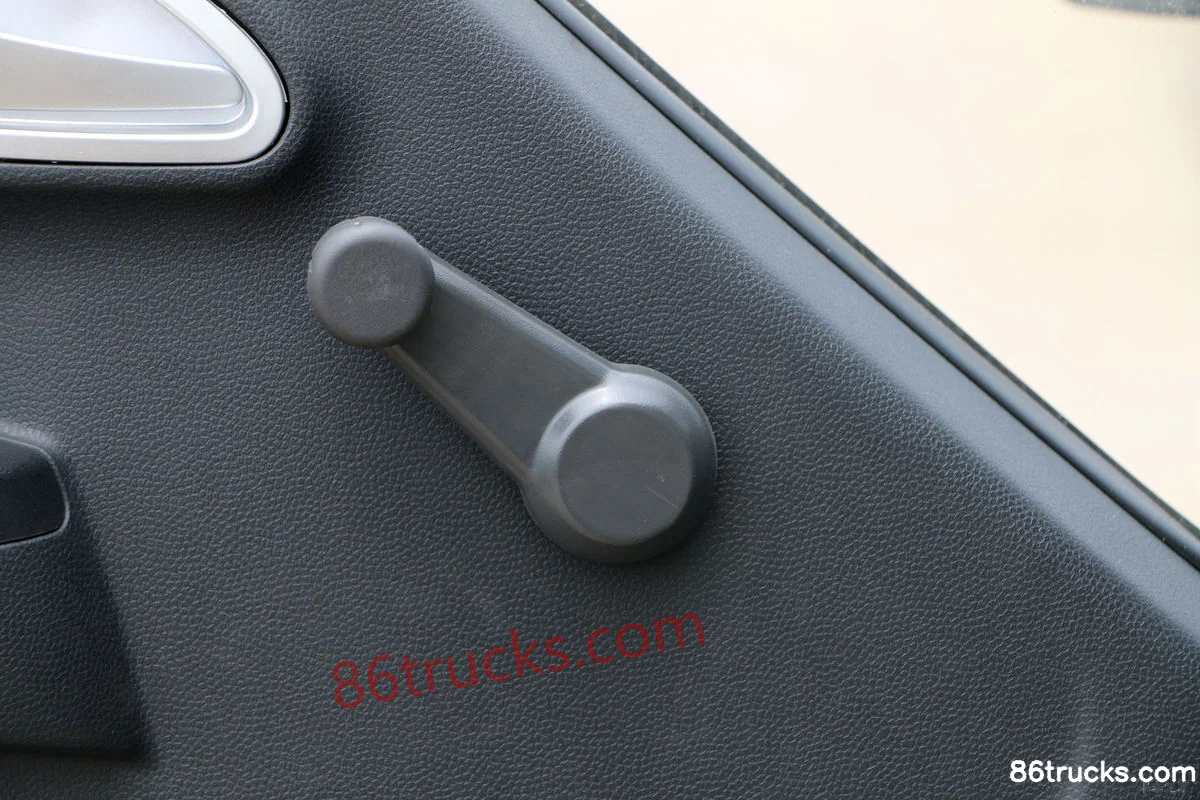

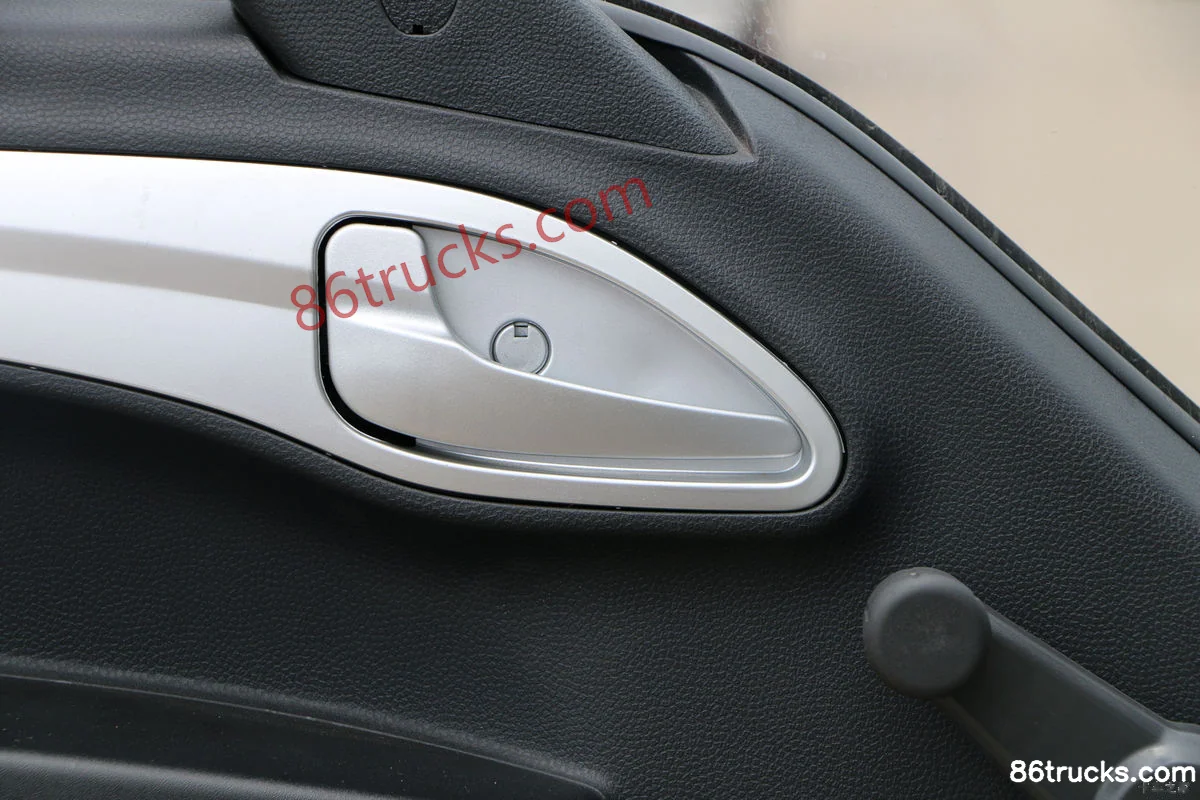

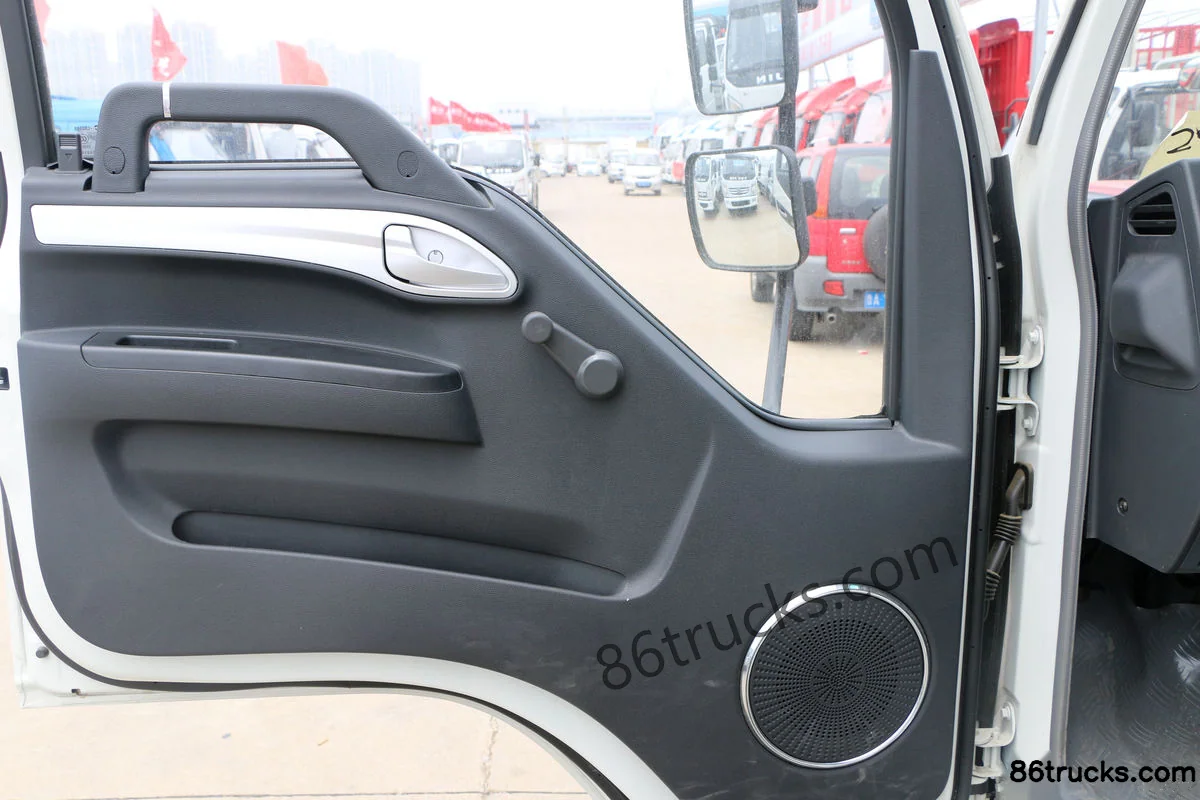

Cab3

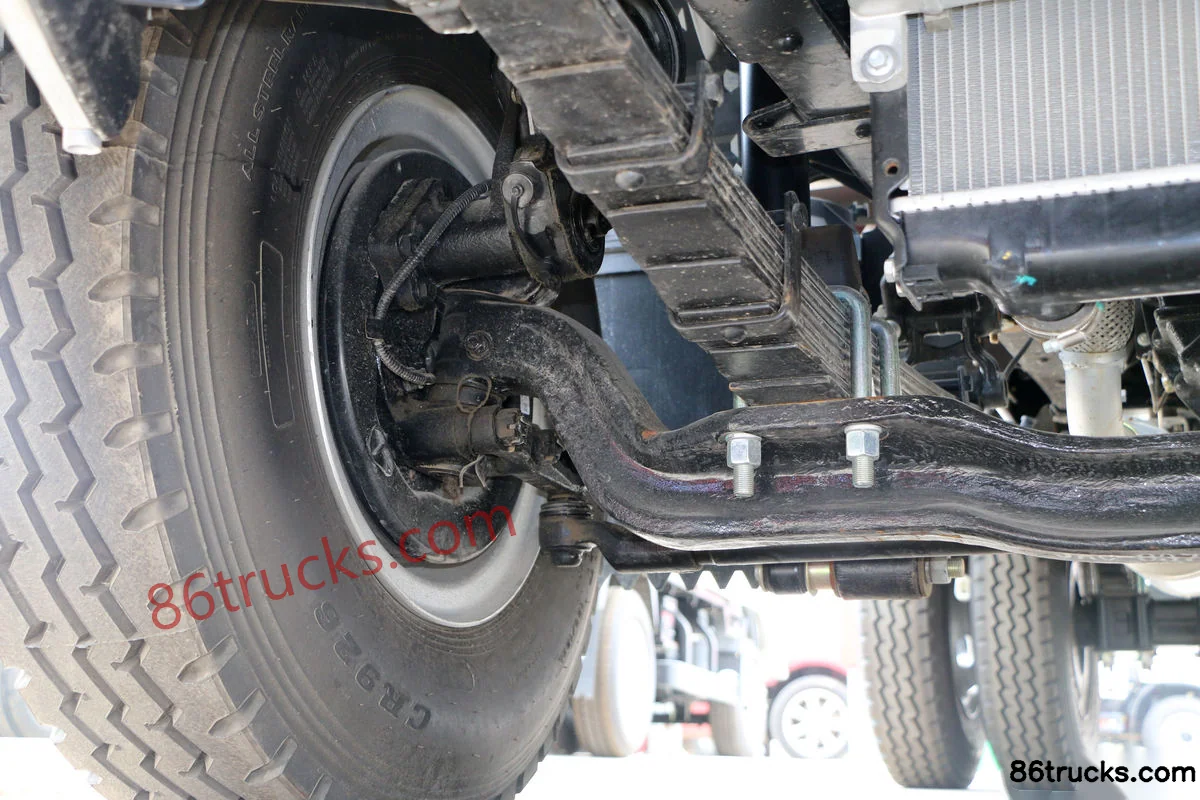

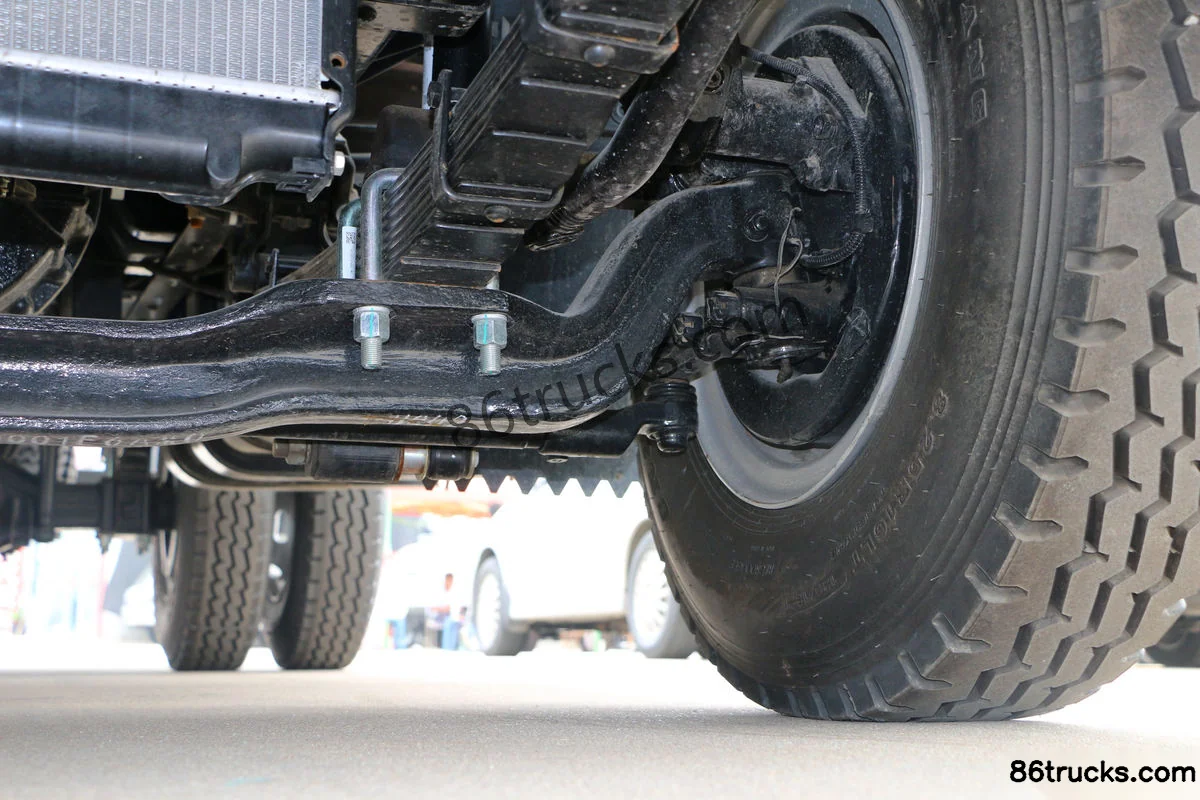

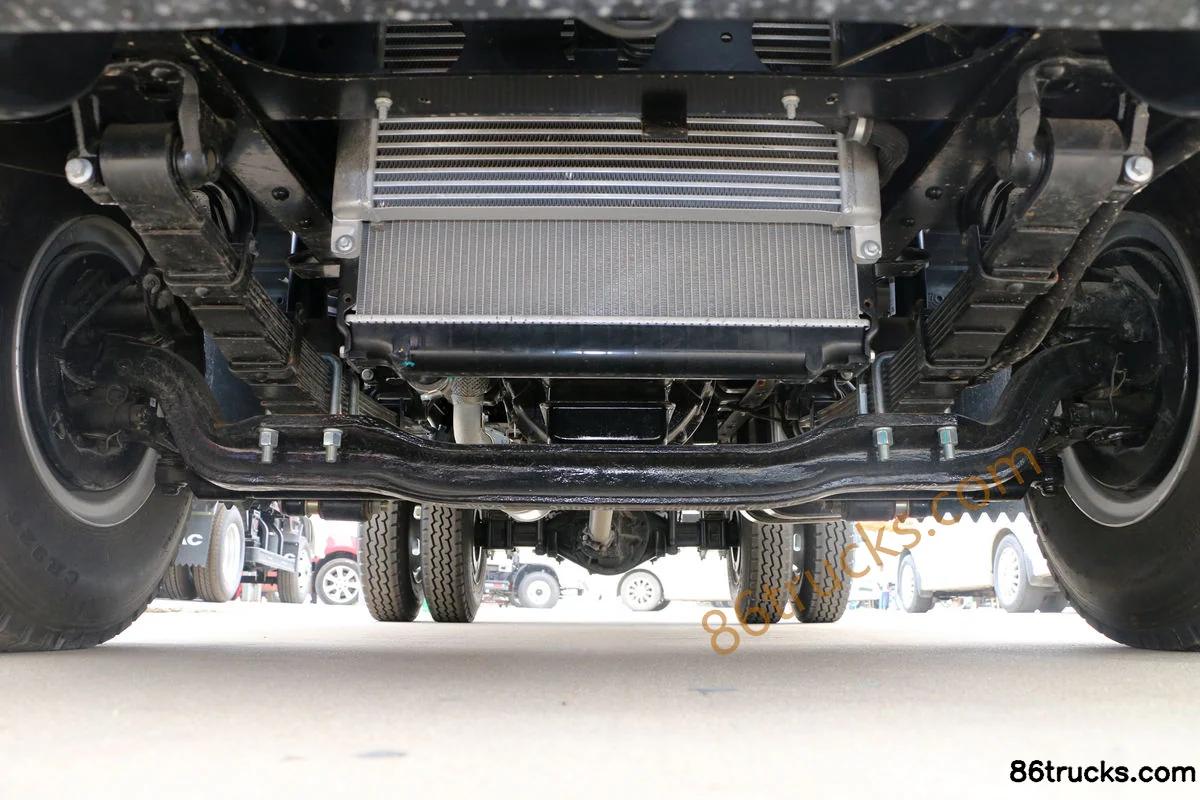

Chassis3

9 photos

FAQ

What is the export price of JAC Kangling H6 170 hp 4X2(6 wheels) 4.15m single-row van light truck (Chaochai), and what does it include?

JAC Kangling H6 170 hp 4X2(6 wheels) 4.15m single-row van light truck (Chaochai) export reference is about From $15,347; MSRP is ¥11.05M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Kangling H6 170 hp 4X2(6 wheels) 4.15m single-row van light truck (Chaochai) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Kangling H6 170 hp 4X2(6 wheels) 4.15m single-row van light truck (Chaochai)?

Key specs of JAC Kangling H6 170 hp 4X2(6 wheels) 4.15m single-row van light truck (Chaochai): Drive: 4x2; Horsepower: 170 hp; Emission: China V; Fuel: Diesel; Engine: Chaochai4SK; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Kangling H6 170 hp 4X2(6 wheels) 4.15m single-row van light truck (Chaochai) suited for?

JAC Kangling H6 170 hp 4X2(6 wheels) 4.15m single-row van light truck (Chaochai) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Kangling H6 170 hp 4X2(6 wheels) 4.15m single-row van light truck (Chaochai) differ from other variants in the same series?

JAC Kangling H6 170 hp 4X2(6 wheels) 4.15m single-row van light truck (Chaochai) belongs to JAC H6 light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Kangling H6 170 hp 4X2(6 wheels) 4.15m single-row van light truck (Chaochai)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Kangling H6 170 hp 4X2(6 wheels) 4.15m single-row van light truck (Chaochai)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
