FAW Liute Jinlu Heavy Truck 260 hp 6X2(8 wheels) 9.6m Flatbed Cargo Truck

Export reference
From $30,236
MSRP ¥21.77M CNY
Horsepower: 260
Emission: China V
Fuel: Diesel
Engine: Xichai 6-cylinder
Transmission: Fast Gear
Curb Weight:: 9.815ton
seating capacity: 3Personnel
Rated payload: 15.055ton
Drive 6X2 (8 wheels)
Cargo box type: stake body

Overview

The FAW Jiefang Qingdao FAW Liute Jinlu Heavy Truck 260 hp 6X2(8 wheels) 9.6m Flatbed Cargo Truck is a Medium-duty truck featuring 9.6m cargo length, stake body cargo body, 3Personnel volume and 15.055t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Xichai 6-cylinder engine, 260 hp, 6X2 (8 wheels) drive and China V emissions.

China V 260 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA1250PK2E5L8T3A95
Type: enclosed cargo truck
Drive type: 6X2
Wheelbase: 1900+5600mm
Box length class: 9.6m
engine: XichaiCA6DLD-26E5
transmission: Fast Gear8JS118A
Rear Axle Ratio: 4.44
Cab length: 12m
Cab width: 2.55m
Cab height: 3.1m
Front track width: 1800/1800mm
rear track: 1860mm
Curb Weight: 9.815ton
Rated payload: 15.055ton
GVWR: 25ton
Max. speed: 90km/h
Origin: Liuzhou, Guangxi
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle:
market segment: Building materials, agricultural products
Remarks: Sunshade, electric hydraulic tilt, aluminum air tank, 150Ah maintenance-free battery, front underrun protection, urea pipe with electric heating
Front/rear suspension: 1.4/3.1m
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DLD-26E5
Engine info: Xichai 6-cylinder
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.6L
Emission standard: China V
Max output power: 194kW
Max hp: 260Horsepower
Max torque: 1050N·m
Max torque speed: 1300-1700rpm
Rated speed: 2300rpm
Transmission Parameters
Transmission Model: Fast Gear8JS118A
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 9.6m
Cargo box width: 2.45m
Cargo box height: 0.8m
*Cargo box interior width: 2.4500000476837
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6750/6750kg
Frame Dimensions: 280×75× (7+4)mm
rear axle description: 435 rear axle
rear axle allowable load: 11500kg
Axle ratio: 4.44
Leaf spring count: 11/11/13+7
clutch: Φ430
Tire
Tire Size: 11.00-20,11.00R20,12R22.5
Number of tires: 8pcs
Control configuration
ABS:
interior configuration
AC control type: Automatic
Power Windows:
Electronic Central Lock:
Multimedia features
GPS/Beidou driving recorder:

Photos

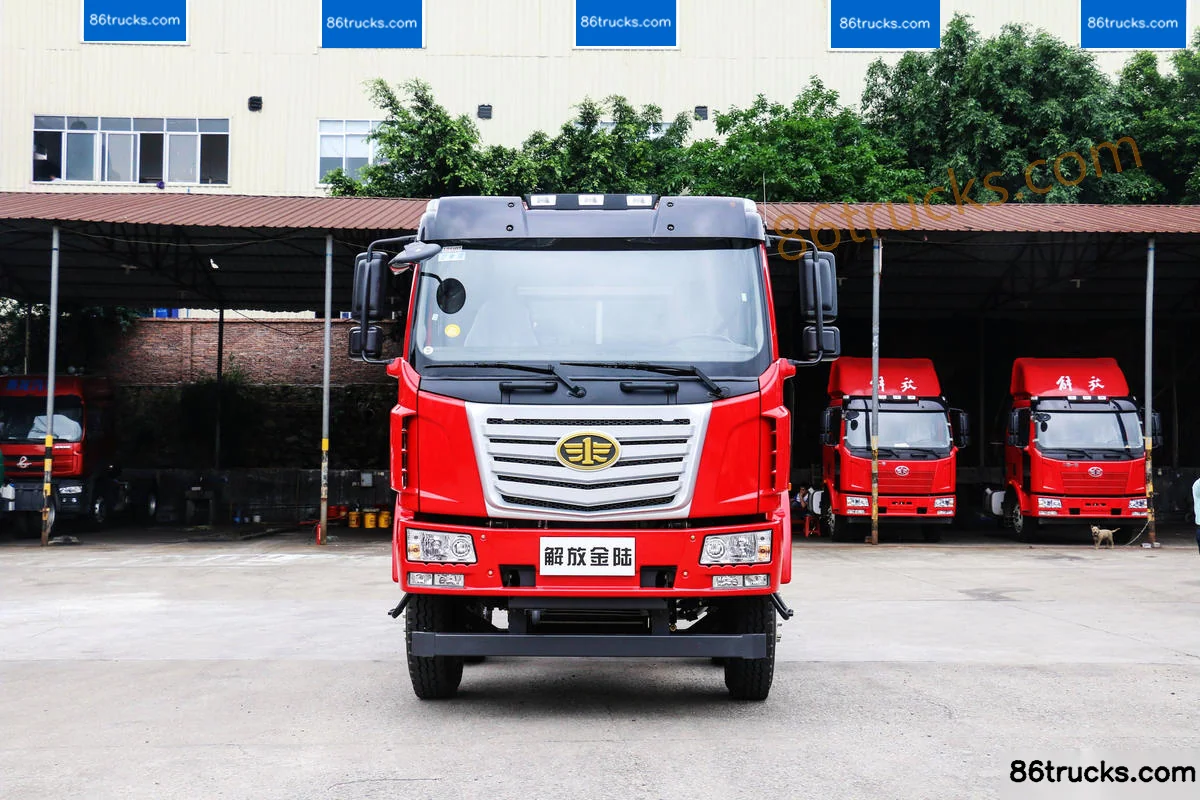

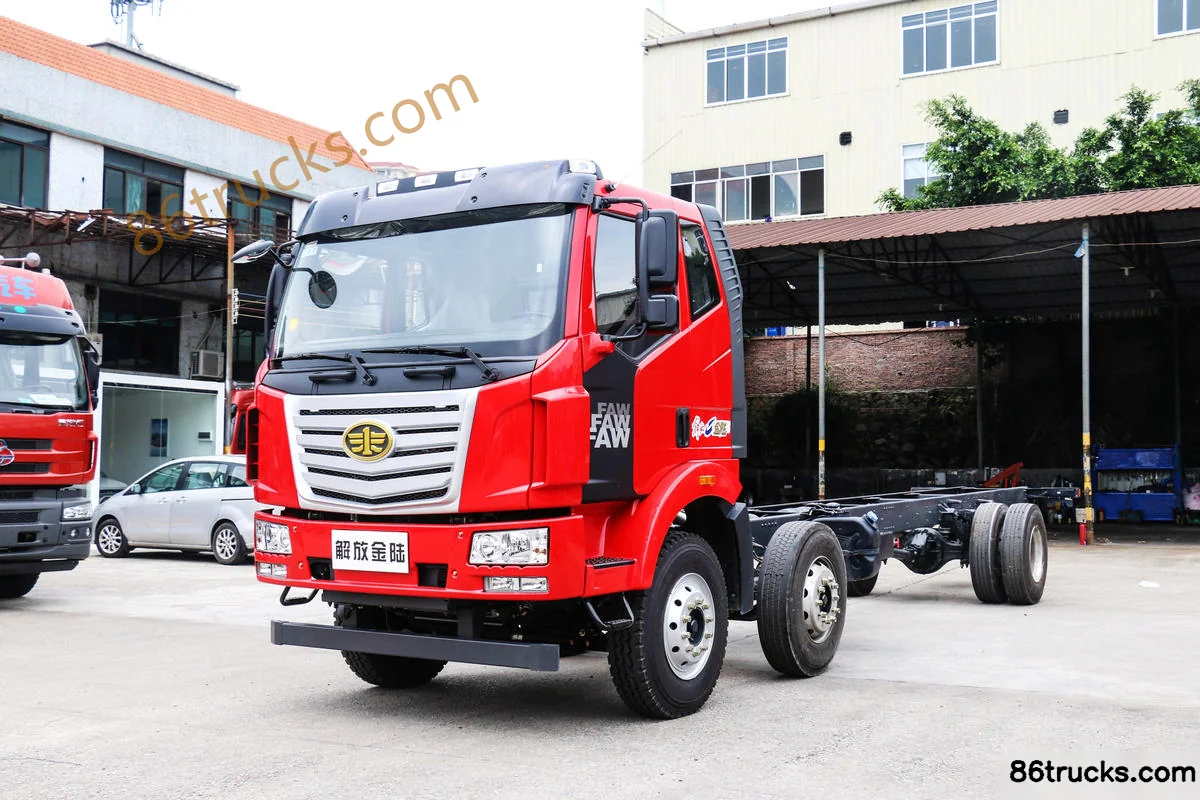

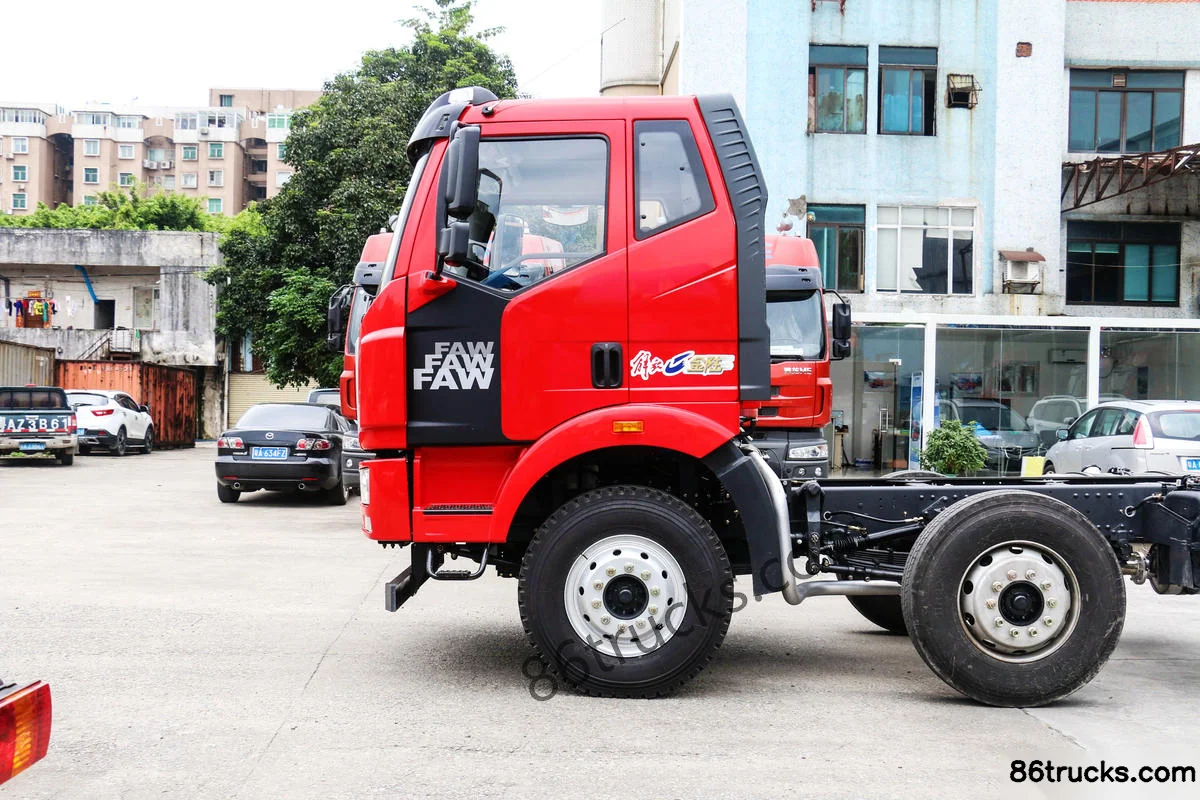

Exterior3

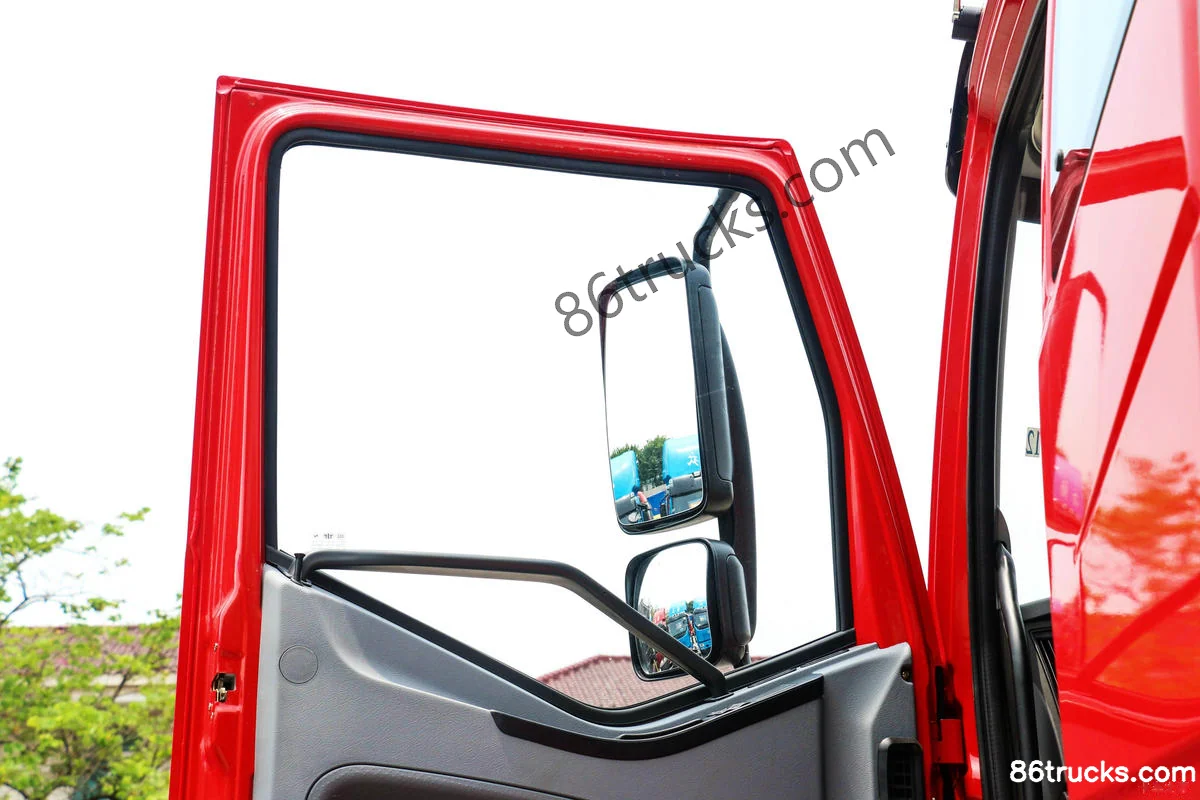

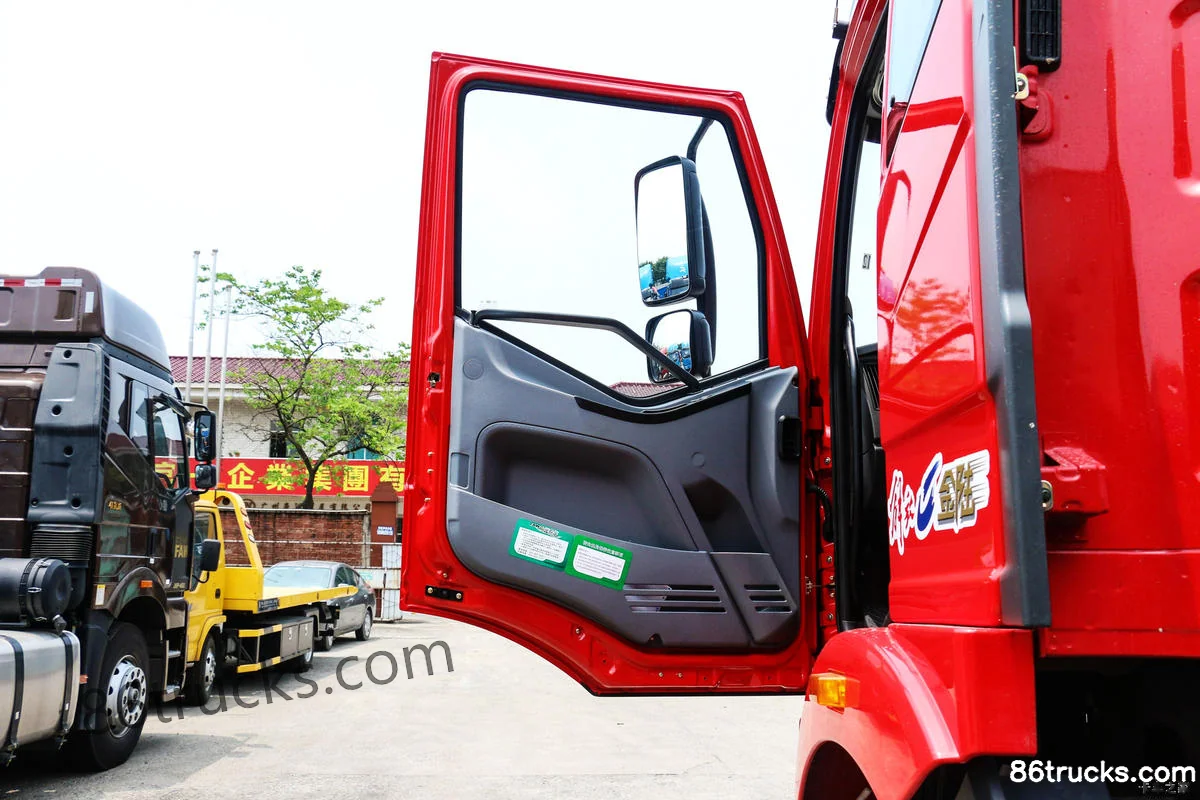

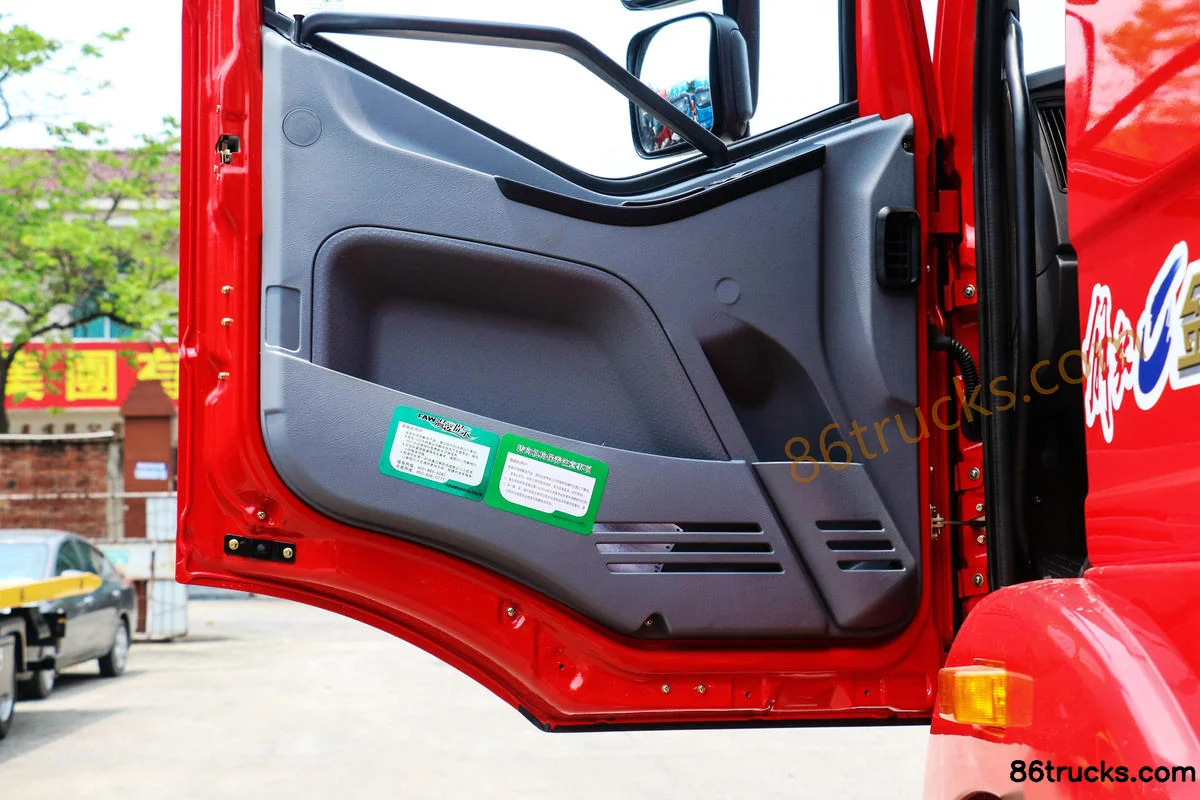

Cab3

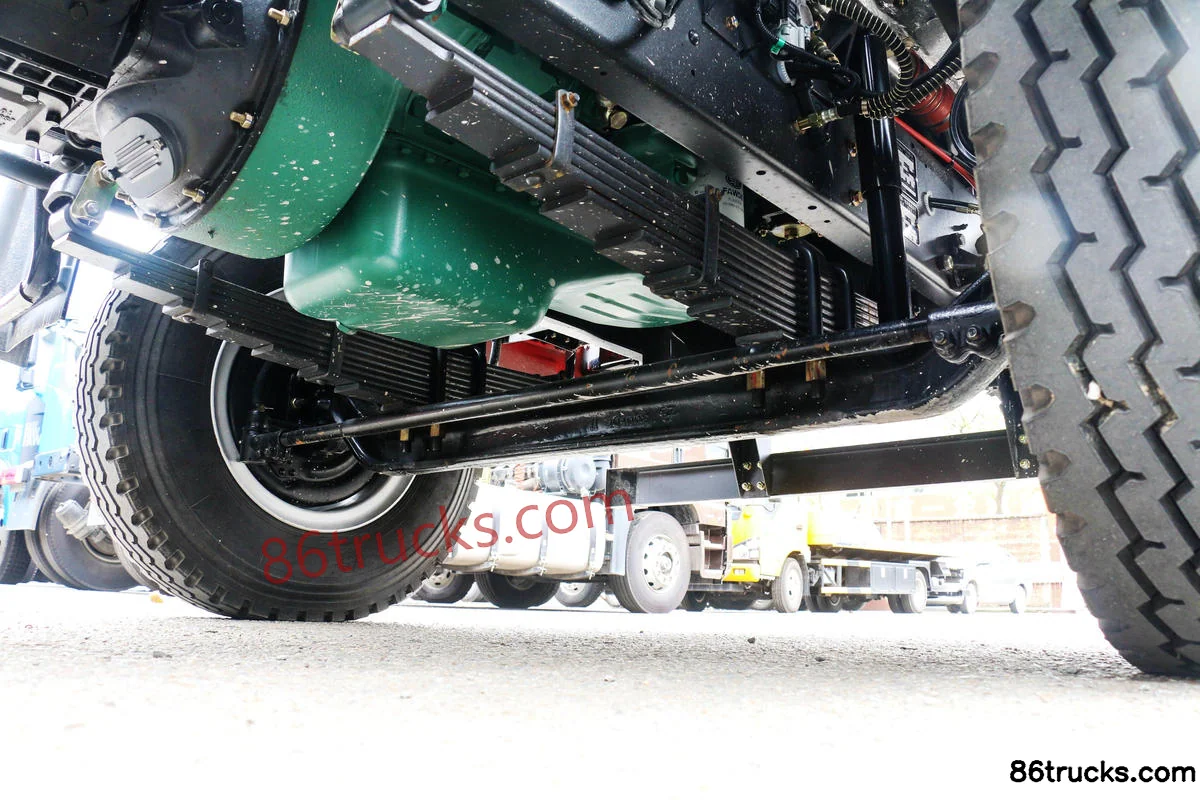

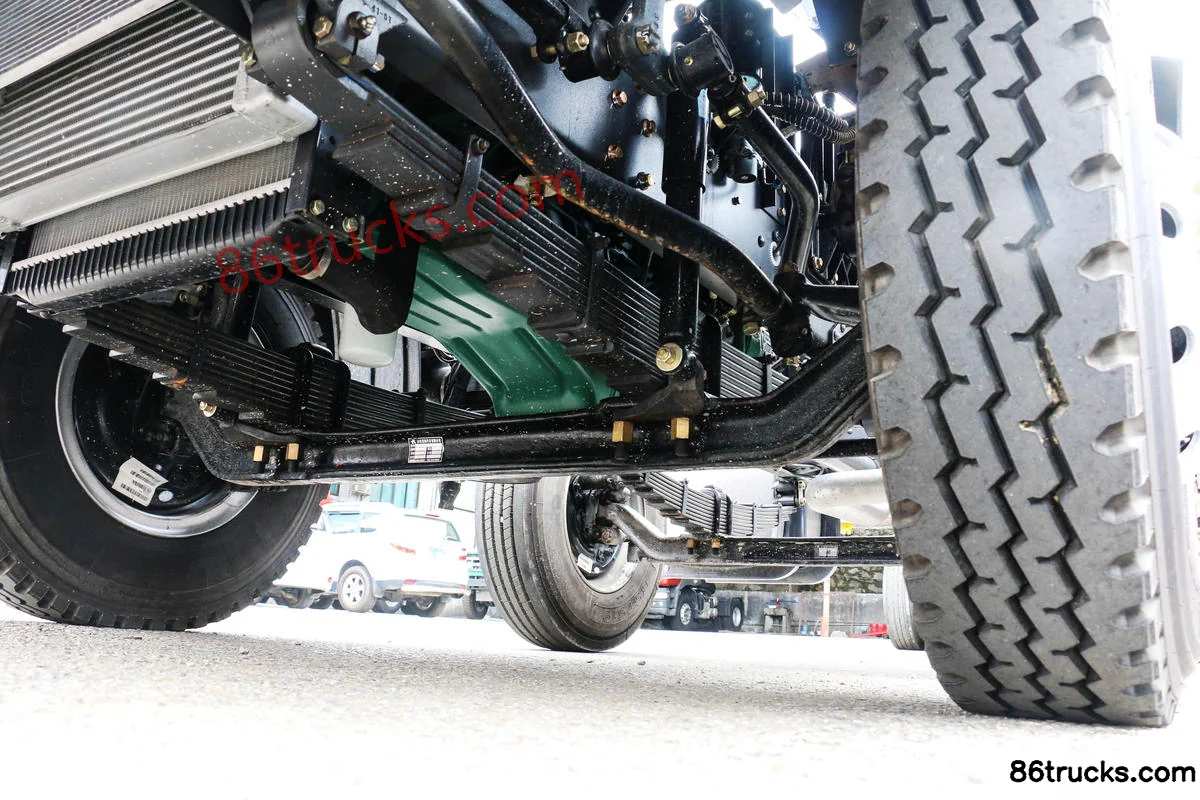

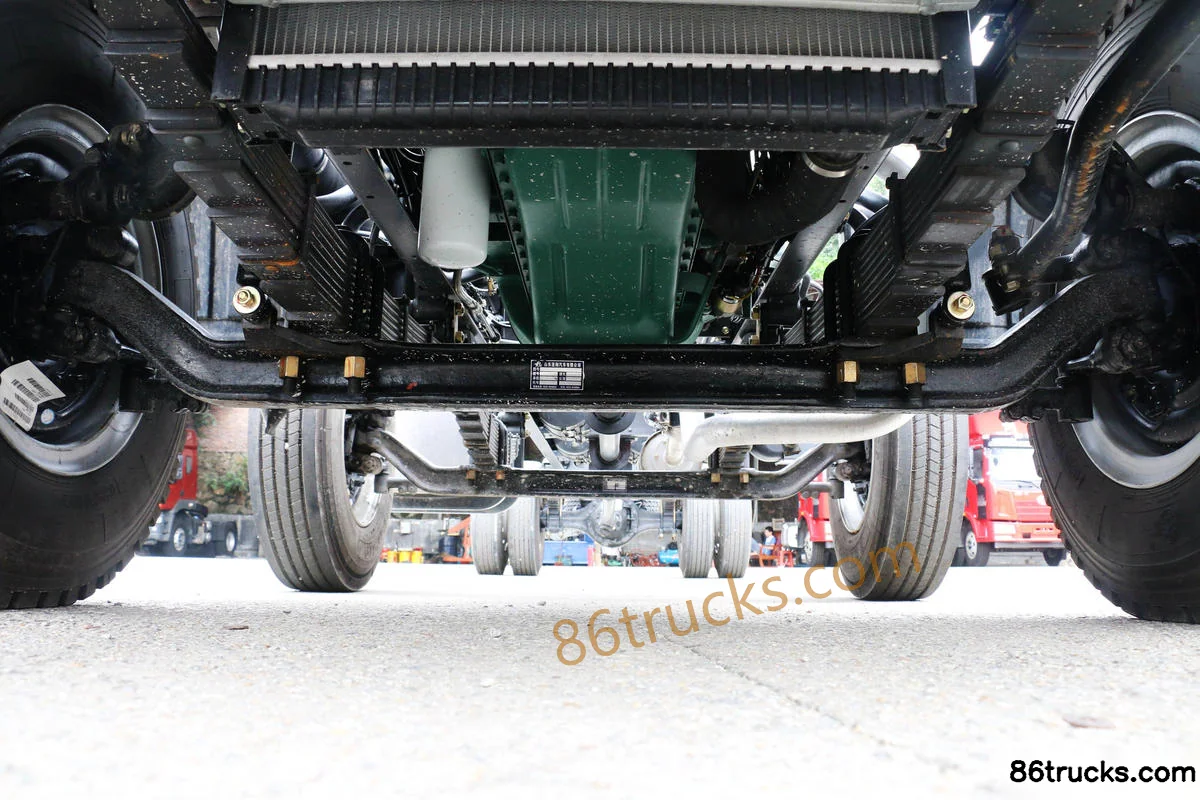

Chassis3

9 photos

FAQ

What is the export price of FAW Liute Jinlu Heavy Truck 260 hp 6X2(8 wheels) 9.6m Flatbed Cargo Truck, and what does it include?

FAW Liute Jinlu Heavy Truck 260 hp 6X2(8 wheels) 9.6m Flatbed Cargo Truck export reference is about From $30,236; MSRP is ¥21.77M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Liute Jinlu Heavy Truck 260 hp 6X2(8 wheels) 9.6m Flatbed Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Liute Jinlu Heavy Truck 260 hp 6X2(8 wheels) 9.6m Flatbed Cargo Truck?

Key specs of FAW Liute Jinlu Heavy Truck 260 hp 6X2(8 wheels) 9.6m Flatbed Cargo Truck: Drive: 6x2; Horsepower: 260 hp; Emission: China V; Fuel: Diesel; Engine: Xichai 6-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Liute Jinlu Heavy Truck 260 hp 6X2(8 wheels) 9.6m Flatbed Cargo Truck suited for?

FAW Liute Jinlu Heavy Truck 260 hp 6X2(8 wheels) 9.6m Flatbed Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Liute Jinlu Heavy Truck 260 hp 6X2(8 wheels) 9.6m Flatbed Cargo Truck differ from other variants in the same series?

FAW Liute Jinlu Heavy Truck 260 hp 6X2(8 wheels) 9.6m Flatbed Cargo Truck belongs to FAW Jiefang Qingdao Jinlu Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Liute Jinlu Heavy Truck 260 hp 6X2(8 wheels) 9.6m Flatbed Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Liute Jinlu Heavy Truck 260 hp 6X2(8 wheels) 9.6m Flatbed Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
