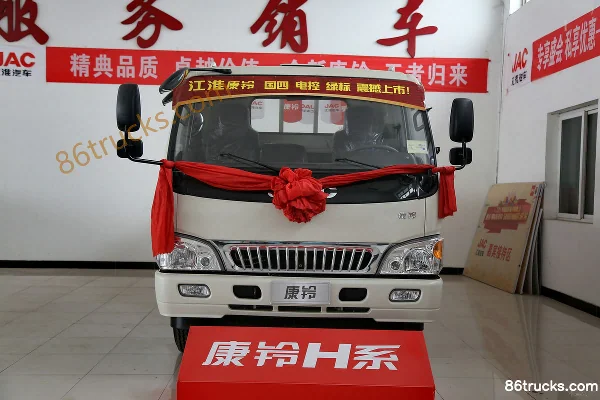

JAC Kangling 33 Wide Body 156 hp 4X2(6 wheels) 3.85m Semi-Row Flatbed Light Truck (China V)

Export reference
From $15,556
MSRP ¥11.2M CNY
Horsepower: 156
Emission: China V
Fuel: Diesel
Engine: Yunnei Dewei D30
Transmission: Lu'an
Curb Weight:: 3.25ton
seating capacity: 3Personnel
Rated payload: 4.83ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JAC Kangling 33 Wide Body 156 hp 4X2(6 wheels) 3.85m Semi-Row Flatbed Light Truck (China V) is a Light Truck featuring 3.85m cargo length, stake body cargo body, 3Personnel volume and 4.83t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Yunnei Dewei D30 engine, 156 hp, 4X2 (6 wheels) drive and China V emissions.

China V 156 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1080P91K1C2V
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 3.8m
engine: Yunnei PowerD30TCIE1
transmission: Lu'an LC6T450M1
Cab length: 5.995m
Cab width: 2.18m
Cab height: 2.42m
Front track width: 1685mm
rear track: 1525mm
Curb Weight: 3.25ton
Rated payload: 4.83ton
GVWR: 8.275ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 23°
departure angle: 19°
market segment: Building materials, agricultural products
Remarks: Optional A/C, cab tilt
Front/rear suspension: 1.1/1.587m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD30TCIE1
Engine info: Yunnei Dewei D30
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.977L
Emission standard: China V
Max output power: 115kW
Max hp: 156Horsepower
Max torque: 400N·m
Max torque speed: 1500-2700rpm
Rated speed: 3200rpm
Engine Type: 4-cylinder inline, 16-valve, DOHC, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Model: Lu'an LC6T450M1
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.85m
Cargo box width: 2.08m
Cargo box height: 0.4m
*Cargo box interior width: 2.0799999237061
Cab parameters
Cab width: 1995mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 2980kg
rear axle allowable load: 5295kg
Leaf spring count: 12/8+6,8/7+6,13/8+6
Tire
Tire Size: 7.50-16 14PR,7.50R16 14PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
Load-sensing proportioning valve (SABS):
interior configuration
steering wheel adjustment: Manual
Multifunction steering wheel:
Power Windows:
Reverse Camera:
Electronic Central Lock:
Service brake
Brake Type: Air brake
Parking brake: Spring brake

Photos

0 photos

FAQ

What is the export price of JAC Kangling 33 Wide Body 156 hp 4X2(6 wheels) 3.85m Semi-Row Flatbed Light Truck (China V), and what does it include?

JAC Kangling 33 Wide Body 156 hp 4X2(6 wheels) 3.85m Semi-Row Flatbed Light Truck (China V) export reference is about From $15,556; MSRP is ¥11.2M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Kangling 33 Wide Body 156 hp 4X2(6 wheels) 3.85m Semi-Row Flatbed Light Truck (China V) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Kangling 33 Wide Body 156 hp 4X2(6 wheels) 3.85m Semi-Row Flatbed Light Truck (China V)?

Key specs of JAC Kangling 33 Wide Body 156 hp 4X2(6 wheels) 3.85m Semi-Row Flatbed Light Truck (China V): Drive: 4x2; Horsepower: 156 hp; Emission: China V; Fuel: Diesel; Engine: Yunnei Dewei D30; Transmission: Lu'an. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Kangling 33 Wide Body 156 hp 4X2(6 wheels) 3.85m Semi-Row Flatbed Light Truck (China V) suited for?

JAC Kangling 33 Wide Body 156 hp 4X2(6 wheels) 3.85m Semi-Row Flatbed Light Truck (China V) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Kangling 33 Wide Body 156 hp 4X2(6 wheels) 3.85m Semi-Row Flatbed Light Truck (China V) differ from other variants in the same series?

JAC Kangling 33 Wide Body 156 hp 4X2(6 wheels) 3.85m Semi-Row Flatbed Light Truck (China V) belongs to JAC H1 light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Kangling 33 Wide Body 156 hp 4X2(6 wheels) 3.85m Semi-Row Flatbed Light Truck (China V)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Kangling 33 Wide Body 156 hp 4X2(6 wheels) 3.85m Semi-Row Flatbed Light Truck (China V)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
