Foton Aumark S3 Series 156hp 4X2(6 wheels) 5.25m Single Row Van Light Truck

Export reference
MSRP N/A
Horsepower: 156
Emission: China V
Fuel: Diesel
Engine: Fukang 3.8
Transmission: WLY
Curb Weight:: 4.8ton
seating capacity: 3Personnel
Rated payload: 4.995ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Foton Aumark S3 Series 156hp 4X2(6 wheels) 5.25m Single Row Van Light Truck is a Light Truck featuring 5.25m cargo length, Van body cargo body, 3Personnel volume and 4.995t payload. Its segment focus covers Agricultural product transport, green channel and industrial product transport, matching those duty cycles. On the powertrain side, it comes with a Fukang 3.8 engine, 156 hp, 4X2 (6 wheels) drive and China V emissions.

China V 156 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5108XXY-FC
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 4200mm
Box length class: 5.2m
engine: FotonISF3.8s5154
transmission: WLYWLY6TS55
Rear Axle Ratio: 4.875
Cab length: 7.445m
Cab width: 2.47m
Cab height: 3.47m
Front track width: 1705mm
rear track: 1680mm
Curb Weight: 4.8ton
Rated payload: 4.995ton
GVWR: 9.99ton
Max. speed: 105km/h
Origin: Beijing
tonnage class: Light Truck
Approach angle: 16°
departure angle: 11°
market segment: Agricultural product transport, green channel, industrial product transport
Front/rear suspension: 1.13/2.115m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF3.8s5154
Engine info: Fukang 3.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.76L
Emission standard: China V
Max output power: 115kW
Max hp: 156Horsepower
Max torque: 491N·m
Max torque speed: 1200-1900rpm
Rated speed: 2600rpm
Engine Type: Electronically controlled high-pressure common rail
Transmission Parameters
Transmission Model: WLYWLY6TS55
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 5.25m
Cargo box width: 2.3m
Cargo box height: 2.3m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab width: 2060mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 3600kg
rear axle description: 7T
rear axle allowable load: 6390kg
Axle ratio: 4.875
Leaf spring count: 3/4+3
Suspension (front/rear): Leaf spring
Tire
Tire Size: 8.25R16LT 16PR,8.25R20 12PR
Number of tires: 6pcs
Control configuration
ABS:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

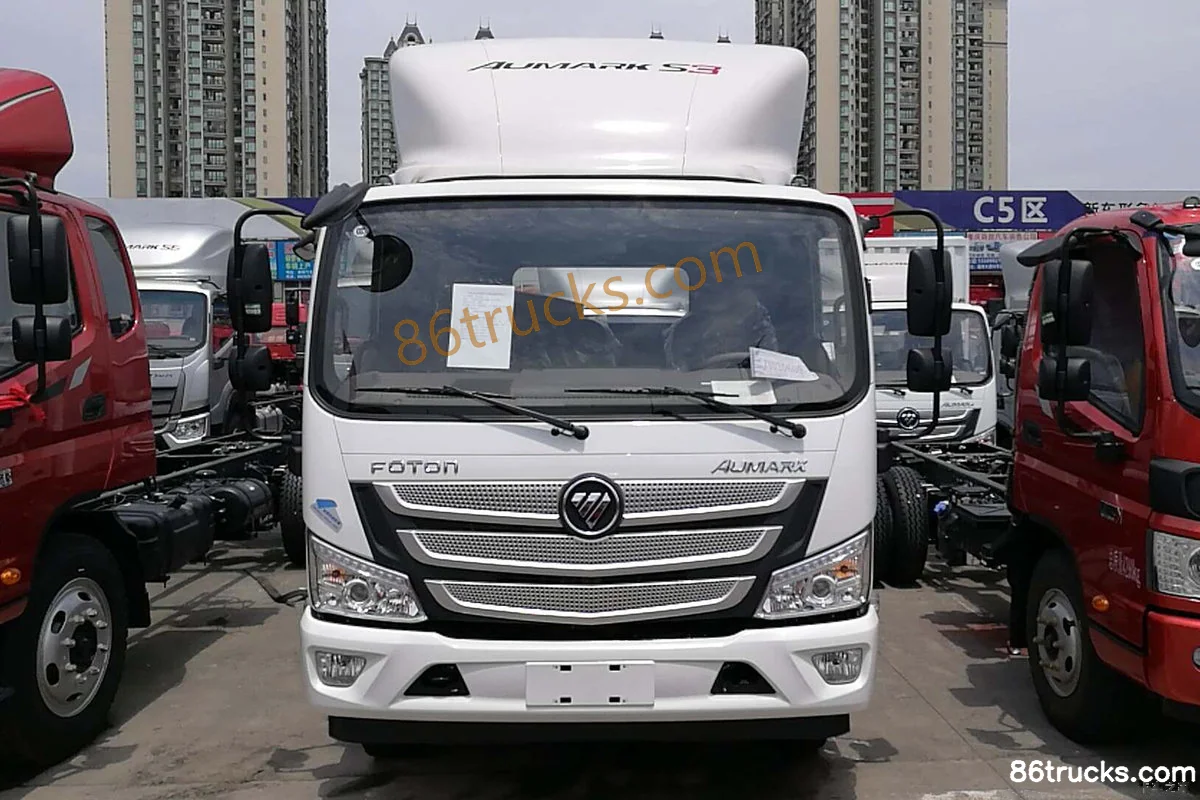

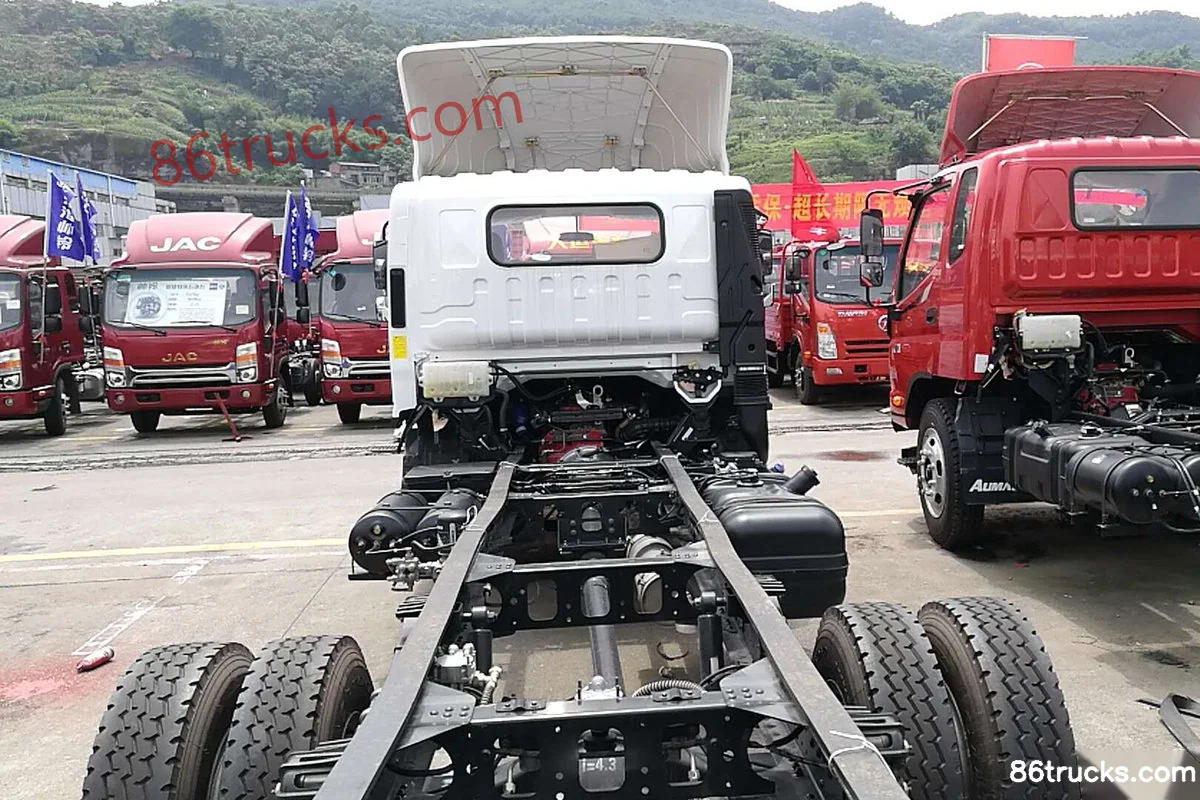

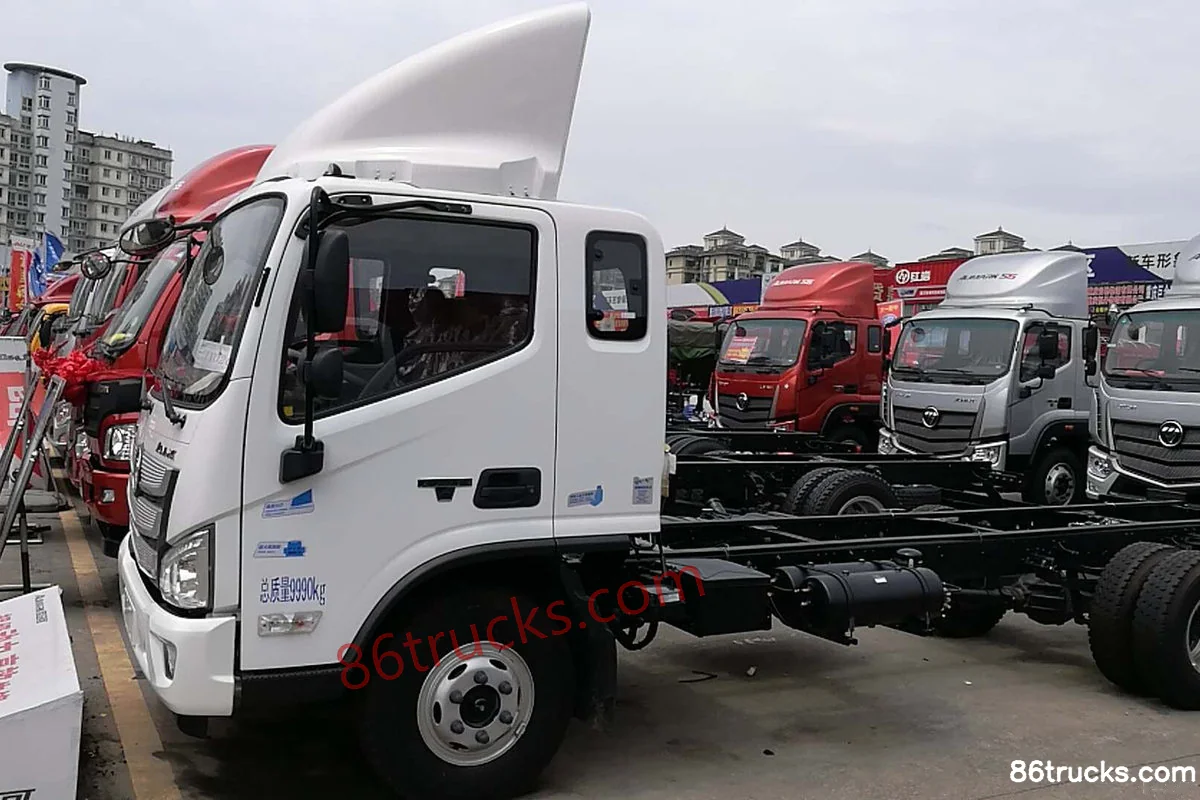

Photos

Exterior3

3 photos

FAQ

What emission standard does Foton Aumark S3 Series 156hp 4X2(6 wheels) 5.25m Single Row Van Light Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Aumark S3 Series 156hp 4X2(6 wheels) 5.25m Single Row Van Light Truck?

Key specs of Foton Aumark S3 Series 156hp 4X2(6 wheels) 5.25m Single Row Van Light Truck: Drive: 4x2; Horsepower: 156 hp; Emission: China V; Fuel: Diesel; Engine: Fukang 3.8; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Aumark S3 Series 156hp 4X2(6 wheels) 5.25m Single Row Van Light Truck suited for?

Foton Aumark S3 Series 156hp 4X2(6 wheels) 5.25m Single Row Van Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Aumark S3 Series 156hp 4X2(6 wheels) 5.25m Single Row Van Light Truck differ from other variants in the same series?

Foton Aumark S3 Series 156hp 4X2(6 wheels) 5.25m Single Row Van Light Truck belongs to Foton S3 Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Aumark S3 Series 156hp 4X2(6 wheels) 5.25m Single Row Van Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Aumark S3 Series 156hp 4X2(6 wheels) 5.25m Single Row Van Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
