Sinotruk Wangpai 7 Series 130hp 4X2(6 wheels) Concrete Pump Truck

Export reference
MSRP N/A
Fuel: Diesel
Drive: 4X2 (6 wheels)
Wheelbase:: 4200mm
Model code (announced):: CDW5111THBHA2R5
Overall Dimensions: L×W×H:: 7.995×2.5×3.3m
Max. travel speed:: 80km/h
Curb Weight: 11.285ton
Horsepower 130
Max output power: 97kW
Emission China V

Overview

The Sinotruk Wangpai 7 Series 130hp 4X2(6 wheels) Concrete Pump Truck is a concrete pump truck featuring 11.285ton GVW, 130 hp, 97kW power and 4X2 (6 wheels) drive. On the powertrain side, it comes with China V emissions and Diesel fuel.

China V 130 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CDW5111THBHA2R5
Drive type: 4X2
Wheelbase: 4200mm
Overall Dimensions: L×W×H: 7.995×2.5×3.3m
Max. travel speed: 80km/h
Curb Weight: 11.285ton
Chassis Specs
Axle Count: 2
Chassis Series: Wangpai 7 Series
Chassis Model: CDW1110HA2R5
Frame Dimensions: 230×8mm
rear axle description: 8T with ABS
Engine parameters
Injection System: Common Rail
Engine Model: YuchaiYCD4F4S-130
fuel type: Diesel
Displacement: 3.922L
Emission standard: China V
Max output power: 97kW
Max hp: 130Horsepower
Rated speed: 2800rpm
Transmission Parameters
Number of gears: 5Gear
Transmission Model: 5-speed with auxiliary
Cab parameters
Cab: Wangpai 7 Series
Tire
Tire Size: 8.25-20

Photos

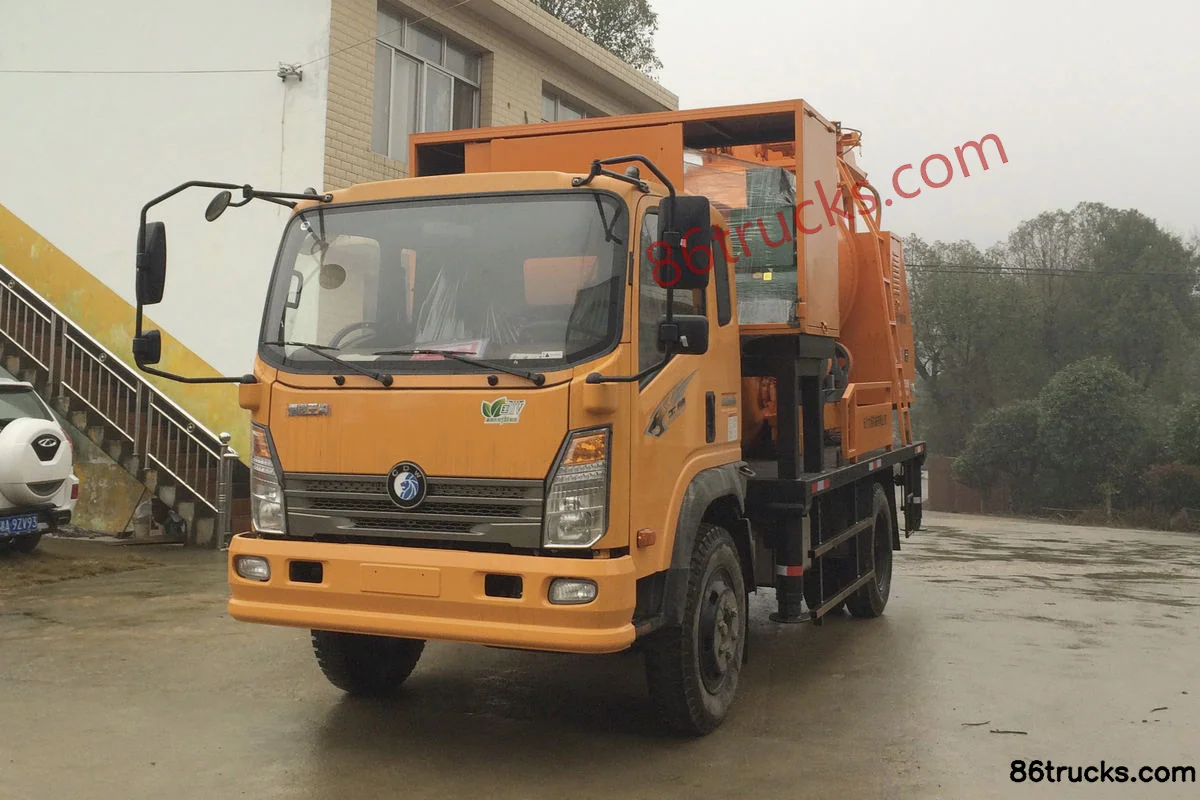

Exterior1

1 photos

FAQ

What emission standard does Sinotruk Wangpai 7 Series 130hp 4X2(6 wheels) Concrete Pump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Wangpai 7 Series 130hp 4X2(6 wheels) Concrete Pump Truck?

Key specs of Sinotruk Wangpai 7 Series 130hp 4X2(6 wheels) Concrete Pump Truck: Drive: 4x2; Horsepower: 130 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Wangpai 7 Series 130hp 4X2(6 wheels) Concrete Pump Truck suited for?

Sinotruk Wangpai 7 Series 130hp 4X2(6 wheels) Concrete Pump Truck is a concrete pump truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Sinotruk Wangpai 7 Series 130hp 4X2(6 wheels) Concrete Pump Truck differ from other variants in the same series?

Sinotruk Wangpai 7 Series 130hp 4X2(6 wheels) Concrete Pump Truck belongs to Sinotruk Wangpai 7 series light truck (concrete pump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Wangpai 7 Series 130hp 4X2(6 wheels) Concrete Pump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Wangpai 7 Series 130hp 4X2(6 wheels) Concrete Pump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
