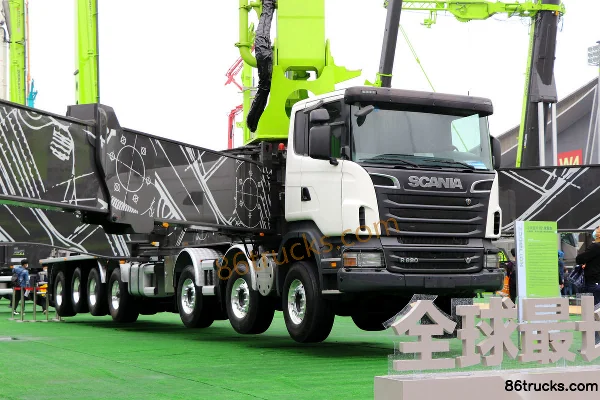

Scania R620 620hp 14X4(26 wheels) 7 Axle 101m Concrete Pump Truck (ZOOMLION)
EXW
Export quote
ZOOMLION Scania chassis pump truck concrete pump
Main model photos
17 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Scania R620 620hp 14X4(26 wheels) 7 Axle 101m Concrete Pump Truck (ZOOMLION) | 620hp / China IV | ||
| Scania P410 410 hp 6X4(10 wheels) 52m concrete pump truck (Zoomlion) (China VI) | 6x4 / 412hp / China VI | ||
| Scania P410 410hp 6X4(10 wheels) 52m concrete pump truck (Zoomlion) | 6x4 / 412hp / China V | ||
| Scania P450 450hp 8X4(12 wheels) 59m concrete pump truck (Zoomlion)(China VI) | 6x4 / 452hp / China VI | ||
| Scania P450 450hp 8X4(12 wheels) 59m concrete pump truck (Zoomlion) | 6x4 / 452hp / China V |

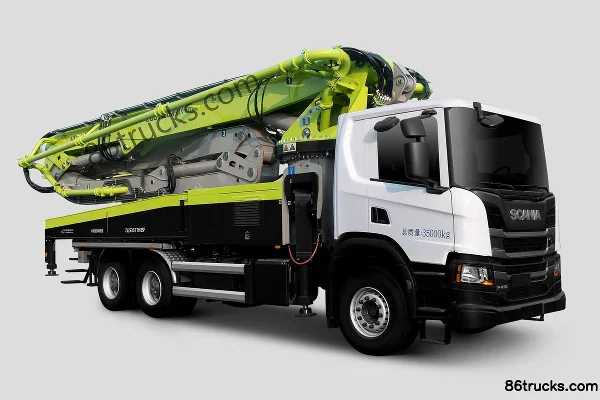

Scania P410 410 hp 6X4(10 wheels) 52m concrete pump truck (Zoomlion) (China VI)
EXW
Export quote
Scania P410 410hp 6X4(10 wheels) 52m concrete pump truck (Zoomlion)
EXW
Export quote

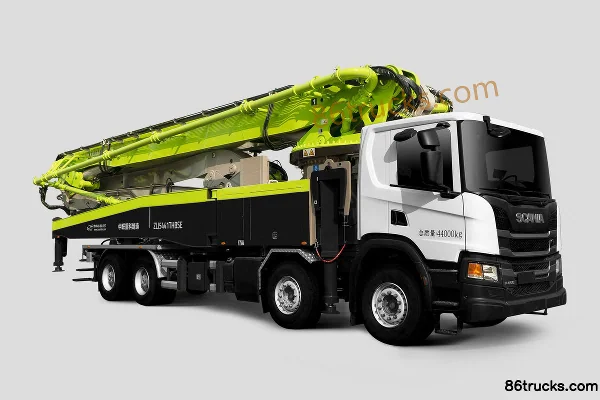

Scania P450 450hp 8X4(12 wheels) 59m concrete pump truck (Zoomlion)(China VI)
EXW
Export quote
Scania P450 450hp 8X4(12 wheels) 59m concrete pump truck (Zoomlion)
EXW
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Scania P450 450hp 8X4(12 wheels) 59m concrete pump truck (Zoomlion)(China VI) | 6x4 / 452hp / China VI | ||
| ZOOMLION 49m concrete pump truck (Scania chassis) | — | ||
| ZOOMLION 52m concrete pump truck (Scania chassis) | — |
Scania P450 450hp 8X4(12 wheels) 59m concrete pump truck (Zoomlion)(China VI)
EXW
Export quote
ZOOMLION 49m concrete pump truck (Scania chassis)
EXW
Export quote
ZOOMLION 52m concrete pump truck (Scania chassis)
EXW
Export quote
Series Specs
Basic Info
Model code (announced): ZLJ5441THBSF / ZLJ5350THBSF / ZLJ5350THBSE / ZLJ5441THBSE / ZLJ5540THBSF / ZLJ5541THBSE / ZLJ5402THB49-5RZ / ZLJ5434THB
Pumping displacement: 180 / 245 / 120 / 165m³/h
Drive type: 6X4 / 10X4
Max pumping height: 59 / 101 / 52 / 67 / 49m
Wheelbase: 1990+4560+1350 / 1940+2200+4260+1700+1445+1705 / 4750+1445 / 1990+4560+1445 / 1990+4160+1445+1305 / 1940+4560+1445mm
Overall Dimensions: L×W×H: 14.035×2.55×4 / 20.57×2.8×4.12 / 12.205×2.53×4 / 15.84×2.53×4 / 15.84×2.55×4 / 12.9×2.5×3.98 / 13.43×2.5×4m
Max. travel speed: 85 / 80km/h
Curb Weight: 43.87 / 34.87 / 54.08 / 40 / 42.745ton
Body Parameters
Water tank capacity: 400 / 500L
Chassis Specs
Axle Count: 4 / 7 / 3 / 5
Chassis Series: P Series / R620 / Scania P380CB8×4HNZ
Pumping system
Pumping displacement (low/high): 180 / 245m³/h
Pumping pressure (low/high): 42 / 11.3 / 7.5/12
Pumping strokes (low/high): 26Times/min
Delivery cylinder: bore × stroke: Φ260×2100 / 260×2100mm
Delivery pipe diameter: 160mm
Boom Outriggers
Boom Vertical Height: 101 / 66.1 / 49 / 52m
Boom Horizontal Length: 60.9 / 45 / 48m
Boom Vertical Depth: 35 / 37.6m
Boom Section Count: 7
Turntable Rotation Angle: 270°
Outrigger spread width: front/rear: 17060×19350×17410 / 9180/10960 / 9300/11975mm
Engine parameters
Engine Model: ScaniaDC13 148 L02 / ScaniaSCANIA DC16 08 / ScaniaDC13 141 L02 / ScaniaDC13 139 / ScaniaDC13 143 / DC12 / D1206
fuel type: Diesel
Displacement: 12.742 / 15.6 / 11.705L
Emission standard: China VI / China IV / China V
Max output power: 332 / 456 / 303 / 190 / 309kW
Max hp: 452 / 620 / 412Horsepower
Rated speed: 1900 / 1300rpm
Transmission Parameters
Number of gears: 12Gear
Cab parameters
Cab: ScaniaP / Scania P Series
Tire
Tire Size: 385/65R22.5/315/80R22.5
FAQ
What kind of truck is ZOOMLION ZOOMLION Scania chassis pump truck concrete pump truck?
ZOOMLION ZOOMLION Scania chassis pump truck is an export-oriented concrete pump truck lineup with about 10 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does ZOOMLION Scania chassis pump truck concrete pump cover?
ZOOMLION Scania chassis pump truck concrete pump mainly covers: Drive: 6x4; Horsepower: 412 hp / 452 hp / 620 hp; Emission: China IV / China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in ZOOMLION Scania chassis pump truck concrete pump?
For ZOOMLION Scania chassis pump truck concrete pump: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is concrete pump truck typically used for?
concrete pump truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does ZOOMLION Scania chassis pump truck concrete pump include?
ZOOMLION Scania chassis pump truck concrete pump currently lists about 10 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for ZOOMLION Scania chassis pump truck concrete pump?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
