Sinotruk (formerly Sinotruk Ace) Jieshi 340 hp 6X4(10 wheels) Concrete Pump Truck
EXW
From $131,667
Export quote
Sinotruk Jieshi Light Truck concrete pump truck
Main model photos
60 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk (formerly Sinotruk Ace) Jieshi 340 hp 6X4(10 wheels) Concrete Pump Truck | 6x4 / 340hp / China V | From $131,667 | |
| Sinotruk (formerly Sinotruk Ace) Jieshi 290 hp 6X4(10 wheels) Concrete Pump Truck | 6x4 / 290hp / China V | From $138,611 | |
| Sinotruk (formerly Sinotruk Wangpai) Jieshi 185 hp 4X2(6 wheels) Concrete Shotcrete Truck | 4x2 / 185hp / China V | From $138,889 | |
| Sinotruk (formerly Sinotruk Ace) Jieshi 130 hp 4X2(6 wheels) truck-mounted concrete pump (Yuchai) | 4x2 / 130hp / China V | From $52,778 | |
| Sinotruk (formerly Sinotruk Ace) Jieshi 130 hp 4X2(6 wheels) truck-mounted concrete pump | 4x2 / 130hp / China V | From $48,611 |
Sinotruk (formerly Sinotruk Ace) Jieshi 290 hp 6X4(10 wheels) Concrete Pump Truck
EXW
From $138,611
Export quote

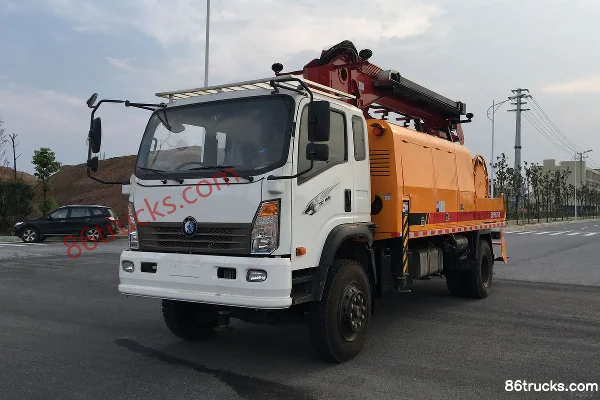

Sinotruk (formerly Sinotruk Wangpai) Jieshi 185 hp 4X2(6 wheels) Concrete Shotcrete Truck
EXW
From $138,889
Export quote
Sinotruk (formerly Sinotruk Ace) Jieshi 130 hp 4X2(6 wheels) truck-mounted concrete pump (Yuchai)
EXW
From $52,778
Export quote

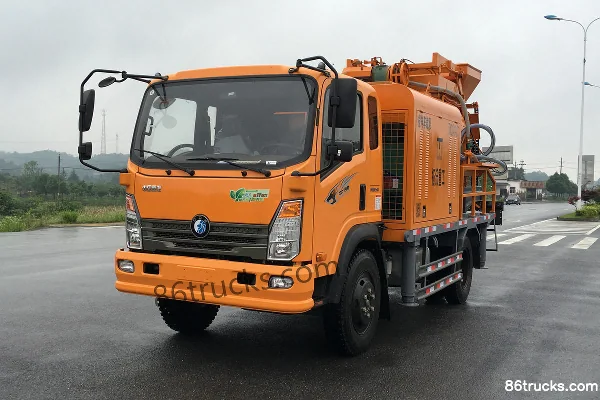

Sinotruk (formerly Sinotruk Ace) Jieshi 130 hp 4X2(6 wheels) truck-mounted concrete pump
EXW
From $48,611
Export quote
Series Specs
Basic Info
Model code (announced): CDW5330THBA1S5 / CDW5160TPJA1R5 / CDW5140THBA2R5
Pumping displacement: 7m³/h
Drive type: 6X4 / 4X2
Wheelbase: 4350+1350,4750+1350 / 5000 / 3600mm
Overall Dimensions: L×W×H: 12.31×2.35×4 / 9.2×2.5×3.85 / 7.22×2.45×3.28m
Max. travel speed: 80km/h
Curb Weight: 32.87 / 15.58 / 13.385ton
Chassis Specs
Axle Count: 3 / 2
Chassis Series: Jieshi
Chassis Model: CDW5330THBA1S5 / CDW1160HA1R5 / CDW1140HA2R5
Frame Dimensions: 245×10mm
rear axle description: 13T / 10T / 7T
Axle ratio: 4.875 / 6.617 / 5.833
Engine parameters
Injection System: Common Rail
Engine Model: SinotrukMC07.34-50 / YuchaiYC6A290-50 / YuchaiYC4EG185-50 / YuchaiYCD4F4S-130 / Xichai4DX23-130E5
fuel type: Diesel
Displacement: 6.87 / 7.52 / 4.73 / 3.922 / 3.857L
Emission standard: China V
Max output power: 245 / 213 / 136 / 97kW
Max hp: 340 / 290 / 185 / 130Horsepower
Rated speed: 2300 / 2500 / 2800rpm
Transmission Parameters
Number of gears: 10 / 8 / 6 / 5Gear
Transmission Model: SinotrukHW13710 / Fast Gear8JS118A / Fast Gear8JS85F / WLYWLY653HF / WLYWLY10H46
Cab parameters
Cab: S80 / Wangpai 7 Series
Tire
Tire Size: 11.00R20 18PR / 10.00R20 / 8.25R20
FAQ
What kind of truck is Sinotruk Sinotruk Jieshi Light Truck concrete pump truck?
Sinotruk Sinotruk Jieshi Light Truck is an export-oriented concrete pump truck lineup with about 5 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Sinotruk Jieshi Light Truck concrete pump truck?
Sinotruk Jieshi Light Truck concrete pump truck export reference is about $48,611 – $138,889. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Sinotruk Jieshi Light Truck concrete pump truck cover?
Sinotruk Jieshi Light Truck concrete pump truck mainly covers: Drive: 4x2 / 6x4; Horsepower: 130 hp / 185 hp / 290 hp / 340 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sinotruk Jieshi Light Truck concrete pump truck?
For Sinotruk Jieshi Light Truck concrete pump truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is concrete pump truck typically used for?
concrete pump truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Sinotruk Jieshi Light Truck concrete pump truck include?
Sinotruk Jieshi Light Truck concrete pump truck currently lists about 5 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk Jieshi Light Truck concrete pump truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
Related series

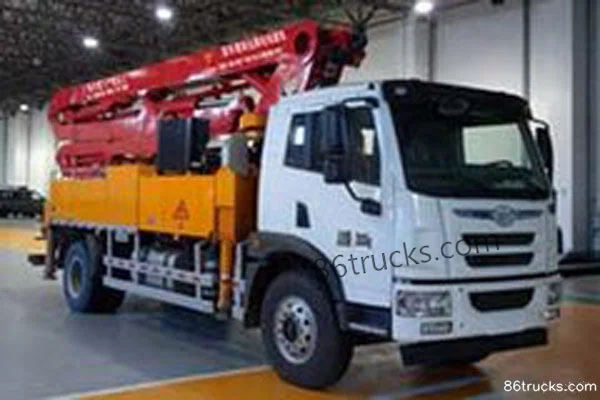

Qingdao Hailong (Hailongjite) FAW Jiefang Qingdao chassis concrete pump truck

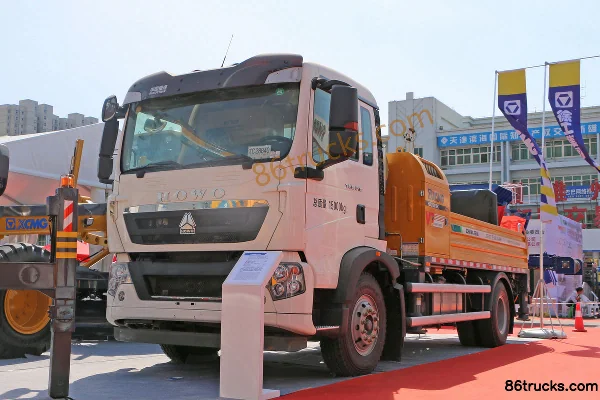

XCMG Truck Sinotruk HOWO Chassis Pump Truck concrete pump truck
SHACMAN Xuande X6 Heavy-Duty Truck concrete pump truck

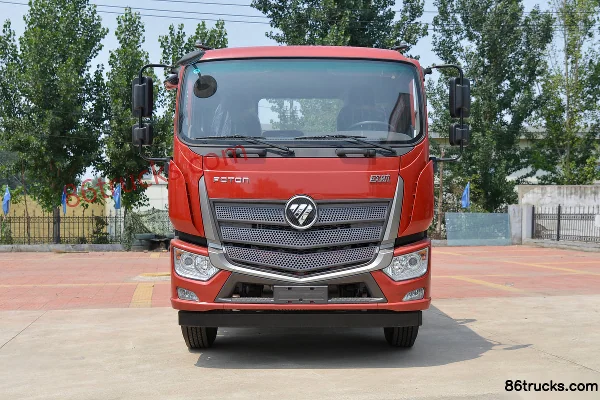

Foton R Series Medium Truck concrete pump truck
