FAW Jiefang Qingdao TianV 310 hp 4X2(6 wheels) Concrete Pump Truck (Jiuhe Heavy Industry) (JHZ5211THB)
EXW
Export quote
Jiuhe Heavy Industry FAW Jiefang Qingdao Chassis
Main model photos
6 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang Qingdao TianV 310 hp 4X2(6 wheels) Concrete Pump Truck (Jiuhe Heavy Industry) (JHZ5211THB) | 4x2 / 310hp / China V | ||
| FAW Jiefang Qingdao Long V 220hp 4X2(6 wheels) concrete pump truck (Jiuhe Heavy Industry brand) (JHZ5201THB) | 4x2 / 220hp / China V | ||
| FAW Jiefang Qingdao HanV 260hp 4X2(6 wheels) Concrete Pump Truck (Jiuhe Heavy Industry)(JHZ5201THB) | 4x2 / 260hp / China V | From $29,861 |

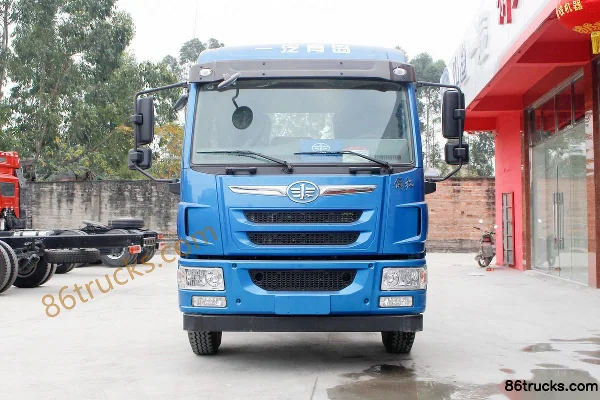

FAW Jiefang Qingdao Long V 220hp 4X2(6 wheels) concrete pump truck (Jiuhe Heavy Industry brand) (JHZ5201THB)
EXW
Export quote

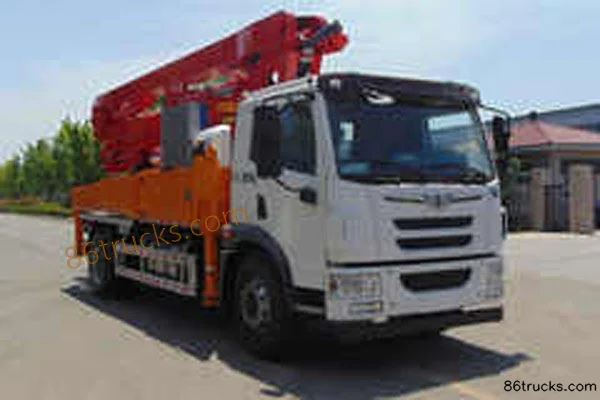

FAW Jiefang Qingdao HanV 260hp 4X2(6 wheels) Concrete Pump Truck (Jiuhe Heavy Industry)(JHZ5201THB)
EXW
From $29,861
Export quote
Series Specs
Basic Info
Model code (announced): JHZ5211THB / JHZ5201THB
Drive type: 4X2
Wheelbase: 5200mm
Overall Dimensions: L×W×H: 10.01×2.5×3.79 / 10.8×2.52×3.6m
Max. travel speed: 101 / 80km/h
Curb Weight: 20.805 / 19.805ton
Chassis Specs
Axle Count: 2
Chassis Series: TianV / HanV
Chassis Model: CA5210P2K15BE5A80 / CA5200PK2BE5A80
Frame Dimensions: 300*80*(8+5) / 280*80*(8+5) / 280*90*(8+5)mm
rear axle description: 498 stamped-welded axle / 435 cast steel axle / 457 stamped-welded axle
Axle ratio: 4.875 / 4.444
clutch: Φ430
Engine parameters
Engine Model: WeichaiWP10.310E53 / XichaiCA6DLD-22E5 / XichaiCA6DLD-26E5
fuel type: Diesel
Displacement: 9.726 / 6.6L
Emission standard: China V
Max output power: 228 / 164 / 194kW
Max hp: 310 / 220 / 260Horsepower
Rated speed: 1900 / 2300rpm
Transmission Parameters
Number of gears: 9 / 8Gear
Transmission Model: Fast GearRTOD-11509F / Fast Gear8JS85E / Fast Gear8JS105
Cab parameters
Cab: TianV flat floor flat roof full-floating / Long V Flat Roof Semi-Floating
Tire
Tire Size: 12.00R20 20PR / 11.00R20
FAQ
What kind of truck is Jiuhe Heavy Industry Jiuhe Heavy Industry FAW Jiefang Qingdao Chassis concrete pump truck?
Jiuhe Heavy Industry Jiuhe Heavy Industry FAW Jiefang Qingdao Chassis is an export-oriented concrete pump truck lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Jiuhe Heavy Industry FAW Jiefang Qingdao Chassis?
Jiuhe Heavy Industry FAW Jiefang Qingdao Chassis export reference is about From $29,861. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Jiuhe Heavy Industry FAW Jiefang Qingdao Chassis cover?
Jiuhe Heavy Industry FAW Jiefang Qingdao Chassis mainly covers: Drive: 4x2; Horsepower: 220 hp / 260 hp / 310 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Jiuhe Heavy Industry FAW Jiefang Qingdao Chassis?
For Jiuhe Heavy Industry FAW Jiefang Qingdao Chassis: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is concrete pump truck typically used for?
concrete pump truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Jiuhe Heavy Industry FAW Jiefang Qingdao Chassis include?
Jiuhe Heavy Industry FAW Jiefang Qingdao Chassis currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Jiuhe Heavy Industry FAW Jiefang Qingdao Chassis?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
