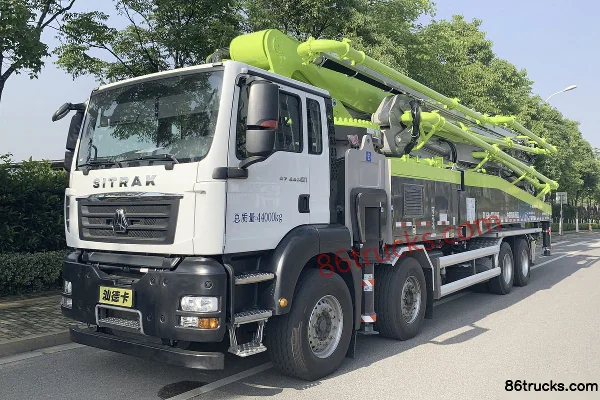

Sinotruk Sitrak SITRAK C7H 540 hp 10X4(14 wheels) 67m Concrete Pump Truck (Zoomlion Brand) (China VI)
EXW
Export quote
ZOOMLION Sitrak Chassis concrete pump truck
Main model photos
27 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk Sitrak SITRAK C7H 540 hp 10X4(14 wheels) 67m Concrete Pump Truck (Zoomlion Brand) (China VI) | 10x4 / 540hp / China VI | ||
| Sinotruk Sitrak C7H 510 hp 10X4(14 wheels) 67m concrete pump truck (Zoomlion) (China VI) | 10x4 / 510hp / China VI | ||
| Sinotruk Sitrak C7H 460 hp 10X4(14 wheels) 67m concrete pump truck (Zoomlion) (China VI) | 10x4 / 460hp / China VI | ||
| Sinotruk Sitrak SITRAK C7H 540 hp 10X4(14 wheels) 67m Concrete Pump Truck (Zoomlion Brand) (China VI) | 10x4 / 540hp / China VI | ||
| Sinotruk Sitrak C7H 400 hp 10X4(14 wheels) 67m concrete pump truck (Zoomlion brand) (China VI) | 10x4 / 400hp / China VI |
Sinotruk Sitrak C7H 510 hp 10X4(14 wheels) 67m concrete pump truck (Zoomlion) (China VI)
EXW
Export quote
Sinotruk Sitrak C7H 460 hp 10X4(14 wheels) 67m concrete pump truck (Zoomlion) (China VI)
EXW
Export quote
Sinotruk Sitrak SITRAK C7H 540 hp 10X4(14 wheels) 67m Concrete Pump Truck (Zoomlion Brand) (China VI)
EXW
Export quote
Sinotruk Sitrak C7H 400 hp 10X4(14 wheels) 67m concrete pump truck (Zoomlion brand) (China VI)
EXW
Export quote
Series Specs
Basic Info
Model code (announced): ZLJ5540THBKF / ZLJ5440THBKF / ZLJ5230THBKF / ZLJ5350THBKF / ZLJ5350THBKE / ZLJ5441THBKF / ZLJ5441THBKE / ZLJ5440THBKE / ZLJ5351THBKE
Pumping displacement: 180 / 100m³/h
Drive type: 10X4 / 6X4 / 4X2 / 8X4
Max pumping height: 67 / 63 / 39 / 52 / 59 / 62m
Wheelbase: 1950+5200+1400+1500 / 1950+5725+1350 / 5000 / 4325+1350 / 1950+4500+1400 / 4650+1400mm
Overall Dimensions: L×W×H: 16.452×2.55×3.965 / 13.804×2.55×4 / 9.93×2.53×3.95 / 12.06×2.53×4 / 14.7×2.53×3.96 / 19.75×2.55×4 / 12.28×2.53×4 / 12.06×253×4m
Max. travel speed: 90 / 89km/h
Curb Weight: 54 / 43.87 / 22.87 / 34.87 / 44ton
Chassis Specs
Axle Count: 5 / 4 / 2 / 3
Chassis Series: SitrakC7H / G7 / C7H
Chassis Model: ZZ5546V52KMF1B / ZZ5446V516MF1 / ZZ5236N521GF1 / ZZ5356V524MF1 / ZZ5356V524ME1 / ZZ5446V516ME1
Pumping system
Pumping displacement (low/high): 180 / 60/100m³/h
Pumping pressure (low/high): 42 / 35
Pumping strokes (low/high): 26 / 14/25Times/min
Delivery cylinder: bore × stroke: Φ260×2100 / Φ230×1650mm
Delivery pipe diameter: 260mm
Boom Outriggers
Boom Vertical Height: 67m
Boom Section Count: 6
Turntable Rotation Angle: 270°
Outrigger spread width: front/rear: 12250×14400×12825mm
Engine parameters
Engine Model: SinotrukMC13H.54-61 / SinotrukMC13H.51-61 / SinotrukMC13.46-61 / SinotrukMC13.54-61 / SinotrukMC11.40-60 / SinotrukMC11.44-60 / SinotrukMC13.48-60 / SinotrukMC11.43-61 / SinotrukMC13.50-61 / SinotrukMC13.50-60 / SinotrukMC11.44-50 / SinotrukMC07.31-60 / SinotrukMC11.40-50
fuel type: Diesel
Displacement: 13.02 / 12.419 / 10.518 / 6.87L
Emission standard: China VI / China V
Max output power: 400 / 378 / 341 / 294 / 324 / 353 / 319 / 371 / 368 / 225kW
Max hp: 540 / 510 / 460 / 400 / 440 / 480 / 430 / 500 / 310Horsepower
Rated speed: 1900 / 2200rpm
Transmission Parameters
Number of gears: 12 / 10 / 16Gear
Transmission Model: Sinotruk 12-speed transmission / ZF16-speed
Cab parameters
Cab: C7H / C7H flat roof
Tire
Tire Size: 1st, 2nd axle: 385/65R22.5 / 3rd, 4th axle: 315/80R22.5 / 5th axle: 385/65R22.5 / 385/65R22.5/315/80R22.5,385/65R22.5/12.00R20 / 14.00R20/12.00R20 / 385/65R22.5/315/80R22.5
FAQ
What kind of truck is ZOOMLION ZOOMLION Sitrak Chassis concrete pump truck?
ZOOMLION ZOOMLION Sitrak Chassis is an export-oriented concrete pump truck lineup with about 20 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does ZOOMLION Sitrak Chassis concrete pump truck cover?
ZOOMLION Sitrak Chassis concrete pump truck mainly covers: Drive: 10x4; Horsepower: 400 hp / 460 hp / 510 hp / 540 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in ZOOMLION Sitrak Chassis concrete pump truck?
For ZOOMLION Sitrak Chassis concrete pump truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is concrete pump truck typically used for?
concrete pump truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does ZOOMLION Sitrak Chassis concrete pump truck include?
ZOOMLION Sitrak Chassis concrete pump truck currently lists about 20 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for ZOOMLION Sitrak Chassis concrete pump truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
