Sinotruk Sitrak SITRAK C7H 310hp 4X2(6 wheels) 38m Concrete Pump Truck (Zoomlion Brand) (China VI)

Export reference
MSRP N/A
Fuel: Diesel
Drive: 4X2 (6 wheels)
Wheelbase:: 5000mm
Model code (announced):: ZLJ5230THBKF
Pumping displacement:: 100m³/h
Max pumping height:: 39m
Curb Weight: 22.87ton
Horsepower 310
Max output power: 225kW
Emission China VI

Overview

The Sinotruk Sitrak SITRAK C7H 310hp 4X2(6 wheels) 38m Concrete Pump Truck (Zoomlion Brand) (China VI) is a concrete pump truck featuring 22.87ton GVW, 310 hp, 225kW power and 4X2 (6 wheels) drive. On the powertrain side, it comes with China VI emissions and Diesel fuel.

China VI 310 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZLJ5230THBKF
Pumping displacement: 100m³/h
Max pumping height: 39m
Drive type: 4X2
Wheelbase: 5000mm
Overall Dimensions: L×W×H: 9.93×2.53×3.95m
Max. travel speed: 89km/h
Curb Weight: 22.87ton
Chassis Specs
Axle Count: 2
Chassis Series: C7H
Chassis Model: ZZ5236N521GF1
Pumping system
Pumping displacement (low/high): 60/100m³/h
Pumping pressure (low/high): 35
Pumping strokes (low/high): 14/25Times/min
Delivery cylinder: bore × stroke: Φ230×1650mm
Engine parameters
Engine Model: SinotrukMC07.31-60
fuel type: Diesel
Displacement: 6.87L
Emission standard: China VI
Max output power: 225kW
Max hp: 310Horsepower
Rated speed: 2200rpm
Transmission Parameters
Number of gears: 10Gear
Cab parameters
Cab: C7H flat roof
Tire
Tire Size: 14.00R20/12.00R20

Photos

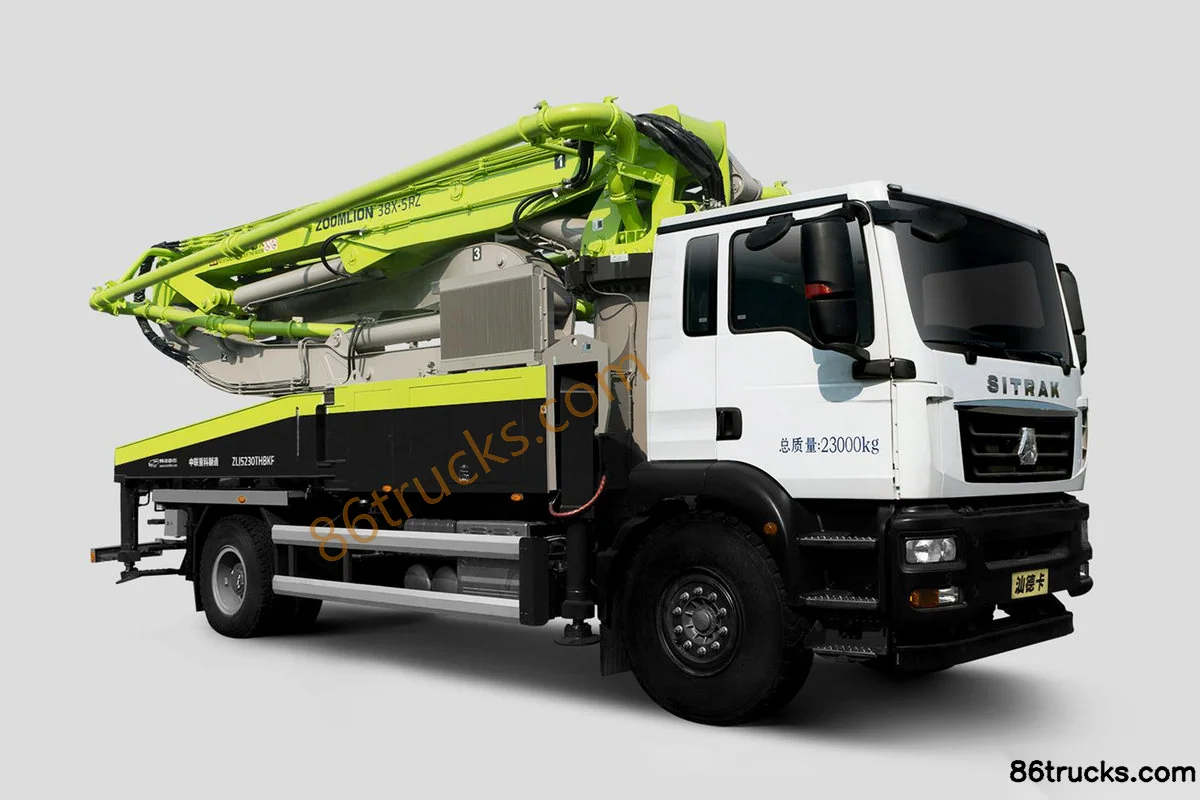

Exterior1

1 photos

FAQ

What emission standard does Sinotruk Sitrak SITRAK C7H 310hp 4X2(6 wheels) 38m Concrete Pump Truck (Zoomlion Brand) (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Sitrak SITRAK C7H 310hp 4X2(6 wheels) 38m Concrete Pump Truck (Zoomlion Brand) (China VI)?

Key specs of Sinotruk Sitrak SITRAK C7H 310hp 4X2(6 wheels) 38m Concrete Pump Truck (Zoomlion Brand) (China VI): Drive: 4x2; Horsepower: 310 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Sitrak SITRAK C7H 310hp 4X2(6 wheels) 38m Concrete Pump Truck (Zoomlion Brand) (China VI) suited for?

Sinotruk Sitrak SITRAK C7H 310hp 4X2(6 wheels) 38m Concrete Pump Truck (Zoomlion Brand) (China VI) is a concrete pump truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Sinotruk Sitrak SITRAK C7H 310hp 4X2(6 wheels) 38m Concrete Pump Truck (Zoomlion Brand) (China VI) differ from other variants in the same series?

Sinotruk Sitrak SITRAK C7H 310hp 4X2(6 wheels) 38m Concrete Pump Truck (Zoomlion Brand) (China VI) belongs to ZOOMLION Sitrak Chassis (concrete pump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Sitrak SITRAK C7H 310hp 4X2(6 wheels) 38m Concrete Pump Truck (Zoomlion Brand) (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Sitrak SITRAK C7H 310hp 4X2(6 wheels) 38m Concrete Pump Truck (Zoomlion Brand) (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
