Sinotruk Sitrak SITRAK G7 440 hp 8X4(12 wheels) 63m Concrete Pump Truck (Zoomlion Brand)

Export reference
MSRP N/A
Fuel: Diesel
Drive: 6X4 (10 wheels)
Wheelbase:: 1950+5725+1350mm
Model code (announced):: ZLJ5440THBKF
Pumping displacement:: 180m³/h
Max pumping height:: 63m
Curb Weight: 43.87ton
Horsepower 440
Max output power: 324kW
Emission China V

Overview

The Sinotruk Sitrak SITRAK G7 440 hp 8X4(12 wheels) 63m Concrete Pump Truck (Zoomlion Brand) is a concrete pump truck featuring 43.87ton GVW, 440 hp, 324kW power and 6X4 (10 wheels) drive. On the powertrain side, it comes with China V emissions and Diesel fuel.

China V 440 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZLJ5440THBKF
Pumping displacement: 180m³/h
Max pumping height: 63m
Drive type: 6X4
Wheelbase: 1950+5725+1350mm
Overall Dimensions: L×W×H: 13.804×2.55×4m
Max. travel speed: 90km/h
Curb Weight: 43.87ton
Chassis Specs
Axle Count: 4
Chassis Series: G7
Chassis Model: ZZ5446V516MF1
Pumping system
Pumping displacement (low/high): 180m³/h
Pumping pressure (low/high): 42
Pumping strokes (low/high): 26Times/min
Delivery cylinder: bore × stroke: Φ260×2100mm
Engine parameters
Engine Model: SinotrukMC11.44-50
fuel type: Diesel
Displacement: 10.518L
Emission standard: China V
Max output power: 324kW
Max hp: 440Horsepower
Rated speed: 1900rpm
Transmission Parameters
Number of gears: 12Gear
Tire
Tire Size: 385/65R22.5/315/80R22.5,385/65R22.5/12.00R20

Photos

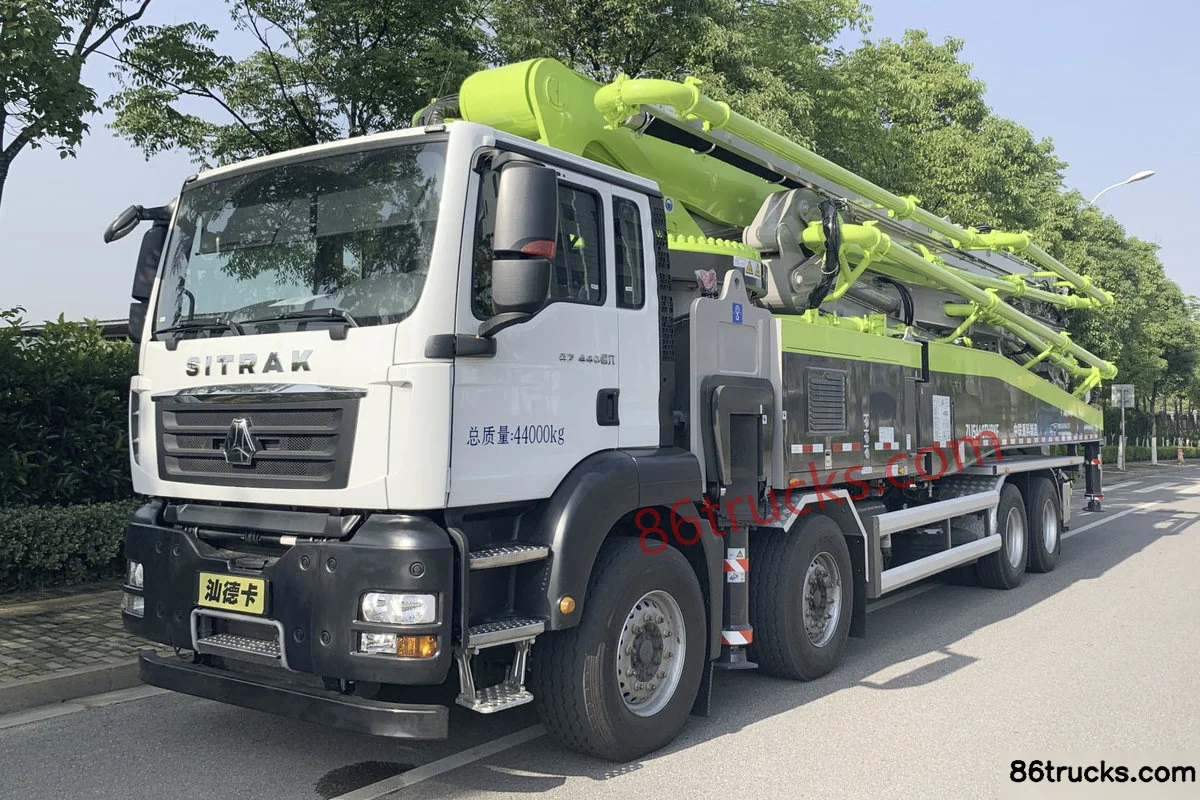

Exterior1

1 photos

FAQ

What emission standard does Sinotruk Sitrak SITRAK G7 440 hp 8X4(12 wheels) 63m Concrete Pump Truck (Zoomlion Brand) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Sitrak SITRAK G7 440 hp 8X4(12 wheels) 63m Concrete Pump Truck (Zoomlion Brand)?

Key specs of Sinotruk Sitrak SITRAK G7 440 hp 8X4(12 wheels) 63m Concrete Pump Truck (Zoomlion Brand): Drive: 6x4; Horsepower: 440 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Sitrak SITRAK G7 440 hp 8X4(12 wheels) 63m Concrete Pump Truck (Zoomlion Brand) suited for?

Sinotruk Sitrak SITRAK G7 440 hp 8X4(12 wheels) 63m Concrete Pump Truck (Zoomlion Brand) is a concrete pump truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Sinotruk Sitrak SITRAK G7 440 hp 8X4(12 wheels) 63m Concrete Pump Truck (Zoomlion Brand) differ from other variants in the same series?

Sinotruk Sitrak SITRAK G7 440 hp 8X4(12 wheels) 63m Concrete Pump Truck (Zoomlion Brand) belongs to ZOOMLION Sitrak Chassis (concrete pump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Sitrak SITRAK G7 440 hp 8X4(12 wheels) 63m Concrete Pump Truck (Zoomlion Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Sitrak SITRAK G7 440 hp 8X4(12 wheels) 63m Concrete Pump Truck (Zoomlion Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
