ZOOMLION 52m concrete pump truck (Scania chassis)

Export reference
MSRP N/A
Model code (announced):: ZLJ5434THB
Pumping displacement:: 165m³/h
Max pumping height:: 52m
Overall Dimensions: L×W×H:: 13.43×2.5×4m
Axle Count:: 4
Chassis Series:: Scania P380CB8×4HNZ

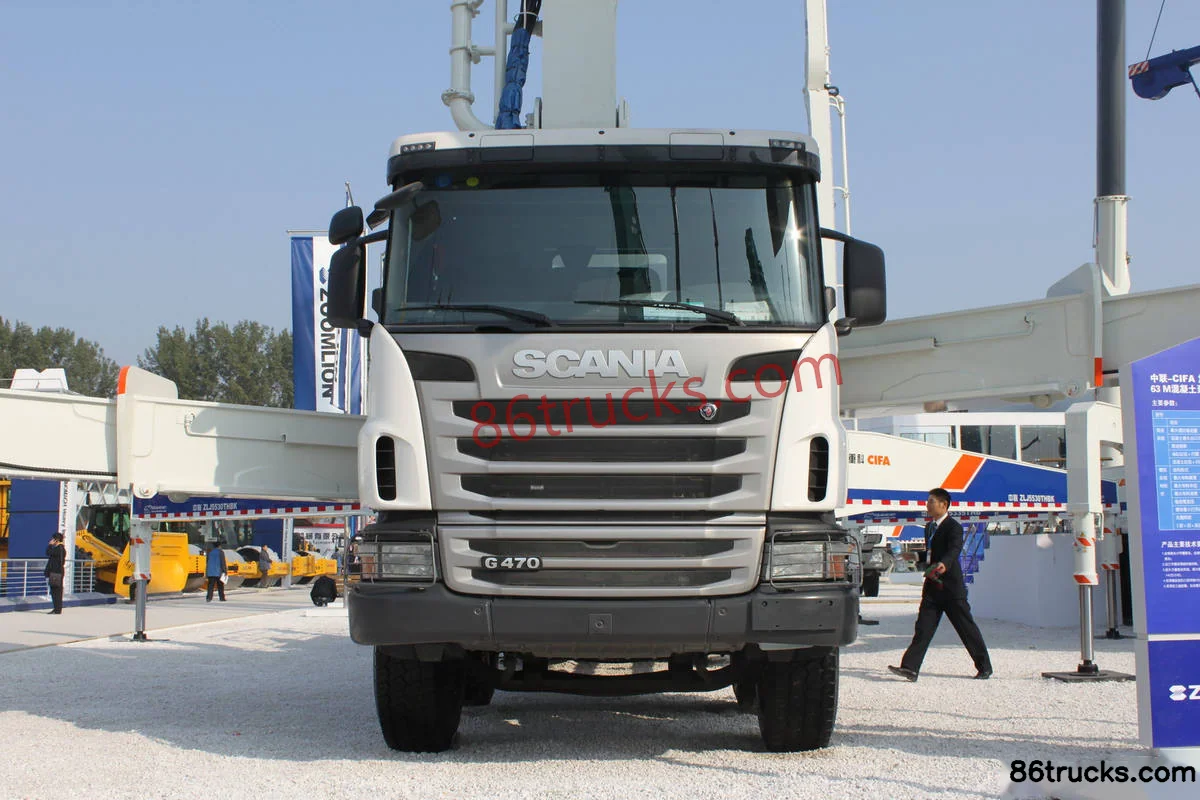

ZOOMLION 52m concrete pump truck (Scania chassis) exterior
View more photos (1)
Curb Weight: 42.745ton
Water tank capacity: 500L
Max output power: 309kW
Wheelbase: 1940+4560+1445mm

Overview

The ZOOMLION 52m concrete pump truck (Scania chassis) is a concrete pump truck featuring 42.745ton GVW, 500L tank capacity and 309kW power.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): ZLJ5434THB
Pumping displacement: 165m³/h
Max pumping height: 52m
Wheelbase: 1940+4560+1445mm
Overall Dimensions: L×W×H: 13.43×2.5×4m
Curb Weight: 42.745ton
Body Parameters
Water tank capacity: 500L
Chassis Specs
Axle Count: 4
Chassis Series: Scania P380CB8×4HNZ
Pumping system
Pumping pressure (low/high): 7.5/12
Delivery cylinder: bore × stroke: 260×2100mm
Delivery pipe diameter: 160mm
Boom Outriggers
Boom Vertical Height: 52m
Boom Horizontal Length: 48m
Boom Vertical Depth: 37.6m
Turntable Rotation Angle: 270°
Outrigger spread width: front/rear: 9300/11975mm
Engine parameters
Engine Model: D1206
Displacement: 11.705L
Max output power: 309kW
Rated speed: 1900rpm

Photos

Exterior1

ZOOMLION 52m concrete pump truck (Scania chassis) Exterior (1) | 86Trucks

1 photos

FAQ

What transport jobs is ZOOMLION 52m concrete pump truck (Scania chassis) suited for?

ZOOMLION 52m concrete pump truck (Scania chassis) is a concrete pump truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does ZOOMLION 52m concrete pump truck (Scania chassis) differ from other variants in the same series?

ZOOMLION 52m concrete pump truck (Scania chassis) belongs to ZOOMLION Scania chassis pump truck (concrete pump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for ZOOMLION 52m concrete pump truck (Scania chassis)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export ZOOMLION 52m concrete pump truck (Scania chassis)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
