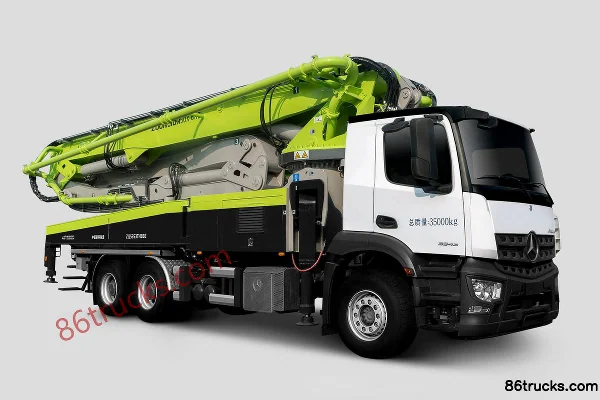

Mercedes-Benz Arocs 460hp 8X4(12 wheels) 62m Concrete Pump Truck (Zoomlion Brand)
EXW
Export quote
ZOOMLION Mercedes-Benz Chassis Pump Truck concrete
Main model photos
38 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Mercedes-Benz Arocs 460hp 8X4(12 wheels) 62m Concrete Pump Truck (Zoomlion Brand) | 6x4 / 456hp / China VI | ||
| Mercedes-Benz Arocs 435hp 6X4(10 wheels) 52m concrete pump truck (Zoomlion) | 6x4 / 435hp / China V | ||
| Mercedes-Benz Arocs 435hp 8X4(12 wheels) 59m concrete pump truck (Zoomlion) | 8x4 / 435hp / China V | ||
| Mercedes-Benz Arocs 435hp 8X4(12 wheels) 62m concrete pump truck (Zoomlion brand) | 8x4 / 435hp / China V | ||
| Mercedes-Benz 435 hp 8X4(12 wheels) Concrete Pump Truck (Zoomlion Brand) | 8x4 / 435hp / China V |
Mercedes-Benz Arocs 435hp 6X4(10 wheels) 52m concrete pump truck (Zoomlion)
EXW
Export quote
Mercedes-Benz Arocs 435hp 8X4(12 wheels) 59m concrete pump truck (Zoomlion)
EXW
Export quote
Mercedes-Benz Arocs 435hp 8X4(12 wheels) 62m concrete pump truck (Zoomlion brand)
EXW
Export quote

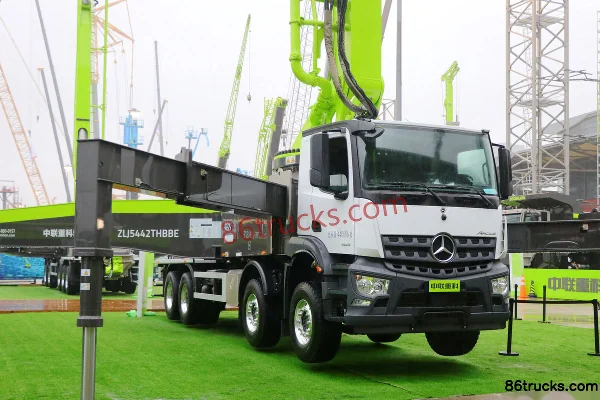

Mercedes-Benz 435 hp 8X4(12 wheels) Concrete Pump Truck (Zoomlion Brand)
EXW
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| ZOOMLION 48m Concrete Pump Truck (Mercedes-Benz Chassis) 4X2(6 wheels) | 4x2 / 408hp / China III / Euro III | ||
| ZOOMLION 47m Concrete Pump Truck (Mercedes-Benz Chassis) | — | ||
| ZOOMLION 49m Concrete Pump Truck (Mercedes-Benz Actros 3341 Chassis) | — | ||
| ZOOMLION 47m concrete pump truck (Mercedes-Benz Actros 4141 chassis) | — | ||
| ZOOMLION 47m concrete pump truck (Mercedes-Benz Actros 3341 chassis) | — |
ZOOMLION 48m Concrete Pump Truck (Mercedes-Benz Chassis) 4X2(6 wheels)
EXW
Export quote
ZOOMLION 47m Concrete Pump Truck (Mercedes-Benz Chassis)
EXW
Export quote
ZOOMLION 49m Concrete Pump Truck (Mercedes-Benz Actros 3341 Chassis)
EXW
Export quote
ZOOMLION 47m concrete pump truck (Mercedes-Benz Actros 4141 chassis)
EXW
Export quote
ZOOMLION 47m concrete pump truck (Mercedes-Benz Actros 3341 chassis)
EXW
Export quote
Series Specs
Basic Info
Model code (announced): ZLJ5440THBBF / ZLJ5353THBBE / ZLJ5442THBBE / ZLJ5441THBBE / ZLJ5337THB 47X-5RZ / ZLJ5339THB / ZLJ5411THB125-47 / ZLJ5336THB47X-5RZ / ZLJ5393THB125-44 / ZLJ5331THB / ZLJ5292THB125-37 / ZLJ5301THB125-40 / ZLJ5297THB40X-4Z / ZLJ5401THB125-46 / ZLJ5413THB125-49 / ZLJ5433THB
Pumping displacement: 180 / 120 / 170 / 165m³/h
Max pumping height: 62 / 52 / 59 / 48.4 / 47 / 49 / 44 / 42 / 37 / 40 / 46m
Drive type: 6X4 / 8X4 / 4X2
Wheelbase: 2000+4350+1350 / 4800+1350 / 2050+4300+1350 / 4500+1350 / 1700+4600+1350 / 2020+4280+1350mm
Overall Dimensions: L×W×H: 14×2.53×4 / 12.15×2.53×4 / 14.69×2.53×4 / 13.1×2.5×4 / 12.02×2.5×4 / 12.7×2.5×4 / 12.06×2.5×4 / 12.53×2.5×4 / 11.45×2.5×4 / 11.69×2.5×3.8 / 11.35×2.5×4 / 12.45×2.5×3.93 / 12.79×2.5×4 / 13.373×2.5×3.995m
Max. travel speed: 90 / 85km/h
Curb Weight: 43.87 / 34.87 / 40.96 / 33.5 / 40.98 / 33 / 39.06 / 32.7 / 30.2 / 28.5 / 40 / 43ton
Body Parameters
Water tank capacity: 400 / 500L
Chassis Specs
Axle Count: 4 / 3 / 2
Chassis Series: Arocs / Mercedes-Benz / Mercedes-Benz Actros3341 / Mercedes-Benz Actros4141 / Mercedes-Benz Actros / Mercedes-Benz ACTROS 3340 or 3341
Chassis Model: Arocs / Arocs 4143 8X4 / Actros 4141
Pumping system
Pumping displacement (low/high): 180 / 180/120m³/h
Pumping pressure (low/high): 42 / 8.3/12 / 7/11 / /6.5 / 7.5/12
Pumping strokes (low/high): 26 / 9 / 26/28 / 22/22 / 13/22Times/min
Delivery cylinder: bore × stroke: Φ260×2100 / 260×2100 / 130×2100 / 230×2100mm
Delivery pipe diameter: 125 / 160mm
Engine parameters
Engine Model: Mercedes-BenzOM470LA.6-56 / Mercedes-BenzOM470LA.5-54 / Mercedes-BenzOM501LA / OM501LA / Mercedes-BenzOM501LA.III/17 / OM501LA.Ⅲ/17
fuel type: Diesel
Displacement: 10.677 / 11.946 / 11.95L
Emission standard: China VI / China V / China III / Euro III
Max output power: 336 / 320 / 300kW
Max hp: 456 / 435 / 408Horsepower
Rated speed: 1800rpm
Boom Outriggers
Boom Horizontal Length: 42.7 / 45 / 42.2 / 40 / 37.6 / 34.8 / 42 / 48m
Boom Section Count: Four-arm section
Boom Vertical Depth: 33.4 / 34.1 / 33 / 32.7 / 32 / 29.5 / 25.6 / 32.6 / 35 / 37.6m
Min unfolded length: 33.4 / 9.1m
Turntable Rotation Angle: 270 / 365 / 350 / 370°
Outrigger spread width: front/rear: 9300/11795 / 6190/8345 / 9180/9975 / 9180/10960 / 9300/11975mm
Boom Section 1 - Length: 9440 / 9380 / 9100 / 8150mm
first arm section angle: 90°
Boom Section 2 - Length: 8310 / 7850 / 7220mm
Boom Section 2 - Angle: 180°
Boom Section 3 - Length: 8275 / 7930 / 7650 / 7270mm
Boom Section 3 - Angle: 180°
4th arm section length: 8180 / 8360 / 7660 / 7480mm
Boom Section 4 - Angle: 250 / 240°
Cab parameters
Cab: Arocs flat roof
Tire
Tire Size: 385/65R22.5/315/80R22.5
FAQ
What kind of truck is ZOOMLION ZOOMLION Mercedes-Benz Chassis Pump Truck concrete pump truck?
ZOOMLION ZOOMLION Mercedes-Benz Chassis Pump Truck is an export-oriented concrete pump truck lineup with about 18 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does ZOOMLION Mercedes-Benz Chassis Pump Truck concrete cover?
ZOOMLION Mercedes-Benz Chassis Pump Truck concrete mainly covers: Drive: 4x2 / 6x4 / 8x4; Horsepower: 408 hp / 435 hp / 456 hp; Emission: China III / Euro III / China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in ZOOMLION Mercedes-Benz Chassis Pump Truck concrete?
For ZOOMLION Mercedes-Benz Chassis Pump Truck concrete: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is concrete pump truck typically used for?
concrete pump truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does ZOOMLION Mercedes-Benz Chassis Pump Truck concrete include?
ZOOMLION Mercedes-Benz Chassis Pump Truck concrete currently lists about 18 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for ZOOMLION Mercedes-Benz Chassis Pump Truck concrete?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
