Foton Leisa L10 520hp 8X4(12 wheels) 58m concrete pump truck (Isuzu chassis)(China VI)
EXW
Export quote
Loxa Heavy Machinery Isuzu Chassis concrete pump
Main model photos
16 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Leisa L10 520hp 8X4(12 wheels) 58m concrete pump truck (Isuzu chassis)(China VI) | 8x4 / 520hp / China VI | ||
| Foton Laisa L10 520 hp 8X4(12 wheels) 58m Concrete Pump Truck (Isuzu Chassis) (BJ5440THB-XF) | 8x4 / 520hp / China VI | ||
| Foton Laisa L10 520 hp 8X4(12 wheels) 56m Concrete Pump Truck (Isuzu Chassis) | 8x4 / 520hp / China VI | ||
| Foton Laisa L10 460 hp 6X4(10 wheels) 52m Concrete Pump Truck (Isuzu Chassis) | 6x4 / 460hp / China VI | ||
| Foton Laisa L10 460 hp 6X4(10 wheels) 50m Concrete Pump Truck (Isuzu Chassis) | 6x4 / 460hp / China VI |
Foton Laisa L10 520 hp 8X4(12 wheels) 58m Concrete Pump Truck (Isuzu Chassis) (BJ5440THB-XF)
EXW
Export quote

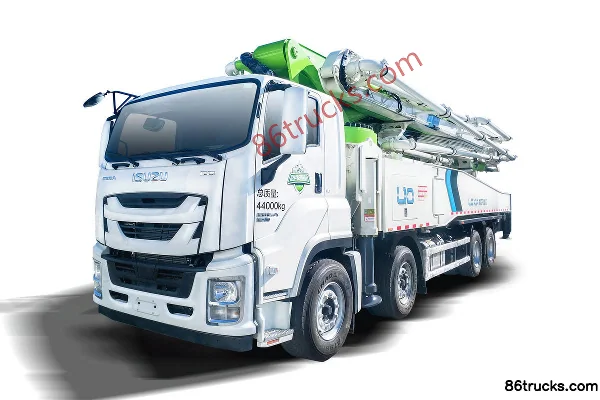

Foton Laisa L10 520 hp 8X4(12 wheels) 56m Concrete Pump Truck (Isuzu Chassis)
EXW
Export quote
Foton Laisa L10 460 hp 6X4(10 wheels) 52m Concrete Pump Truck (Isuzu Chassis)
EXW
Export quote

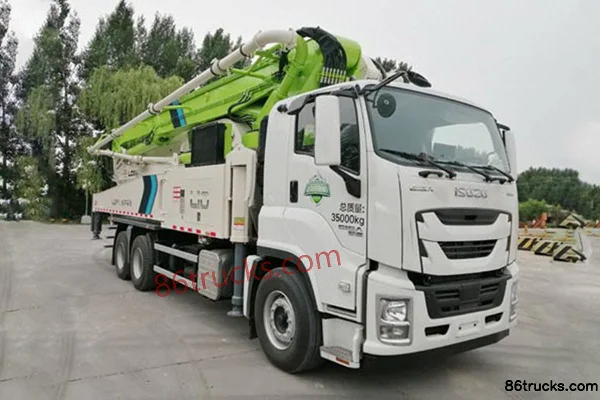

Foton Laisa L10 460 hp 6X4(10 wheels) 50m Concrete Pump Truck (Isuzu Chassis)
EXW
Export quote
Series Specs
Basic Info
Model code (announced): BJ5441THB-XF / BJ5440THB-XF / BJ5350THB-XF
Drive type: 8X4 / 6X4
Wheelbase: 2100+4325+1370 / 2100+4400+1370 / 4800+1370mm
Overall Dimensions: L×W×H: 14.08x2.54x4 / 12.62x2.54x4m
Max. travel speed: 80 / 85km/h
Curb Weight: 44 / 35ton
Body Parameters
Water tank capacity: 500 / 400L
Chassis Specs
Axle Count: 4 / 3
Chassis Model: QL5440TZZW7VDHY / QL5350TZZW6TDZY
Pumping system
Pumping displacement (low/high): 180m³/h
Pumping pressure (low/high): 8.8
Pumping strokes (low/high): 27 / 29Times/min
Oil pressure: 35Mpa
Delivery cylinder: bore × stroke: 260mm
Delivery pipe diameter: 125mm
Boom Outriggers
Boom Vertical Height: 57.2 / 56 / 51.3 / 50m
Boom Horizontal Length: 52.2 / 51 / 46.3 / 45m
Boom Vertical Depth: 41.3 / 40.1 / 36.6 / 35.3m
Turntable Rotation Angle: 360°
Min unfolded length: 15.8 / 13m
Engine parameters
Engine Model: Qingling Isuzu6WG1-TCG62 / Qingling Isuzu6WG1-TCG61
fuel type: Diesel
Displacement: 15.681L
Emission standard: China VI
Max output power: 382 / 338kW
Max hp: 520 / 460Horsepower
Rated speed: 1800 / 1500rpm
Transmission Parameters
Number of gears: 8Gear
Transmission Model: ZFZF8S2330TD
Tire
Tire Size: 385/65R22.5 20PR/315/80R22.5 18PR
FAQ
What kind of truck is Loxa Heavy Machinery Loxa Heavy Machinery Isuzu Chassis concrete pump truck?
Loxa Heavy Machinery Loxa Heavy Machinery Isuzu Chassis is an export-oriented concrete pump truck lineup with about 5 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Loxa Heavy Machinery Isuzu Chassis concrete pump cover?
Loxa Heavy Machinery Isuzu Chassis concrete pump mainly covers: Drive: 6x4 / 8x4; Horsepower: 460 hp / 520 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Loxa Heavy Machinery Isuzu Chassis concrete pump?
For Loxa Heavy Machinery Isuzu Chassis concrete pump: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is concrete pump truck typically used for?
concrete pump truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Loxa Heavy Machinery Isuzu Chassis concrete pump include?
Loxa Heavy Machinery Isuzu Chassis concrete pump currently lists about 5 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Loxa Heavy Machinery Isuzu Chassis concrete pump?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
