ZOOMLION 49m concrete pump truck (Scania chassis)

Export reference
MSRP N/A
Model code (announced):: ZLJ5402THB49-5RZ
Pumping displacement:: 120m³/h
Max pumping height:: 49m
Overall Dimensions: L×W×H:: 12.9×2.5×3.98m
Axle Count:: 4
Chassis Series:: Scania P380CB8×4HNZ
ZOOMLION 49m concrete pump truck (Scania chassis) exterior
View more photos (1)
Curb Weight: 40ton
Water tank capacity: 400L
Max output power: 190kW
Wheelbase: 1940+4560+1445mm

Overview

The ZOOMLION 49m concrete pump truck (Scania chassis) is a concrete pump truck featuring 40ton GVW, 400L tank capacity and 190kW power.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): ZLJ5402THB49-5RZ
Pumping displacement: 120m³/h
Max pumping height: 49m
Wheelbase: 1940+4560+1445mm
Overall Dimensions: L×W×H: 12.9×2.5×3.98m
Curb Weight: 40ton
Body Parameters
Water tank capacity: 400L
Chassis Specs
Axle Count: 4
Chassis Series: Scania P380CB8×4HNZ
Pumping system
Delivery cylinder: bore × stroke: 260×2100mm
Boom Outriggers
Boom Vertical Height: 49m
Boom Horizontal Length: 45m
Boom Vertical Depth: 35m
Turntable Rotation Angle: 270°
Outrigger spread width: front/rear: 9180/10960mm
Engine parameters
Engine Model: DC12
Displacement: 11.705L
Max output power: 190kW
Rated speed: 1300rpm

Photos

Exterior1

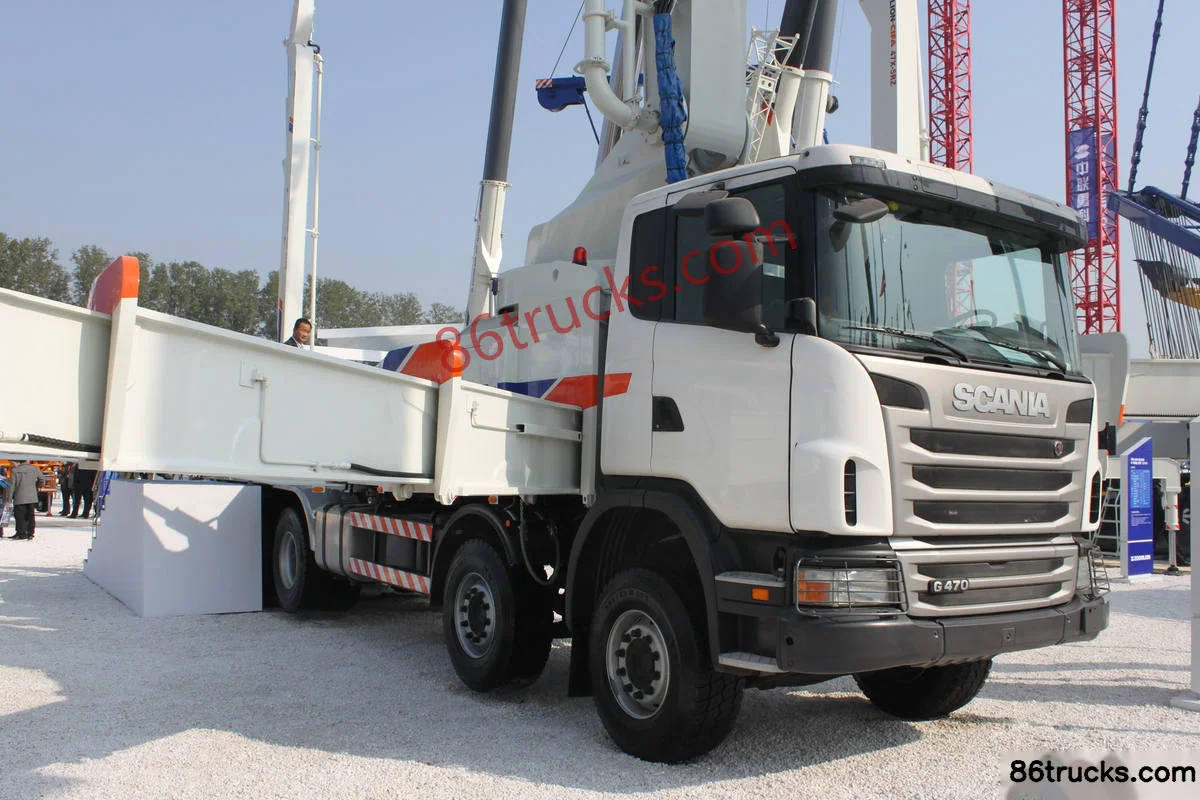

ZOOMLION 49m concrete pump truck (Scania chassis) Exterior (1) | 86Trucks

1 photos

FAQ

What transport jobs is ZOOMLION 49m concrete pump truck (Scania chassis) suited for?

ZOOMLION 49m concrete pump truck (Scania chassis) is a concrete pump truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does ZOOMLION 49m concrete pump truck (Scania chassis) differ from other variants in the same series?

ZOOMLION 49m concrete pump truck (Scania chassis) belongs to ZOOMLION Scania chassis pump truck (concrete pump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for ZOOMLION 49m concrete pump truck (Scania chassis)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export ZOOMLION 49m concrete pump truck (Scania chassis)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
