Sinotruk HOWO 340 hp 4X2(6 wheels) 27m Concrete Pump Truck (Senyuan Brand)
EXW
From $105,556
Export quote
Senyuan Heavy Industry Sinotruk HOWO chassis
Main model photos
7 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk HOWO 340 hp 4X2(6 wheels) 27m Concrete Pump Truck (Senyuan Brand) | 4x2 / 340hp / China IV | From $105,556 | |
| Sinotruk HOWO 280 hp 4X2(6 wheels) 33m Concrete Pump Truck (Senyuan Brand) | 4x2 / 280hp / China IV | From $125,000 |

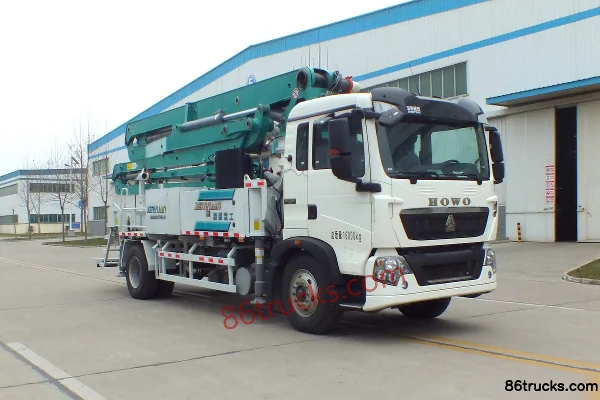

Sinotruk HOWO 280 hp 4X2(6 wheels) 33m Concrete Pump Truck (Senyuan Brand)
EXW
From $125,000
Export quote
Series Specs
Basic Info
Model code (announced): SMQ5201THB / SMQ5202THB
Pumping displacement: 115 / 65m³/h
Drive type: 4X2
Wheelbase: 5600 / 5200mm
Overall Dimensions: L×W×H: 10×2.5×3.94 / 9.76×2.5×3.72m
Max. travel speed: 101km/h
Curb Weight: 20.3 / 20.1ton
Chassis Specs
Axle Count:
Chassis Series: SinotrukHOWO
Chassis Model: ZZ5207N561D1 / ZZ5207M521GD1
Pumping system
Pumping displacement (low/high): 115/75 / 65m³/h
Pumping pressure (low/high): 6.3/10.2MPa / 8MPa
Pumping strokes (low/high): 23/15 / 24Times/min
Delivery cylinder: bore × stroke: 230×2000 / 200×1400mm
Engine parameters
Injection System: Common Rail
Engine Model: DongfengISLe340 40 / SinotrukMC07.28-40
fuel type: Diesel
Displacement: 8.9 / 6.87L
Emission standard: China IV
Max output power: 249 / 206kW
Max hp: 340 / 280Horsepower
Rated speed: 2100 / 2300rpm
Boom Outriggers
Boom Vertical Height: 26.5 / 32.2m
Boom Section Count: 4 / 5
Outrigger spread width: front/rear: 5.6/2.9/6.5 / 6/5.7/6.7mm
Tire
Tire Size: 295/80R22.5,11.00R20
FAQ
What kind of truck is Senyuan Heavy Industry Senyuan Heavy Industry Sinotruk HOWO chassis concrete pump truck?
Senyuan Heavy Industry Senyuan Heavy Industry Sinotruk HOWO chassis is an export-oriented concrete pump truck lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Senyuan Heavy Industry Sinotruk HOWO chassis?
Senyuan Heavy Industry Sinotruk HOWO chassis export reference is about $105,556 – $125,000. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Senyuan Heavy Industry Sinotruk HOWO chassis cover?
Senyuan Heavy Industry Sinotruk HOWO chassis mainly covers: Drive: 4x2; Horsepower: 280 hp / 340 hp; Emission: China IV; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Senyuan Heavy Industry Sinotruk HOWO chassis?
For Senyuan Heavy Industry Sinotruk HOWO chassis: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is concrete pump truck typically used for?
concrete pump truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Senyuan Heavy Industry Sinotruk HOWO chassis include?
Senyuan Heavy Industry Sinotruk HOWO chassis currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Senyuan Heavy Industry Sinotruk HOWO chassis?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
