Sinotruk HOWO 280 hp 4X2(6 wheels) 33m Concrete Pump Truck (Senyuan Brand)

Export reference
From $125,000
MSRP ¥90M CNY
Fuel: Diesel
Drive: 4X2 (6 wheels)
Wheelbase:: 5200mm
Model code (announced):: SMQ5202THB
Pumping displacement:: 65m³/h
Overall Dimensions: L×W×H:: 9.76×2.5×3.72m
Curb Weight: 20.1ton
Horsepower 280
Max output power: 206kW
Emission China IV

Overview

The Senyuan Heavy Industry Sinotruk HOWO 280 hp 4X2(6 wheels) 33m Concrete Pump Truck (Senyuan Brand) is a concrete pump truck featuring 20.1ton GVW, 280 hp, 206kW power and 4X2 (6 wheels) drive. On the powertrain side, it comes with China IV emissions and Diesel fuel.

China IV 280 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SMQ5202THB
Pumping displacement: 65m³/h
Drive type: 4X2
Wheelbase: 5200mm
Overall Dimensions: L×W×H: 9.76×2.5×3.72m
Max. travel speed: 101km/h
Curb Weight: 20.1ton
Chassis Specs
Axle Count:
Chassis Series: SinotrukHOWO
Chassis Model: ZZ5207M521GD1
Pumping system
Pumping displacement (low/high): 65m³/h
Pumping pressure (low/high): 8MPa
Pumping strokes (low/high): 24Times/min
Delivery cylinder: bore × stroke: 200×1400mm
Engine parameters
Injection System: Common Rail
Engine Model: SinotrukMC07.28-40
fuel type: Diesel
Displacement: 6.87L
Emission standard: China IV
Max output power: 206kW
Max hp: 280Horsepower
Rated speed: 2300rpm
Boom Outriggers
Boom Vertical Height: 32.2m
Boom Section Count: 5
Outrigger spread width: front/rear: 6/5.7/6.7mm
Tire
Tire Size: 295/80R22.5,11.00R20

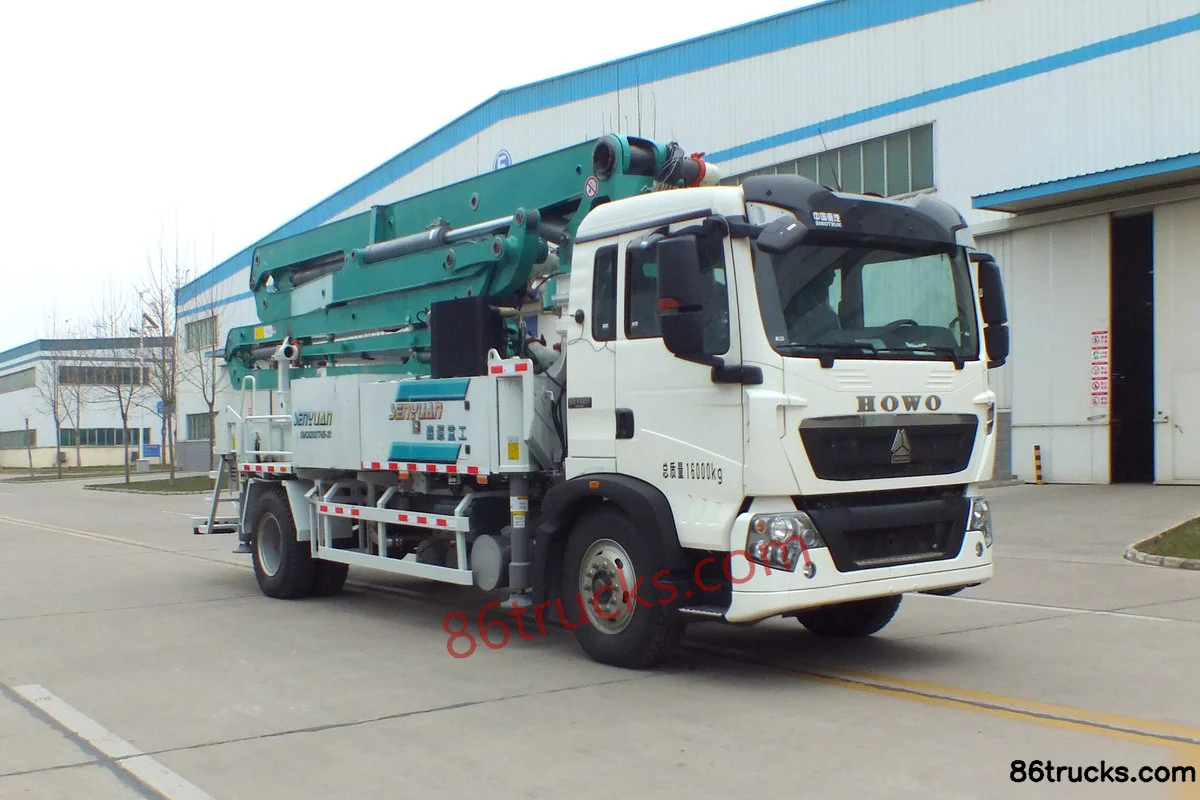

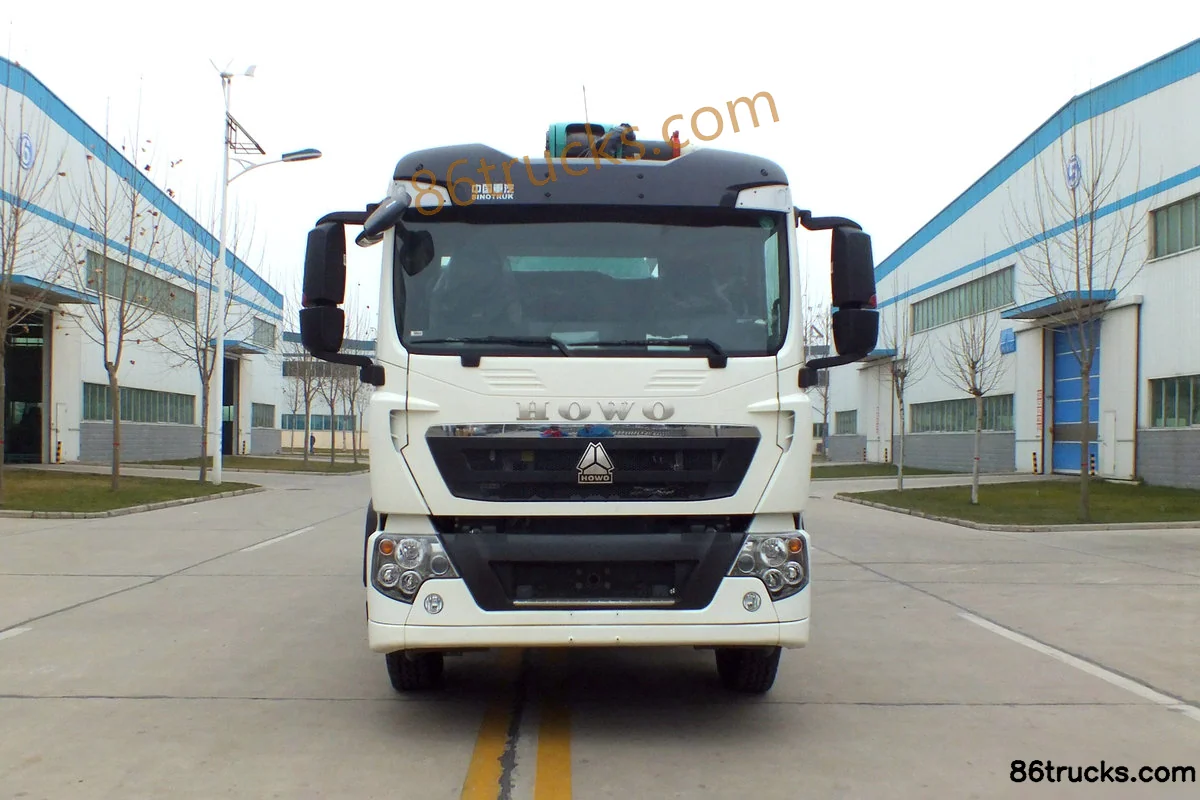

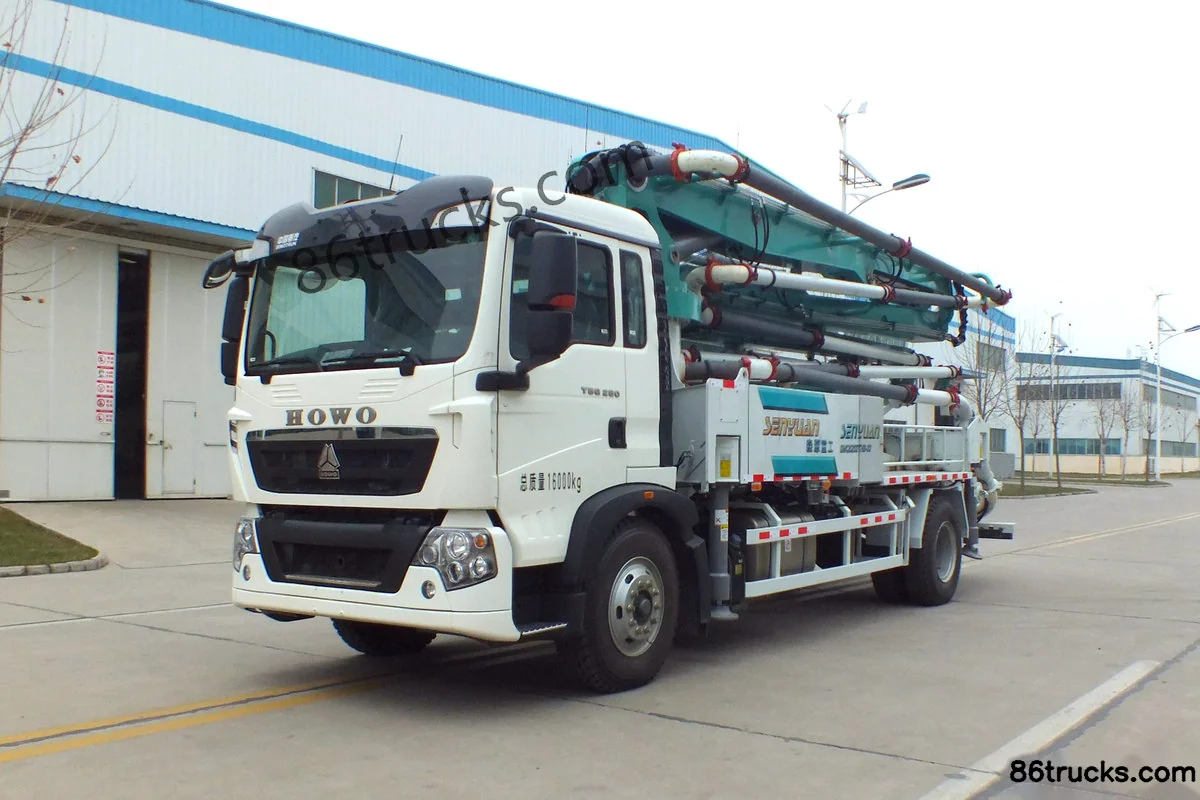

Photos

Exterior3

3 photos

FAQ

What is the export price of Sinotruk HOWO 280 hp 4X2(6 wheels) 33m Concrete Pump Truck (Senyuan Brand), and what does it include?

Sinotruk HOWO 280 hp 4X2(6 wheels) 33m Concrete Pump Truck (Senyuan Brand) export reference is about From $125,000; MSRP is ¥90M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO 280 hp 4X2(6 wheels) 33m Concrete Pump Truck (Senyuan Brand) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO 280 hp 4X2(6 wheels) 33m Concrete Pump Truck (Senyuan Brand)?

Key specs of Sinotruk HOWO 280 hp 4X2(6 wheels) 33m Concrete Pump Truck (Senyuan Brand): Drive: 4x2; Horsepower: 280 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO 280 hp 4X2(6 wheels) 33m Concrete Pump Truck (Senyuan Brand) suited for?

Sinotruk HOWO 280 hp 4X2(6 wheels) 33m Concrete Pump Truck (Senyuan Brand) is a concrete pump truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Sinotruk HOWO 280 hp 4X2(6 wheels) 33m Concrete Pump Truck (Senyuan Brand) differ from other variants in the same series?

Sinotruk HOWO 280 hp 4X2(6 wheels) 33m Concrete Pump Truck (Senyuan Brand) belongs to Senyuan Heavy Industry Sinotruk HOWO chassis (concrete pump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO 280 hp 4X2(6 wheels) 33m Concrete Pump Truck (Senyuan Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO 280 hp 4X2(6 wheels) 33m Concrete Pump Truck (Senyuan Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
