Kama Ruijie S36 3.2T 2-Seat 4.865m Electric Panel Van 38kWh

Export reference
From $19,833
MSRP ¥14.28M CNY
Wheelbase:: 3050mm
Cargo box volume:: 6
Model code (announced):: KMC5033XXYBEVB305M
Cab length:: 4.865m
GVWR:: 3.15ton
Max. speed:: 90km/h
CLTC range: 210km
Motor 1 Brand: Lingdian
Curb Weight: 1.66ton
Rated payload: 1.36ton

Overview

The Kama Ruijie S36 3.2T 2-Seat 4.865m Electric Panel Van 38kWh is a Electric Panel Van featuring 210km battery/range, Lingdian motor, 1.36t payload and 6 cargo length.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): KMC5033XXYBEVB305M
Wheelbase: 3050mm
Cab length: 4.865m
Cab width: 1.715m
Cab height: 2.065m
CLTC range: 210km
Curb Weight: 1.66ton
Rated payload: 1.36ton
GVWR: 3.15ton
Max. speed: 90km/h
Front/rear suspension: 0.75/1.065m
Energy Type: Electric
electric motor
Motor 1 Brand: Lingdian
Motor 1 Model: TZ185XSTY3206
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 30kW
Peak power: 70kW
total peak torque: 230N·m
total rated torque: 80N·m
Electronic Control
ECU Brand: Kama
Battery/Charging
Battery Brand: Jiangxi Anchi
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 38kWh
Energy Density: 133.75
Battery total voltage: 345.6V
Battery Model: IFP23140160-55AH
Body parameters
Cargo box volume: 6
Max body depth: 2.805
Max body width: 1.55
Cargo Box Height: 1.35
Body Parameters
Seat count: 2Seats
Cab parameters
Seat rows:
Wheel brake
Front tire specification: 195R14C
Rear Wheel Specification: 195R14C
Control configuration
ABS:

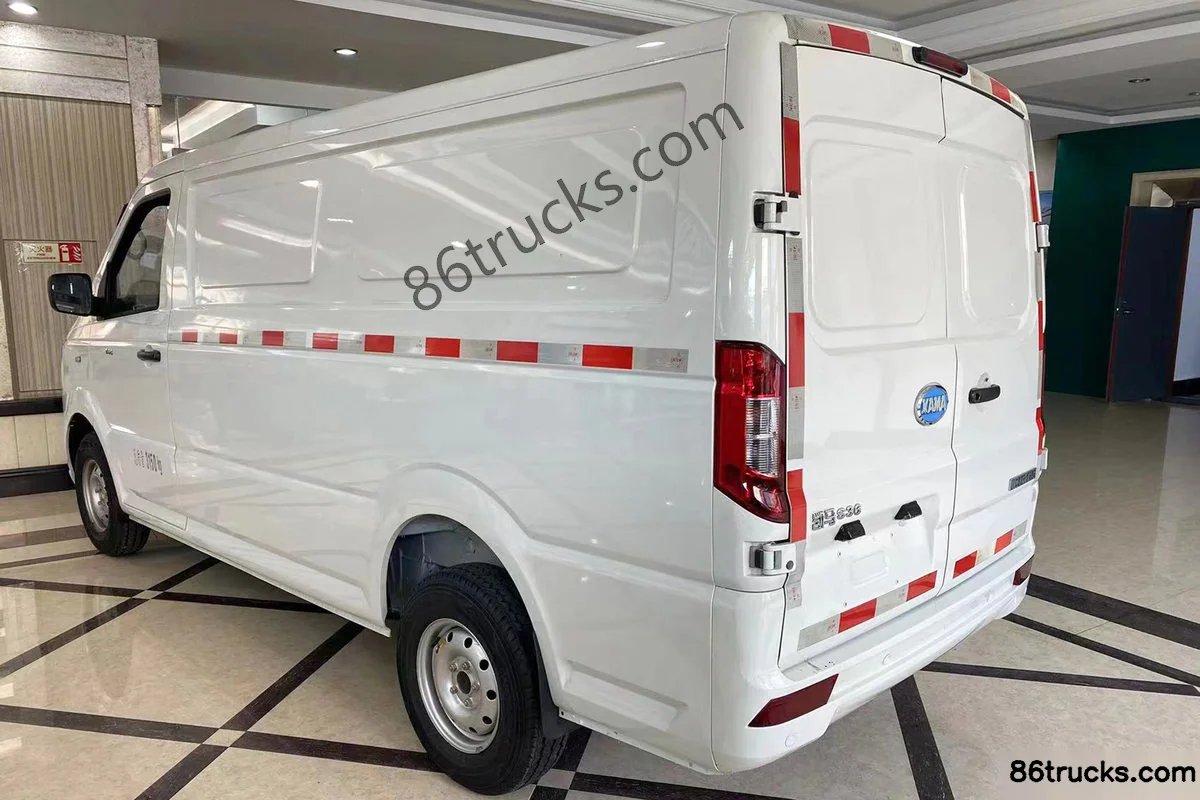

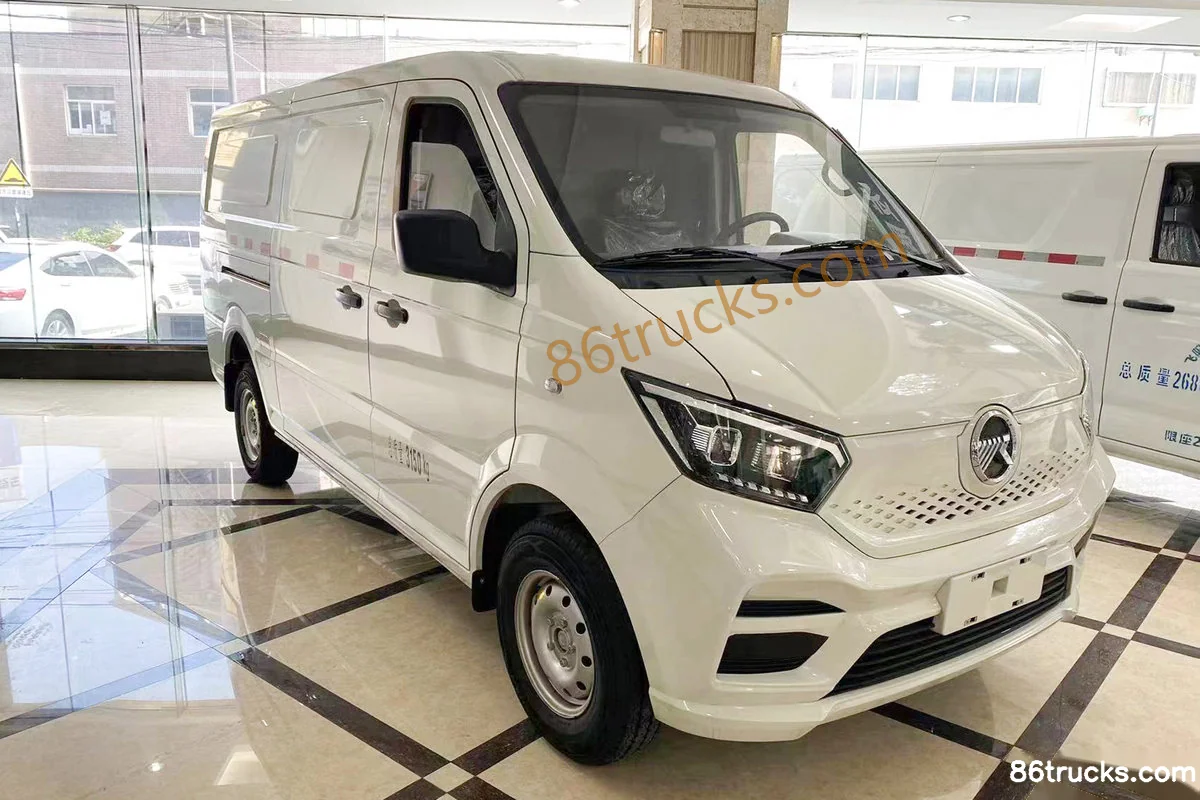

Photos

Exterior3

3 photos

FAQ

What is the export price of Kama Ruijie S36 3.2T 2-Seat 4.865m Electric Panel Van 38kWh, and what does it include?

Kama Ruijie S36 3.2T 2-Seat 4.865m Electric Panel Van 38kWh export reference is about From $19,833; MSRP is ¥14.28M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Kama Ruijie S36 3.2T 2-Seat 4.865m Electric Panel Van 38kWh suited for?

Kama Ruijie S36 3.2T 2-Seat 4.865m Electric Panel Van 38kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Kama Ruijie S36 3.2T 2-Seat 4.865m Electric Panel Van 38kWh differ from other variants in the same series?

Kama Ruijie S36 3.2T 2-Seat 4.865m Electric Panel Van 38kWh belongs to Kama Ruijie S (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama Ruijie S36 3.2T 2-Seat 4.865m Electric Panel Van 38kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama Ruijie S36 3.2T 2-Seat 4.865m Electric Panel Van 38kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
