Sinotruk Wangpai 7 Series Logistics Edition 116 hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck

Export reference
MSRP N/A
Horsepower: 116
Emission: China V
Fuel: Diesel
Engine: Yunnei 4100
Transmission: Changtai
Curb Weight:: 2.25ton
seating capacity: 3Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Sinotruk Wangpai 7 Series Logistics Edition 116 hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck is a Light Truck featuring 4.15m cargo length, stake body cargo body, 3Personnel volume and 1.495t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Yunnei 4100 engine, 116 hp, 4X2 (6 wheels) drive and China V emissions.

China V 116 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CDW1041HA1R5
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: Yunnei PowerYN33CRE1
transmission: Changtai SC7T48G
Rear Axle Ratio: 5.375
Cab length: 5.995m
Cab width: 2.4m
Cab height: 2.48m
Front track width: 1765mm
rear track: 1645mm
Curb Weight: 2.25ton
Rated payload: 1.495ton
GVWR: 3.94ton
Max. speed: 100km/h
Origin: Chengdu, Sichuan
tonnage class: Light Truck
Approach angle: 21°
departure angle: 24°
market segment: Building materials, agricultural products
Front/rear suspension: 1.28/1.355m
Version: Logistics Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN33CRE1
Engine info: Yunnei 4100
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.298L
Emission standard: China V
Max output power: 85kW
Max hp: 116Horsepower
Max torque: 315N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Engine Type: 4-cylinder inline, 8-valve, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Model: Changtai SC7T48G
Transmission Brand: Changtai
shift method: Manual
Forward gears: 7Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.15m
Cargo box width: 2.3m
Cargo box height: 0.5m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab width: 2080mm
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank capacity: 120L
Chassis Specs
Front axle allowable load: 1500kg
Frame Dimensions: 198mm
rear axle description: 4.2T rear axle
rear axle allowable load: 2440kg
Axle ratio: 5.375
Leaf spring count: 9/10+8
Tire
Tire Size: 7.50R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

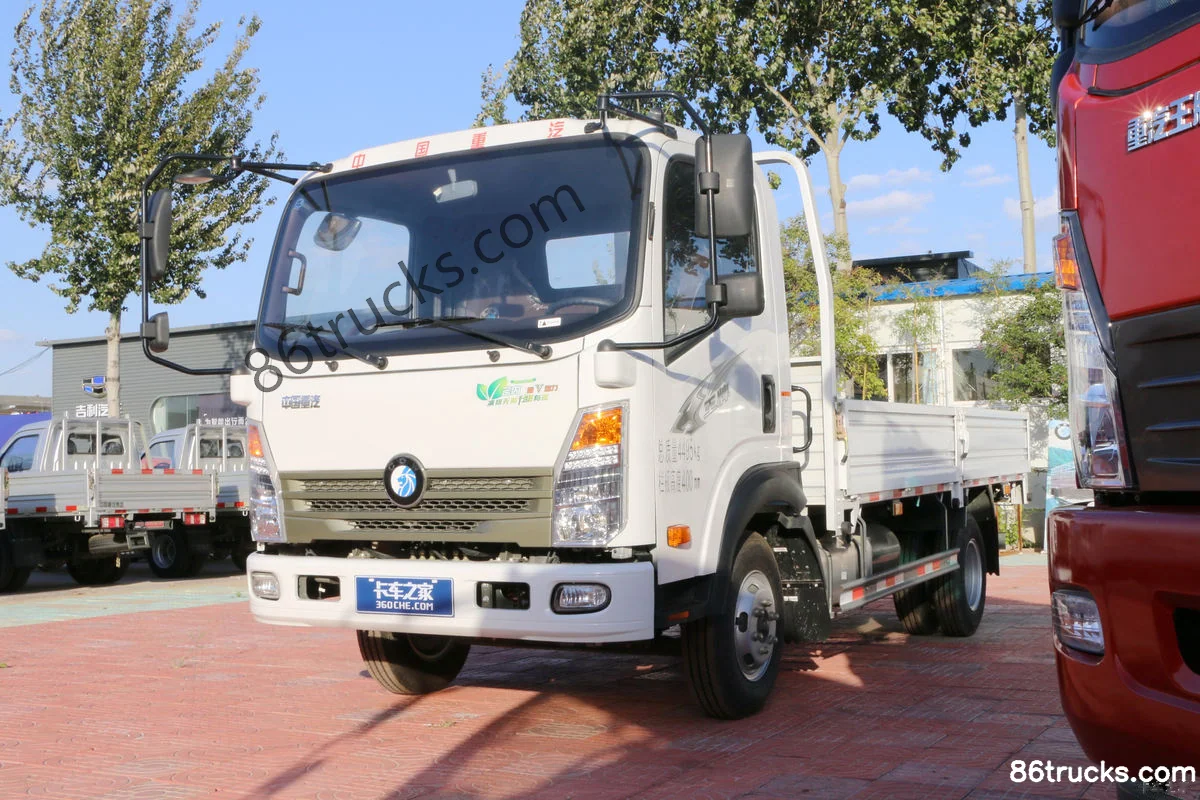

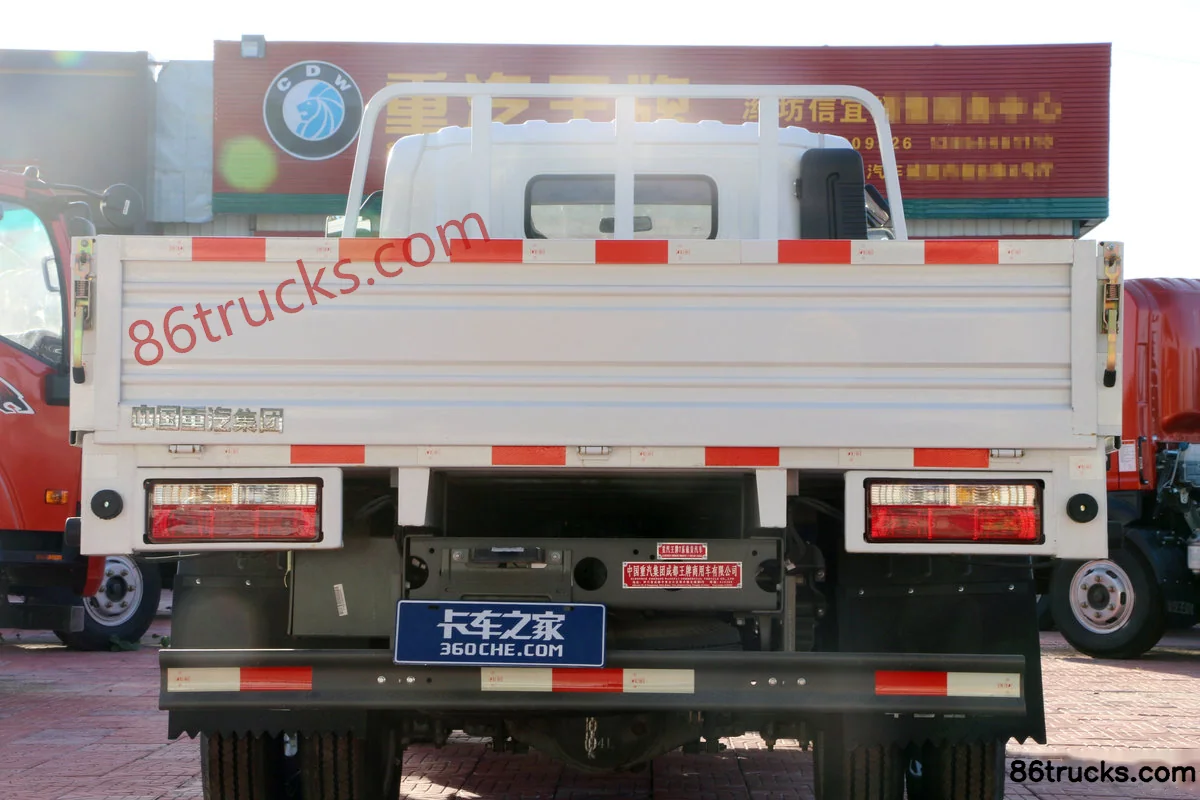

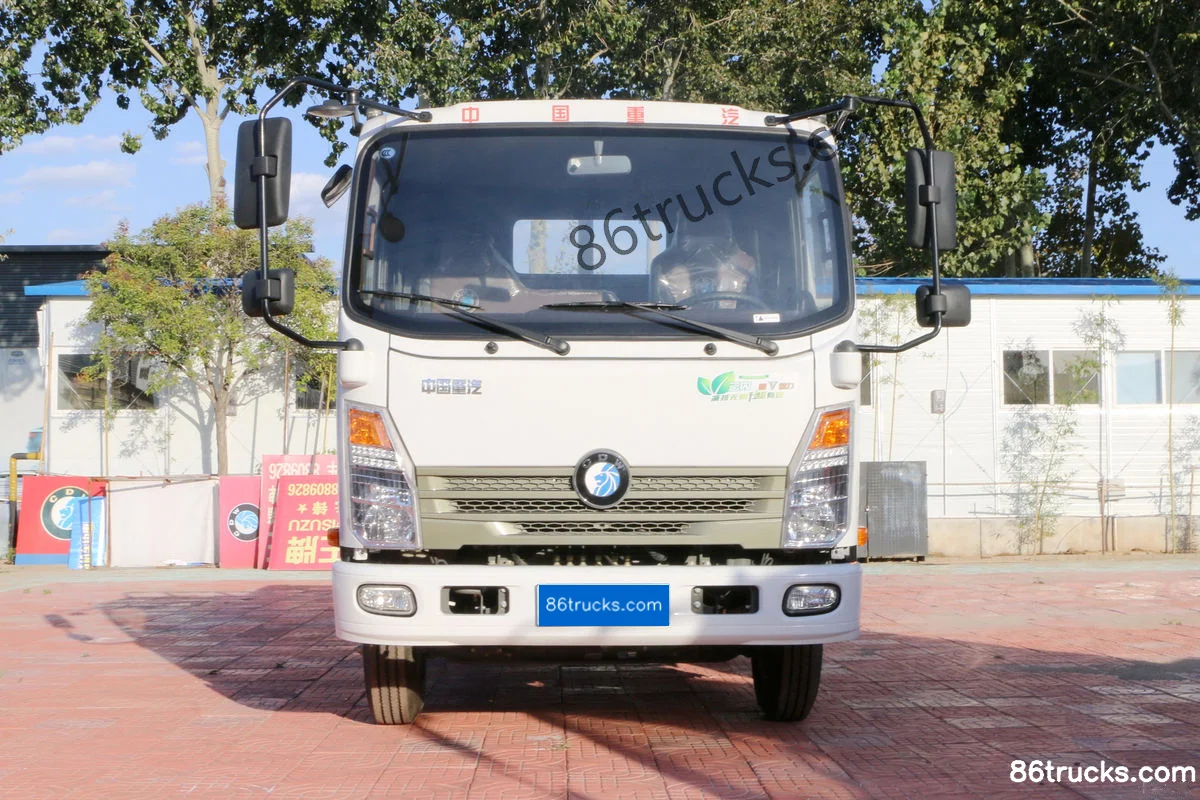

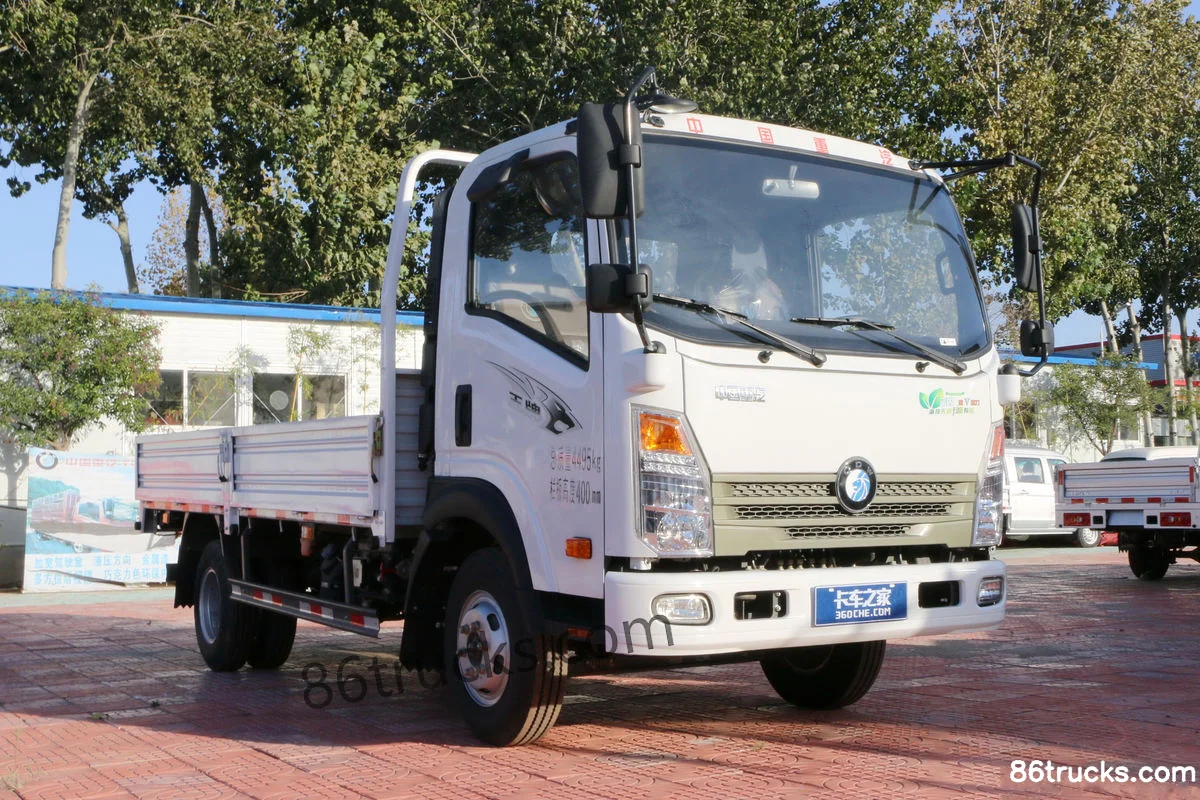

Exterior3

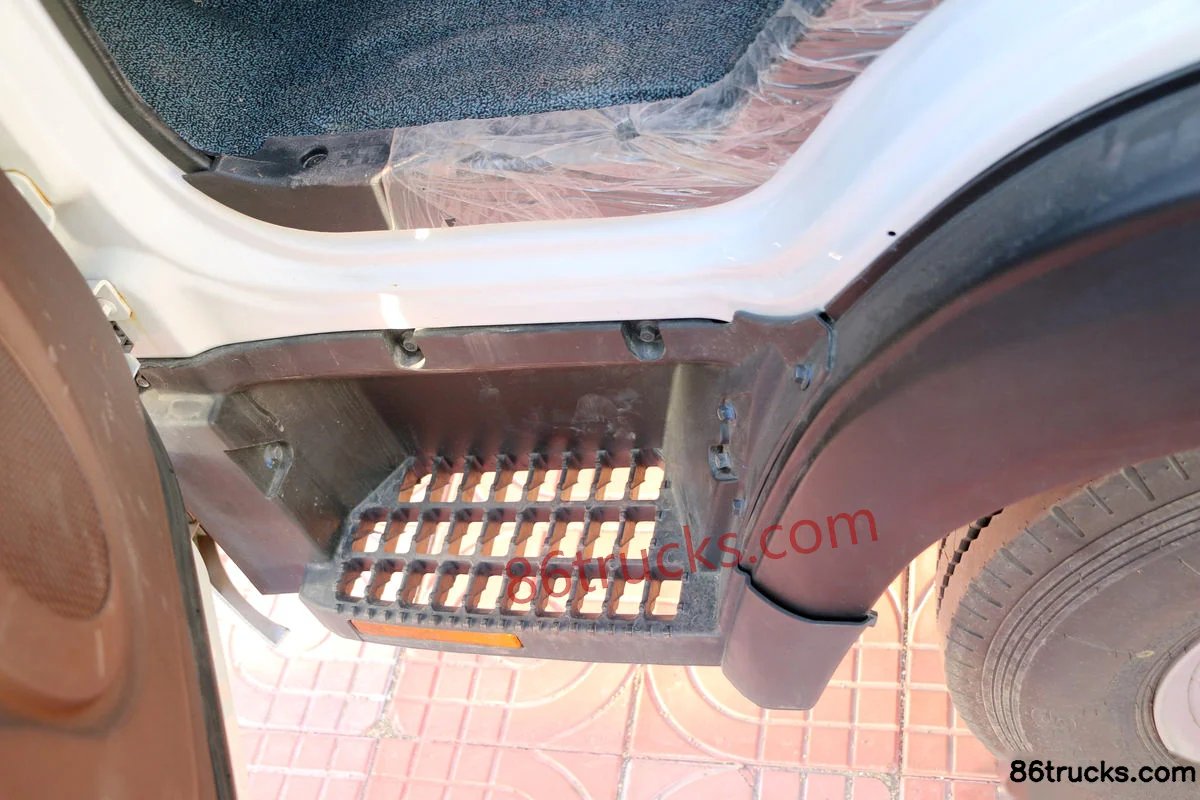

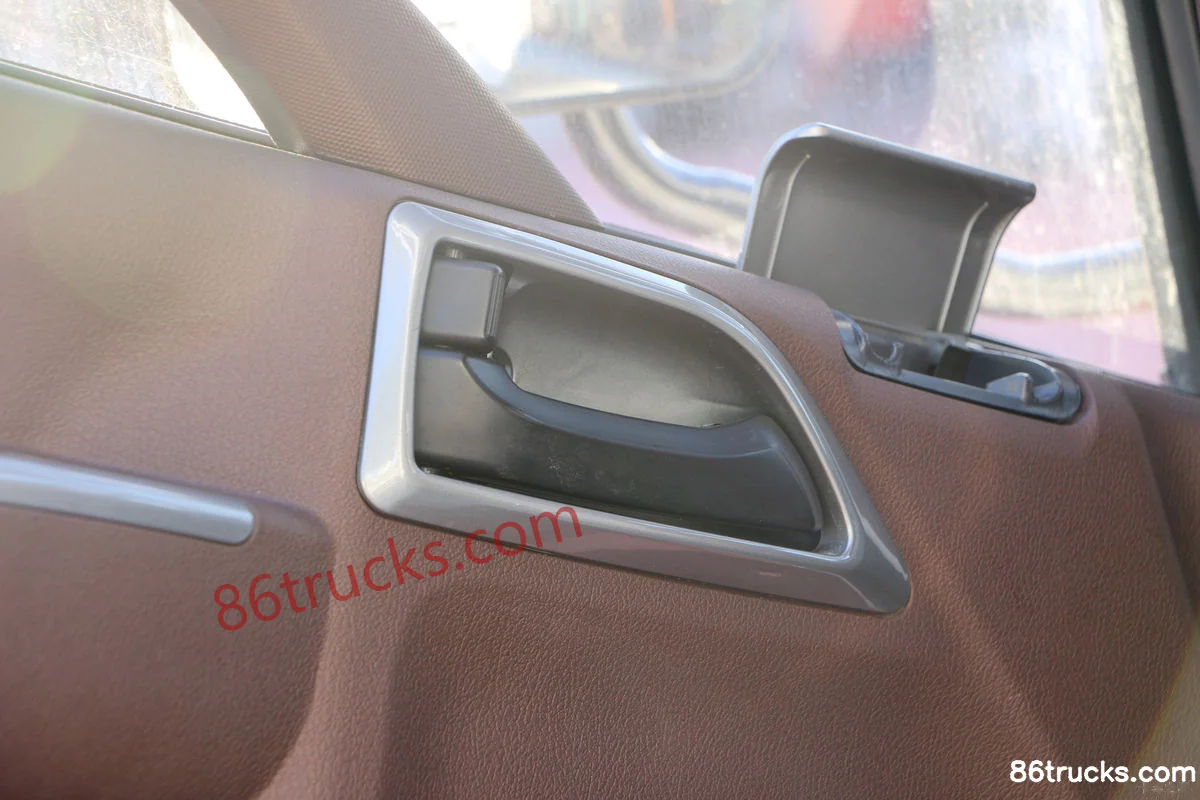

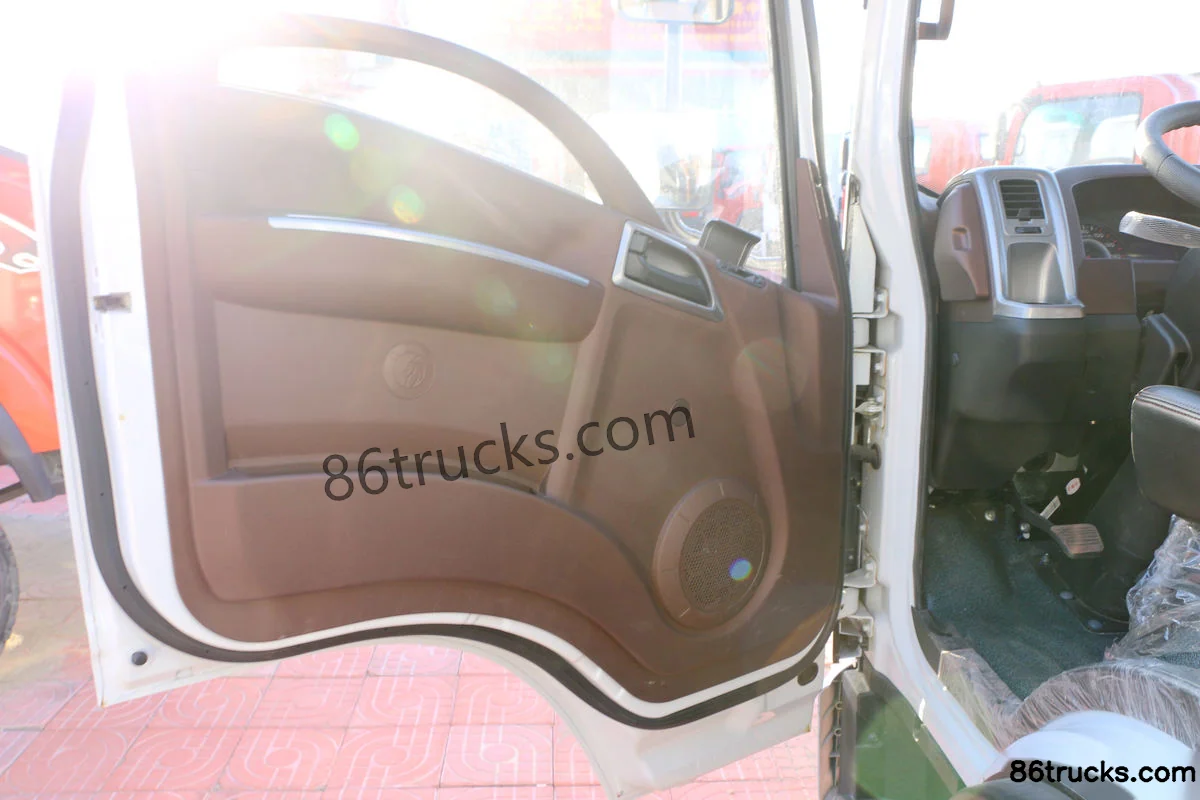

Cab3

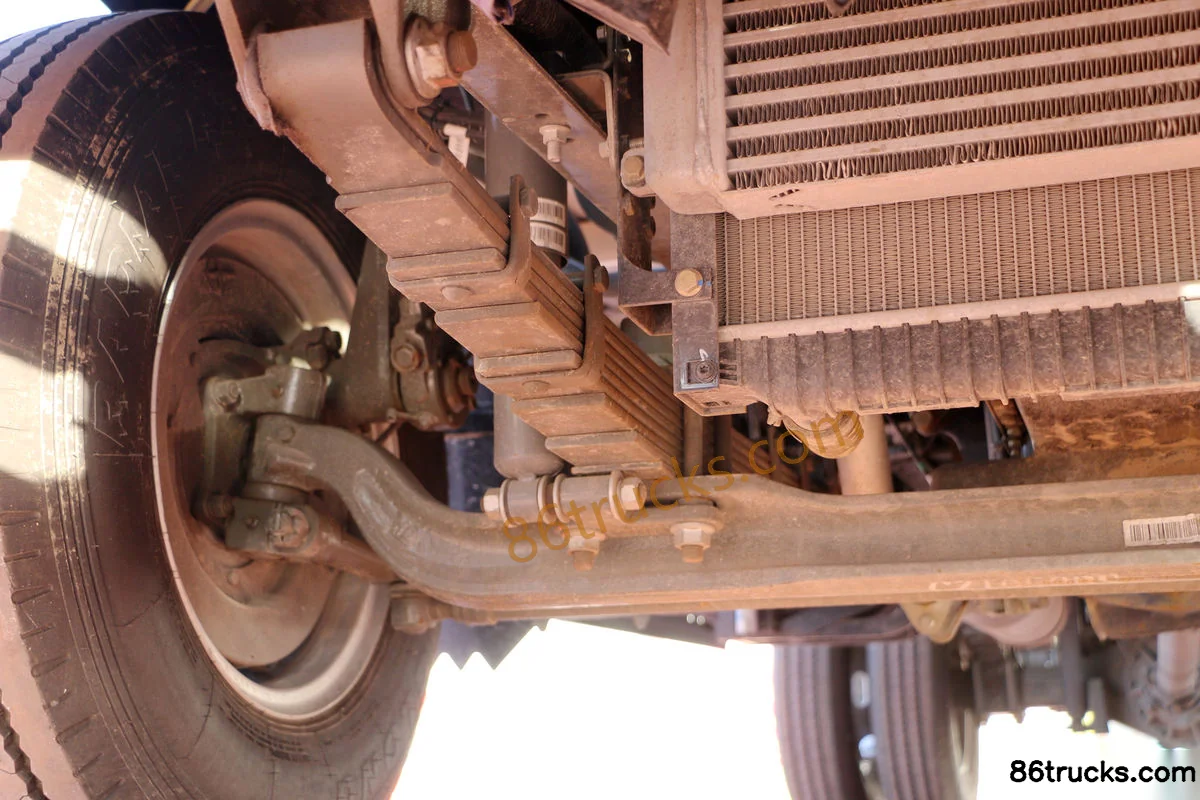

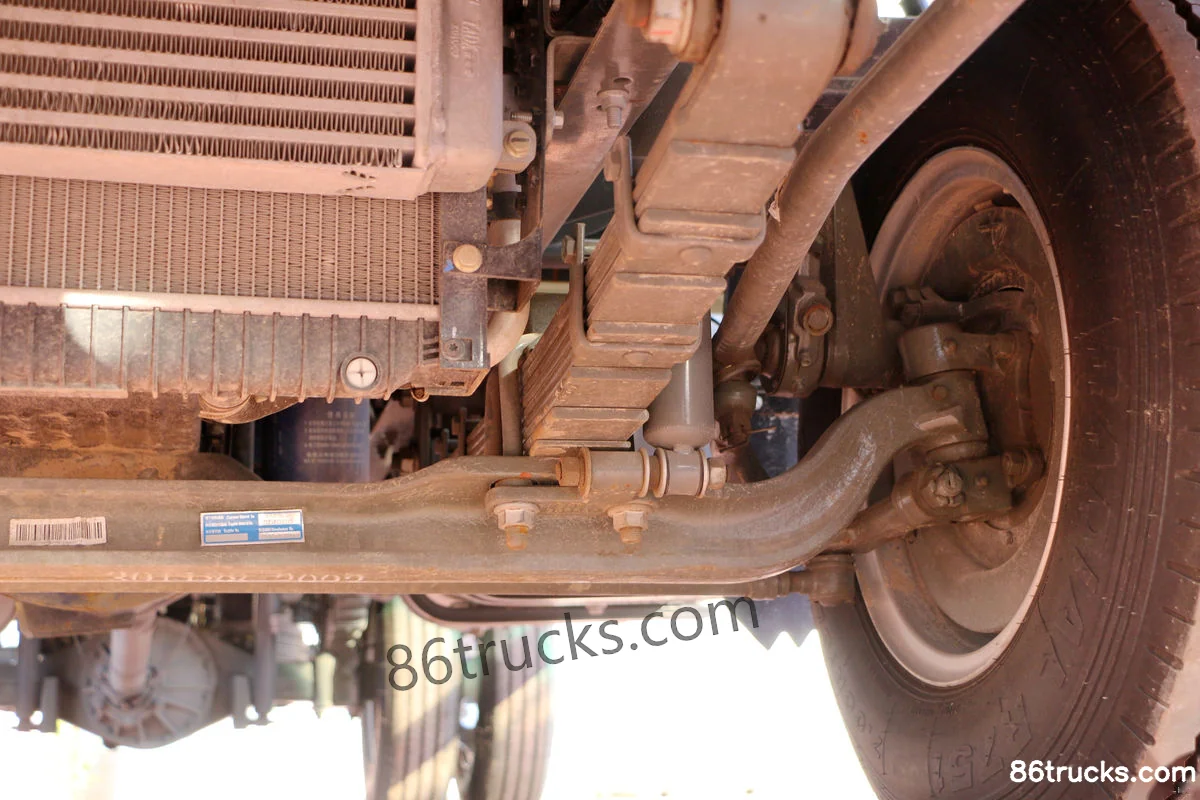

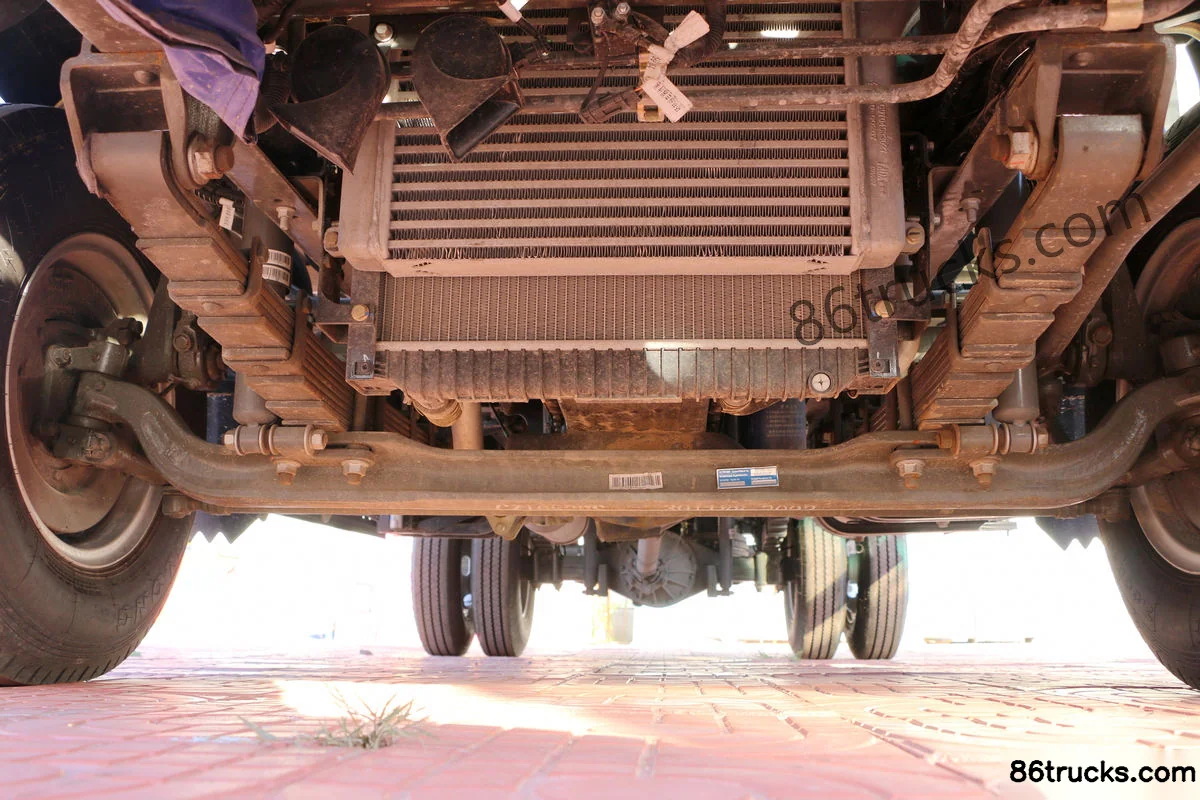

Chassis3

Body1

10 photos
