JMC New Kaiyun Deluxe 116hp 4X2(6 wheels) 3.7m Semi-row Flatbed Light Truck (Wide Body)

Export reference
MSRP N/A
Horsepower: 116
Emission: China V
Fuel: Diesel
Engine: JMC493
Transmission: JMC
Curb Weight:: 2.565ton
seating capacity: 3Personnel
Rated payload: 1.735ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JMC New Kaiyun Deluxe 116hp 4X2(6 wheels) 3.7m Semi-row Flatbed Light Truck (Wide Body) is a Light Truck featuring 3.7m cargo length, stake body cargo body, 3Personnel volume and 1.735t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a JMC493 engine, 116 hp, 4X2 (6 wheels) drive and China V emissions.

China V 116 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JX1042TPG25
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.7m
engine: Nanchang JMC JX493ZLQ5
transmission: JMCJC528T8
Cab length: 5.955m
Cab width: 2.04m
Cab height: 2.28m
Front track width: 1680mm
rear track: 1570mm
Curb Weight: 2.565ton
Rated payload: 1.735ton
GVWR: 4.495ton
Max. speed: 100km/h
Origin: Nanchang, Jiangxi
tonnage class: Light Truck
Approach angle: 18.3°
departure angle: 21°
market segment: Building materials, agricultural products
Front/rear suspension: 1.14/1.455m
Energy Type: Diesel
Engine parameters
Engine Brand: JMC
Engine Model: JMCJX493ZLQ5
Engine info: JMC493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China V
Max output power: 85kW
Max hp: 116Horsepower
Max torque: 285N·m
Max torque speed: 1800-2200rpm
Rated speed: 3800rpm
Transmission Parameters
Transmission Model: JMCJC528T8
Transmission Brand: JMC
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.7m
Cargo box width: 1.94m
Cargo box height: 0.38m
Cargo box material: Steel
*Cargo box interior width: 1.9400000572205
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Sunroof: Manual sunroof
Chassis Specs
Front axle allowable load: 1830kg
rear axle allowable load: 2665kg
Leaf spring count: 7/5+6
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
steering wheel adjustment: Manual
AC control type: Manual
Power Windows:
Remote key:
Electronic Central Lock:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Front fog lamp:
Service brake
Exhaust brake:

Photos

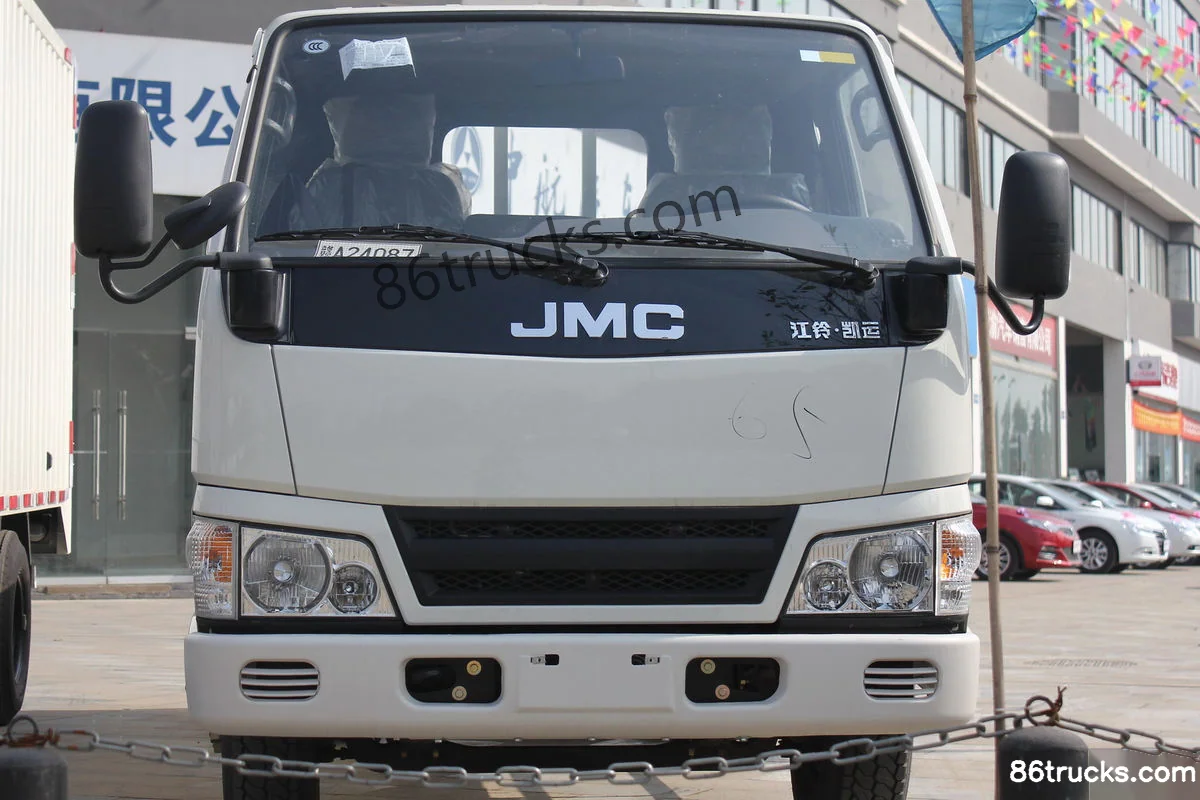

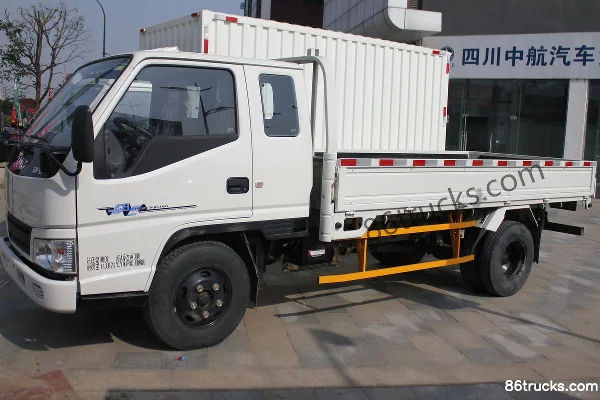

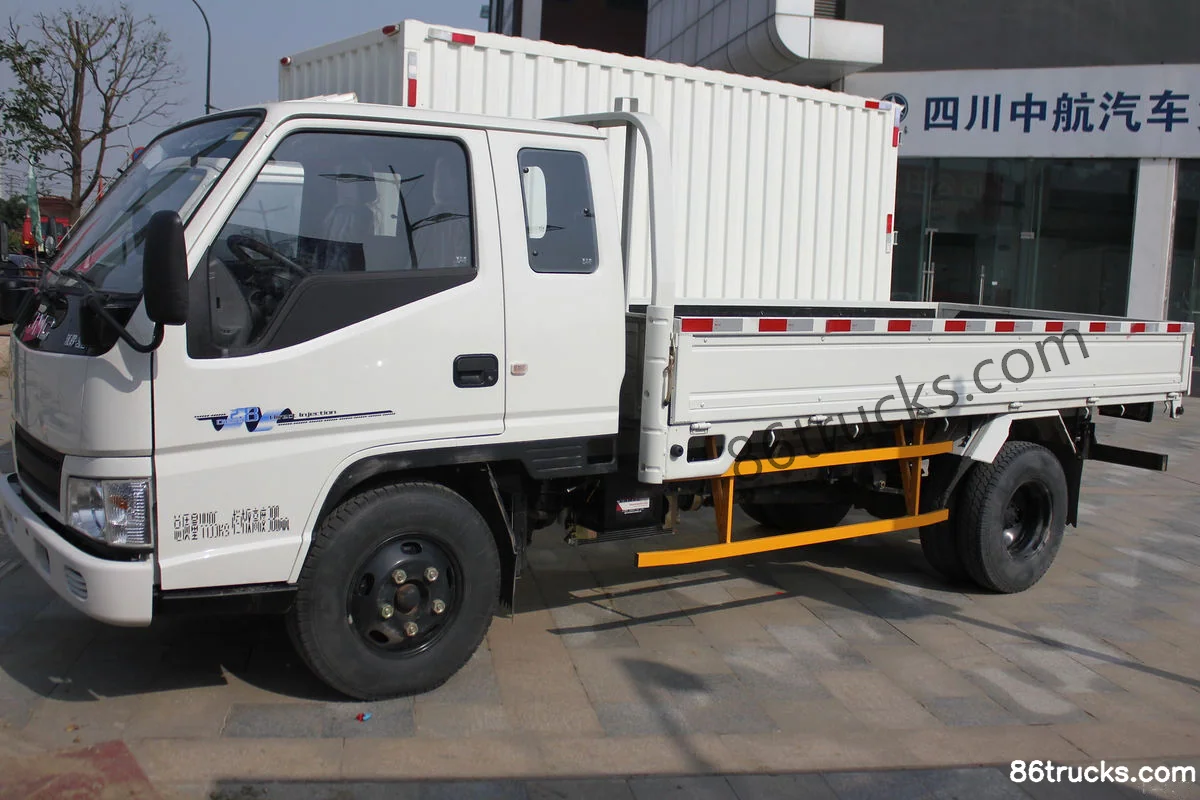

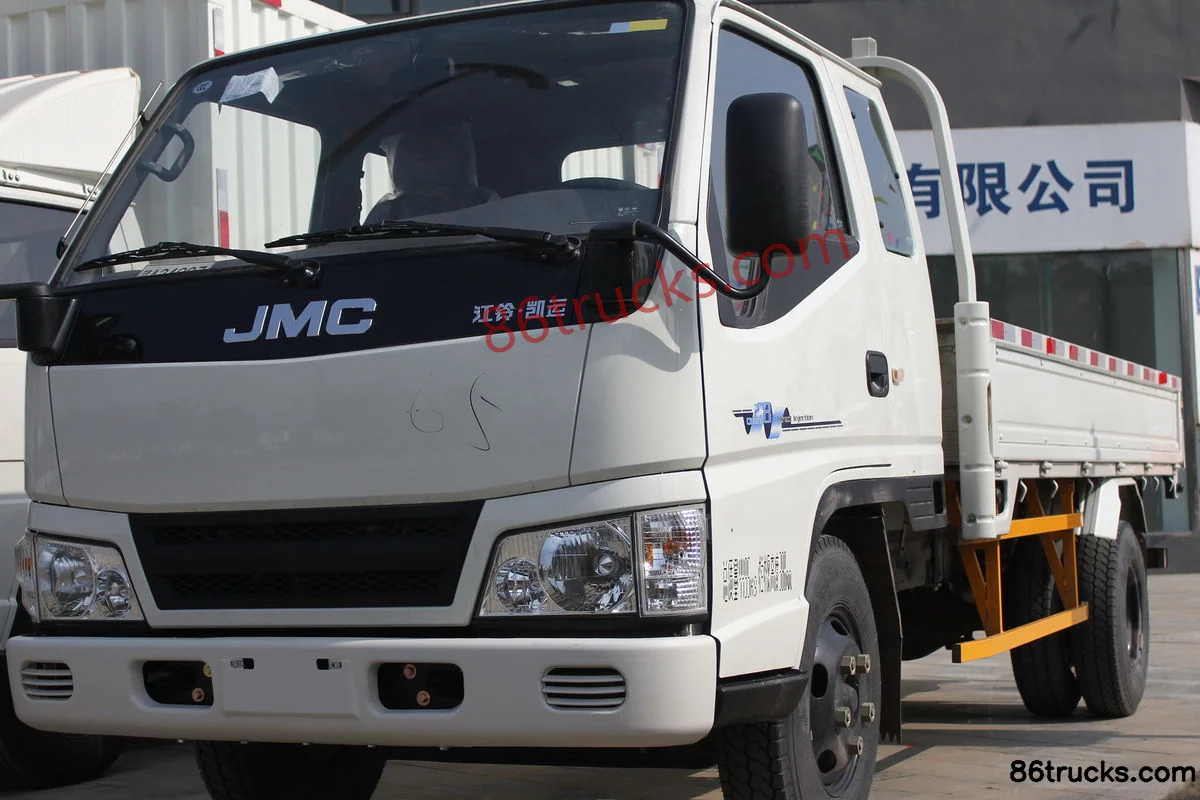

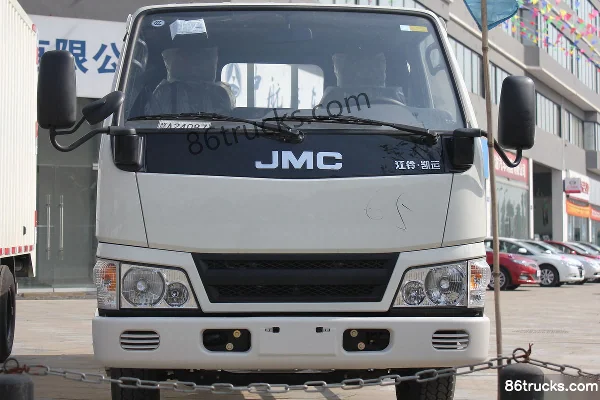

Exterior3

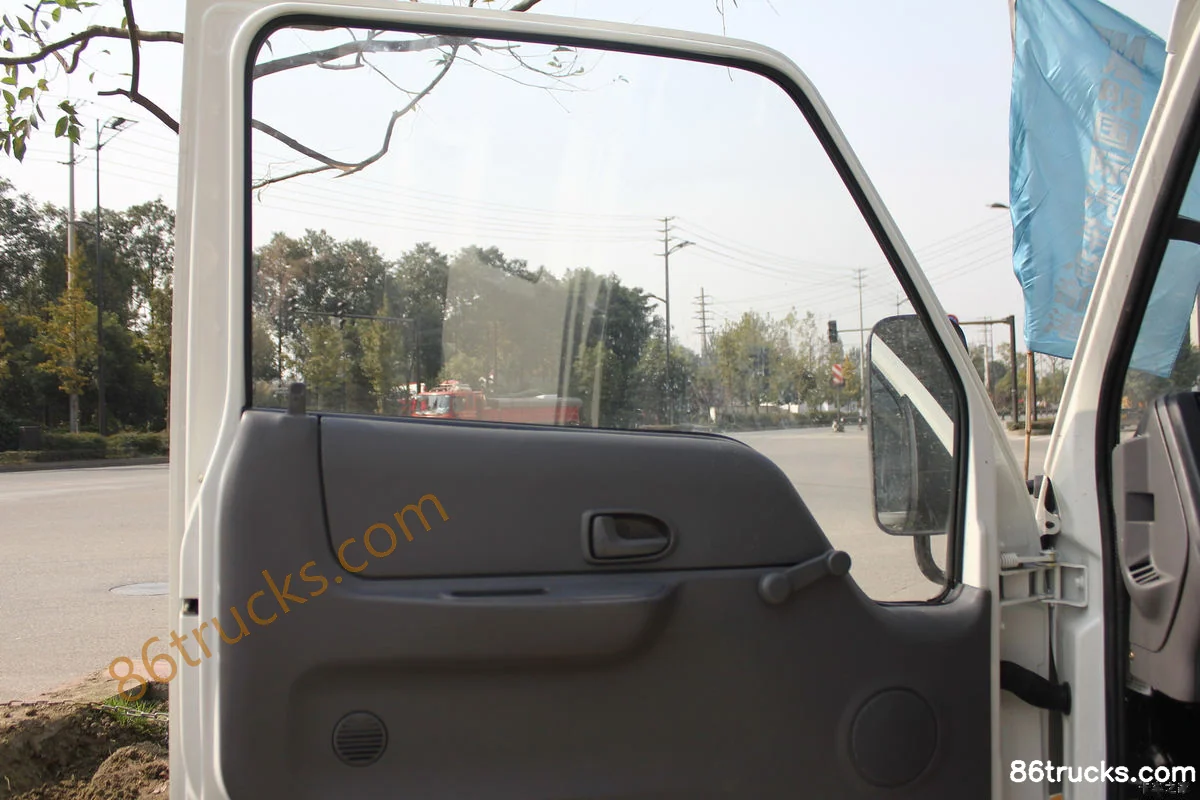

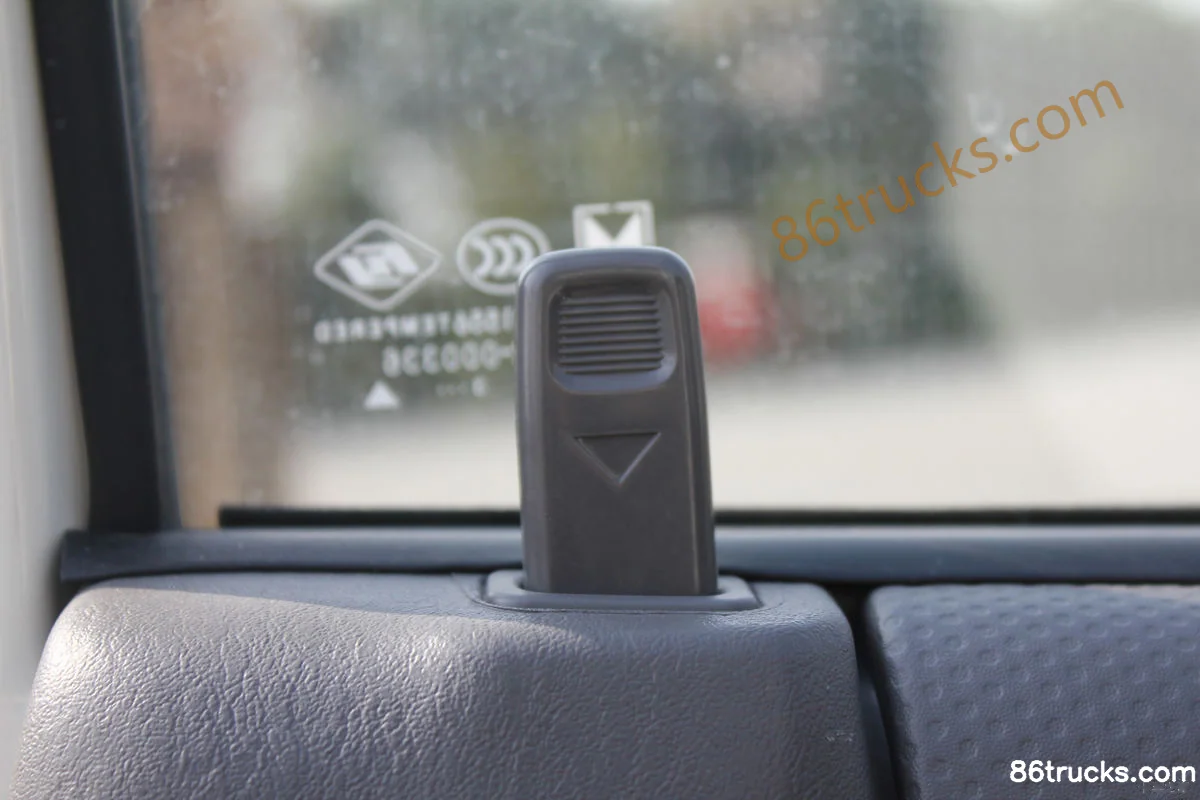

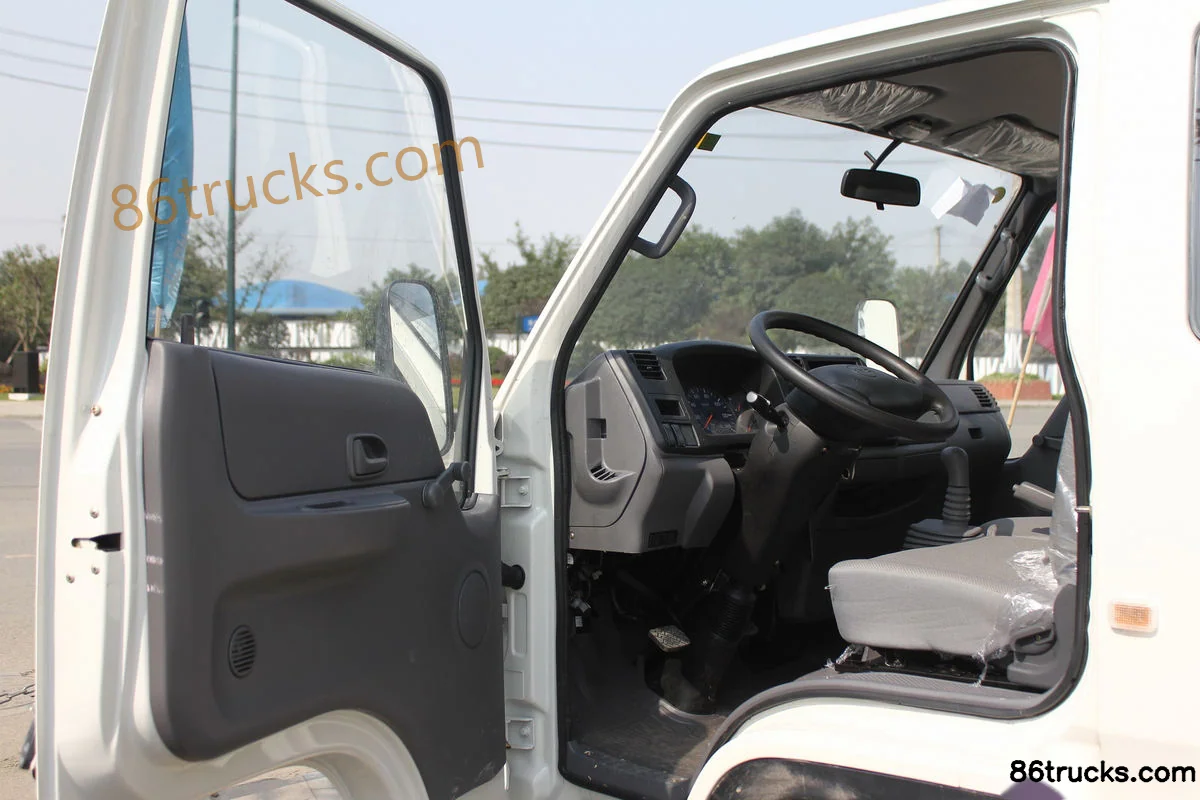

Cab3

6 photos

FAQ

What emission standard does JMC New Kaiyun Deluxe 116hp 4X2(6 wheels) 3.7m Semi-row Flatbed Light Truck (Wide Body) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC New Kaiyun Deluxe 116hp 4X2(6 wheels) 3.7m Semi-row Flatbed Light Truck (Wide Body)?

Key specs of JMC New Kaiyun Deluxe 116hp 4X2(6 wheels) 3.7m Semi-row Flatbed Light Truck (Wide Body): Drive: 4x2; Horsepower: 116 hp; Emission: China V; Fuel: Diesel; Engine: JMC493; Transmission: JMC. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC New Kaiyun Deluxe 116hp 4X2(6 wheels) 3.7m Semi-row Flatbed Light Truck (Wide Body) suited for?

JMC New Kaiyun Deluxe 116hp 4X2(6 wheels) 3.7m Semi-row Flatbed Light Truck (Wide Body) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JMC New Kaiyun Deluxe 116hp 4X2(6 wheels) 3.7m Semi-row Flatbed Light Truck (Wide Body) differ from other variants in the same series?

JMC New Kaiyun Deluxe 116hp 4X2(6 wheels) 3.7m Semi-row Flatbed Light Truck (Wide Body) belongs to JMC New Kaiyun Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC New Kaiyun Deluxe 116hp 4X2(6 wheels) 3.7m Semi-row Flatbed Light Truck (Wide Body)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC New Kaiyun Deluxe 116hp 4X2(6 wheels) 3.7m Semi-row Flatbed Light Truck (Wide Body)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
