JMC Kaiyun Upgraded Edition 122hp 4X2(6 wheels) 4.08m Single Row Stake Truck (China VI) (Hydraulic Brake)

Export reference
From $16,083
MSRP ¥11.58M CNY
Horsepower: 122
Emission: China VI
Fuel: Diesel
Engine: JMC493
Transmission: JMC
Curb Weight:: 2.6ton
seating capacity: 3Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The JMC Kaiyun Upgraded Edition 122hp 4X2(6 wheels) 4.08m Single Row Stake Truck (China VI) (Hydraulic Brake) is a Light Truck featuring 4.08m cargo length, Stake type cargo body, 3Personnel volume and 1.495t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a JMC493 engine, 122 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 122 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JX5045CCYTGA26
Type: stake truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.1m
engine: JMCJX493ZLQ6A
transmission: JMC5MT
Cab length: 5.995m
Cab width: 2.18m
Cab height: 3.21m
Front track width: 1680mm
rear track: 1605mm
Curb Weight: 2.6ton
Rated payload: 1.495ton
GVWR: 4.29ton
Max. speed: 100km/h
Origin: Nanchang, Jiangxi
tonnage class: Light Truck
Approach angle: 21°
departure angle: 17°
market segment: Urban Distribution
Front/rear suspension: 1.15/1.485m
Energy Type: Diesel
Engine parameters
Engine Brand: JMC
Engine Model: JMCJX493ZLQ6A
Engine info: JMC493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China VI
Max output power: 90kW
Max hp: 122Horsepower
Max torque: 330N·m
Max torque speed: 2100rpm
Rated speed: 3600rpm
Engine Type: High-pressure common rail
Transmission Parameters
Transmission Model: JMC5MT
Transmission Brand: JMC
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.08m
Cargo box width: 2.1/2.3m
*Cargo box interior width: 2.0999999046326
Cab parameters
Cab: Wide body
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1840kg
rear axle allowable load: 2450kg
Leaf spring count: 7/5+6,8/8+7,4/5+6,5/5+6,8/3+2,8/4+2,8/4+5,5/8+7,5/3+2,5/4+2,5/4+5

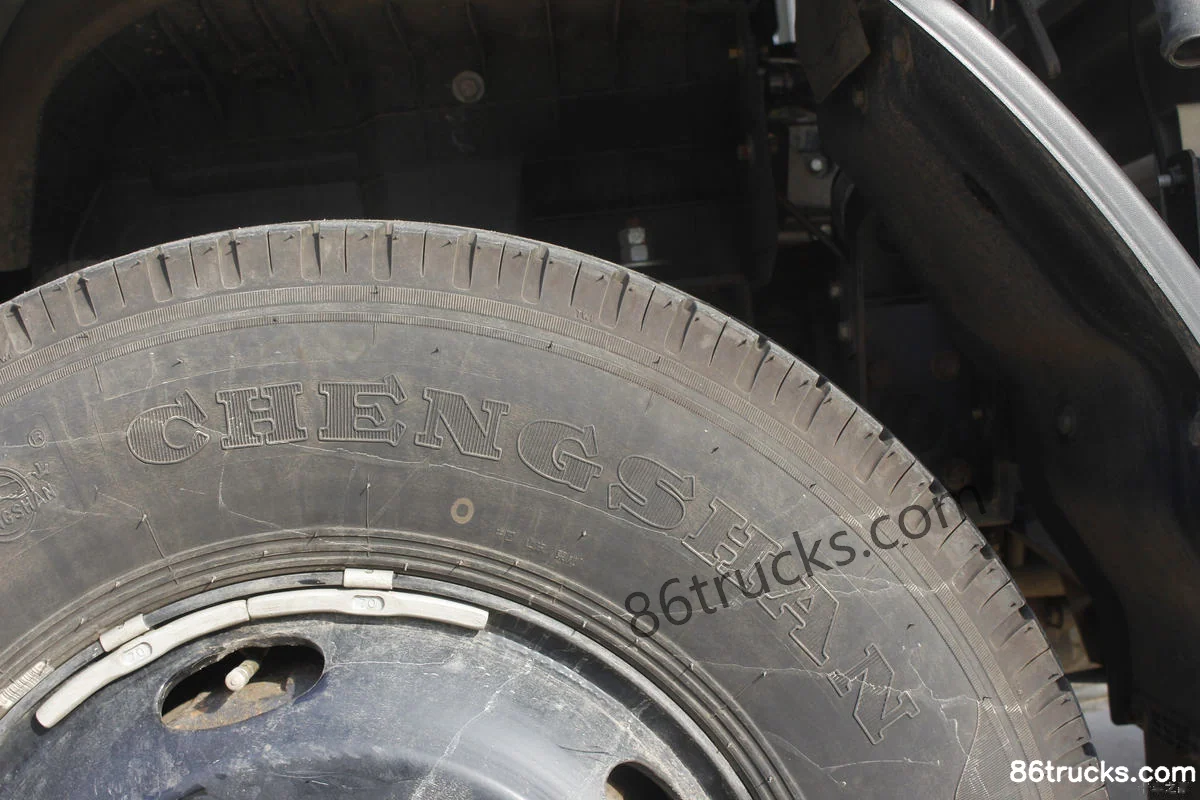

Tire

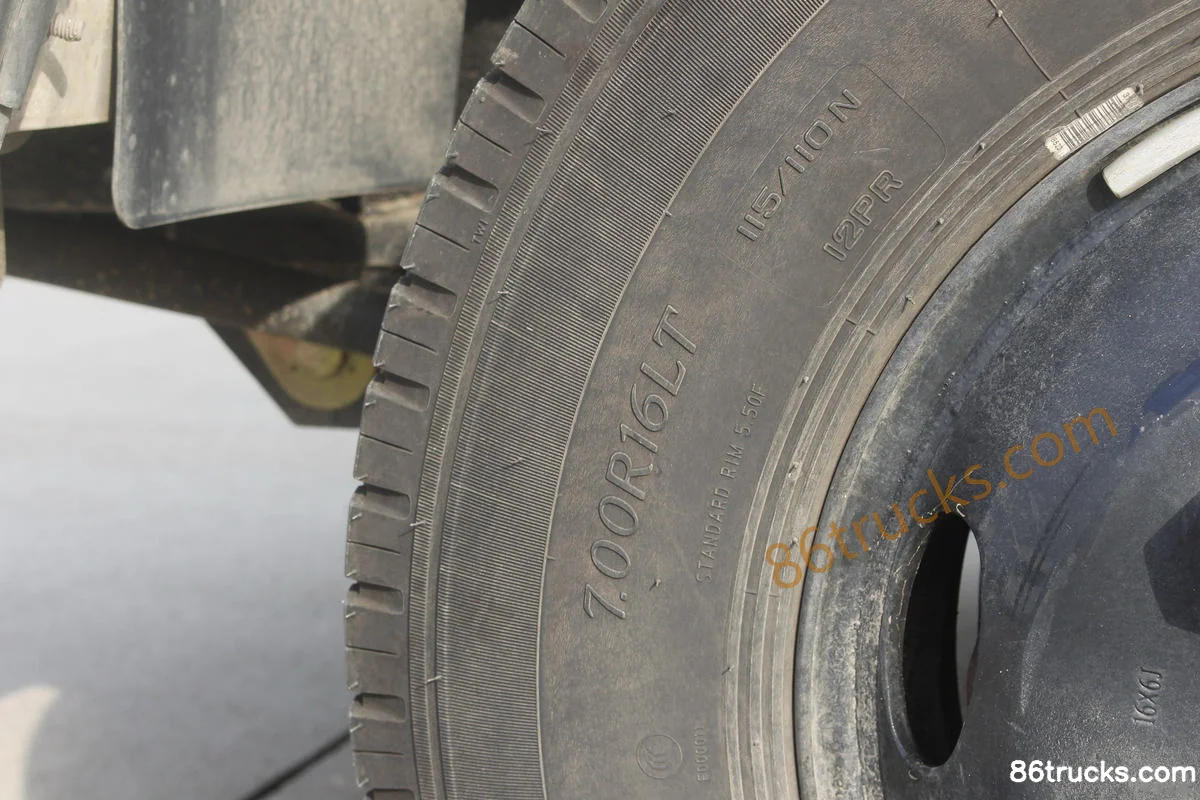

Tire Size: 7.00R16LT 10PR ,7.50R16LT 6PR,7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
Multifunction steering wheel:
Power Windows:
Reverse Camera:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
GPS/Beidou driving recorder:
Service brake
Brake Type: Hydraulic brake
smart configuration
Cruise control (CCS):

Photos

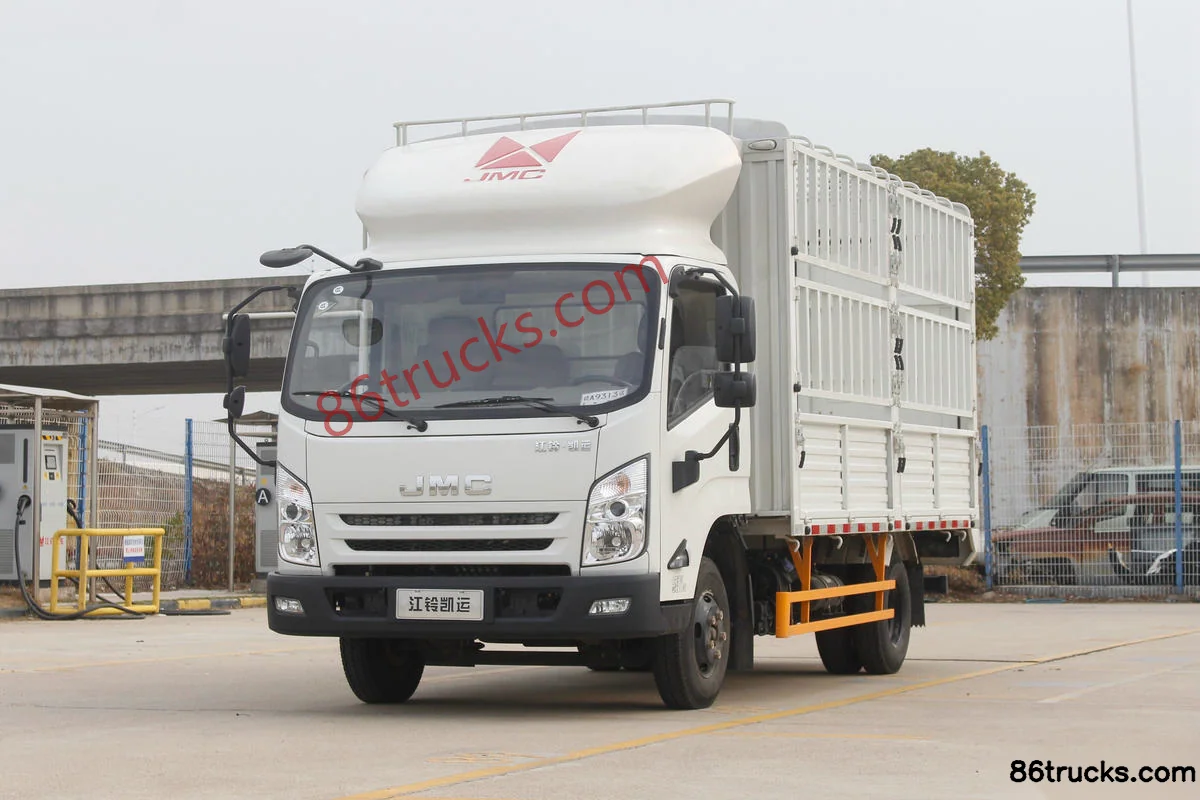

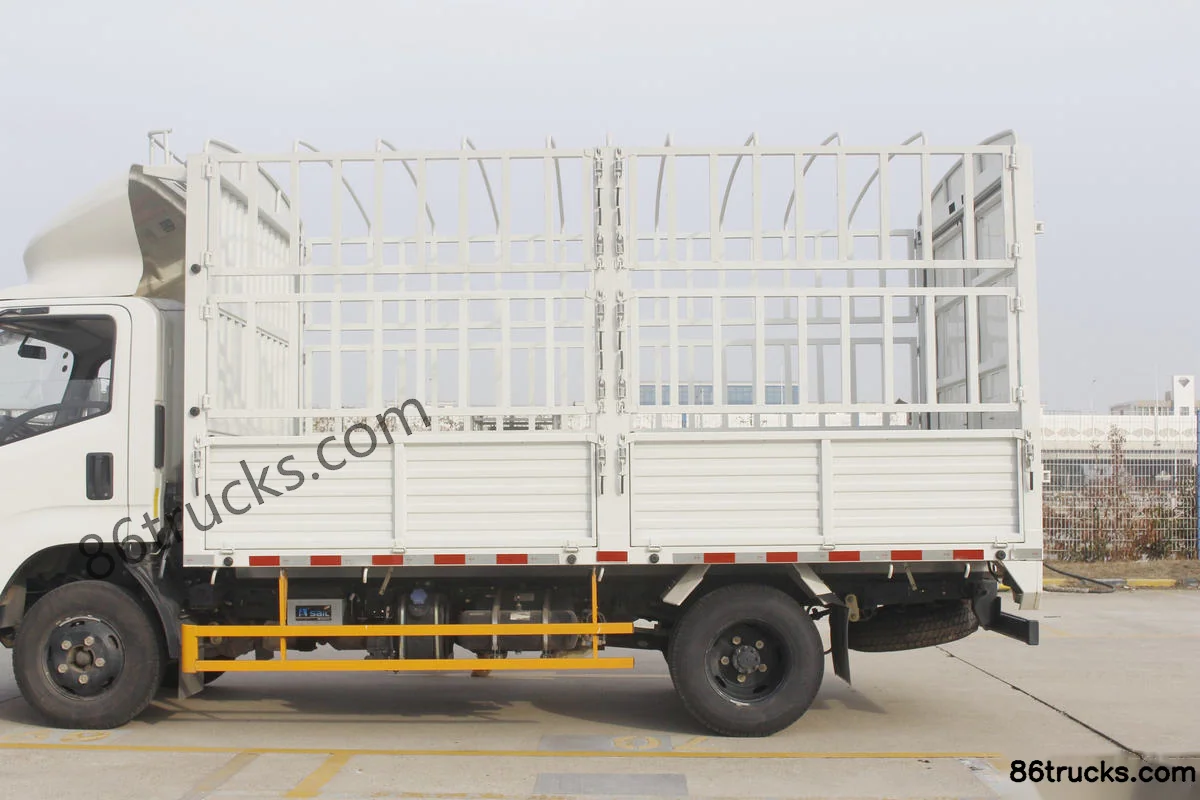

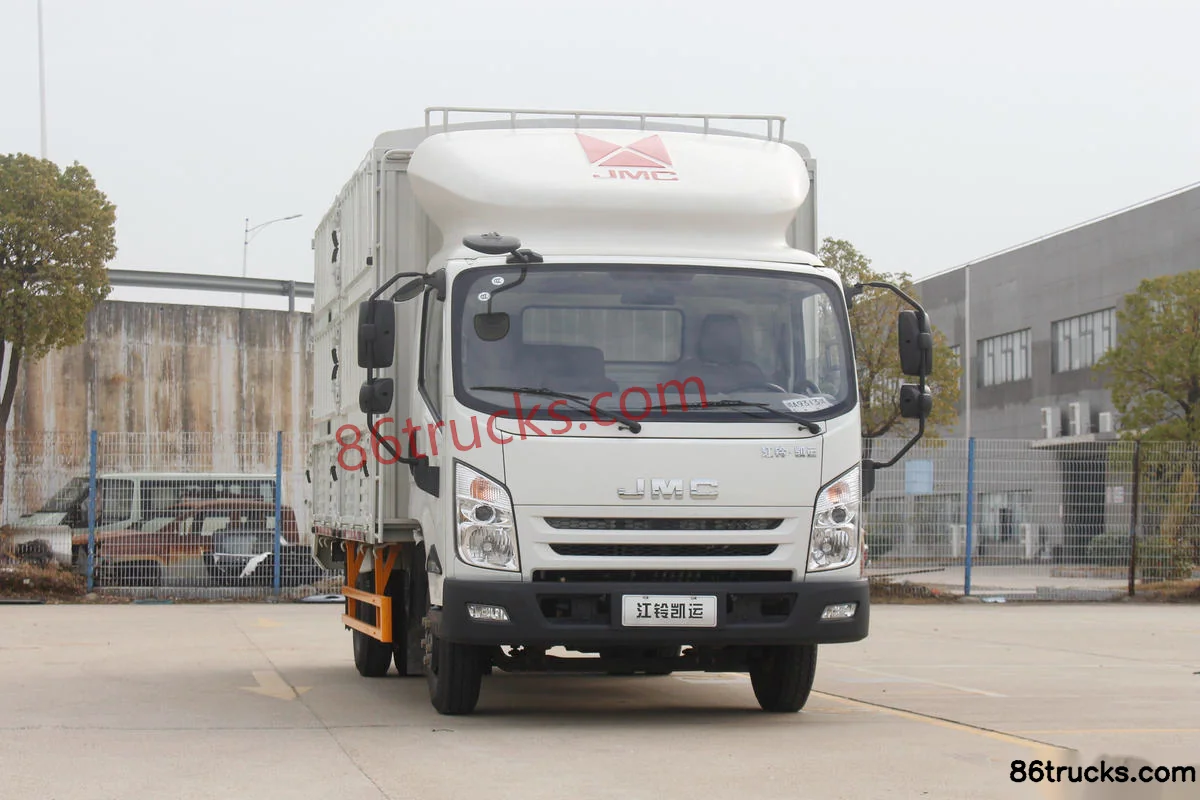

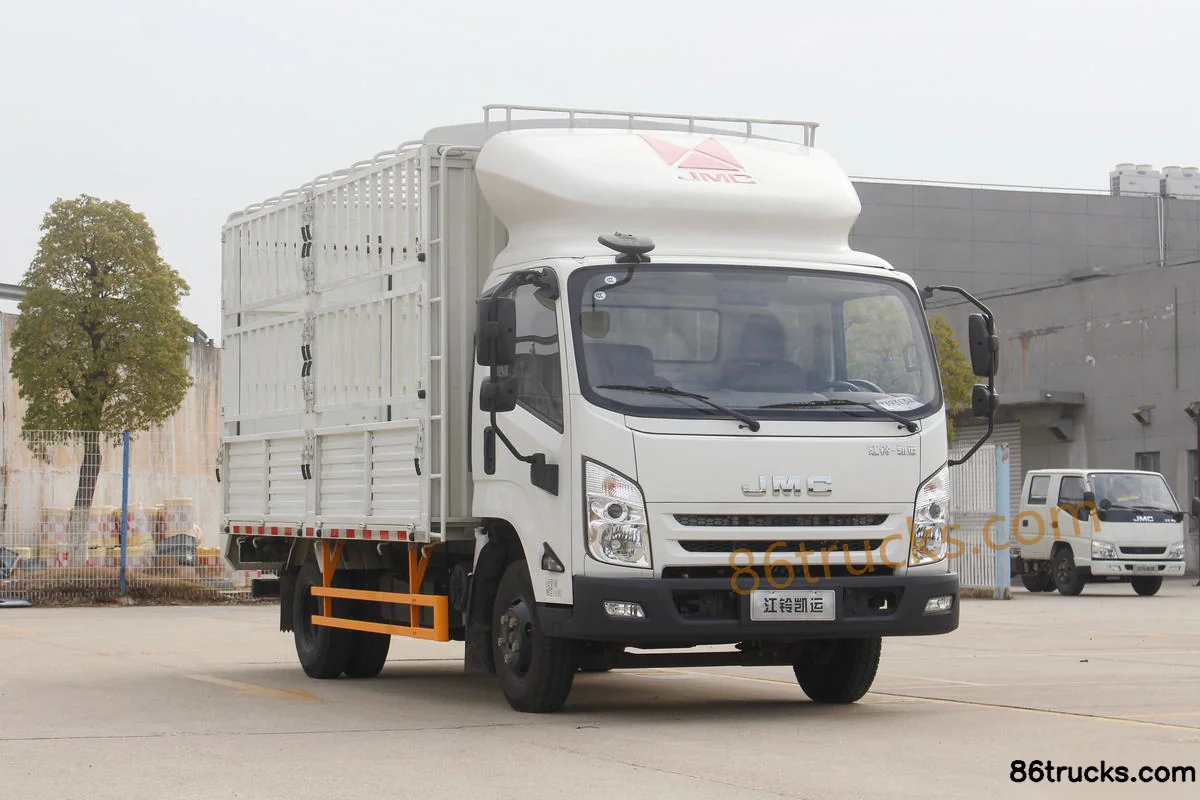

Exterior3

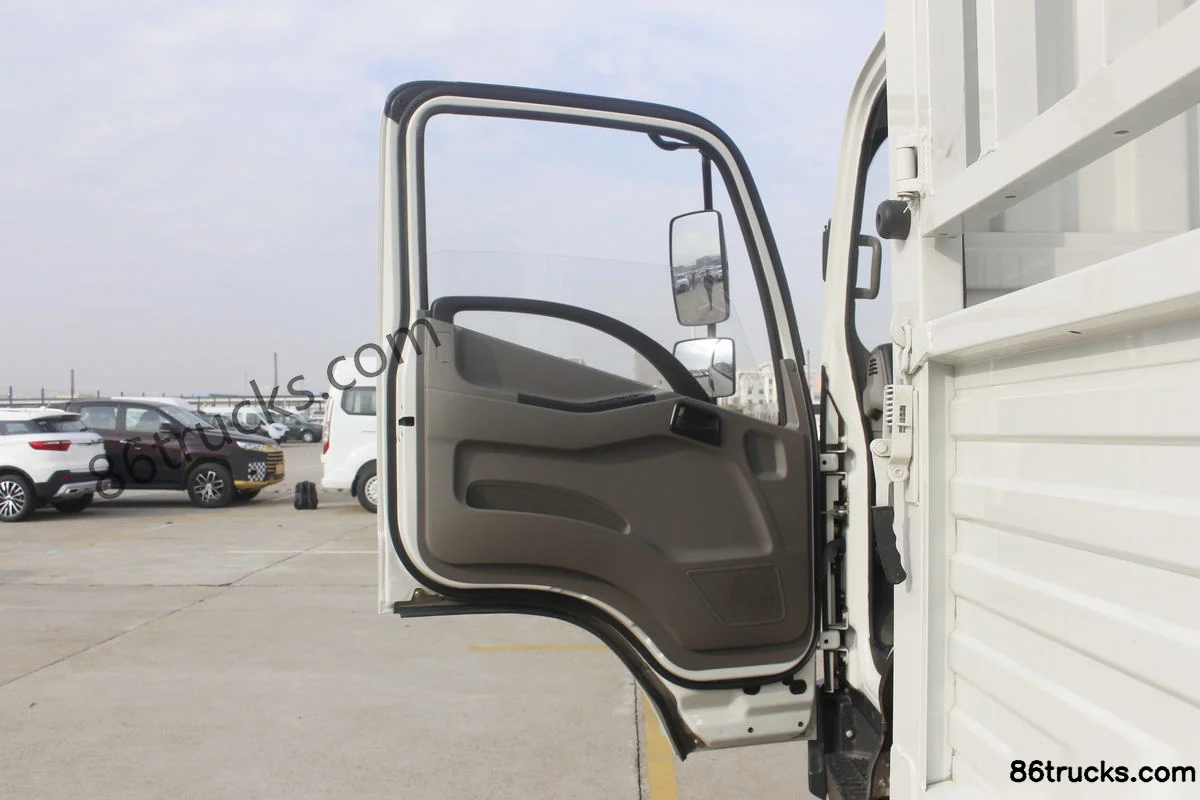

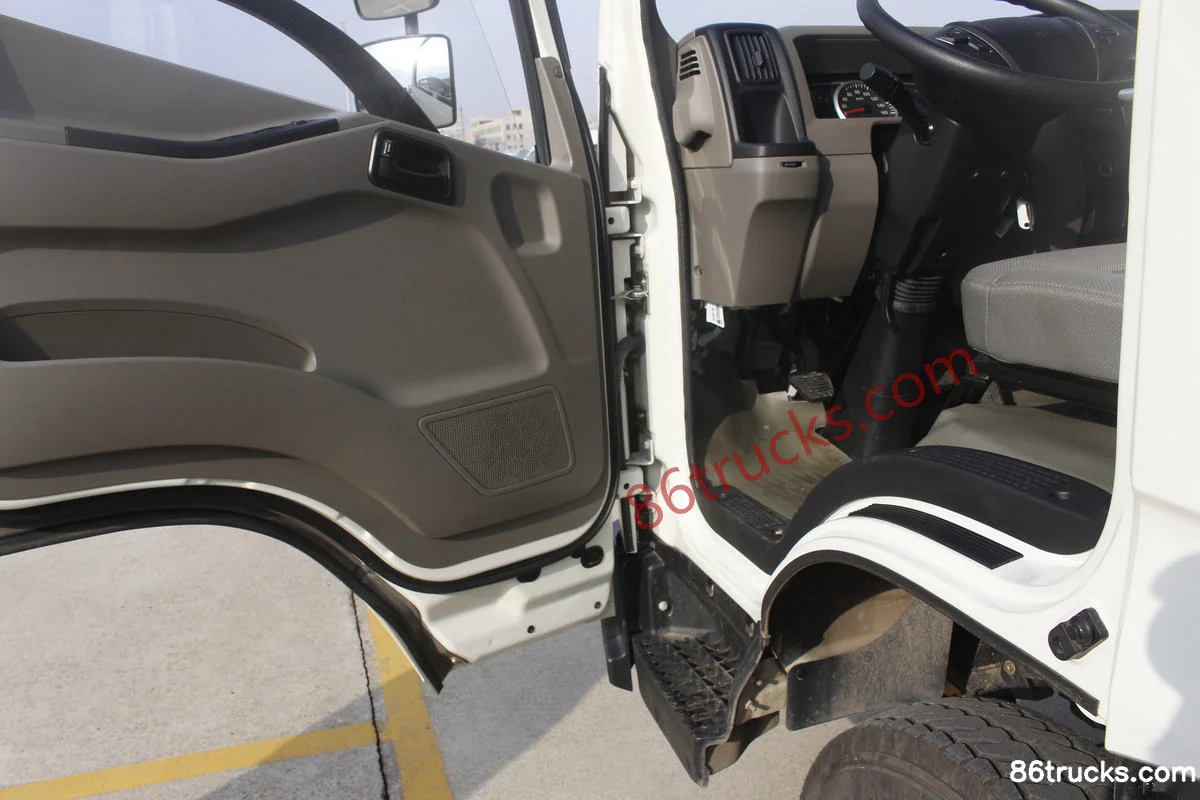

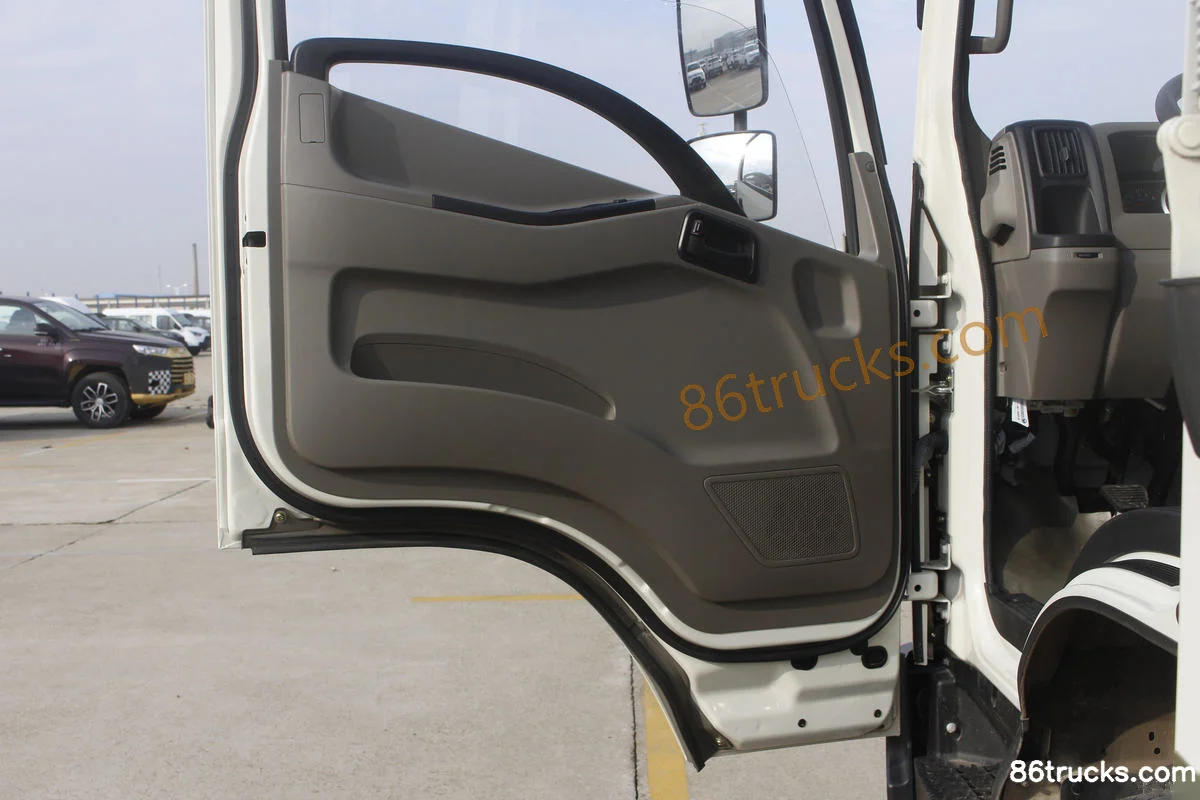

Cab3

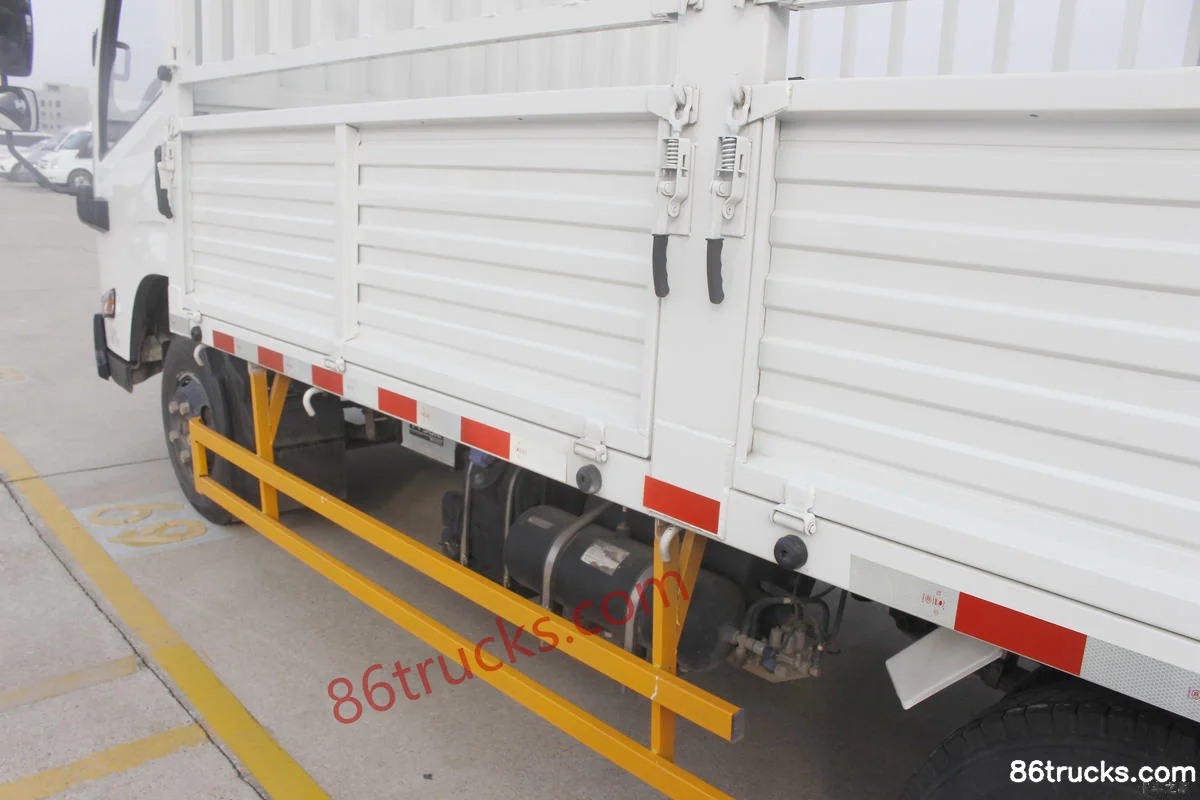

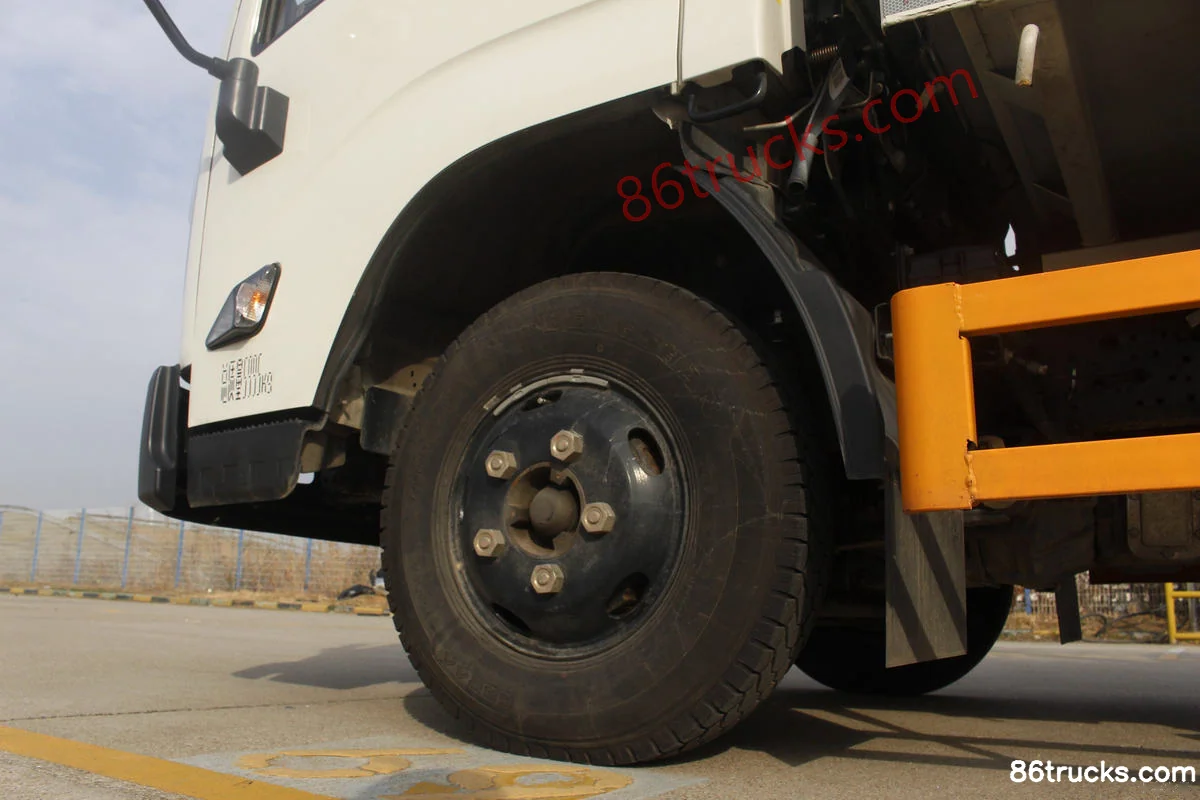

Chassis3

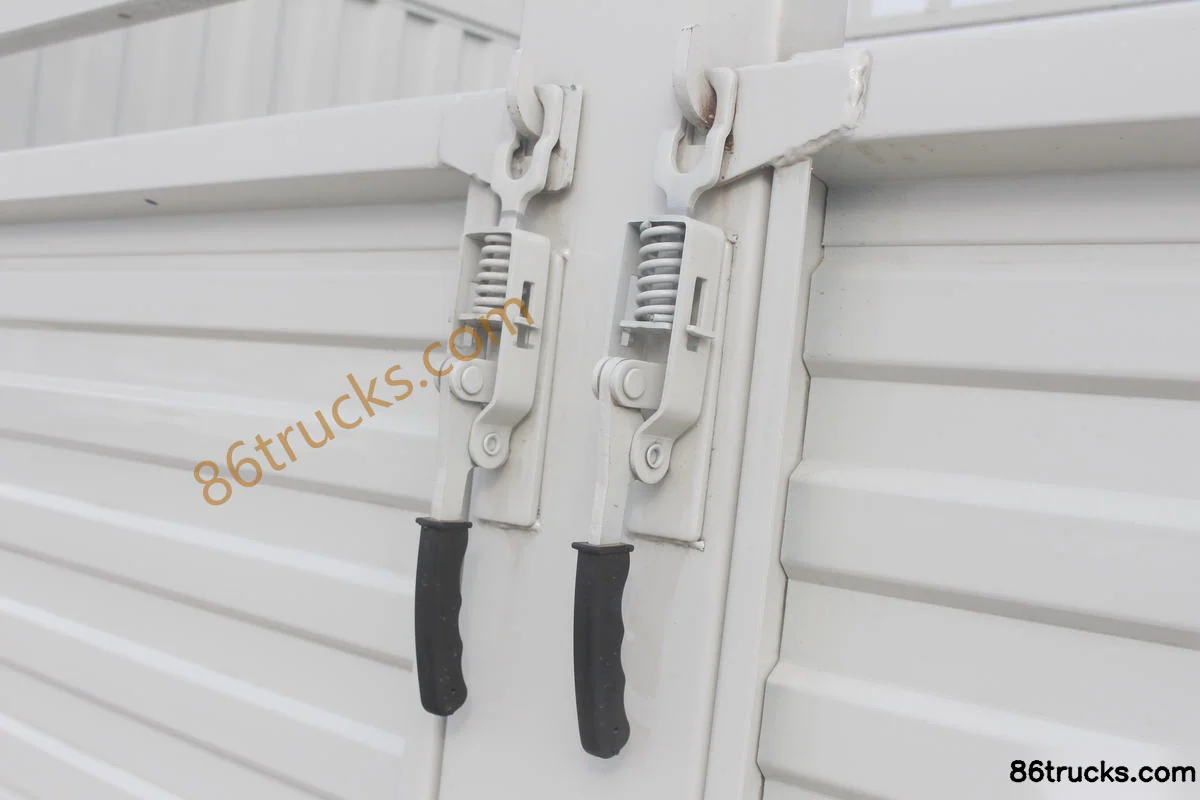

Body3

12 photos

FAQ

What is the export price of JMC Kaiyun Upgraded Edition 122hp 4X2(6 wheels) 4.08m Single Row Stake Truck (China VI) (Hydraulic Brake), and what does it include?

JMC Kaiyun Upgraded Edition 122hp 4X2(6 wheels) 4.08m Single Row Stake Truck (China VI) (Hydraulic Brake) export reference is about From $16,083; MSRP is ¥11.58M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JMC Kaiyun Upgraded Edition 122hp 4X2(6 wheels) 4.08m Single Row Stake Truck (China VI) (Hydraulic Brake) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC Kaiyun Upgraded Edition 122hp 4X2(6 wheels) 4.08m Single Row Stake Truck (China VI) (Hydraulic Brake)?

Key specs of JMC Kaiyun Upgraded Edition 122hp 4X2(6 wheels) 4.08m Single Row Stake Truck (China VI) (Hydraulic Brake): Drive: 4x2; Horsepower: 122 hp; Emission: China VI; Fuel: Diesel; Engine: JMC493; Transmission: JMC. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC Kaiyun Upgraded Edition 122hp 4X2(6 wheels) 4.08m Single Row Stake Truck (China VI) (Hydraulic Brake) suited for?

JMC Kaiyun Upgraded Edition 122hp 4X2(6 wheels) 4.08m Single Row Stake Truck (China VI) (Hydraulic Brake) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JMC Kaiyun Upgraded Edition 122hp 4X2(6 wheels) 4.08m Single Row Stake Truck (China VI) (Hydraulic Brake) differ from other variants in the same series?

JMC Kaiyun Upgraded Edition 122hp 4X2(6 wheels) 4.08m Single Row Stake Truck (China VI) (Hydraulic Brake) belongs to JMC Kaiyun Upgraded Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC Kaiyun Upgraded Edition 122hp 4X2(6 wheels) 4.08m Single Row Stake Truck (China VI) (Hydraulic Brake)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC Kaiyun Upgraded Edition 122hp 4X2(6 wheels) 4.08m Single Row Stake Truck (China VI) (Hydraulic Brake)?
