JAC Weishida W570 medium truck 160hp 4X2(6 wheels) 7.66m van cargo truck

Export reference
MSRP N/A
Horsepower: 160
Emission: China V
Fuel: Diesel
Engine: Dongkang 4-cylinder
Transmission: Fast Gear
Curb Weight:: 6.3ton
JAC Weishida W570 medium truck 160hp 4X2(6 wheels) 7.66m van cargo truck exterior
View more photos (12)
seating capacity: 3Personnel
Rated payload: 9.1ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JAC Weishida W570 medium truck 160hp 4X2(6 wheels) 7.66m van cargo truck is a Medium-duty truck featuring 7.66m cargo length, Van body cargo body, 3Personnel volume and 9.1t payload. Its segment focus covers Express delivery, agricultural by-product transport and cold chain transport, matching those duty cycles. On the powertrain side, it comes with a Dongkang 4-cylinder engine, 160 hp, 4X2 (6 wheels) drive and China V emissions.

China V 160 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): HFC5162XXYP70K1E3V
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 5700mm
Box length class: 7.7m
engine: DongfengISD160 50
transmission: Fast Gear6DS60T
Cab length: 9.995m
Cab width: 2.55m
Cab height: 3.9m
Front track width: 1830mm
rear track: 1800mm
Curb Weight: 6.3ton
Rated payload: 9.1ton
GVWR: 15.595ton
Max. speed: 98km/h
Origin: Hefei, Anhui
tonnage class: Medium-duty truck
Approach angle: 22°
departure angle: 10°
market segment: Express delivery, agricultural by-product transport, cold chain transport, LTL transport
Remarks: Reverse alarm, air dryer, four-circuit protection valve, MP3, electric hydraulic tilt
Front/rear suspension: 1.29/3.005m
Energy Type: Diesel
Engine parameters
Engine Brand: Dongfeng
Engine Model: DongfengISD160 50
Engine info: Dongkang 4-cylinder
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.5L
Emission standard: China V
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 600N·m
Max torque speed: 1200-1600rpm
Rated speed: 2500rpm
Engine Type: Inline 4-cylinder, turbocharged intercooled, high-pressure common rail
Transmission Parameters
Transmission Model: Fast Gear6DS60T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 7.66m
Cargo box width: 2.45m
Cargo box height: 2.6m
*Cargo box interior width: 2.4500000476837
Cab parameters
Cab width: 2235mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank capacity: 210L
Chassis Specs
Front axle description: 3.5T
Front axle allowable load: 5600kg
Frame Dimensions: 245×75×7mm
rear axle description: 9T
rear axle allowable load: 9995kg
Leaf spring count: 10/9+7
Tire
Tire Size: 9.00R20
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Electronic Central Lock:
Multimedia features
GPS/Beidou driving recorder:
Service brake
Parking brake: Spring brake
Exhaust brake:
smart configuration
Cruise control (CCS):

Photos

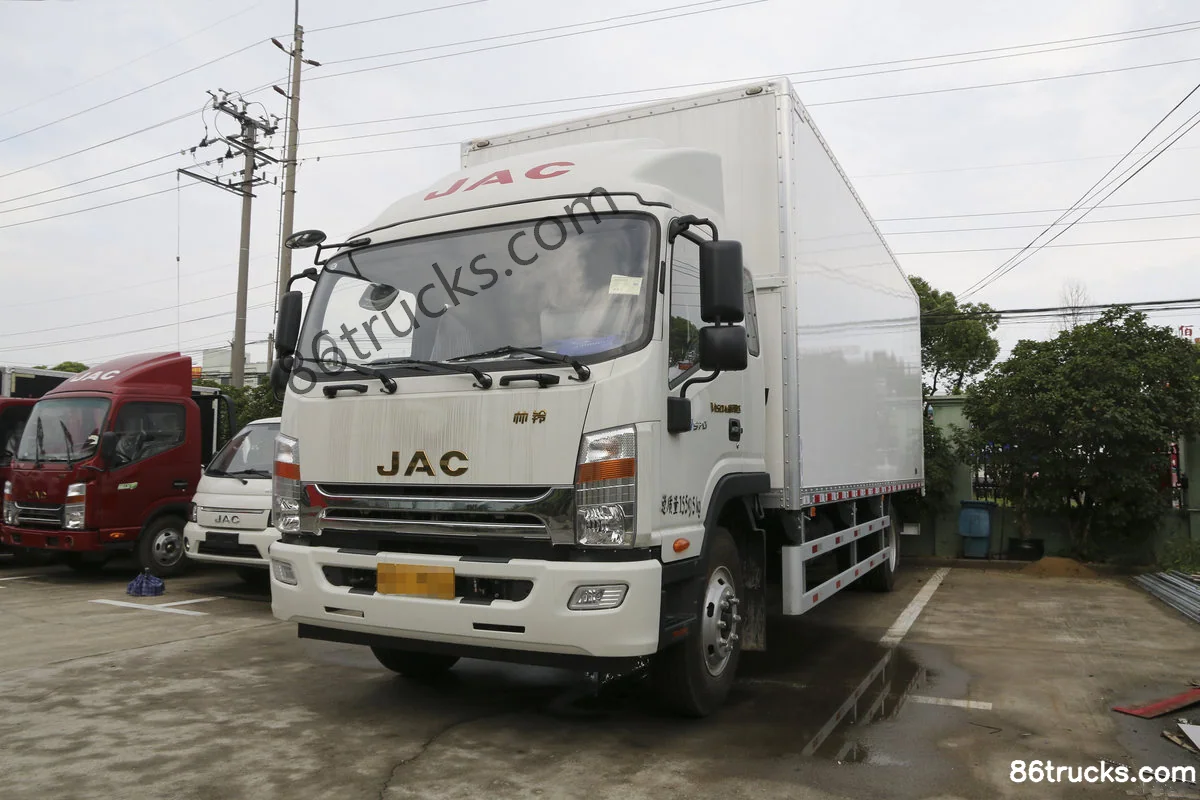

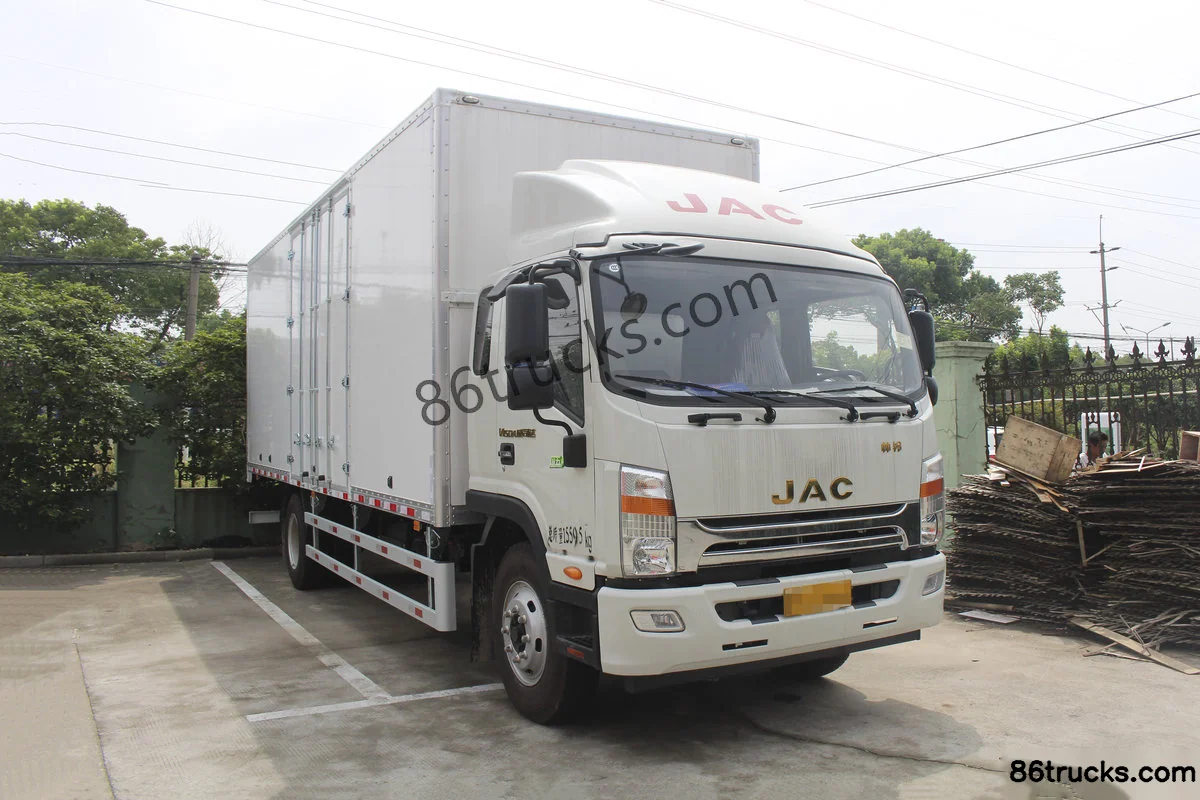

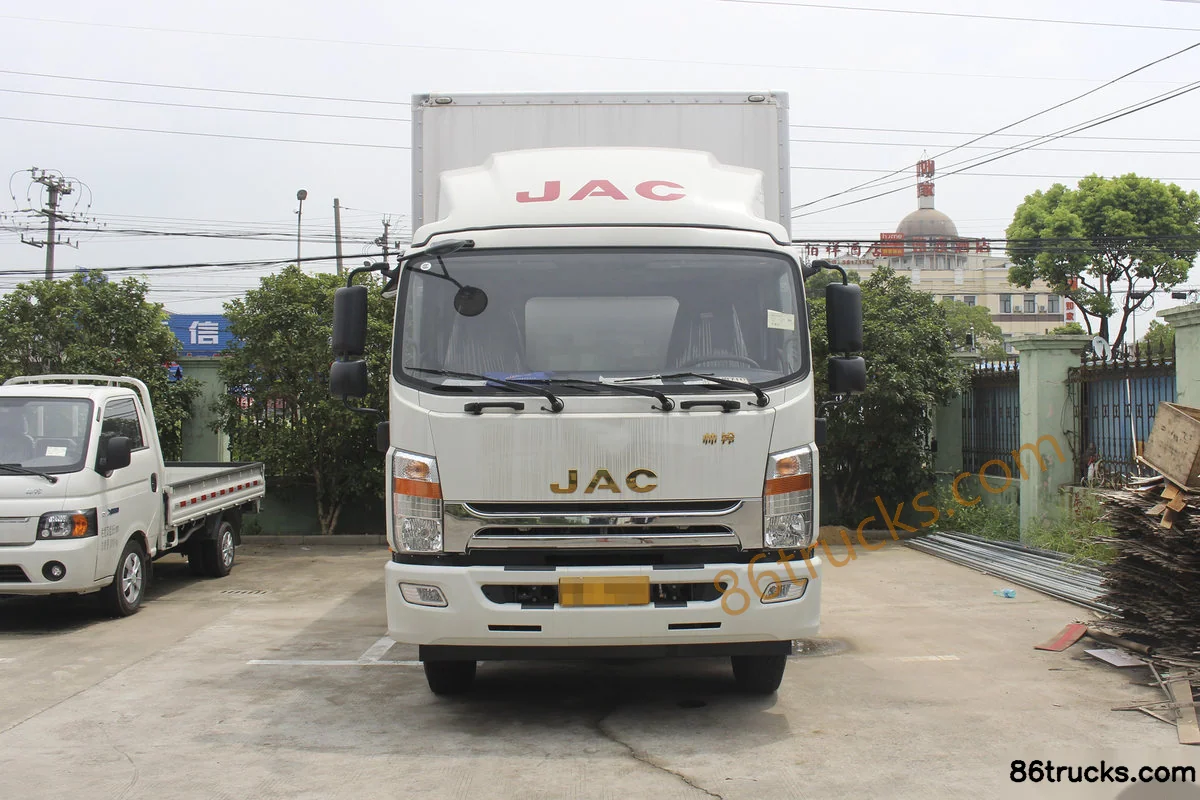

Exterior3

JAC Weishida W570 medium truck 160hp 4X2(6 wheels) 7.66m van cargo truck Exterior (1) | 86Trucks JAC Weishida W570 medium truck 160hp 4X2(6 wheels) 7.66m van cargo truck Exterior (2) | 86Trucks JAC Weishida W570 medium truck 160hp 4X2(6 wheels) 7.66m van cargo truck Exterior (3) | 86Trucks

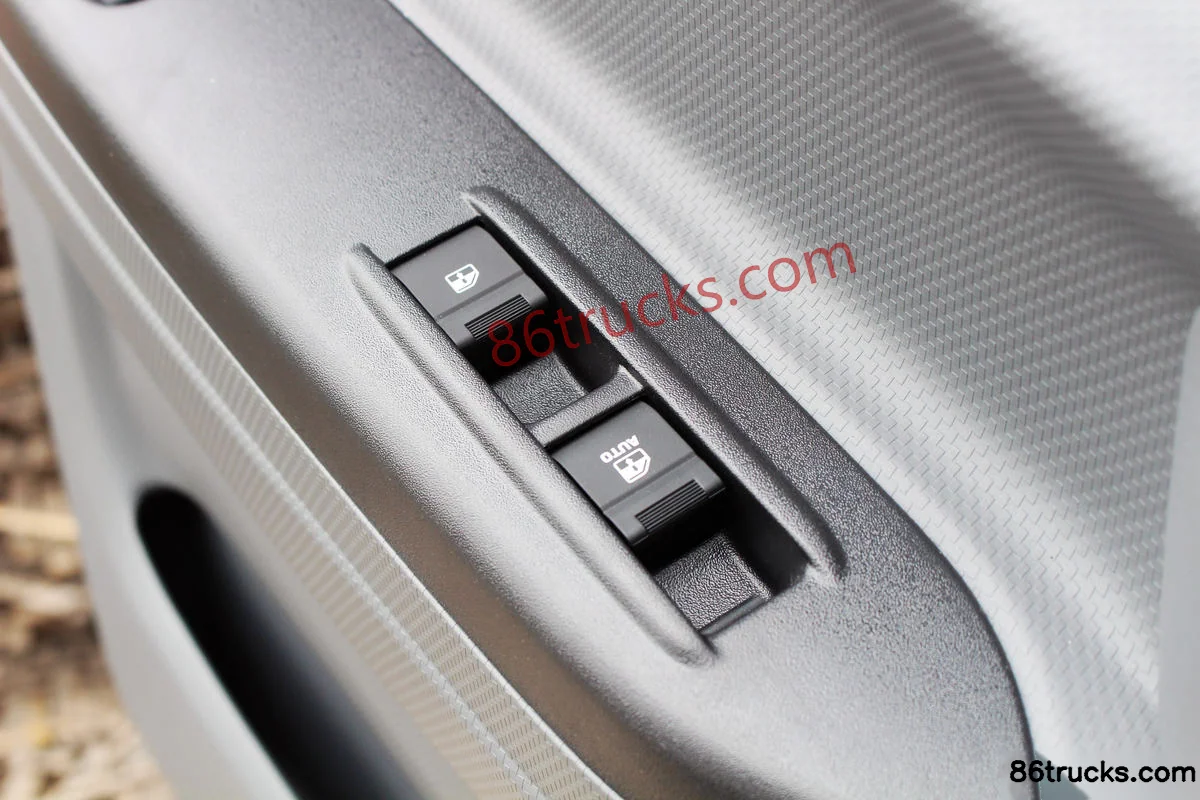

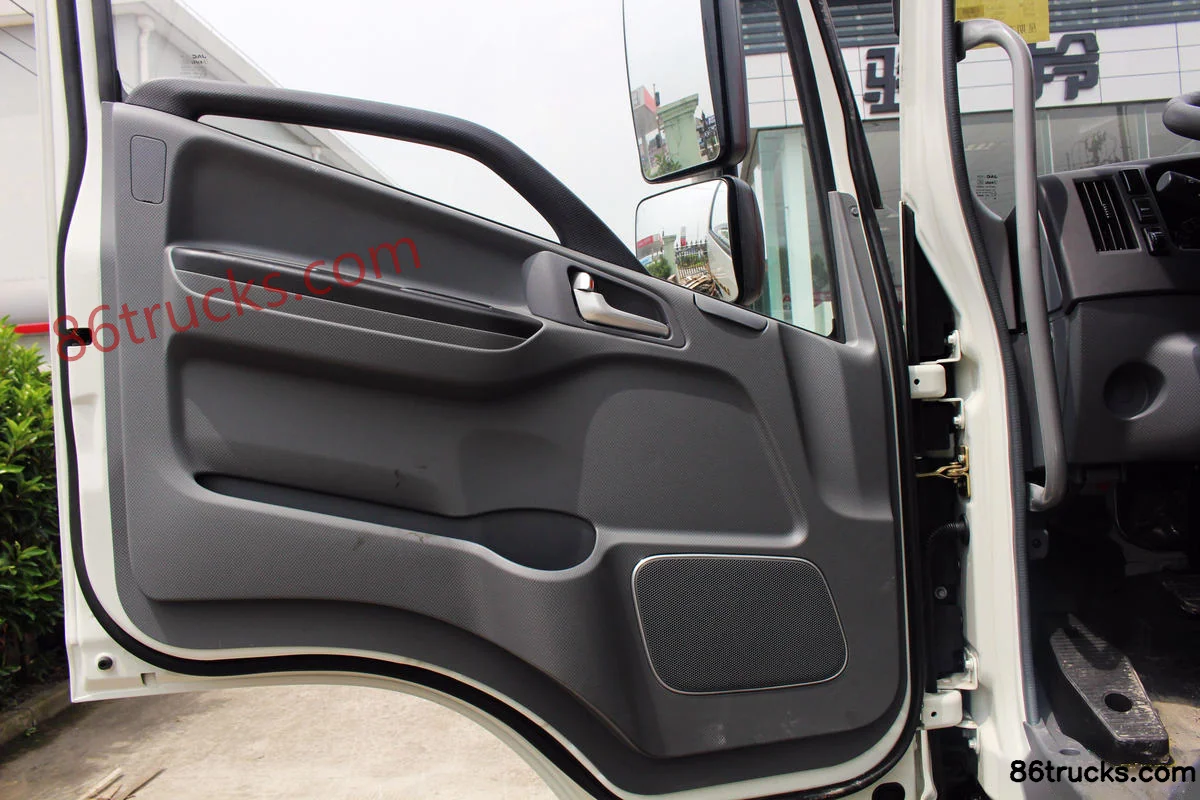

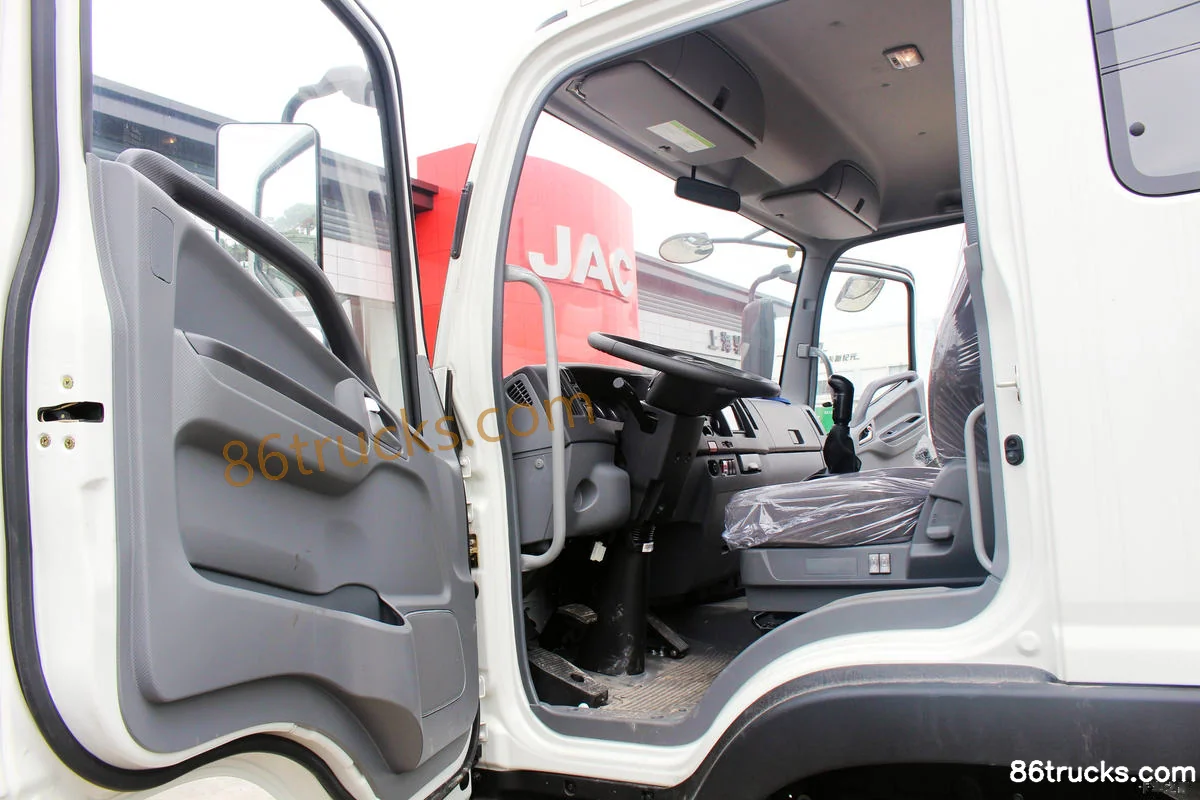

Cab3

JAC Weishida W570 medium truck 160hp 4X2(6 wheels) 7.66m van cargo truck Cab (1) | 86Trucks JAC Weishida W570 medium truck 160hp 4X2(6 wheels) 7.66m van cargo truck Cab (2) | 86Trucks JAC Weishida W570 medium truck 160hp 4X2(6 wheels) 7.66m van cargo truck Cab (3) | 86Trucks

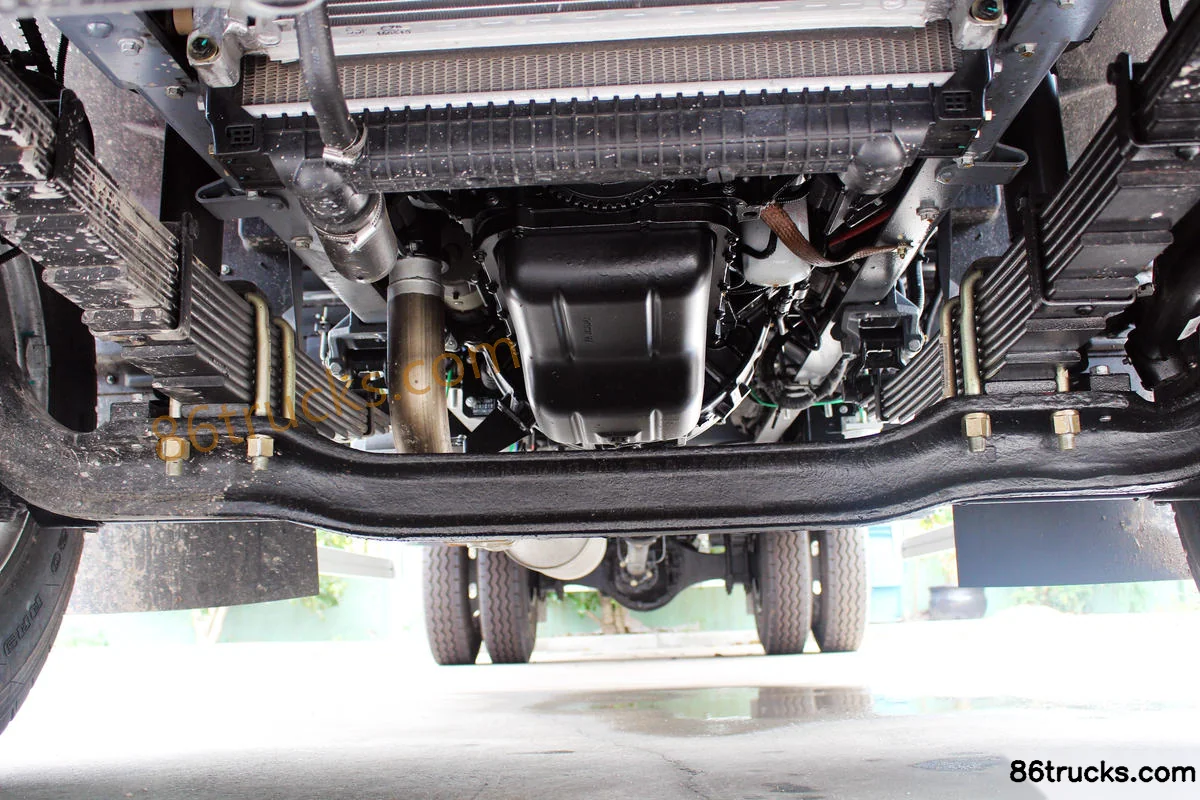

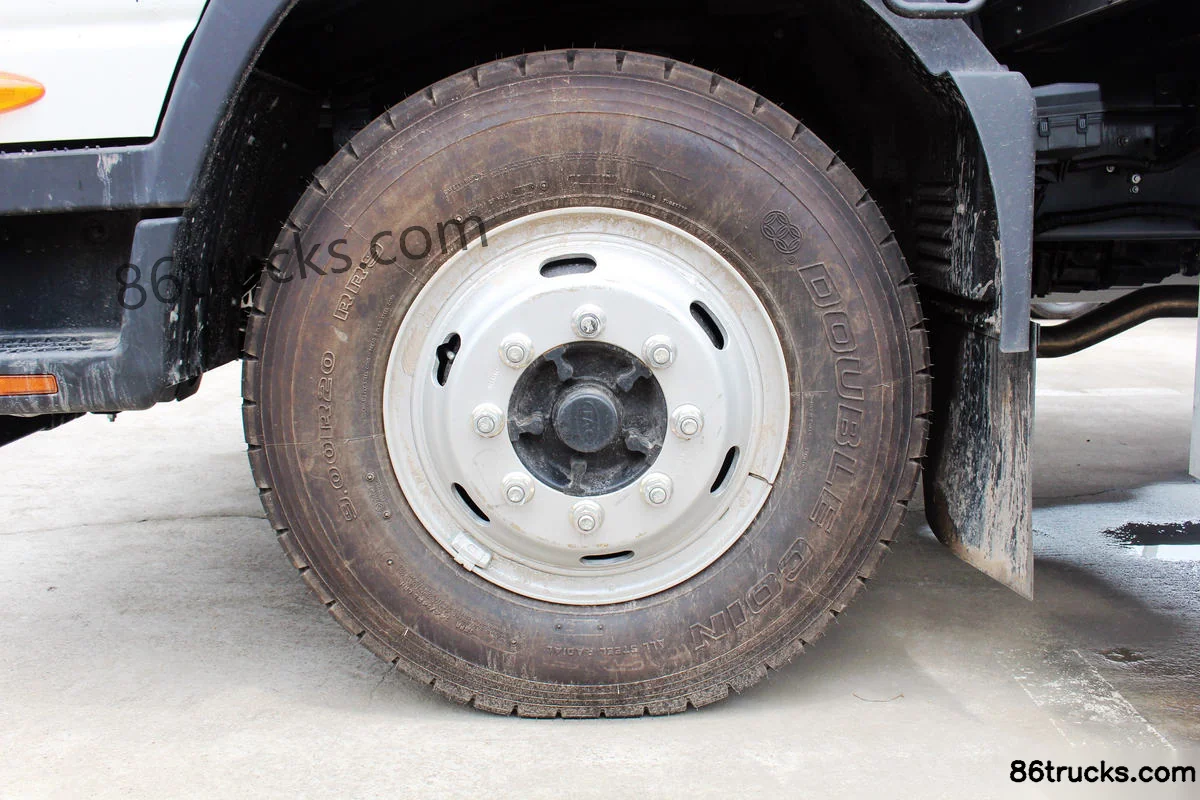

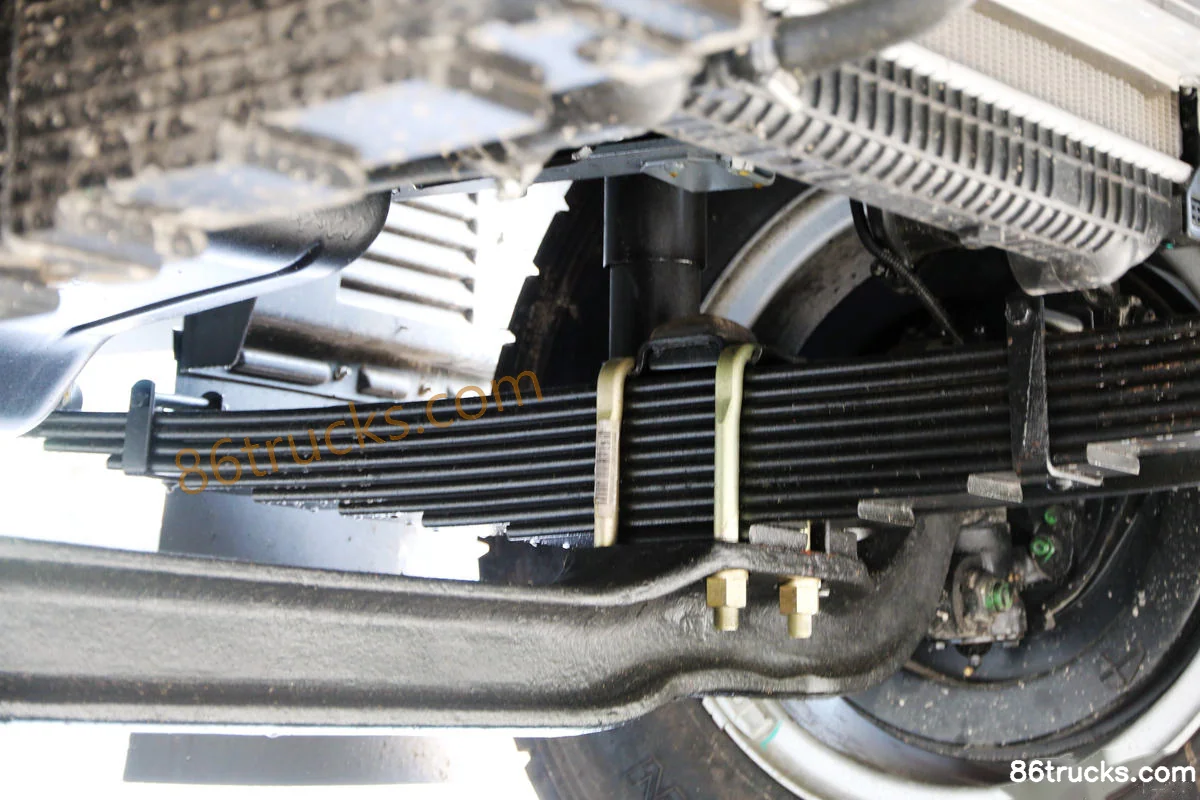

Chassis3

JAC Weishida W570 medium truck 160hp 4X2(6 wheels) 7.66m van cargo truck Chassis (1) | 86Trucks JAC Weishida W570 medium truck 160hp 4X2(6 wheels) 7.66m van cargo truck Chassis (2) | 86Trucks JAC Weishida W570 medium truck 160hp 4X2(6 wheels) 7.66m van cargo truck Chassis (3) | 86Trucks

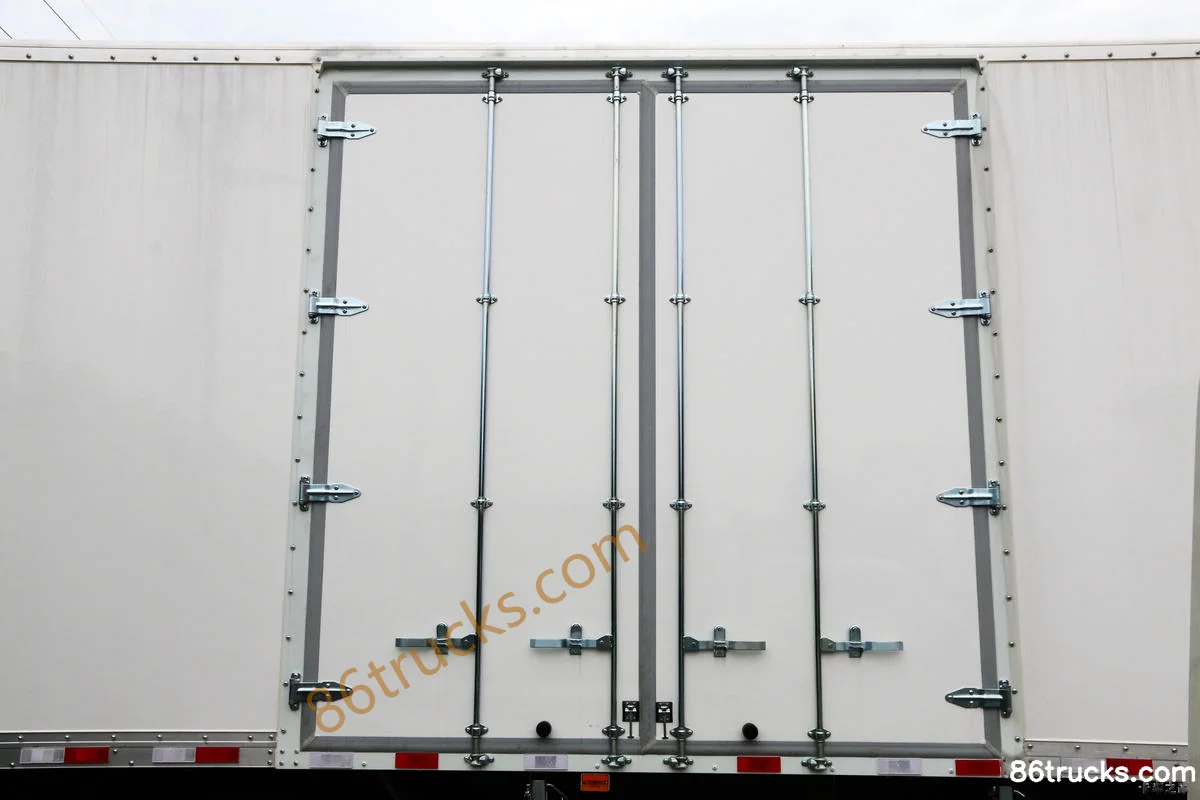

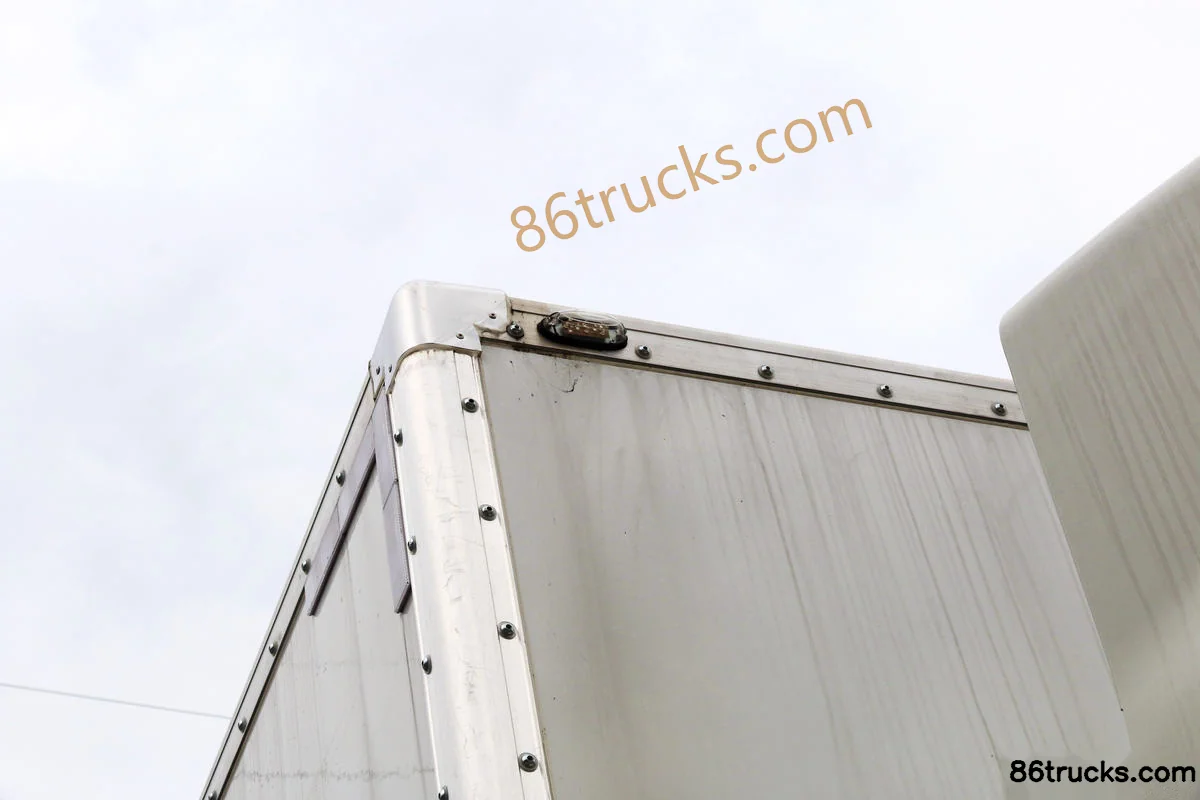

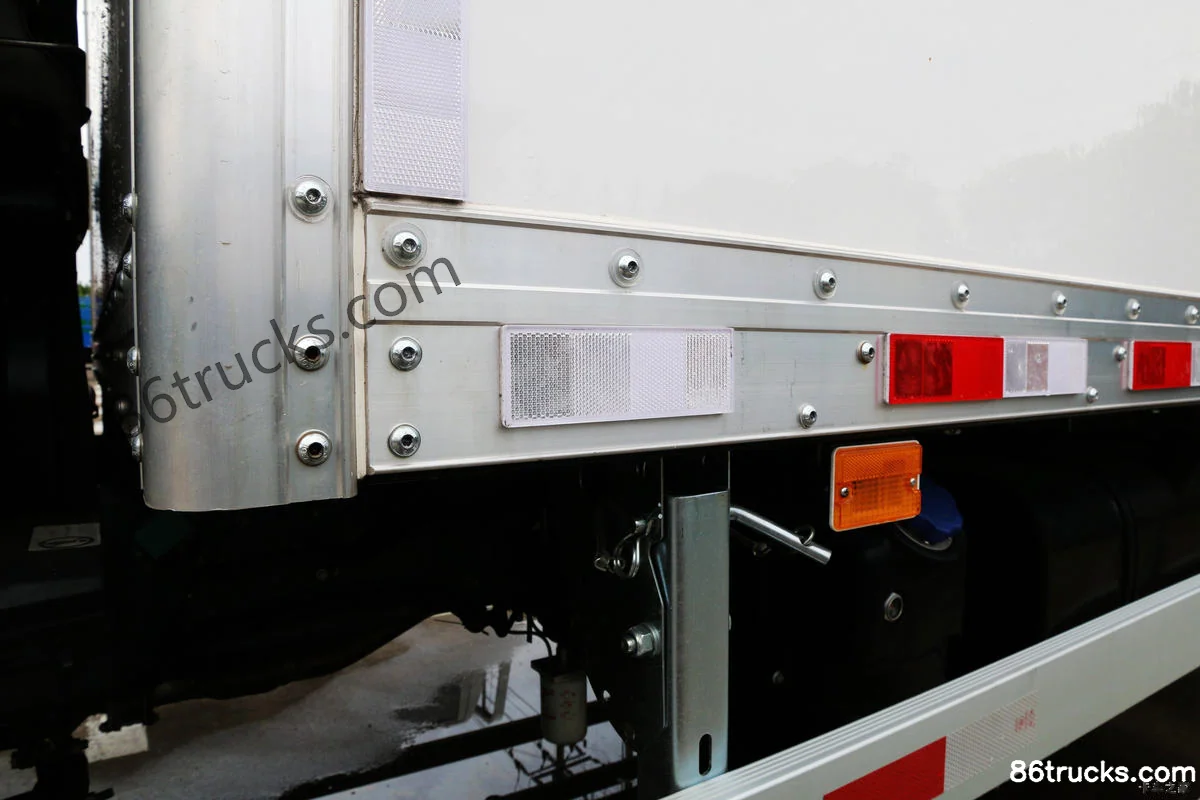

Body3

JAC Weishida W570 medium truck 160hp 4X2(6 wheels) 7.66m van cargo truck Body (1) | 86Trucks JAC Weishida W570 medium truck 160hp 4X2(6 wheels) 7.66m van cargo truck Body (2) | 86Trucks JAC Weishida W570 medium truck 160hp 4X2(6 wheels) 7.66m van cargo truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does JAC Weishida W570 medium truck 160hp 4X2(6 wheels) 7.66m van cargo truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Weishida W570 medium truck 160hp 4X2(6 wheels) 7.66m van cargo truck?

Key specs of JAC Weishida W570 medium truck 160hp 4X2(6 wheels) 7.66m van cargo truck: Drive: 4x2; Horsepower: 160 hp; Emission: China V; Fuel: Diesel; Engine: Dongkang 4-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Weishida W570 medium truck 160hp 4X2(6 wheels) 7.66m van cargo truck suited for?

JAC Weishida W570 medium truck 160hp 4X2(6 wheels) 7.66m van cargo truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Weishida W570 medium truck 160hp 4X2(6 wheels) 7.66m van cargo truck differ from other variants in the same series?

JAC Weishida W570 medium truck 160hp 4X2(6 wheels) 7.66m van cargo truck belongs to JAC Q9 medium truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Weishida W570 medium truck 160hp 4X2(6 wheels) 7.66m van cargo truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Weishida W570 medium truck 160hp 4X2(6 wheels) 7.66m van cargo truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
