Dongfeng Junfeng micro truck Cargo Trucks

Main model photos

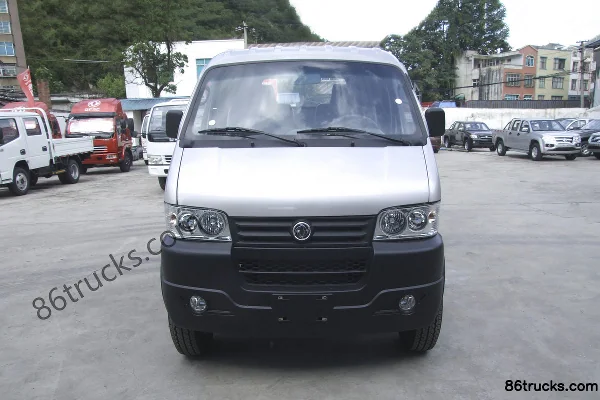

Dongfeng Junfeng 1.3L 87 hp 4X2(6 wheels) Gasoline 2.5m Double-Cab Stake Truck Exterior Dongfeng Junfeng 1.3L 87 hp 4X2(6 wheels) Gasoline 3.3m Single-Cab Flatbed Mini Truck Exterior Dongfeng Junfeng 1.3L 87hp 4X2(6 wheels) Gasoline 2.5m Double Row Flatbed Mini Truck Exterior

63 photos

Models

Series Specs

Basic Info
Model code (announced): DFA1030S50Q5 / DFA5020XXY50Q5AC / EQ5031CCYD50Q6AC / EQ1031S50Q6 / EQ1031D50Q6 / DFA1020S50Q5 / DFA1025H12QA / DFA1025F12QF / DFA1010F12QA / DFA1020D77DE / DFA1020S77DE
Type: Cargo Trucks / enclosed cargo truck / stake truck
Drive type: 4X2
Min. turning diameter: 11m
Wheelbase: 2545 / 3050 / 3300 / 2900 / 2950mm
Box length class: 3.1 / 2.5 / 3.3 / 2.1 / 2.9 / 1.7 / 2.2 / 3m
Engine Model: Wuling LiujiLJ469Q-1AEC / Wuling LiujiLJ465Q-2AE6 / Wuling LiujiLJ465Q3-1AE1 / Quanchai4D18F
Transmission Model: WLY5-speed / 5-speed transmission / 5-speed
Rear Axle Ratio: 5.883
Cab length: 4.91 / 5.25 / 5.21 / 4.185 / 4.585 / 4.85m
Cab width: 1.625 / 1.64 / 1.84 / 1.68 / 1.77 / 1600m
Cab height: 1.91 / 2.47 / 2.55 / 2.04 / 2.12 / 1.84 / 2.1 / 1.82 / 1.98 / 2.11m
Front track width: 1430 / 1400mm
rear track: 1410 / 1445 / 1420 / 1278mm
Curb Weight: 1.15 / 1.3 / 1.71 / 1.485 / 1.545 / 1.03 / 0.99 / 0.91 / 1.025 / 0.935 / 1.07 / 1.5ton
Rated payload: 1.495 / 0.645 / 1.25 / 1.49 / 0.745 / 0.3 / 0.445 / 0.365 / 0.49 / 0.45 / 0.65 / 0.86ton
GVWR: 2.775 / 2.075 / 3.285 / 3.105 / 3.36 / 2.025 / 1.59 / 1.565 / 1.485 / 1.65 / 1.495 / 2.485 / 2.49ton
Max. speed: 99 / 103 / 110 / 90 / 80km/h
Origin: Xiangyang, Hubei
tonnage class: mini truck
Approach angle: 38 / 34 / 36 / 37°
departure angle: 23 / 24 / 26 / 34°
Front/rear suspension: 0.54/1.32 / 0.545/1.405 / 0.545/1.365 / 0.54/1.145 / 0.54/1.1 / 0.555/1.37 / 0.555/1.345m
Energy Type: gasoline / Diesel
Engine parameters
Engine Brand: Wuling Liuji / Quanchai
Engine info: Liuji gasoline 1.3L / Liuji gasoline 1.1L / Quanchai480
Number of cylinders: 4cylinder
Cylinder arrangement: Inline
Displacement: 1.249 / 1.051 / 1.1 / 1.809L
Emission standard: China V / China III / Euro III
Max output power: 64 / 45 / 38.5 / 40kW
Max hp: 87 / 60 / 52 / 54Horsepower
Max torque: 105 / 85 / 83 / 135N·m
Max torque speed: 3600 / 3200-3600 / 3500 / 2000rpm
Rated speed: 5600 / 5200 / 3200rpm
Engine Type: 4-stroke, inline inclined, water-cooled, mechanically adjusted roller rocker arm / 4-stroke, inline inclined, multi-spherical combustion chamber, electronic fuel injection, electronic ignition / Direct injection, turbocharged & intercooled, electronic VE pump, water-cooled EGR
Transmission Parameters
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:

FAQ

What kind of truck is Dongfeng Dongfeng Junfeng micro truck Cargo Trucks?

Dongfeng Dongfeng Junfeng micro truck is an export-oriented Cargo Trucks lineup with about 16 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.

What is the export price range for Dongfeng Junfeng micro truck Cargo Trucks?

Dongfeng Junfeng micro truck Cargo Trucks export reference is about $4,139 – $6,083. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).

What spec range does Dongfeng Junfeng micro truck Cargo Trucks cover?

Dongfeng Junfeng micro truck Cargo Trucks mainly covers: Drive: 4x2; Horsepower: 87 hp; Emission: China V; Fuel: gasoline. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.

How do I choose a variant in Dongfeng Junfeng micro truck Cargo Trucks?

For Dongfeng Junfeng micro truck Cargo Trucks: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.

What is Cargo Trucks typically used for?

Cargo Trucks covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.

How many models does Dongfeng Junfeng micro truck Cargo Trucks include?

Dongfeng Junfeng micro truck Cargo Trucks currently lists about 16 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.

How do I request a quote for Dongfeng Junfeng micro truck Cargo Trucks?

Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
