Senyuan Heavy Industry 330 hp 4X2(6 wheels) 8-ton Four-Section Boom Crane

Export reference
From $40,972
MSRP ¥29.5M CNY
Max travel speed:: 80km/h
Max gradeability:: 30%
Approach/departure angle:: 10/13°
Rated lifting moment:: 267KN.m
Max lift height - base boom:: 25.5m
Boom length - main boom:: 8m
Senyuan Heavy Industry 330 hp 4X2(6 wheels) 8-ton Four-Section Boom Crane exterior
View more photos (8)
total counterweight: 12.495ton
Max output power: 243kW
Wheelbase: 4600+1350mm
Machine dimensions: L×W×H: 13.32×2.55×3.48m

Overview

The Senyuan Heavy Industry 330 hp 4X2(6 wheels) 8-ton Four-Section Boom Crane is a crane truck featuring 12.495ton GVW and 243kW power.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Machine dimensions: L×W×H: 13.32×2.55×3.48m
Wheelbase: 4600+1350mm
total counterweight: 12.495ton
Max travel speed: 80km/h
Max gradeability: 30%
Approach/departure angle: 10/13°
Lifting capacity
Rated lifting moment: 267KN.m
Max lift height - base boom: 25.5m
Boom length - main boom: 8m
Boom length - fully extended: 24.9m
Operating Parameters
Max hoisting speed of main winch: 110m/min
Auxiliary winch max lift speed: 114m/min
Outrigger span: longitudinal × lateral: 4.2×4.8m
Engine parameters
Engine Model: YuchaiYC6L330-50
Max output power: 243kW
Rated speed: 2200rpm
Chassis Specs
Chassis Model: SMQ5335JQZ

Photos

Exterior3

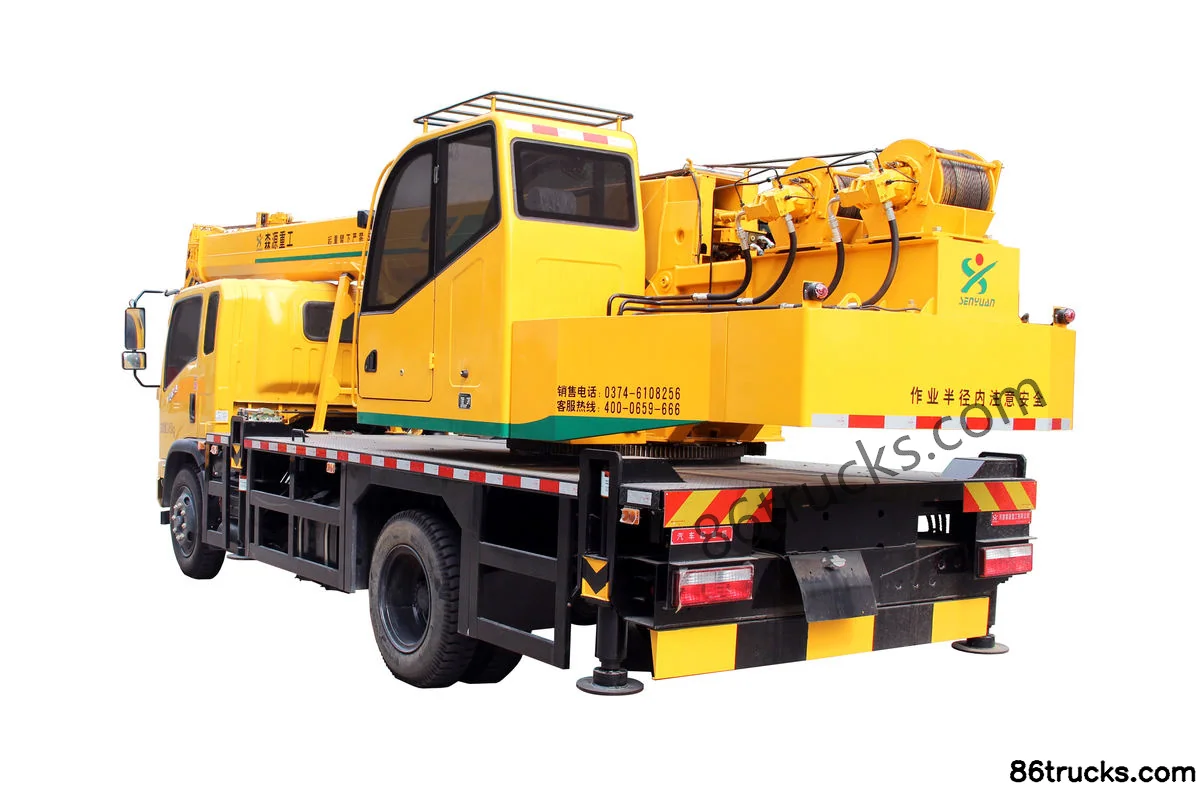

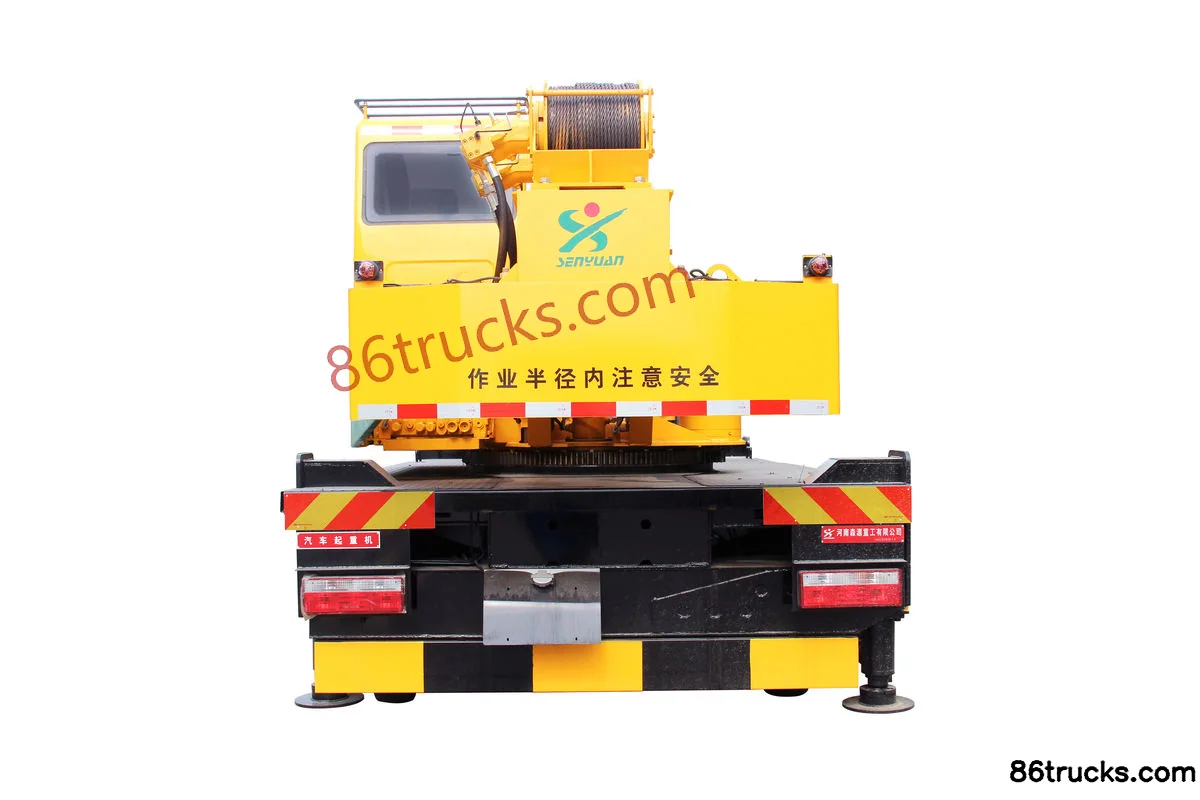

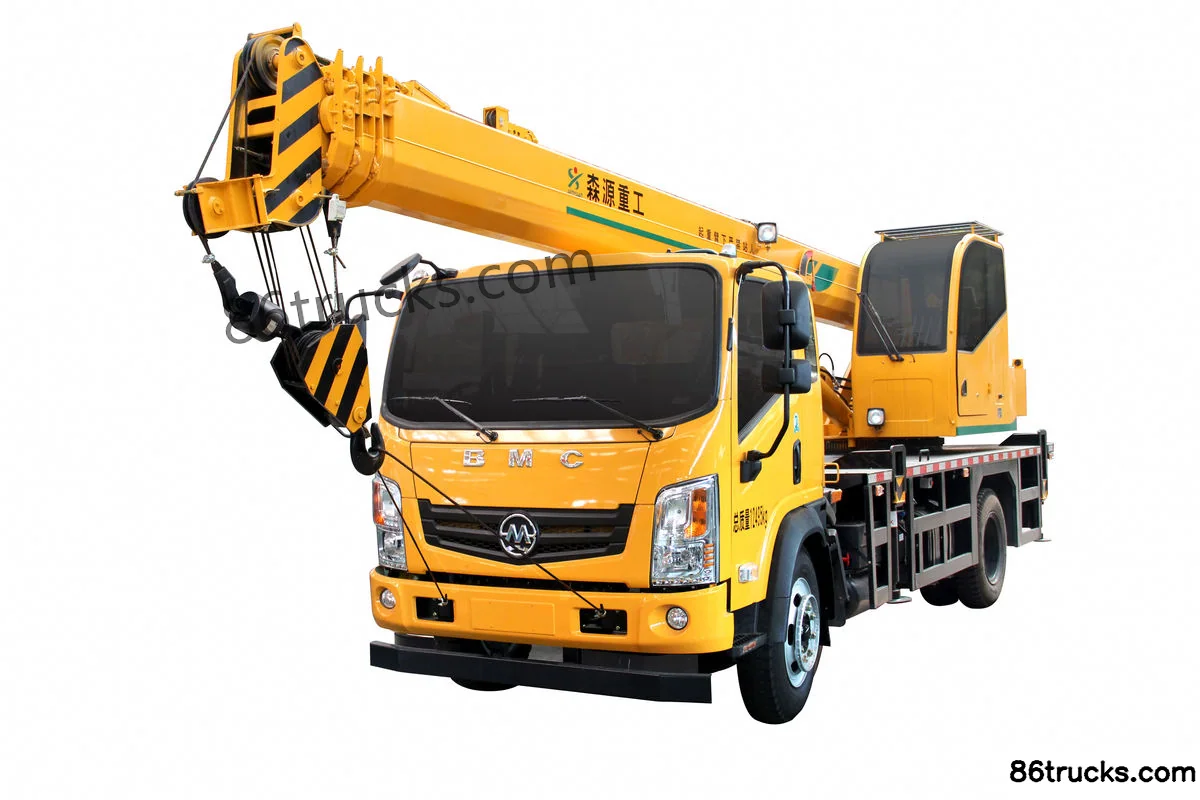

Senyuan Heavy Industry 330 hp 4X2(6 wheels) 8-ton Four-Section Boom Crane Exterior (1) | 86Trucks Senyuan Heavy Industry 330 hp 4X2(6 wheels) 8-ton Four-Section Boom Crane Exterior (2) | 86Trucks Senyuan Heavy Industry 330 hp 4X2(6 wheels) 8-ton Four-Section Boom Crane Exterior (3) | 86Trucks

Cab3

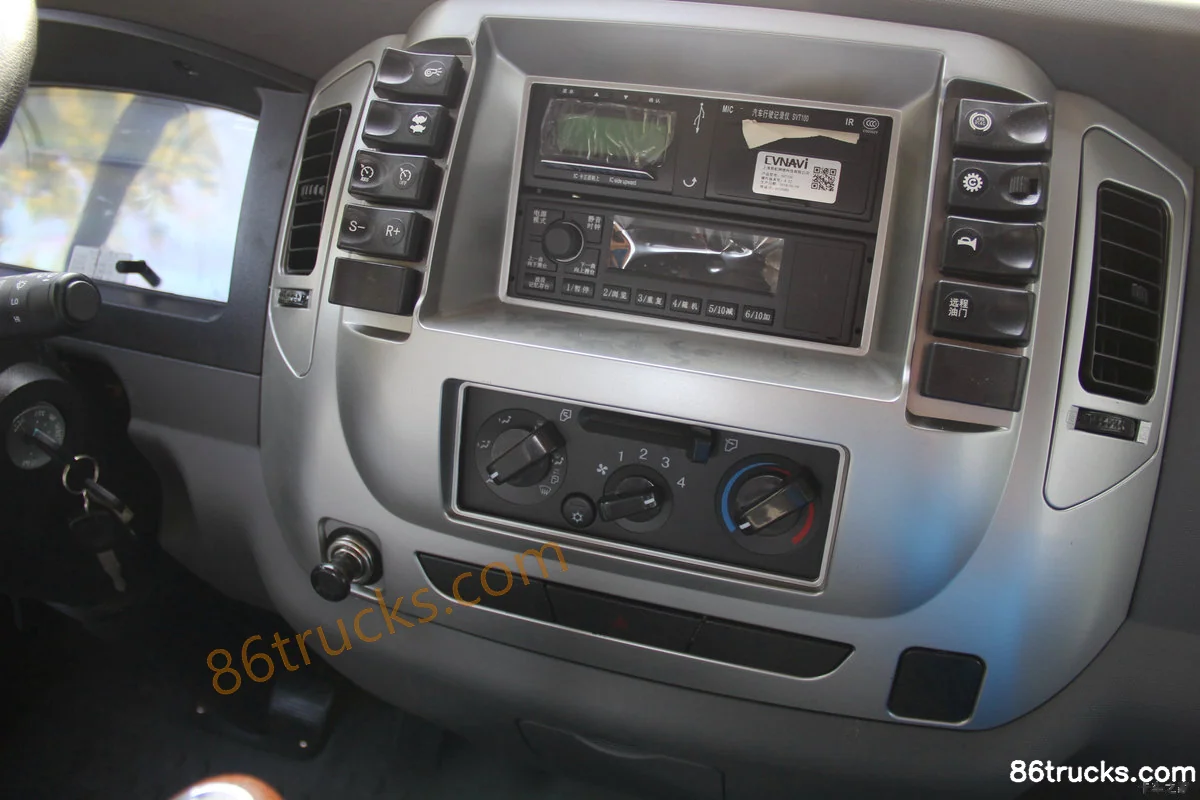

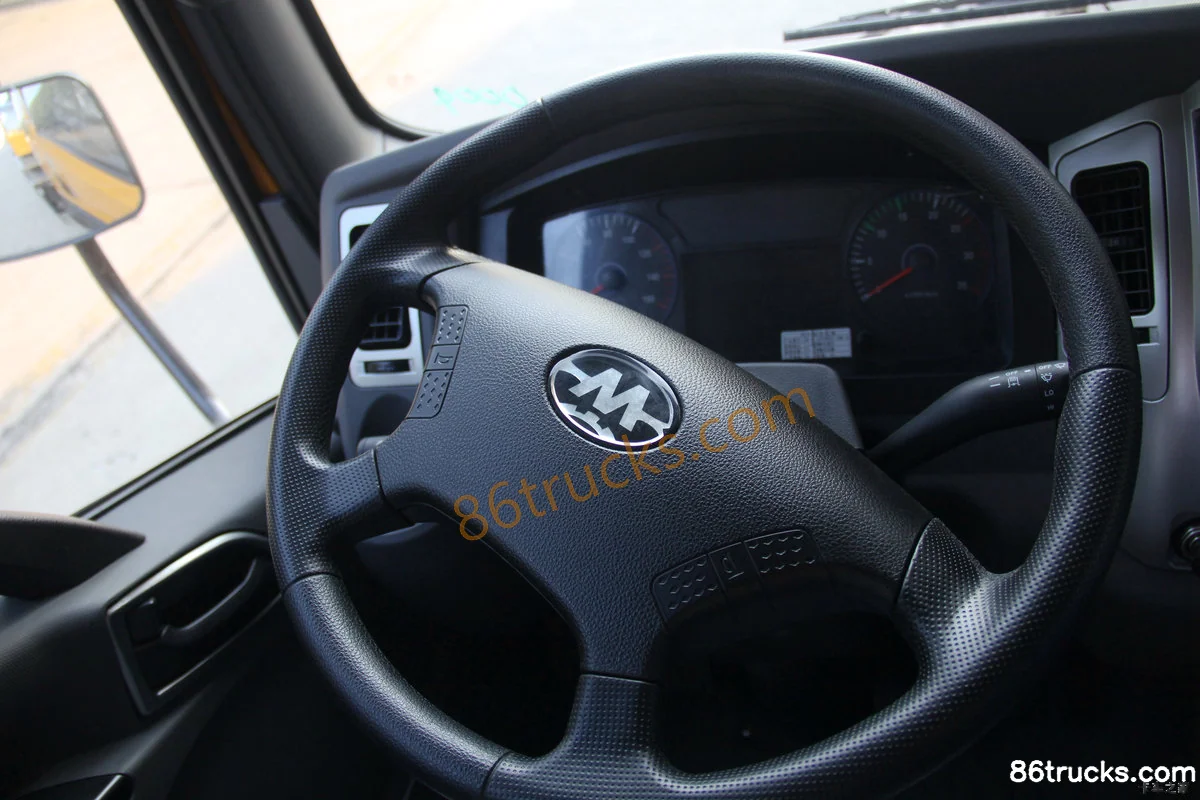

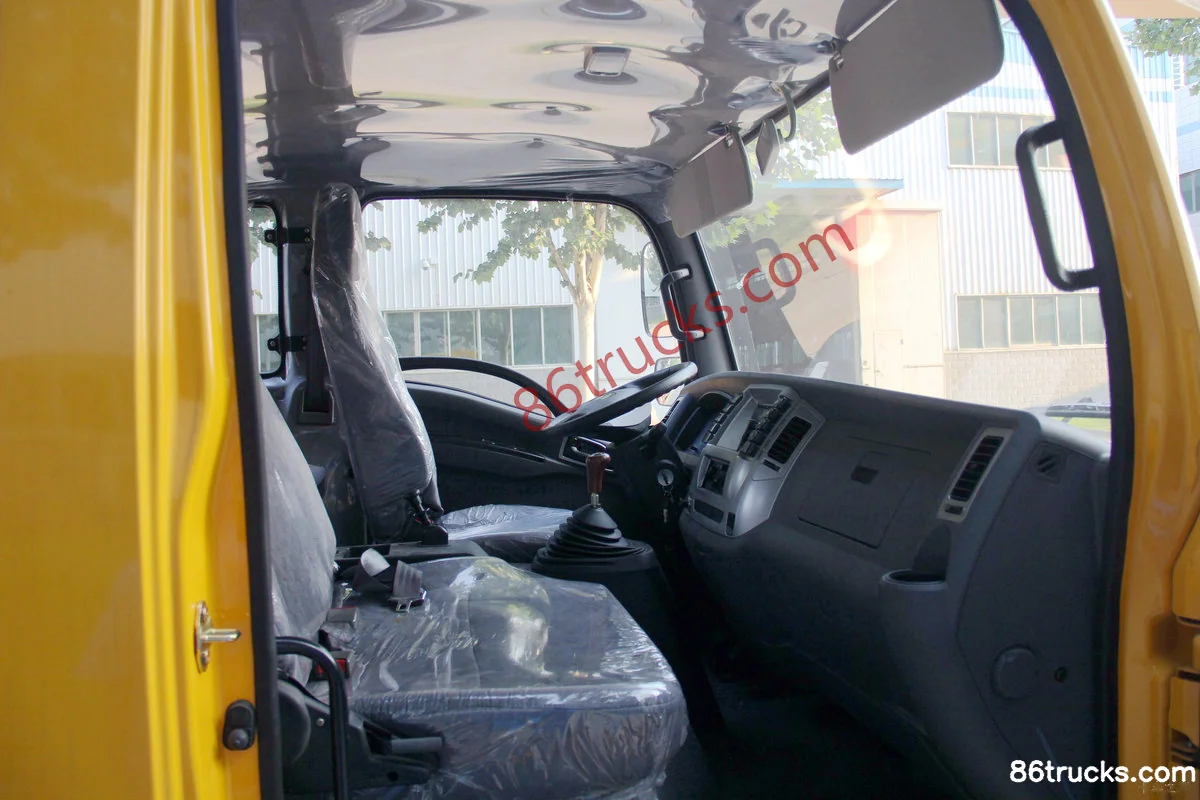

Senyuan Heavy Industry 330 hp 4X2(6 wheels) 8-ton Four-Section Boom Crane Cab (1) | 86Trucks Senyuan Heavy Industry 330 hp 4X2(6 wheels) 8-ton Four-Section Boom Crane Cab (2) | 86Trucks Senyuan Heavy Industry 330 hp 4X2(6 wheels) 8-ton Four-Section Boom Crane Cab (3) | 86Trucks

Chassis2

Senyuan Heavy Industry 330 hp 4X2(6 wheels) 8-ton Four-Section Boom Crane Chassis (1) | 86Trucks Senyuan Heavy Industry 330 hp 4X2(6 wheels) 8-ton Four-Section Boom Crane Chassis (2) | 86Trucks

8 photos

FAQ

What is the export price of Senyuan Heavy Industry 330 hp 4X2(6 wheels) 8-ton Four-Section Boom Crane, and what does it include?

Senyuan Heavy Industry 330 hp 4X2(6 wheels) 8-ton Four-Section Boom Crane export reference is about From $40,972; MSRP is ¥29.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Senyuan Heavy Industry 330 hp 4X2(6 wheels) 8-ton Four-Section Boom Crane suited for?

Senyuan Heavy Industry 330 hp 4X2(6 wheels) 8-ton Four-Section Boom Crane is a crane truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Senyuan Heavy Industry 330 hp 4X2(6 wheels) 8-ton Four-Section Boom Crane differ from other variants in the same series?

Senyuan Heavy Industry 330 hp 4X2(6 wheels) 8-ton Four-Section Boom Crane belongs to Senyuan Heavy Industry Senyuan (crane truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Senyuan Heavy Industry 330 hp 4X2(6 wheels) 8-ton Four-Section Boom Crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Senyuan Heavy Industry 330 hp 4X2(6 wheels) 8-ton Four-Section Boom Crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
