Sinotruk MAN Pioneer H3 160hp 4X2(6 wheels) 4.15m Single Row Van Light Truck (China VI)

Export reference
From $21,944
MSRP ¥15.8M CNY
Horsepower: 160
Emission: China VI
Fuel: Diesel
Engine: WP3N
Transmission: WLY
Curb Weight:: 3.21ton
seating capacity: 3Personnel
Rated payload: 1.09ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Sinotruk MAN Pioneer H3 160hp 4X2(6 wheels) 4.15m Single Row Van Light Truck (China VI) is a Light Truck featuring 4.15m cargo length, Van body cargo body, 3Personnel volume and 1.09t payload. On the powertrain side, it comes with a WP3N engine, 160 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ5048XXYG17FB8
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3280mm
Box length class: 4.2m
engine: WeichaiWP3NQ160E61
transmission: WLYWLY6G50
Rear Axle Ratio: 4.875
Cab length: 5.998m
Cab width: 2.45m
Cab height: 3.35m
Front track width: 1825mm
rear track: 1790mm
Curb Weight: 3.21ton
Rated payload: 1.09ton
GVWR: 4.495ton
Max. speed: 89km/h
Origin: Yong'an, Fujian
tonnage class: Light Truck
Approach angle: 20°
departure angle: 16°
Remarks: Standard: steel spare wheel, preheating, AC bracket, FARIZON terminal, V7 interior, rubber vibration dampening, 1575mm end face distance; Optional: 4.333/5.286 ratio, Lu'an ML640A transmission, Fast Gear 8J50TA transmission, 1775mm end face distance, 7.50R16 all-steel tube-type tires, all-steel tubeless tires, 150L aluminum fuel tank, SmartPass D version, sleeping pad, 11H/9+7H multi-leaf springs, premium air-suspension driver seat, electric air horn, reverse buzzer
Front/rear suspension: 1.175/1.463m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP3NQ160E61
Engine info: WP3N
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.97L
Emission standard: China VI
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 480N·m
Max torque speed: 1400-2300rpm
Rated speed: 3000rpm
Engine Type: Inline, direct injection, water-cooled, 4-stroke, turbocharged, intercooled, electronically controlled high-pressure common rail
Transmission Parameters
Transmission Model: WLYWLY6G50
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.15m
Cargo box width: 2.3m
Cargo box height: 2.3m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab width: 2080mm
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 120L
Chassis Specs
Front axle description: 1061(2.4T)
Front axle allowable load: 1785kg
Frame Dimensions: 180/800mm
rear axle description: 1061/(4.2T)
rear axle allowable load: 2710kg
Axle ratio: 4.875
Leaf spring count: 11/9+7
Aluminum wheels:
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Optional manual.
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Camera:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
lighting configuration
daytime running lights:
Service brake
Exhaust brake:
smart configuration
Cruise control (CCS):

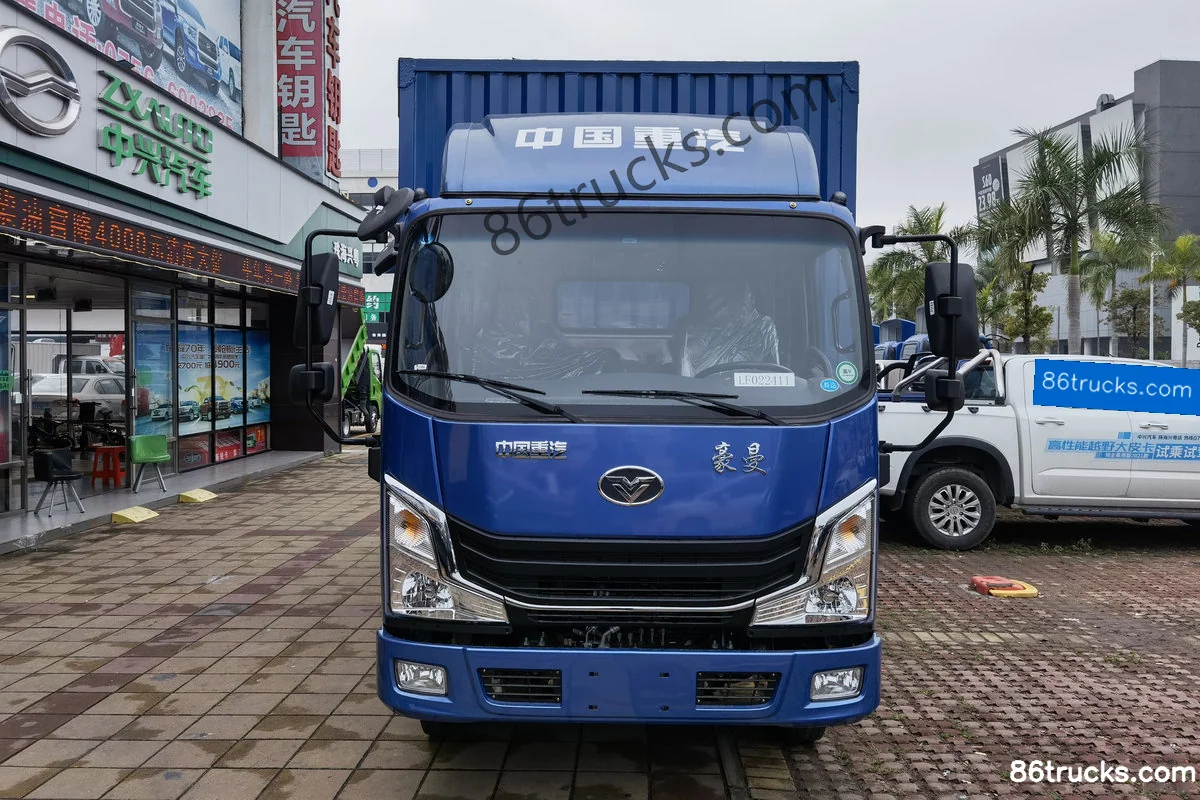

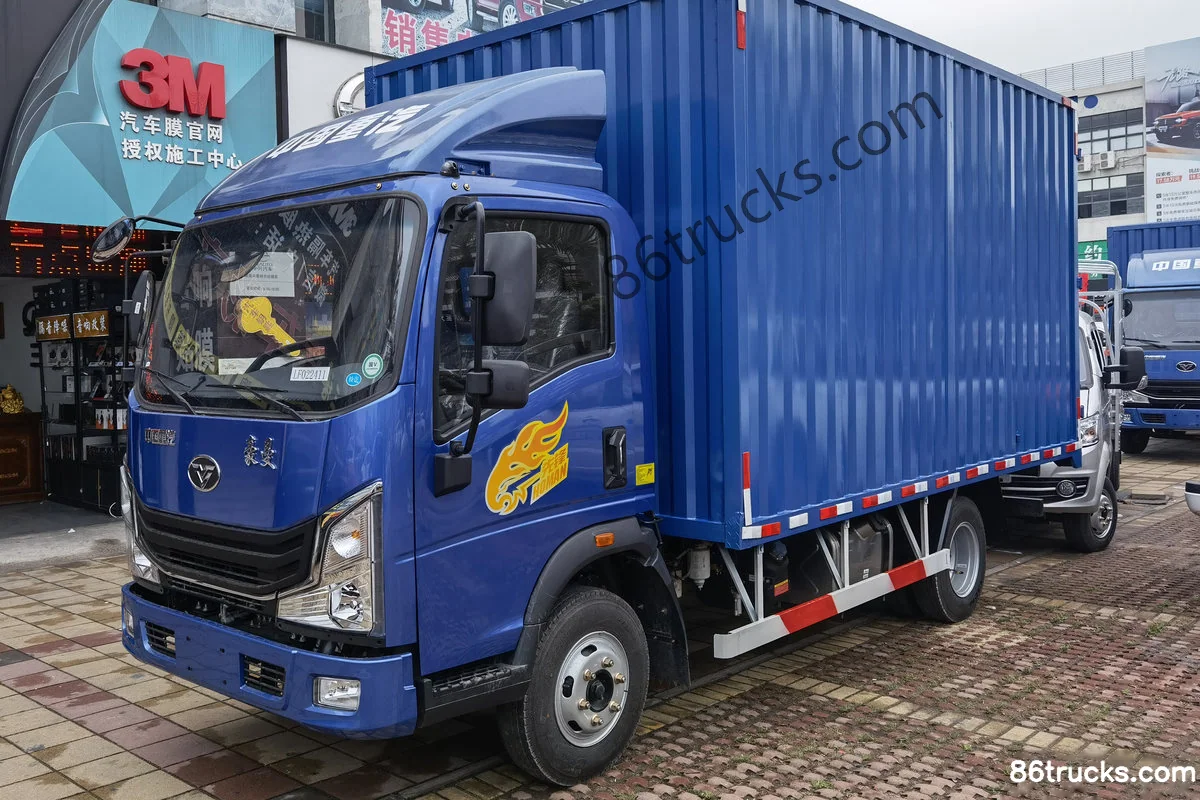

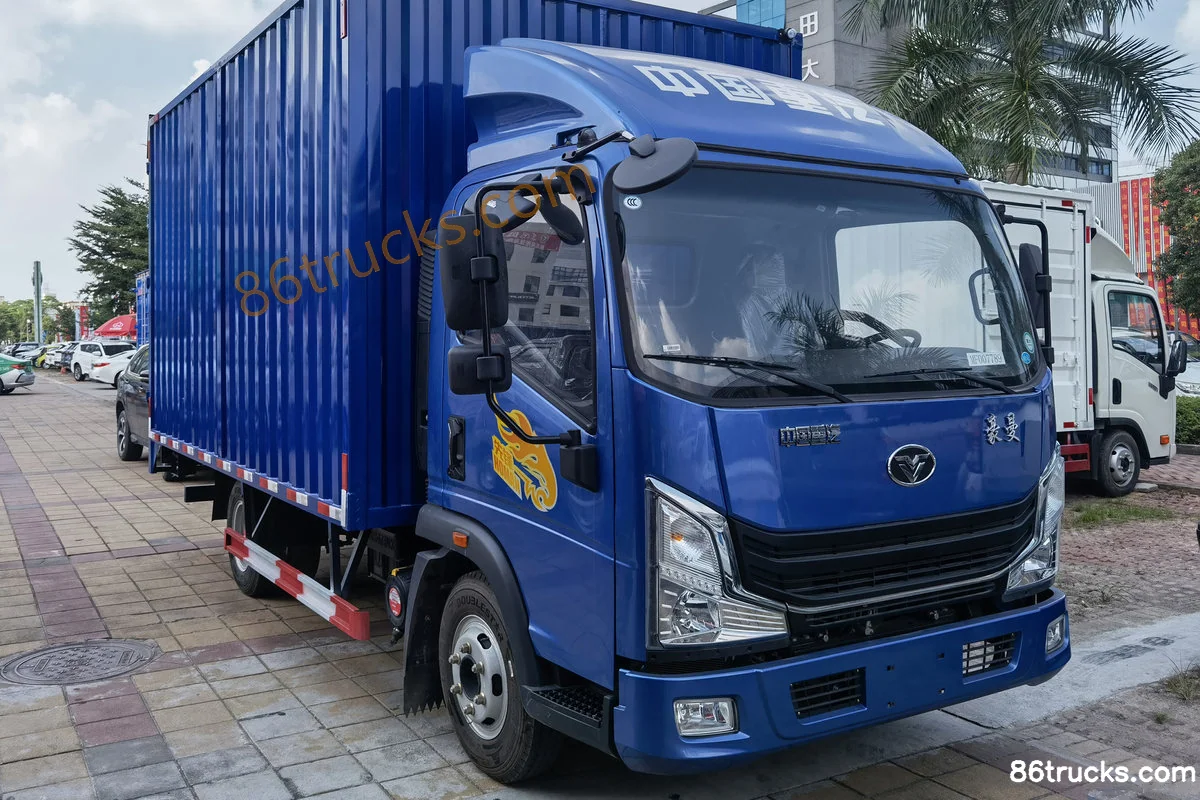

Photos

Exterior3

3 photos

FAQ

What is the export price of Sinotruk MAN Pioneer H3 160hp 4X2(6 wheels) 4.15m Single Row Van Light Truck (China VI), and what does it include?

Sinotruk MAN Pioneer H3 160hp 4X2(6 wheels) 4.15m Single Row Van Light Truck (China VI) export reference is about From $21,944; MSRP is ¥15.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk MAN Pioneer H3 160hp 4X2(6 wheels) 4.15m Single Row Van Light Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk MAN Pioneer H3 160hp 4X2(6 wheels) 4.15m Single Row Van Light Truck (China VI)?

Key specs of Sinotruk MAN Pioneer H3 160hp 4X2(6 wheels) 4.15m Single Row Van Light Truck (China VI): Drive: 4x2; Horsepower: 160 hp; Emission: China VI; Fuel: Diesel; Engine: WP3N; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk MAN Pioneer H3 160hp 4X2(6 wheels) 4.15m Single Row Van Light Truck (China VI) suited for?

Sinotruk MAN Pioneer H3 160hp 4X2(6 wheels) 4.15m Single Row Van Light Truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk MAN Pioneer H3 160hp 4X2(6 wheels) 4.15m Single Row Van Light Truck (China VI) differ from other variants in the same series?

Sinotruk MAN Pioneer H3 160hp 4X2(6 wheels) 4.15m Single Row Van Light Truck (China VI) belongs to Sinotruk Pioneer Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk MAN Pioneer H3 160hp 4X2(6 wheels) 4.15m Single Row Van Light Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk MAN Pioneer H3 160hp 4X2(6 wheels) 4.15m Single Row Van Light Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
