JAC Gallop V7 Heavy Truck 560 hp 6X4(10 wheels) AMT Automatic Long-head Tractor Truck (China VI) (High Wind Deflector)

Export reference
From $77,500
MSRP ¥55.8M CNY
Fuel: Diesel
Gross Trailer Weight:: 40ton
Wheelbase:: 4500+1350mm
Tire Size:: 12R22.5
Front axle allowable load:: 7000kg
Displacement:: 13.48L
Drive 6X4 (10 wheels)
Horsepower 560
Emission China VI
Transmission ZF

Overview

The JAC Gallop V7 Heavy Truck 560 hp 6X4(10 wheels) AMT Automatic Long-head Tractor Truck (China VI) (High Wind Deflector) is a Heavy truck featuring 6X4 (10 wheels) drive, 560 hp, 25t GVW and China VI emissions. Its segment focus covers Logistics Freight, matching those duty cycles. On the powertrain side, it comes with a DongfengZ14NS6B560 engine, ZF transmission and Diesel fuel.

China VI 560 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC4253C1K7E45KS
Drive type: 6X4
Wheelbase: 4500+1350mm
engine: DongfengZ14NS6B560
transmission: ZF12TX2621TD
Rear Axle Ratio: 2.85
Cab length: 8.175m
Cab width: 2.55m
Cab height: 3.85m
Front track width: 2070mm
Gross Trailer Weight: 40ton
rear track: 1860/1860mm
Curb Weight: 8.8ton
GVWR: 25ton
Max. speed: 110km/h
Origin: Hefei, Anhui
tonnage class: Heavy truck
market segment: Logistics Freight
Remarks: Other features: one-key start, MP5, 1000W inverter, 900mm extra-wide bunk, in-vehicle WiFi, optional 2.64 ratio, 10.4-inch center console screen + 360° panoramic view, adjustable wind deflector, optional ratio 2.64
Energy Type: Diesel
Engine parameters
Engine Brand: Dongfeng
Engine Model: DongfengZ14NS6B560
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 13.48L
Emission standard: China VI
Max output power: 418kW
Max hp: 560Horsepower
Max torque: 2650N·m
Max torque speed: 900-1400rpm
Rated speed: 1800rpm
Transmission Parameters
Transmission Model: ZF12TX2621TD
Transmission Brand: ZF
shift method: AMT manual/auto
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
fuel tank
Fuel tank heating:
Fuel tank capacity: 1200L
Cab parameters
Cab: High-roof flat floor
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Lower Bunk Width: 900mm
Chassis Specs
Front axle description: 6.5T disc + ConMet wheel ends
Front axle allowable load: 7000kg
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 2.85
Tire
Tire Size: 12R22.5
Tire Type: Porun aluminum alloy (forged aluminum)
Number of tires: 10pcs
Control configuration
ABS:
interior configuration
AC control type: Automatic
Electric Heated Rearview Mirror:
Exterior features
Air deflector:
lighting configuration
LED taillight:
Service brake
hydraulic retarder:
Front wheel brake: Disc
smart configuration
Tire Pressure Monitoring System (TPMS):

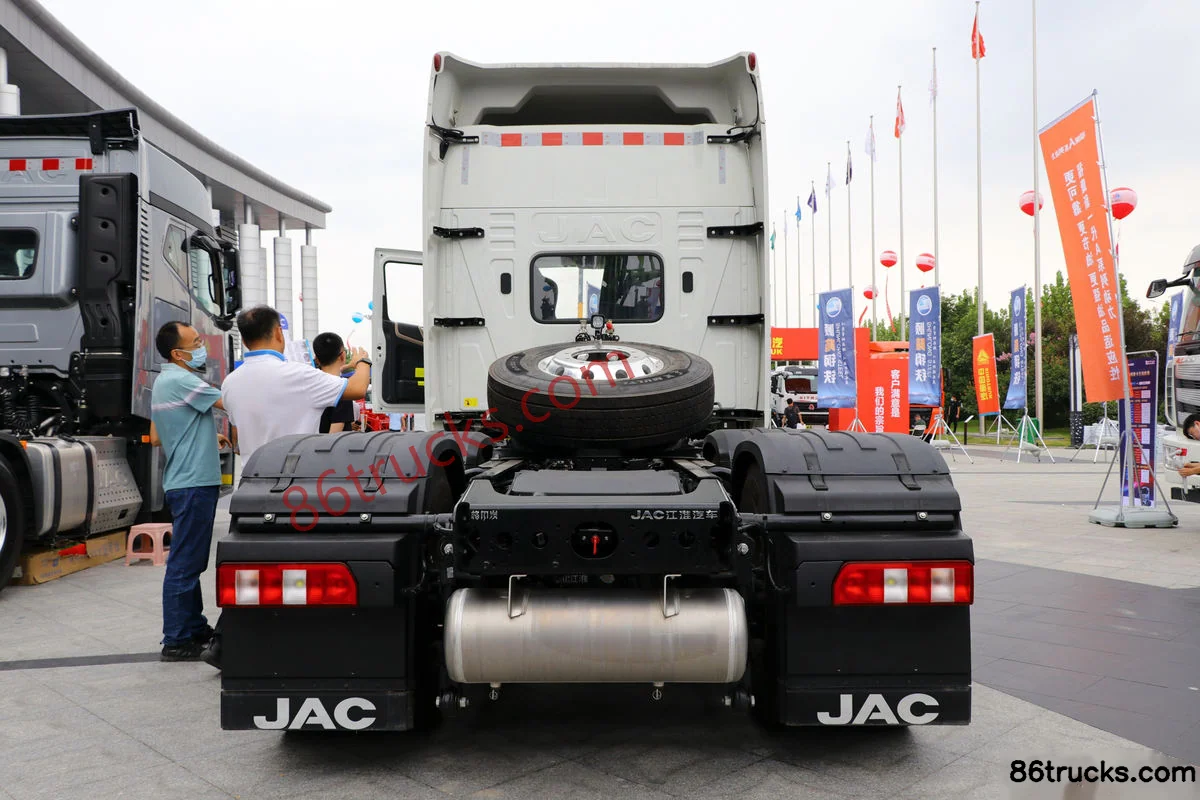

Photos

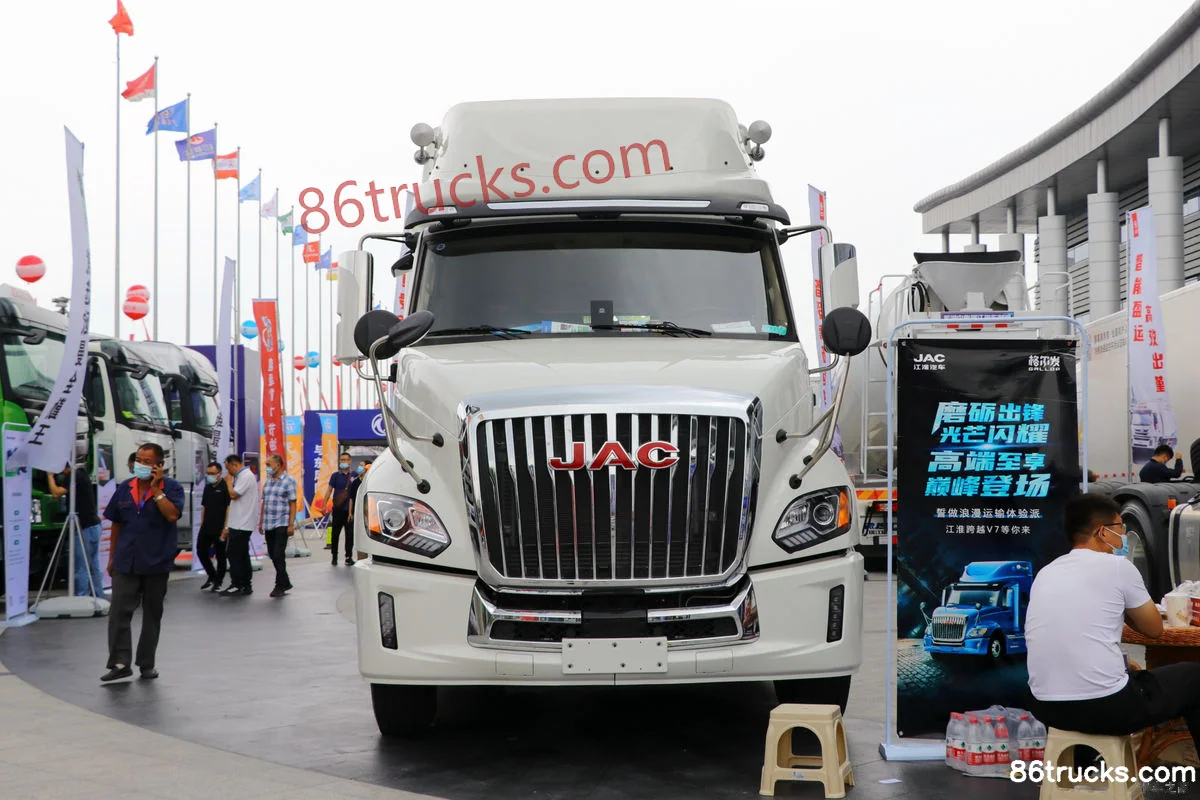

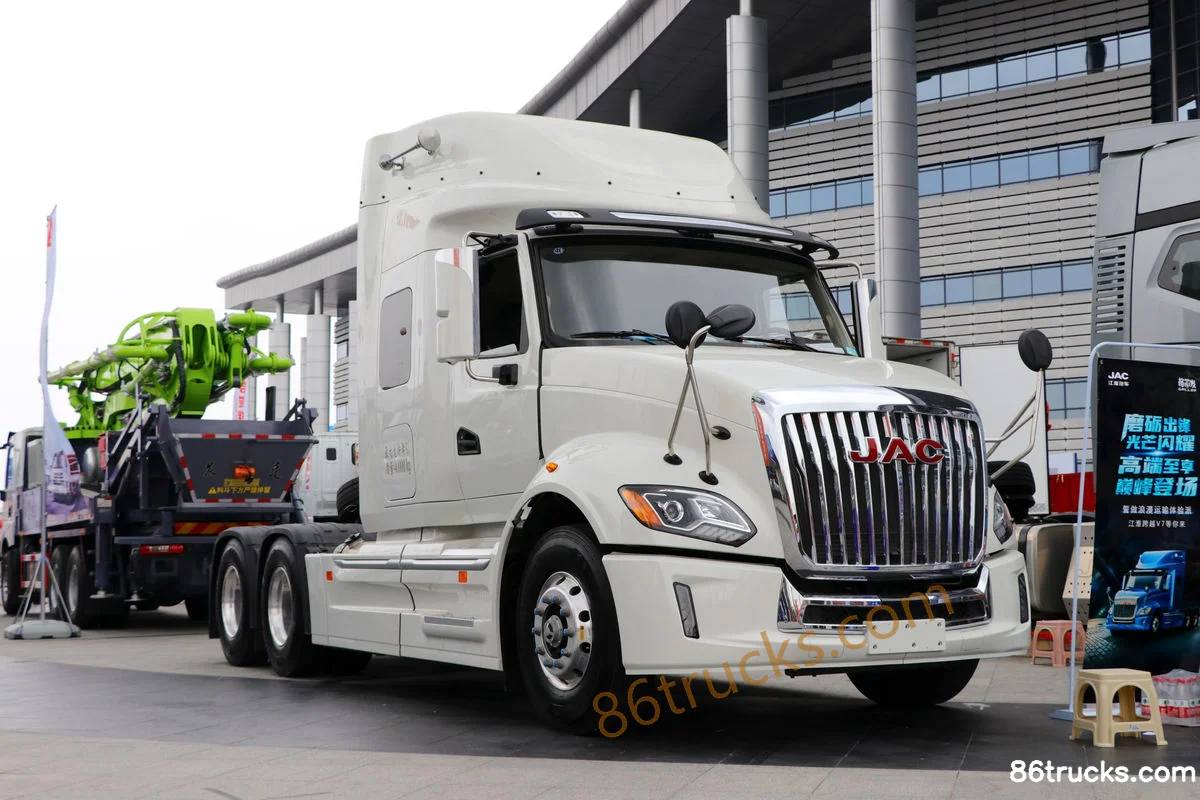

Exterior3

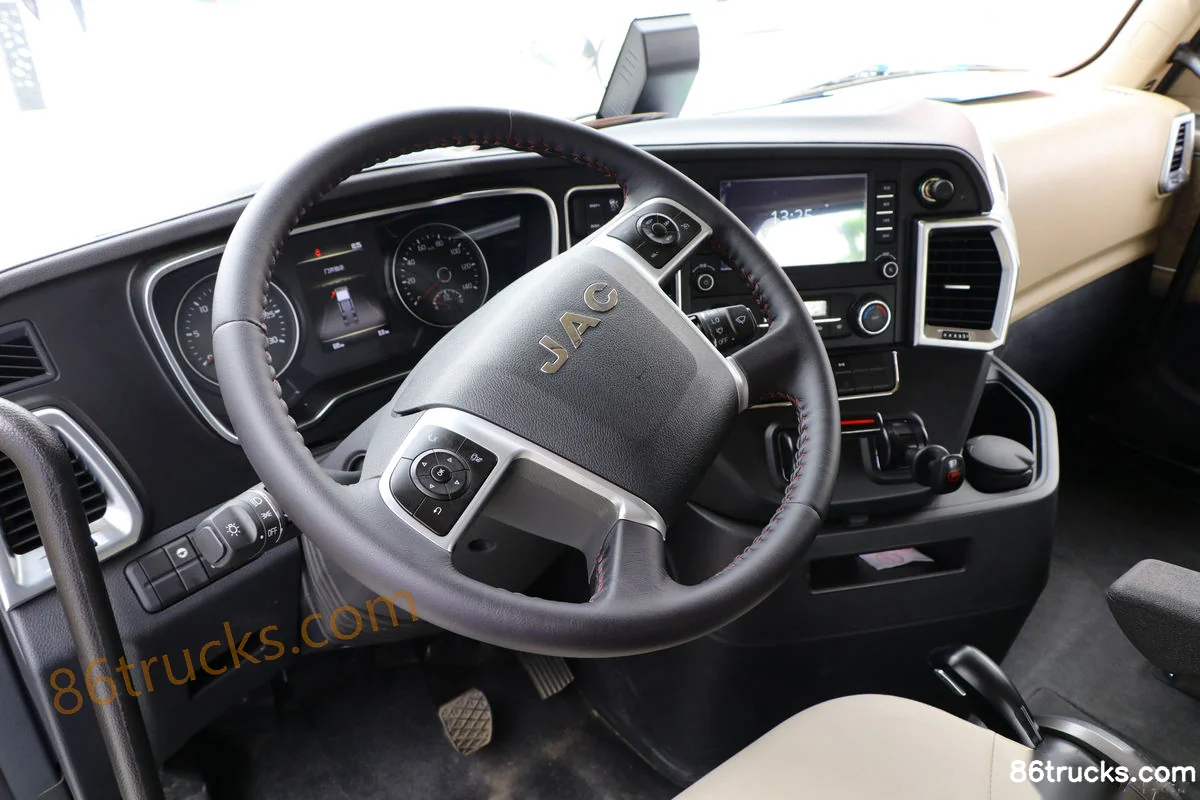

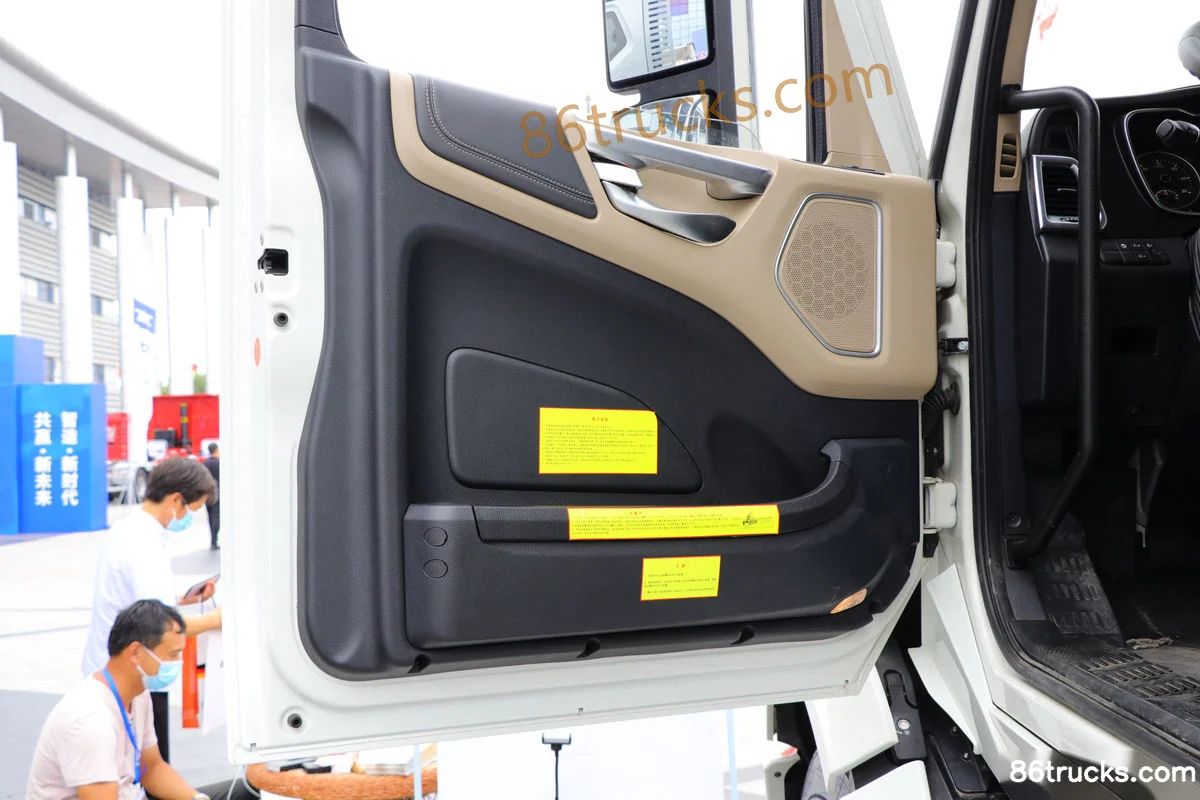

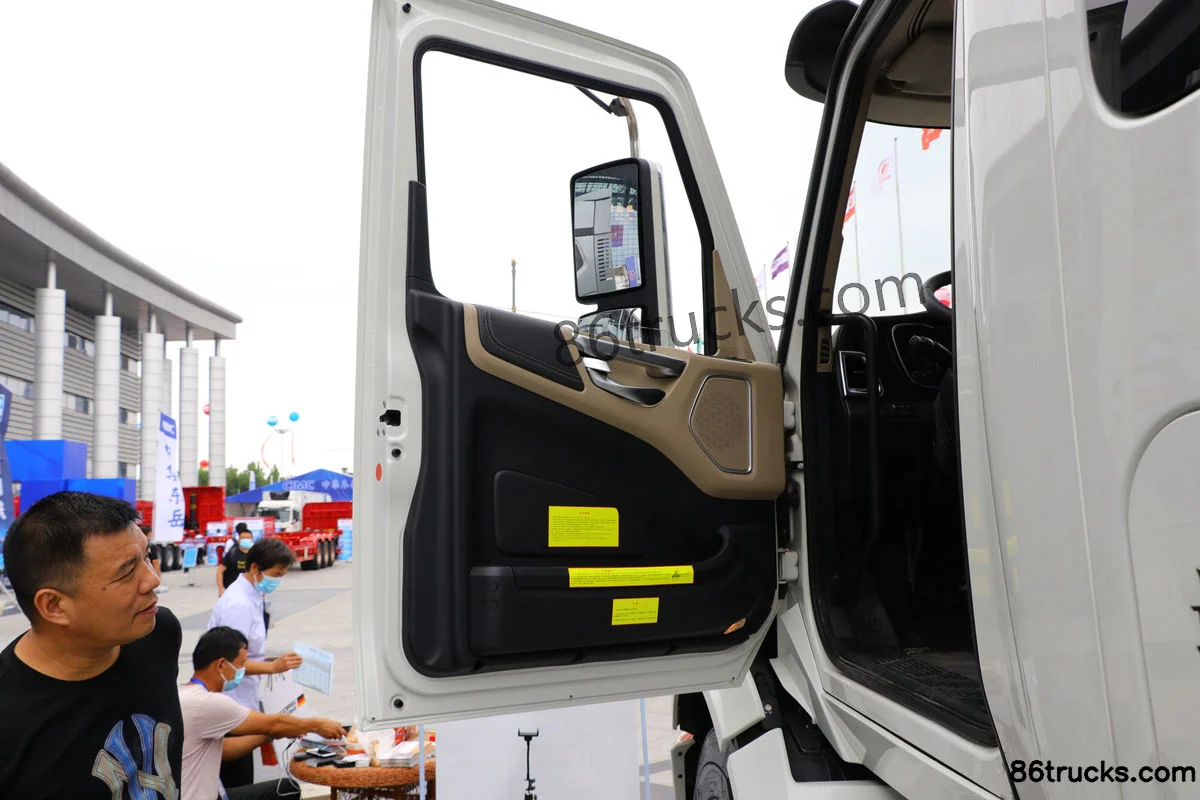

Cab3

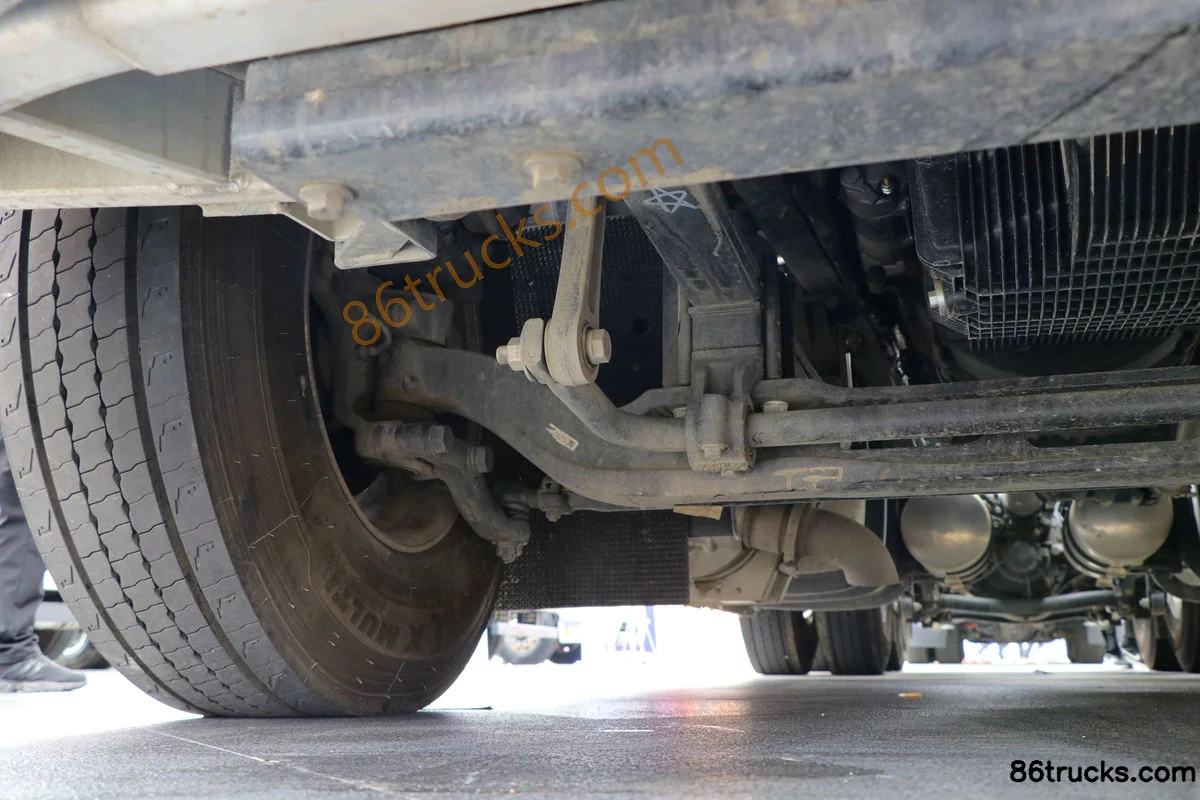

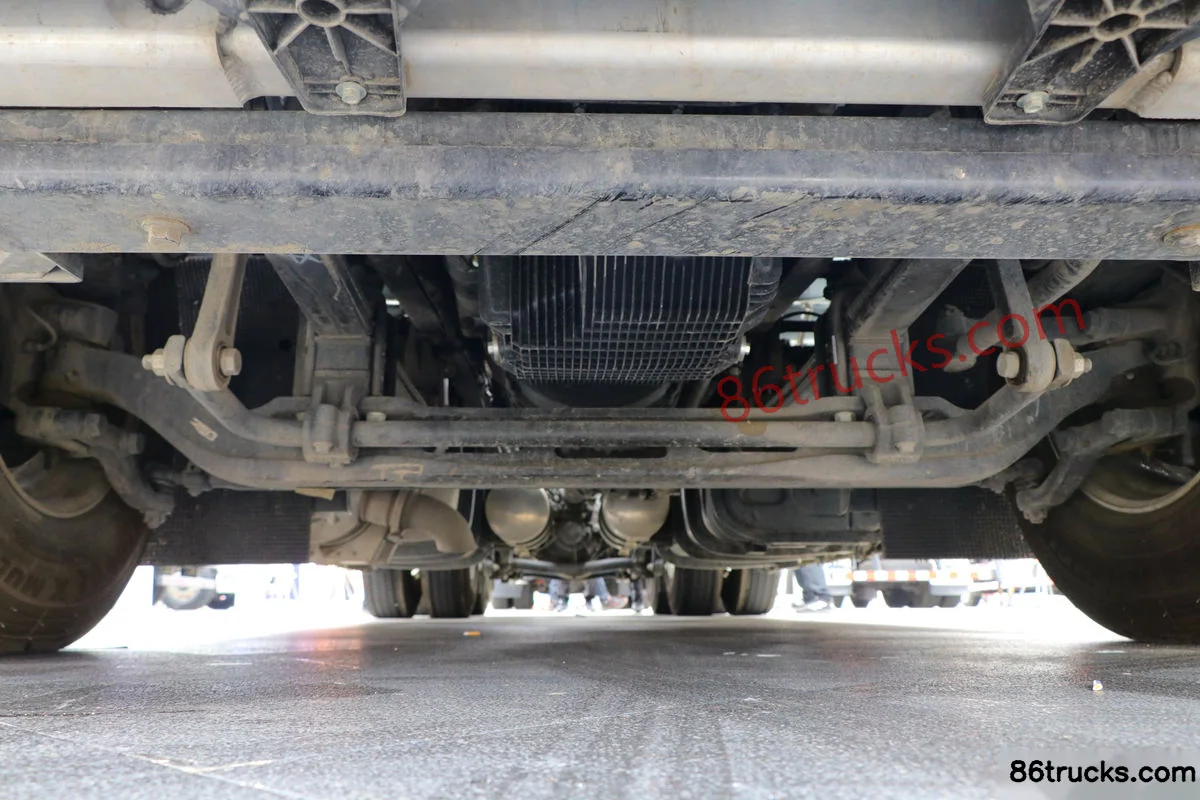

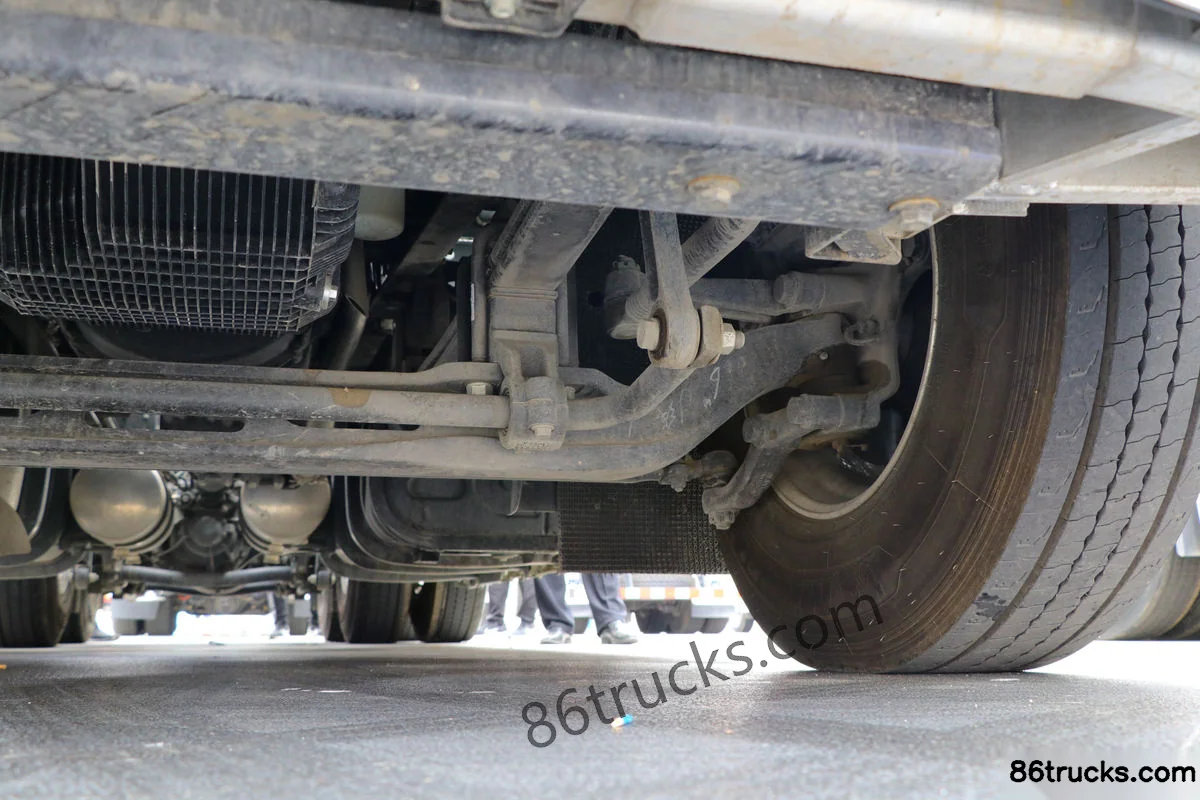

Chassis3

9 photos

FAQ

What is the export price of JAC Gallop V7 Heavy Truck 560 hp 6X4(10 wheels) AMT Automatic Long-head Tractor Truck (China VI) (High Wind Deflector), and what does it include?

JAC Gallop V7 Heavy Truck 560 hp 6X4(10 wheels) AMT Automatic Long-head Tractor Truck (China VI) (High Wind Deflector) export reference is about From $77,500; MSRP is ¥55.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Gallop V7 Heavy Truck 560 hp 6X4(10 wheels) AMT Automatic Long-head Tractor Truck (China VI) (High Wind Deflector) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop V7 Heavy Truck 560 hp 6X4(10 wheels) AMT Automatic Long-head Tractor Truck (China VI) (High Wind Deflector)?

Key specs of JAC Gallop V7 Heavy Truck 560 hp 6X4(10 wheels) AMT Automatic Long-head Tractor Truck (China VI) (High Wind Deflector): Drive: 6x4; Horsepower: 560 hp; Emission: China VI; Fuel: Diesel; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop V7 Heavy Truck 560 hp 6X4(10 wheels) AMT Automatic Long-head Tractor Truck (China VI) (High Wind Deflector) suited for?

JAC Gallop V7 Heavy Truck 560 hp 6X4(10 wheels) AMT Automatic Long-head Tractor Truck (China VI) (High Wind Deflector) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does JAC Gallop V7 Heavy Truck 560 hp 6X4(10 wheels) AMT Automatic Long-head Tractor Truck (China VI) (High Wind Deflector) differ from other variants in the same series?

JAC Gallop V7 Heavy Truck 560 hp 6X4(10 wheels) AMT Automatic Long-head Tractor Truck (China VI) (High Wind Deflector) belongs to JAC Kuayue V7 heavy truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop V7 Heavy Truck 560 hp 6X4(10 wheels) AMT Automatic Long-head Tractor Truck (China VI) (High Wind Deflector)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop V7 Heavy Truck 560 hp 6X4(10 wheels) AMT Automatic Long-head Tractor Truck (China VI) (High Wind Deflector)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
