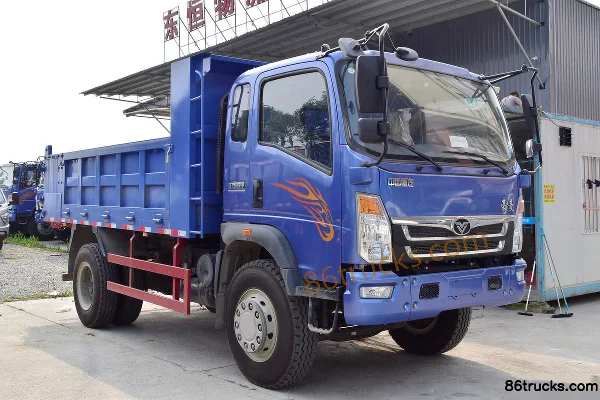

Sinotruk Haoman H3 160hp 4X2(6 wheels) 3.1m Dump Truck

Export reference
From $21,944
MSRP ¥15.8M CNY
Emission: China VI
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.72ton
Wheelbase:: 2850mm
Tire Size:: 7.00RI6LT 8PR
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Horsepower 160
Cargo box length: 3.1m

Overview

The Sinotruk Haoman H3 160hp 4X2(6 wheels) 3.1m Dump Truck is a Light Truck featuring 1.645t payload, 4.495t GVW, 3.1m cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCF25160-66 engine, 160 hp, China VI emissions and WLY transmission.

China VI 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ3048F17FB5
Drive type: 4X2
Wheelbase: 2850mm
engine: YuchaiYCF25160-66
transmission: WLYWLY8GS60
Rear Axle Ratio: 5.833
Cab length: 4.995m
Cab width: 1.95m
Cab height: 2.18m
Front track width: 1501mm
rear track: 1301mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Yong'an, Fujian
tonnage class: Light Truck
Approach angle: 20°
departure angle: 16°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCF25160-66
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.488L
Emission standard: China VI
Max output power: 116kW
Max hp: 160Horsepower
Transmission Parameters
Transmission Model: WLYWLY8GS60
Transmission Brand: WLY
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box length: 3.1m
Cargo box width: 1.8m
Cargo box height: 0.8m
Cab parameters
Cab width: 1750mm
seating capacity: 2Personnel
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 120L
Chassis Specs
Front axle description: 2.4T
Front axle allowable load: 2065kg
Frame Dimensions: 215/760mm
rear axle description: 7.2T (drum)
rear axle allowable load: 2430kg
Axle ratio: 5.833
Leaf spring count: 11/9+7TTH
Tire
Tire Size: 7.00RI6LT 8PR
Number of tires: 4pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Electronic Central Lock:

Photos

0 photos

FAQ

What is the export price of Sinotruk Haoman H3 160hp 4X2(6 wheels) 3.1m Dump Truck, and what does it include?

Sinotruk Haoman H3 160hp 4X2(6 wheels) 3.1m Dump Truck export reference is about From $21,944; MSRP is ¥15.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Haoman H3 160hp 4X2(6 wheels) 3.1m Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Haoman H3 160hp 4X2(6 wheels) 3.1m Dump Truck?

Key specs of Sinotruk Haoman H3 160hp 4X2(6 wheels) 3.1m Dump Truck: Drive: 4x2; Horsepower: 160 hp; Emission: China VI; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Haoman H3 160hp 4X2(6 wheels) 3.1m Dump Truck suited for?

Sinotruk Haoman H3 160hp 4X2(6 wheels) 3.1m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Haoman H3 160hp 4X2(6 wheels) 3.1m Dump Truck differ from other variants in the same series?

Sinotruk Haoman H3 160hp 4X2(6 wheels) 3.1m Dump Truck belongs to Sinotruk Pioneer Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Haoman H3 160hp 4X2(6 wheels) 3.1m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Haoman H3 160hp 4X2(6 wheels) 3.1m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
