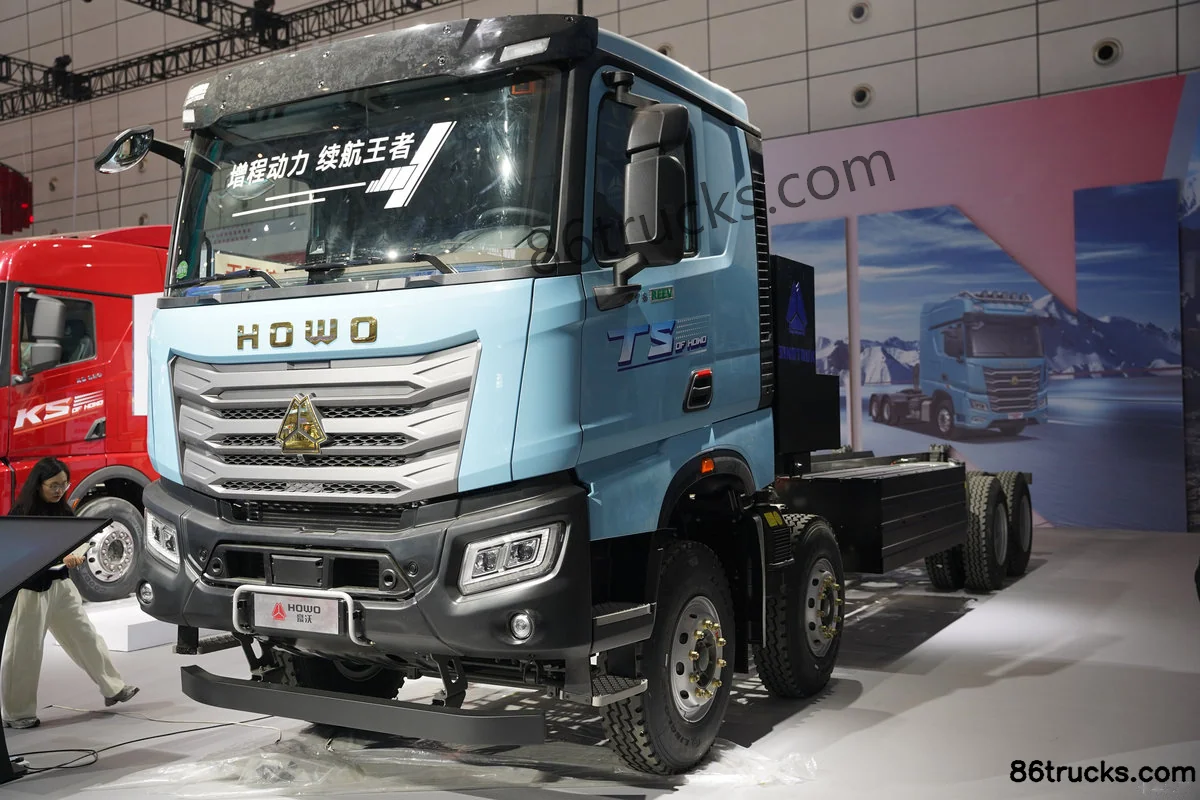

Sinotruk HOWO TS 8X4(12 wheels) 8m Plug-in Hybrid Dump Truck CALB 400.61kWh

Export reference
MSRP N/A
Curb Weight:: 25.2ton
Rated payload:: 5.67ton
Transmission: Sinotruk
Wheelbase:: 1800+5025+1350mm
Cargo box length:: 8m
Model code (announced):: ZZ3317Y506KF1REEV4A
Drive 8X4 (12 wheels)
Battery Brand: CALB
Motor 1 Model: TZ445XS-ZQV26
Horsepower 350

Overview

The Sinotruk HOWO TS 8X4(12 wheels) 8m Plug-in Hybrid Dump Truck CALB 400.61kWh is a Heavy truck featuring CALB battery/range, TZ445XS-ZQV26 motor, 8X4 (12 wheels) drive and 5.67t payload. On the powertrain side, it comes with 350 hp and Sinotruk transmission.

350 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ3317Y506KF1REEV4A
Drive type: 8X4
Wheelbase: 1800+5025+1350mm
Cab length: 11.53m
Cab width: 2.55m
Cab height: 3.45m
Curb Weight: 25.2ton
Rated payload: 5.67ton
GVWR: 31ton
Max. speed: 89km/h
Origin: Jinan, Shandong
tonnage class: Heavy truck
Remarks: electric range up to 200km, combined range 680km with full tank and full charge
Energy Type: Hybrid
electric motor
Motor 1 Model: TZ445XS-ZQV26
total rated power: 400kW
Peak power: 600kW
Motor 1 Peak Power: 600kW
Battery/Charging
Battery Brand: CALB
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 400.61kWh
Engine parameters
Engine Model: MC07H.35-61
Number of cylinders: 6cylinder
Displacement: 7.36L
Max output power: 254kW
Max hp: 350Horsepower
Transmission Parameters
shift type: AMT manual/auto
Transmission Model: HW30706XAL
Transmission Brand: Sinotruk
Cargo box parameters
Cargo box length: 8m
Cargo box width: 2.35m
Cargo box height: 1.2m
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle description: MCP28ZG self-adjusting arm dual rear axle
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 12.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration

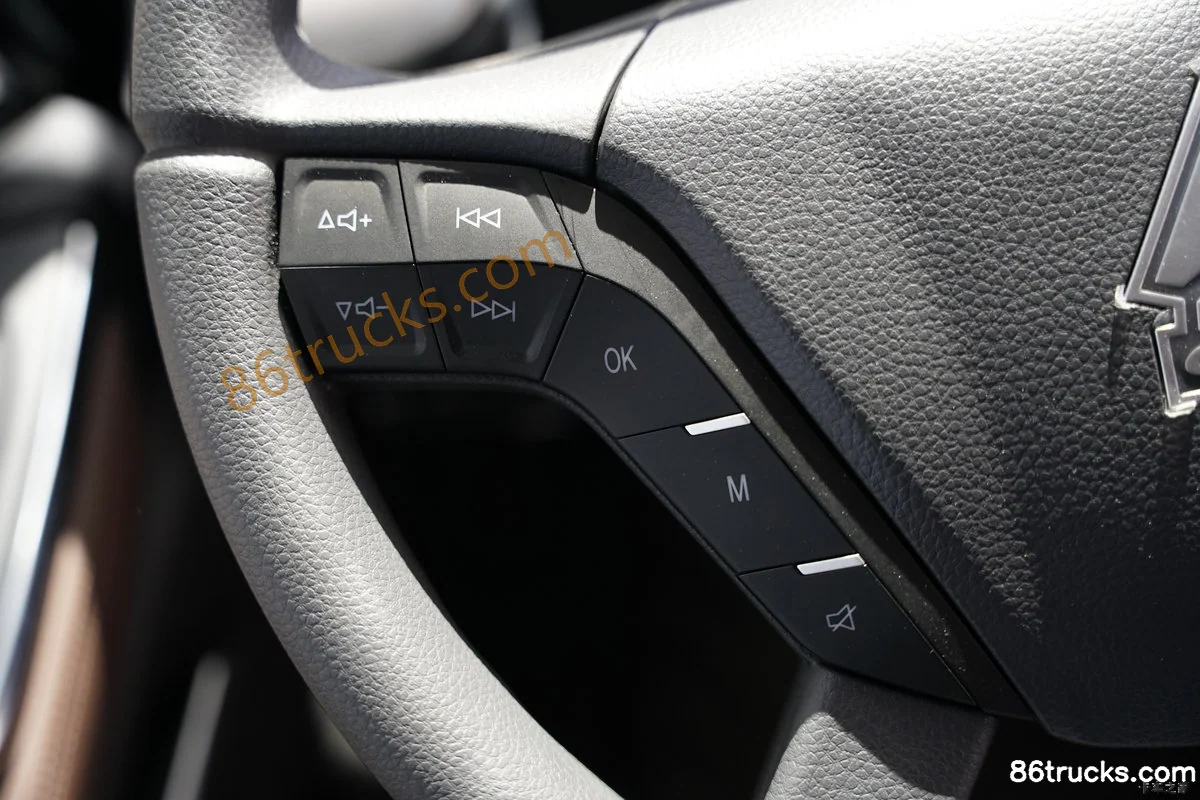

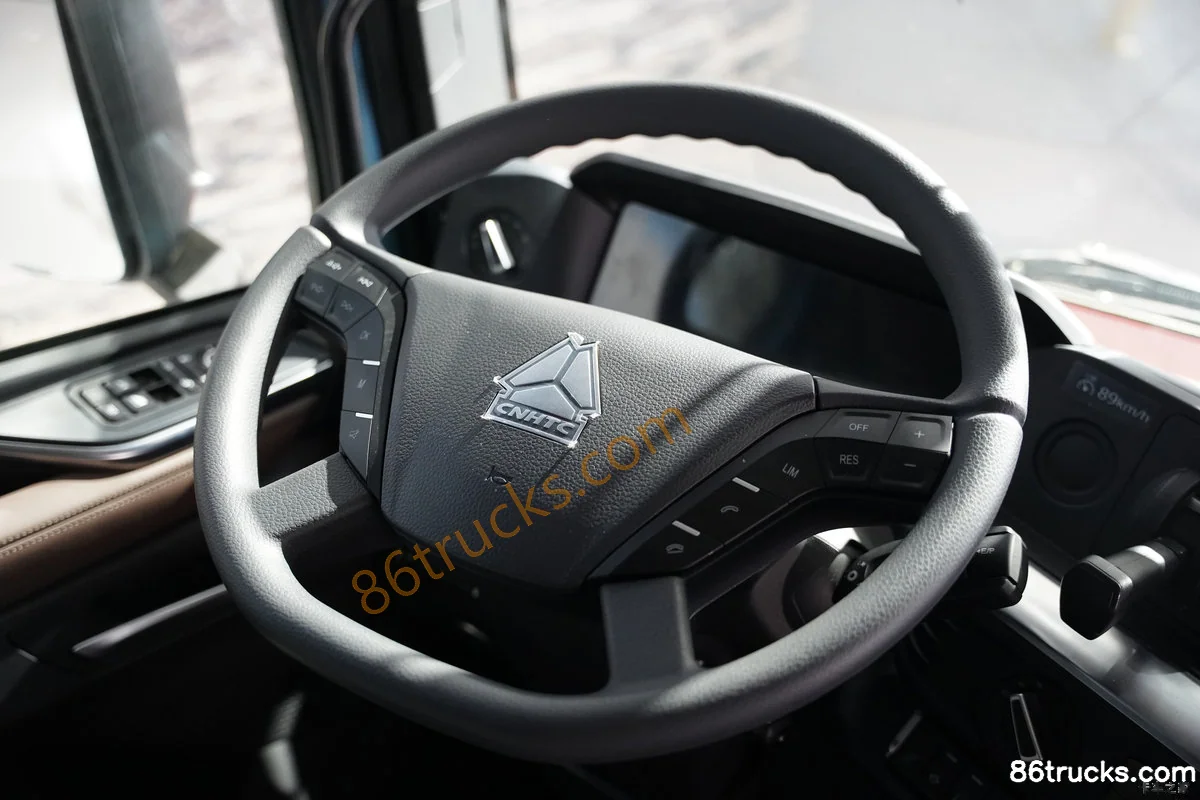

Multifunction steering wheel:
AC control type: Automatic

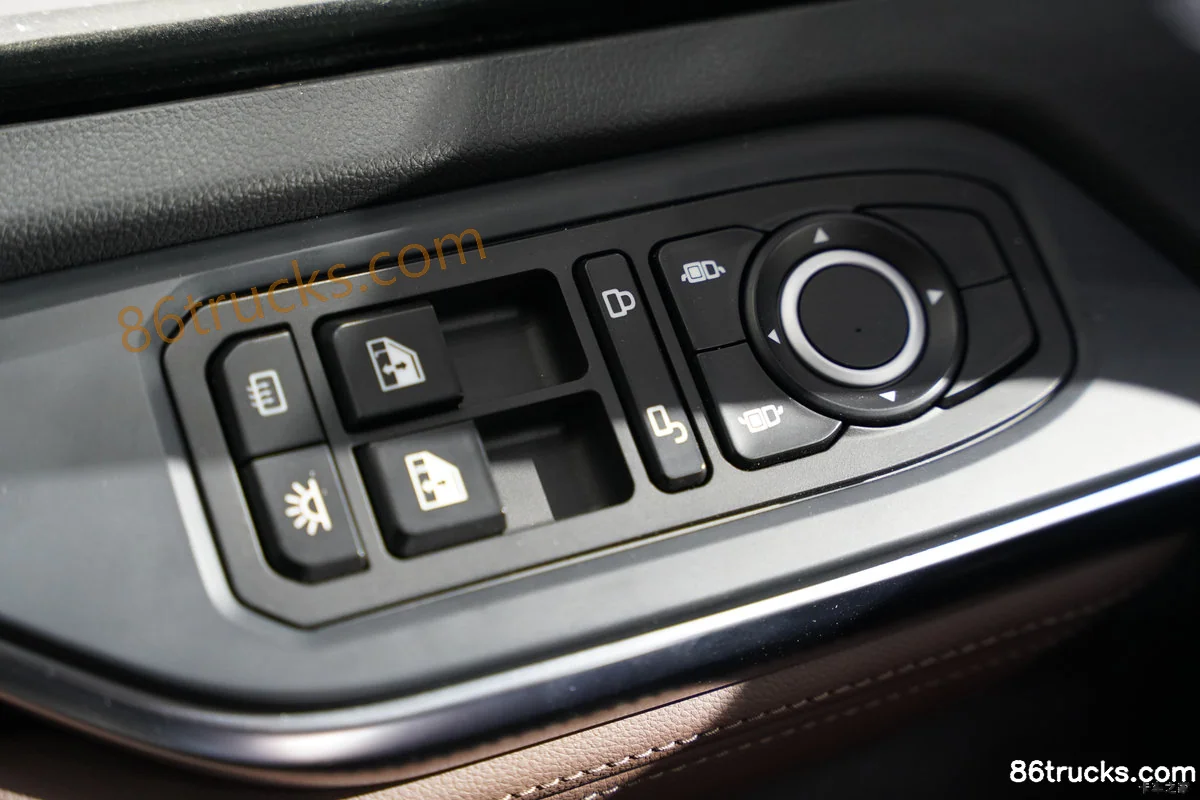

Power Windows:
Power Mirrors:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
Bluetooth / hands-free calling:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:

Photos

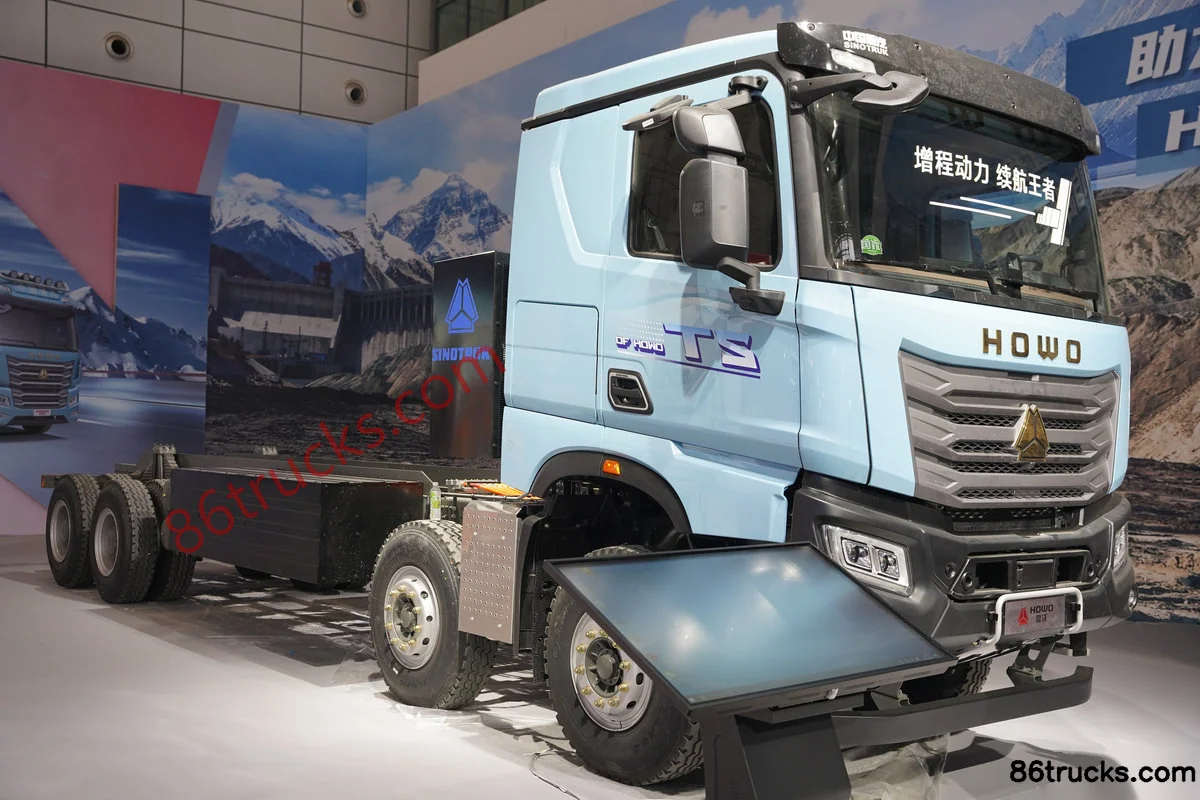

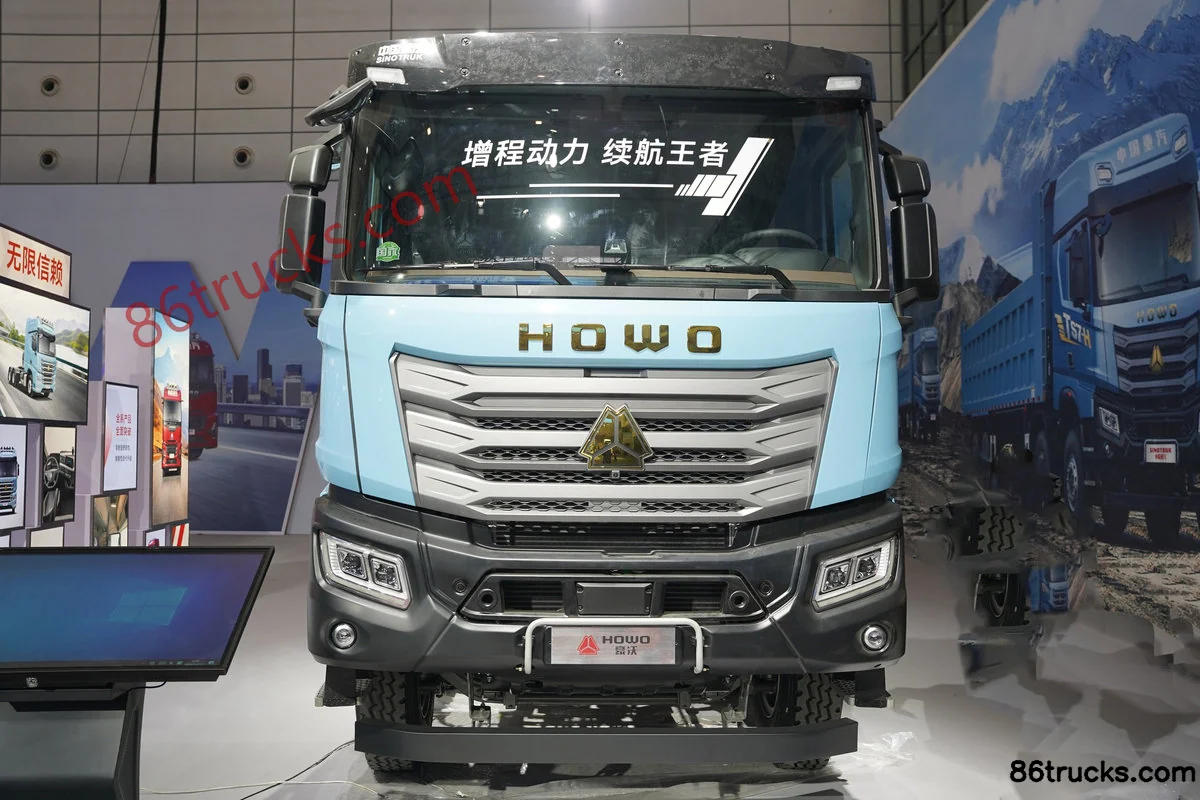

Exterior3

Cab3

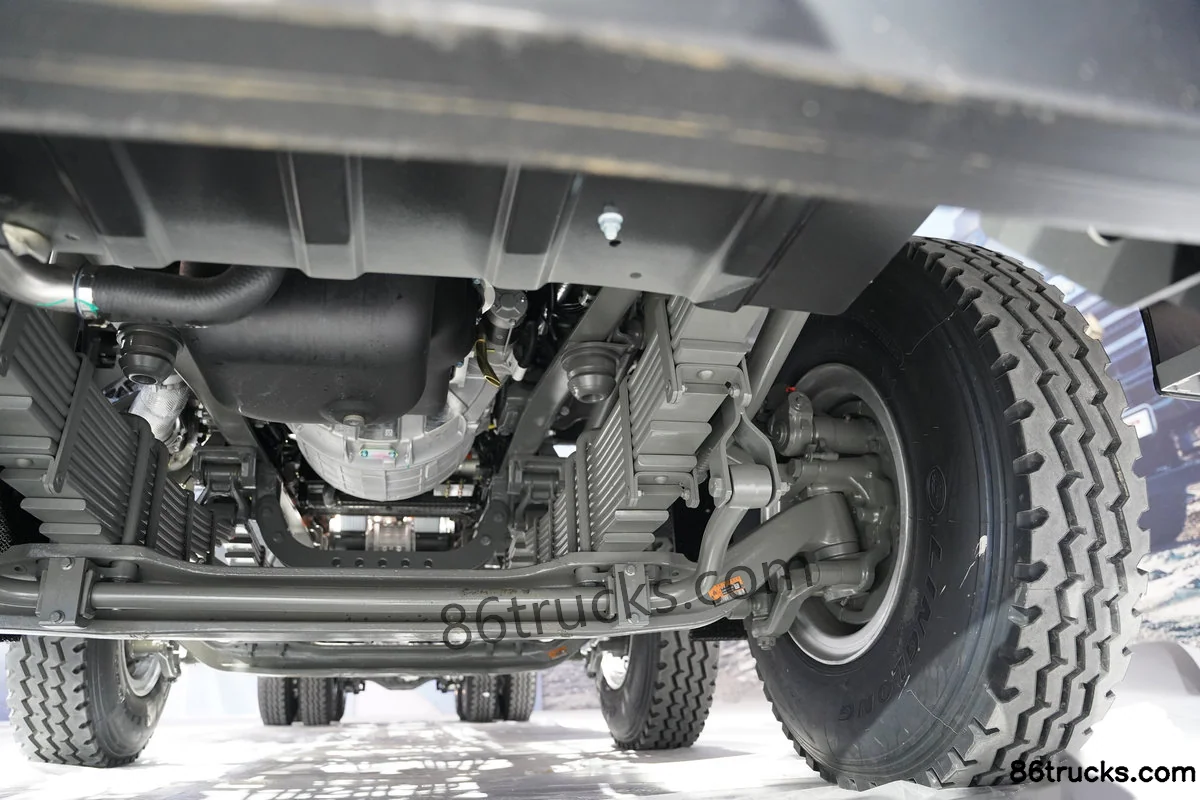

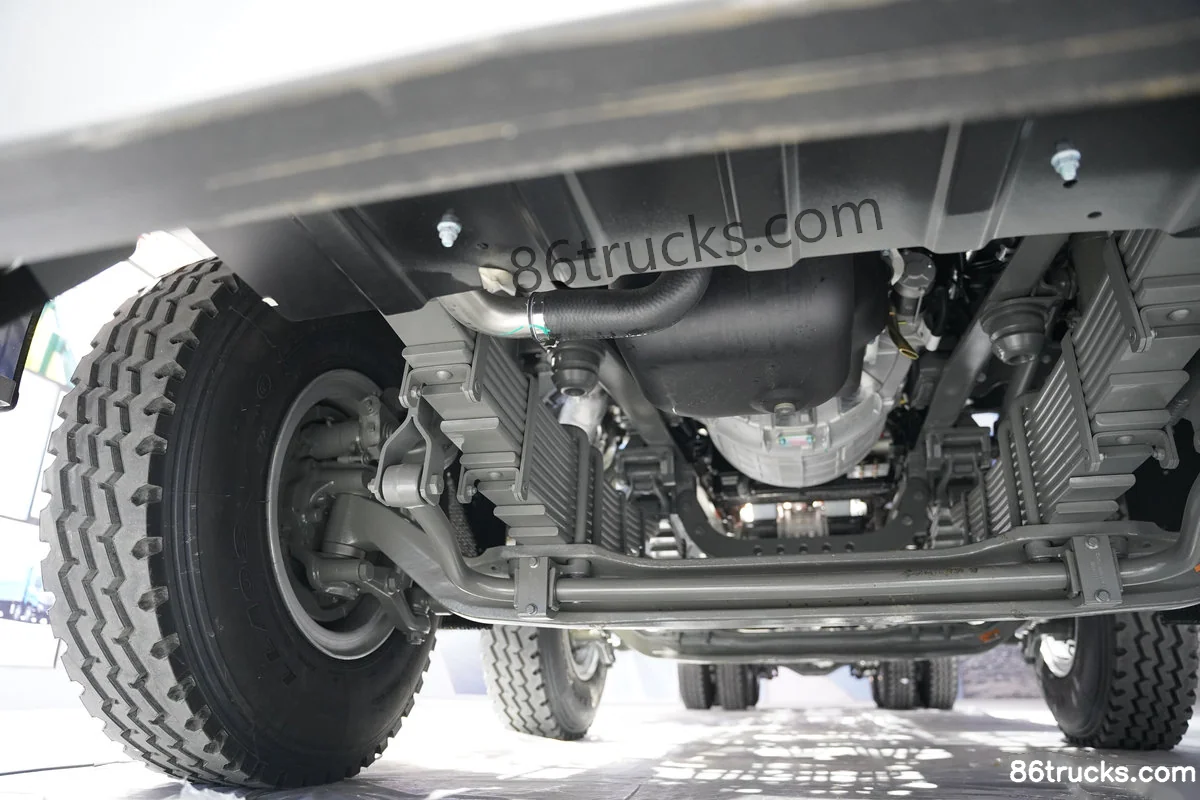

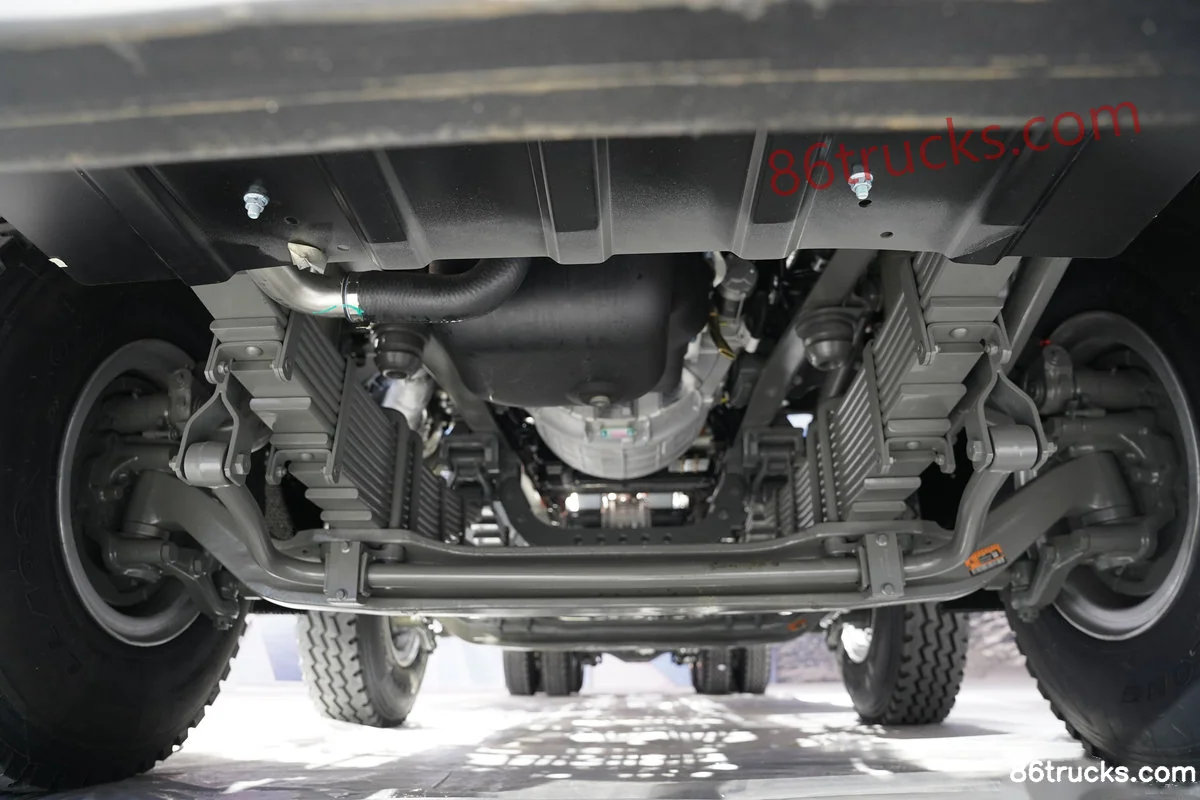

Chassis3

9 photos

FAQ

What are the key specs of Sinotruk HOWO TS 8X4(12 wheels) 8m Plug-in Hybrid Dump Truck CALB 400.61kWh?

Key specs of Sinotruk HOWO TS 8X4(12 wheels) 8m Plug-in Hybrid Dump Truck CALB 400.61kWh: Drive: 8x4; Horsepower: 350 hp; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO TS 8X4(12 wheels) 8m Plug-in Hybrid Dump Truck CALB 400.61kWh suited for?

Sinotruk HOWO TS 8X4(12 wheels) 8m Plug-in Hybrid Dump Truck CALB 400.61kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk HOWO TS 8X4(12 wheels) 8m Plug-in Hybrid Dump Truck CALB 400.61kWh differ from other variants in the same series?

Sinotruk HOWO TS 8X4(12 wheels) 8m Plug-in Hybrid Dump Truck CALB 400.61kWh belongs to Sinotruk HOWO TS Heavy Truck (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO TS 8X4(12 wheels) 8m Plug-in Hybrid Dump Truck CALB 400.61kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO TS 8X4(12 wheels) 8m Plug-in Hybrid Dump Truck CALB 400.61kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
