Qingling Isuzu KV600 130 hp 4X2(6 wheels) 4.17m single-row van light truck (oil brake)

Export reference
MSRP N/A
Horsepower: 130
Emission: China V
Fuel: Diesel
Engine: Isuzu4KH1
Transmission: Isuzu
Curb Weight:: 2.805ton
seating capacity: 3Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Qingling Isuzu KV600 130 hp 4X2(6 wheels) 4.17m single-row van light truck (oil brake) is a Light Truck featuring 4.17m cargo length, Van body cargo body, 3Personnel volume and 1.495t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a Isuzu4KH1 engine, 130 hp, 4X2 (6 wheels) drive and China V emissions.

China V 130 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): QL5044XXYALHAJ
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: Qingling Isuzu4KH1CN5HD
transmission: IsuzuMSB-5SM
Rear Axle Ratio: 5.375
Cab length: 5.995m
Cab width: 2.35m
Cab height: 3.1m
Front track width: 1685mm
rear track: 1525mm
Curb Weight: 2.805ton
Rated payload: 1.495ton
GVWR: 4.495ton
Max. speed: 110km/h
Origin: Chongqing
tonnage class: Light Truck
Approach angle: 19°
departure angle: 20°
market segment: Urban Distribution
Front/rear suspension: 1.11/1.525m
Energy Type: Diesel
Engine parameters
Engine Brand: Qingling Isuzu
Engine Model: Qingling Isuzu4KH1CN5HD
Engine info: Isuzu4KH1
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.999L
Emission standard: China V
Max output power: 96kW
Max hp: 130Horsepower
Max torque: 290N·m
Max torque speed: 1500rpm
Transmission Parameters
Transmission Model: IsuzuMSB-5SM
Transmission Brand: Isuzu
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.17m
Cargo box width: 2.3m
Cargo box height: 2.1m
*Cargo box interior width: 2.2999999523163
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 100L
Chassis Specs
Front axle allowable load: 1750kg
rear axle allowable load: 2745kg
Axle ratio: 5.375
Leaf spring count: 3/3+2
Tire

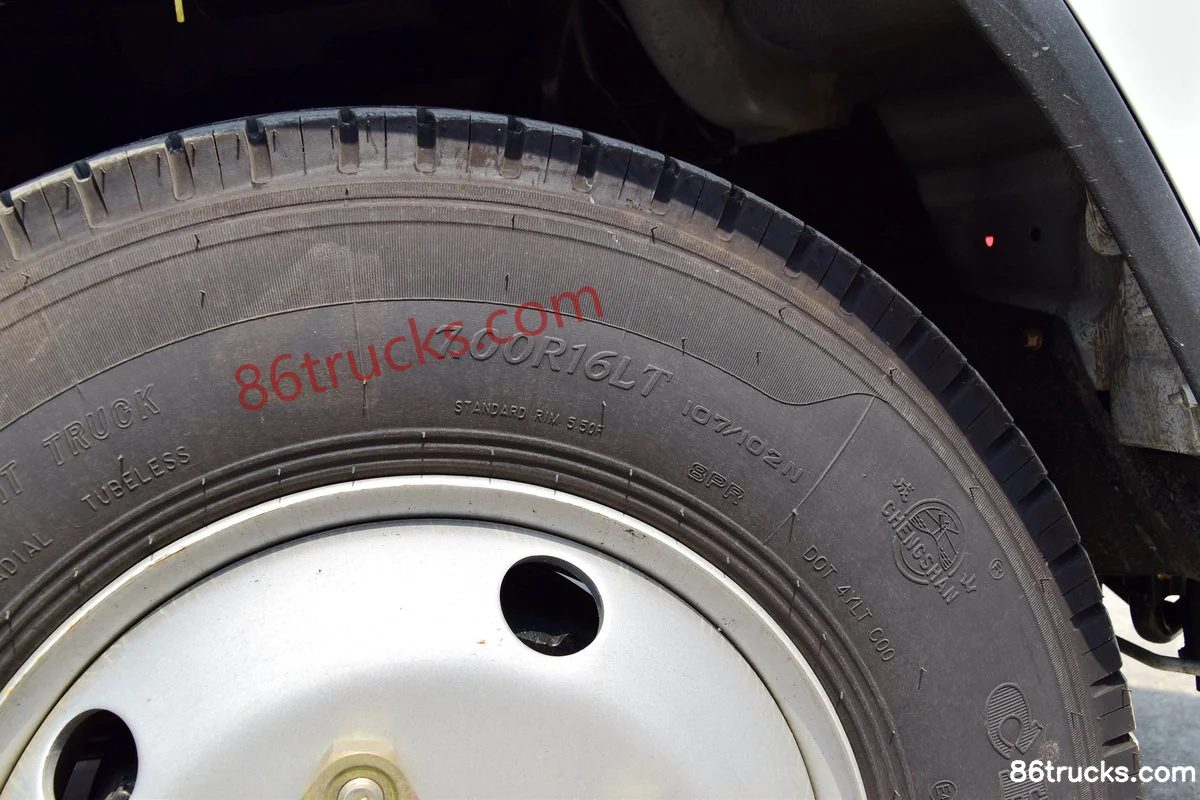

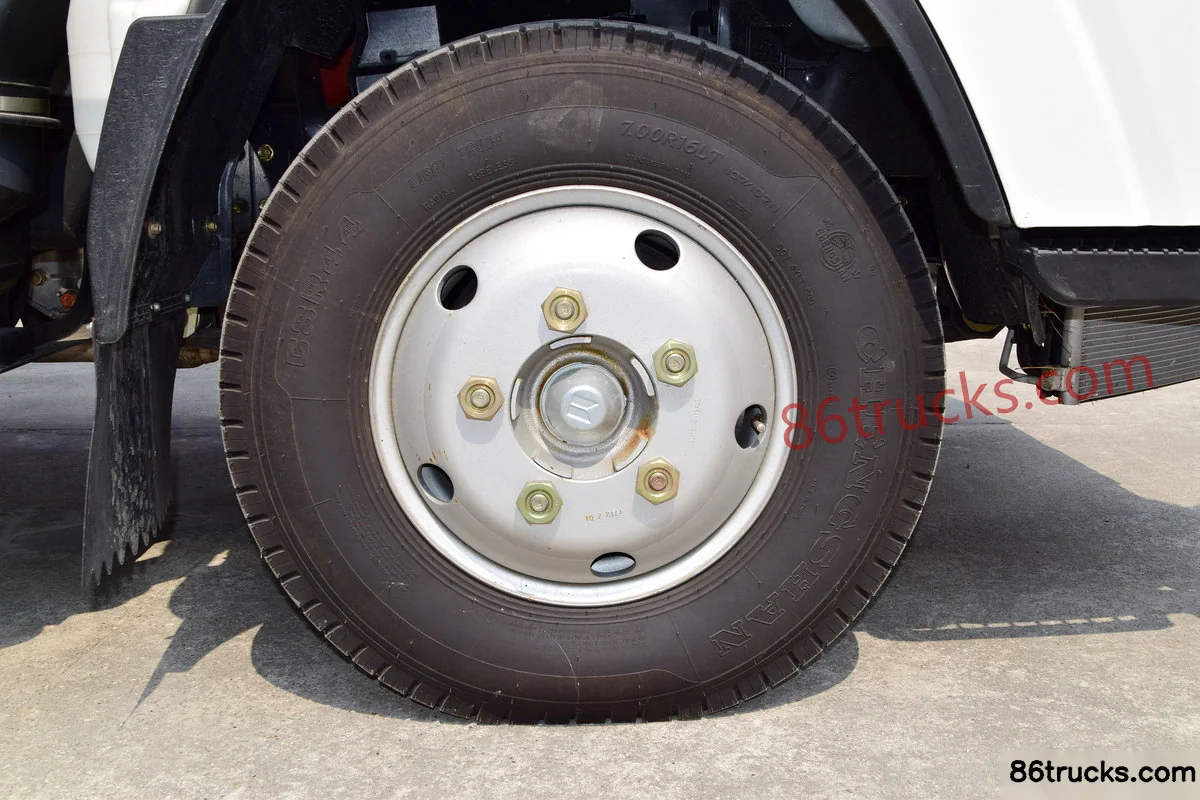

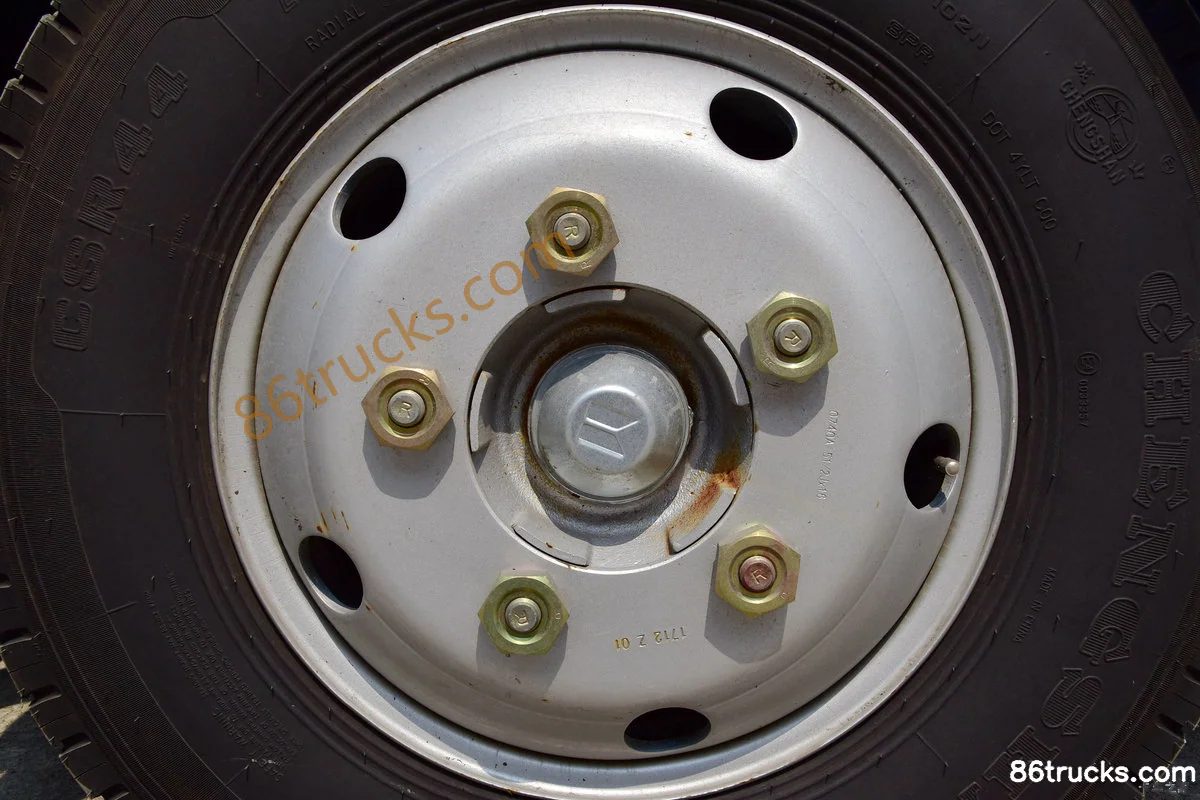

Tire Size: 7.00R16 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
interior configuration
AC control type: Manual
Exterior features
Air deflector:
Service brake
Brake Type: Hydraulic brake
Exhaust brake:

Photos

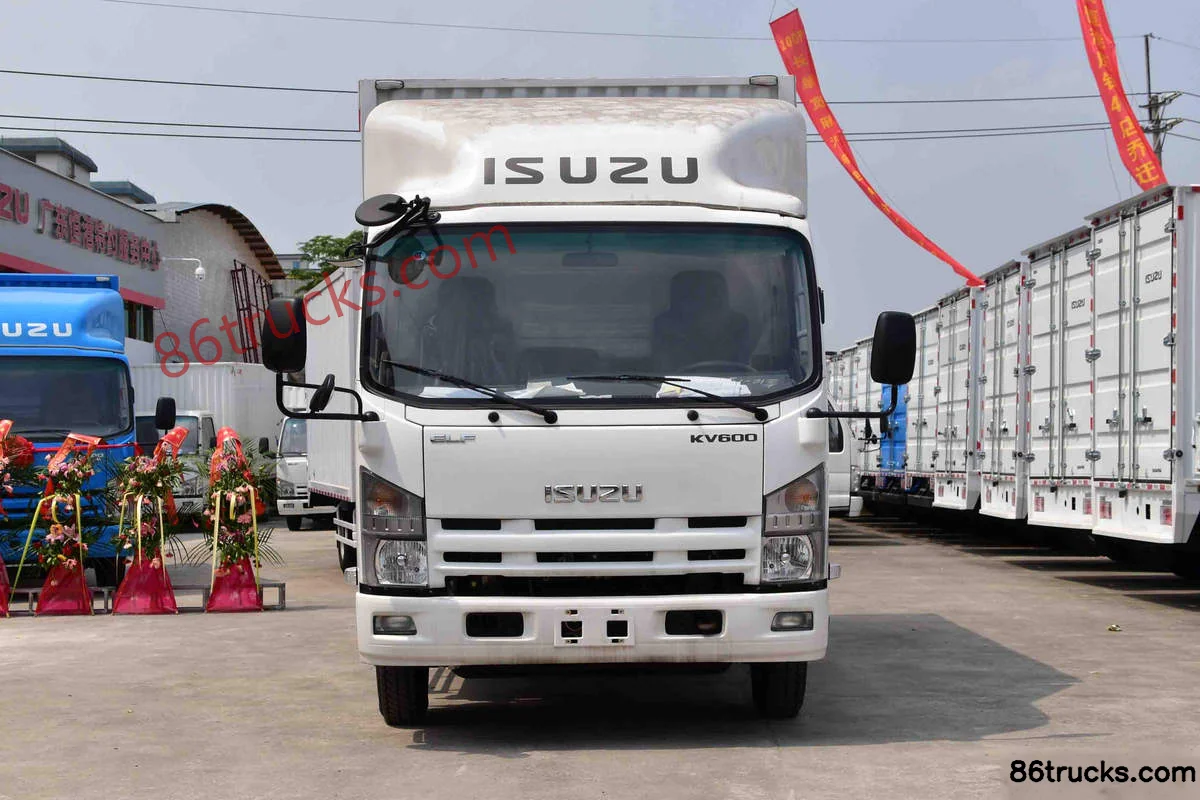

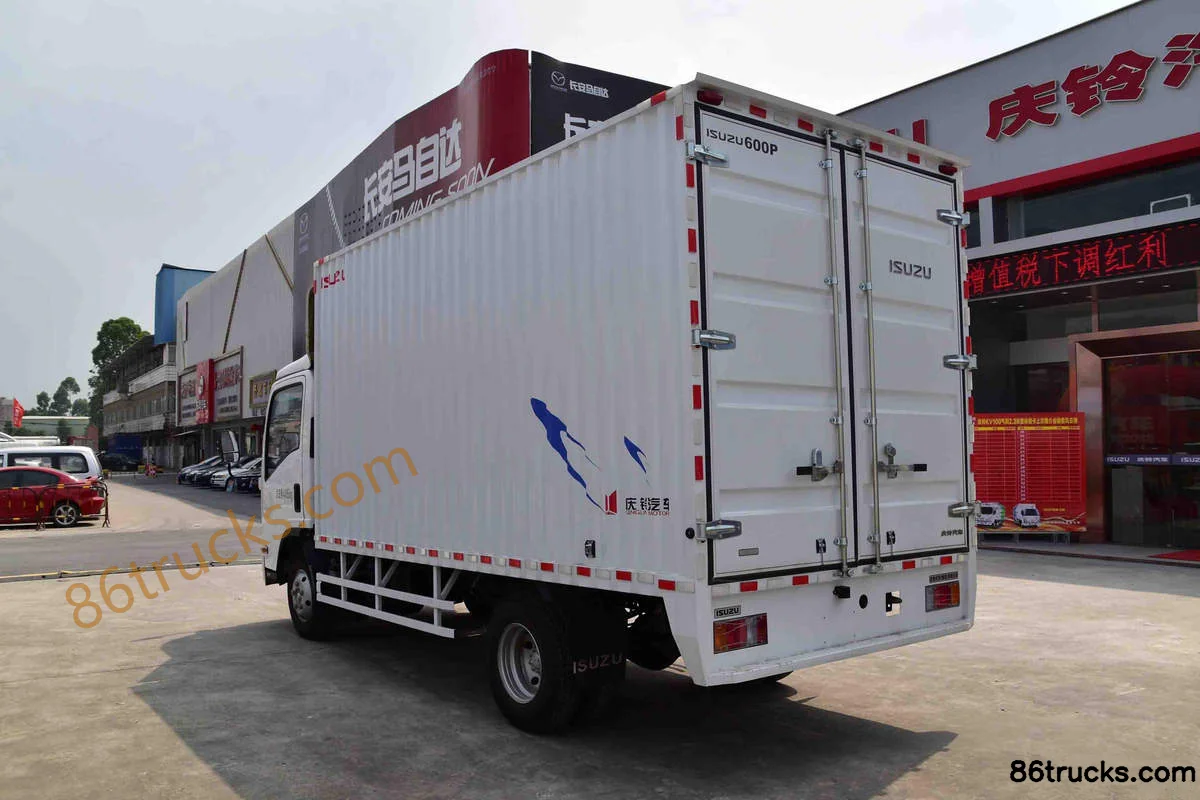

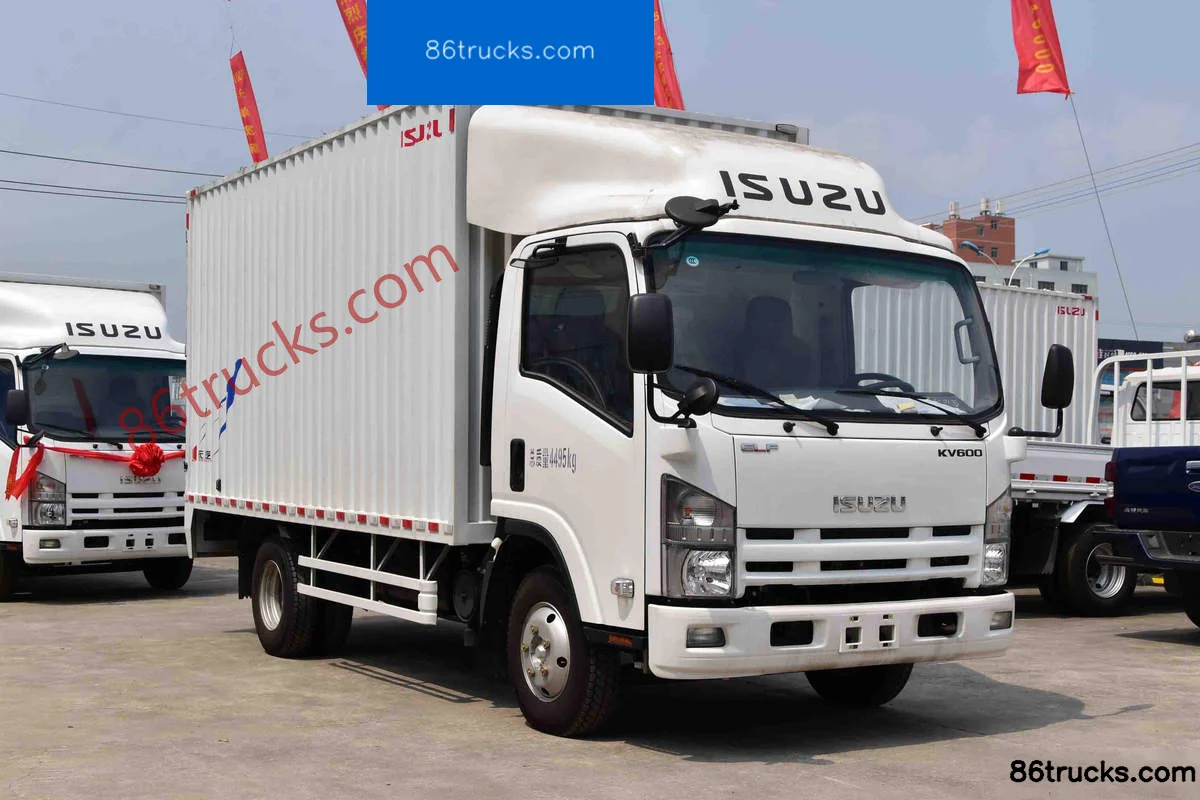

Exterior3

Chassis3

6 photos

FAQ

What emission standard does Qingling Isuzu KV600 130 hp 4X2(6 wheels) 4.17m single-row van light truck (oil brake) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Qingling Isuzu KV600 130 hp 4X2(6 wheels) 4.17m single-row van light truck (oil brake)?

Key specs of Qingling Isuzu KV600 130 hp 4X2(6 wheels) 4.17m single-row van light truck (oil brake): Drive: 4x2; Horsepower: 130 hp; Emission: China V; Fuel: Diesel; Engine: Isuzu4KH1; Transmission: Isuzu. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Qingling Isuzu KV600 130 hp 4X2(6 wheels) 4.17m single-row van light truck (oil brake) suited for?

Qingling Isuzu KV600 130 hp 4X2(6 wheels) 4.17m single-row van light truck (oil brake) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Qingling Isuzu KV600 130 hp 4X2(6 wheels) 4.17m single-row van light truck (oil brake) differ from other variants in the same series?

Qingling Isuzu KV600 130 hp 4X2(6 wheels) 4.17m single-row van light truck (oil brake) belongs to Qingling IsuzuKV600 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Qingling Isuzu KV600 130 hp 4X2(6 wheels) 4.17m single-row van light truck (oil brake)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Qingling Isuzu KV600 130 hp 4X2(6 wheels) 4.17m single-row van light truck (oil brake)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
