JAC Haowei 68 hp 4X2(6 wheels) Refrigerated Truck (Chassis)

Export reference
MSRP N/A
Wheelbase:: 2600mm
Tire Size:: 6.00-13 8PR;175R14 6PR
Cab dimensions:: 4.291×1.56×1.935m
Truck Type:: Refrigerated Truck
Front track width:: 1260mm
rear track:: 1180mm
Drive 4X2 (6 wheels)
Horsepower 68
Emission China IV
Fuel Diesel

Overview

The JAC Haowei 68 hp 4X2(6 wheels) Refrigerated Truck (Chassis) is a Refrigerated Truck featuring 4.291×1.56×1.935m cab and 2600mm wheelbase. On the powertrain side, it comes with 68 hp, 4X2 (6 wheels) drive, China IV emissions and Diesel fuel.

China IV 68 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 4.291×1.56×1.935m
Truck Type: Refrigerated Truck
Drive type: 4X2
Wheelbase: 2600mm
Front track width: 1260mm
rear track: 1180mm
Max. speed: 100km/h
Front/rear suspension: 0.83/0.861m
Energy Type: Diesel
Engine parameters
Engine Model: Quanchai4A1-68C40
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 1.809L
Emission standard: China IV
Max output power: 50kW
Max hp: 68Horsepower
Max torque: 170N·m
Rated speed: 3200rpm
Engine Type: Inline, vertical, water-cooled, high-pressure common rail, turbocharged intercooled
Body Parameters
Body Brand: JAC
Chassis Specs
Chassis Brand: JAC
Chassis Series: Haowei
Chassis Model: HFC1030PW4K3B3Z
Front axle description: Front axle 1T
rear axle description: Rear Axle 1.5T
Leaf spring count: 3/5
Transmission Parameters
Number of gears: 5Gear
Transmission Model: MSC-5S
Tire
Tire Size: 6.00-13 8PR;175R14 6PR
Number of tires: 4pcs

Photos

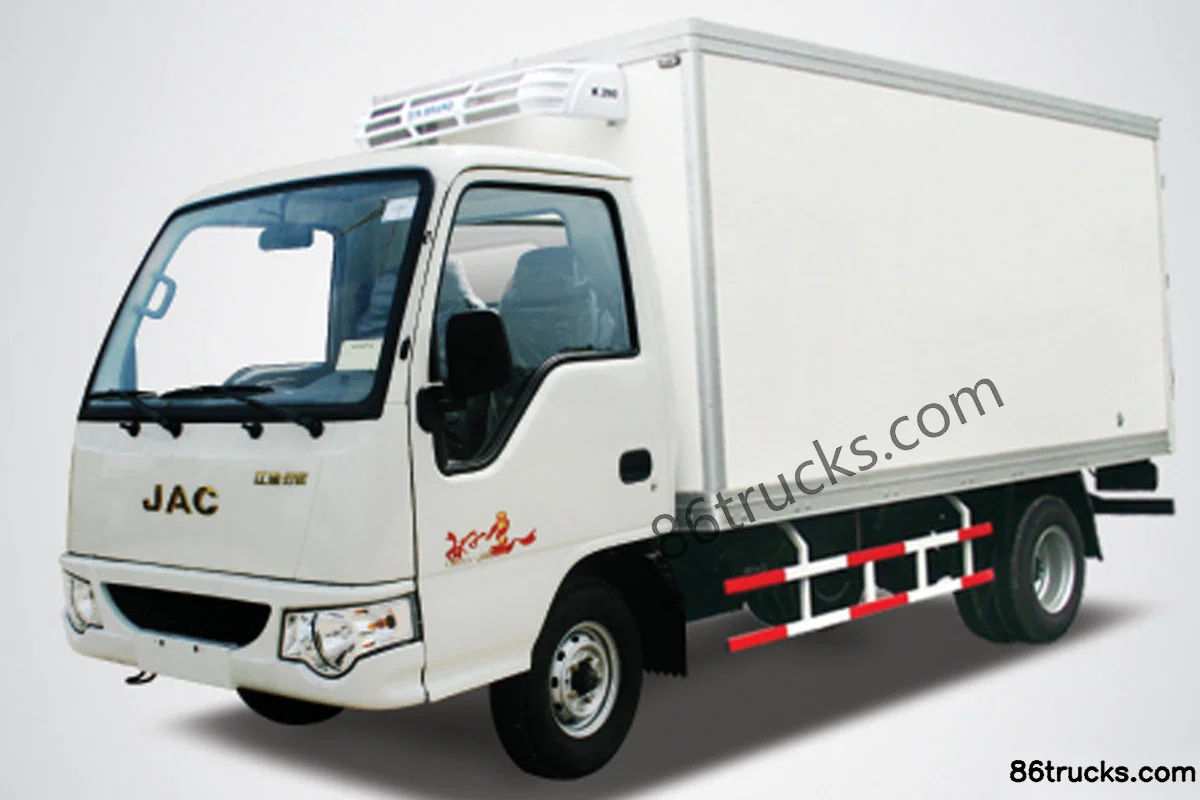

Exterior1

1 photos

FAQ

What emission standard does JAC Haowei 68 hp 4X2(6 wheels) Refrigerated Truck (Chassis) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Haowei 68 hp 4X2(6 wheels) Refrigerated Truck (Chassis)?

Key specs of JAC Haowei 68 hp 4X2(6 wheels) Refrigerated Truck (Chassis): Drive: 4x2; Horsepower: 68 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Haowei 68 hp 4X2(6 wheels) Refrigerated Truck (Chassis) suited for?

JAC Haowei 68 hp 4X2(6 wheels) Refrigerated Truck (Chassis) is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Haowei 68 hp 4X2(6 wheels) Refrigerated Truck (Chassis) differ from other variants in the same series?

JAC Haowei 68 hp 4X2(6 wheels) Refrigerated Truck (Chassis) belongs to JAC Haowei Micro Truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Haowei 68 hp 4X2(6 wheels) Refrigerated Truck (Chassis)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Haowei 68 hp 4X2(6 wheels) Refrigerated Truck (Chassis)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
