JAC Haowei 68 hp 4X2(6 wheels) Refrigerated Truck (Chassis)
EXW
Export quote
JAC Haowei Micro Truck Refrigerated Truck
Main model photos
84 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Haowei 68 hp 4X2(6 wheels) Refrigerated Truck (Chassis) | 4x2 / 68hp / China IV | ||
| JAC Haowei 82 hp 4X2(6 wheels) Refrigerated Truck (Chassis) | 4x2 / 82hp / China IV |

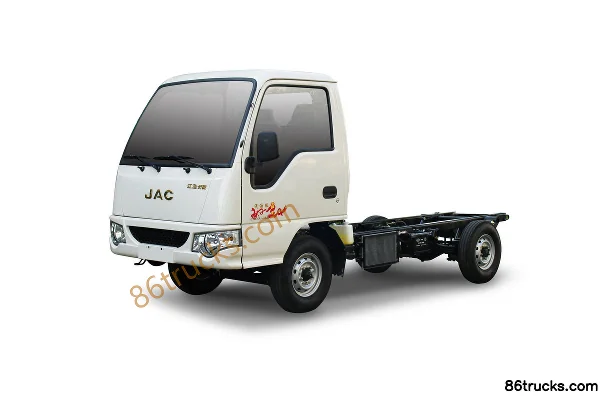

JAC Haowei 82 hp 4X2(6 wheels) Refrigerated Truck (Chassis)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 4.291×1.56×1.935 / 4.297×1.56×1.935m
Truck Type: Refrigerated Truck
Drive type: 4X2
Wheelbase: 2600 / 2400mm
Front track width: 1260mm
rear track: 1180 / 1360mm
Max. speed: 100km/h
Front/rear suspension: 0.83/0.861 / 0.83/1.228m
Energy Type: Diesel / gasoline
Engine parameters
Engine Model: Quanchai4A1-68C40 / Wuling LiujiLJ474Q3E2
Number of cylinders: 4cylinder
Displacement: 1.809 / 1.298L
Emission standard: China IV
Max output power: 50 / 60.5kW
Max hp: 68 / 82Horsepower
Max torque: 170 / 102N·m
Rated speed: 3200 / 6000rpm
Engine Type: Inline, vertical, water-cooled, high-pressure common rail, turbocharged intercooled / Gasoline Engine
Body Parameters
Body Brand: JAC
Chassis Specs
Chassis Brand: JAC
Chassis Series: Haowei
Chassis Model: HFC1030PW4K3B3Z / HFC1030PW4E1B1D
Front axle description: Front axle 1T
rear axle description: Rear Axle 1.5T
Leaf spring count: 3/5
Transmission Parameters
Number of gears: 5Gear
Transmission Model: MSC-5S / MR510D
Tire
Tire Size: 6.00-13 8PR；175R14 6PR
Number of tires: 4pcs
FAQ
What kind of truck is JAC JAC Haowei Micro Truck Refrigerated Truck?
JAC JAC Haowei Micro Truck is an export-oriented Refrigerated Truck lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does JAC Haowei Micro Truck Refrigerated Truck cover?
JAC Haowei Micro Truck Refrigerated Truck mainly covers: Drive: 4x2; Horsepower: 68 hp / 82 hp; Emission: China IV; Fuel: Diesel / gasoline. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JAC Haowei Micro Truck Refrigerated Truck?
For JAC Haowei Micro Truck Refrigerated Truck: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Refrigerated Truck typically used for?
Refrigerated Truck covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does JAC Haowei Micro Truck Refrigerated Truck include?
JAC Haowei Micro Truck Refrigerated Truck currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JAC Haowei Micro Truck Refrigerated Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
