FAW Jiefang Hu V 120hp 4X2(6 wheels) High-flow Drainage Rescue Truck

Export reference
MSRP N/A
Fuel: Diesel
Wheelbase:: 3900mm
Cab dimensions:: 7.038×2.265×3.005m
Type:: High-flow drainage emergency truck
Front/rear track width:: Front track: 1665mm; Rear track: 1590mm
GVWR:: 7.35ton
Drive 4X2 (6 wheels)
Horsepower 120
Rated mass: 7.155ton
Emission China V

Overview

The FAW Jiefang Hu V 120hp 4X2(6 wheels) High-flow Drainage Rescue Truck is a fire truck featuring 7.35t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with a DachaiCA4DC3-12E5 engine, 120 hp, China V emissions and Diesel fuel.

China V 120 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 7.038×2.265×3.005m
Type: High-flow drainage emergency truck
Drive type: 4X2
Front/rear track width: Front track: 1665mm; Rear track: 1590mm
Wheelbase: 3900mm
Rated mass: 7.155ton
GVWR: 7.35ton
Front/rear suspension: 1.15/1.988m
Energy Type: Diesel
Engine parameters
Engine Model: DachaiCA4DC3-12E5
fuel type: Diesel
Displacement: 3L
Emission standard: China V
Max output power: 91kW
Max hp: 120Horsepower
Rated speed: 3200rpm
Body Parameters
Vehicle certification code: PDZ5070TPSAE5
Body Brand: Sutong Brand
Chassis Specs
Chassis Brand: FAW Jiefang
Chassis Series: FAW Jiefang Hu V
Chassis Model: CA1081P40K2L2BE5A84
Leaf spring count: 7/10+3,3/3+4
Transmission Parameters
Number of gears: 6Gear
Transmission Model: 6-speed
Tire
Tire Size: 7.50R16,8.25R16
Number of tires: 6pcs

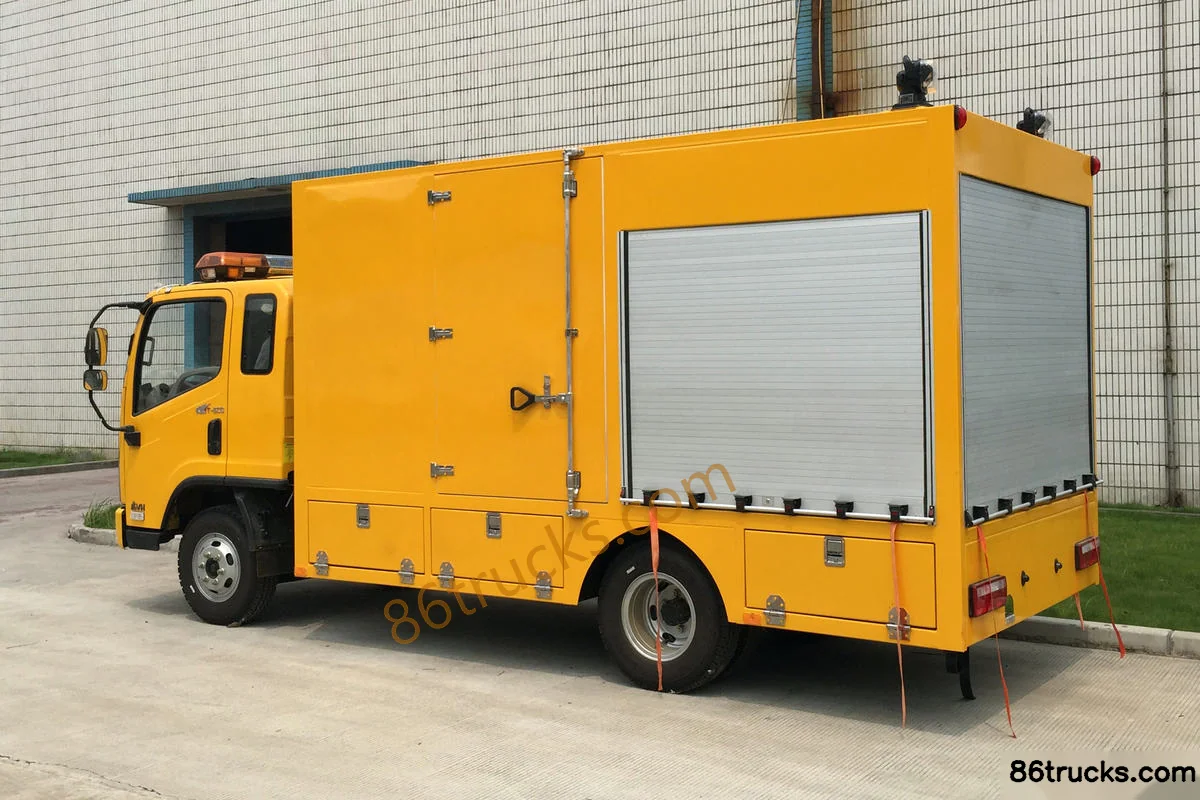

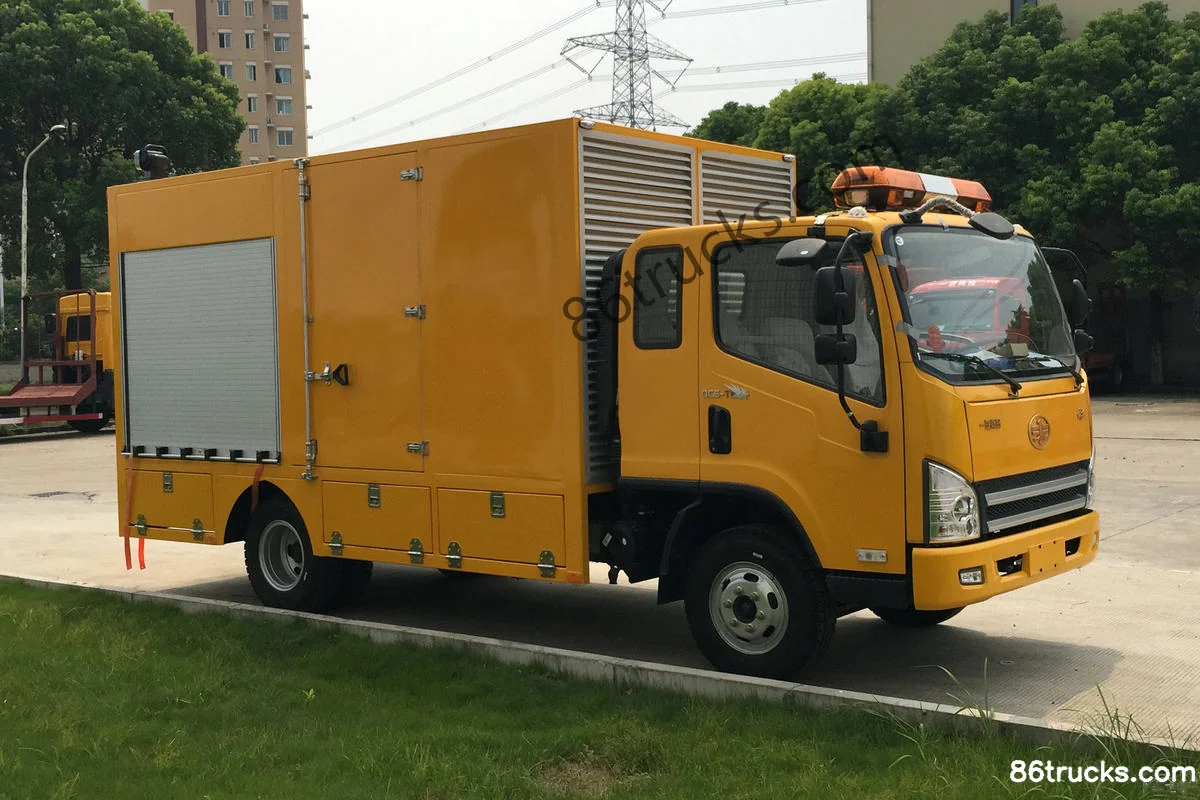

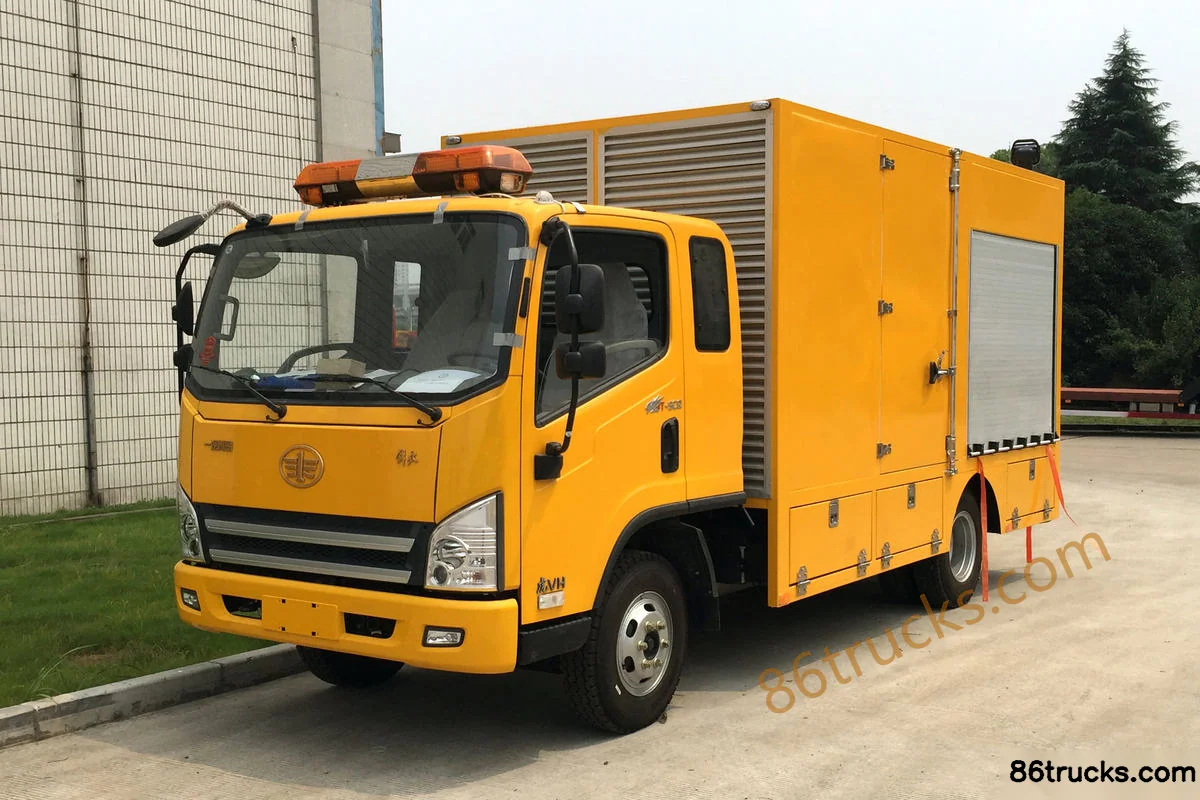

Photos

Exterior3

3 photos

FAQ

What emission standard does FAW Jiefang Hu V 120hp 4X2(6 wheels) High-flow Drainage Rescue Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Hu V 120hp 4X2(6 wheels) High-flow Drainage Rescue Truck?

Key specs of FAW Jiefang Hu V 120hp 4X2(6 wheels) High-flow Drainage Rescue Truck: Drive: 4x2; Horsepower: 120 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Hu V 120hp 4X2(6 wheels) High-flow Drainage Rescue Truck suited for?

FAW Jiefang Hu V 120hp 4X2(6 wheels) High-flow Drainage Rescue Truck is a fire truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does FAW Jiefang Hu V 120hp 4X2(6 wheels) High-flow Drainage Rescue Truck differ from other variants in the same series?

FAW Jiefang Hu V 120hp 4X2(6 wheels) High-flow Drainage Rescue Truck belongs to FAW Jiefang Hu V Light-duty Truck (fire truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Hu V 120hp 4X2(6 wheels) High-flow Drainage Rescue Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Hu V 120hp 4X2(6 wheels) High-flow Drainage Rescue Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
