SANY 26 TAI 7 Composite 420 8X4(12 wheels) 5.8m Pure Electric Dump Truck CATL 600kWh

Export reference

MSRP N/A

Rated payload:: 12.17ton

Wheelbase:: 2000+3000+1400mm

Cargo box type:: Rear dump type

Model code (announced):: SYM3312ZM6BEV5

Cab length:: 9.77m

GVWR:: 31ton

SANY 26 TAI 7 Composite 420 8X4(12 wheels) 5.8m Pure Electric Dump Truck CATL 600kWh exterior

View more photos (12)

Drive 8X4 (12 wheels)

Battery Brand: CATL

Motor 1 Brand: SANY

Curb Weight: 18.7ton

Overview

The SANY 26 TAI 7 Composite 420 8X4(12 wheels) 5.8m Pure Electric Dump Truck CATL 600kWh is a Heavy truck featuring CATL battery/range, SANY motor, 8X4 (12 wheels) drive and 12.17t payload.

8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info

Model code (announced): SYM3312ZM6BEV5

Drive type: 8X4

Wheelbase: 2000+3000+1400mm

Cab length: 9.77m

Cab width: 2.54m

Cab height: 3.55m

Curb Weight: 18.7ton

Rated payload: 12.17ton

GVWR: 31ton

Max. speed: 85km/h

Origin: Changsha, Hunan

tonnage class: Heavy truck

Energy Type: Electric

electric motor

Motor 1 Brand: SANY

Motor 1 Model: TZ410XS-SYM2902

Motor Type: Permanent magnet synchronous motor

total rated power: 350kW

Peak power: 500kW

total rated torque: 1650N·m

total peak torque: 2900N·m

Motor 1 Peak Power: 500kW

Battery/Charging

Battery Brand: CATL

Battery type: Lithium Iron Phosphate Battery

Battery capacity: 600kWh

Cargo box parameters

Cargo box type: Rear dump type

Cargo box length: 5.8m

Cargo box width: 2.45m

Cargo box height: 1.5m

Cab parameters

Cab: Flat roof

seating capacity: 2Personnel

Seat rows: Sleeper cab

Chassis Specs

Front axle allowable load: 6500/6500kg

rear axle allowable load: 18000 (tandem axle group)kg

Tire

Tire Size: 12.00R20 18PR

Number of tires: 12pcs

Control configuration

ABS:

interior configuration

Multifunction steering wheel:

AC control type: Automatic

Power Windows:

Power Mirrors:

Reverse Camera:

Electronic Central Lock:

Multimedia features

Center Console Color Screen:

GPS/Beidou driving recorder:

Bluetooth / hands-free calling:

Service brake

Brake Type: Air brake

Parking brake: Spring brake

Front wheel brake: Drum Type

Rear Wheel Brake: Drum Type

Photos

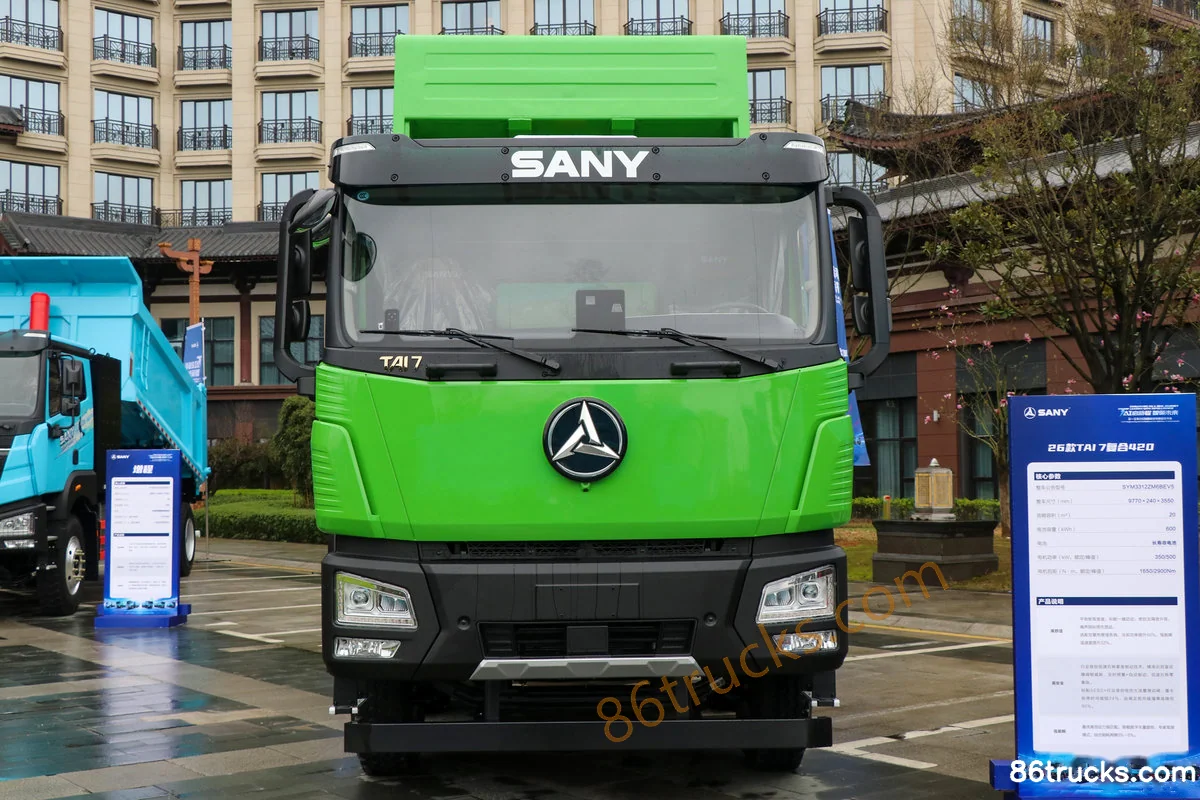

Exterior3

SANY 26 TAI 7 Composite 420 8X4(12 wheels) 5.8m Pure Electric Dump Truck CATL 600kWh Exterior (1) | 86Trucks

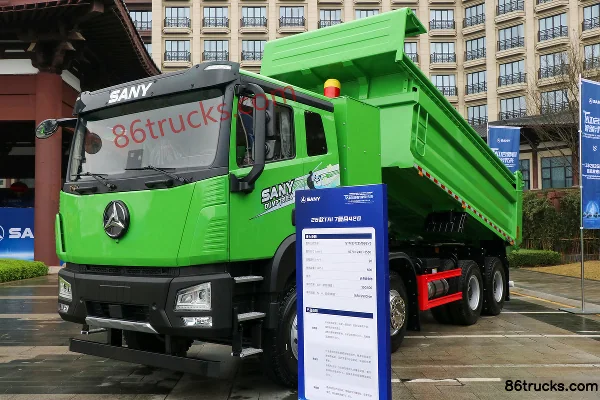

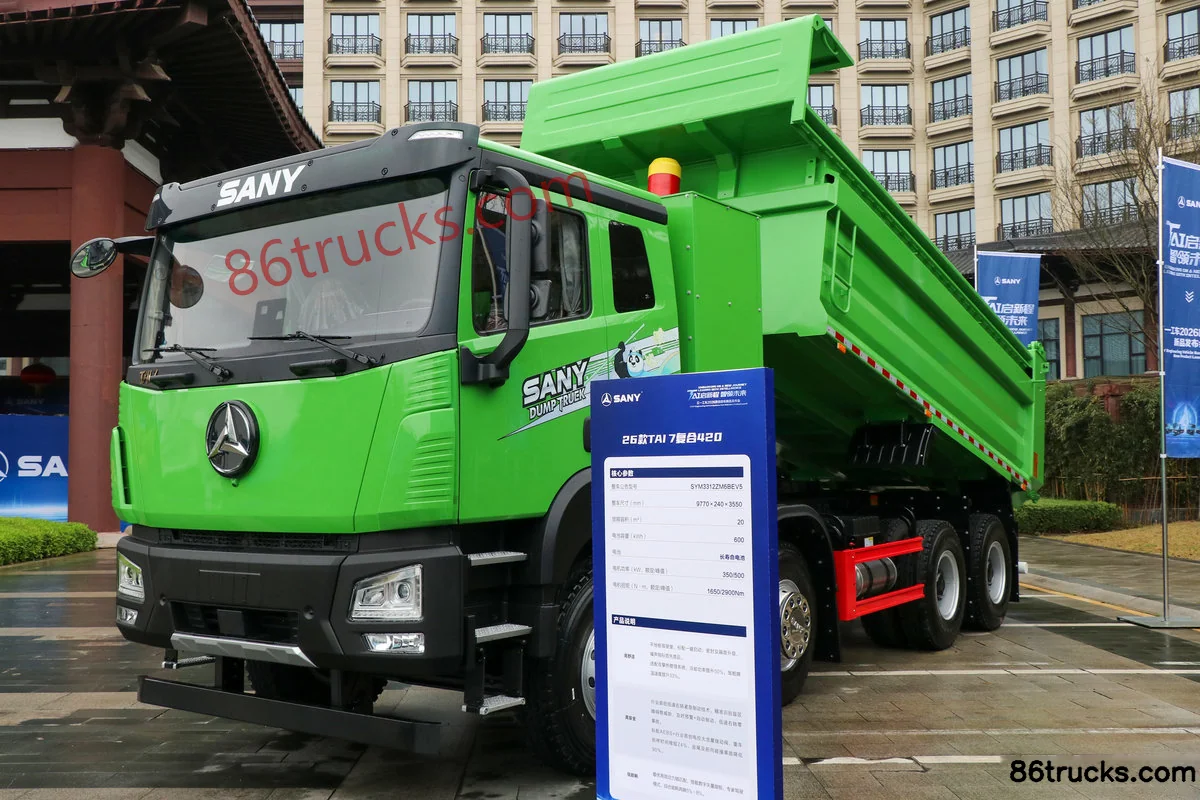

SANY 26 TAI 7 Composite 420 8X4(12 wheels) 5.8m Pure Electric Dump Truck CATL 600kWh Exterior (2) | 86Trucks

SANY 26 TAI 7 Composite 420 8X4(12 wheels) 5.8m Pure Electric Dump Truck CATL 600kWh Exterior (3) | 86Trucks

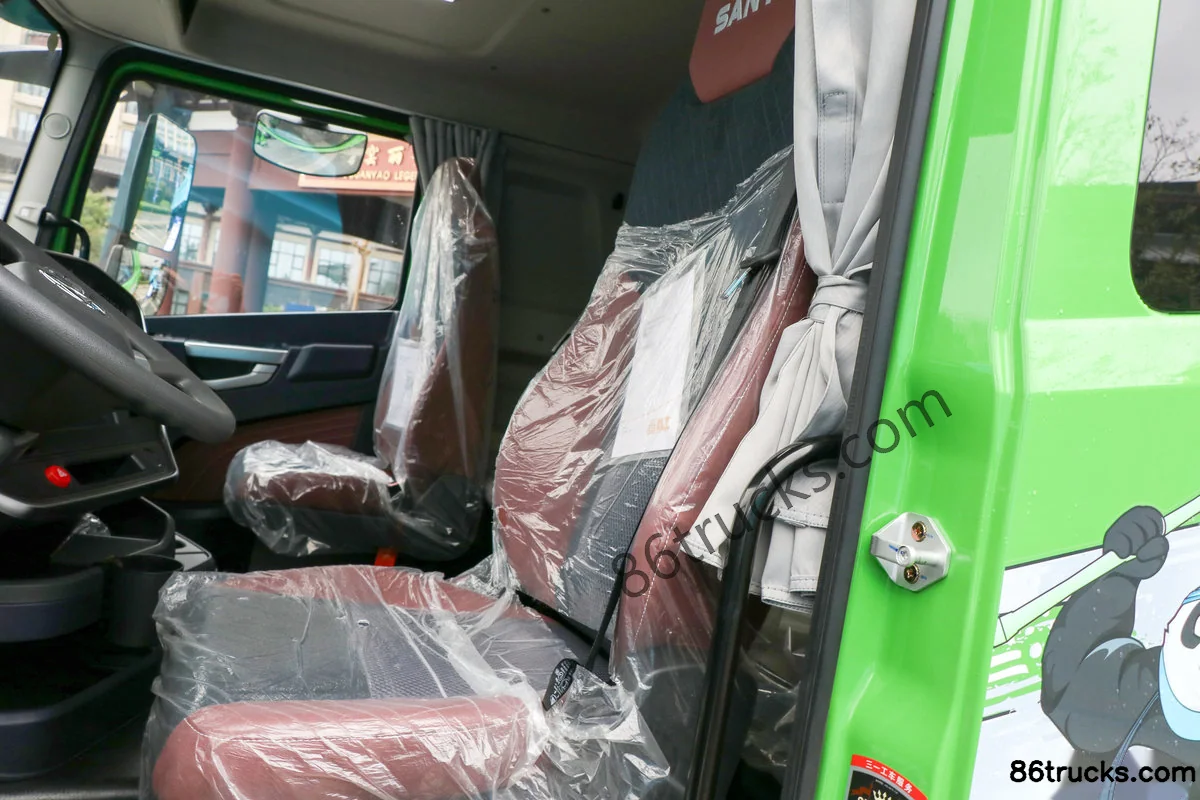

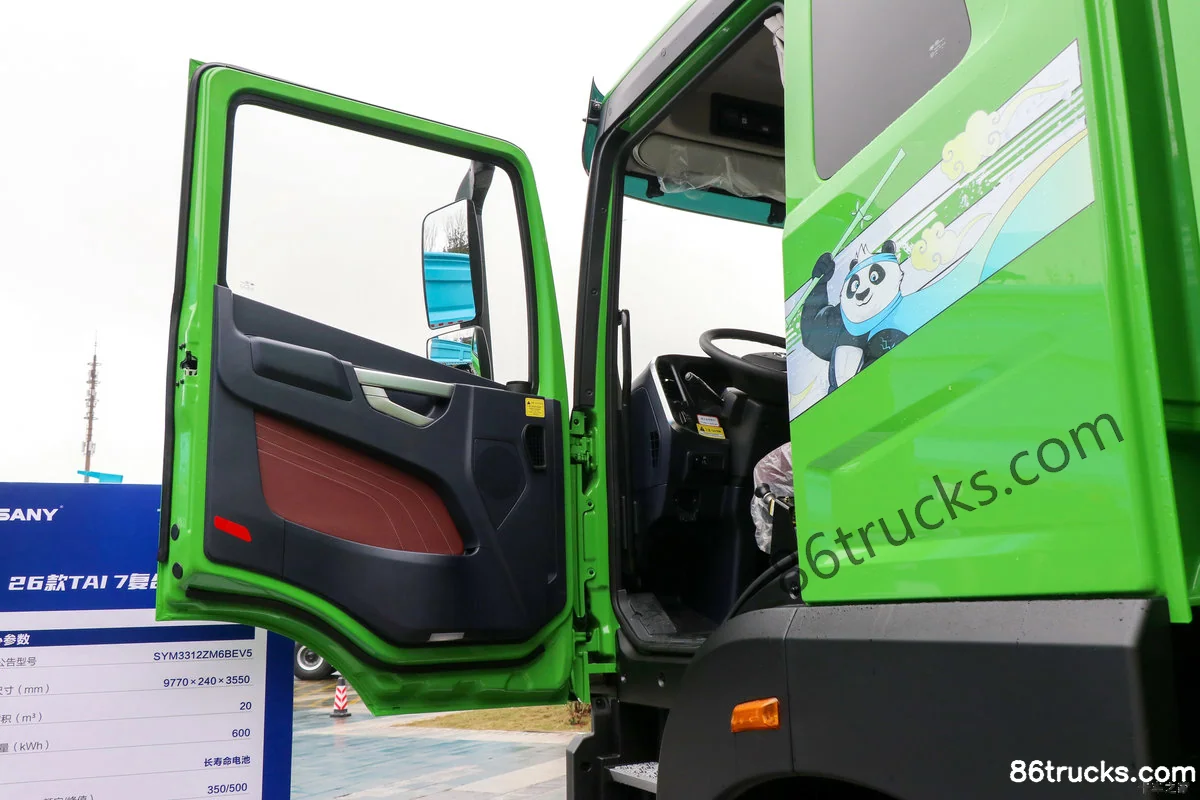

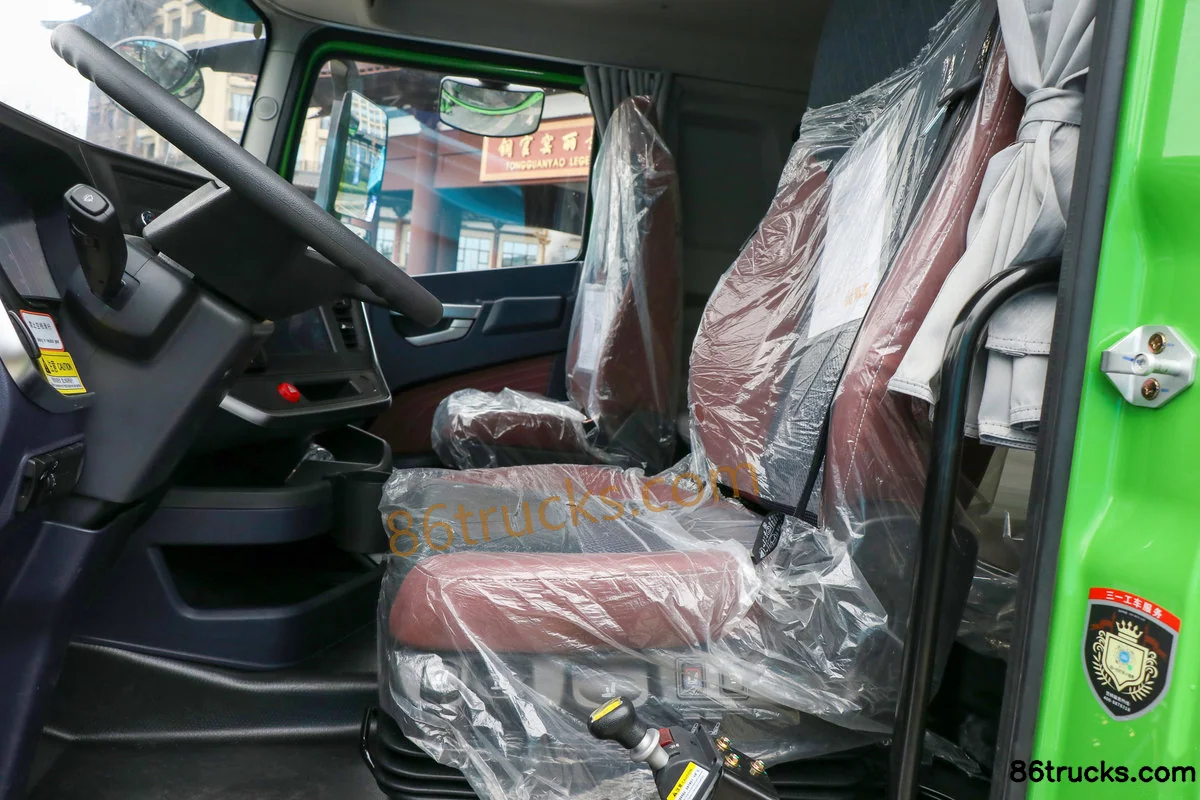

Cab3

SANY 26 TAI 7 Composite 420 8X4(12 wheels) 5.8m Pure Electric Dump Truck CATL 600kWh Cab (1) | 86Trucks

SANY 26 TAI 7 Composite 420 8X4(12 wheels) 5.8m Pure Electric Dump Truck CATL 600kWh Cab (2) | 86Trucks

SANY 26 TAI 7 Composite 420 8X4(12 wheels) 5.8m Pure Electric Dump Truck CATL 600kWh Cab (3) | 86Trucks

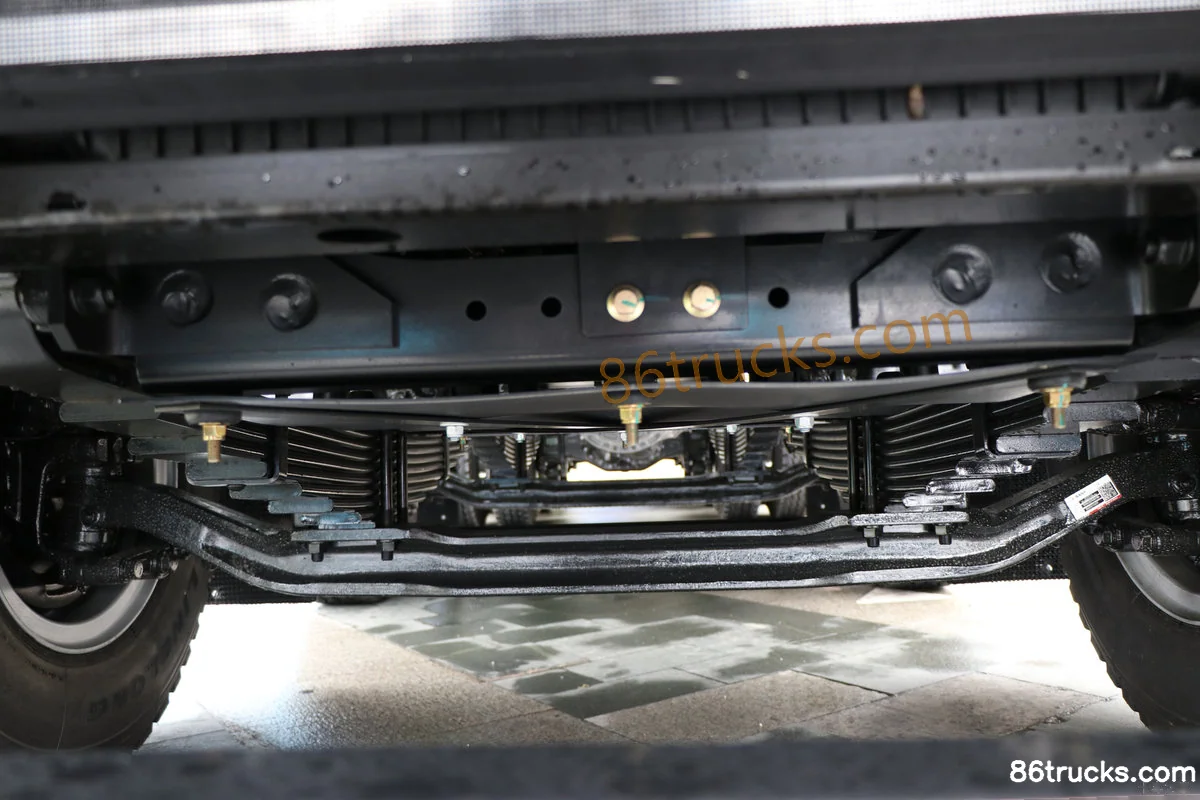

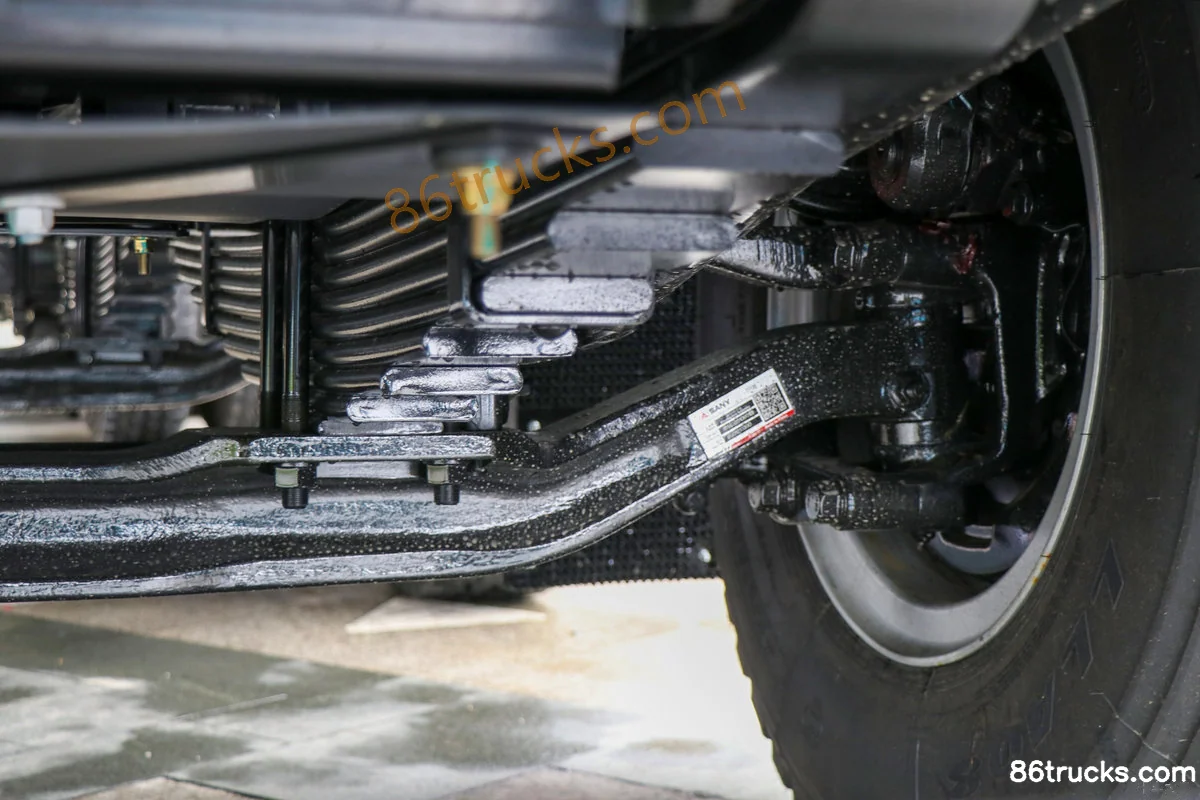

Chassis3

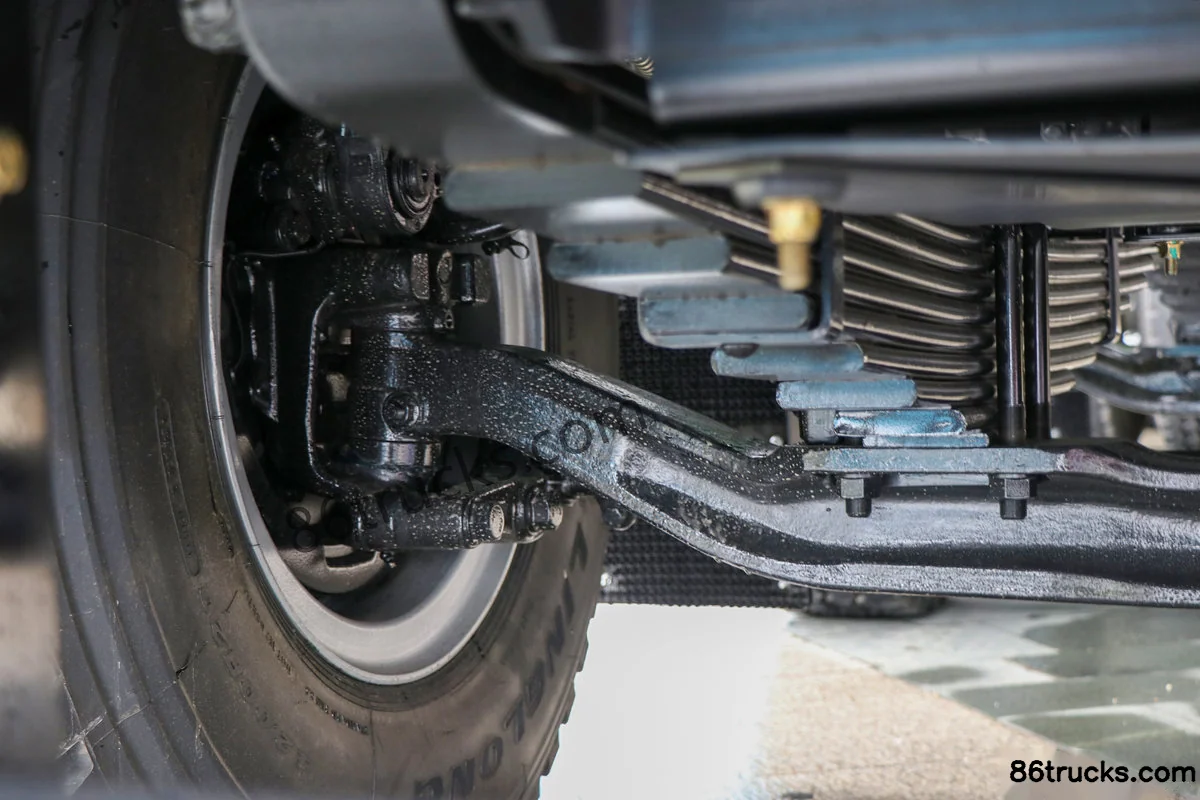

SANY 26 TAI 7 Composite 420 8X4(12 wheels) 5.8m Pure Electric Dump Truck CATL 600kWh Chassis (1) | 86Trucks

SANY 26 TAI 7 Composite 420 8X4(12 wheels) 5.8m Pure Electric Dump Truck CATL 600kWh Chassis (2) | 86Trucks

SANY 26 TAI 7 Composite 420 8X4(12 wheels) 5.8m Pure Electric Dump Truck CATL 600kWh Chassis (3) | 86Trucks

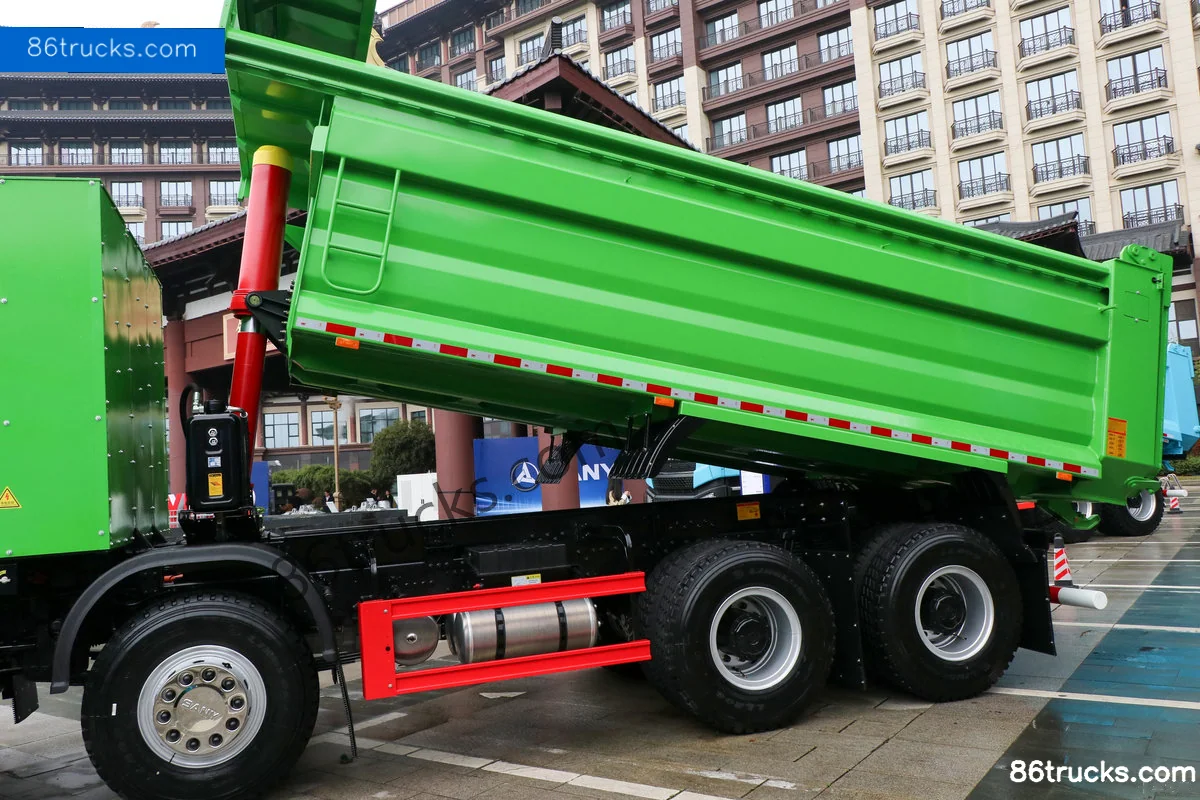

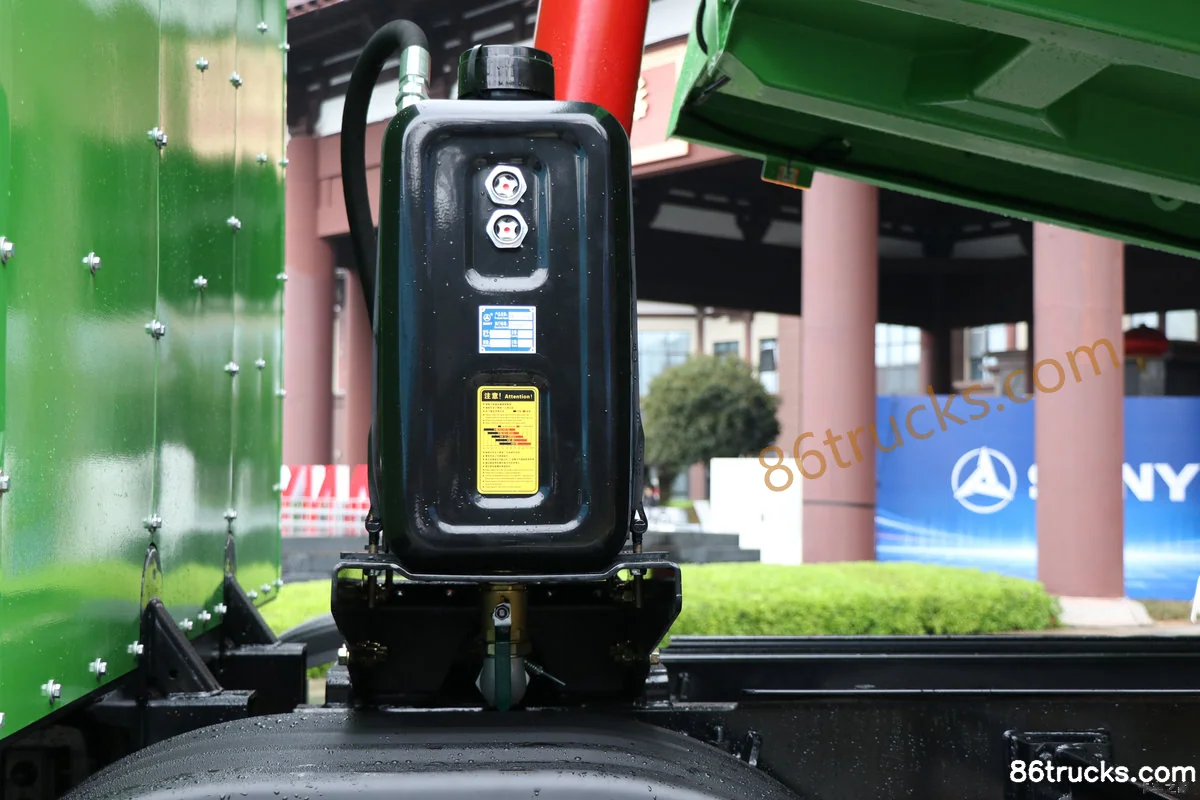

Body3

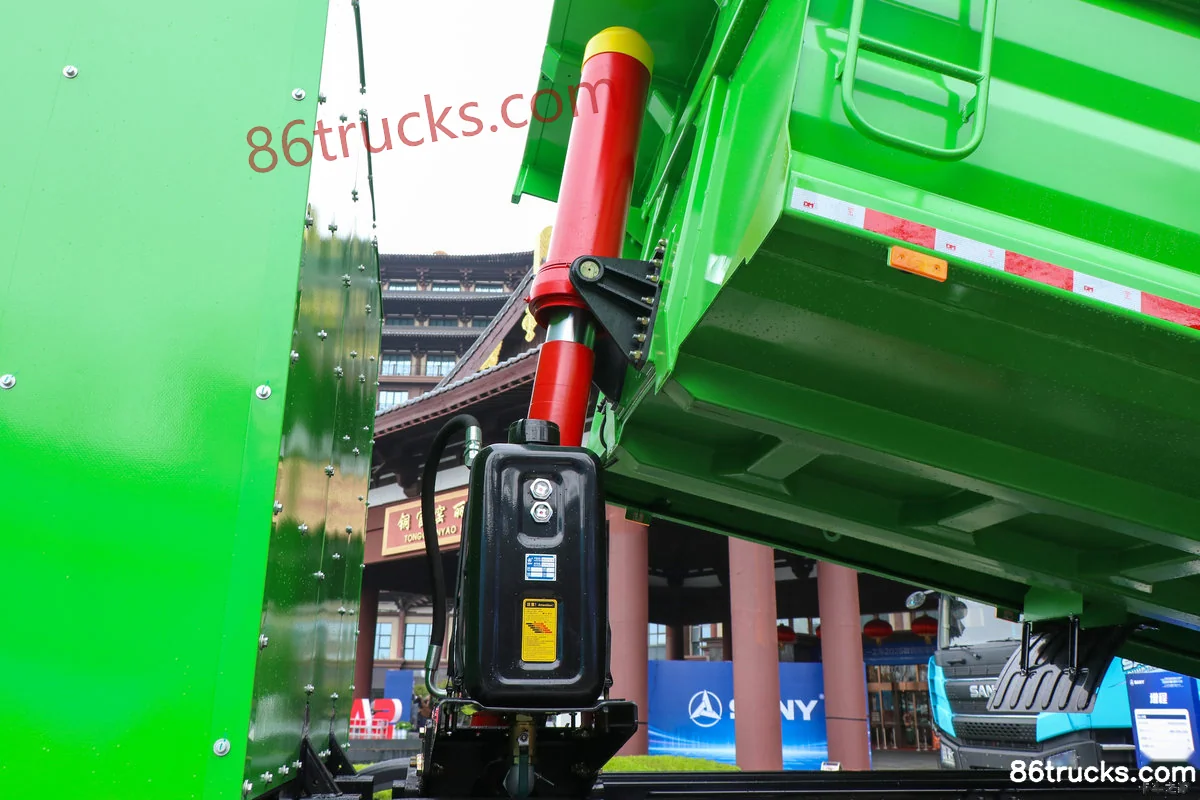

SANY 26 TAI 7 Composite 420 8X4(12 wheels) 5.8m Pure Electric Dump Truck CATL 600kWh Body (1) | 86Trucks

SANY 26 TAI 7 Composite 420 8X4(12 wheels) 5.8m Pure Electric Dump Truck CATL 600kWh Body (2) | 86Trucks

SANY 26 TAI 7 Composite 420 8X4(12 wheels) 5.8m Pure Electric Dump Truck CATL 600kWh Body (3) | 86Trucks

12 photos
