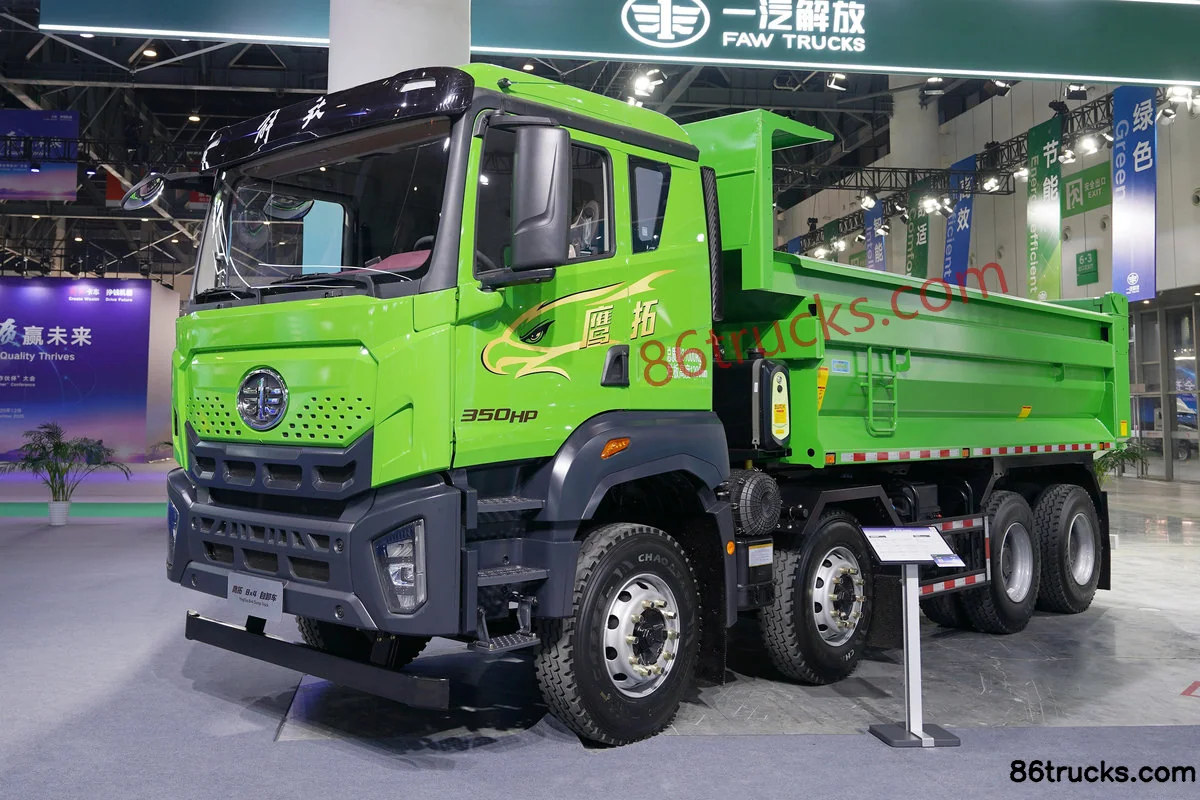

FAW Jiefang Yingtuo 7.8L Diesel 350 hp 8X4(12 wheels) FAW Jiefang 10-speed 5.6m dump truck

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Transmission: FAW Jiefang
Curb Weight:: 14ton
Wheelbase:: 1900+2500+1350mm
Tire Size:: 12R22.5 18PR
Rated payload: 16.87ton
Drive 8X4 (12 wheels)
Horsepower 350
Cargo box type: Dump type

Overview

The FAW Jiefang Qingdao FAW Jiefang Yingtuo 7.8L Diesel 350 hp 8X4(12 wheels) FAW Jiefang 10-speed 5.6m dump truck is a Heavy truck featuring 16.87t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a DachaiCA6DK2C35E65 engine, 350 hp, China VI emissions and FAW Jiefang transmission.

China VI 350 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA3311P27K15L1T4E6A80
Drive type: 8X4
Wheelbase: 1900+2500+1350mm
engine: DachaiCA6DK2C35E65
transmission: FAW JiefangCA10TAX130F
Rear Axle Ratio: 5.921
Cab length: 8.975m
Cab width: 2.55m
Cab height: 3.25m
Front track width: 2050/2050mm
rear track: 1878/1878mm
Curb Weight: 14ton
Rated payload: 16.87ton
GVWR: 31ton
Origin: Qingdao
tonnage class: Heavy truck
Approach angle: 18°
departure angle: 40°
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA6DK2C35E65
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.751L
Emission standard: China VI
Max output power: 257kW
Max hp: 350Horsepower
Transmission Parameters
Transmission Model: CA10TAX130F
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.6m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: Flat floor crew cab flat roof cab
seating capacity: 2Personnel
Chassis Specs

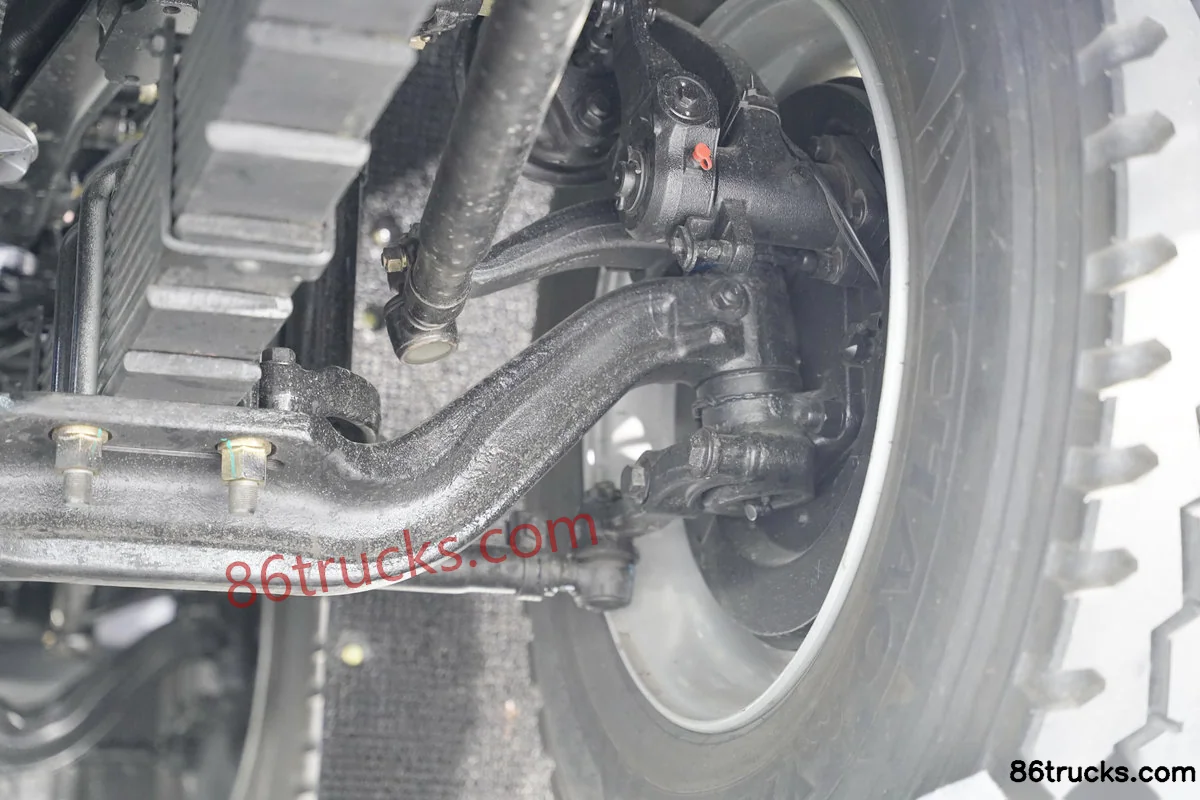

Front axle description: DH401 front axle
Front axle allowable load: 6500/6500kg
Frame Dimensions: 280*80*(8+5)mm
rear axle description: 260 wheel reduction axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.921
Leaf spring count: 10/10/10
Tire
Tire Size: 12R22.5 18PR
Number of tires: 12pcs
Control configuration
ABS:
Inter-axle Differential Lock:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Camera:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Service brake
Parking brake: Spring brake
hydraulic retarder:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

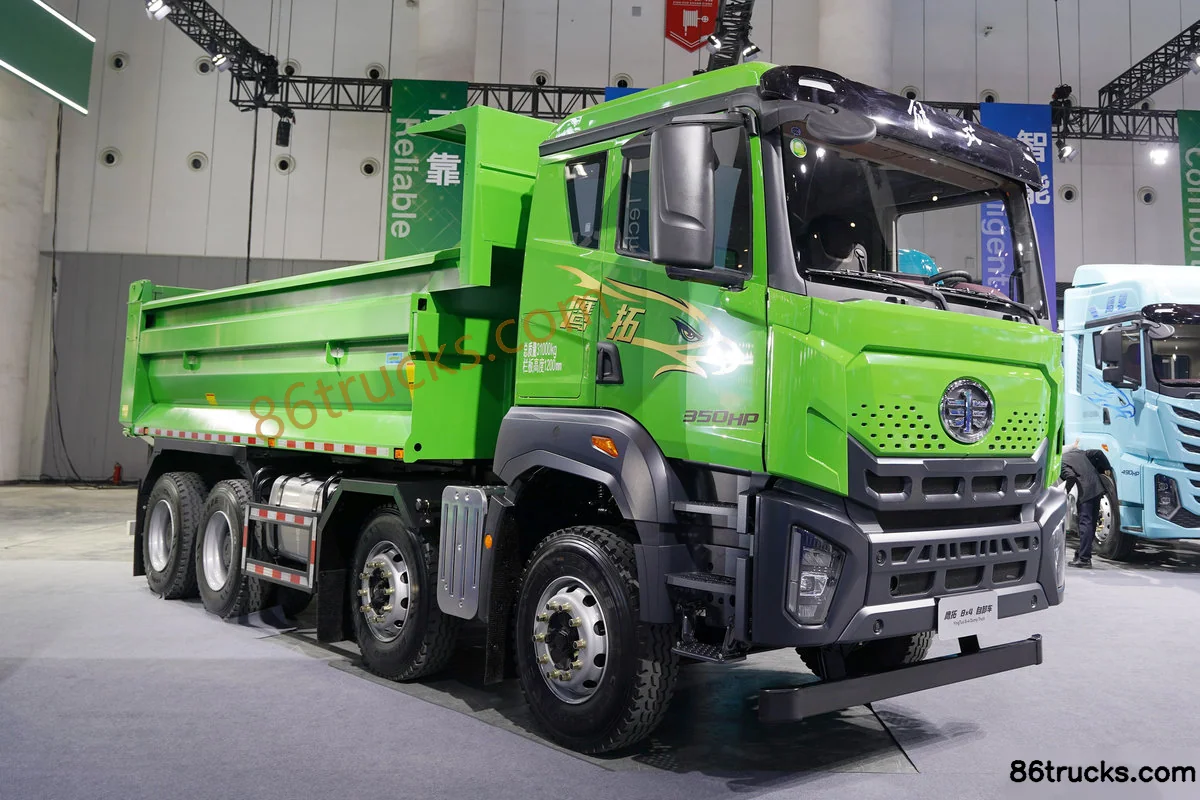

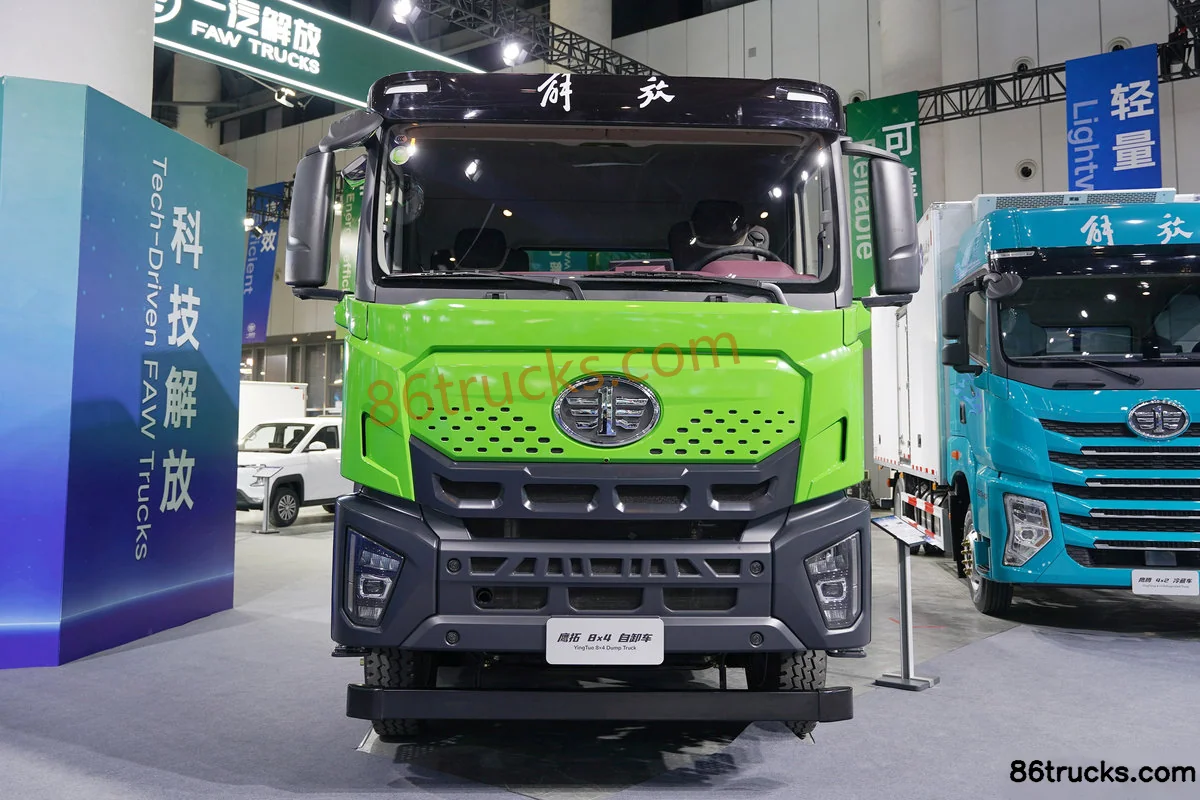

Exterior3

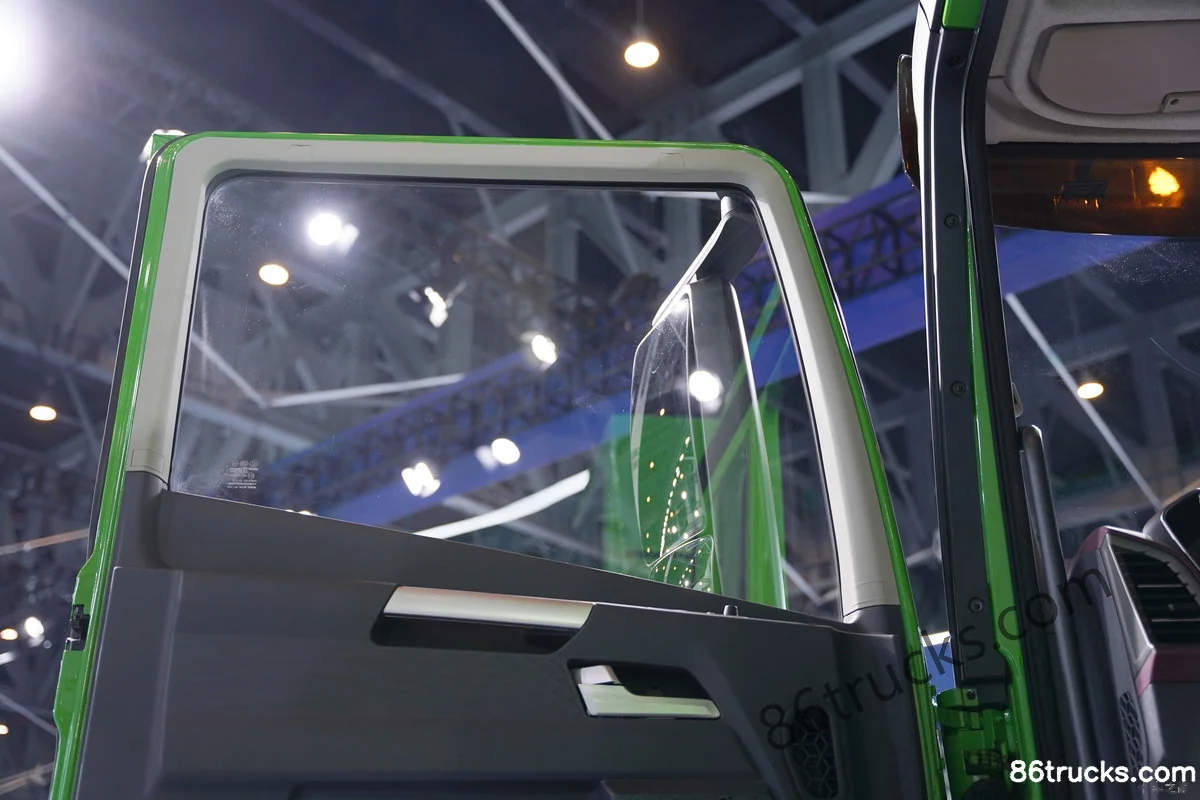

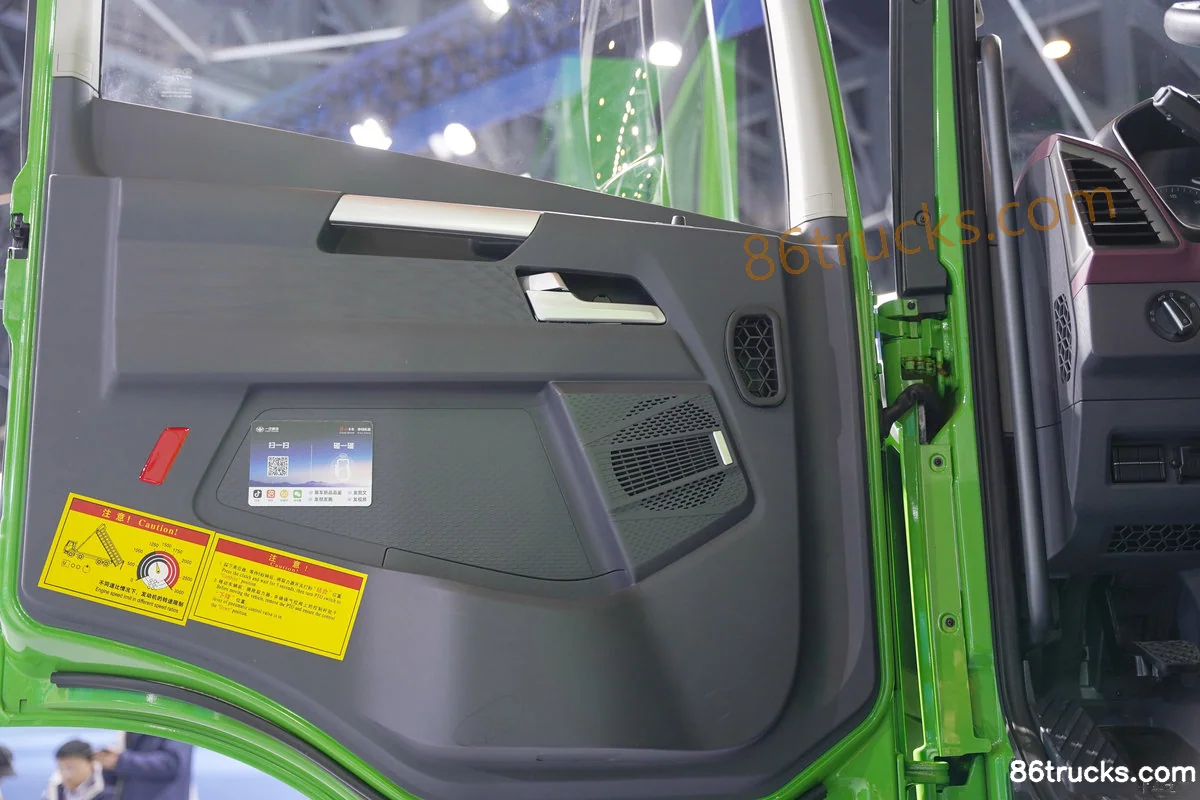

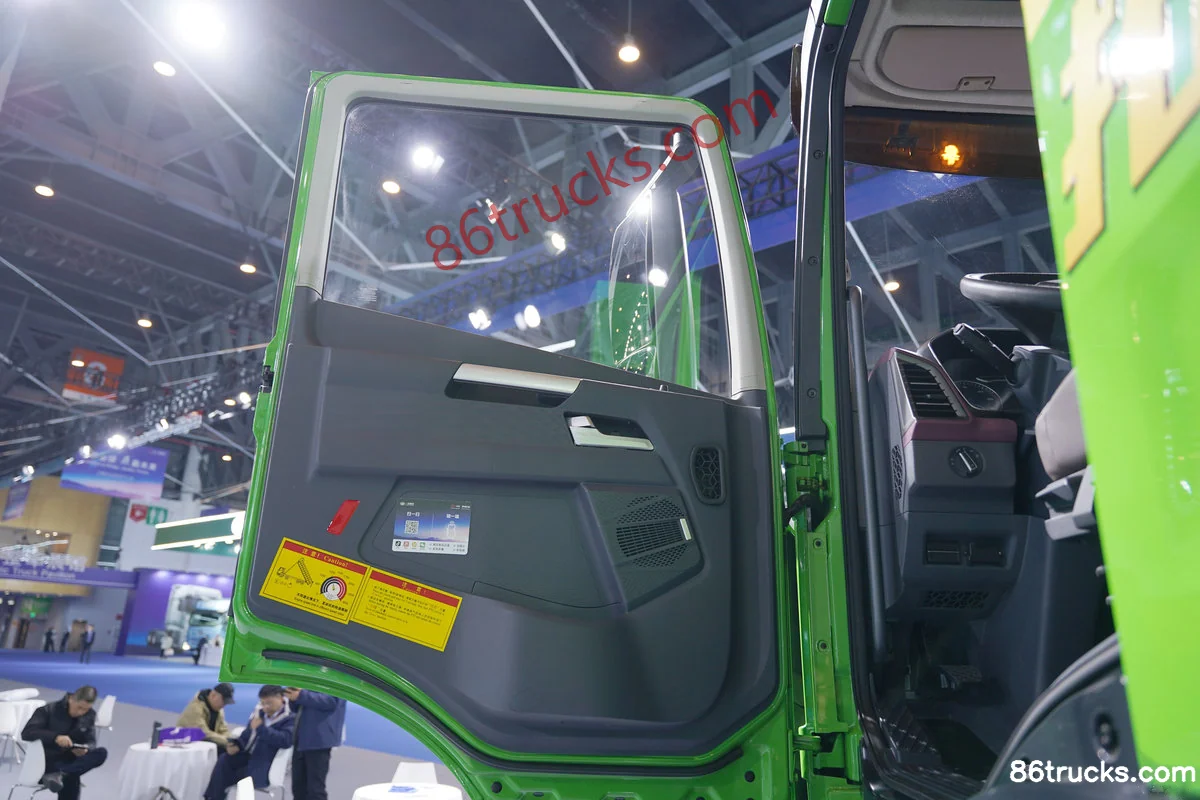

Cab3

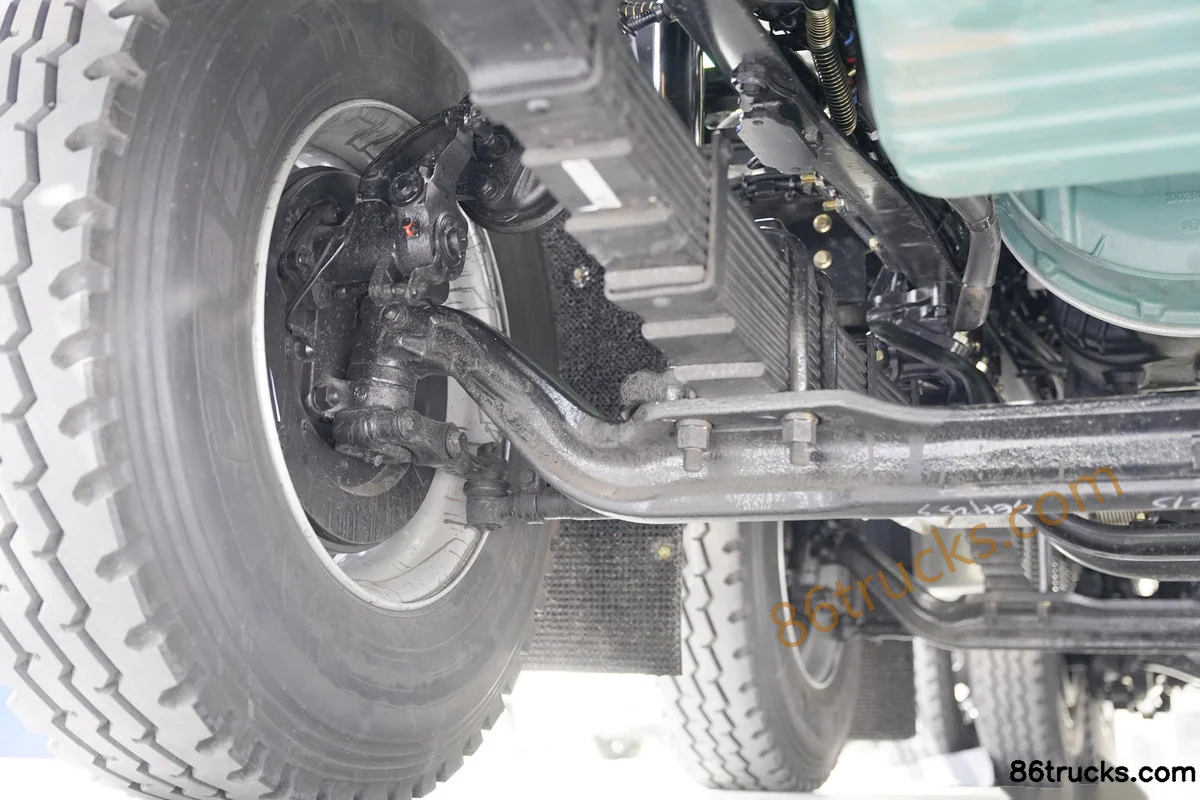

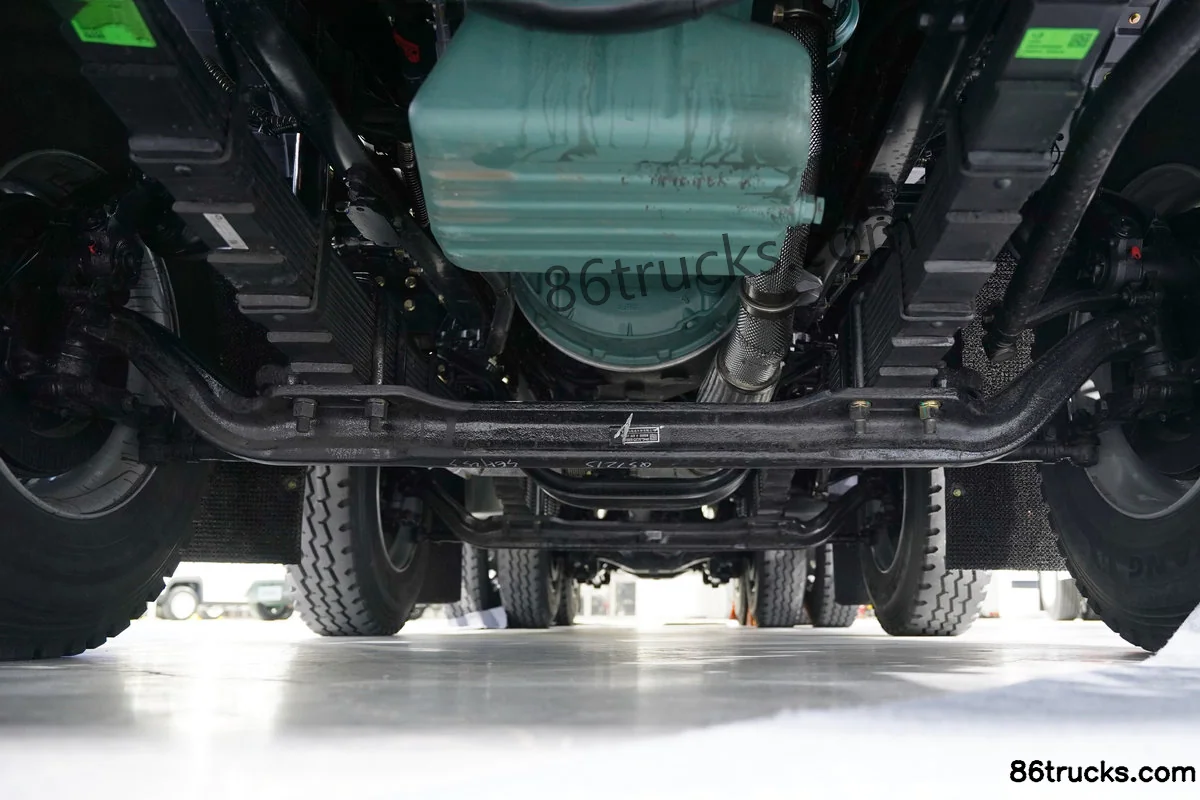

Chassis3

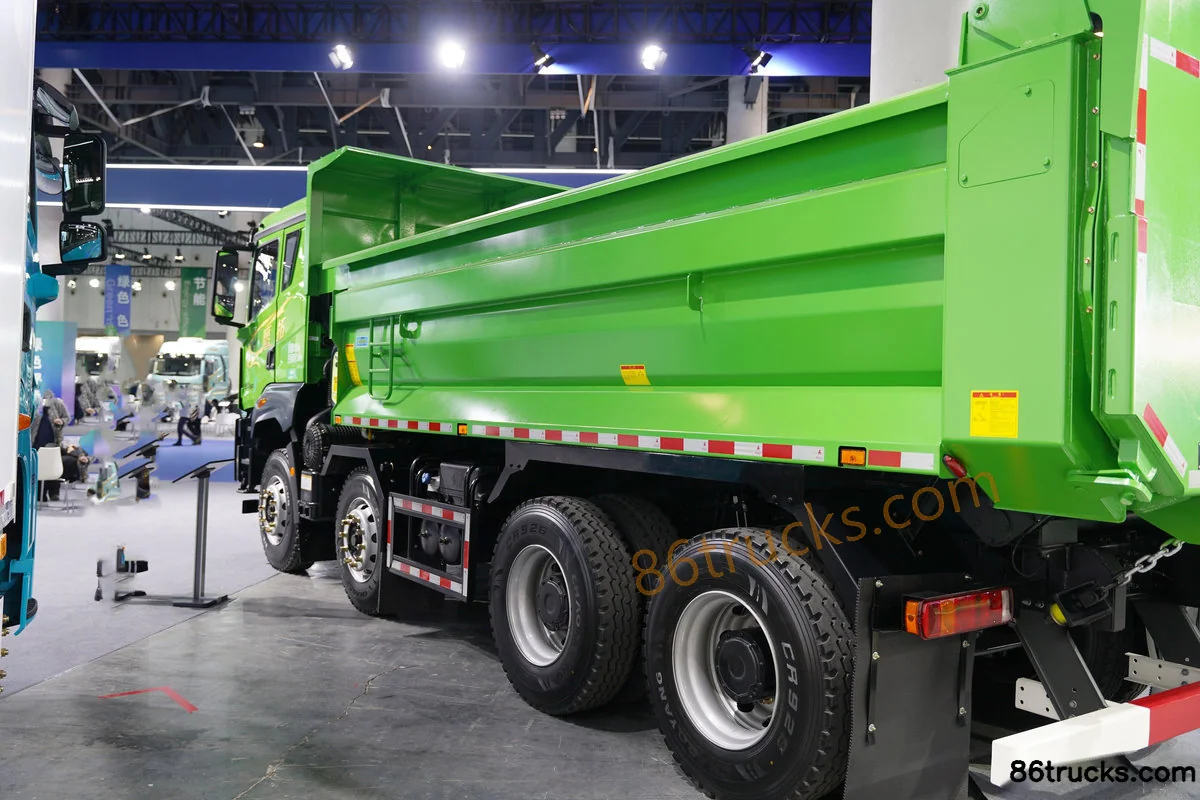

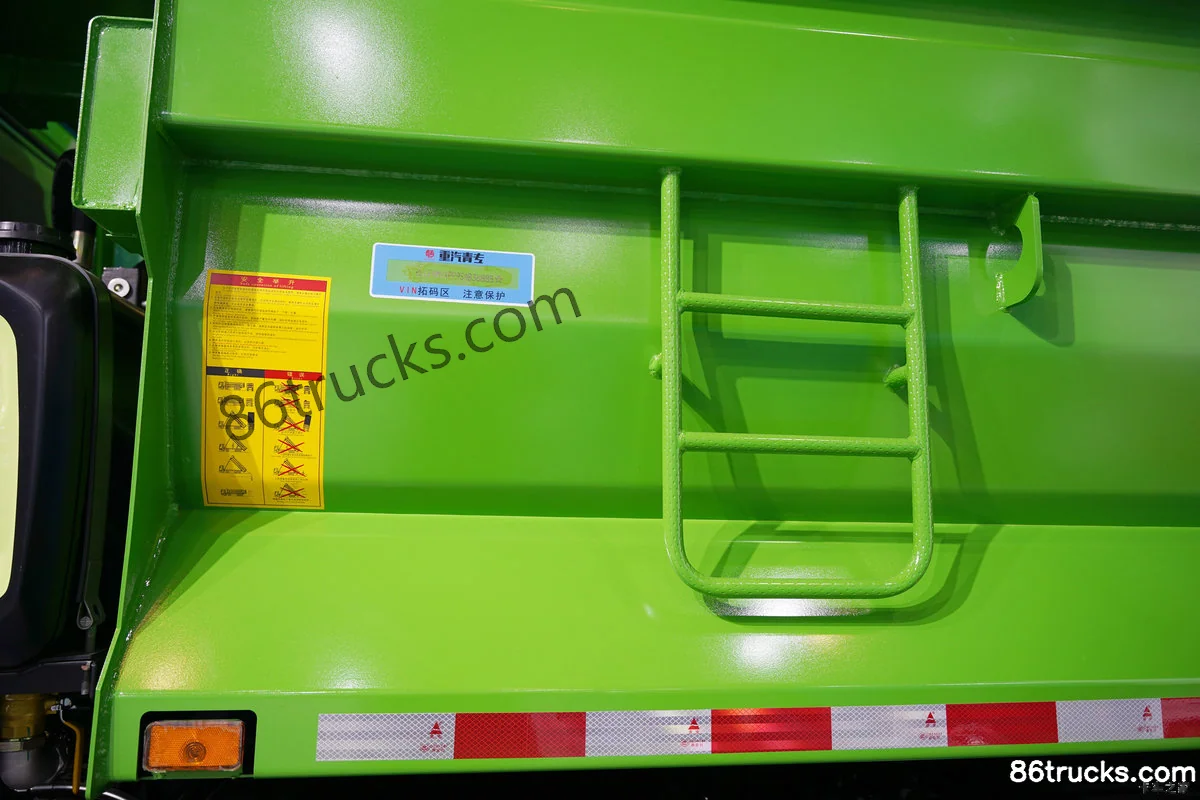

Body3

12 photos

FAQ

What emission standard does FAW Jiefang Yingtuo 7.8L Diesel 350 hp 8X4(12 wheels) FAW Jiefang 10-speed 5.6m dump truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Yingtuo 7.8L Diesel 350 hp 8X4(12 wheels) FAW Jiefang 10-speed 5.6m dump truck?

Key specs of FAW Jiefang Yingtuo 7.8L Diesel 350 hp 8X4(12 wheels) FAW Jiefang 10-speed 5.6m dump truck: Drive: 8x4; Horsepower: 350 hp; Emission: China VI; Fuel: Diesel; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Yingtuo 7.8L Diesel 350 hp 8X4(12 wheels) FAW Jiefang 10-speed 5.6m dump truck suited for?

FAW Jiefang Yingtuo 7.8L Diesel 350 hp 8X4(12 wheels) FAW Jiefang 10-speed 5.6m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang Yingtuo 7.8L Diesel 350 hp 8X4(12 wheels) FAW Jiefang 10-speed 5.6m dump truck differ from other variants in the same series?

FAW Jiefang Yingtuo 7.8L Diesel 350 hp 8X4(12 wheels) FAW Jiefang 10-speed 5.6m dump truck belongs to FAW Jiefang Qingdao Yingtuo Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Yingtuo 7.8L Diesel 350 hp 8X4(12 wheels) FAW Jiefang 10-speed 5.6m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Yingtuo 7.8L Diesel 350 hp 8X4(12 wheels) FAW Jiefang 10-speed 5.6m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
