JAC Gallop A5X Heavy Truck Flagship Edition 260hp 4X2(6 wheels) 9.8m Van Cargo Truck (China VI)

Export reference
MSRP N/A
Horsepower: 260
Emission: China VI
Fuel: Diesel
Engine: Dongkang 6.2L
Transmission: Sinotruk
Curb Weight:: 9ton

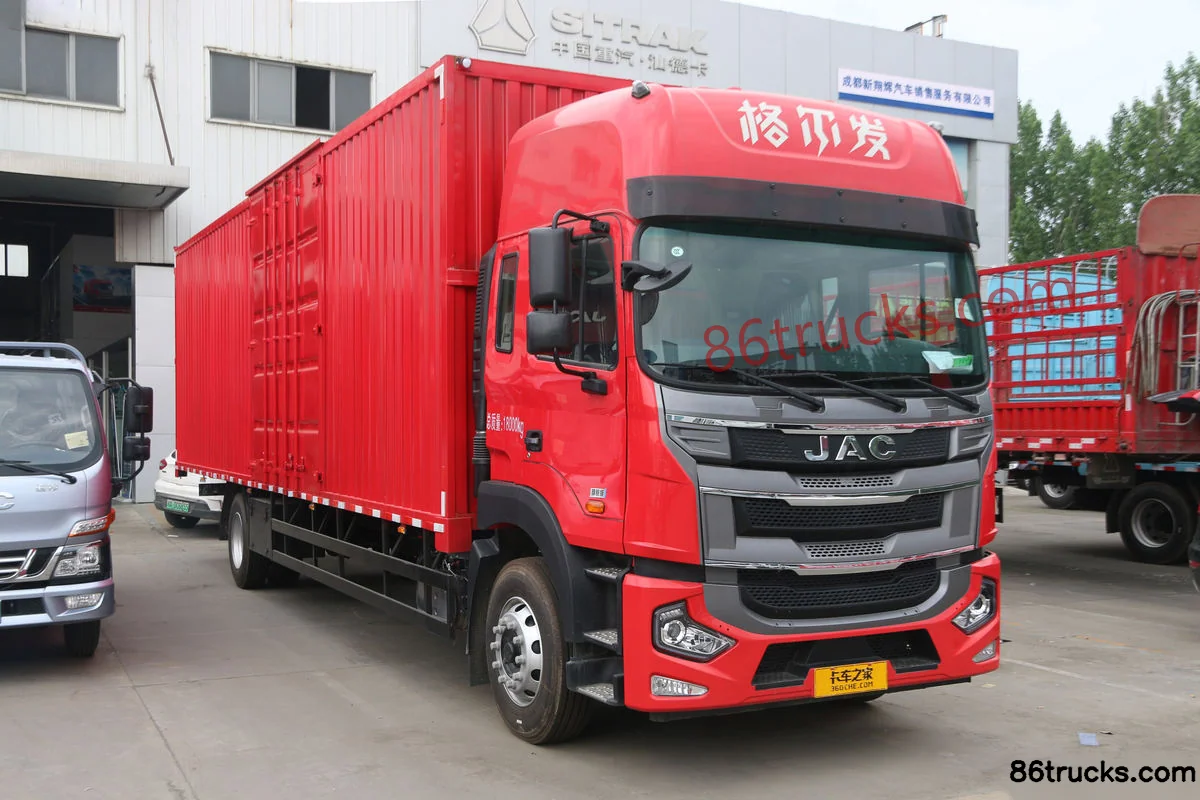

JAC Gallop A5X Heavy Truck Flagship Edition 260hp 4X2(6 wheels) 9.8m Van Cargo Truck (China VI) exterior
View more photos (9)
seating capacity: 2Personnel
Rated payload: 8.87ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JAC Gallop A5X Heavy Truck Flagship Edition 260hp 4X2(6 wheels) 9.8m Van Cargo Truck (China VI) is a Heavy-duty cargo trucks featuring 9.8m cargo length, Van body cargo body, 2Personnel volume and 8.87t payload. Its segment focus covers Express parcel and LTL, matching those duty cycles. On the powertrain side, it comes with a Dongkang 6.2L engine, 260 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 260 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): HFC5181XXYP2K3A70S
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 7050mm
Box length class: 9.8m
engine: DongfengB6.2NS6B260
transmission: SinotrukHW90510C
Rear Axle Ratio: 4.111
Cab length: 12m
Cab width: 2.55m
Cab height: 3.99m
Front track width: 2040mm
rear track: 1810mm
Curb Weight: 9ton
Rated payload: 8.87ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Hefei, Anhui
tonnage class: Heavy-duty cargo trucks
Approach angle: 18°
departure angle: 10°
market segment: Express parcel, LTL
Front/rear suspension: 1.475/3.475m
Version: Flagship Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Dongfeng
Engine Model: DongfengB6.2NS6B260
Engine info: Dongkang 6.2L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.2L
Emission standard: China VI
Max output power: 191kW
Max hp: 260Horsepower
Max torque: 1020N·m
Max torque speed: 1300-1700rpm
Rated speed: 2300rpm
Transmission Parameters
Transmission Model: SinotrukHW90510C
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 9.8m
Cargo box width: 2.5m
Cargo box height: 2.87m
*Cargo box interior width: 2.5
Cab parameters
Cab: Flat floor
Cab suspension: Four-point air suspension
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle description: I-beam section
Front axle allowable load: 6500kg
rear axle description: Single-stage reduction
rear axle allowable load: 11500kg
Axle ratio: 4.111
Maintenance-free wheel end:
Tire
Tire Size: 275/80R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
EBS electronic braking system:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
interior configuration
Steering Wheel Material: leather
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: leather
Reverse Camera:
Remote key:
Electronic Central Lock:
Independent AC:
Exterior features
Air deflector:
Aluminum air tank:
Diesel primary filter heating:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
lighting configuration
Headlight brand: none
Front fog lamp:
daytime running lights:
Headlight height adjustment:
LED taillight:
Halogen Headlights: none
Service brake
Brake Type: Air brake
Parking brake: Spring brake
hydraulic retarder:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):
Emergency Brake Assist (EBA):
adaptive cruise control (ACC):
Tire Pressure Monitoring System (TPMS):
Lane change assist (ALC):
Fatigue driving monitoring:

Photos

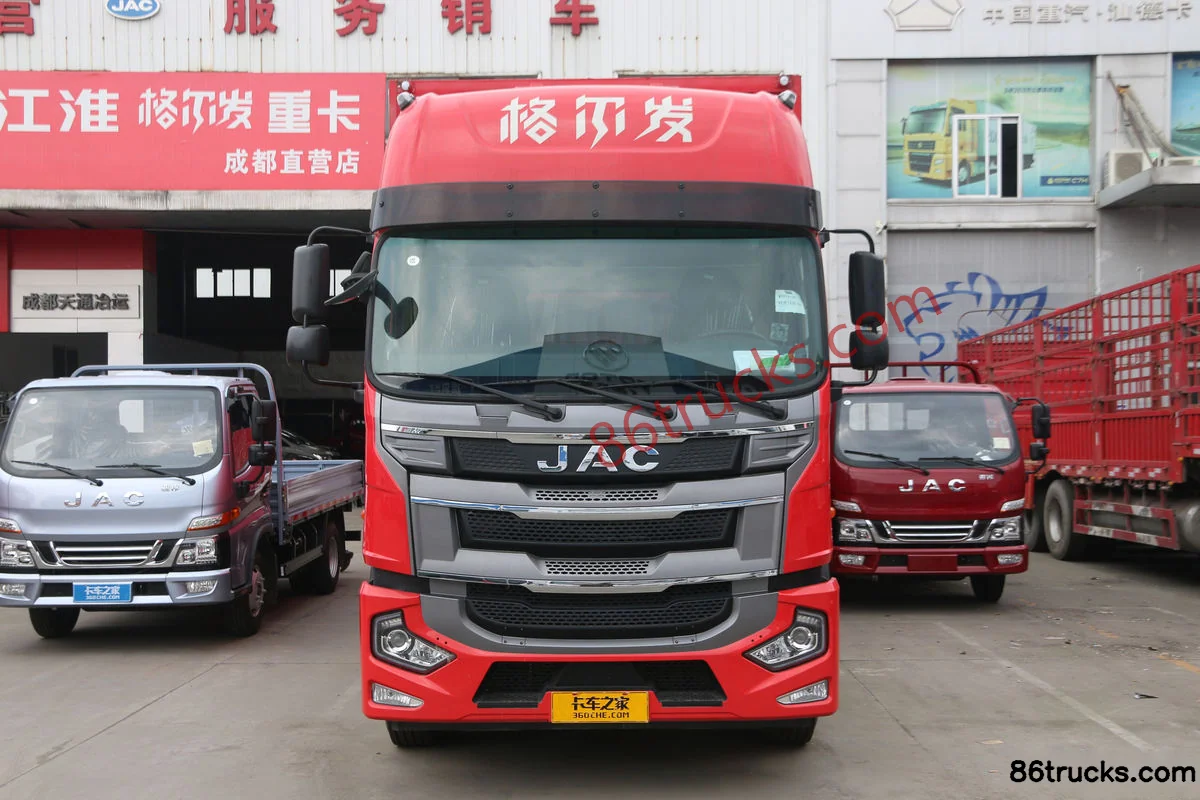

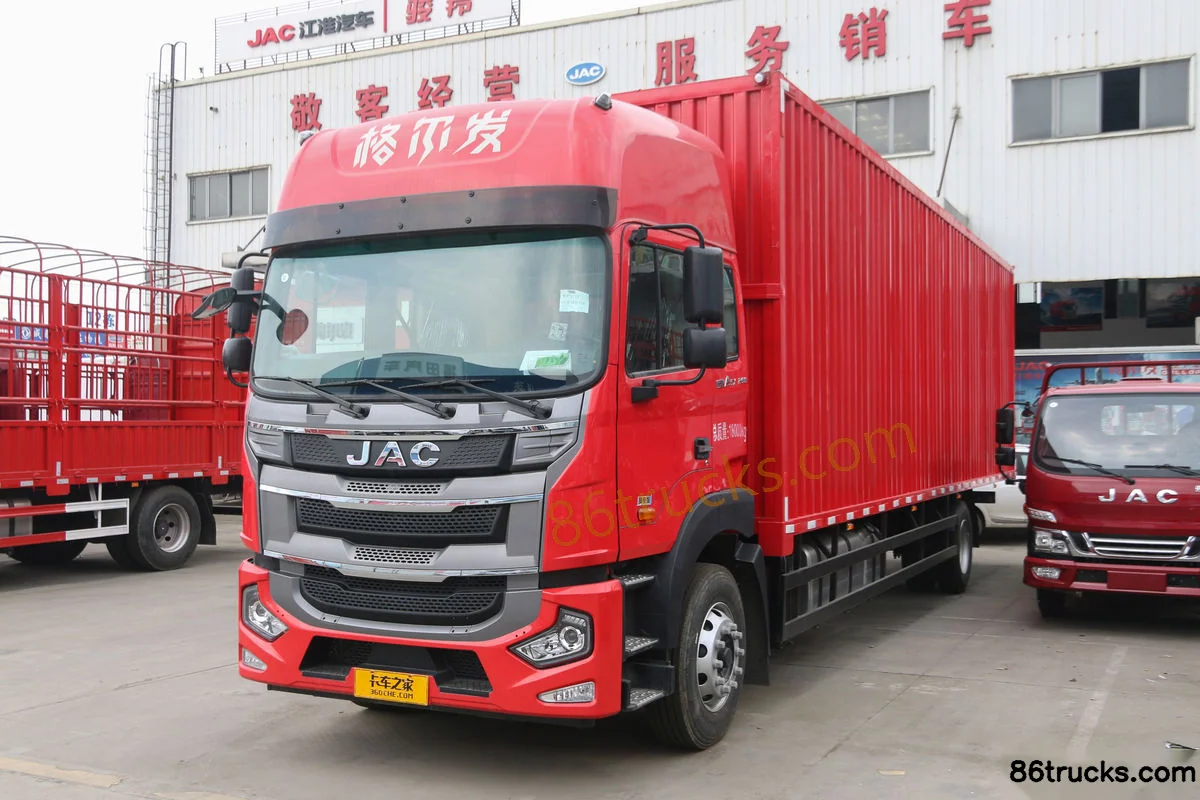

Exterior3

JAC Gallop A5X Heavy Truck Flagship Edition 260hp 4X2(6 wheels) 9.8m Van Cargo Truck (China VI) Exterior (1) | 86Trucks JAC Gallop A5X Heavy Truck Flagship Edition 260hp 4X2(6 wheels) 9.8m Van Cargo Truck (China VI) Exterior (2) | 86Trucks JAC Gallop A5X Heavy Truck Flagship Edition 260hp 4X2(6 wheels) 9.8m Van Cargo Truck (China VI) Exterior (3) | 86Trucks

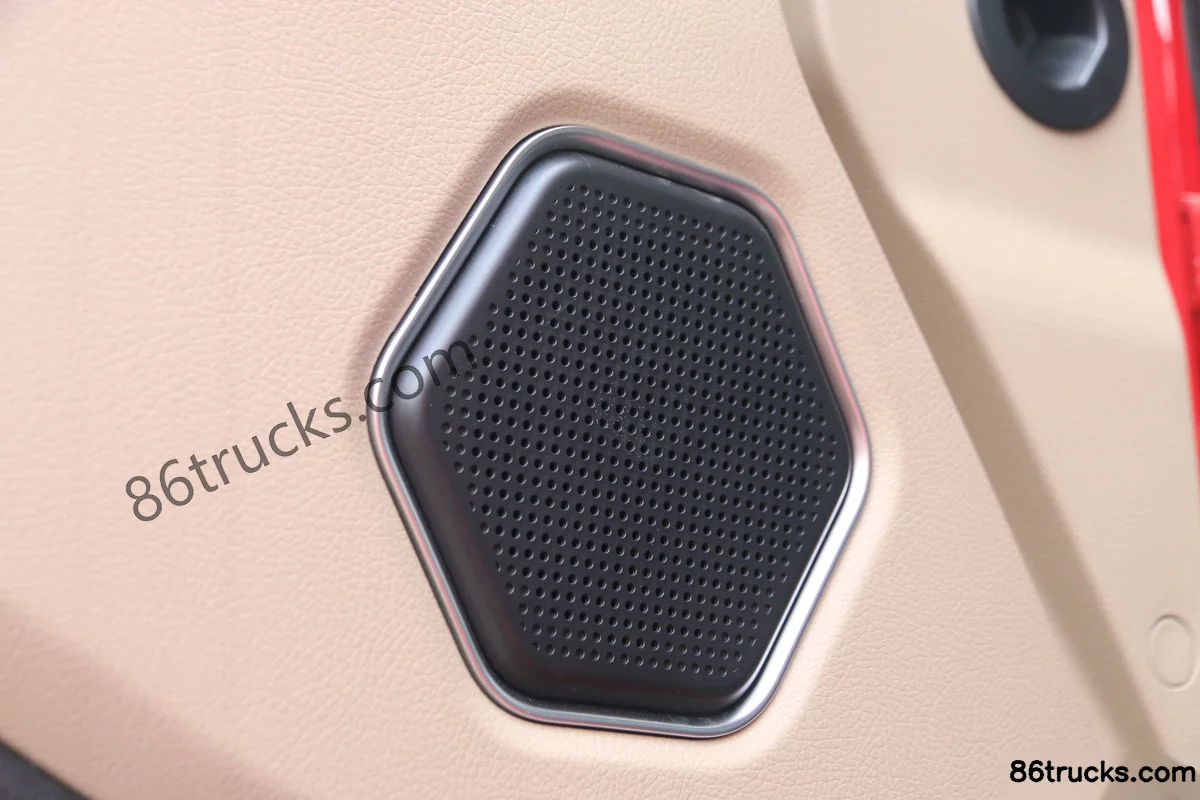

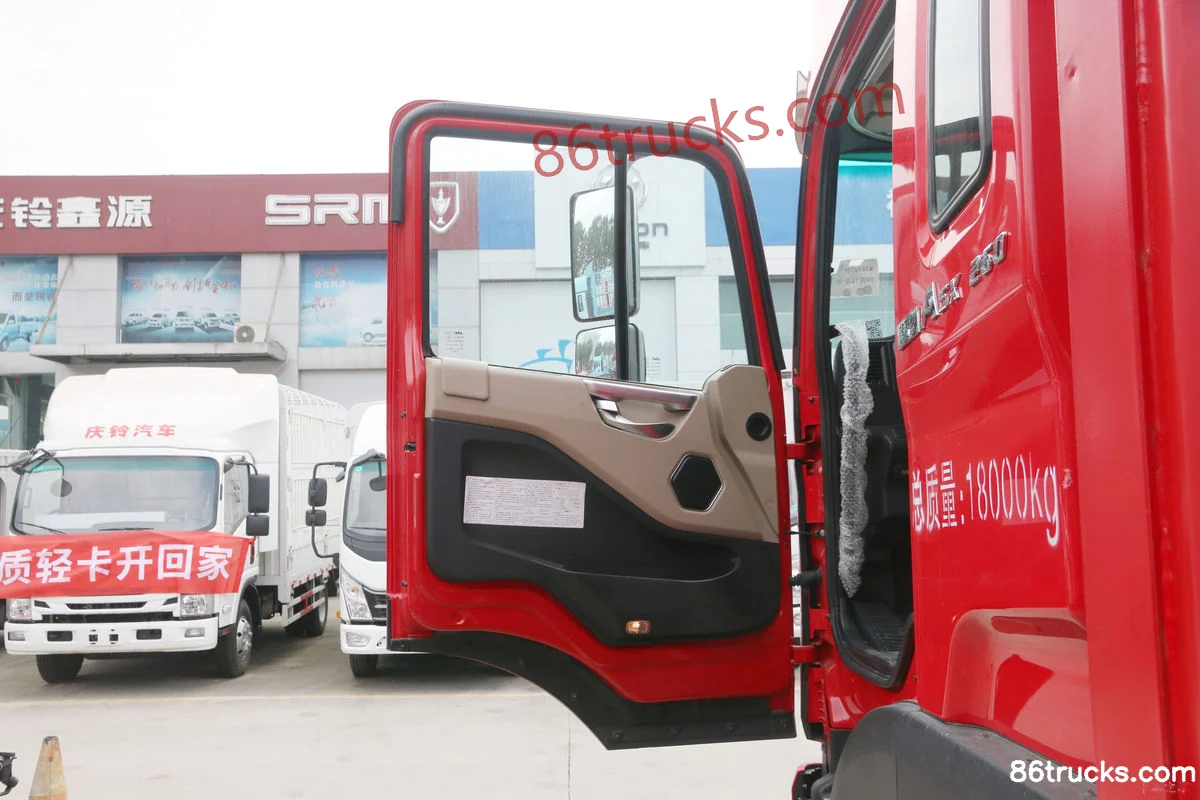

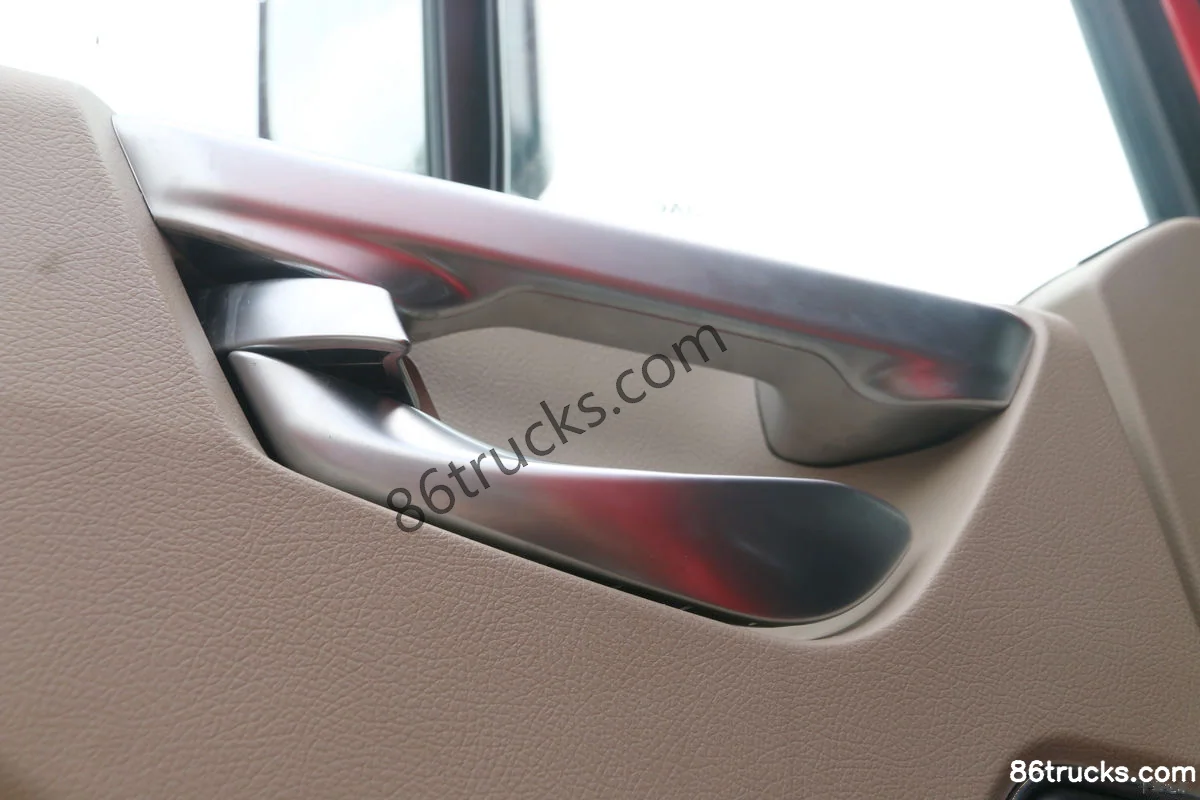

Cab3

JAC Gallop A5X Heavy Truck Flagship Edition 260hp 4X2(6 wheels) 9.8m Van Cargo Truck (China VI) Cab (1) | 86Trucks JAC Gallop A5X Heavy Truck Flagship Edition 260hp 4X2(6 wheels) 9.8m Van Cargo Truck (China VI) Cab (2) | 86Trucks JAC Gallop A5X Heavy Truck Flagship Edition 260hp 4X2(6 wheels) 9.8m Van Cargo Truck (China VI) Cab (3) | 86Trucks

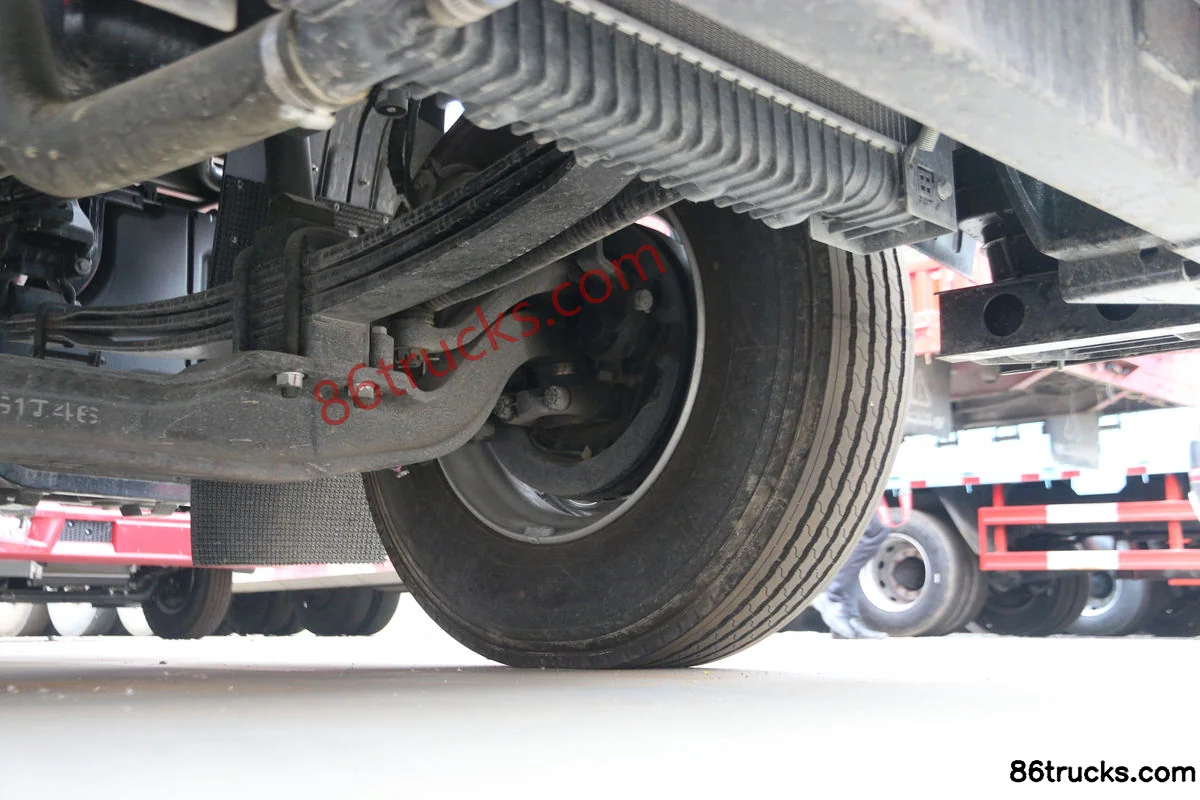

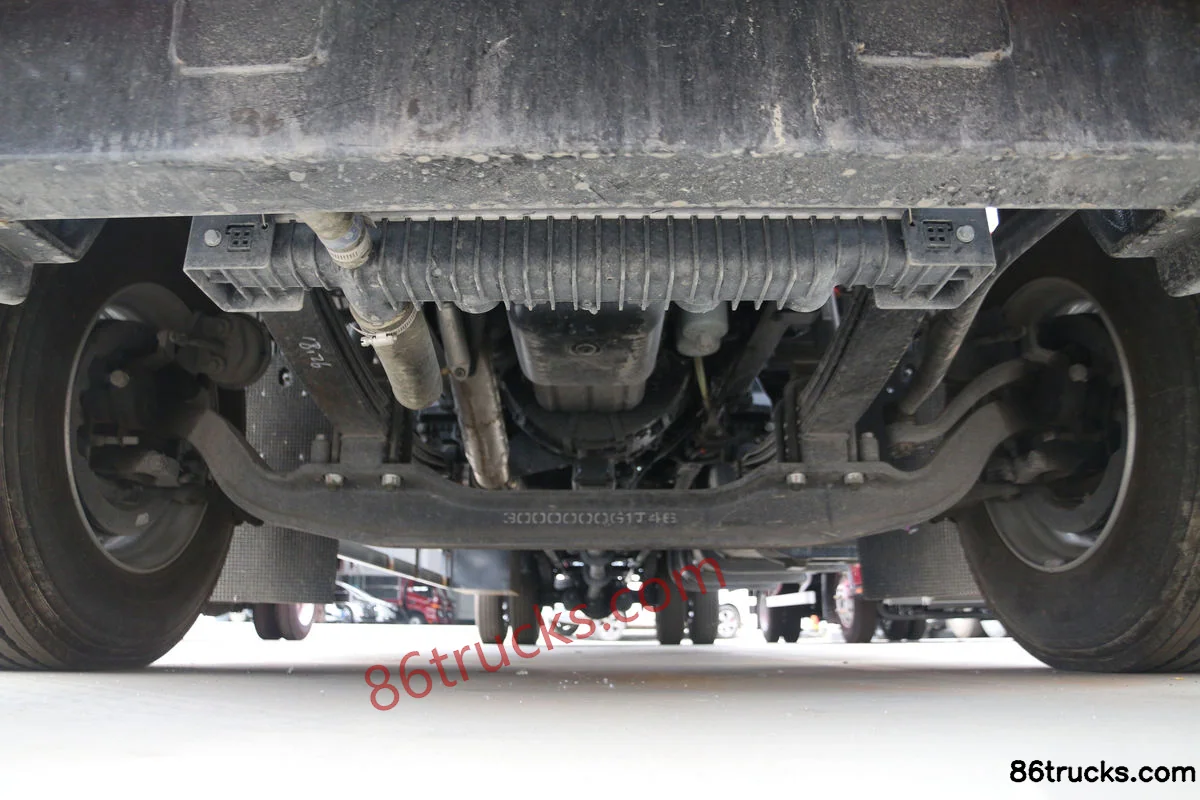

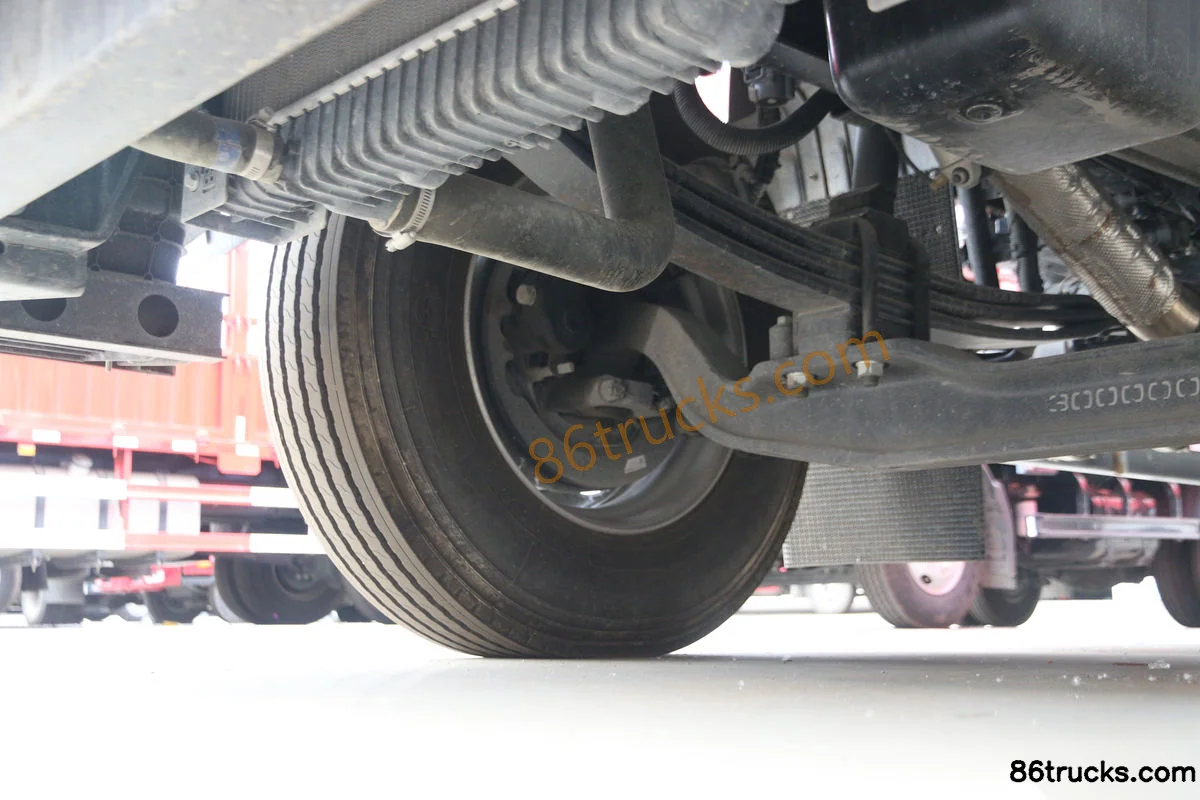

Chassis3

JAC Gallop A5X Heavy Truck Flagship Edition 260hp 4X2(6 wheels) 9.8m Van Cargo Truck (China VI) Chassis (1) | 86Trucks JAC Gallop A5X Heavy Truck Flagship Edition 260hp 4X2(6 wheels) 9.8m Van Cargo Truck (China VI) Chassis (2) | 86Trucks JAC Gallop A5X Heavy Truck Flagship Edition 260hp 4X2(6 wheels) 9.8m Van Cargo Truck (China VI) Chassis (3) | 86Trucks

9 photos

FAQ

What emission standard does JAC Gallop A5X Heavy Truck Flagship Edition 260hp 4X2(6 wheels) 9.8m Van Cargo Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop A5X Heavy Truck Flagship Edition 260hp 4X2(6 wheels) 9.8m Van Cargo Truck (China VI)?

Key specs of JAC Gallop A5X Heavy Truck Flagship Edition 260hp 4X2(6 wheels) 9.8m Van Cargo Truck (China VI): Drive: 4x2; Horsepower: 260 hp; Emission: China VI; Fuel: Diesel; Engine: Dongkang 6.2L; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop A5X Heavy Truck Flagship Edition 260hp 4X2(6 wheels) 9.8m Van Cargo Truck (China VI) suited for?

JAC Gallop A5X Heavy Truck Flagship Edition 260hp 4X2(6 wheels) 9.8m Van Cargo Truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Gallop A5X Heavy Truck Flagship Edition 260hp 4X2(6 wheels) 9.8m Van Cargo Truck (China VI) differ from other variants in the same series?

JAC Gallop A5X Heavy Truck Flagship Edition 260hp 4X2(6 wheels) 9.8m Van Cargo Truck (China VI) belongs to JAC Gallop A5 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop A5X Heavy Truck Flagship Edition 260hp 4X2(6 wheels) 9.8m Van Cargo Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop A5X Heavy Truck Flagship Edition 260hp 4X2(6 wheels) 9.8m Van Cargo Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
