Yuejin Daqilin EH5 4X2(6 wheels) 4m Single Row Pure Electric Dump Truck CATL 140.95kWh

Export reference
From $52,750
MSRP ¥37.98M CNY
Rated payload:: 9.205ton
Wheelbase:: 3308mm
Cargo box type:: Dump type
Model code (announced):: SH3167ZFEVWZ1
Cab length:: 5.995m
GVWR:: 16ton
Drive 4X2 (6 wheels)
CLTC range: 220km
Motor 1 Brand: SAIC MAXUS
Curb Weight: 6.6ton

Overview

The Yuejin Daqilin EH5 4X2(6 wheels) 4m Single Row Pure Electric Dump Truck CATL 140.95kWh is a Light Truck featuring 220km battery/range, SAIC MAXUS motor, 4X2 (6 wheels) drive and 9.205t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SH3167ZFEVWZ1
Drive type: 4X2
Wheelbase: 3308mm
Cab length: 5.995m
Cab width: 2.43m
Cab height: 2.68m
CLTC range: 220km
Curb Weight: 6.6ton
Rated payload: 9.205ton
GVWR: 16ton
Max. speed: 89km/h
Origin: Nanjing, Jiangsu
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: SAIC MAXUS
Motor 1 Model: TZ370XS-LKM1315
Motor Type: Permanent magnet synchronous motor
total rated power: 100kW
Peak power: 185kW
total rated torque: 750N·m
total peak torque: 1300N·m
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 140.95kWh
Transmission Parameters
Number of gears: 4Gear
shift type: AMT manual/auto
Transmission Model: 4AMT
Forward gears: 4Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Dump type
Cargo box length: 4m
Cargo box width: 2.2m
Cargo box height: 0.8m
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 5500kg
rear axle description: 1098
rear axle allowable load: 10500kg
Tire
Tire Size: 9.00R20 16PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Electric
Power Windows:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
lighting configuration
Headlight height adjustment:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

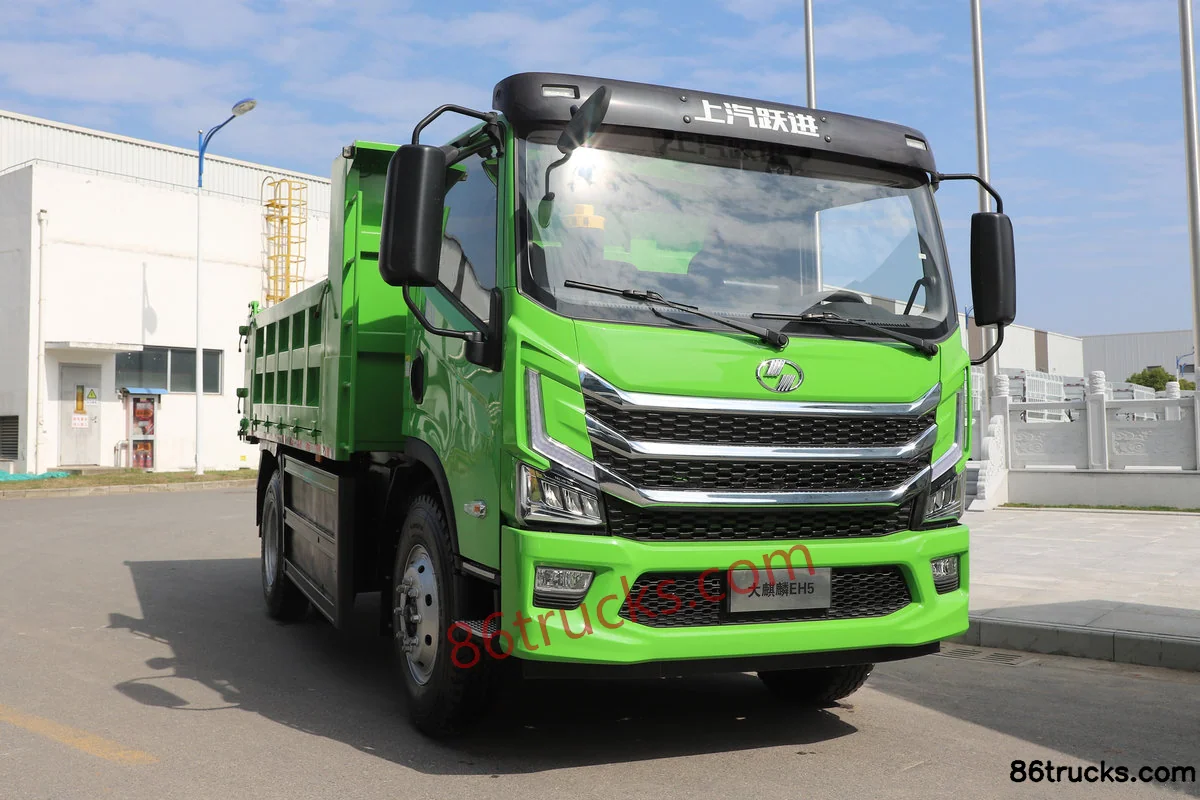

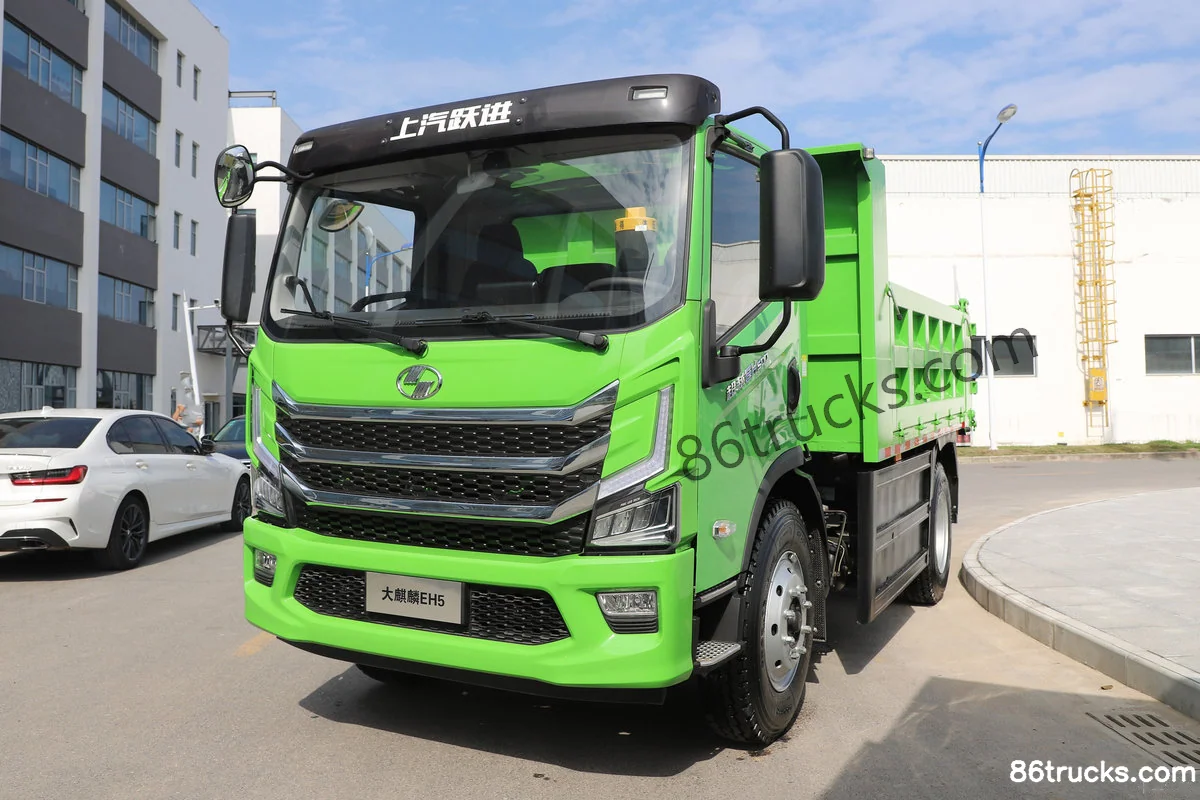

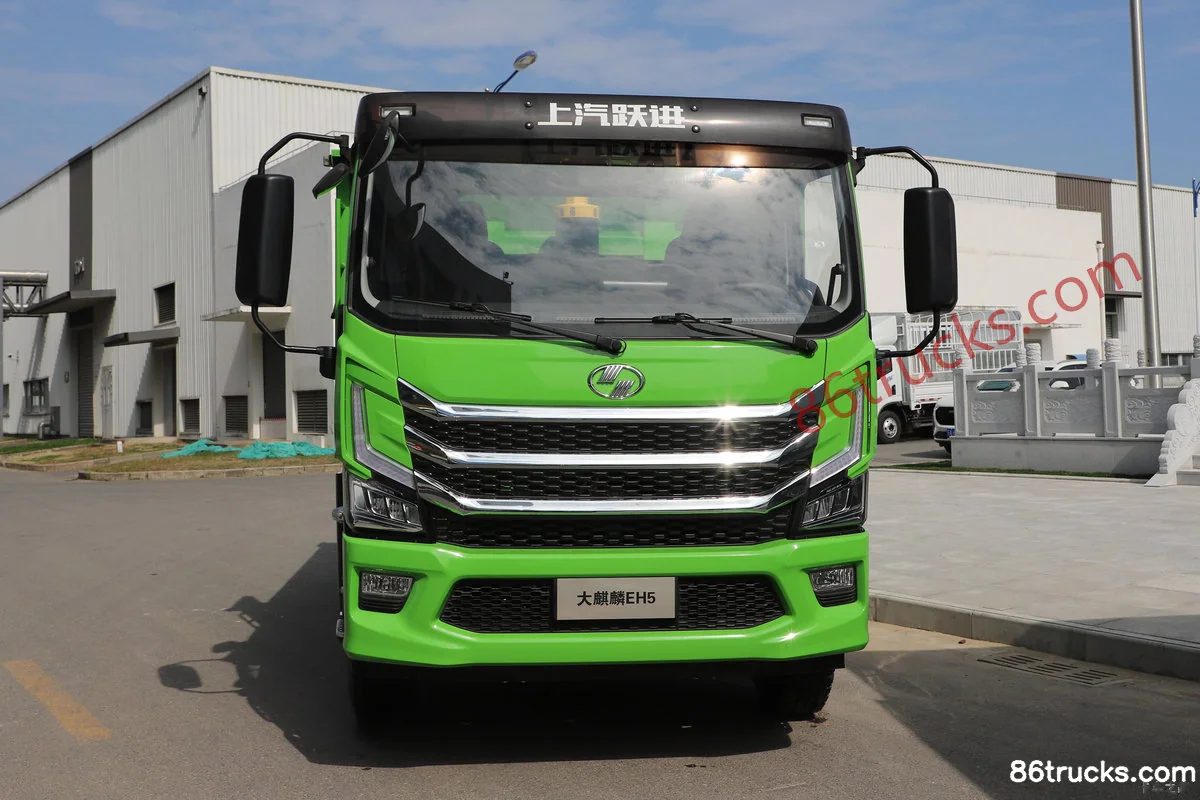

Exterior3

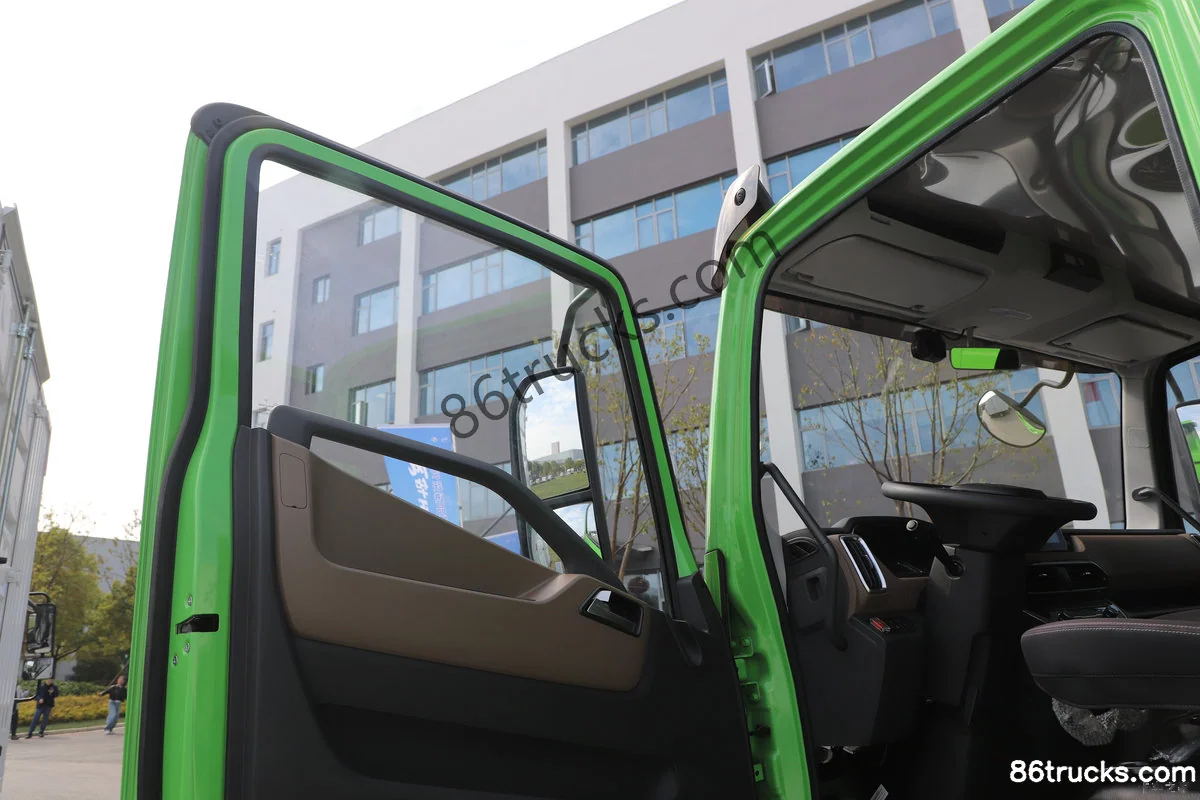

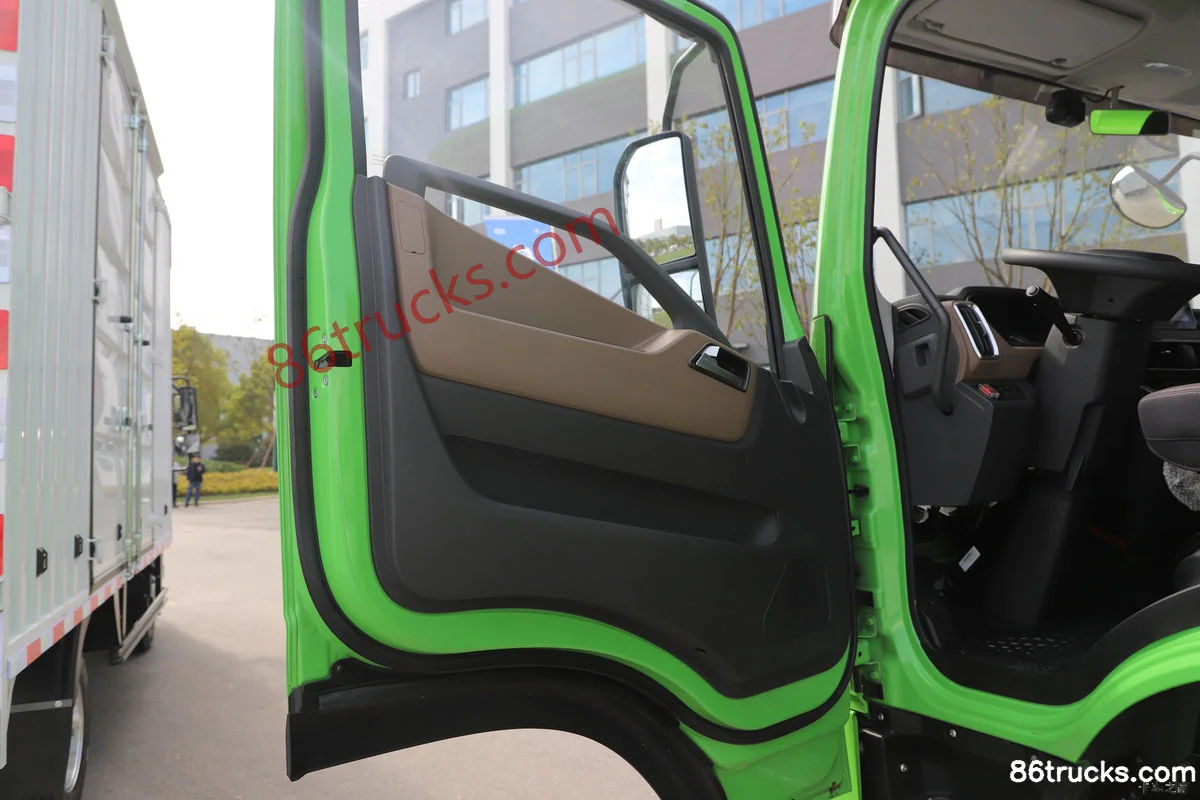

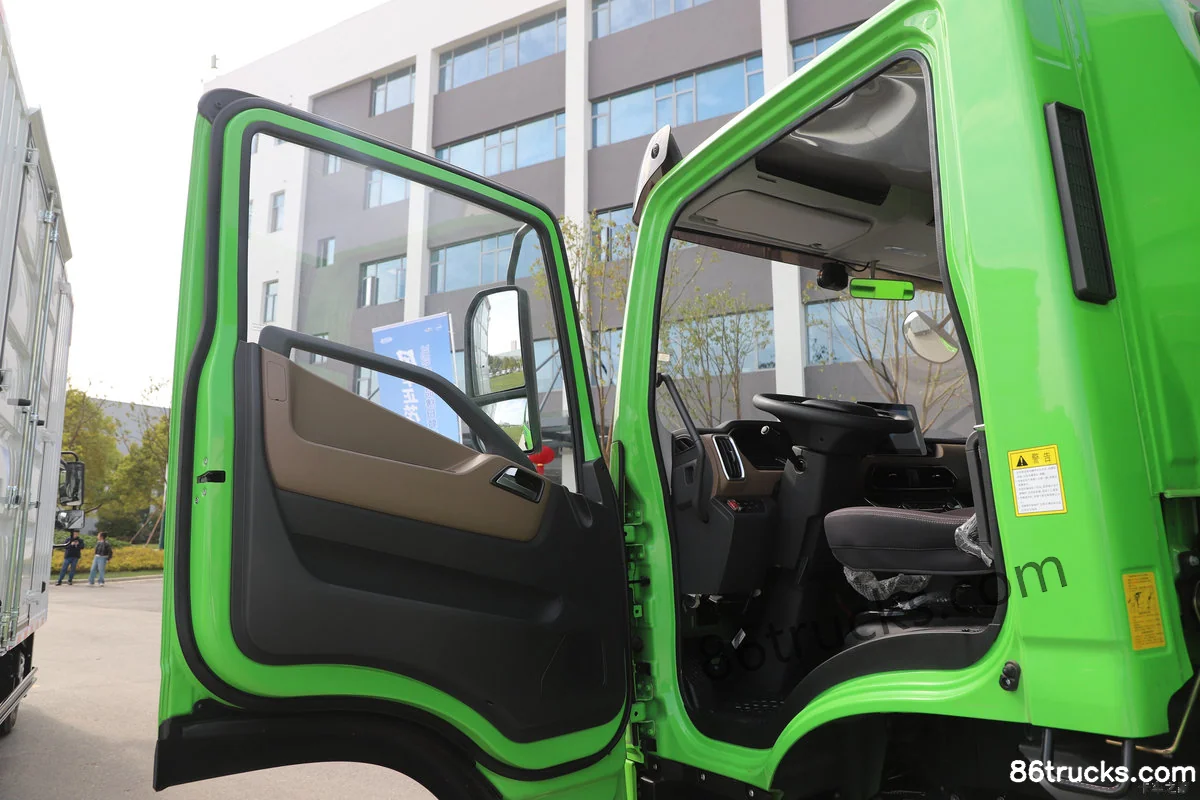

Cab3

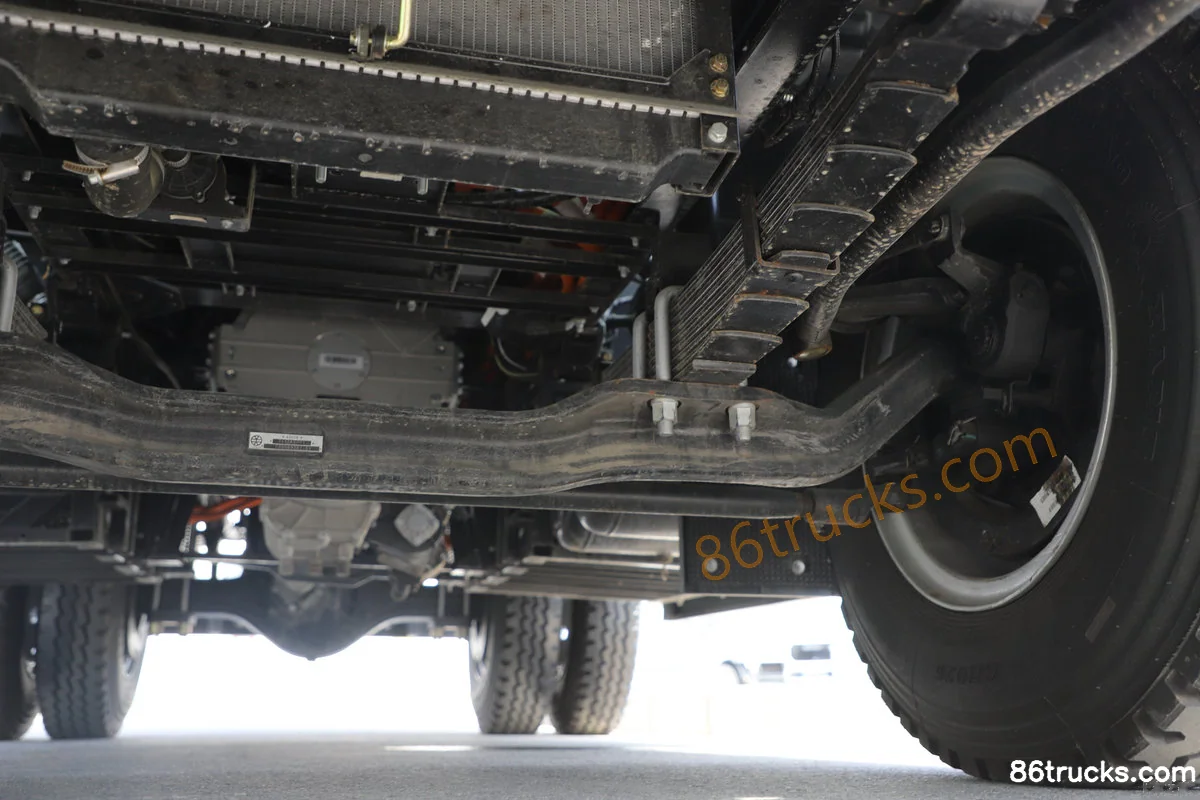

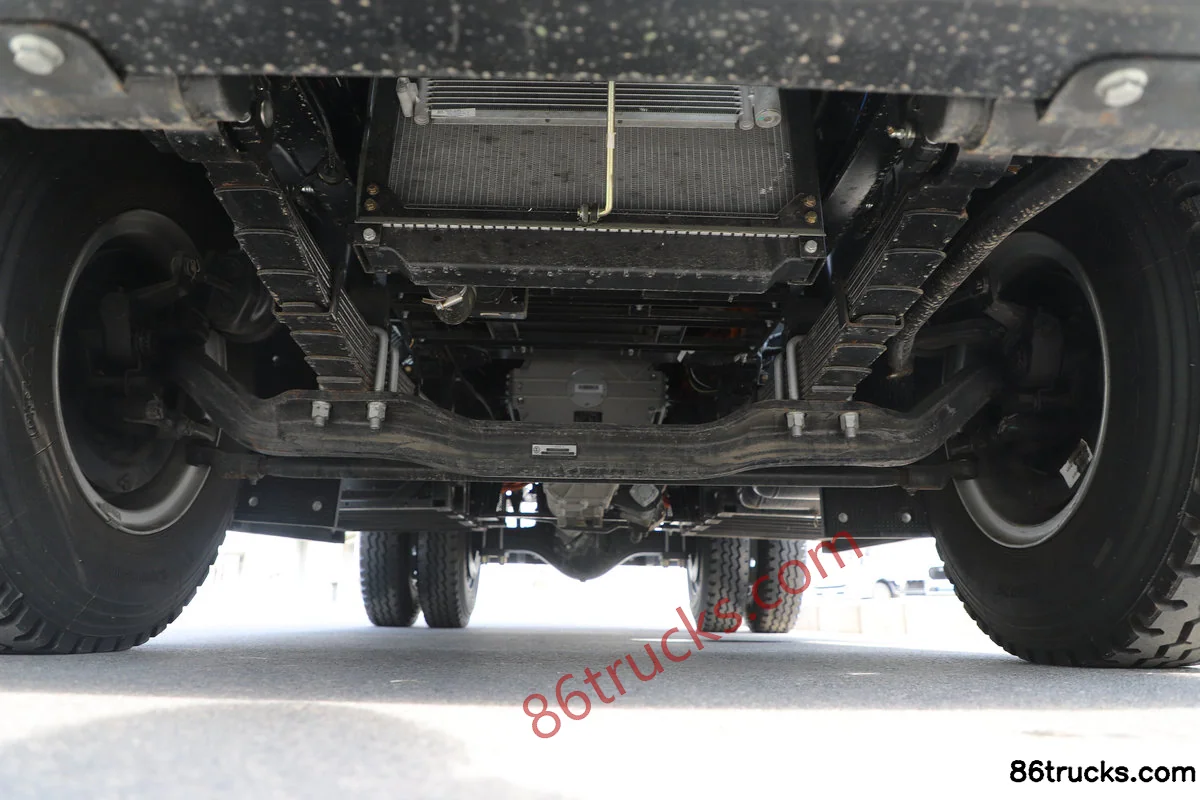

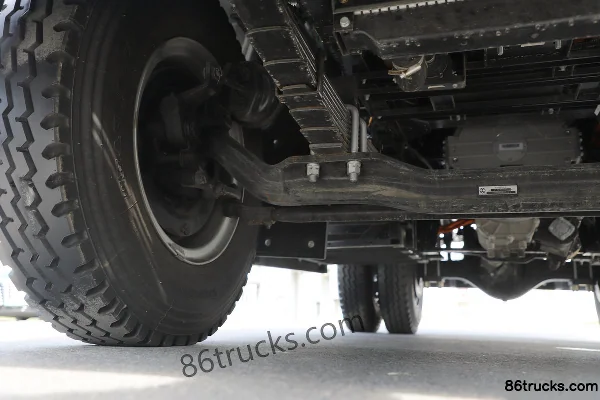

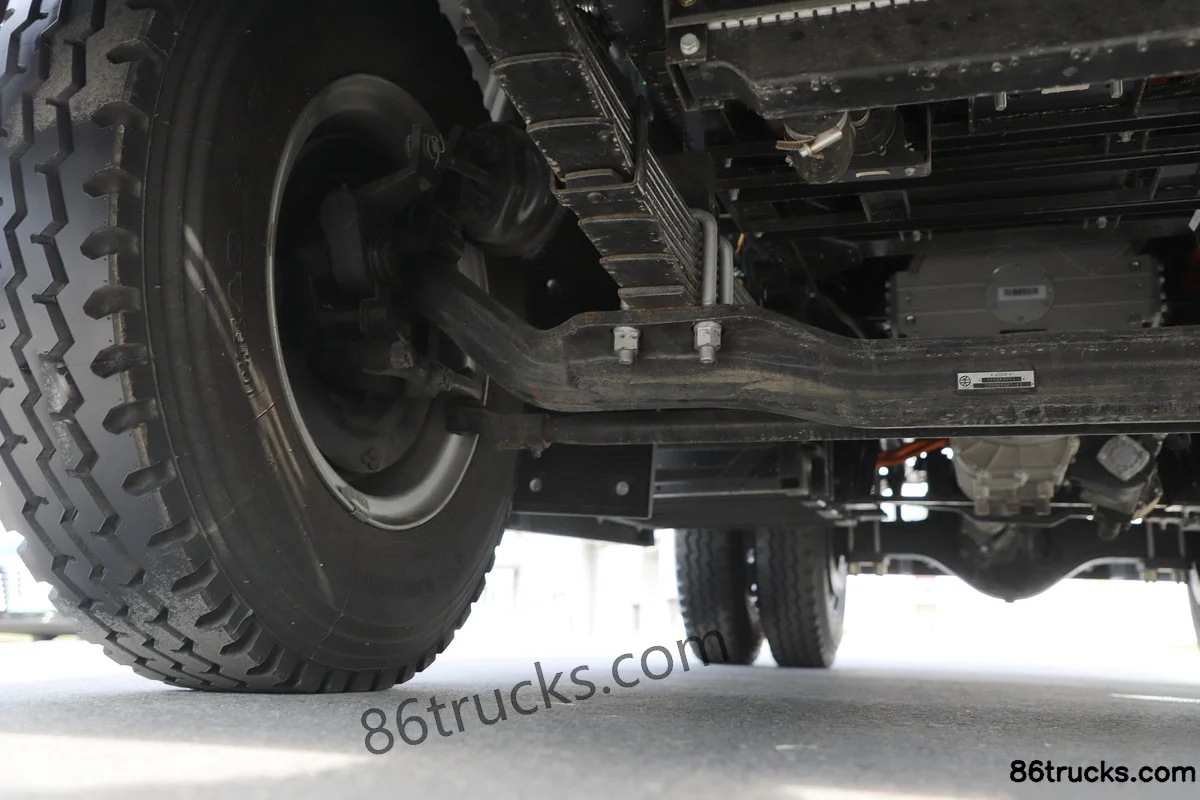

Chassis3

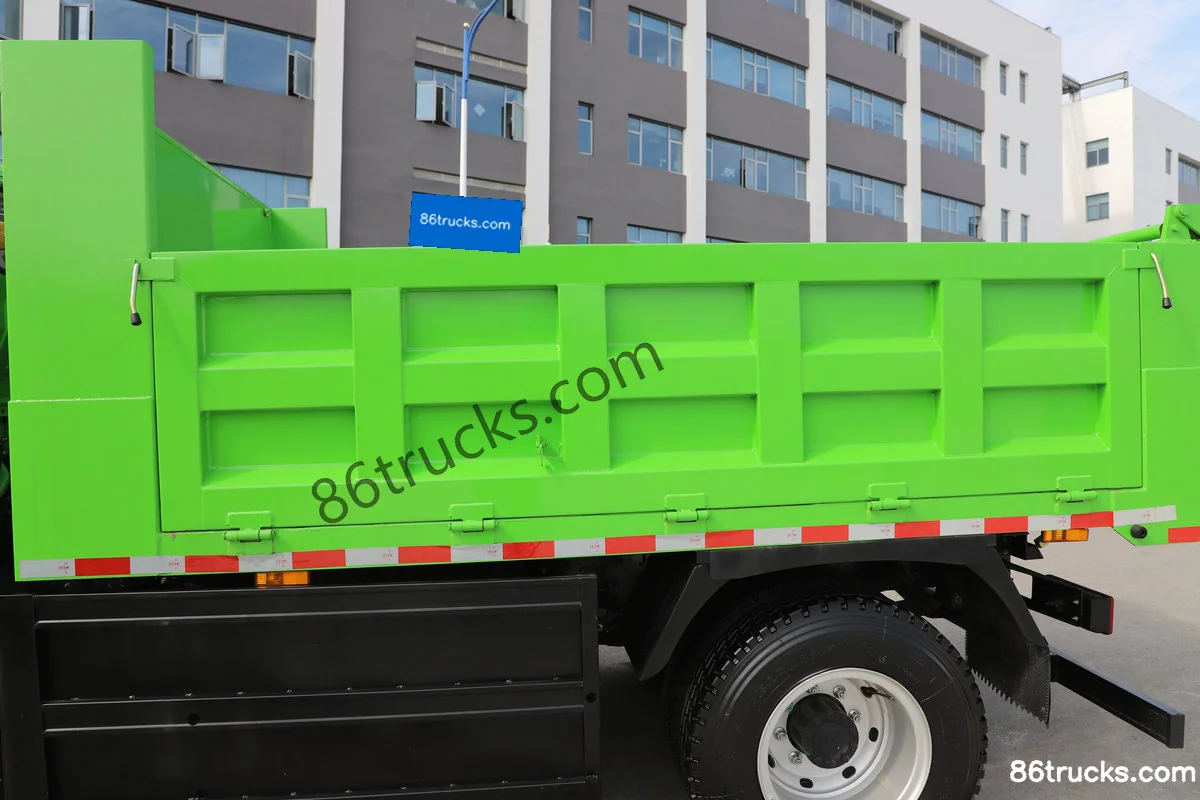

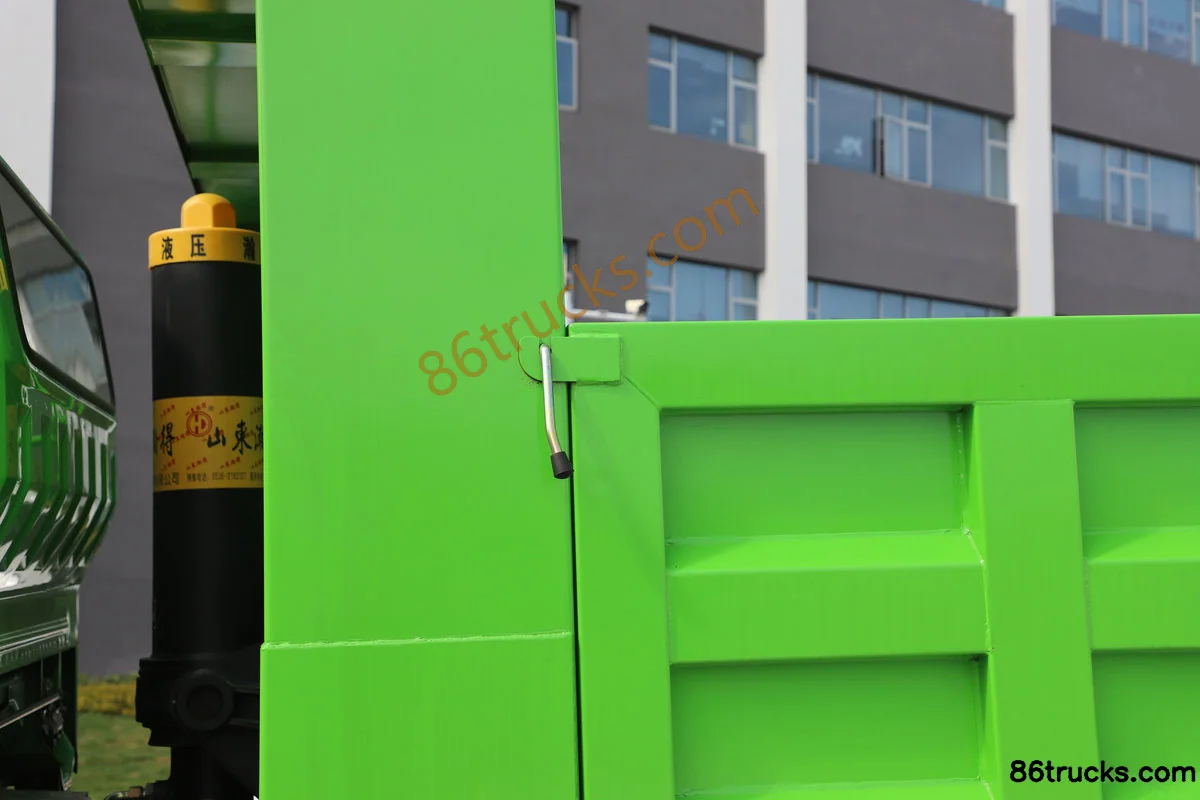

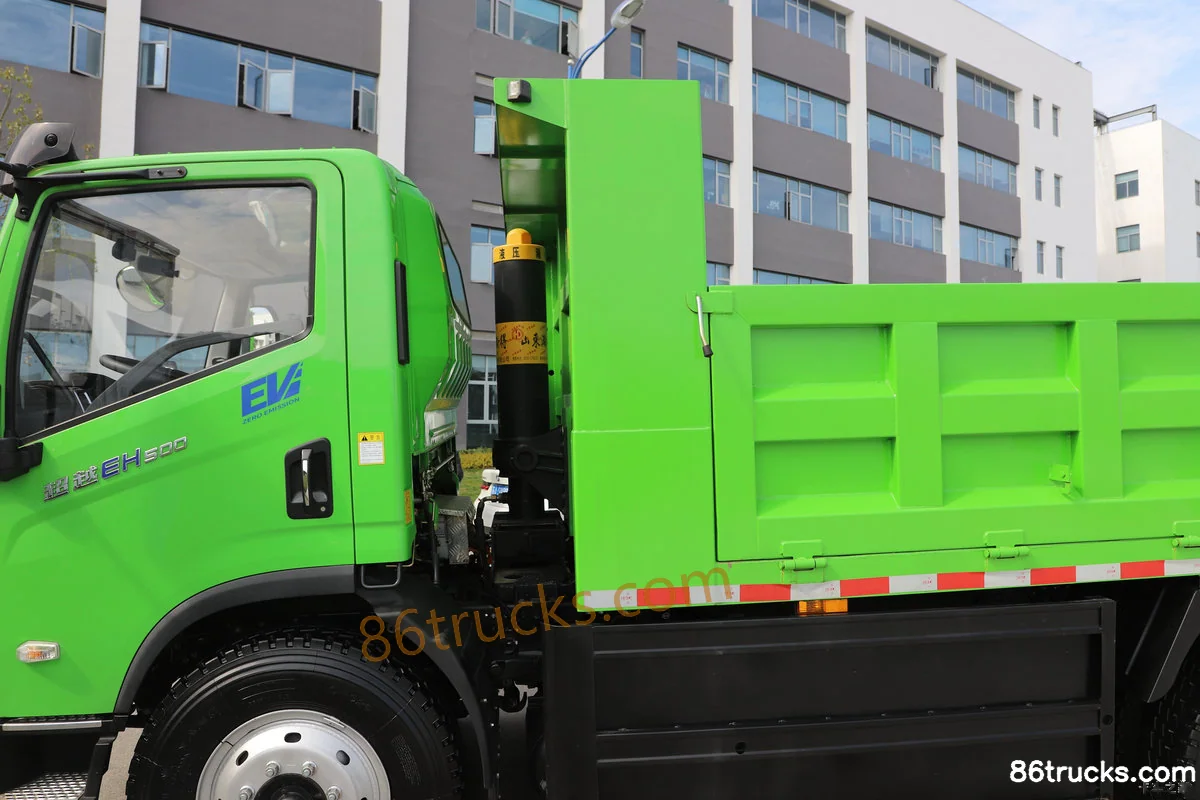

Body3

12 photos

FAQ

What is the export price of Yuejin Daqilin EH5 4X2(6 wheels) 4m Single Row Pure Electric Dump Truck CATL 140.95kWh, and what does it include?

Yuejin Daqilin EH5 4X2(6 wheels) 4m Single Row Pure Electric Dump Truck CATL 140.95kWh export reference is about From $52,750; MSRP is ¥37.98M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Yuejin Daqilin EH5 4X2(6 wheels) 4m Single Row Pure Electric Dump Truck CATL 140.95kWh?

Key specs of Yuejin Daqilin EH5 4X2(6 wheels) 4m Single Row Pure Electric Dump Truck CATL 140.95kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yuejin Daqilin EH5 4X2(6 wheels) 4m Single Row Pure Electric Dump Truck CATL 140.95kWh suited for?

Yuejin Daqilin EH5 4X2(6 wheels) 4m Single Row Pure Electric Dump Truck CATL 140.95kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Yuejin Daqilin EH5 4X2(6 wheels) 4m Single Row Pure Electric Dump Truck CATL 140.95kWh differ from other variants in the same series?

Yuejin Daqilin EH5 4X2(6 wheels) 4m Single Row Pure Electric Dump Truck CATL 140.95kWh belongs to Yuejin Big Kirin (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yuejin Daqilin EH5 4X2(6 wheels) 4m Single Row Pure Electric Dump Truck CATL 140.95kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yuejin Daqilin EH5 4X2(6 wheels) 4m Single Row Pure Electric Dump Truck CATL 140.95kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
