Sinotruk V7-X 31T 8X4(12 wheels) 5.6m battery-swap pure electric dump truck 423kWh

Export reference
MSRP N/A
Cargo box type:: Dump type
GVWR:: 31ton
Origin:: Chengdu, Sichuan
tonnage class:: Heavy truck
Energy Type:: Electric
total rated power:: 360kW
Drive 8X4 (12 wheels)
Battery Brand: CATL
Motor 1 Brand: Langao
Wheelbase: 1800+4025+1350mm

Overview

The Sinotruk V7-X 31T 8X4(12 wheels) 5.6m battery-swap pure electric dump truck 423kWh is a Heavy truck featuring CATL battery/range, Langao motor, 8X4 (12 wheels) drive and Dump type cargo length.

8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Drive type: 8X4
Wheelbase: 1800+4025+1350mm
GVWR: 31ton
Origin: Chengdu, Sichuan
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Brand: Langao
Motor 1 Model: TZ388XSLGE02
Motor Type: Permanent magnet synchronous motor
total rated power: 360kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 423kWh
Transmission Parameters
Number of gears: 9Gear
shift type: AMT manual/auto
Transmission Model: SinotrukHW19709
Cargo box parameters
Cargo box type: Dump type
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
rear axle description: MCP16ZG
Tire
Tire Size: 12.00R20 18PR
Number of tires: 12pcs
interior configuration
Power Windows:
Power Mirrors:
Multimedia features
Center Console Color Screen:

Photos

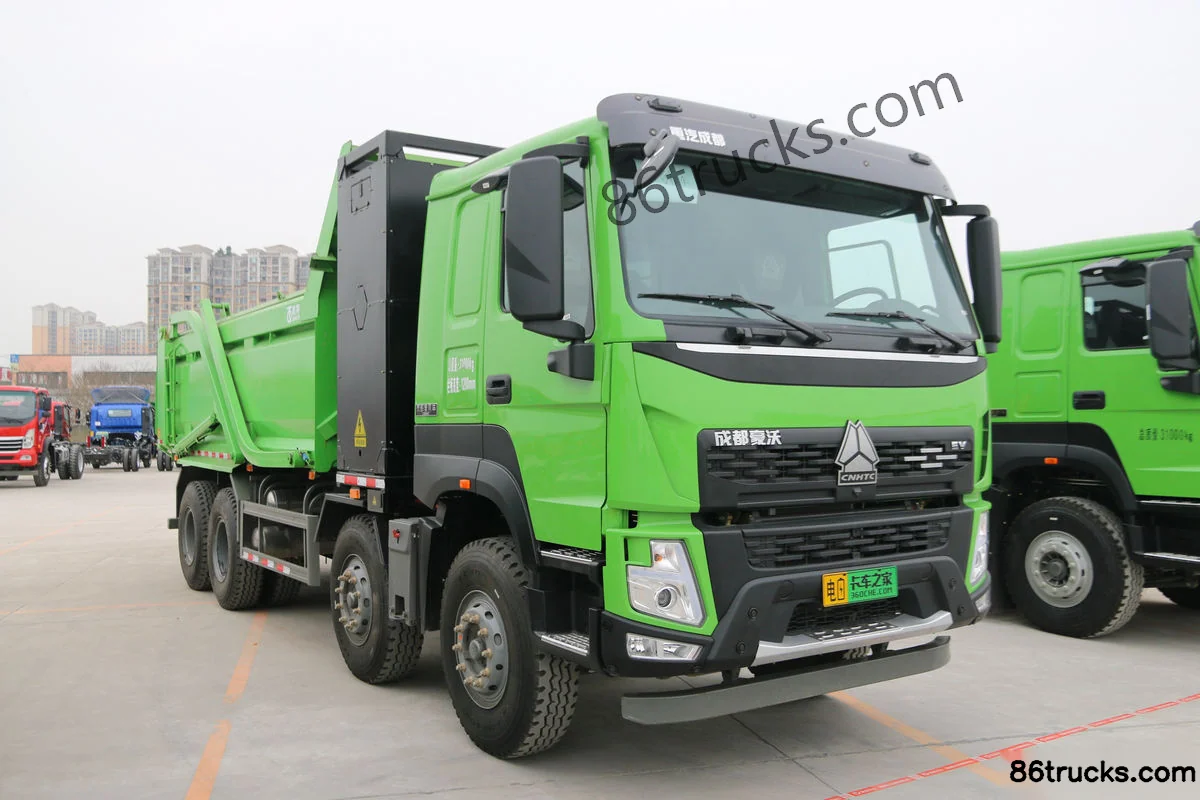

Exterior3

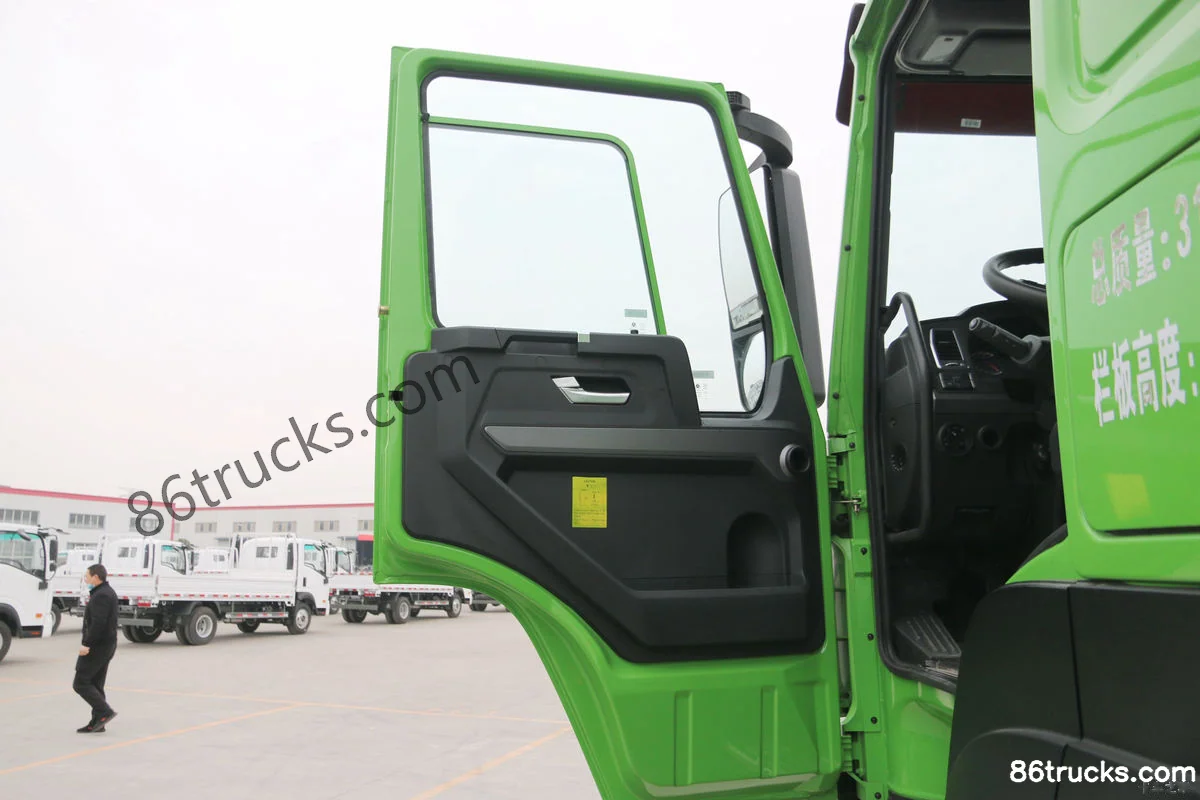

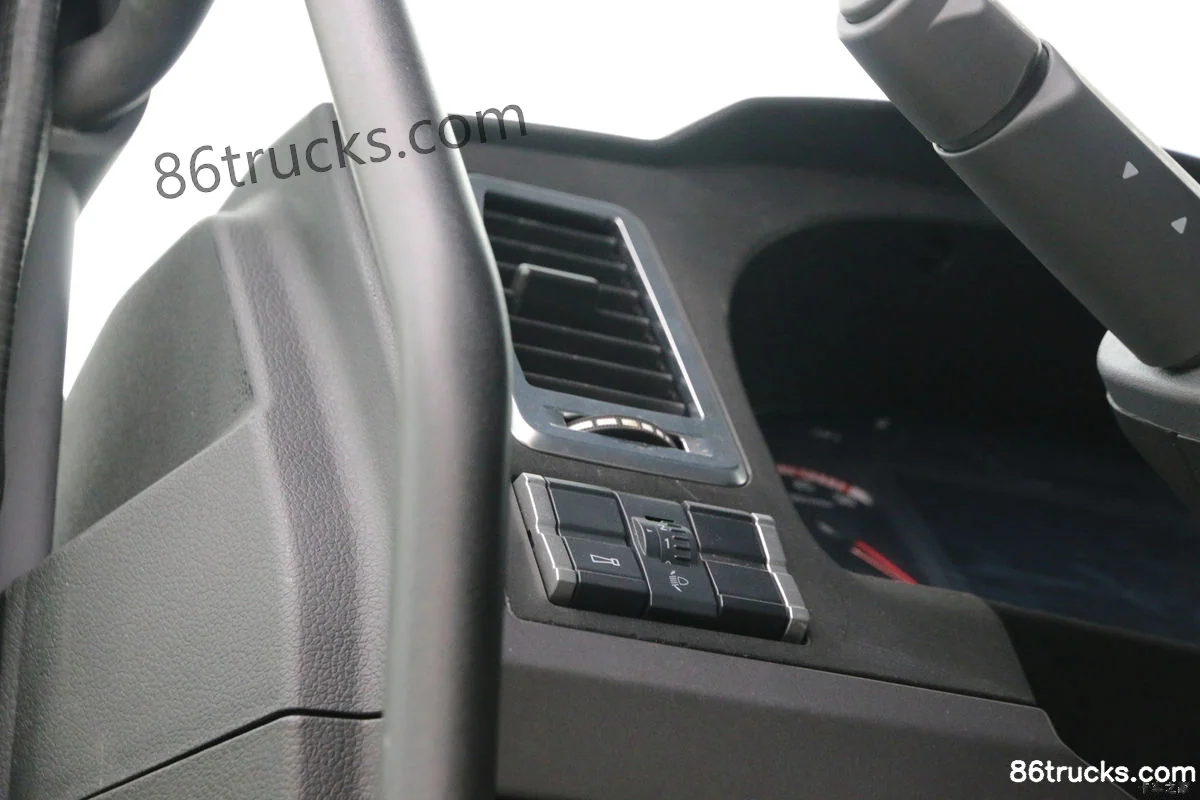

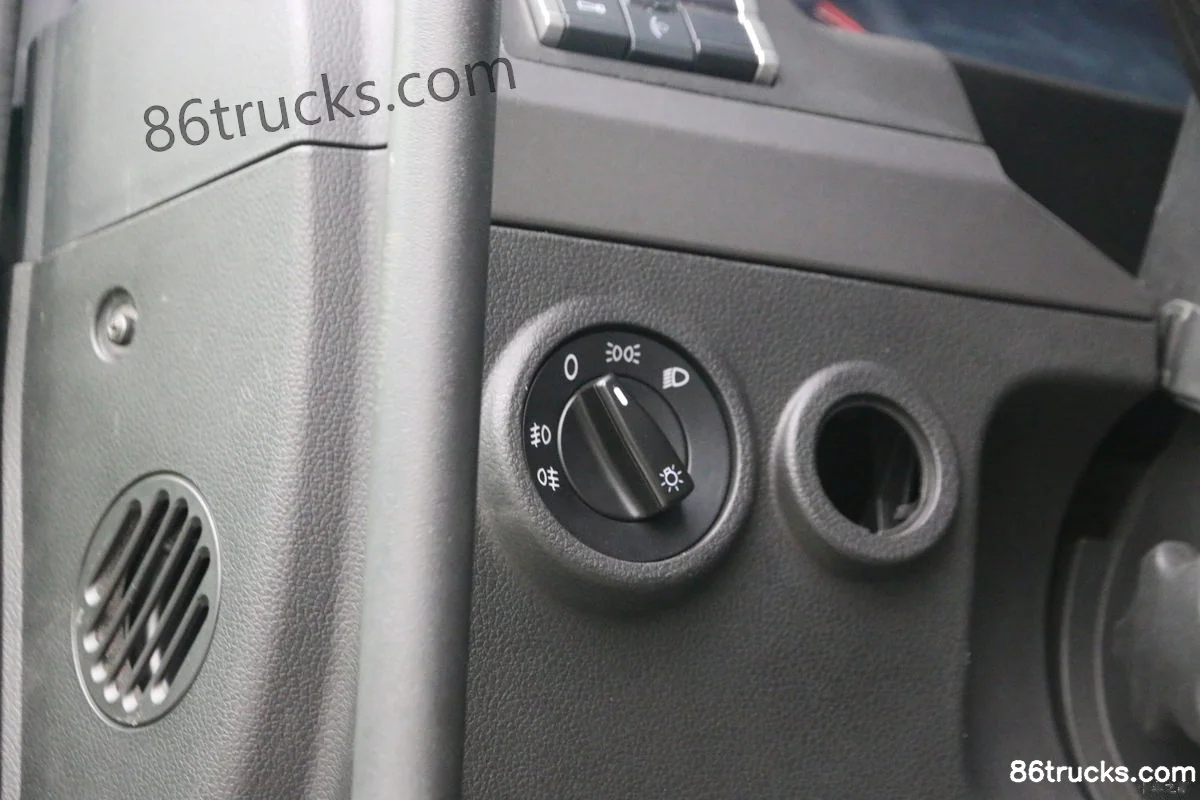

Cab3

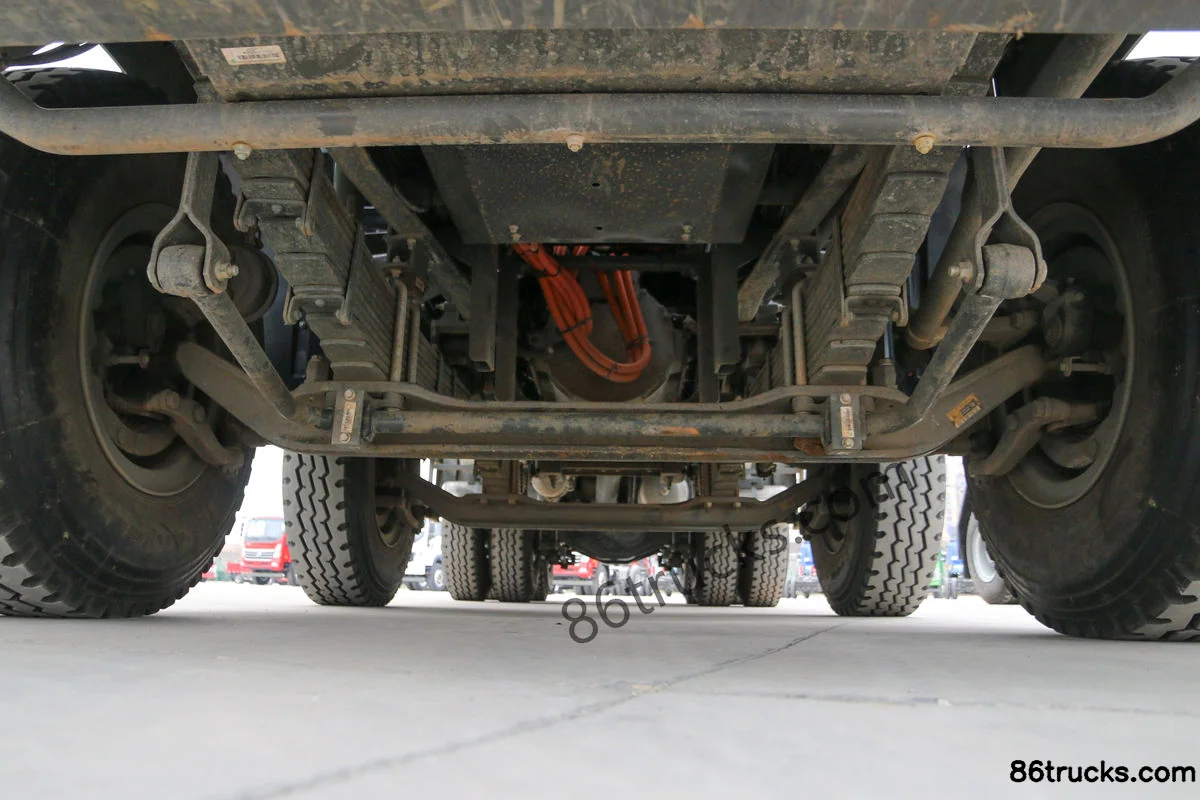

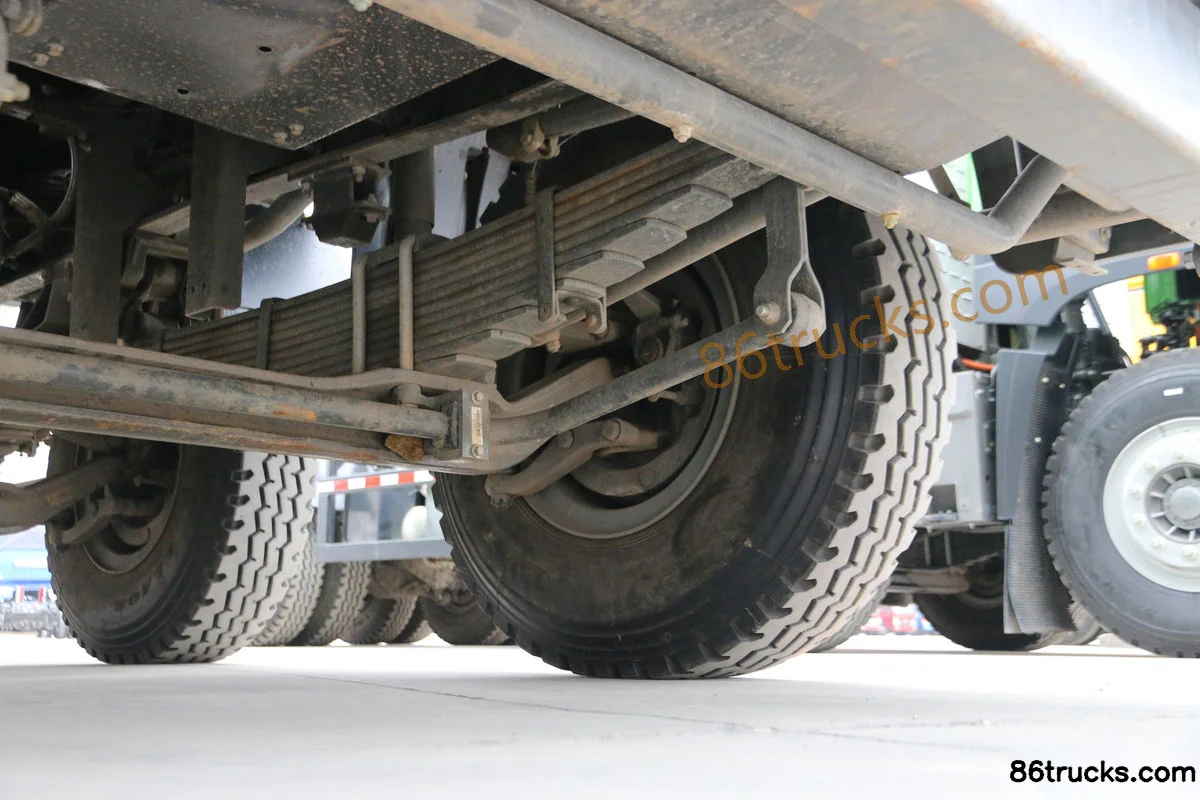

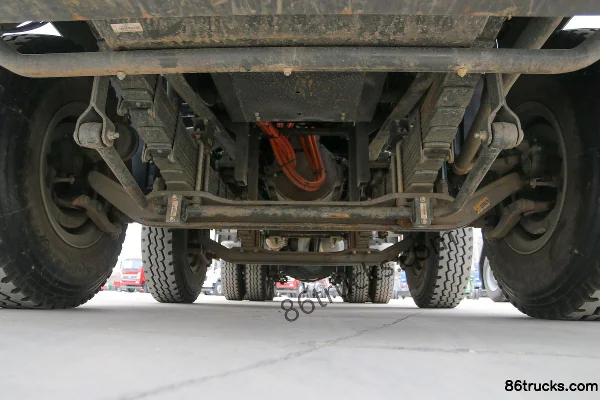

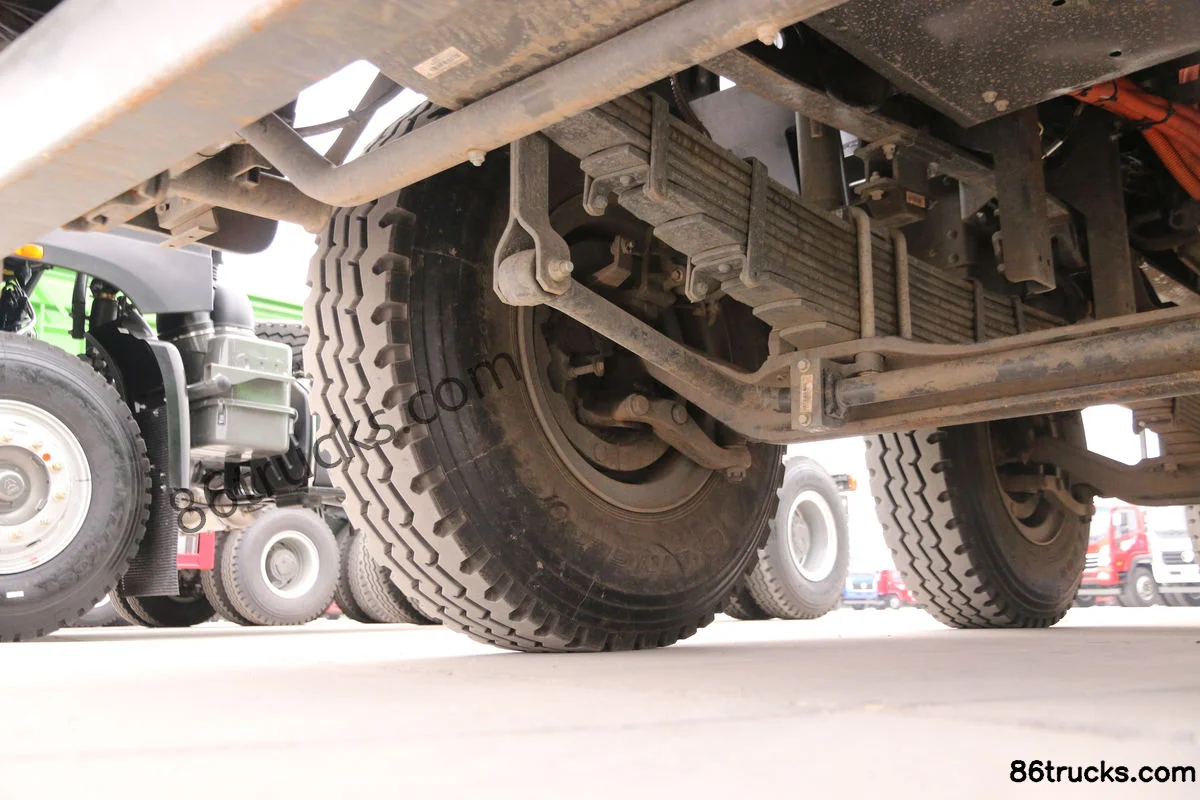

Chassis3

Body3

12 photos

FAQ

What are the key specs of Sinotruk V7-X 31T 8X4(12 wheels) 5.6m battery-swap pure electric dump truck 423kWh?

Key specs of Sinotruk V7-X 31T 8X4(12 wheels) 5.6m battery-swap pure electric dump truck 423kWh: Drive: 8x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk V7-X 31T 8X4(12 wheels) 5.6m battery-swap pure electric dump truck 423kWh suited for?

Sinotruk V7-X 31T 8X4(12 wheels) 5.6m battery-swap pure electric dump truck 423kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk V7-X 31T 8X4(12 wheels) 5.6m battery-swap pure electric dump truck 423kWh differ from other variants in the same series?

Sinotruk V7-X 31T 8X4(12 wheels) 5.6m battery-swap pure electric dump truck 423kWh belongs to SinotrukHOWOV7-X (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk V7-X 31T 8X4(12 wheels) 5.6m battery-swap pure electric dump truck 423kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk V7-X 31T 8X4(12 wheels) 5.6m battery-swap pure electric dump truck 423kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
