Weirn 22.5x7(8 wheels).5 aluminum alloy wheel (Model: S147)

Export reference
MSRP N/A
Product ID:: S147
Max load capacity:: 3550kg
inner offset:: 138mm

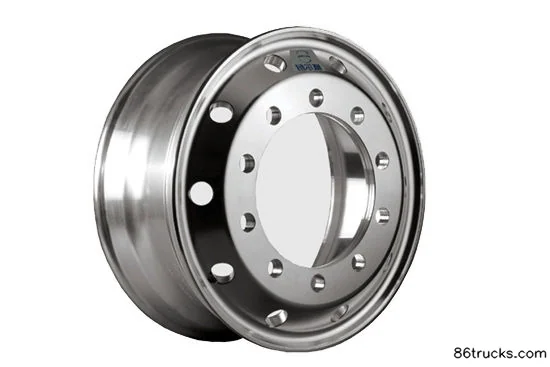

Weirn 22.5x7(8 wheels).5 aluminum alloy wheel (Model: S147) exterior
View more photos (1)
Specifications: 22.5x7.5
Material: aluminum alloy
bolt hole diameter: 26mm

Overview

The Weirn 22.5x7(8 wheels).5 aluminum alloy wheel (Model: S147) is a parts product with spec 22.5x7.5, aluminum alloy material and 26mm size.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Product ID: S147
Specifications: 22.5x7.5
Max load capacity: 3550kg
inner offset: 138mm
Weight: 25.5kg
bolt hole diameter: 26mm
Web plate thickness: 25mm
number of bolt holes: 10
Pitch circle diameter: 335mm
Center Hole Diameter: 281.2mm
Material: aluminum alloy
Reference tire specification: Michelin 11R22.5 XZA 2+ ENERGY；Michelin 275/70R22.5 XZU 3+；
Remarks: Bolt hole diameters: 26mm and 32mm. Suitable for intercity buses, medium-duty trucks, etc. Features Powder Coating (PC) surface treatment, offering outstanding mechanical strength, adhesion, corrosion resistance, aging resistance, and weather resistance. The coating is soft, high-gloss, and not prone to peeling, with good acid and alkali resistance and corrosion resistance, making daily maintenance easier.

Photos

Exterior1

Weirn 22.5x7(8 wheels).5 aluminum alloy wheel (Model: S147) Exterior (1) | 86Trucks

1 photos

FAQ

What transport jobs is Weirn 22.5x7(8 wheels).5 aluminum alloy wheel (Model: S147) suited for?

Match Weirn 22.5x7(8 wheels).5 aluminum alloy wheel (Model: S147) to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Weirn 22.5x7(8 wheels).5 aluminum alloy wheel (Model: S147) differ from other variants in the same series?

Weirn 22.5x7(8 wheels).5 aluminum alloy wheel (Model: S147) belongs to Weirn 22.5-inch Wheel (Wheel). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Weirn 22.5x7(8 wheels).5 aluminum alloy wheel (Model: S147)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Weirn 22.5x7(8 wheels).5 aluminum alloy wheel (Model: S147)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
