JAC Gallop A5L medium truck 220hp 4X2(6 wheels) 6.8m cage cargo truck (China VI)

Export reference
From $29,167
MSRP ¥21M CNY
Horsepower: 220
Emission: China VI
Fuel: Diesel
Engine: Yunnei Dewei D45
Transmission: Fast Gear
Curb Weight:: 8.15ton
seating capacity: 2Personnel
Rated payload: 9.72ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The JAC Gallop A5L medium truck 220hp 4X2(6 wheels) 6.8m cage cargo truck (China VI) is a Medium-duty truck featuring 6.8m cargo length, Stake type cargo body, 2Personnel volume and 9.72t payload. Its segment focus covers Agricultural product transport, green channel and industrial product transport, matching those duty cycles. On the powertrain side, it comes with a Yunnei Dewei D45 engine, 220 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 220 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5181CCYP3K2A50DS
Type: stake truck
Drive type: 4X2
Wheelbase: 5000mm
Box length class: 6.8m
engine: Yunnei PowerD45TCIF1
transmission: Fast Gear8JS85TC
Rear Axle Ratio: 4.333
Cab length: 9m
Cab width: 2.55m
Cab height: 3.96m
Front track width: 1920mm
rear track: 1800mm
Curb Weight: 8.15ton
Rated payload: 9.72ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Hefei, Anhui
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 10°
market segment: Agricultural product transport, green channel, industrial product transport
Remarks: Optional ratio 4.875, standard high/low beam headlights, brake lining wear alarm, right-turn alarm, telematics system, optional blind spot view
Front/rear suspension: 1.4/2.6m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD45TCIF1
Engine info: Yunnei Dewei D45
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.461L
Emission standard: China VI
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 810N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Transmission Parameters
Transmission Model: Fast Gear8JS85TC
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 6.8m
Cargo box width: 2.46m
*Cargo box interior width: 2.460000038147
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle description: I-beam section
Front axle allowable load: 6500kg
rear axle description: Single-stage reduction
rear axle allowable load: 11500kg
Axle ratio: 4.333
Leaf spring count: 3/9+7,3/4+3
Maintenance-free wheel end:
Tire
Tire Size: 11R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
EBS electronic braking system:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
interior configuration
Steering Wheel Material: leather
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: leather
Reverse Camera:
Remote key:
Electronic Central Lock:
Independent AC:
Exterior features
Air deflector:
Aluminum air tank:
Diesel primary filter heating:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
lighting configuration
Headlight brand: none
Front fog lamp:
daytime running lights:
Headlight height adjustment:
LED taillight:
Halogen Headlights: none
Service brake
Brake Type: Air brake
Parking brake: Spring brake
hydraulic retarder:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):
Emergency Brake Assist (EBA):
adaptive cruise control (ACC):
Tire Pressure Monitoring System (TPMS):
Lane change assist (ALC):
Fatigue driving monitoring:

Photos

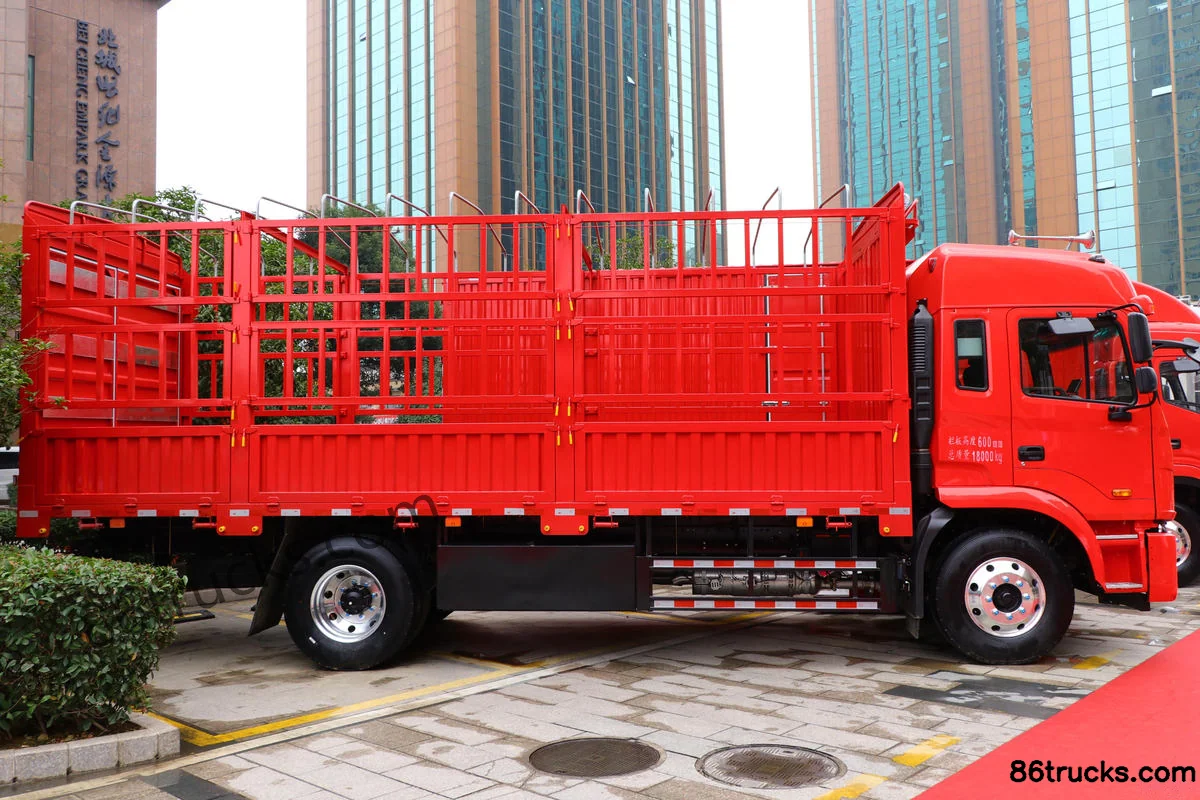

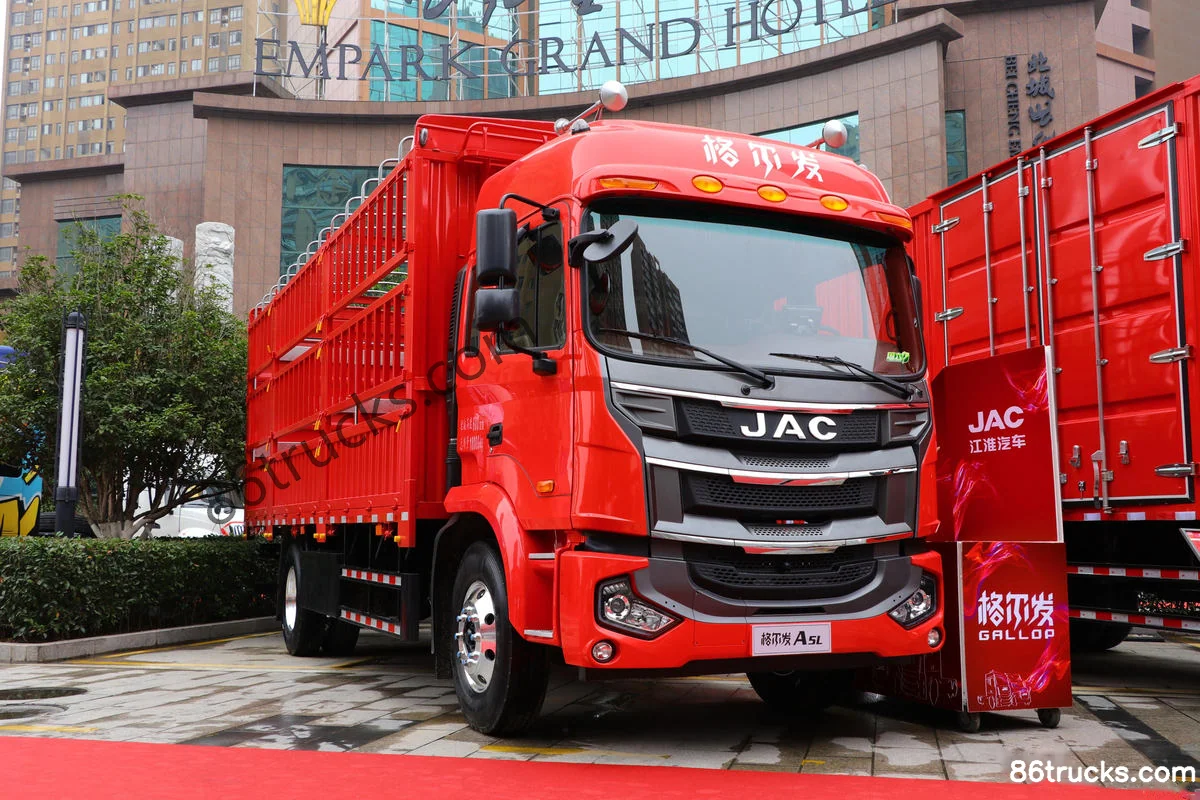

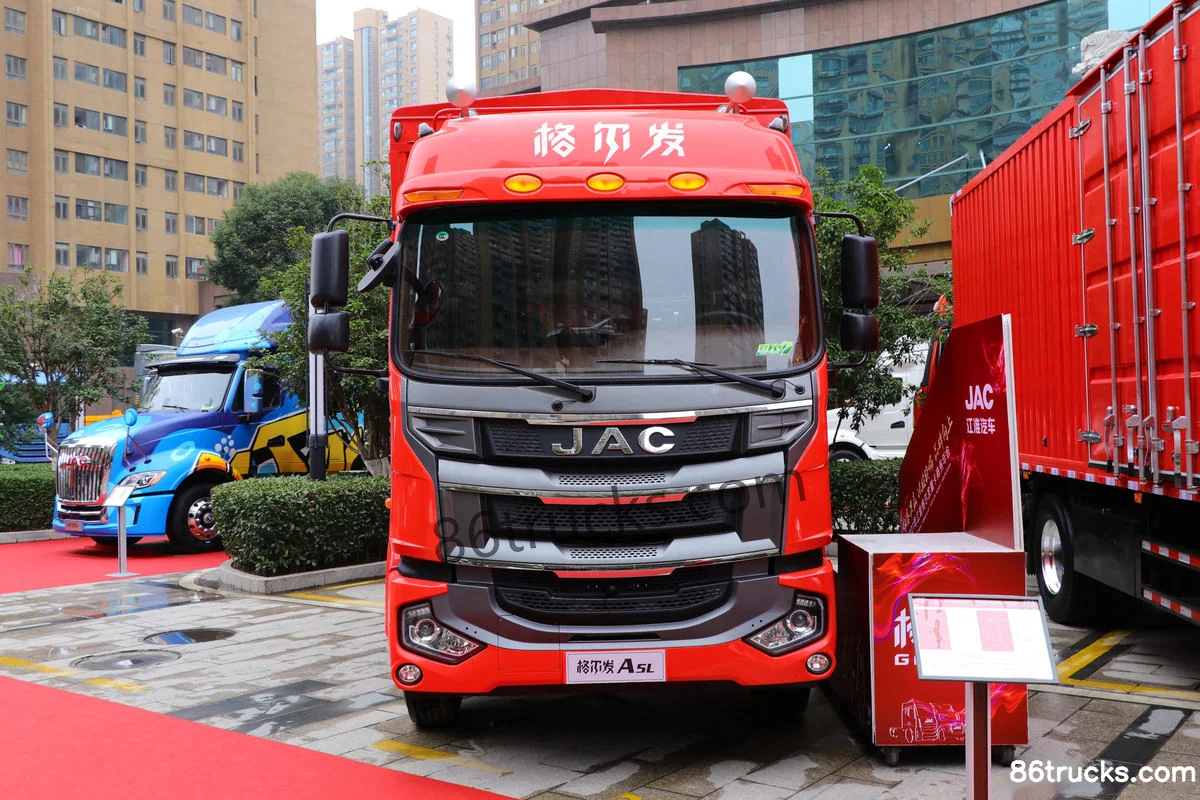

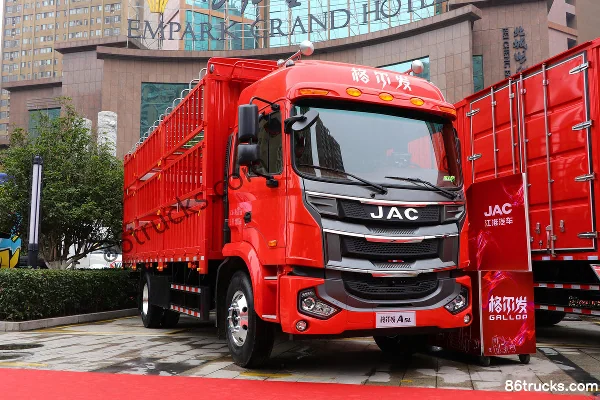

Exterior3

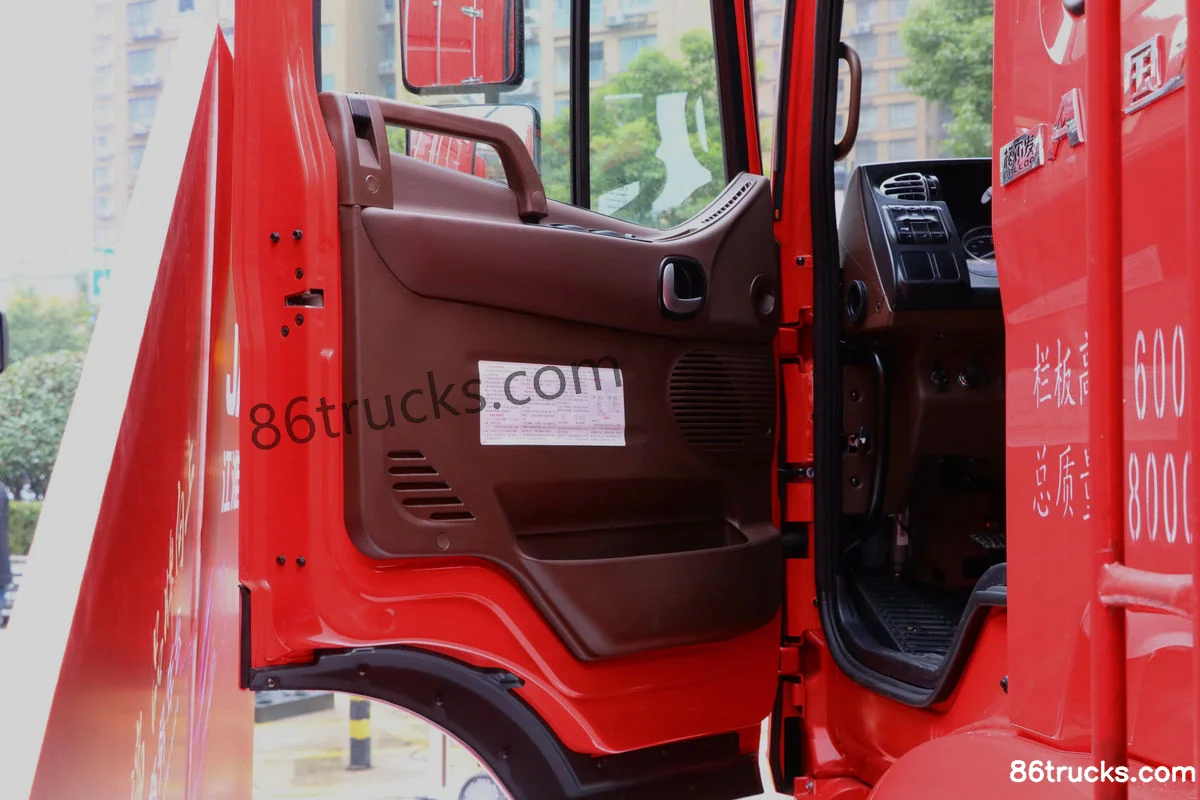

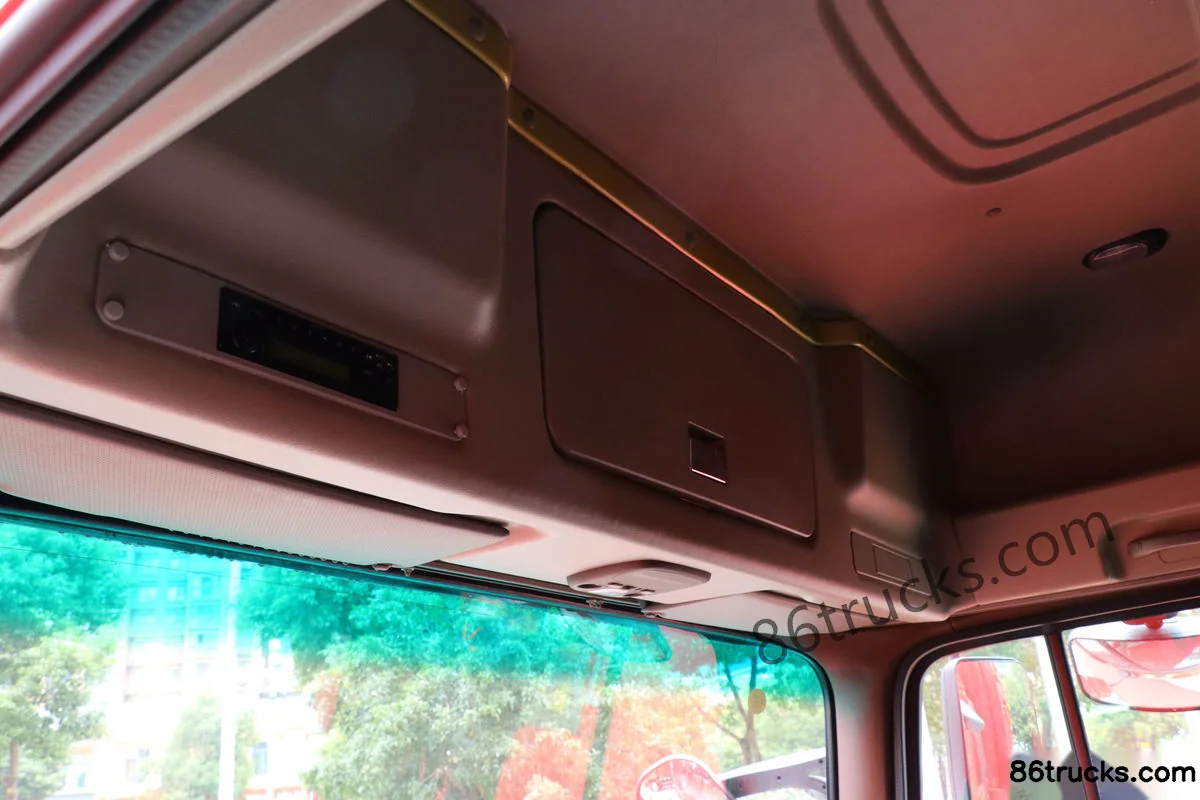

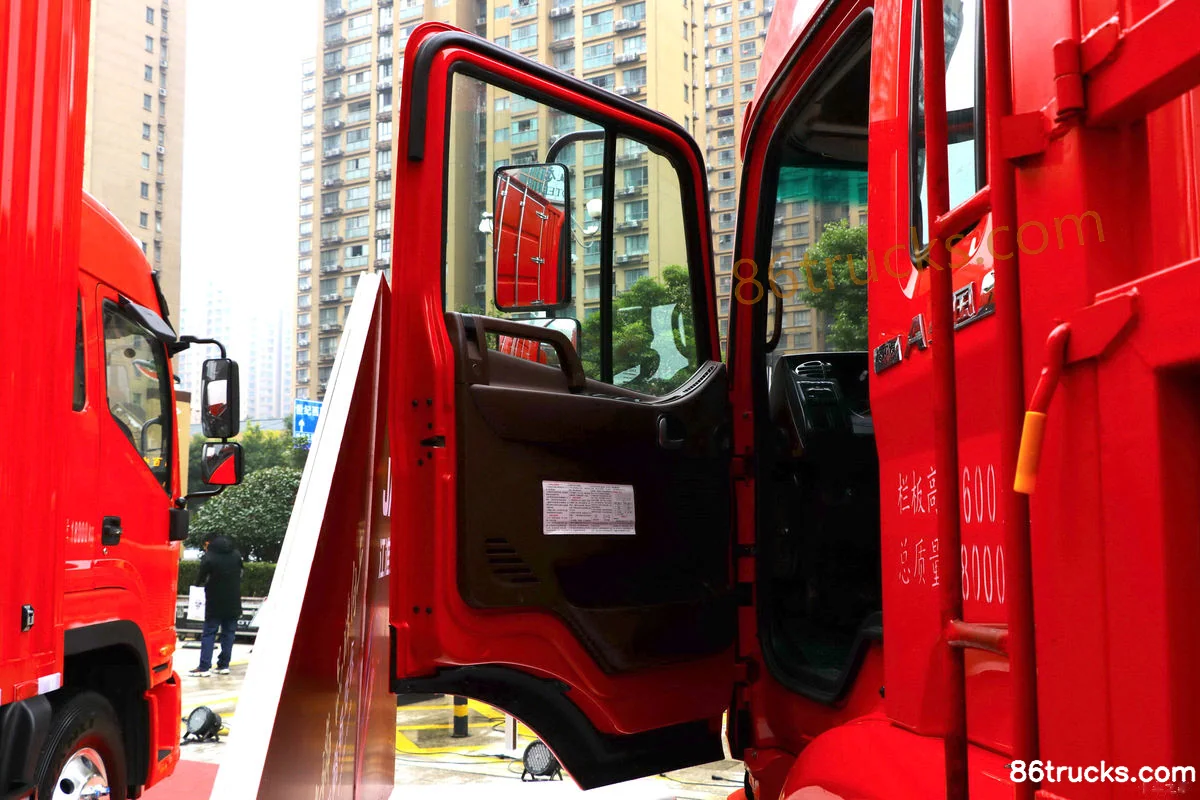

Cab3

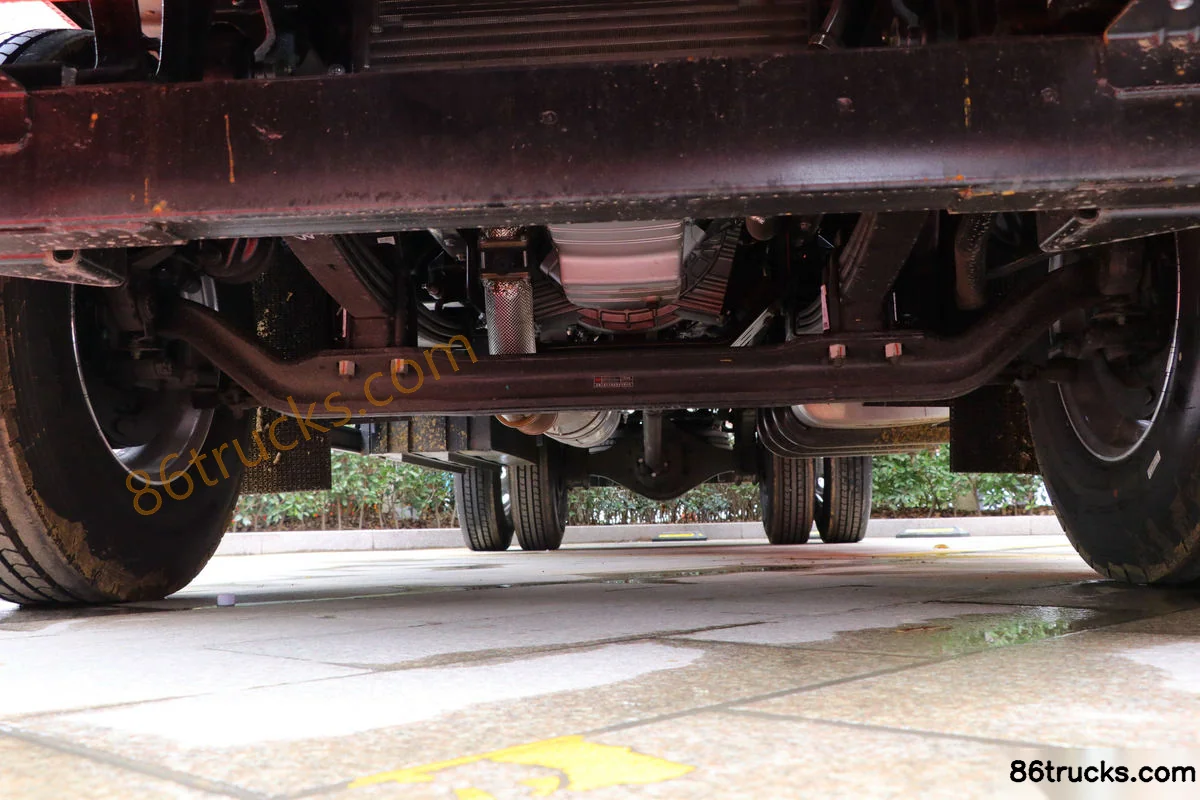

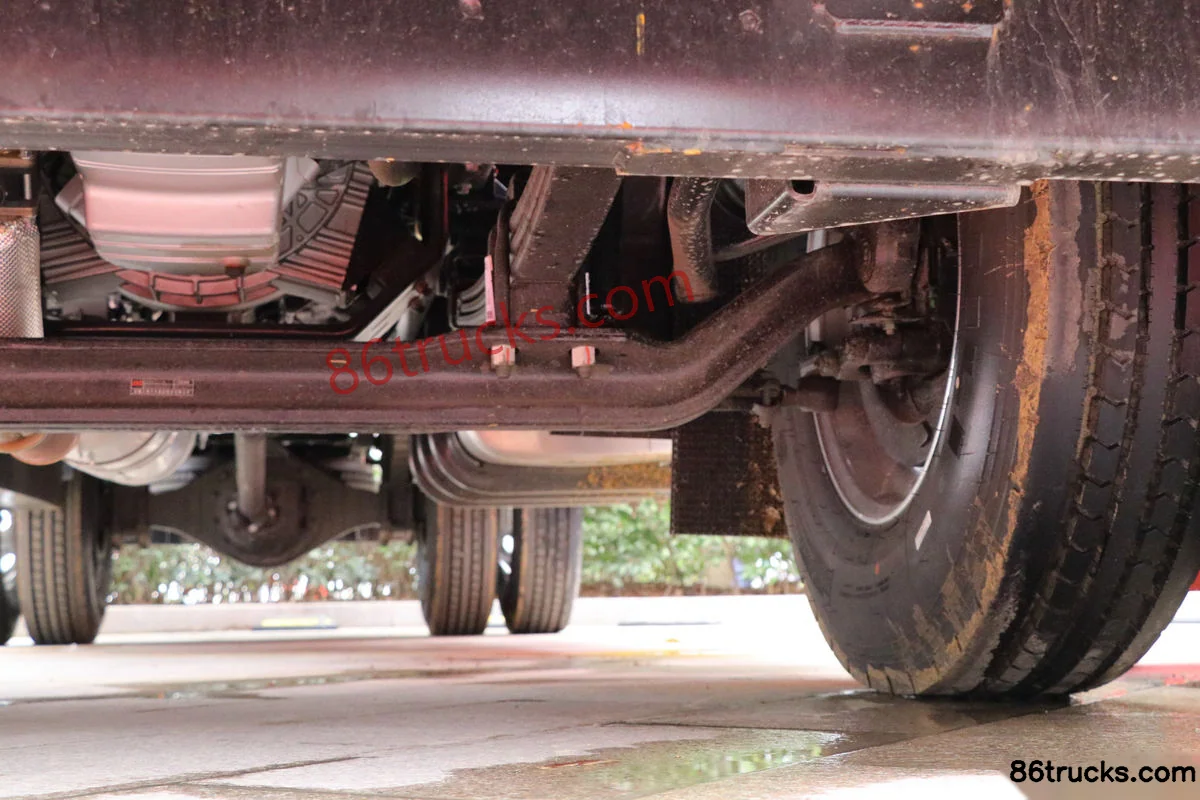

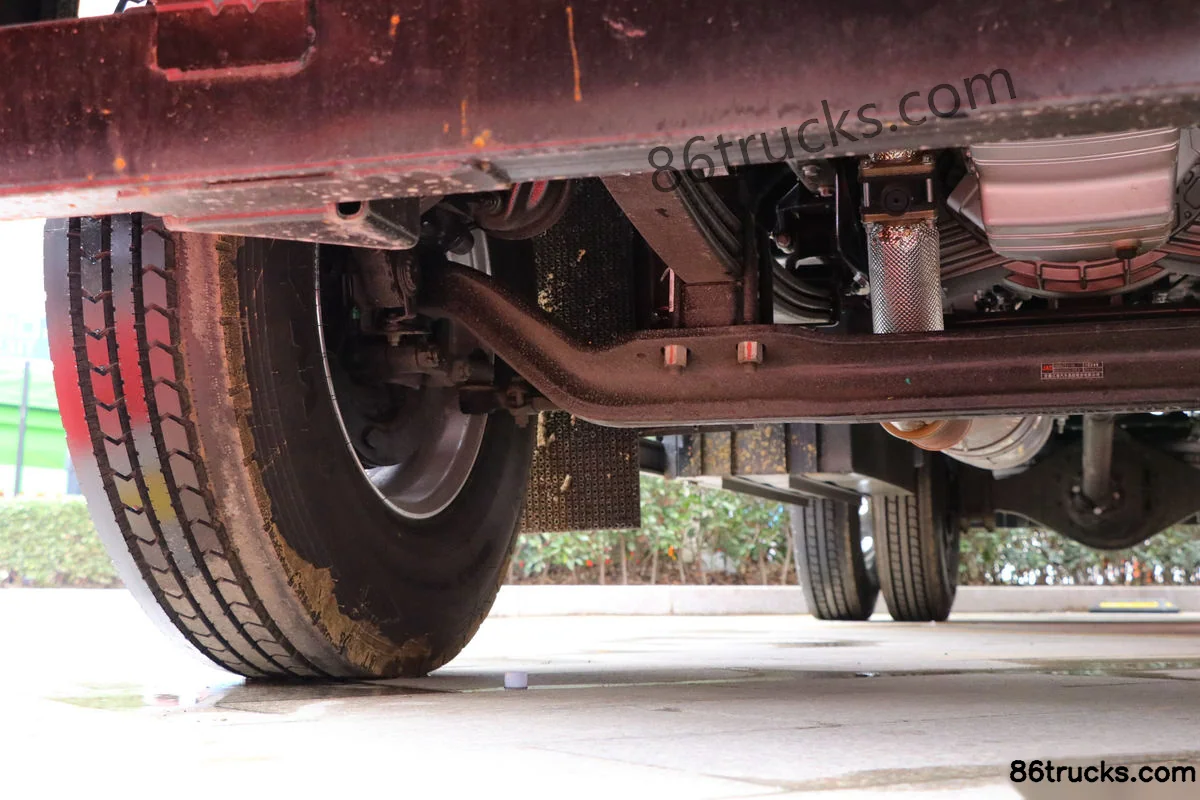

Chassis3

9 photos

FAQ

What is the export price of JAC Gallop A5L medium truck 220hp 4X2(6 wheels) 6.8m cage cargo truck (China VI), and what does it include?

JAC Gallop A5L medium truck 220hp 4X2(6 wheels) 6.8m cage cargo truck (China VI) export reference is about From $29,167; MSRP is ¥21M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Gallop A5L medium truck 220hp 4X2(6 wheels) 6.8m cage cargo truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop A5L medium truck 220hp 4X2(6 wheels) 6.8m cage cargo truck (China VI)?

Key specs of JAC Gallop A5L medium truck 220hp 4X2(6 wheels) 6.8m cage cargo truck (China VI): Drive: 4x2; Horsepower: 220 hp; Emission: China VI; Fuel: Diesel; Engine: Yunnei Dewei D45; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop A5L medium truck 220hp 4X2(6 wheels) 6.8m cage cargo truck (China VI) suited for?

JAC Gallop A5L medium truck 220hp 4X2(6 wheels) 6.8m cage cargo truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Gallop A5L medium truck 220hp 4X2(6 wheels) 6.8m cage cargo truck (China VI) differ from other variants in the same series?

JAC Gallop A5L medium truck 220hp 4X2(6 wheels) 6.8m cage cargo truck (China VI) belongs to JAC Gallop A5 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop A5L medium truck 220hp 4X2(6 wheels) 6.8m cage cargo truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop A5L medium truck 220hp 4X2(6 wheels) 6.8m cage cargo truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
