Kama Ruijie ES4200 3.15T 2.67m Electric Closed Logistics Van 40.78kWh

Export reference
From $19,000
MSRP ¥13.68M CNY
Wheelbase:: 3050mm
Cargo box volume:: 5.59
Model code (announced):: KMC5032XXYBEV305M6
Cab length:: 4.865m
GVWR:: 3.15ton
Max. speed:: 90km/h
Kama Ruijie ES4200 3.15T 2.67m Electric Closed Logistics Van 40.78kWh exterior
View more photos (12)
CLTC range: 200km
Motor 1 Brand: Inovance
Curb Weight: 1.66ton
Rated payload: 1.36ton

Overview

The Kama Ruijie ES4200 3.15T 2.67m Electric Closed Logistics Van 40.78kWh is a Electric Panel Van featuring 200km battery/range, Inovance motor, 1.36t payload and 5.59 cargo length.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): KMC5032XXYBEV305M6
Wheelbase: 3050mm
Cab length: 4.865m
Cab width: 1.715m
Cab height: 1.995m
CLTC range: 200km
Curb Weight: 1.66ton
Rated payload: 1.36ton
GVWR: 3.15ton
Max. speed: 90km/h
Energy Type: Electric
electric motor
Motor 1 Brand: Inovance
Motor 1 Model: TZ180XS105
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 30kW
Peak power: 70kW
total rated torque: 107N·m
total peak torque: 220N·m
Electronic Control
ECU Brand: Kama
Battery/Charging
Battery Brand: Anchi
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 40.78kWh
Energy Density: 141.27
Battery total voltage: 345.6V
Battery Model: IFP23140160-61.5Ah
Body parameters
Cargo box volume: 5.59
Max body depth: 2.67
Max body width: 1.55
Cargo Box Height: 1.35
Chassis Specs
Front suspension type: Independent suspension
rear suspension type: Leaf spring
Body Parameters
Seat count: 2Seats
Door Parameters
Number of Doors: 4
side door type: Side door
Tailgate type: double doors
Cab parameters
Seat rows:
Wheel brake
Front tire specification: 185R14LT 8PR,185R15LT 8PR,195R15LT 8PR
Rear Wheel Specification: 185R14LT 8PR,185R15LT 8PR,195R15LT 8PR
Safety features
Central door lock:
Control configuration
ABS:
interior configuration
AC control type: Automatic

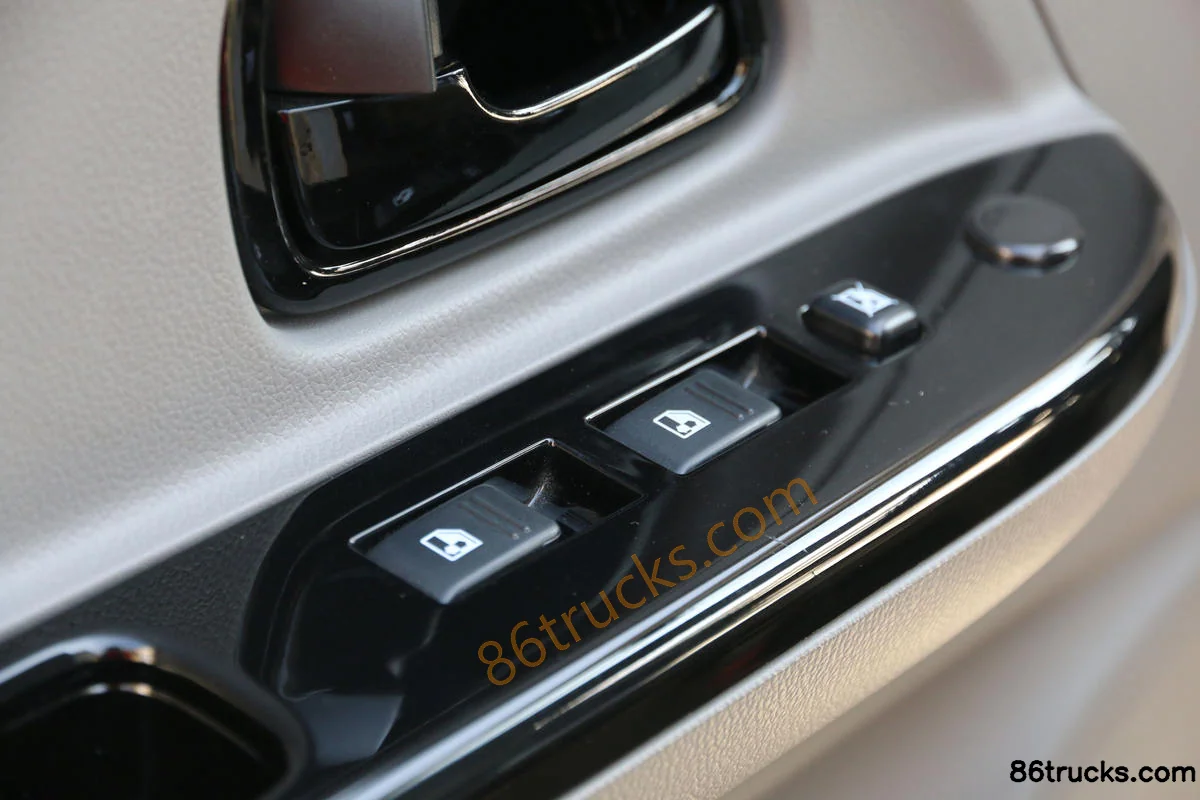

Power Windows:
Multimedia features
GPS/Beidou driving recorder:

Photos

Exterior3

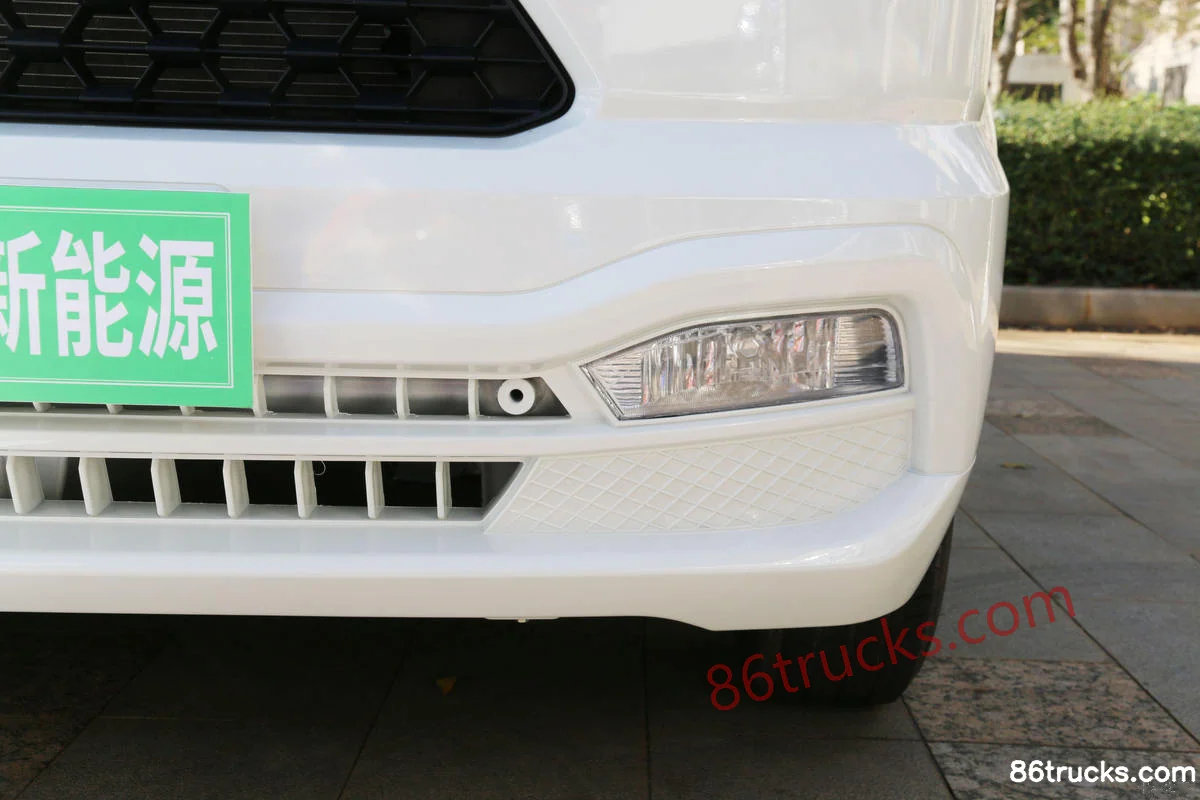

Kama Ruijie ES4200 3.15T 2.67m Electric Closed Logistics Van 40.78kWh Exterior (1) | 86Trucks Kama Ruijie ES4200 3.15T 2.67m Electric Closed Logistics Van 40.78kWh Exterior (2) | 86Trucks Kama Ruijie ES4200 3.15T 2.67m Electric Closed Logistics Van 40.78kWh Exterior (3) | 86Trucks

Cab3

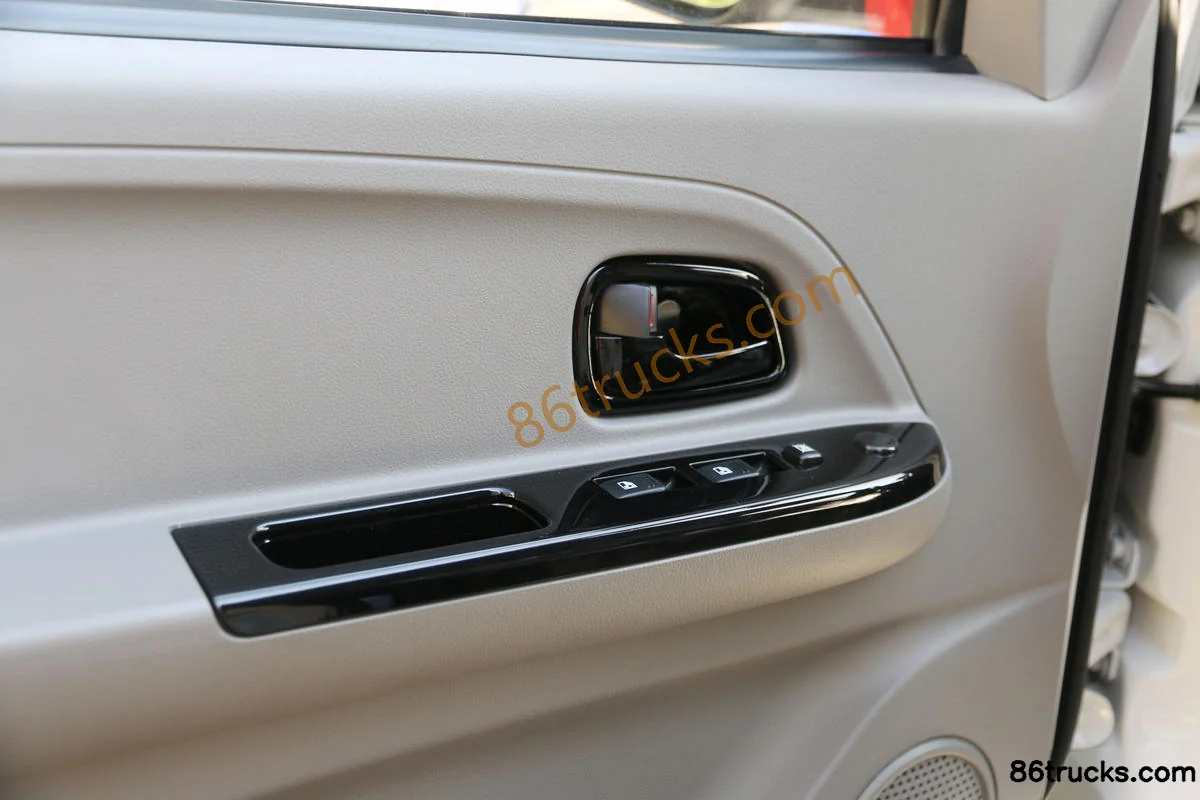

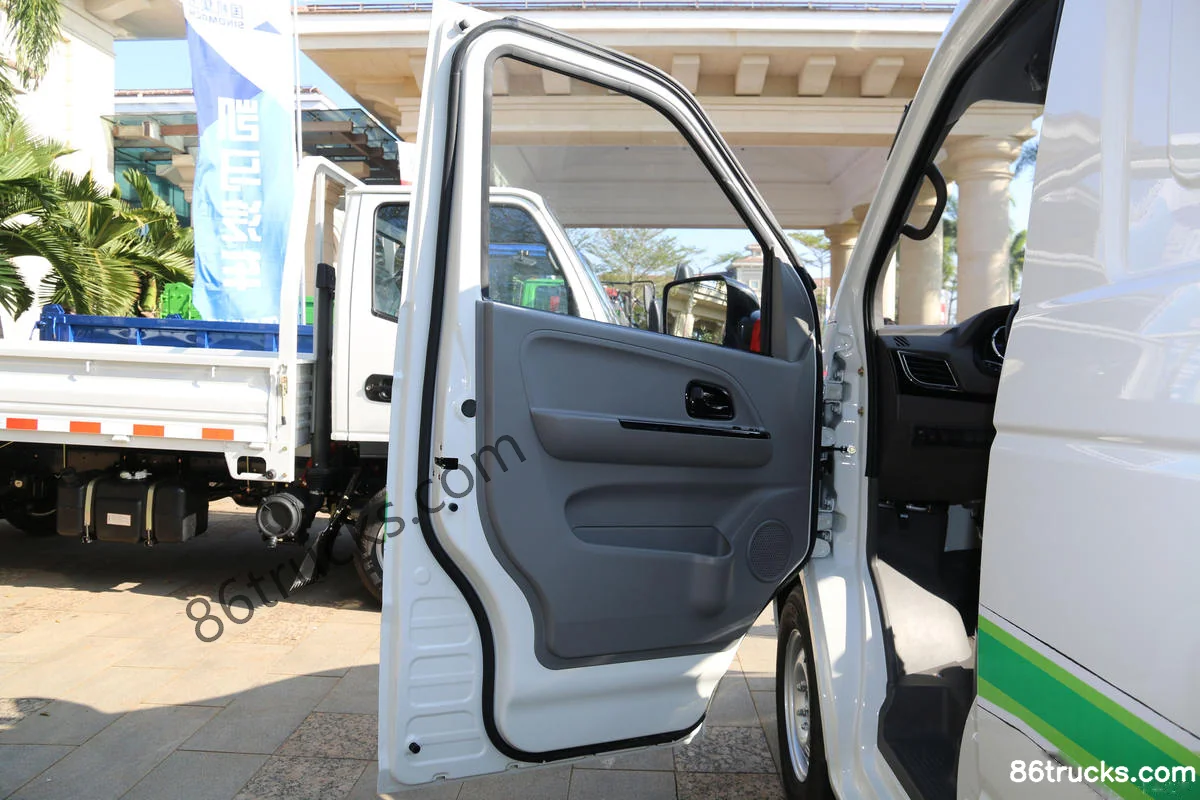

Kama Ruijie ES4200 3.15T 2.67m Electric Closed Logistics Van 40.78kWh Cab (1) | 86Trucks Kama Ruijie ES4200 3.15T 2.67m Electric Closed Logistics Van 40.78kWh Cab (2) | 86Trucks Kama Ruijie ES4200 3.15T 2.67m Electric Closed Logistics Van 40.78kWh Cab (3) | 86Trucks

Chassis3

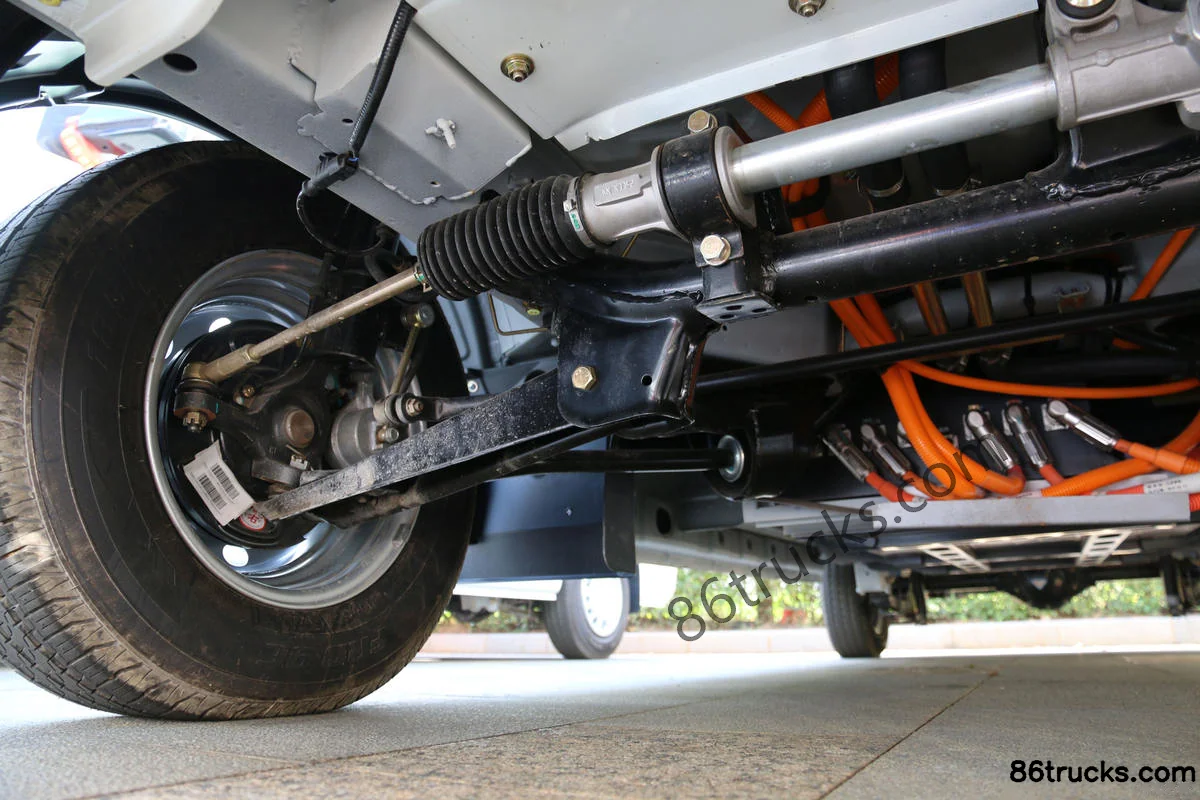

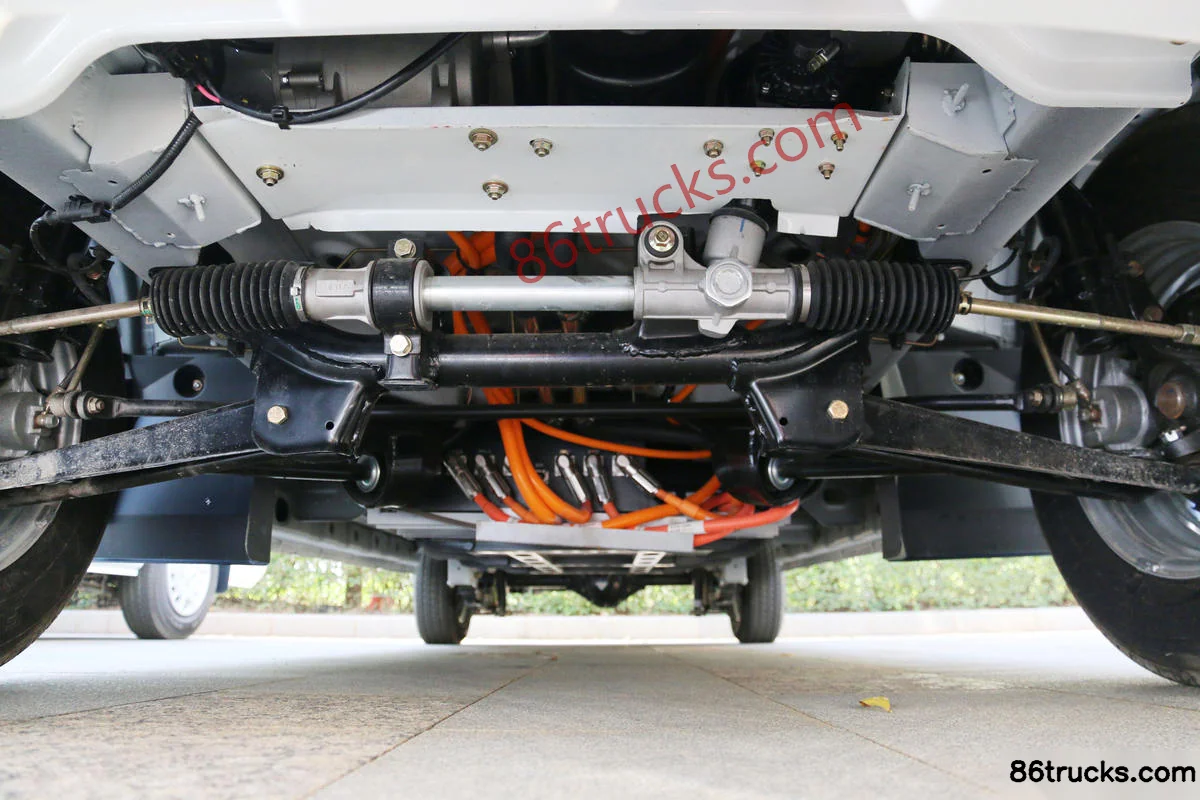

Kama Ruijie ES4200 3.15T 2.67m Electric Closed Logistics Van 40.78kWh Chassis (1) | 86Trucks Kama Ruijie ES4200 3.15T 2.67m Electric Closed Logistics Van 40.78kWh Chassis (2) | 86Trucks Kama Ruijie ES4200 3.15T 2.67m Electric Closed Logistics Van 40.78kWh Chassis (3) | 86Trucks

Body3

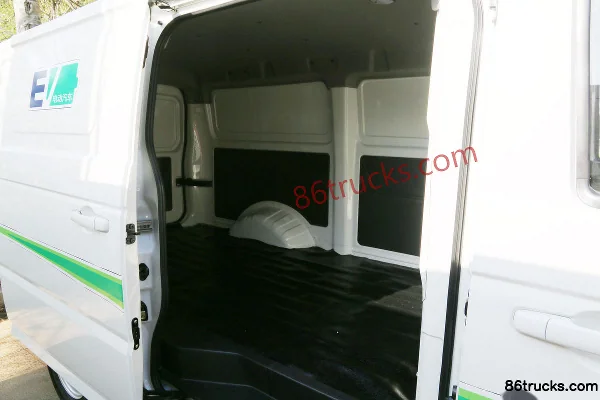

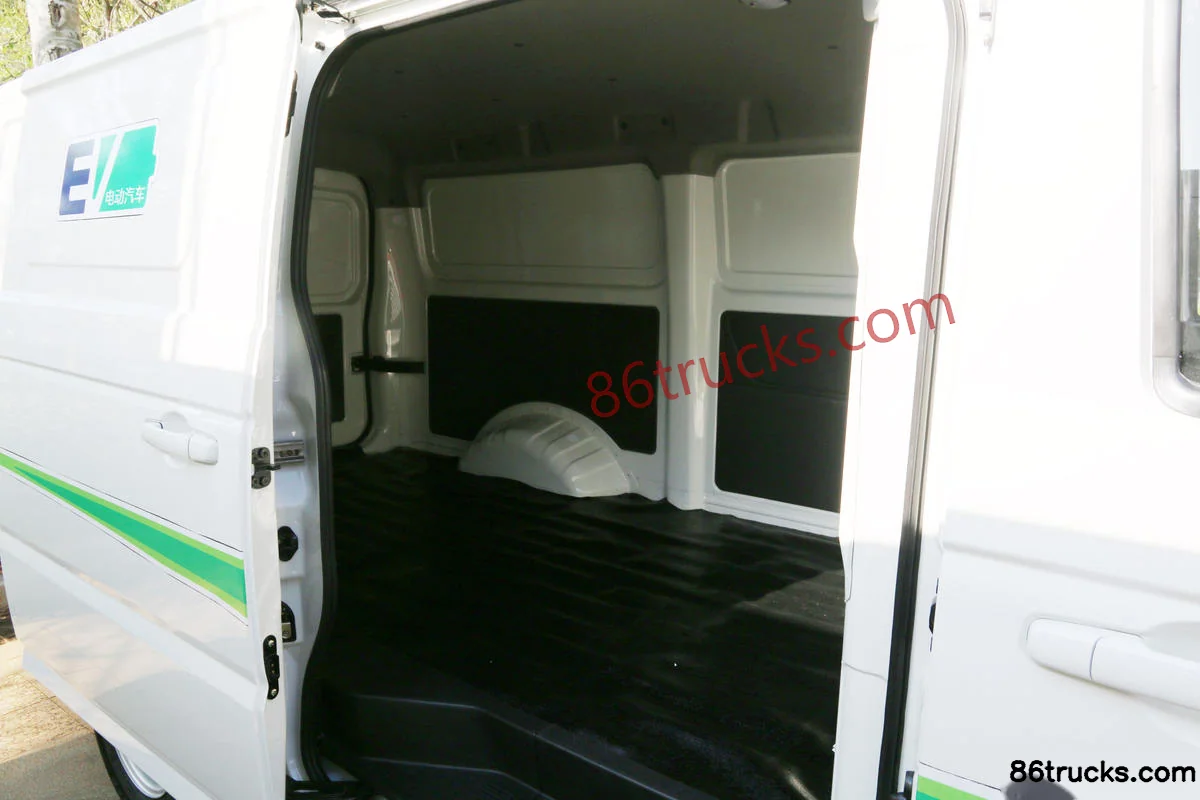

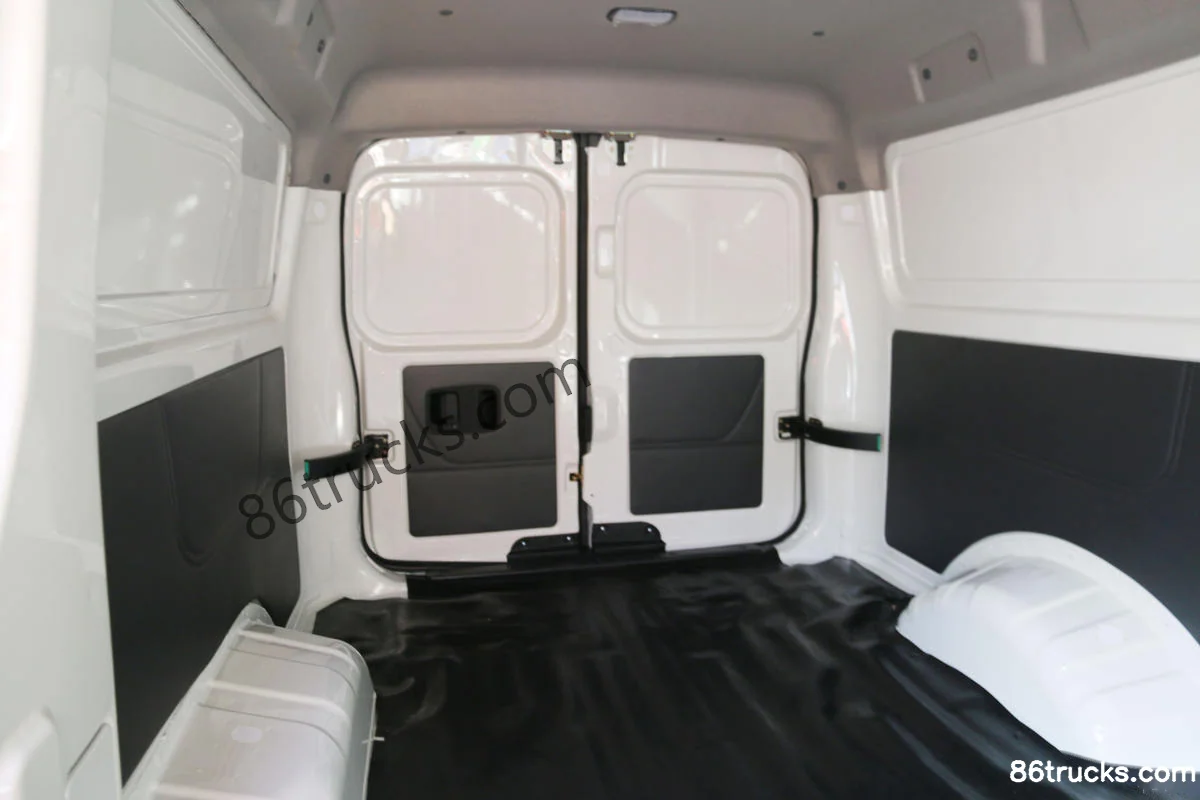

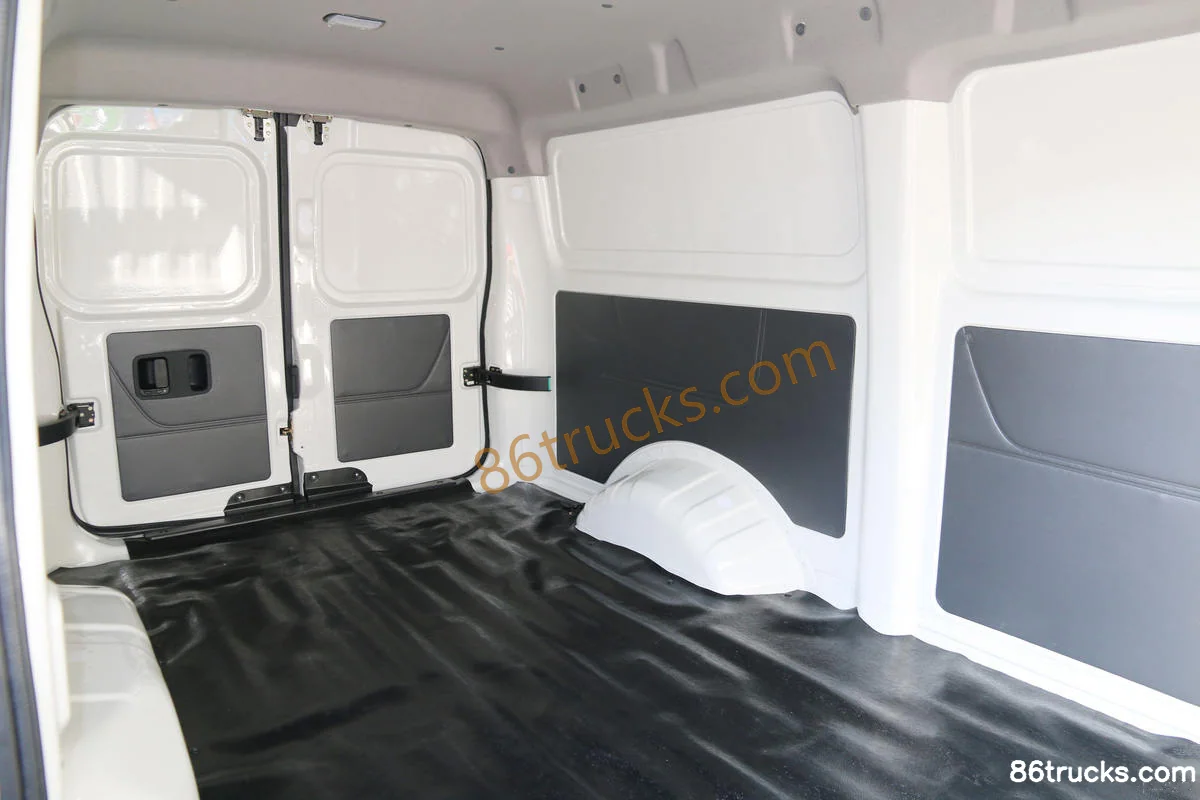

Kama Ruijie ES4200 3.15T 2.67m Electric Closed Logistics Van 40.78kWh Body (1) | 86Trucks Kama Ruijie ES4200 3.15T 2.67m Electric Closed Logistics Van 40.78kWh Body (2) | 86Trucks Kama Ruijie ES4200 3.15T 2.67m Electric Closed Logistics Van 40.78kWh Body (3) | 86Trucks

12 photos

FAQ

What is the export price of Kama Ruijie ES4200 3.15T 2.67m Electric Closed Logistics Van 40.78kWh, and what does it include?

Kama Ruijie ES4200 3.15T 2.67m Electric Closed Logistics Van 40.78kWh export reference is about From $19,000; MSRP is ¥13.68M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Kama Ruijie ES4200 3.15T 2.67m Electric Closed Logistics Van 40.78kWh suited for?

Kama Ruijie ES4200 3.15T 2.67m Electric Closed Logistics Van 40.78kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Kama Ruijie ES4200 3.15T 2.67m Electric Closed Logistics Van 40.78kWh differ from other variants in the same series?

Kama Ruijie ES4200 3.15T 2.67m Electric Closed Logistics Van 40.78kWh belongs to Kama Ruijie S (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama Ruijie ES4200 3.15T 2.67m Electric Closed Logistics Van 40.78kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama Ruijie ES4200 3.15T 2.67m Electric Closed Logistics Van 40.78kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
