Sinotruk Sitrak C5H 340 hp 8X4(12 wheels) 9.5m Refrigerated Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Curb Weight:: 13.26ton
Wheelbase:: 1800+4600+1350mm
Tire Size:: 11.00R20,295/80R22.5
Cab dimensions:: 12×2.6×3.98m
Rated payload: 17.61ton
Drive 8X4 (12 wheels)
Cargo box dimensions: 9.45×2.45×2.5m
Horsepower 340

Overview

The Sinotruk Sitrak C5H 340 hp 8X4(12 wheels) 9.5m Refrigerated Truck is a Refrigerated Truck featuring 9.45×2.45×2.5m cargo body, 17.61t payload, 12×2.6×3.98m cab and 1800+4600+1350mm wheelbase. On the powertrain side, it comes with 340 hp, 8X4 (12 wheels) drive, China V emissions and Diesel fuel.

China V 340 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 12×2.6×3.98m
Truck Type: Refrigerated Truck
Drive type: 8X4
Wheelbase: 1800+4600+1350mm
Vehicle origin: Jinan, Shandong
Front track width: 2015/2015mm
rear track: 1830/1830mm
Curb Weight: 13.26ton
Rated payload: 17.61ton
Max. speed: 110km/h
Front/rear suspension: 1.43/2.79m
Energy Type: Diesel
Engine parameters
Engine Model: SinotrukMC07.34-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 248kW
Max hp: 340Horsepower
Max torque: 1250N·m
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Cargo box parameters
Cargo box dimensions: 9.45×2.45×2.5m
Cargo box width: 2.45m
Cargo box height: 2.5m
Body Parameters
Vehicle certification code: ZZ5316XLCN466GE1
Body Brand: Sitrak
Chassis Specs
Chassis Brand: Sitrak
Chassis Series: SITRAK C5H
Chassis Model: ZZ1316N466GE1
Axle ratio: 4.8
Leaf spring count: 3/3/4
Transmission Parameters
Number of gears: 12Gear
Transmission Model: SinotrukHW12
Tire
Tire Size: 11.00R20,295/80R22.5
Number of tires: 12pcs

Photos

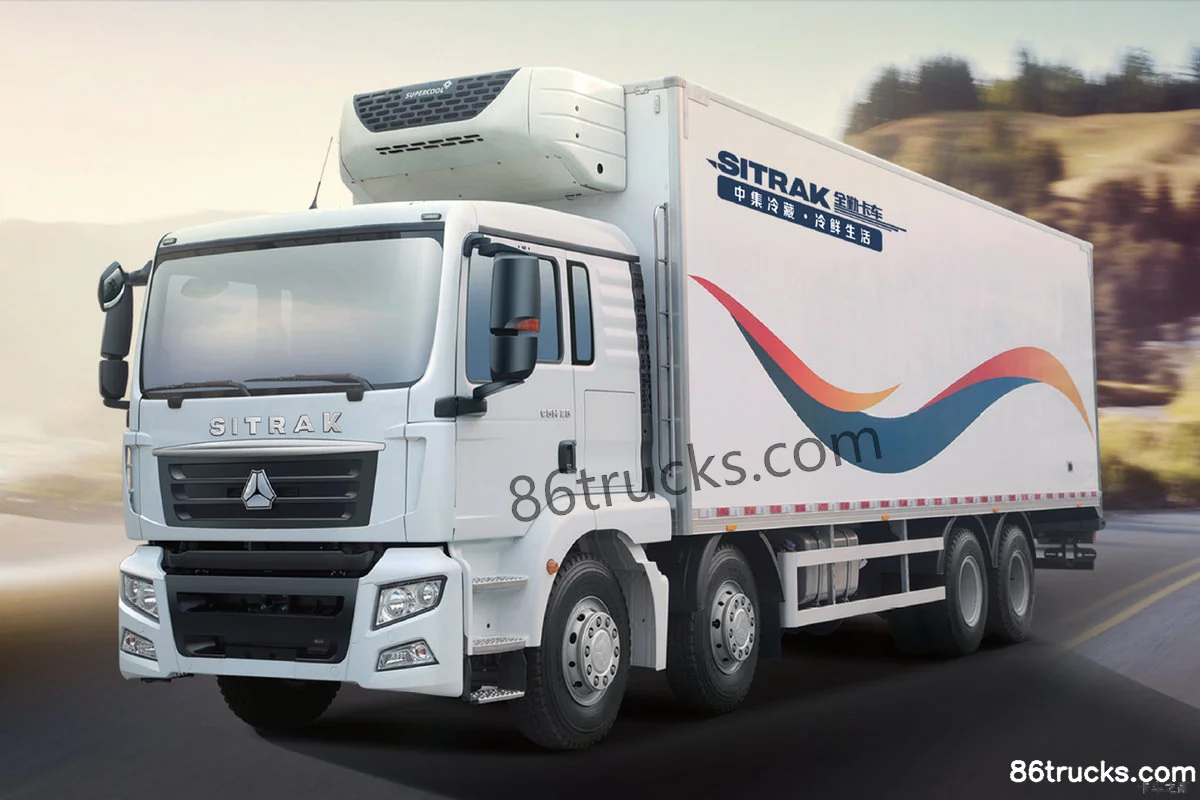

Exterior1

1 photos

FAQ

What emission standard does Sinotruk Sitrak C5H 340 hp 8X4(12 wheels) 9.5m Refrigerated Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Sitrak C5H 340 hp 8X4(12 wheels) 9.5m Refrigerated Truck?

Key specs of Sinotruk Sitrak C5H 340 hp 8X4(12 wheels) 9.5m Refrigerated Truck: Drive: 8x4; Horsepower: 340 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Sitrak C5H 340 hp 8X4(12 wheels) 9.5m Refrigerated Truck suited for?

Sinotruk Sitrak C5H 340 hp 8X4(12 wheels) 9.5m Refrigerated Truck is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Sitrak C5H 340 hp 8X4(12 wheels) 9.5m Refrigerated Truck differ from other variants in the same series?

Sinotruk Sitrak C5H 340 hp 8X4(12 wheels) 9.5m Refrigerated Truck belongs to Sitrak C5H heavy truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Sitrak C5H 340 hp 8X4(12 wheels) 9.5m Refrigerated Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Sitrak C5H 340 hp 8X4(12 wheels) 9.5m Refrigerated Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
