Foton Aoling M Card 142hp 4X2(6 wheels) 3.15m Double Row Wing Opening Van Mini Truck

Export reference
From $13,417
MSRP ¥9.66M CNY
Horsepower: 142
Emission: China VI
Fuel: Diesel
Engine: QuanchaiQ23
Transmission: WLY
Curb Weight:: 2.7ton
seating capacity: 5Personnel
Rated payload: 1.46ton
Drive 4X2 (6 wheels)
Cargo box type: Wing Van

Overview

The Foton Aoling M Card 142hp 4X2(6 wheels) 3.15m Double Row Wing Opening Van Mini Truck is a mini truck featuring 3.15m cargo length, Wing Van cargo body, 5Personnel volume and 1.46t payload. On the powertrain side, it comes with a QuanchaiQ23 engine, 142 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 142 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5044XYK9ABA-AB1
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.2m
engine: QuanchaiQ23A-142E60
transmission: WLYWLY5GT32
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.05m
Cab height: 2.995m
Front track width: 1500mm
rear track: 1455mm
Curb Weight: 2.7ton
Rated payload: 1.46ton
GVWR: 4.485ton
Max. speed: 110km/h
Origin: Shandong Zhucheng
tonnage class: mini truck
Approach angle: 18°
departure angle: 17°
Remarks: Optional 4.33 ratio, mechanical-suspension driver seat, rear track 1495mm.
Front/rear suspension: 1.115/1.52m
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: QuanchaiQ23A-142E60
Engine info: QuanchaiQ23
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.3L
Emission standard: China VI
Max output power: 103kW
Max hp: 142Horsepower
Transmission Parameters
Transmission Model: WLYWLY5GT32
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Wing Van
Cargo box length: 3.15m
Cargo box width: 1.95m
Cargo box height: 2m
*Cargo box interior width: 1.95
Cab parameters
Cab width: 1730mm
seating capacity: 5Personnel
Seat rows: Double cab
fuel tank
Fuel tank material: Plastic
Fuel tank capacity: 70L
Chassis Specs
Front axle description: 2.0t
Front axle allowable load: 1800kg
Frame Dimensions: 714/760-160×50×4mm
rear axle description: 5.0t/BJ130 single reduction drive axle
rear axle allowable load: 2685kg
Axle ratio: 4.875
Leaf spring count: 3/5+3
Tire
Tire Size: 6.50R16LT 10PR,7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
interior configuration
Multifunction steering wheel:
AC control type: Optional manual.
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
Center Console Color Screen:
Bluetooth / hands-free calling:
lighting configuration
daytime running lights:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

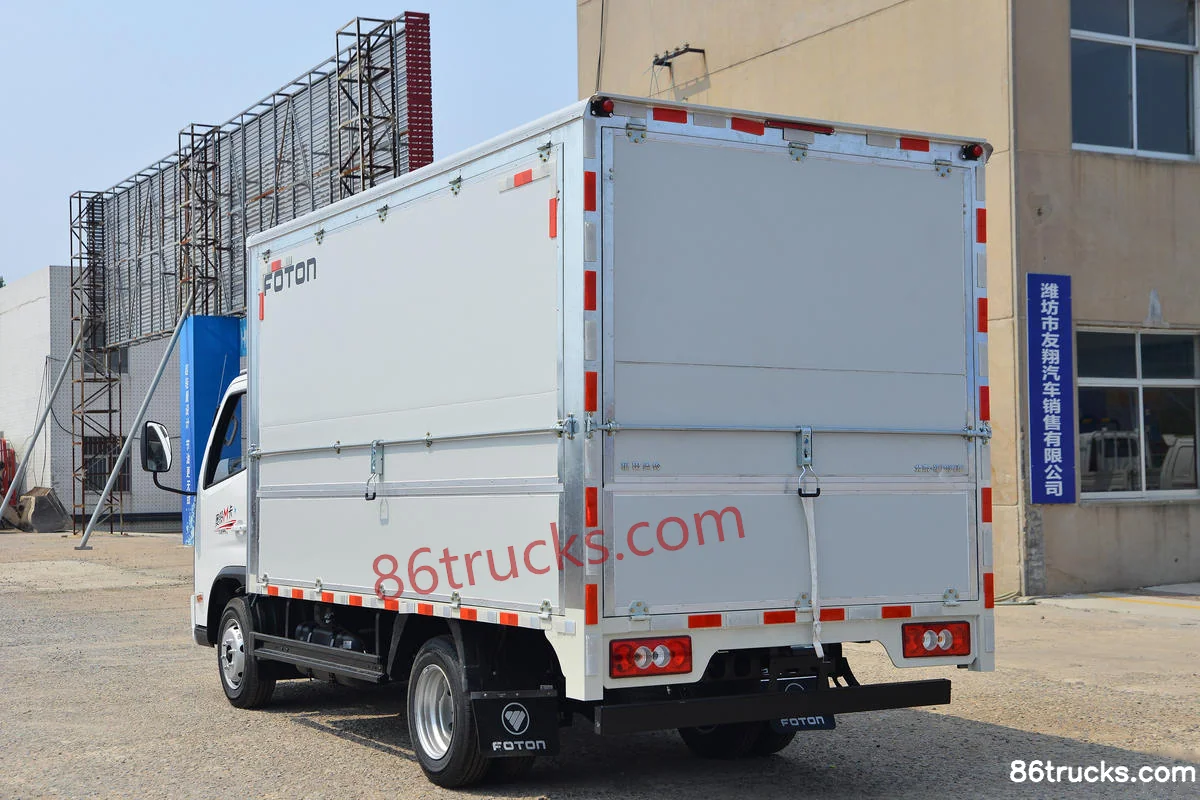

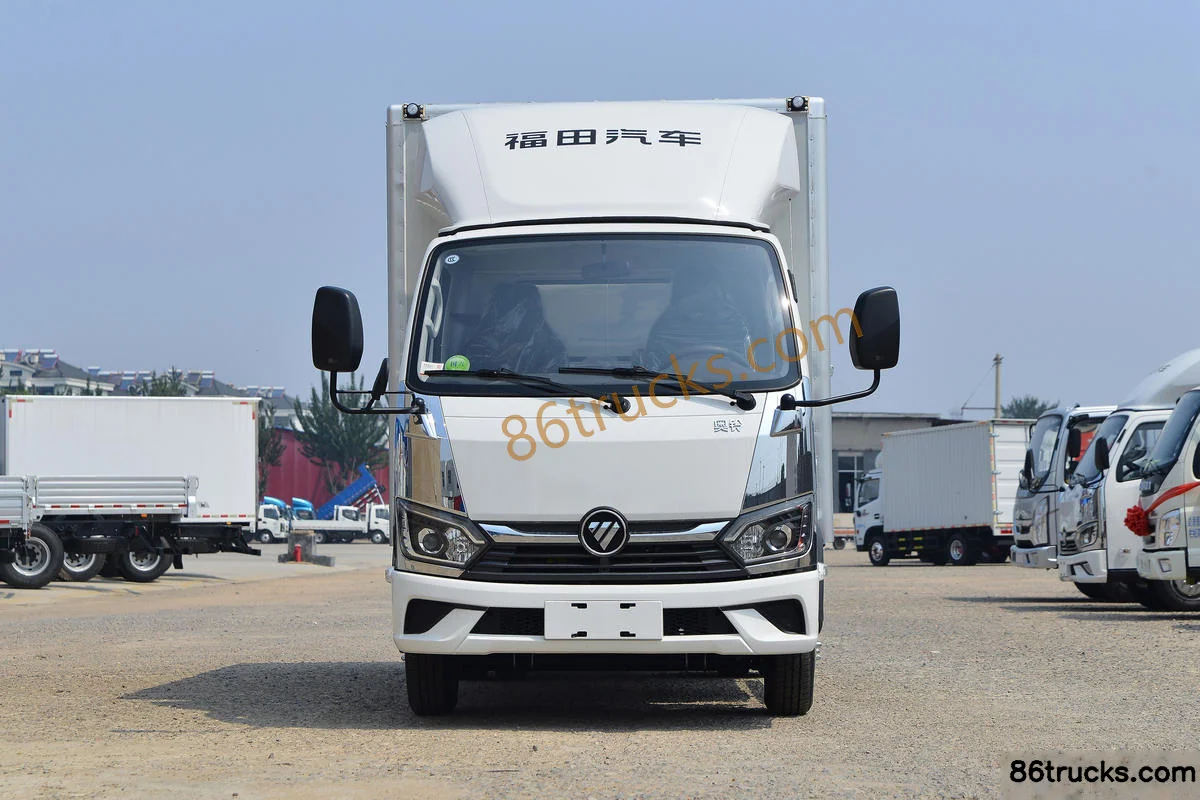

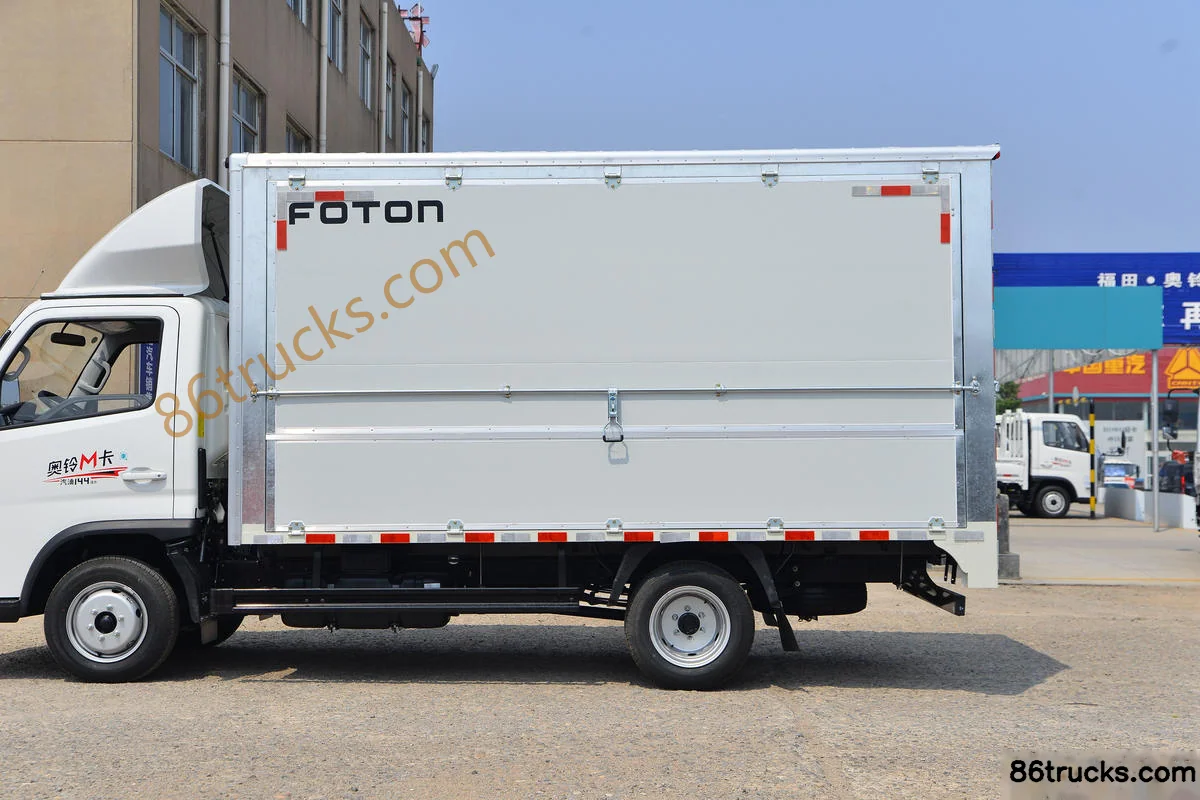

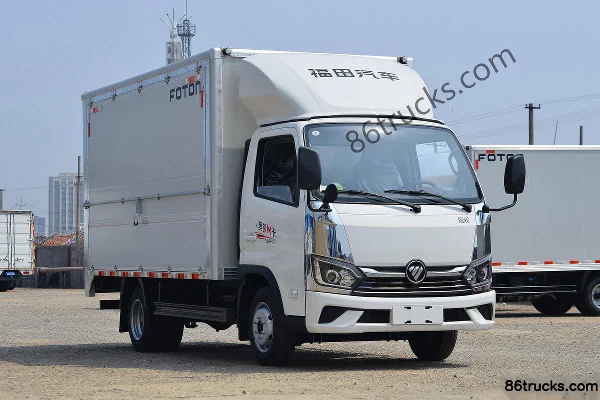

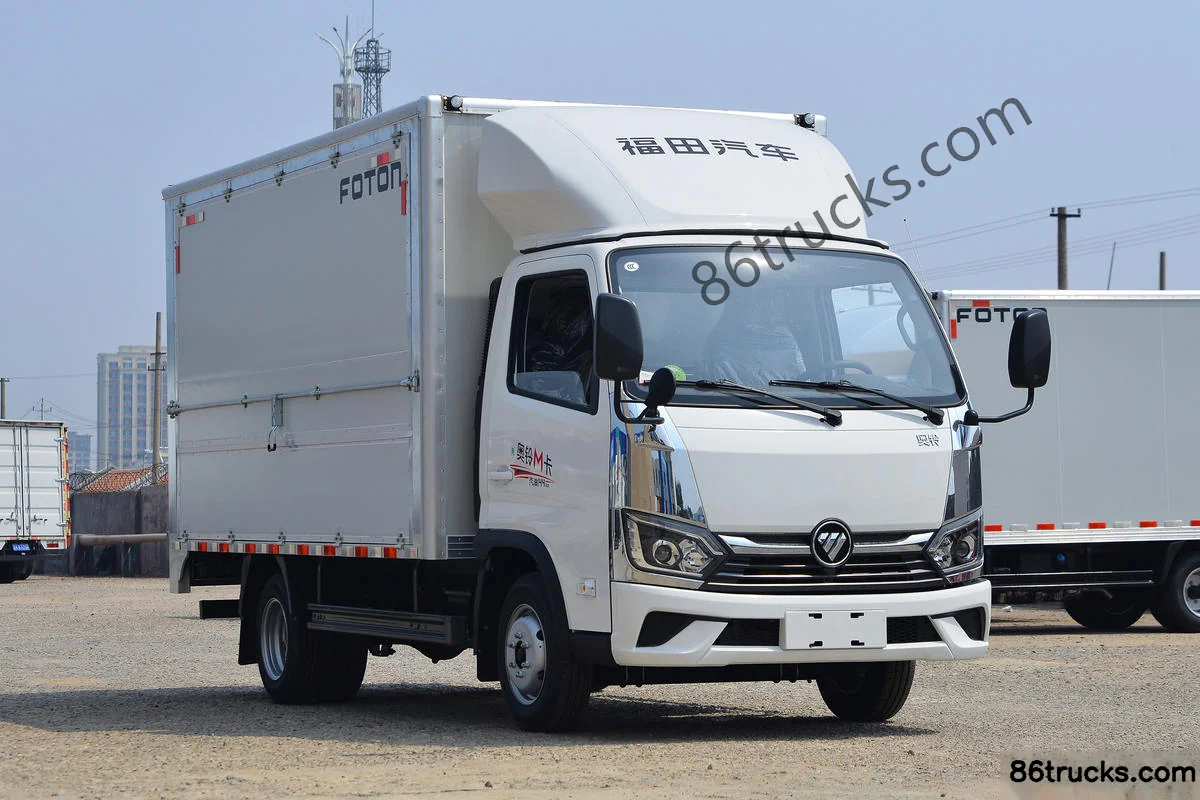

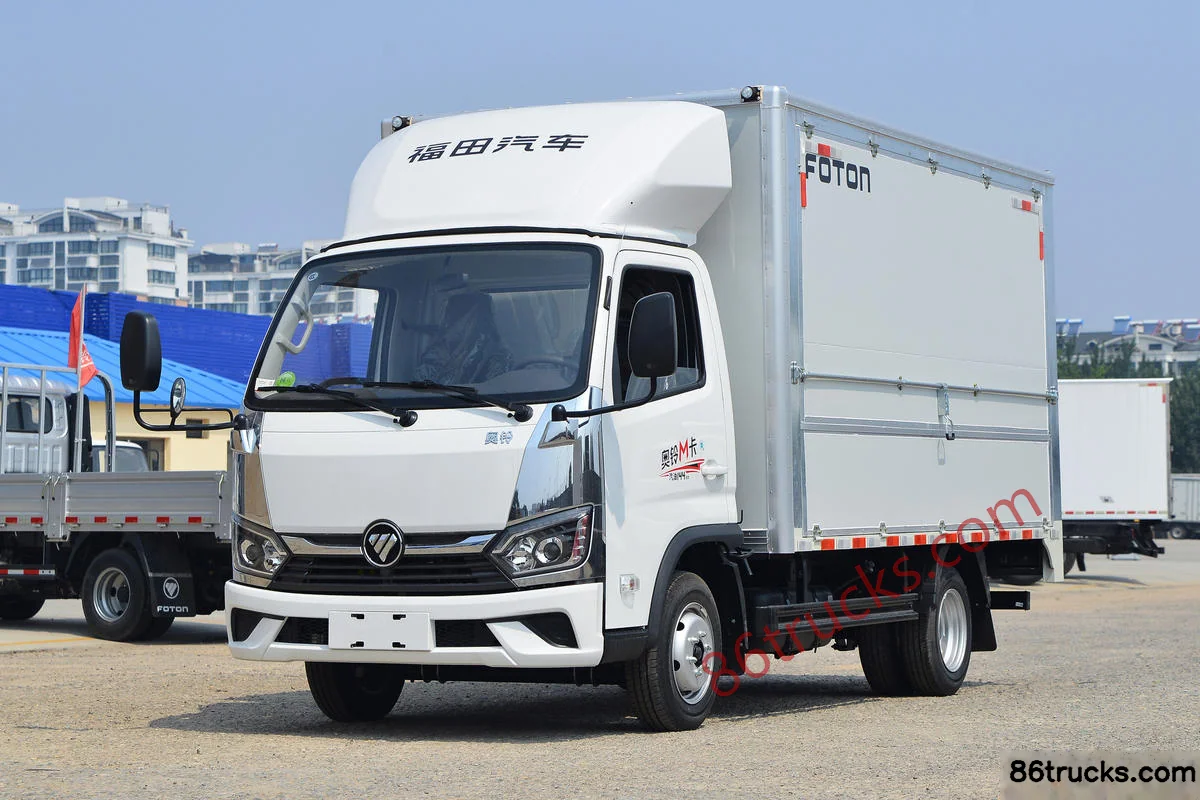

Exterior3

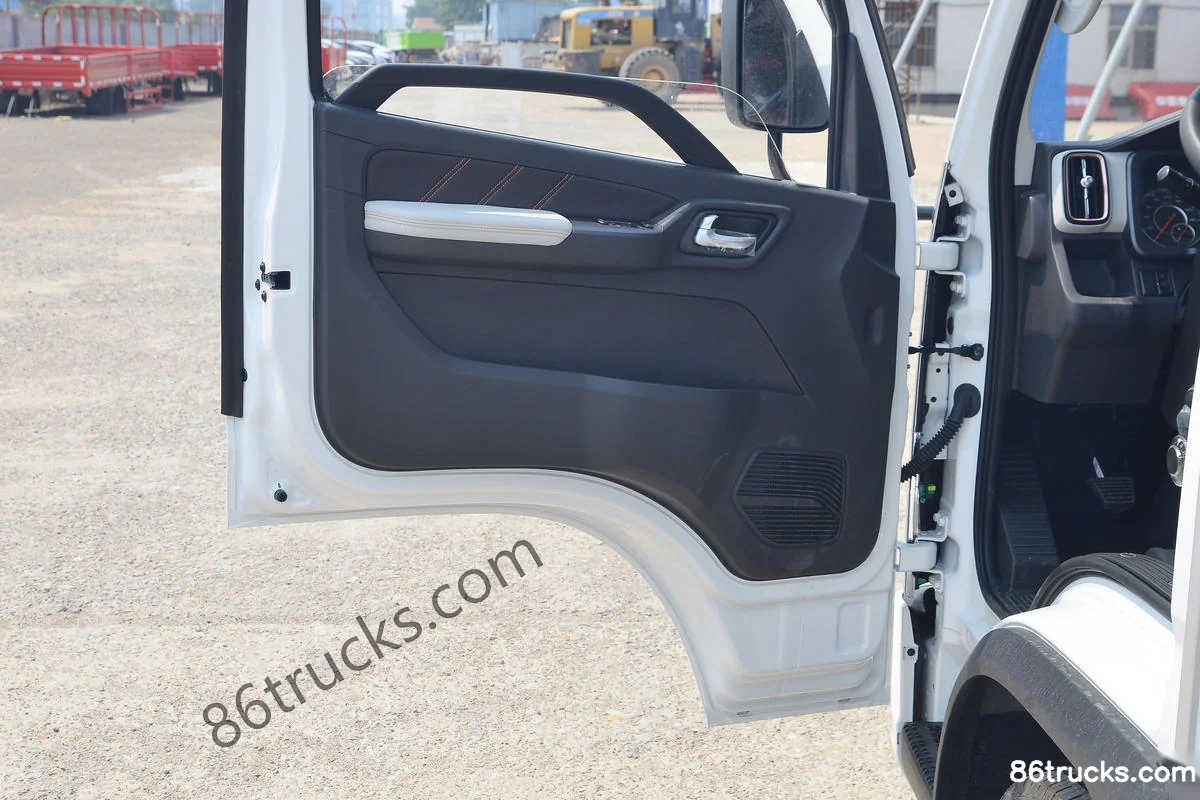

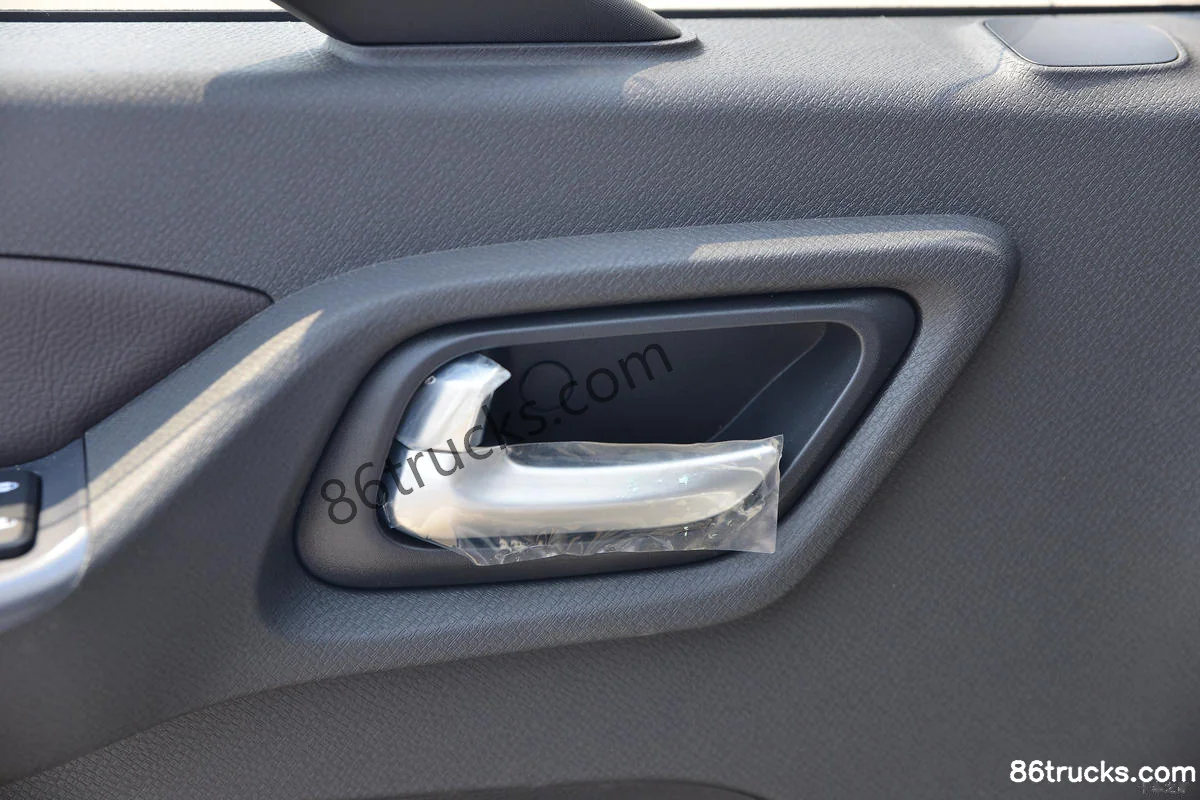

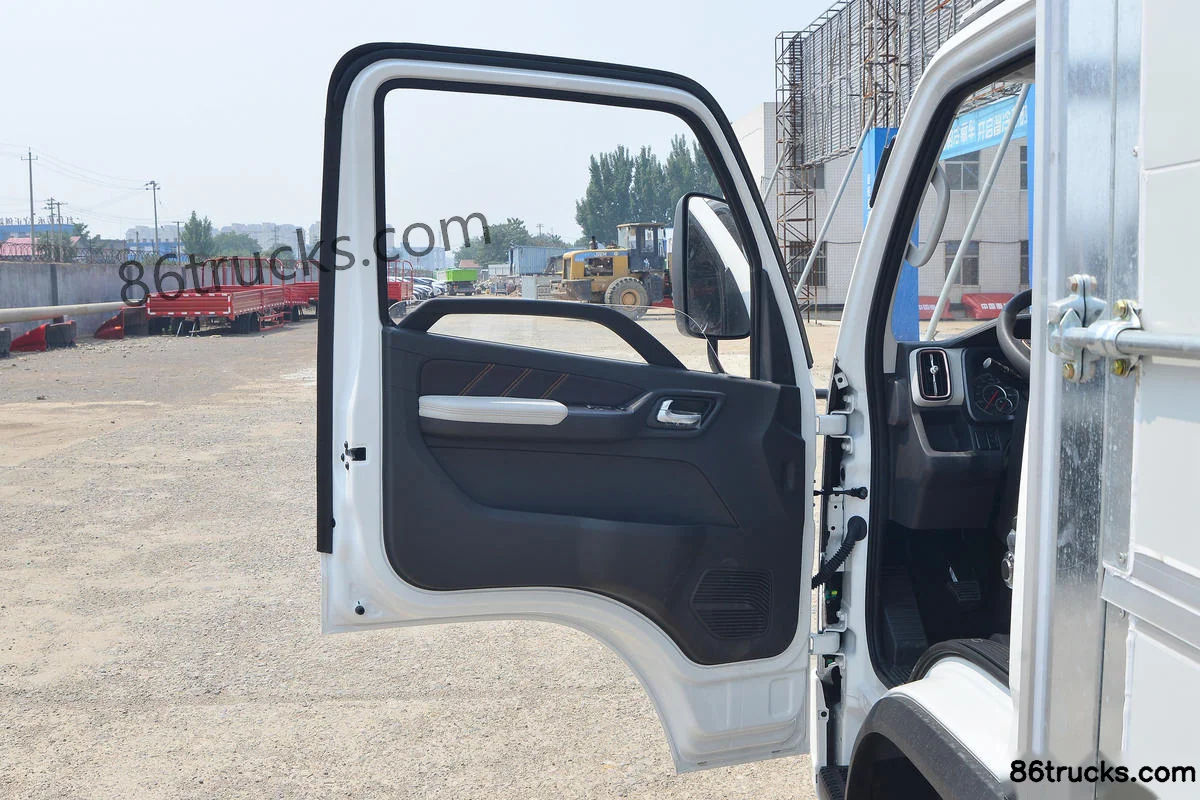

Cab3

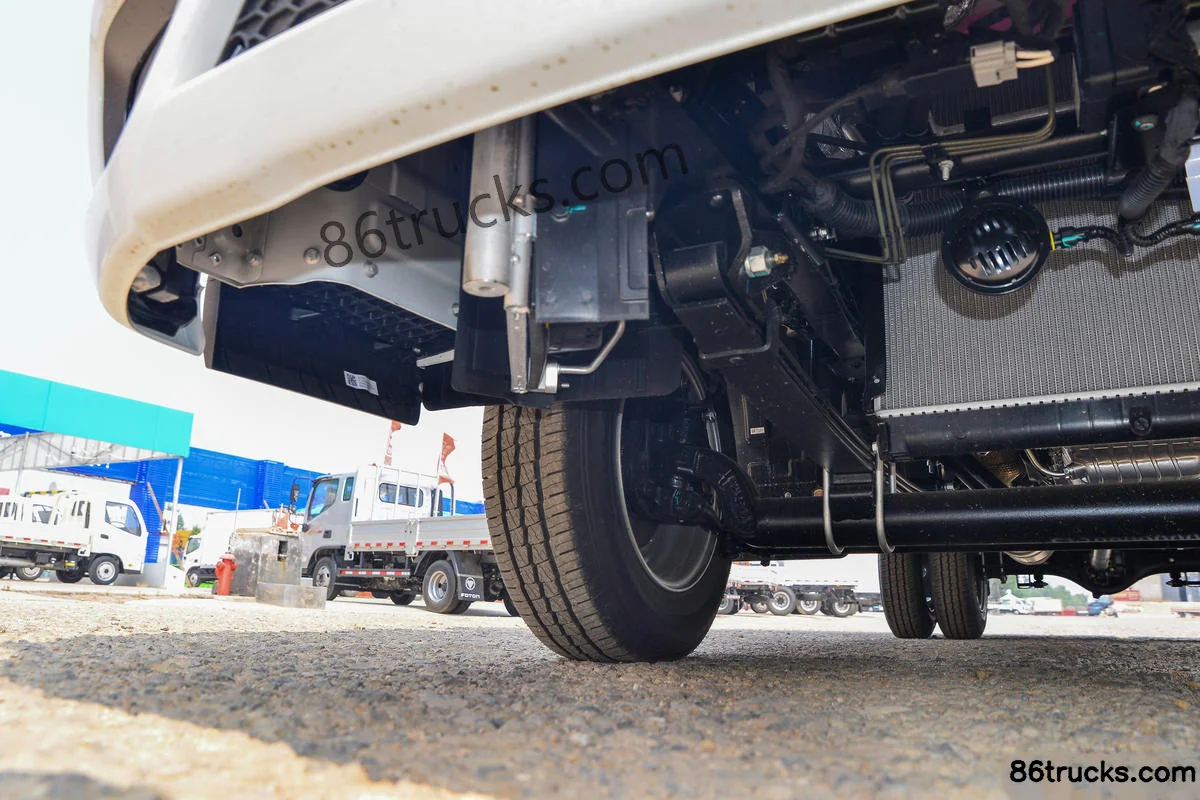

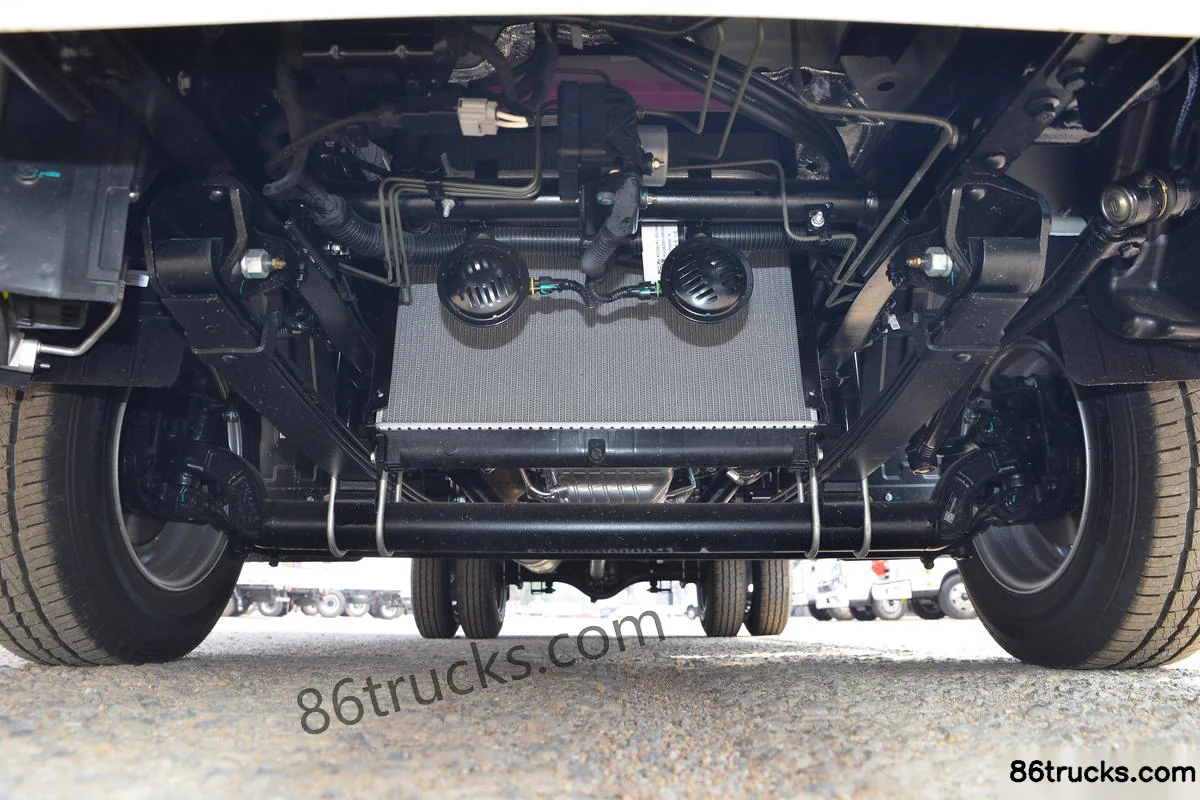

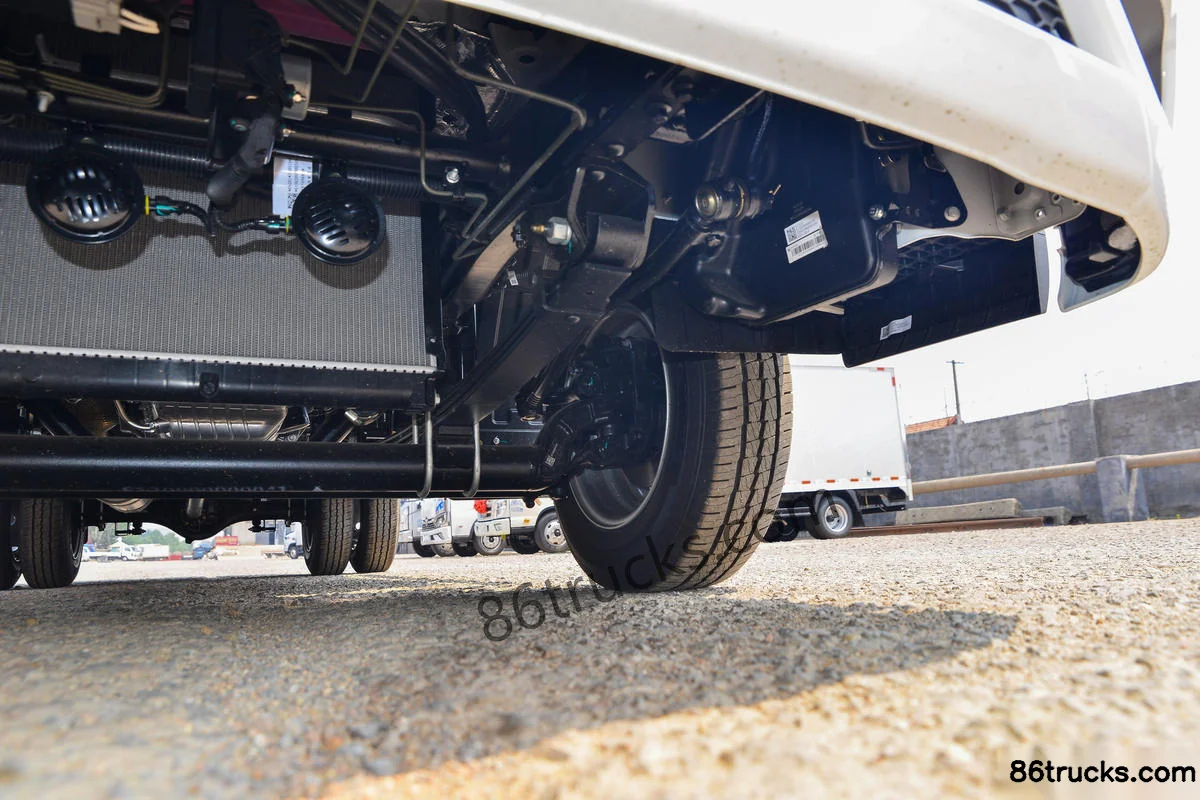

Chassis3

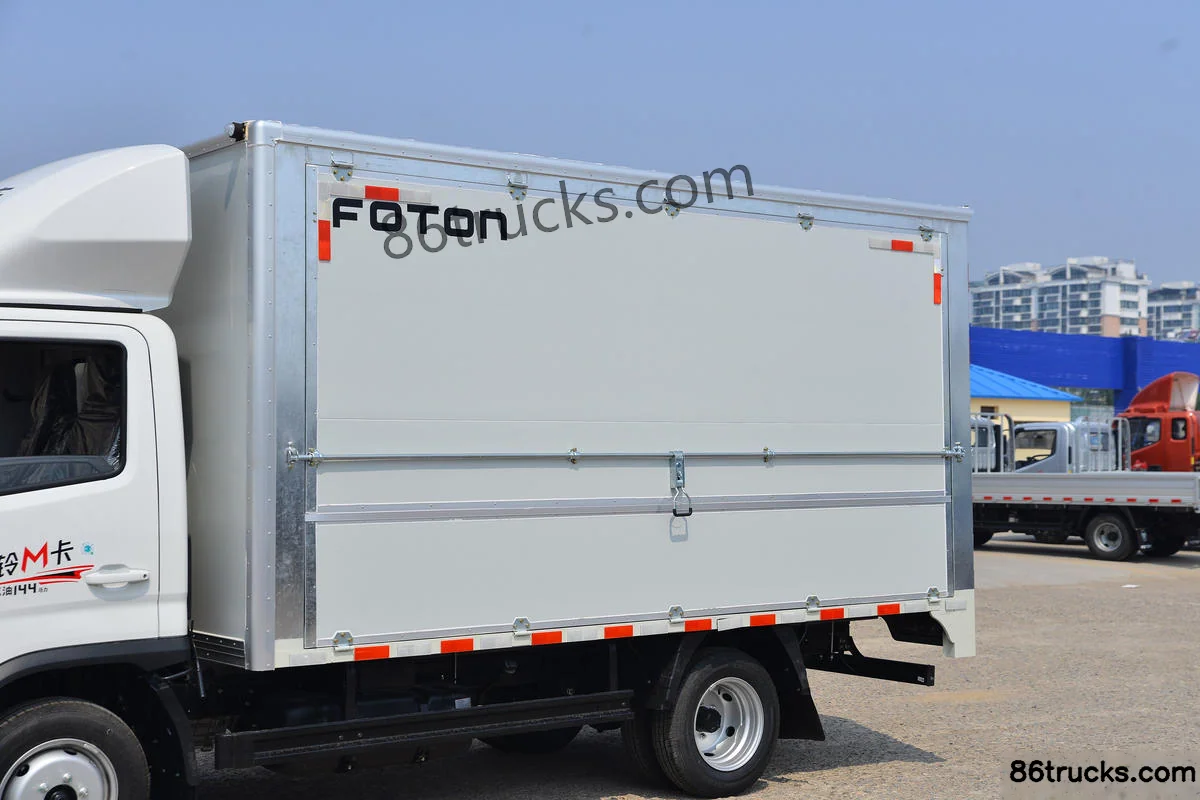

Body3

12 photos

FAQ

What is the export price of Foton Aoling M Card 142hp 4X2(6 wheels) 3.15m Double Row Wing Opening Van Mini Truck, and what does it include?

Foton Aoling M Card 142hp 4X2(6 wheels) 3.15m Double Row Wing Opening Van Mini Truck export reference is about From $13,417; MSRP is ¥9.66M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Aoling M Card 142hp 4X2(6 wheels) 3.15m Double Row Wing Opening Van Mini Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Aoling M Card 142hp 4X2(6 wheels) 3.15m Double Row Wing Opening Van Mini Truck?

Key specs of Foton Aoling M Card 142hp 4X2(6 wheels) 3.15m Double Row Wing Opening Van Mini Truck: Drive: 4x2; Horsepower: 142 hp; Emission: China VI; Fuel: Diesel; Engine: QuanchaiQ23; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Aoling M Card 142hp 4X2(6 wheels) 3.15m Double Row Wing Opening Van Mini Truck suited for?

Foton Aoling M Card 142hp 4X2(6 wheels) 3.15m Double Row Wing Opening Van Mini Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Aoling M Card 142hp 4X2(6 wheels) 3.15m Double Row Wing Opening Van Mini Truck differ from other variants in the same series?

Foton Aoling M Card 142hp 4X2(6 wheels) 3.15m Double Row Wing Opening Van Mini Truck belongs to Foton M Card Mini Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Aoling M Card 142hp 4X2(6 wheels) 3.15m Double Row Wing Opening Van Mini Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Aoling M Card 142hp 4X2(6 wheels) 3.15m Double Row Wing Opening Van Mini Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
