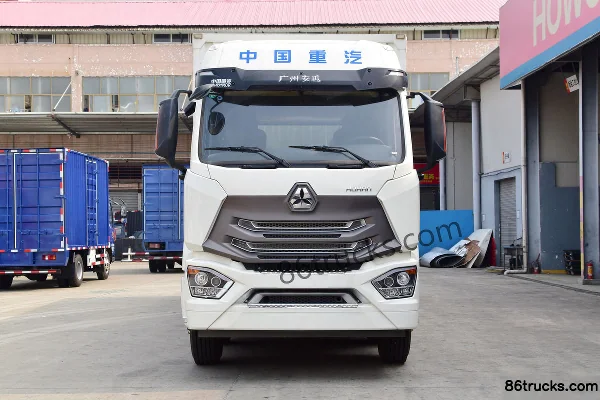

Sinotruk Haohan N5G heavy truck 280 hp 4X2(6 wheels) 9.6m van cargo truck

Export reference
From $31,944
MSRP ¥23M CNY
Horsepower: 280
Emission: China V
Fuel: Diesel
Engine: SinotrukMAN7L
Transmission: Fast Gear
Curb Weight:: 9.2ton
seating capacity: 3Personnel
Rated payload: 8.67ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Sinotruk HOWO Sinotruk Haohan N5G heavy truck 280 hp 4X2(6 wheels) 9.6m van cargo truck is a Heavy-duty cargo trucks featuring 9.6m cargo length, Van body cargo body, 3Personnel volume and 8.67t payload. Its segment focus covers Express parcel and LTL, matching those duty cycles. On the powertrain side, it comes with a SinotrukMAN7L engine, 280 hp, 4X2 (6 wheels) drive and China V emissions.

China V 280 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ5185XXYN7113E1
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 7100mm
Box length class: 9.6m
engine: SinotrukMC07.28-50
transmission: Fast Gear8JS118A
Rear Axle Ratio: 4.111
Cab length: 11.995m
Cab width: 2.545m
Cab height: 3.98m
Front track width: 2058mm
rear track: 1830mm
Curb Weight: 9.2ton
Rated payload: 8.67ton
GVWR: 18ton
Max. speed: 102km/h
Origin: Jinan, Shandong
tonnage class: Heavy-duty cargo trucks
Approach angle: 20°
departure angle:
market segment: Express parcel, LTL
Remarks: Sinotruk Zhinengtong D version, etc.
Front/rear suspension: 1.55/3.345m
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.28-50
Engine info: SinotrukMAN7L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.87L
Emission standard: China V
Max output power: 206kW
Max hp: 280Horsepower
Max torque: 1100N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: Fast Gear8JS118A
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 9.6m
Cargo box width: 2.45/2.5m
Cargo box height: 2.65/2.75m
*Cargo box interior width: 2.4500000476837
Cab parameters
seating capacity: 3Personnel
Cab tilting: Electric
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank capacity: 500L
Chassis Specs
Front axle description: H153, 5.5 tons
Front axle allowable load: 6500kg
Frame Dimensions: 250×80×(7+5)mm
rear axle description: 153
rear axle allowable load: 11500kg
Axle ratio: 4.111
Leaf spring count: 3/4,4/5
Tire
Tire Size: 10.00R20,295/80R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
Independent Heater:
Power Windows:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
Bluetooth / hands-free calling:
lighting configuration
daytime running lights:
smart configuration
Cruise control (CCS):

Photos

0 photos

FAQ

What is the export price of Sinotruk Haohan N5G heavy truck 280 hp 4X2(6 wheels) 9.6m van cargo truck, and what does it include?

Sinotruk Haohan N5G heavy truck 280 hp 4X2(6 wheels) 9.6m van cargo truck export reference is about From $31,944; MSRP is ¥23M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Haohan N5G heavy truck 280 hp 4X2(6 wheels) 9.6m van cargo truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Haohan N5G heavy truck 280 hp 4X2(6 wheels) 9.6m van cargo truck?

Key specs of Sinotruk Haohan N5G heavy truck 280 hp 4X2(6 wheels) 9.6m van cargo truck: Drive: 4x2; Horsepower: 280 hp; Emission: China V; Fuel: Diesel; Engine: SinotrukMAN7L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Haohan N5G heavy truck 280 hp 4X2(6 wheels) 9.6m van cargo truck suited for?

Sinotruk Haohan N5G heavy truck 280 hp 4X2(6 wheels) 9.6m van cargo truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Haohan N5G heavy truck 280 hp 4X2(6 wheels) 9.6m van cargo truck differ from other variants in the same series?

Sinotruk Haohan N5G heavy truck 280 hp 4X2(6 wheels) 9.6m van cargo truck belongs to Sinotruk HOWO NX Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Haohan N5G heavy truck 280 hp 4X2(6 wheels) 9.6m van cargo truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Haohan N5G heavy truck 280 hp 4X2(6 wheels) 9.6m van cargo truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
