MAN TGS BBS Series Heavy Truck 540 hp 6X6(10 wheels) Tractor Truck (Model: 33.540)

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 33ton
Tire Size:: 13R22.5
Displacement:: 12.4L
Model code (announced):: Model: 33.540
engine:: MAND26LF
Drive 6X6 (10 wheels)
Horsepower 540
Emission China IV
Transmission ZF

Overview

The MAN TGS BBS Series Heavy Truck 540 hp 6X6(10 wheels) Tractor Truck (Model: 33.540) is a Heavy truck featuring 6X6 (10 wheels) drive, 540 hp, 33ton GVW and China IV emissions. Its segment focus covers Extra-heavy-duty, matching those duty cycles. On the powertrain side, it comes with a MAND26LF engine, ZF transmission and Diesel fuel.

China IV 540 Diesel 6X6

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): Model: 33.540
Drive type: 6X6
engine: MAND26LF
transmission: ZFZF16S250 OD
Rear Axle Ratio: 6
Cab length: 7.492m
Cab width: 2.5m
Cab height: 3.642m
Gross Trailer Weight: 33ton
Curb Weight: 11ton
Origin: Germany
tonnage class: Heavy truck
market segment: Extra-heavy-duty
Energy Type: Diesel
Engine parameters
Engine Brand: MAN
Engine Model: MAND26LF
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 12.4L
Emission standard: China IV
Max output power: 397kW
Max hp: 540Horsepower
Max torque: 2500N·m
Max torque speed: 1050-1350rpm
Transmission Parameters
Transmission Model: ZFZF16S250 OD
Transmission Brand: ZF
shift method: Manual
Forward gears: 16Gear
Number of Reverse Gears: 2pcs
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 600L
Cab parameters
Cab: Flat roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle description: VP-09 straight-through axle
rear axle description: HPD-1382/HP-1352 hub-reduction axle
Axle ratio: 6
Tire
Tire Size: 13R22.5
Number of tires: 10pcs
Control configuration
ABS:
EBS electronic braking system:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

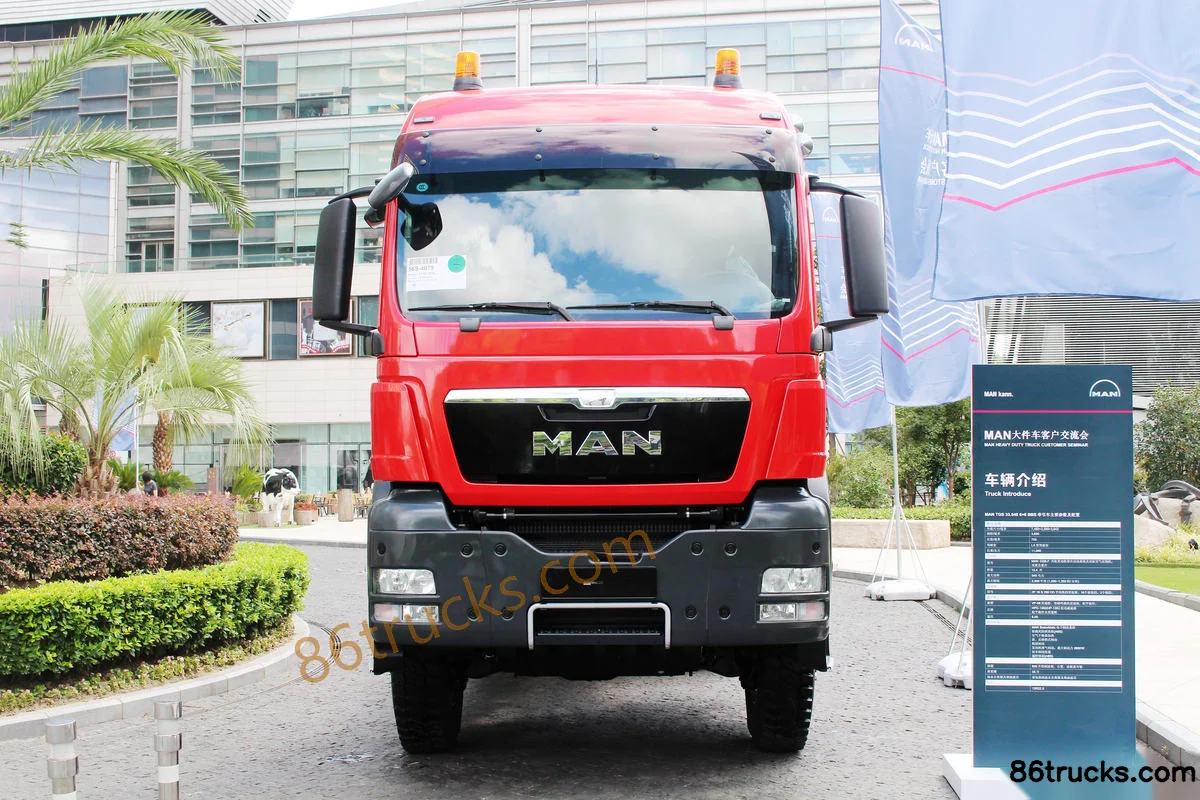

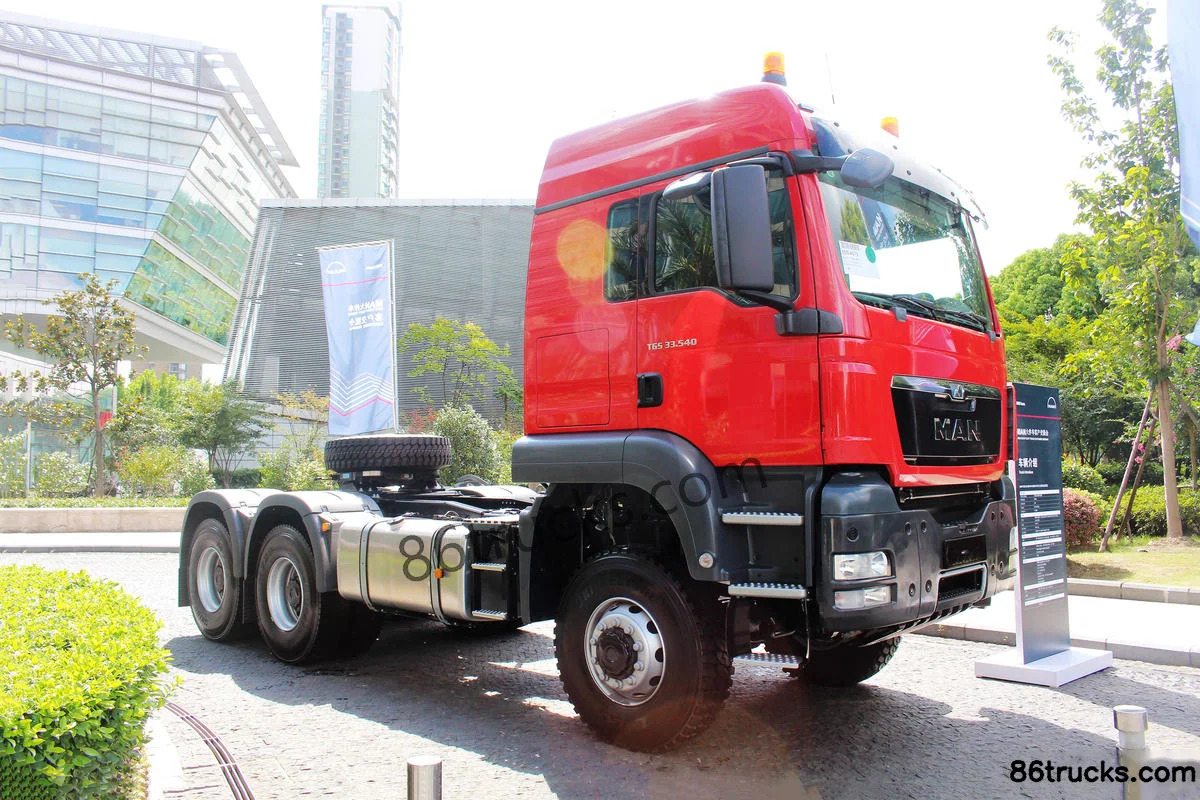

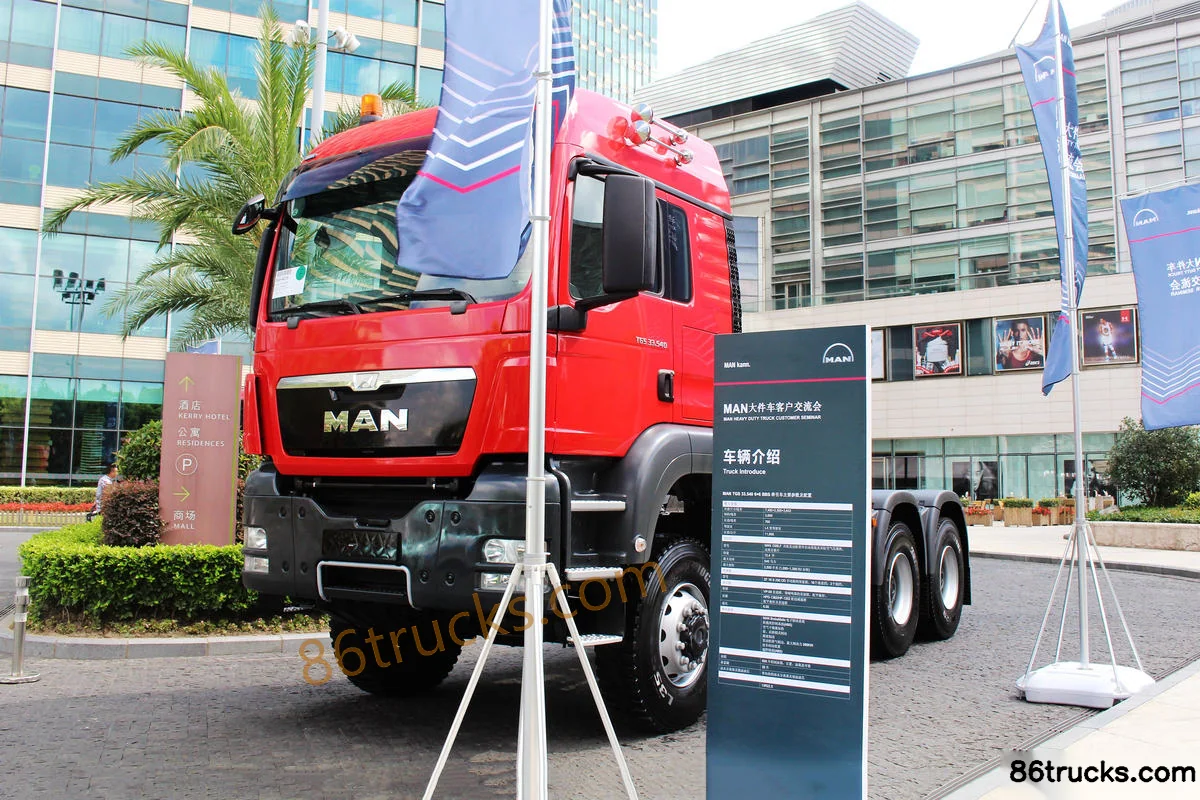

Exterior3

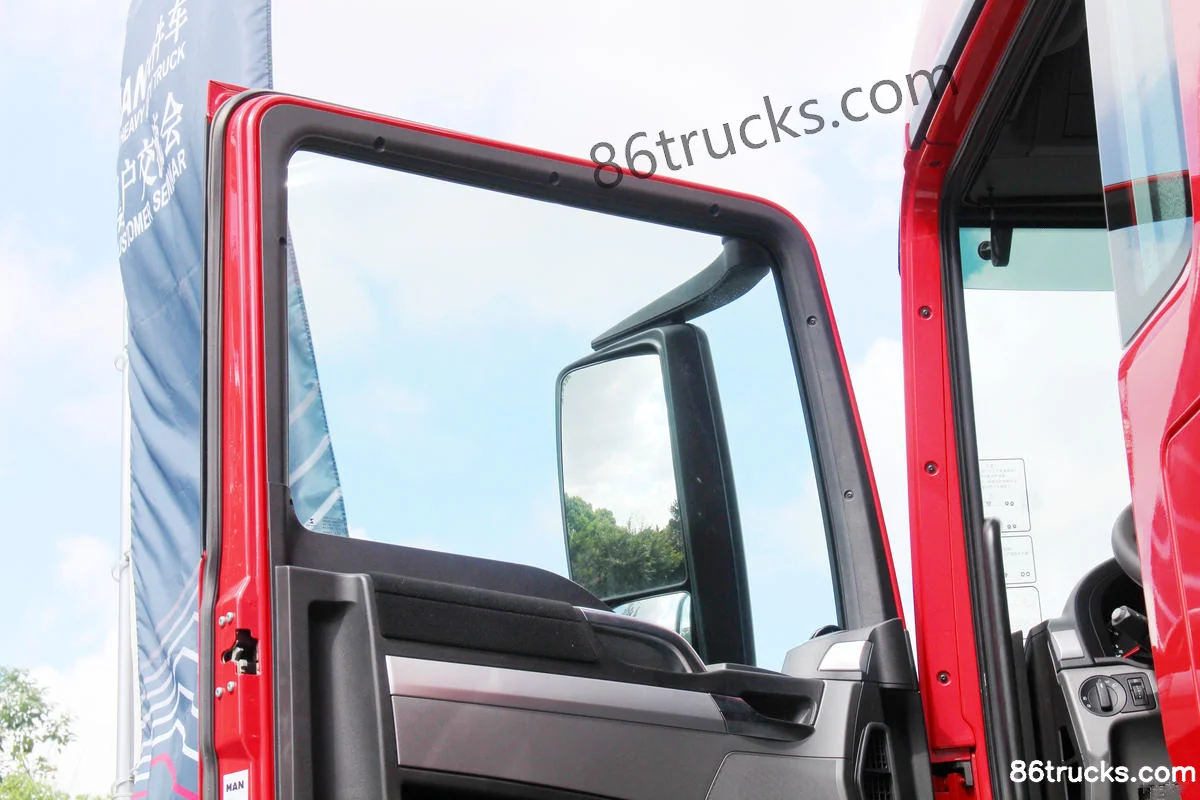

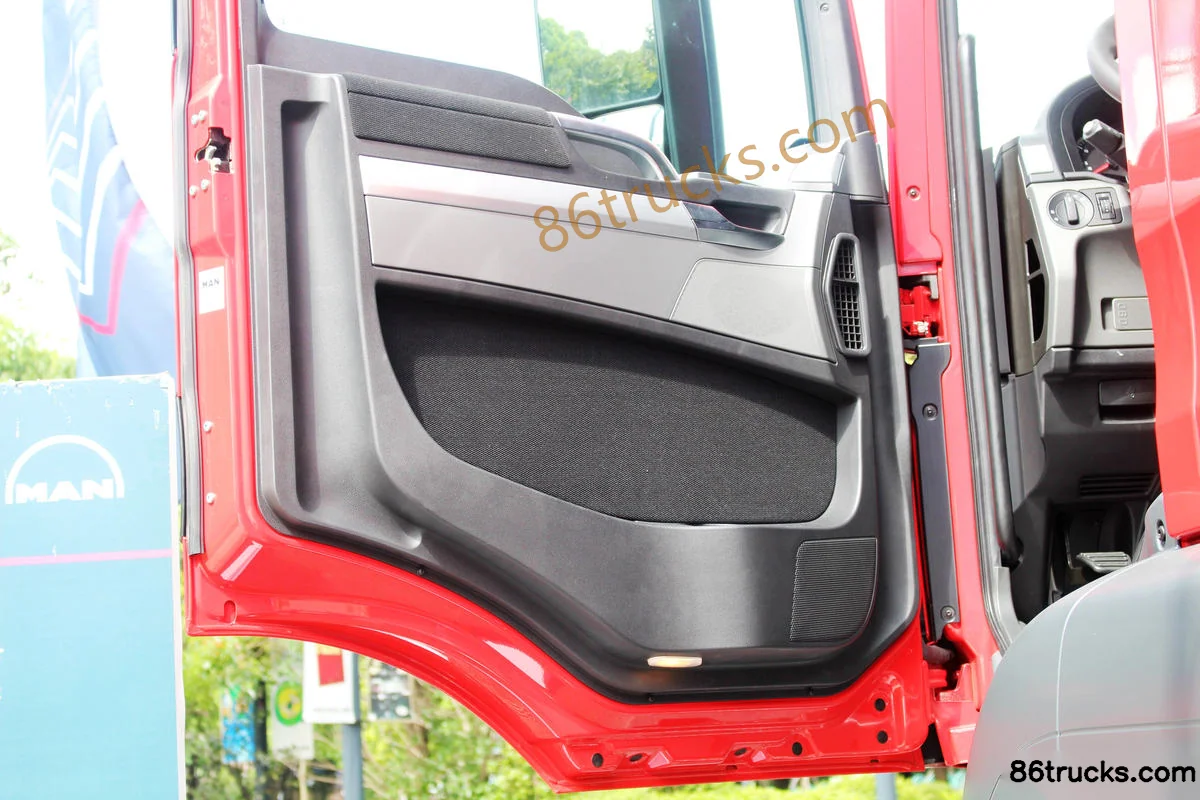

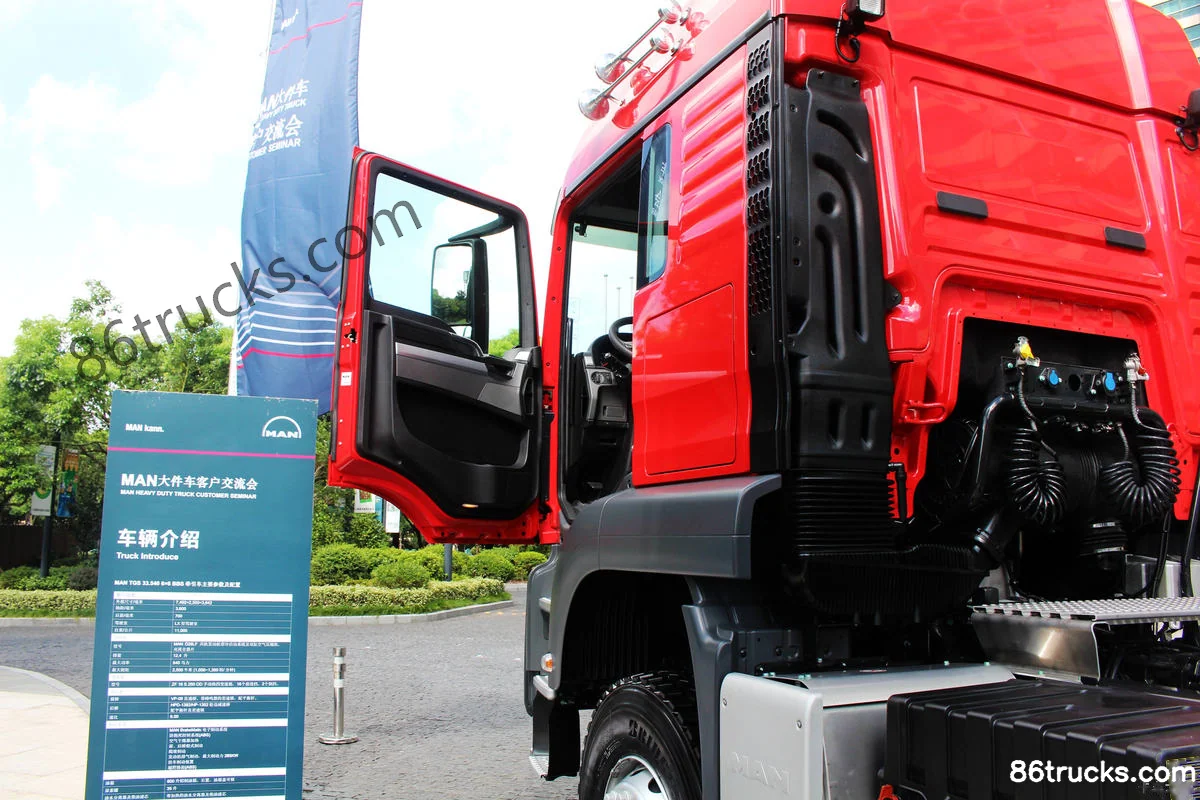

Cab3

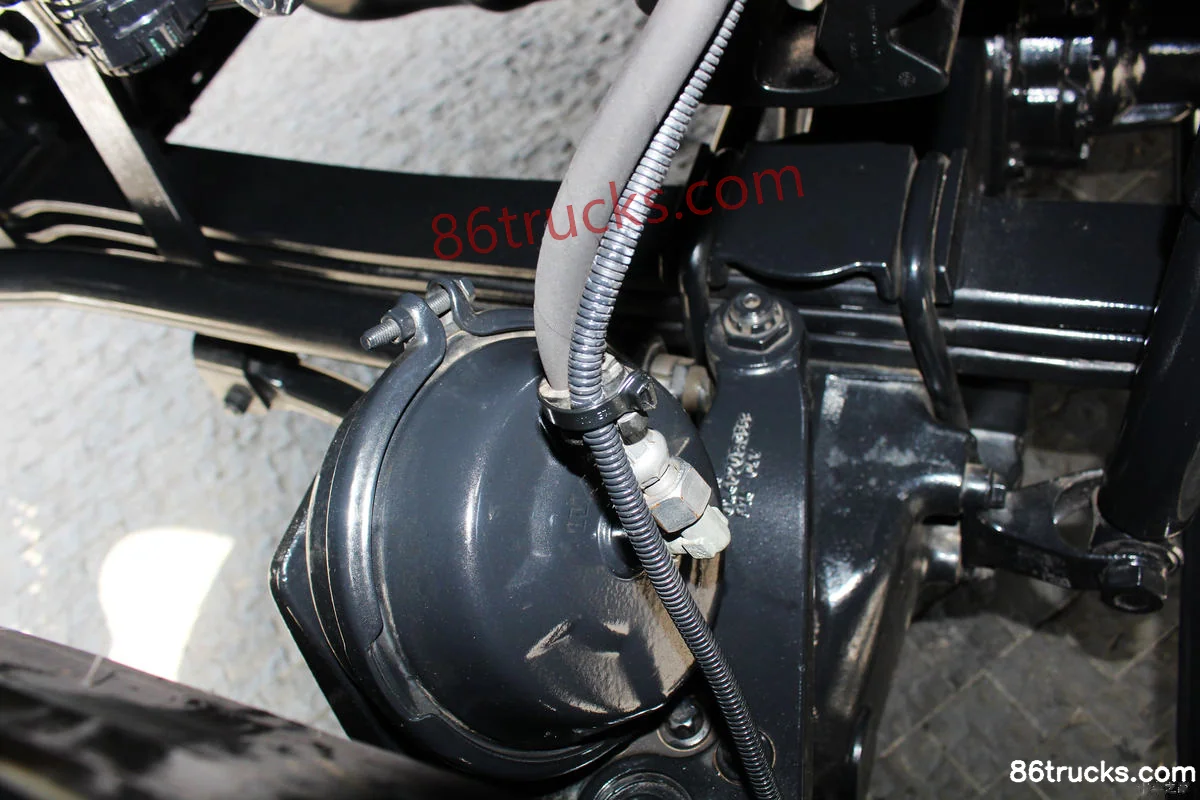

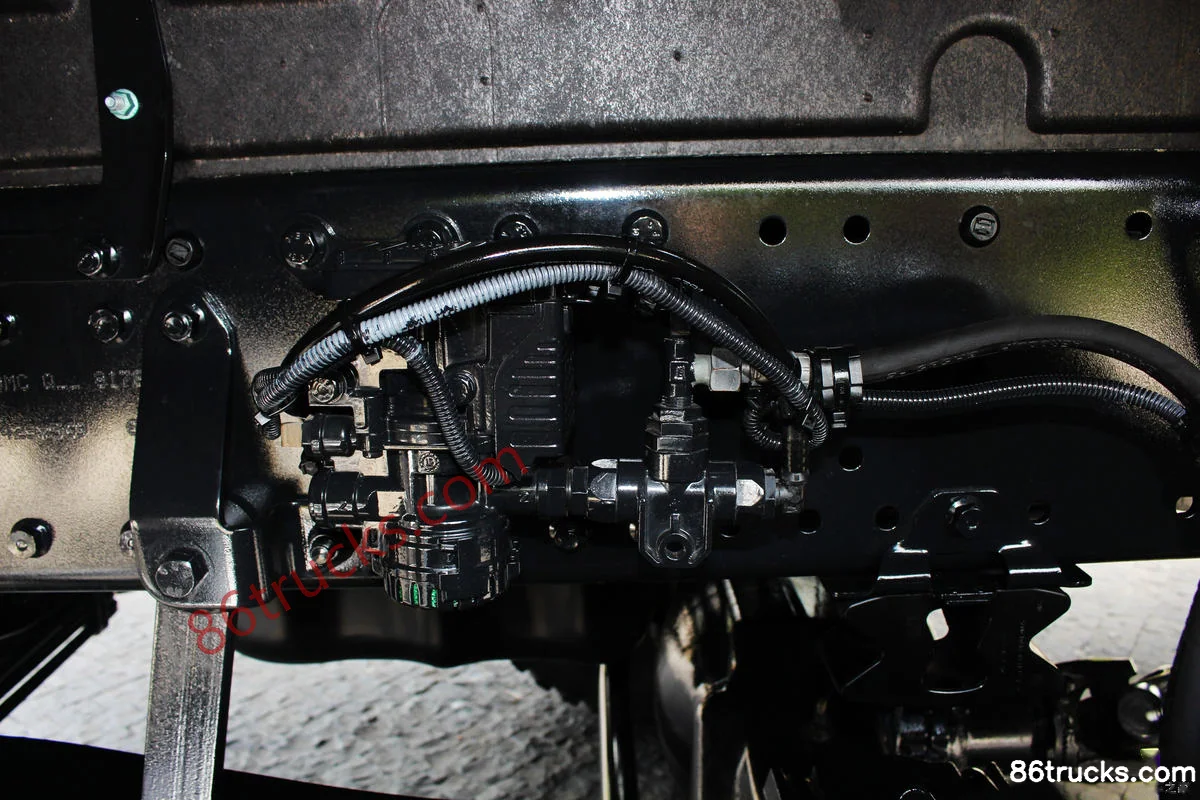

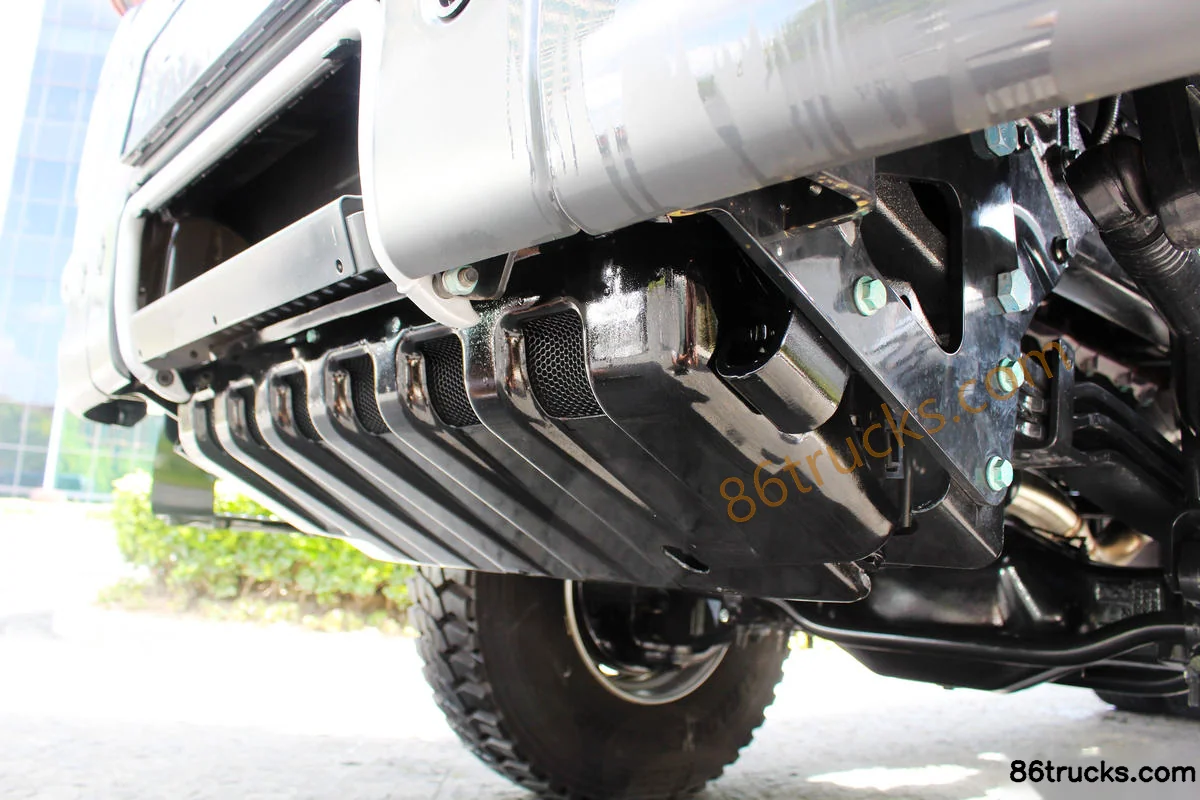

Chassis3

9 photos

FAQ

What emission standard does MAN TGS BBS Series Heavy Truck 540 hp 6X6(10 wheels) Tractor Truck (Model: 33.540) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of MAN TGS BBS Series Heavy Truck 540 hp 6X6(10 wheels) Tractor Truck (Model: 33.540)?

Key specs of MAN TGS BBS Series Heavy Truck 540 hp 6X6(10 wheels) Tractor Truck (Model: 33.540): Drive: 6x6; Horsepower: 540 hp; Emission: China IV; Fuel: Diesel; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is MAN TGS BBS Series Heavy Truck 540 hp 6X6(10 wheels) Tractor Truck (Model: 33.540) suited for?

MAN TGS BBS Series Heavy Truck 540 hp 6X6(10 wheels) Tractor Truck (Model: 33.540) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does MAN TGS BBS Series Heavy Truck 540 hp 6X6(10 wheels) Tractor Truck (Model: 33.540) differ from other variants in the same series?

MAN TGS BBS Series Heavy Truck 540 hp 6X6(10 wheels) Tractor Truck (Model: 33.540) belongs to MAN TGS heavy truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for MAN TGS BBS Series Heavy Truck 540 hp 6X6(10 wheels) Tractor Truck (Model: 33.540)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export MAN TGS BBS Series Heavy Truck 540 hp 6X6(10 wheels) Tractor Truck (Model: 33.540)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
