JMC New Kaiyun 116 hp 4X2(6 wheels) 4m Single Row Van Light Truck (Wide Body)

Export reference
MSRP N/A
Horsepower: 116
Emission: China V
Fuel: Diesel
Engine: JMC493
Transmission: JMC
Curb Weight:: 2.805ton
seating capacity: 3Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JMC New Kaiyun 116 hp 4X2(6 wheels) 4m Single Row Van Light Truck (Wide Body) is a Light Truck featuring 4.02m cargo length, Van body cargo body, 3Personnel volume and 1.495t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a JMC493 engine, 116 hp, 4X2 (6 wheels) drive and China V emissions.

China V 116 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JX5048XXYXGC2
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
engine: Nanchang JMC JX493ZLQ5
transmission: JMCJC528
Rear Axle Ratio: 6.142
Cab length: 5.955m
Cab width: 2.07m
Cab height: 2.98m
Front track width: 1680mm
rear track: 1570mm
Curb Weight: 2.805ton
Rated payload: 1.495ton
GVWR: 4.495ton
Max. speed: 100km/h
Origin: Nanchang, Jiangxi
tonnage class: Light Truck
Approach angle: 18.3°
departure angle: 18.6°
market segment: Urban Distribution
Front/rear suspension: 1.14/1.495m
Energy Type: Diesel
Engine parameters
Engine Brand: JMC
Engine Model: JMCJX493ZLQ5
Engine info: JMC493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China V
Max output power: 85kW
Max hp: 116Horsepower
Max torque: 285N·m
Max torque speed: 1800-2200rpm
Rated speed: 3800rpm
Transmission Parameters
Transmission Model: JMCJC528
Transmission Brand: JMC
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.02m
Cargo box width: 1.9m
Cargo box height: 1.93m
*Cargo box interior width: 1.8999999761581
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 80L
Chassis Specs
Front axle allowable load: 1925kg
rear axle allowable load: 2570kg
Axle ratio: 6.142
Leaf spring count: 7/5+6
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs

Photos

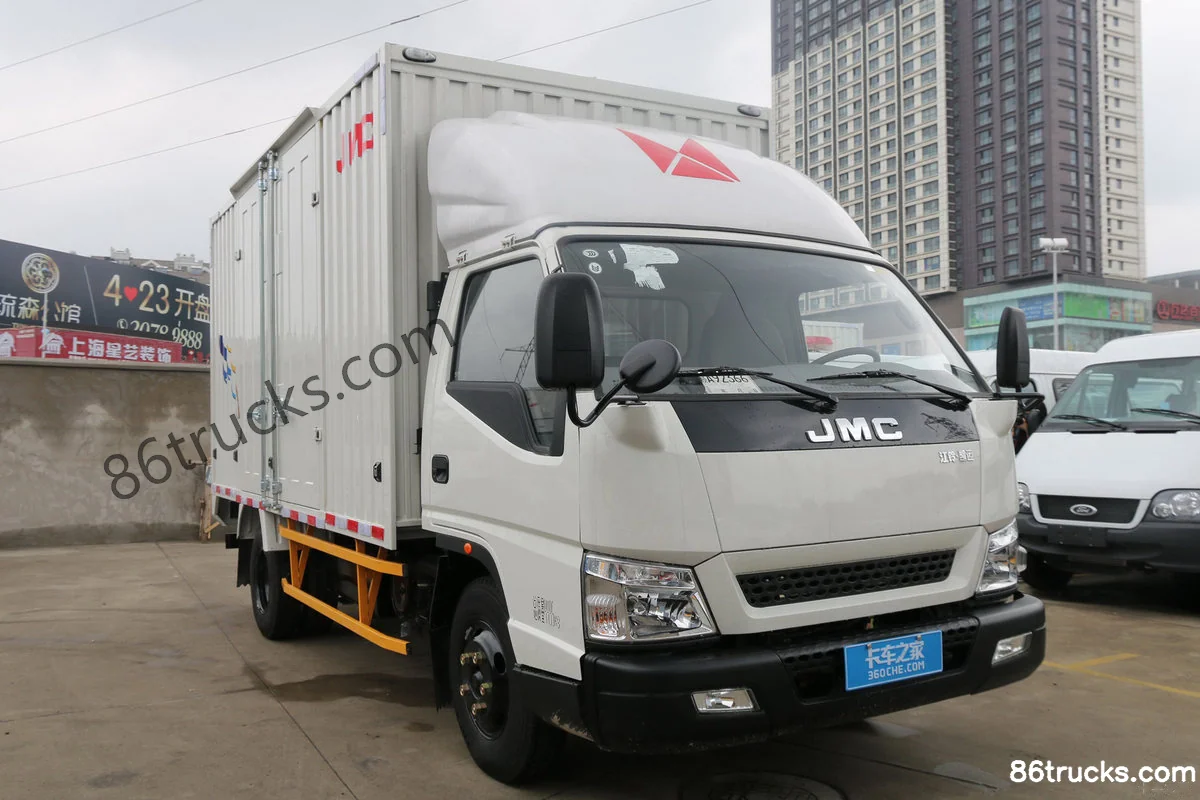

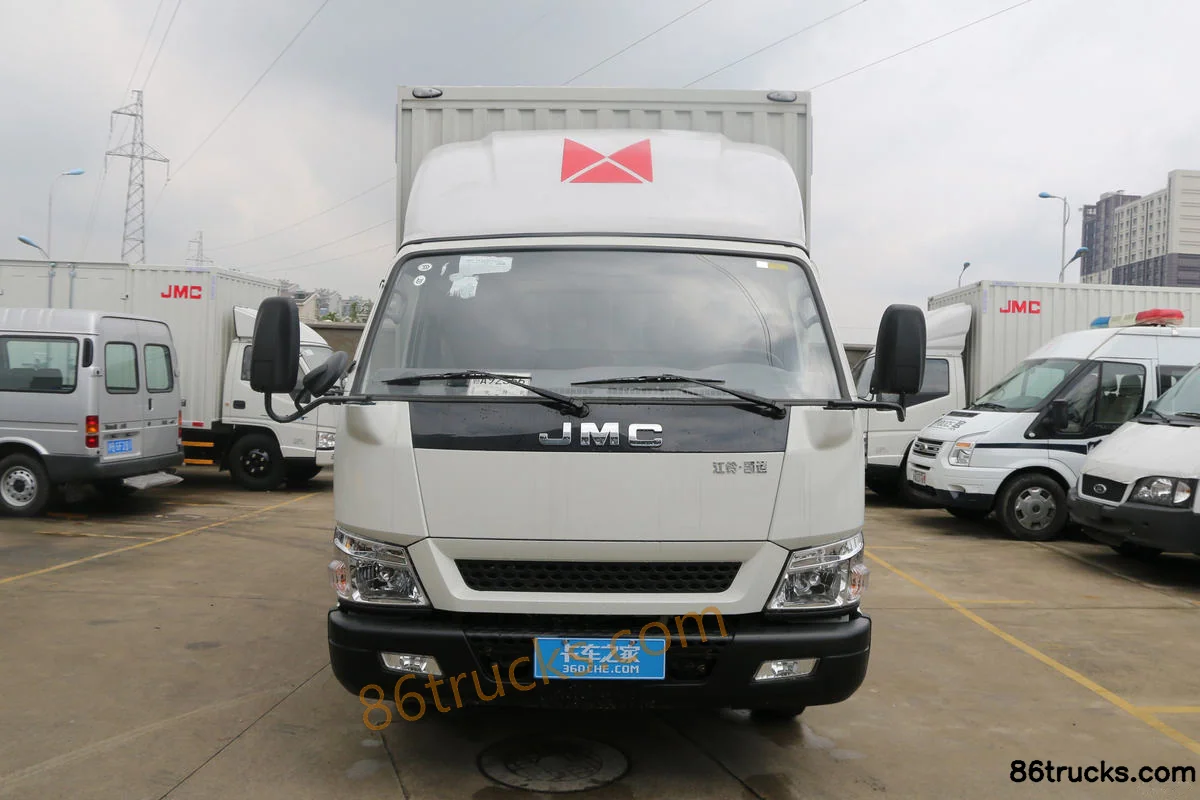

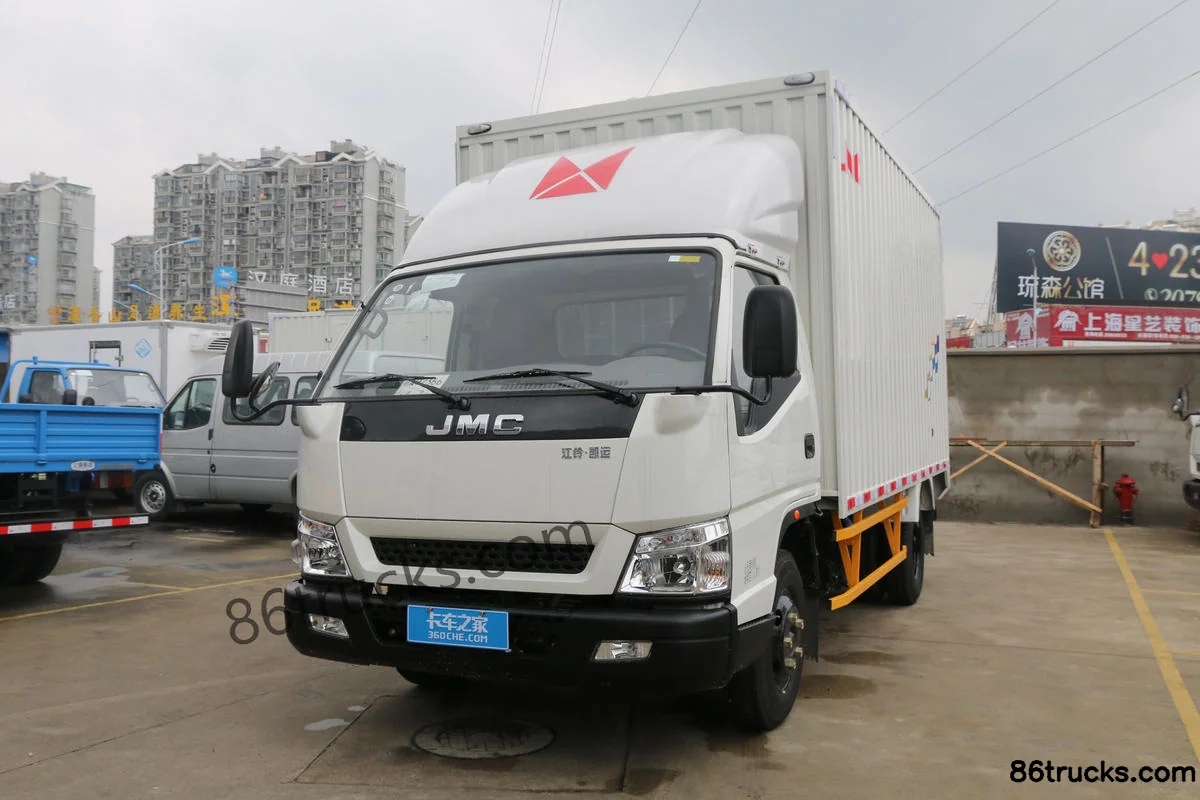

Exterior3

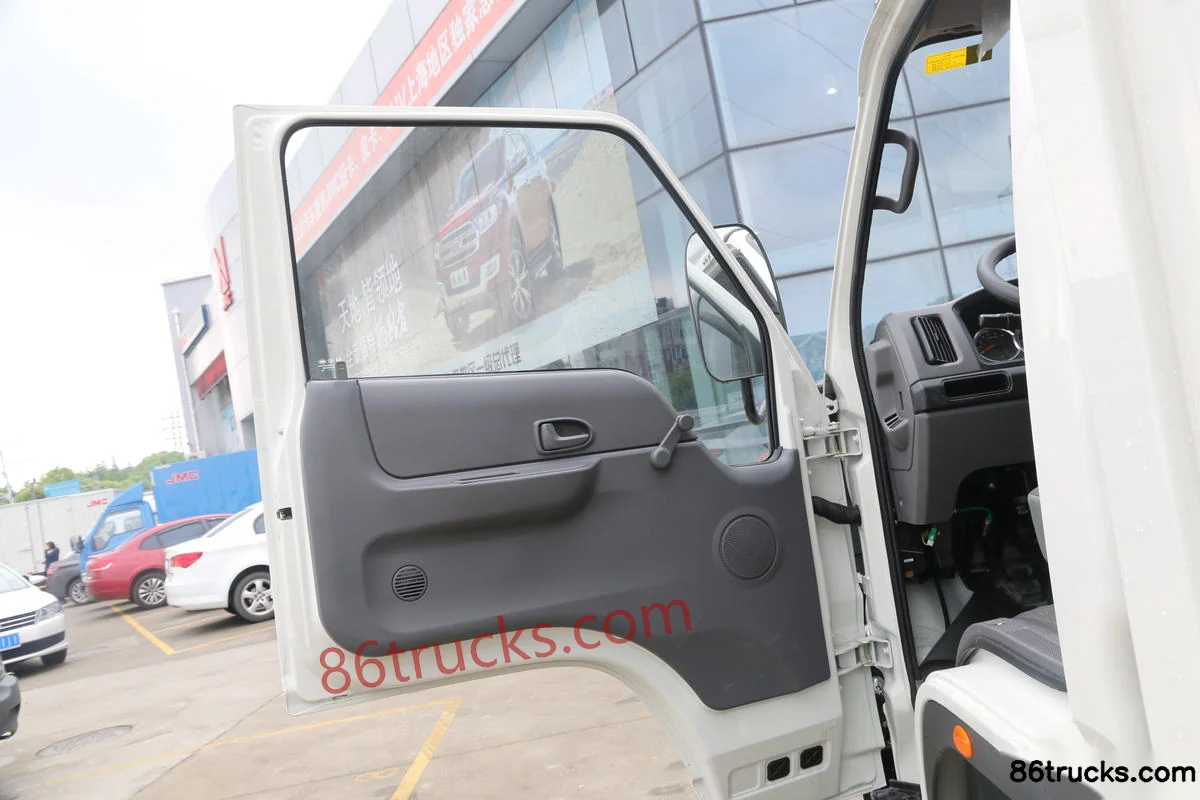

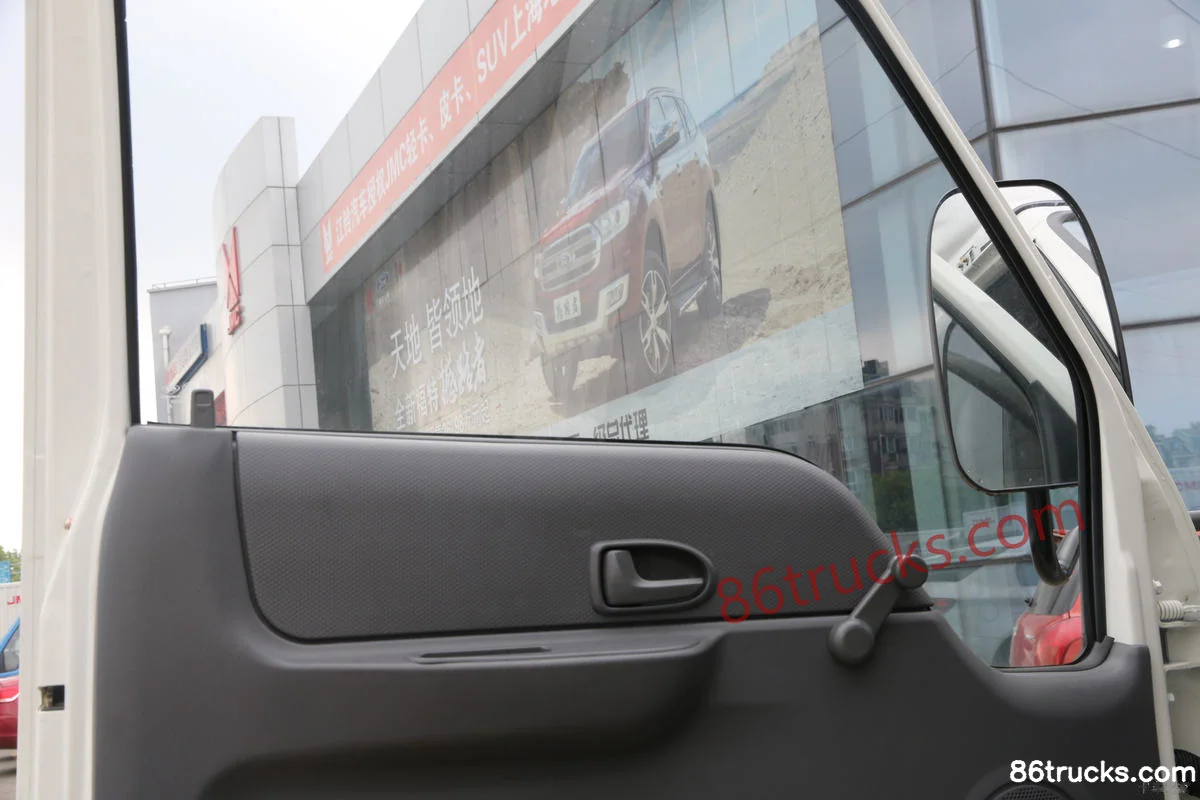

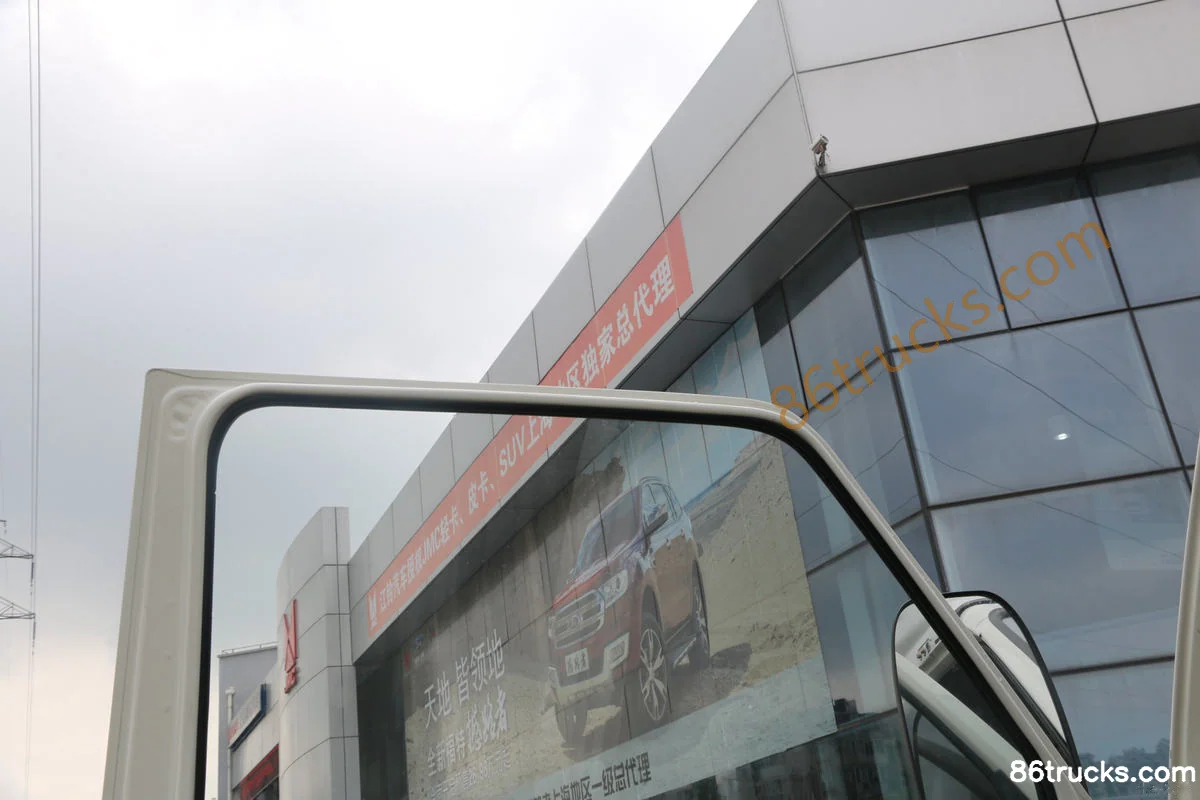

Cab3

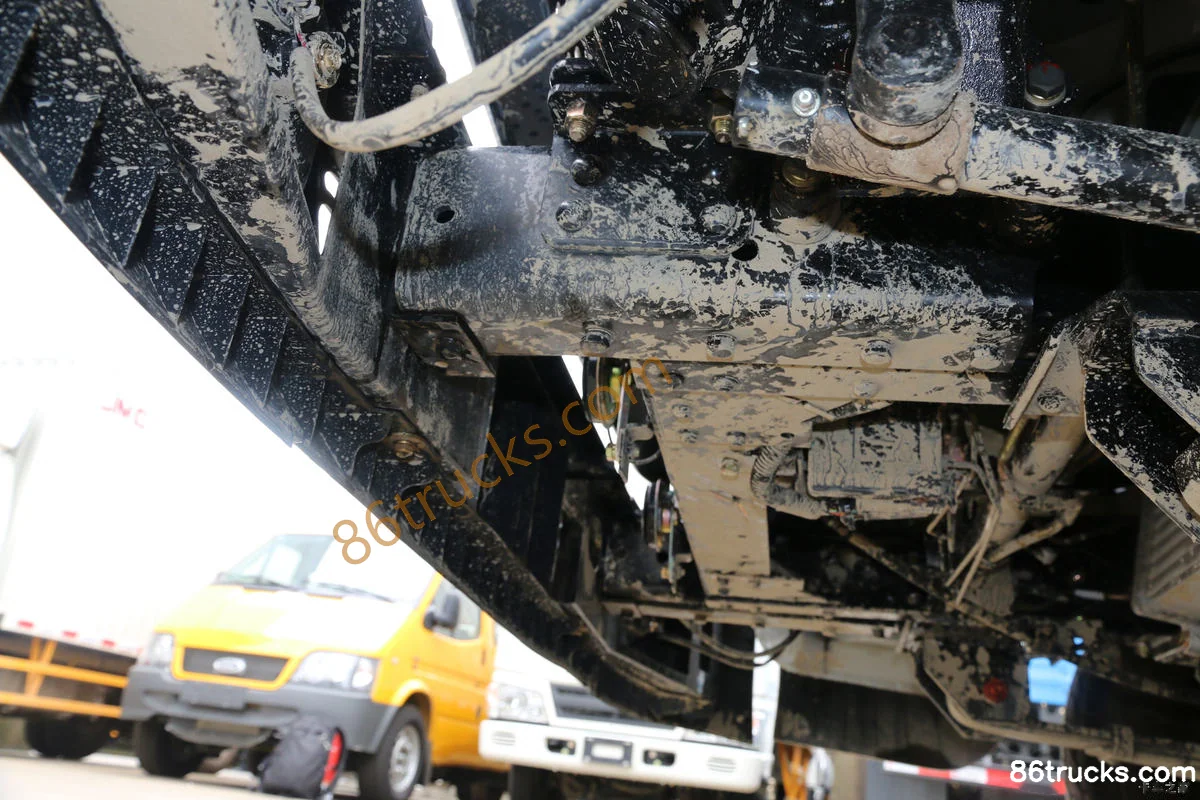

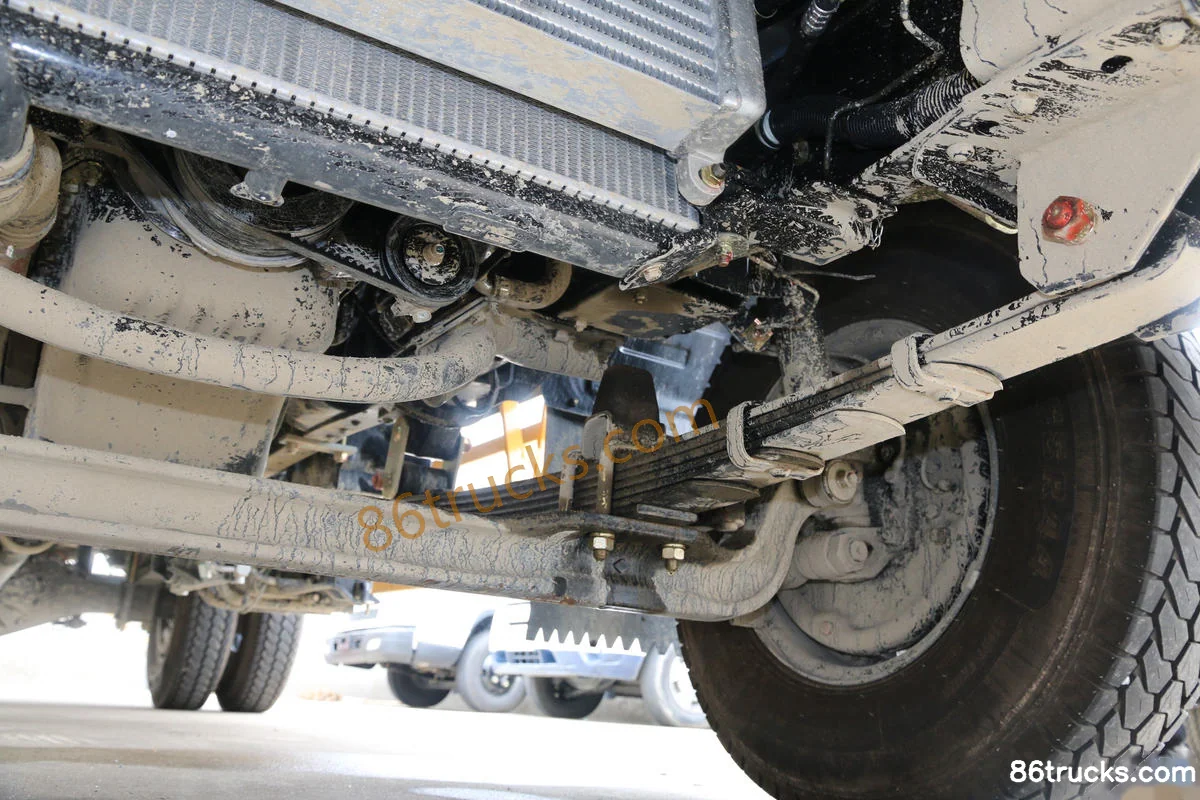

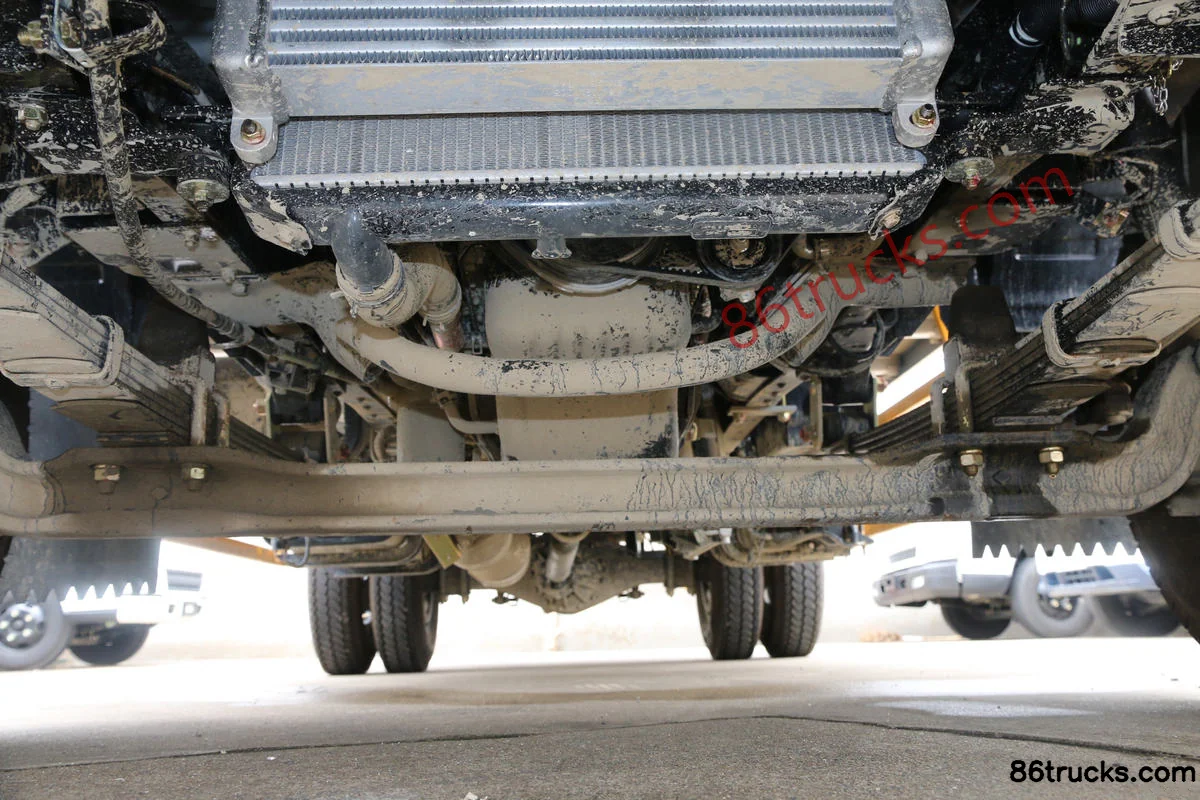

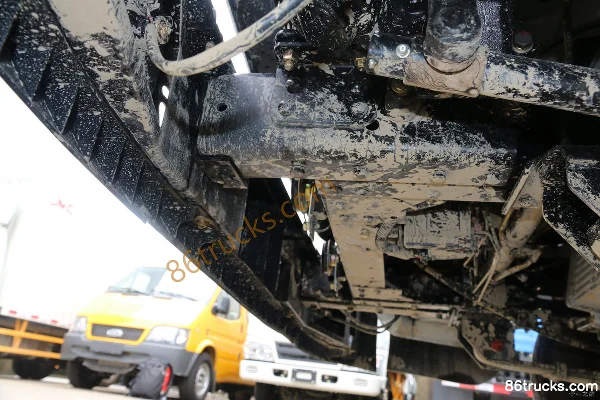

Chassis3

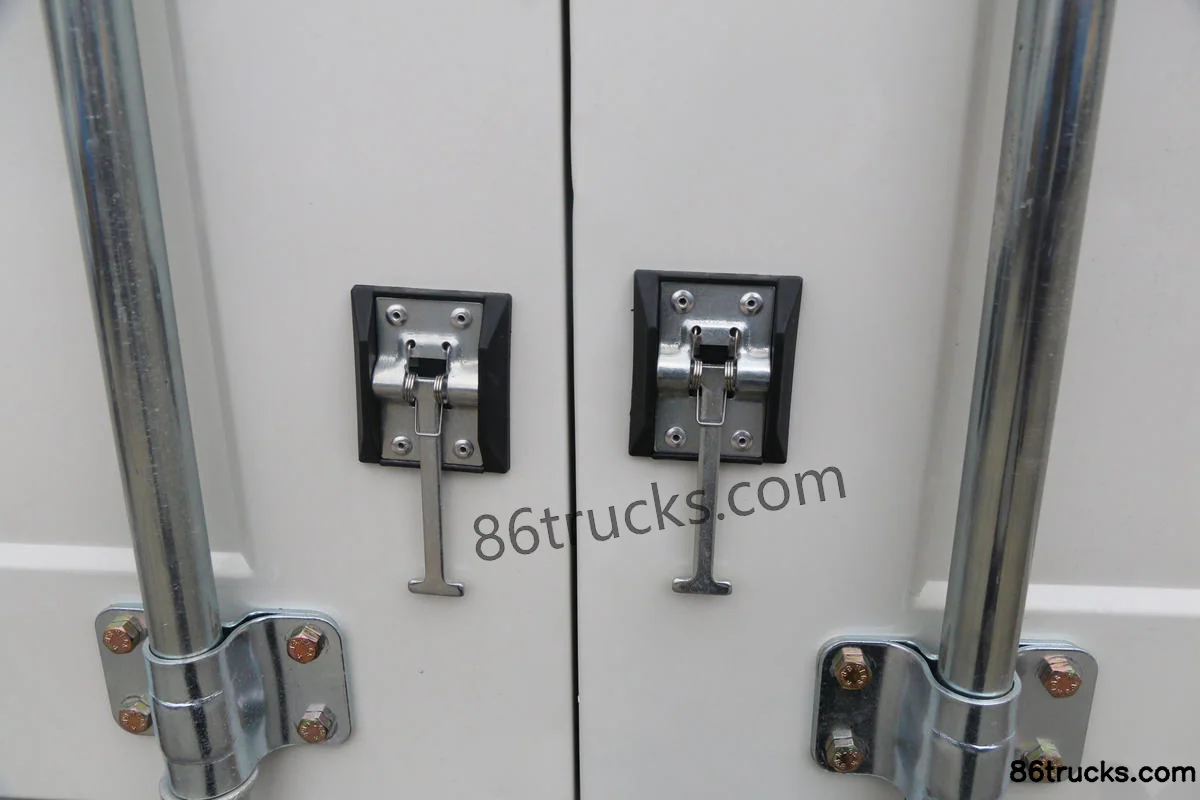

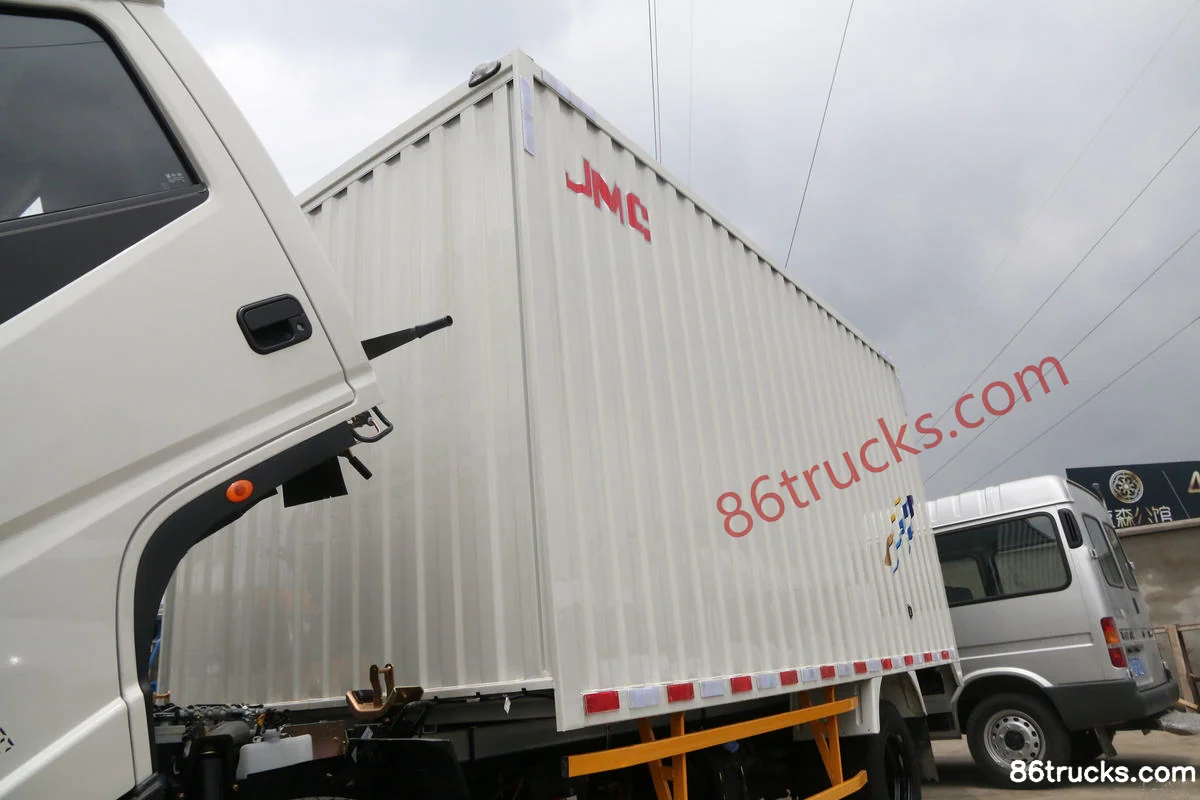

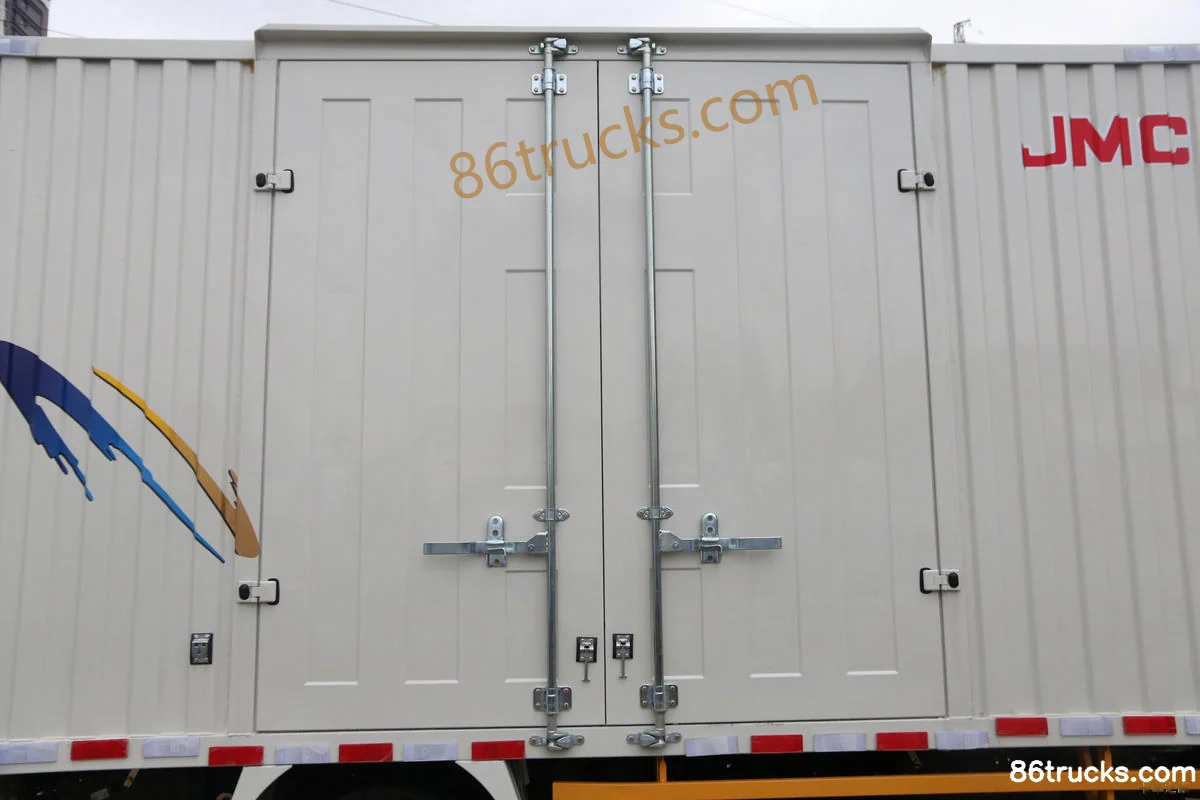

Body3

12 photos

FAQ

What emission standard does JMC New Kaiyun 116 hp 4X2(6 wheels) 4m Single Row Van Light Truck (Wide Body) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC New Kaiyun 116 hp 4X2(6 wheels) 4m Single Row Van Light Truck (Wide Body)?

Key specs of JMC New Kaiyun 116 hp 4X2(6 wheels) 4m Single Row Van Light Truck (Wide Body): Drive: 4x2; Horsepower: 116 hp; Emission: China V; Fuel: Diesel; Engine: JMC493; Transmission: JMC. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC New Kaiyun 116 hp 4X2(6 wheels) 4m Single Row Van Light Truck (Wide Body) suited for?

JMC New Kaiyun 116 hp 4X2(6 wheels) 4m Single Row Van Light Truck (Wide Body) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JMC New Kaiyun 116 hp 4X2(6 wheels) 4m Single Row Van Light Truck (Wide Body) differ from other variants in the same series?

JMC New Kaiyun 116 hp 4X2(6 wheels) 4m Single Row Van Light Truck (Wide Body) belongs to JMC New Kaiyun Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC New Kaiyun 116 hp 4X2(6 wheels) 4m Single Row Van Light Truck (Wide Body)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC New Kaiyun 116 hp 4X2(6 wheels) 4m Single Row Van Light Truck (Wide Body)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
